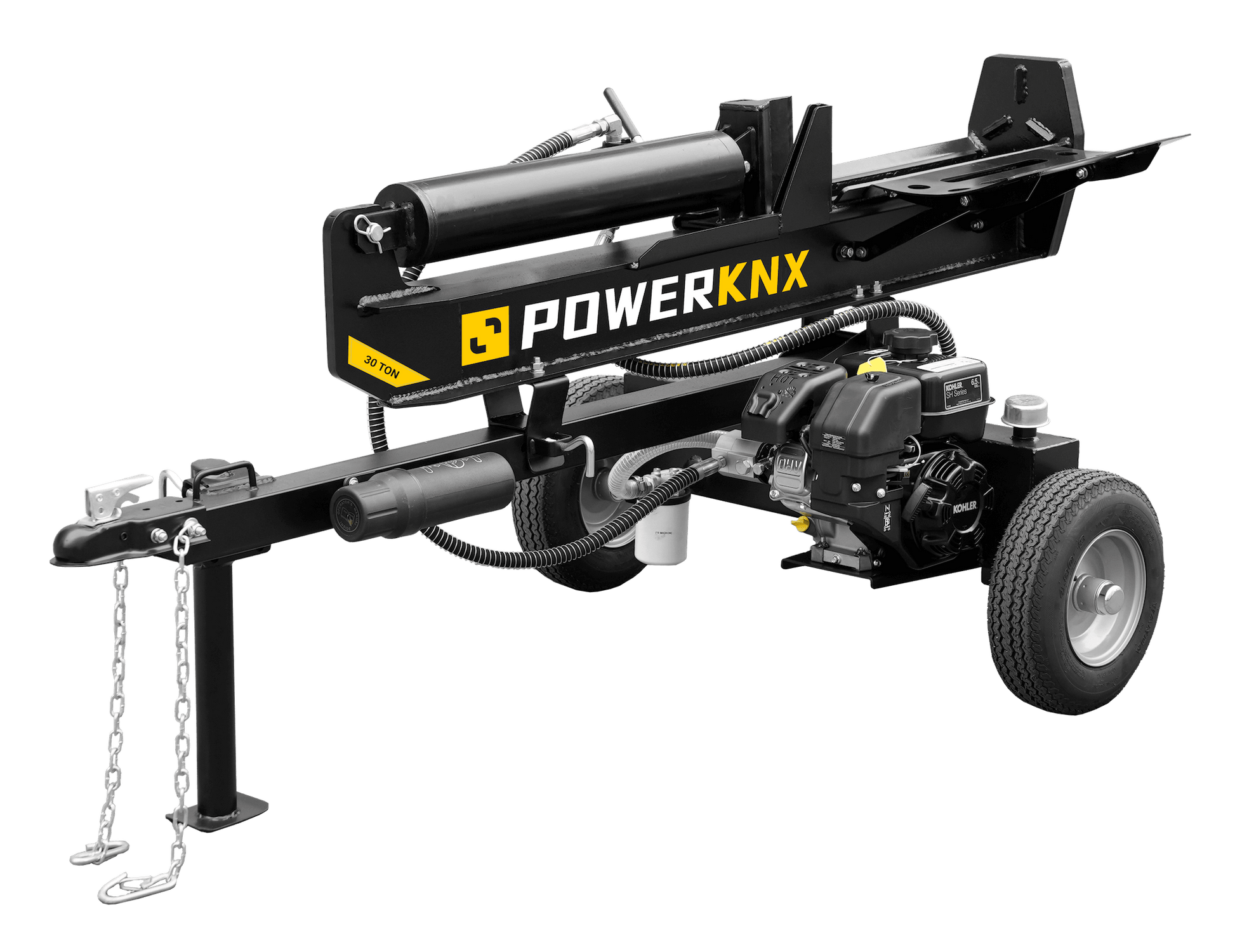

POWERKNX 30-Ton Vertical/Horizontal Gas Log Splitter - 31-401
POWERKNX is based in Colorado and their parent company has been distributing and manufacturing outdoor power equipment for decades.
Optional Cover: Protect your log splitter with a cover! This heavy duty cover will keep your splitter out of the elements, and ready for work! This log splitter cover is manufactured with PVC coated polyester to shield from water, UV, mildew and extreme temperatures. Made of a higher grade material than cheaper models and has draw string at the bottom to cinch up tight. Cover is optional for an extra fee, only available in black.
Fluids are not included with this log splitter. Some images may show the log splitter with optional accessories which are not included with the log splitter.
Please note about residential / lift gate delivery: You must select the $75 lift gate option if you can't unload the 500+ LBS crate off the freight truck.
You will not have to pay the $75 charge if you can ship to a business and you can unload the crate off the back of the freight truck. Shipping to a business is your best choice if possible saving you $75.
These deliveries are "curb-side" only, please read the details about curb-side, lift gate and residential freight deliveries.
This log splitter may have a limited delivery area.
If you would like to check ahead of time please email us or we will tell you after order if there is limitations.
Features
-
Maximum Splitting Force: 30 Tons
-
Engine: Briggs & Stratton 7HP 250cc XR1150
-
Maximum Log Length: 25"
-
Cycle Time: 13.3 Seconds (Up & Down)
-
Cylinder: 4.5" Diameter x24 Stroke
-
Pump: 2-Stage 17.4GPM
-
Hydraulic Capacity: 6.5 Gallons Max. System, 5 Gallons Operational
-
Wedge: 8" Hight Heat-Treated Steel
-
Beam: 8" Foot Plate
-
Valve: Auto-Return with Adjustable Detent
-
Wheels: D.O.T. Approved 16" O.D. Road Tires
-
Coupler: 2" Ball with Safety Chains
-
Log Catcher: Included
-
Accessories: 4-Way Wedge
-
Replacement Filters: Return Filter & Suction Screen
-
Warranty: 3-Year / 2-Year / 1-Year Limited
-
Weight: 461 Lbs
Documentation
Owners manual
What our Experts Think
-
Robust 30‑ton splitting force — Generates up to 30 tons (≈60,000 lbs) of hydraulic splitting pressure, powerful enough to cleave seasoned hardwoods and dense logs with ease.
-
Reliable Briggs & Stratton 7 HP engine — Equipped with a trusted Briggs & Stratton XR1150 250 cc gas engine that delivers consistent power and performance outdoors without electrical constraints.
-
Dual‑position versatility — Easily converts between horizontal and vertical operation, letting you split logs on the ground or in an upright orientation to reduce heavy lifting.
-
Efficient cycle & workflow features — Approximate 13.3‑second splitting cycle, auto‑return valve, included log catcher, and 4‑way wedge boost productivity and simplify repetitive splitting tasks.
-
Tow‑ready design & rugged build — DOT‑approved 16″ road tires, a 2″ ball coupler with safety chains, and a durable hydraulic system make it practical to move around large properties or job sites.
Q&A
Q1: What is the POWERKNX 31‑401 log splitter?
A1: A heavy‑duty towable gas‑powered log splitter with 30 tons of splitting force, designed to split logs in both horizontal and vertical positions for ease of use.
Q2: What engine and power does it have?
A2: Powered by a Briggs & Stratton 7 HP 250 cc XR1150 gas engine, delivering reliable torque for tough splitting tasks.
Q3: What are the splitting specs?
A3: Offers a 30‑ton maximum splitting force, handles logs up to 25″ long, and completes a split in about 13.3 seconds (up & down).
Q4: What features help with operation?
A4: Includes a 4‑way wedge, auto‑return valve with adjustable detent, log catcher, DOT‑approved 16″ road tires, and a 2″ ball coupler with safety chains for easy towing.
Q5: What’s included and support info?
A5: Comes with replacement return filters and suction screen, and a limited warranty (typically 3‑year/2‑year/1‑year depending on component).
Q6: Who is this log splitter best for?
A6: Ideal for homeowners, landowners, and woodlot managers who need a robust, portable gas splitter for firewood prep and heavy‑duty wood splitting.
Maintenance Tips
-
Check fluid levels before every use: Verify engine oil and hydraulic oil are at proper levels to protect internal parts and ensure smooth splitting.
-
Clean debris regularly: Remove wood chips, bark and dirt from the beam, wedge area, and engine/muffler to prevent buildup and reduce fire hazards.
-
Inspect hydraulic components: Check hoses, fittings, seals, and clamps for leaks, cracks or wear — tighten or replace as needed to maintain pressure and safety.
-
Lubricate moving parts: Apply light oil to pivot points, bearings, and the beam slide area to reduce friction and keep components moving smoothly (best practice).
-
Tighten fasteners: Before use, check and tighten all nuts, bolts and hitch hardware to prevent loosening during operation.
-
Warm up in cold weather: If hydraulic oil is cold (<10 °F / –12 °C), cycle the ram slowly several times to warm fluid before splitting to avoid pump strain.
-
Protect from the elements: Store the splitter in a dry, covered area when not in use; consider a weather‑resistant cover to reduce corrosion and prolong life.
-
Periodic engine care: Change engine oil and air filter per manufacturer schedule; fresh fuel and spark plug checks improve starting and performance (standard gasoline engine practice)
