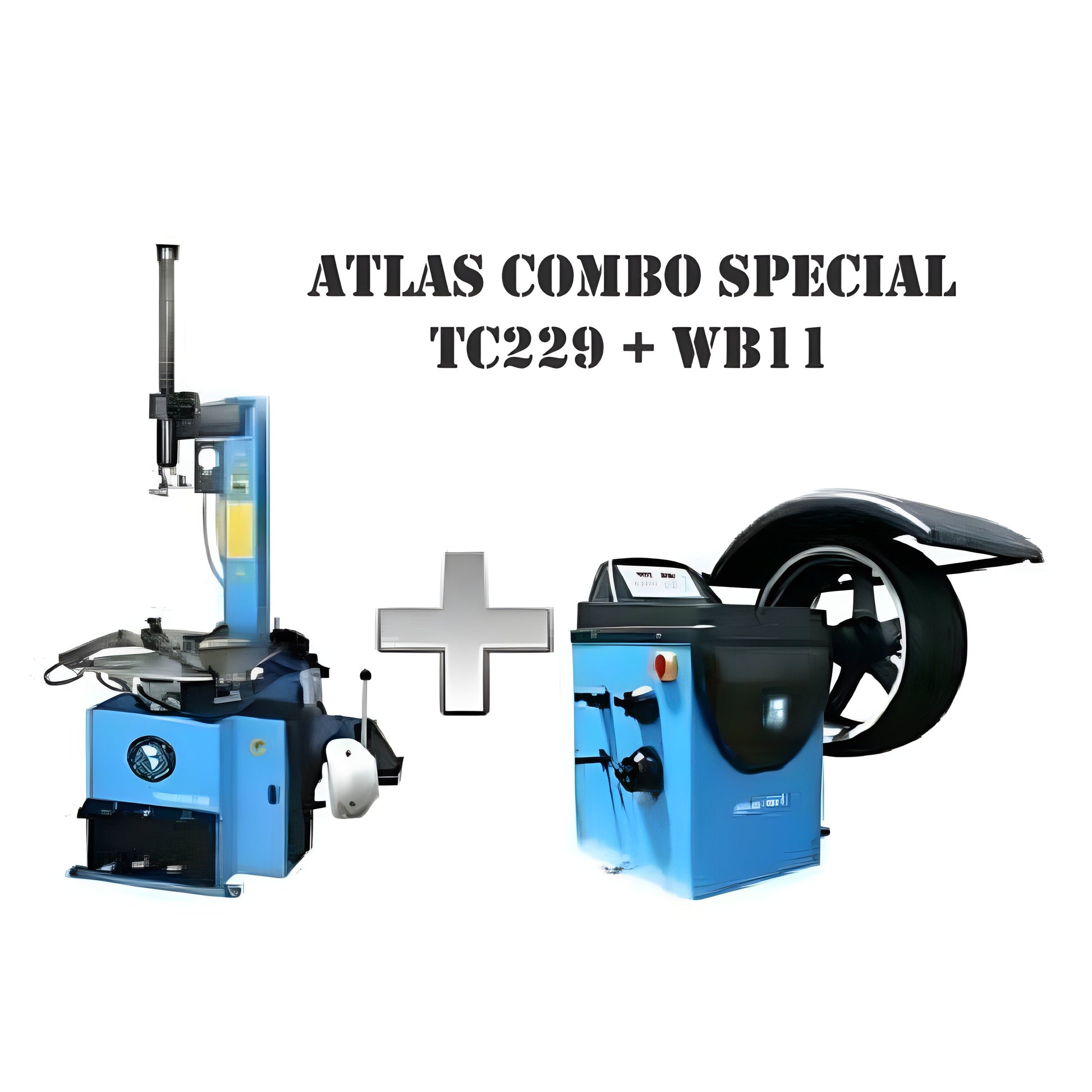

Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package - ATETCWB-COMBO1-FPD
This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas WB11 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas
Features

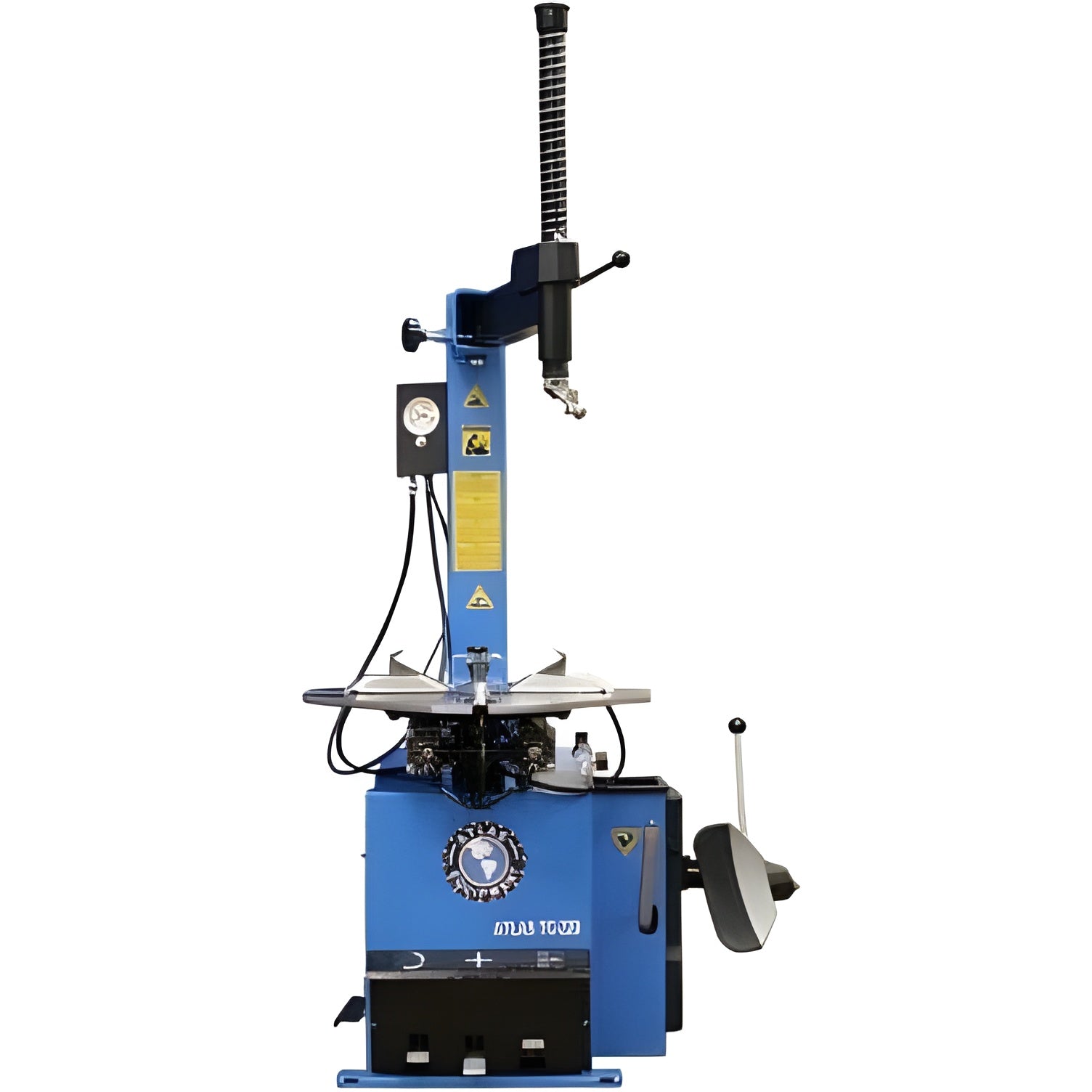

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

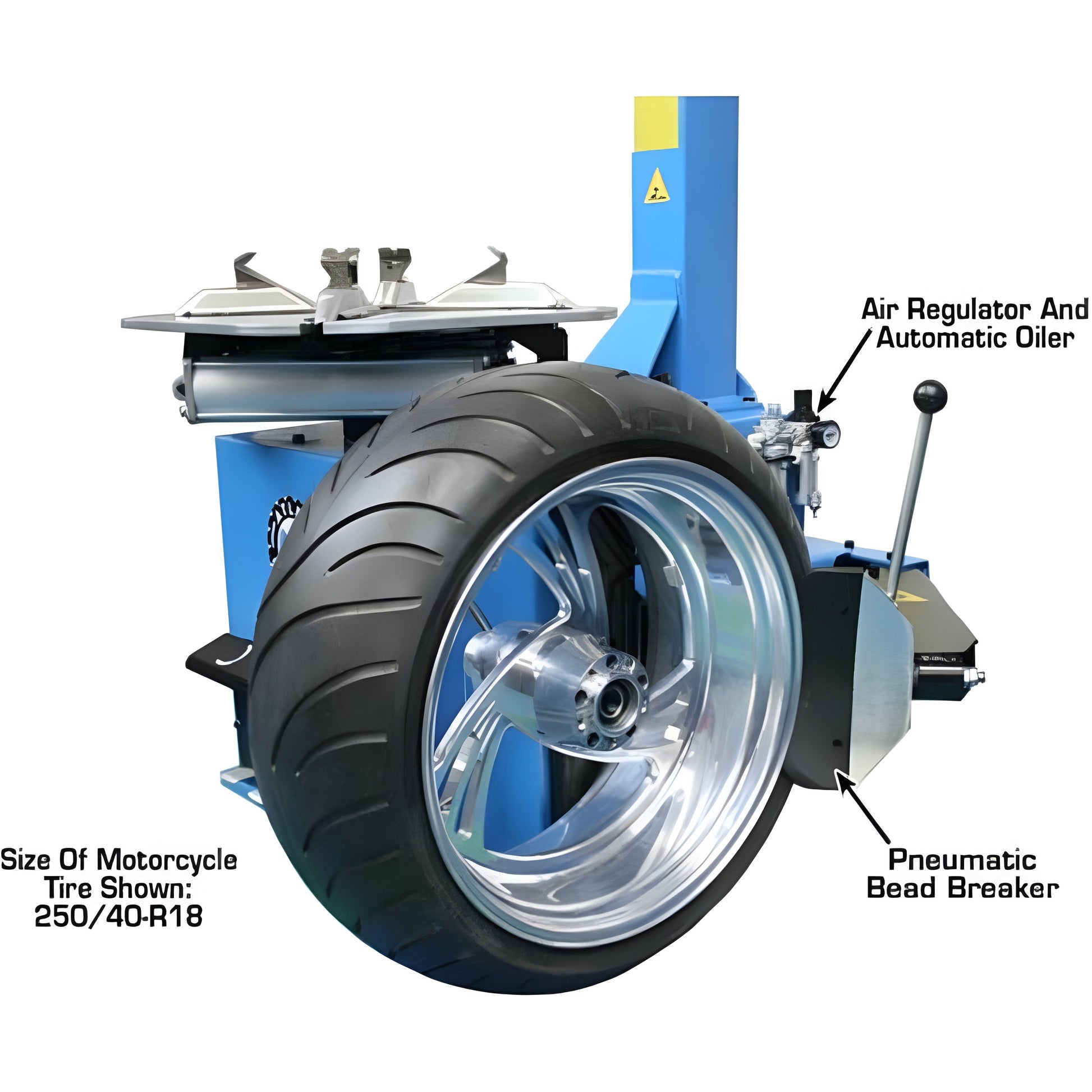

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

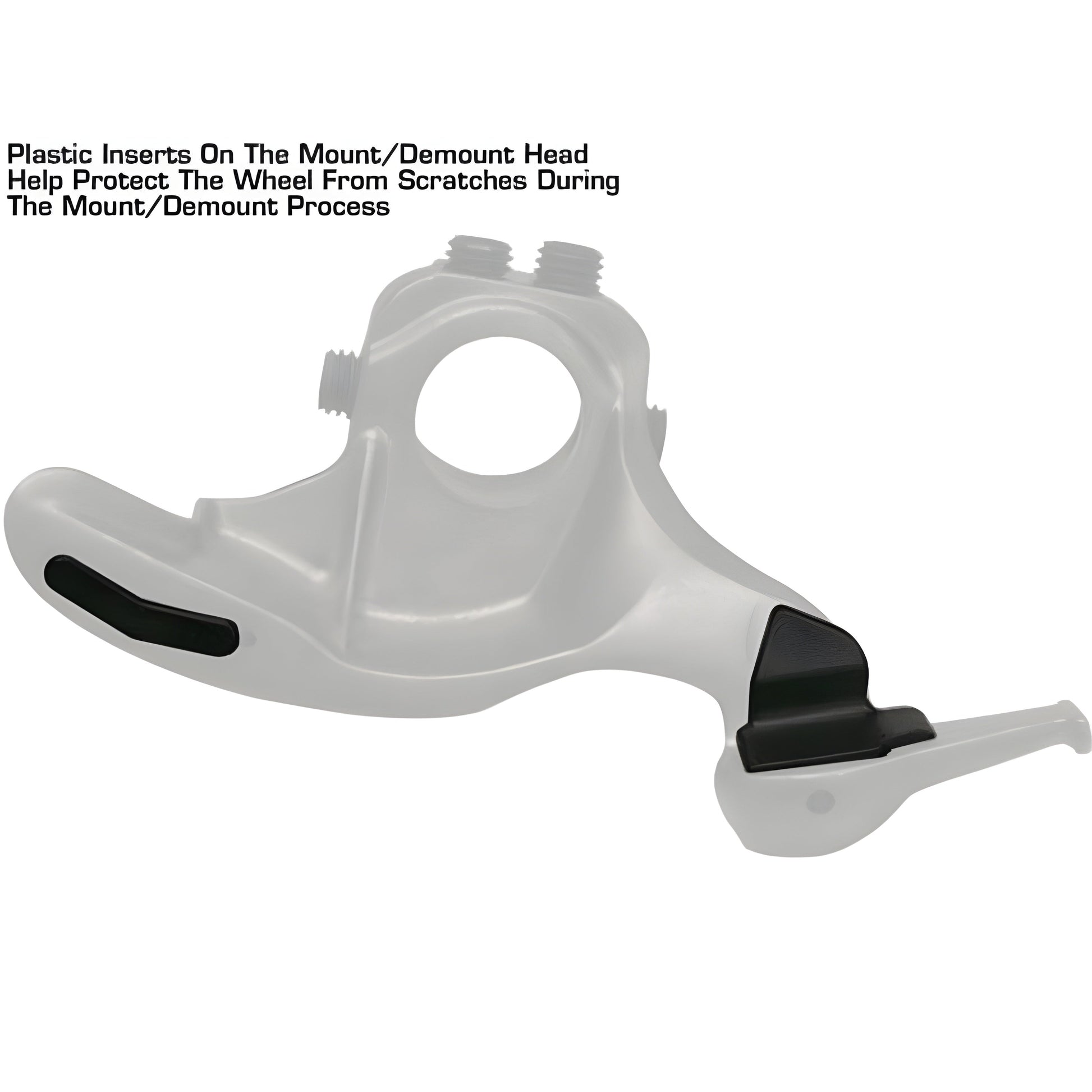

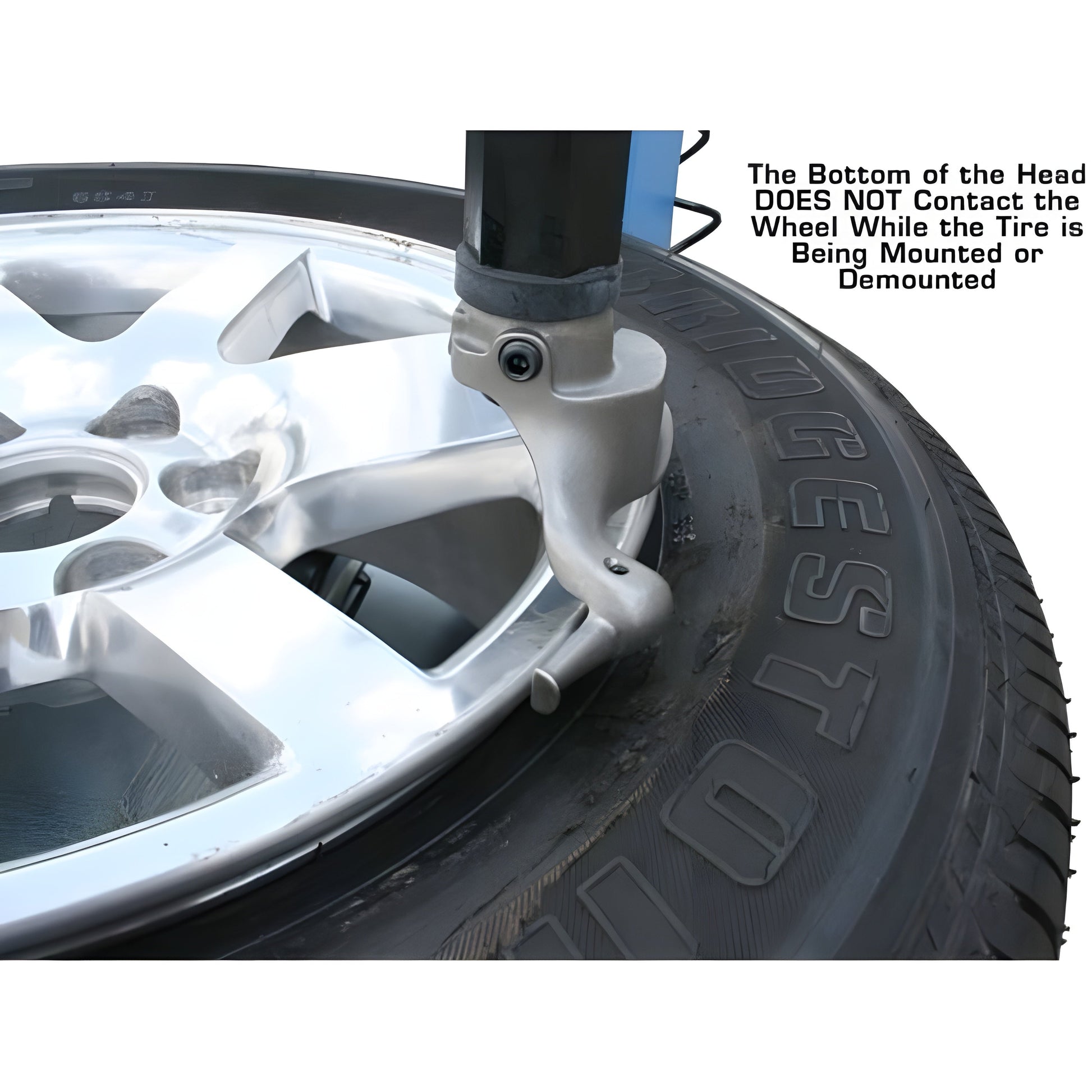

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

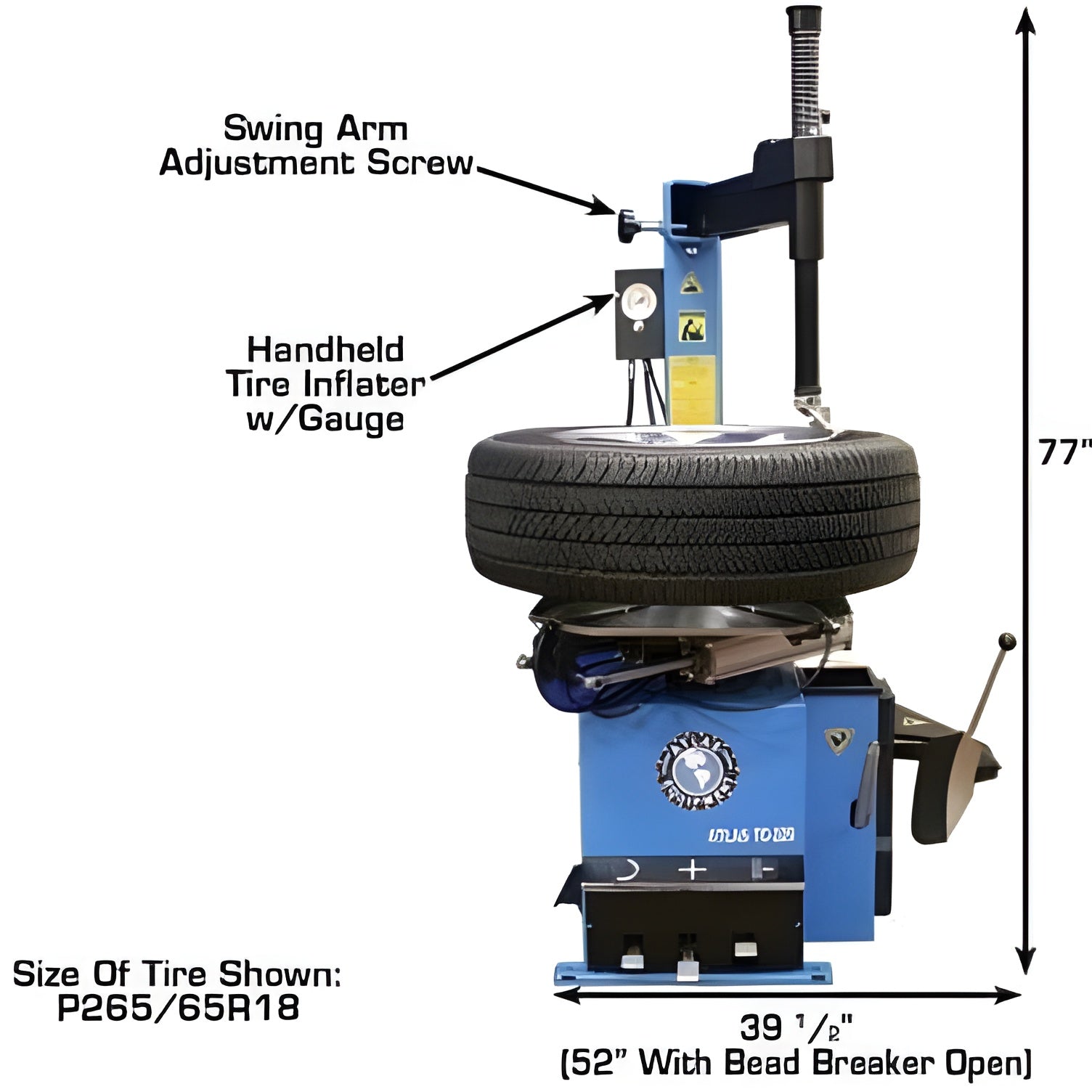

- Column mounted inflator box w/ gauge Included

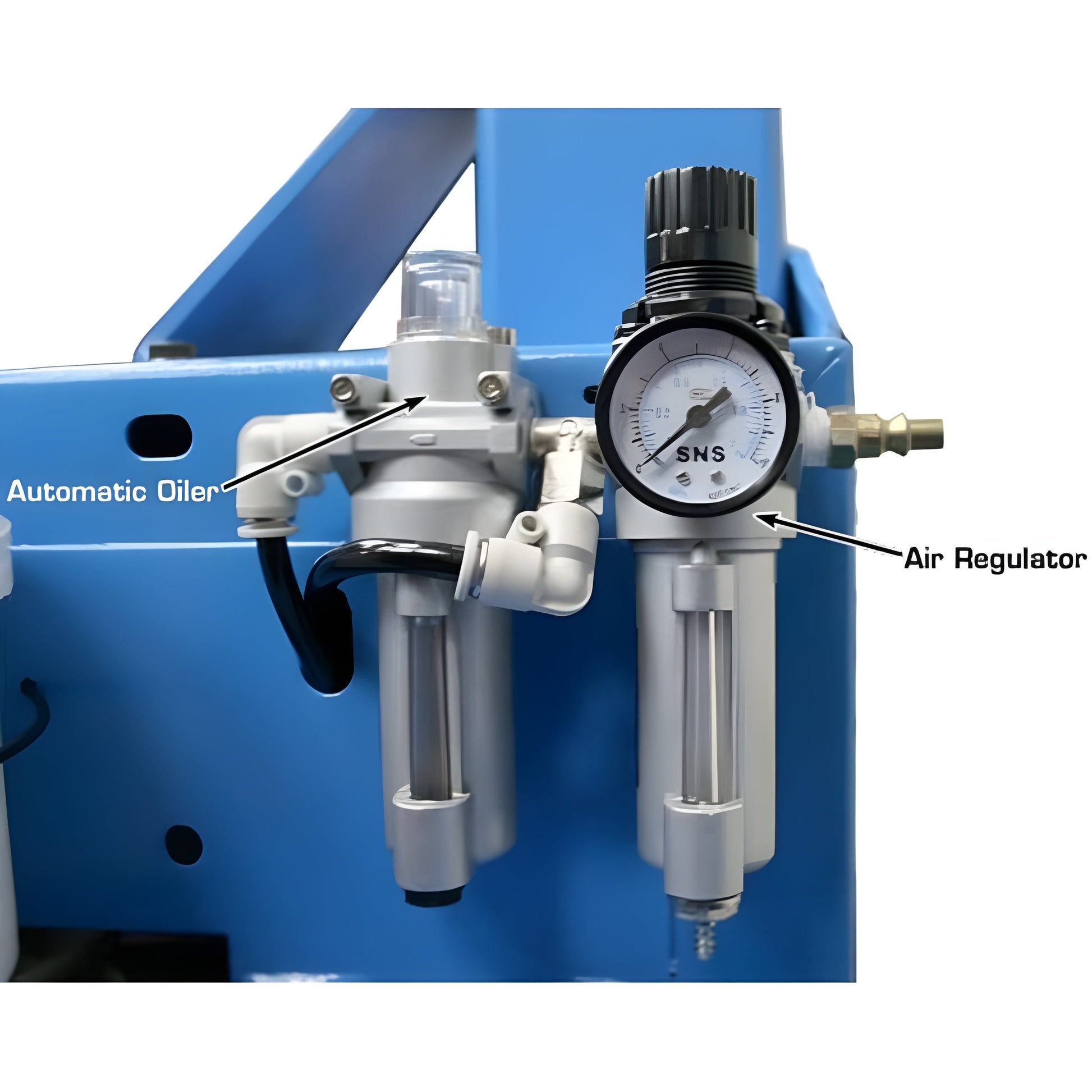

- Filter/Regulator/Lubricator Included

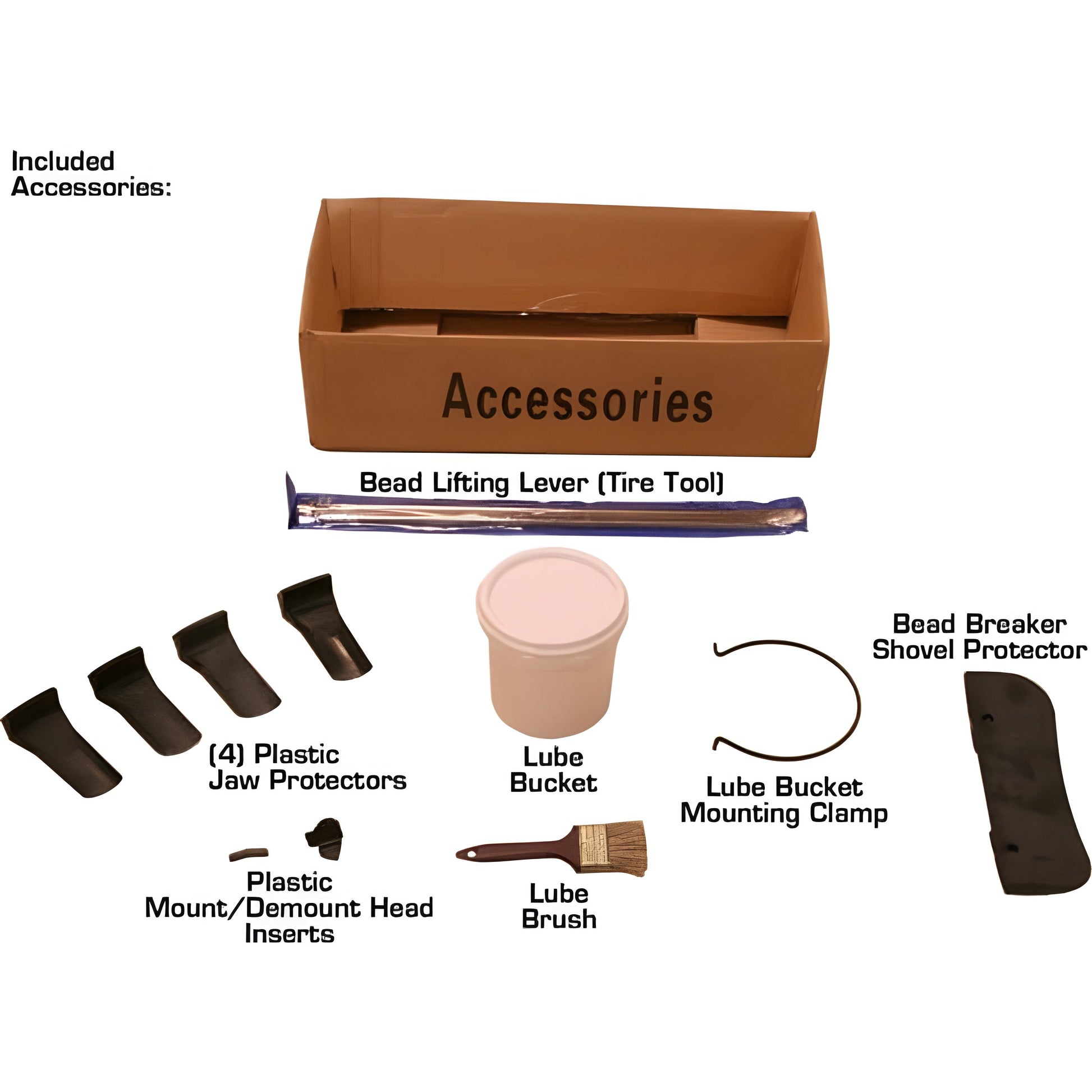

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

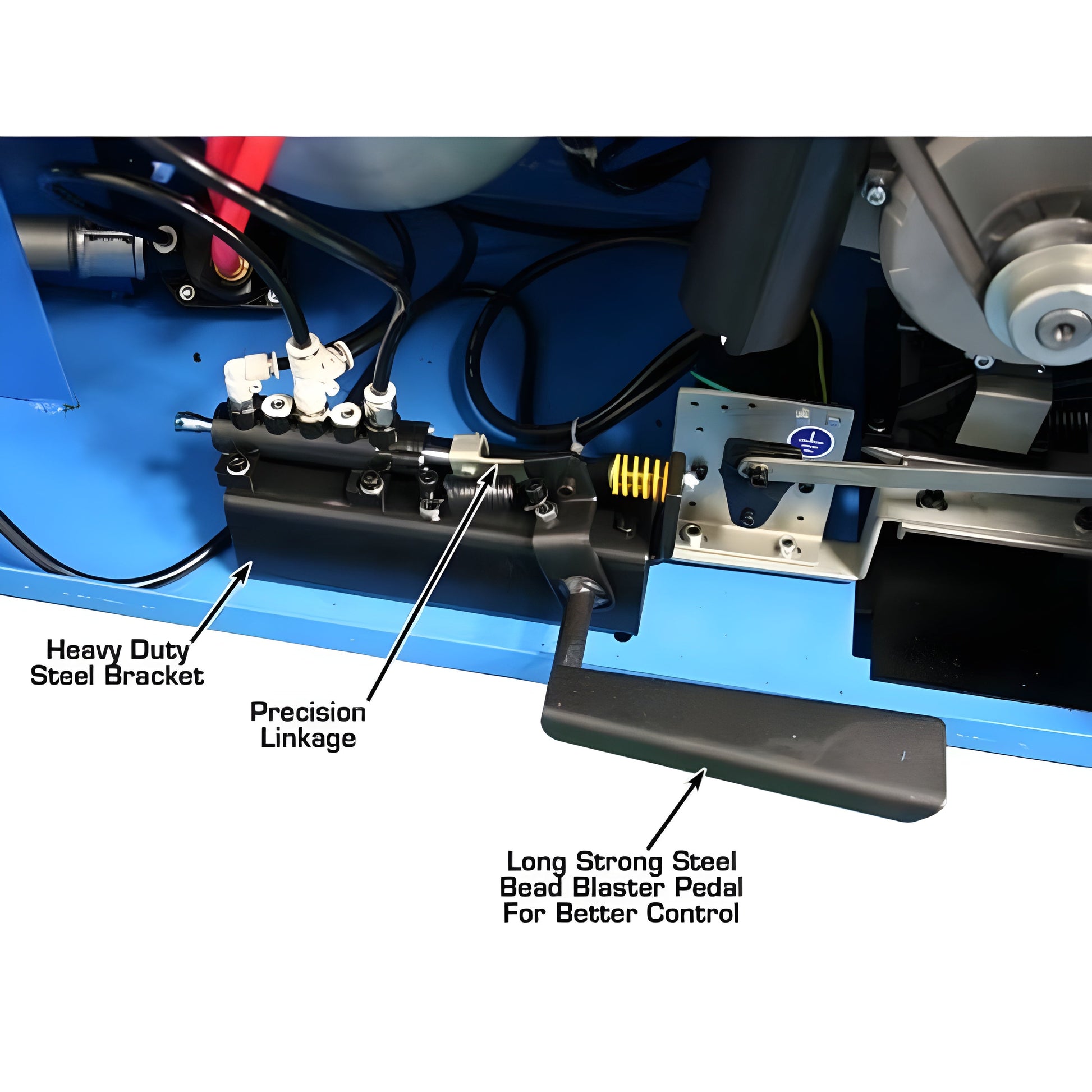

- Built in “Beadblaster”

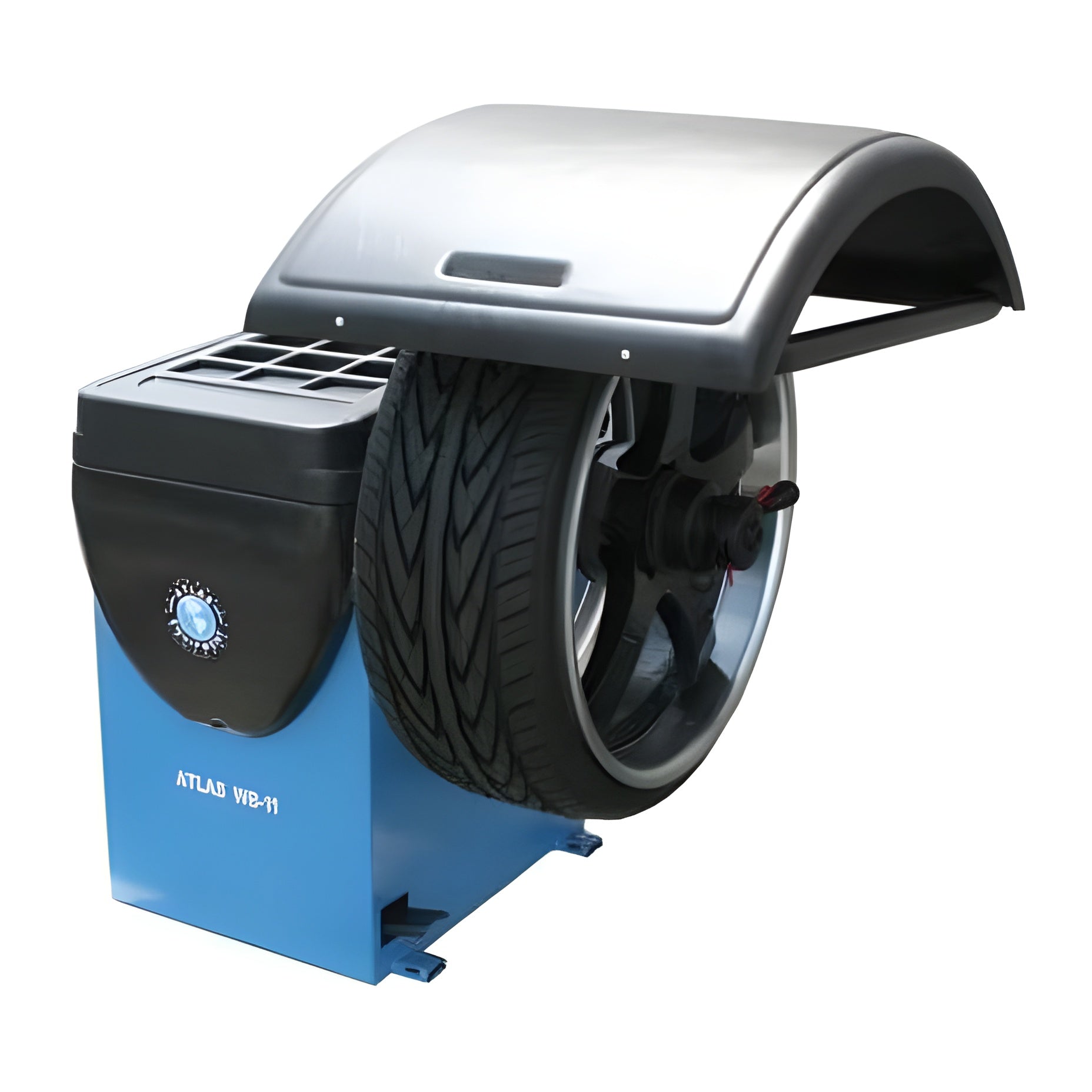

WB11 Wheel Balancer
- Computer Controlled Motorized Spin Balancer
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Caliper
Specifications
| Rims |
Steel, Aluminum, Alloy |

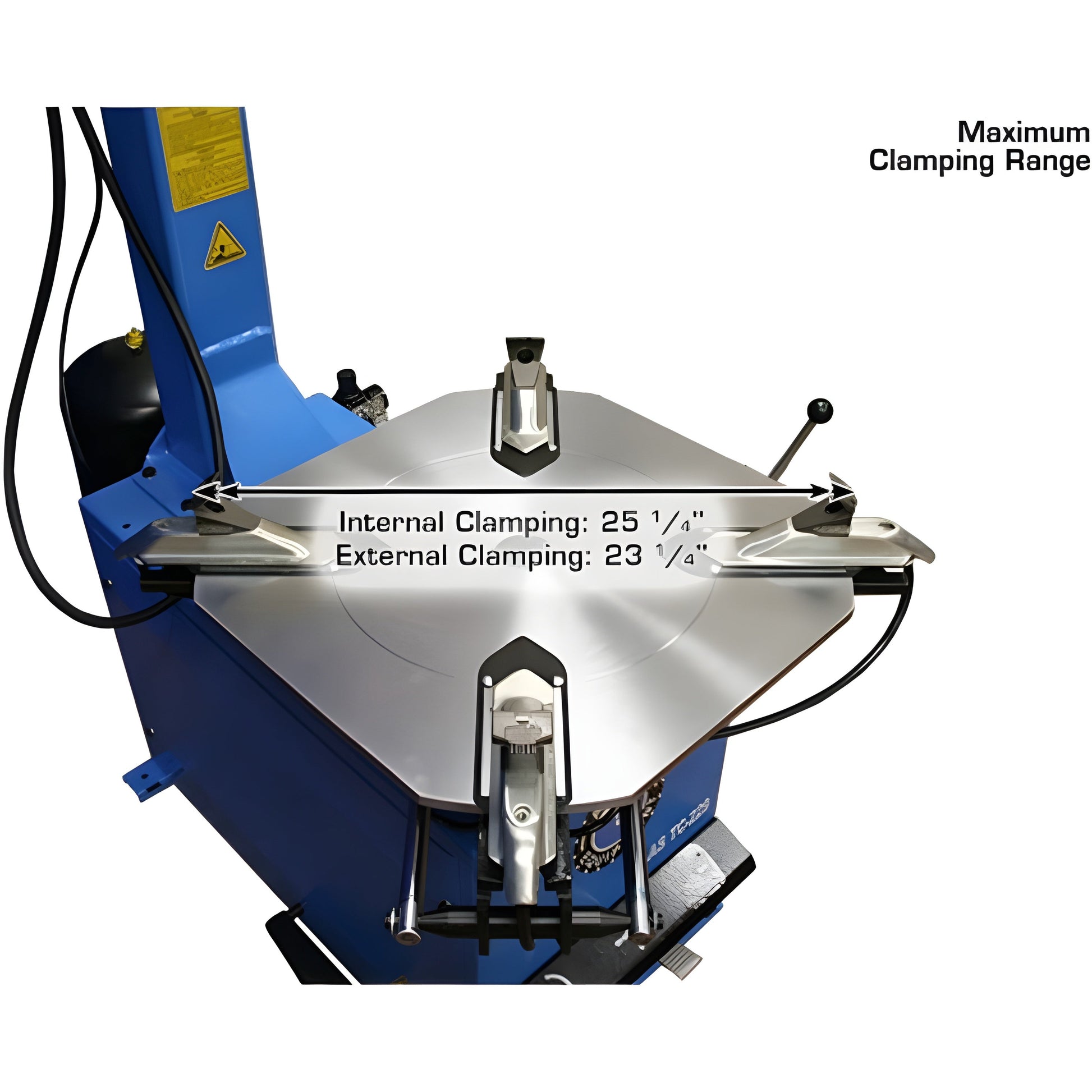

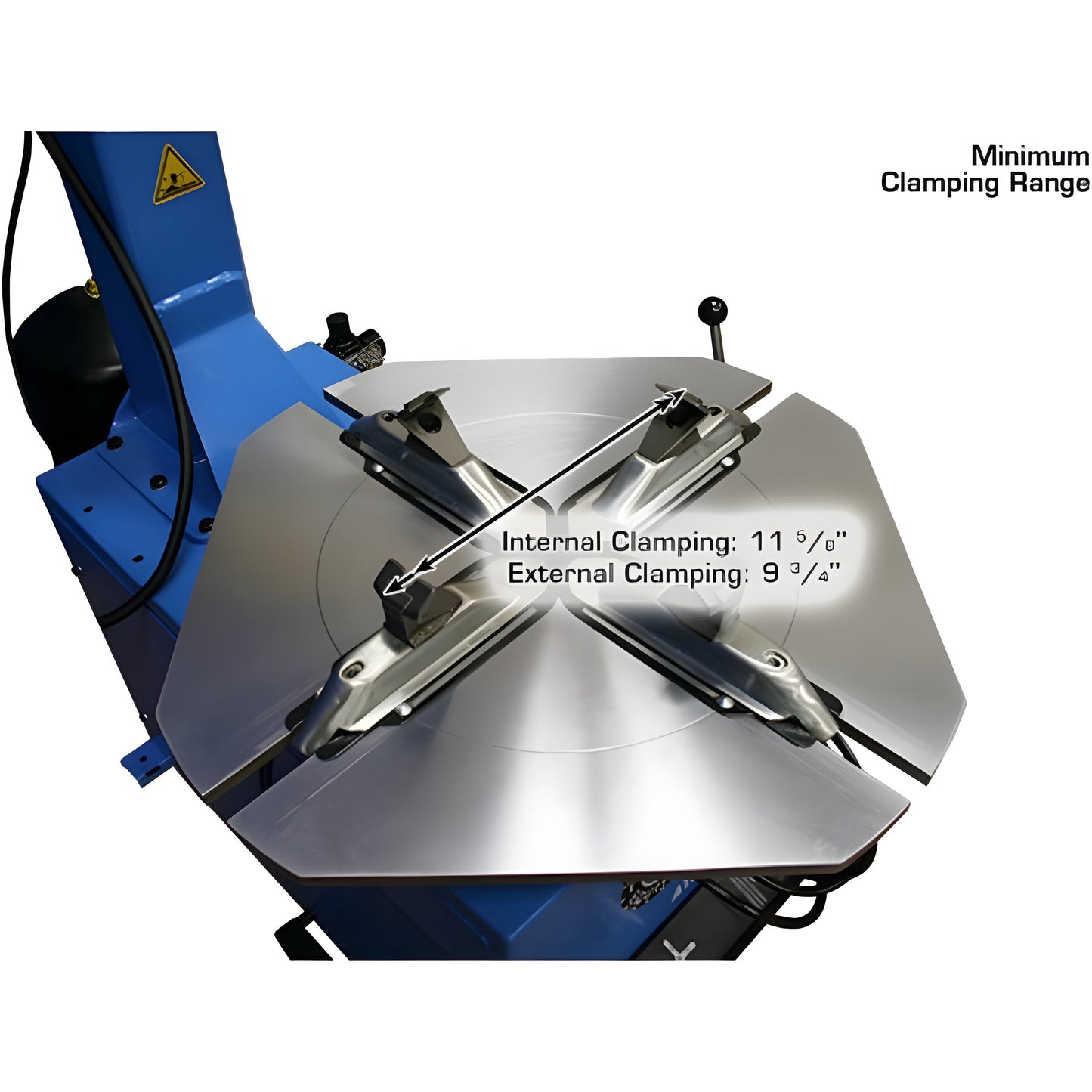

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

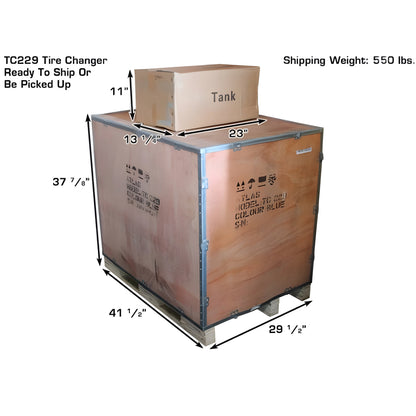

| Shipping Weight |
550 lbs. |
| Atlas® WB11 Specifications |
|
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB11 Manual
What our Expect Think
-
Complete Tire Service Solution – The Atlas TC229 Tire Changer combined with the WB11 Wheel Balancer offers a comprehensive solution for high-quality tire changing and balancing in one package, making it ideal for automotive shops and service centers.
-
Precision & Efficiency – The TC229 Tire Changer is built with advanced features, including dual assist arms for easy and efficient tire mounting and demounting. Paired with the WB11 Wheel Balancer, it ensures precise wheel balancing for smooth rides and reduced tire wear.
-
Heavy-Duty Performance – Designed for high-volume shops, this combo package delivers heavy-duty construction that guarantees reliability and performance even with frequent tire changes and balancing tasks.
-
Cost-Effective Bundle – By purchasing this combo, you get a complete tire-changing and balancing system at a better price, ensuring a solid return on investment for any workshop.
Q&A
Q: What is included in the Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package includes:
-
Atlas TC229 Tire Changer with a powerful bead breaker, adjustable mounting head, and durable design to handle a variety of tire types efficiently.
-
Atlas WB11 Wheel Balancer, featuring a digital readout for precise wheel balancing, multiple modes for different wheel types, and automatic calibration for easy operation.
Q: Is this combo package suitable for professional use?
A: Yes, the Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package is perfect for high-volume tire shops looking for a reliable and efficient solution for both tire changes and wheel balancing.
Maintenance Tips
-
Clean Regularly – Keep both the tire changer and wheel balancer clean by wiping them down with a soft, damp cloth to remove dust, dirt, and debris. Avoid using harsh chemicals to protect the finish of the equipment.
-
Lubricate Moving Parts – Apply lubrication to the tire changer's bead breaker, mounting head, and the wheel balancer’s spindle and drive system to ensure smooth, efficient operation.
-
Inspect for Wear and Tear – Regularly inspect critical components like the tire changer’s clamps and the wheel balancer’s sensors for signs of wear or damage. Replace any worn parts to avoid performance issues.
-
Calibrate the Equipment – Ensure the wheel balancer is properly calibrated for accurate readings. Follow the manufacturer’s guidelines for calibration to maintain precision.
-
Tighten Fasteners – Check all bolts and screws periodically to ensure they are securely fastened. Loose parts can cause instability and damage over time.
-
Avoid Overloading – Do not exceed the specified weight limits for both the tire changer and wheel balancer to ensure safe operation and prevent strain on the equipment.
-
Ensure Tire Compatibility – Always ensure the tire and rim sizes are compatible with the tire changer to avoid damage to the equipment or tires.
