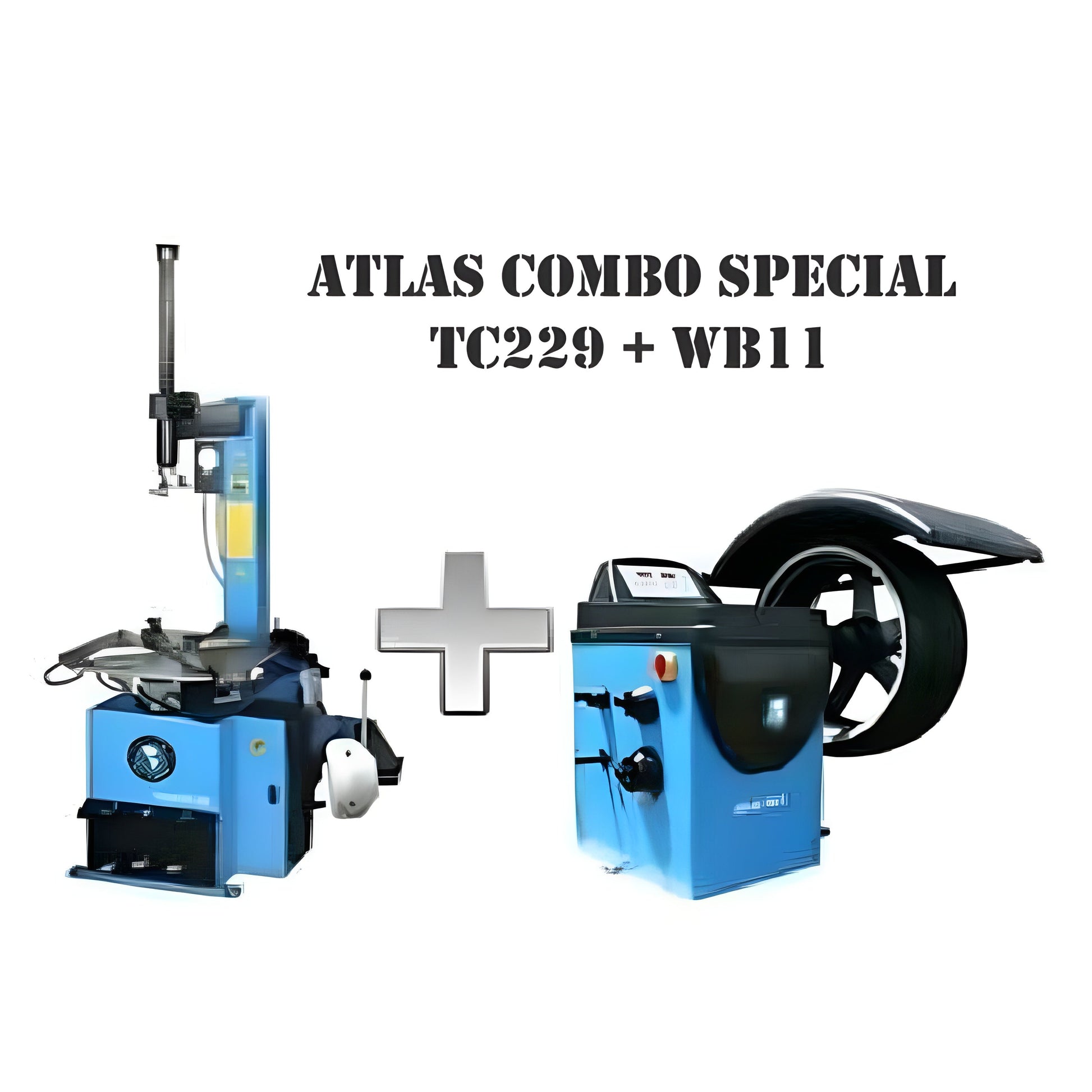

Atlas TC229 Tire Changer + WB11 Wheel Balancer Combo Package - ATETCWB-COMBO1-FPD
This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas WB11 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas
Features

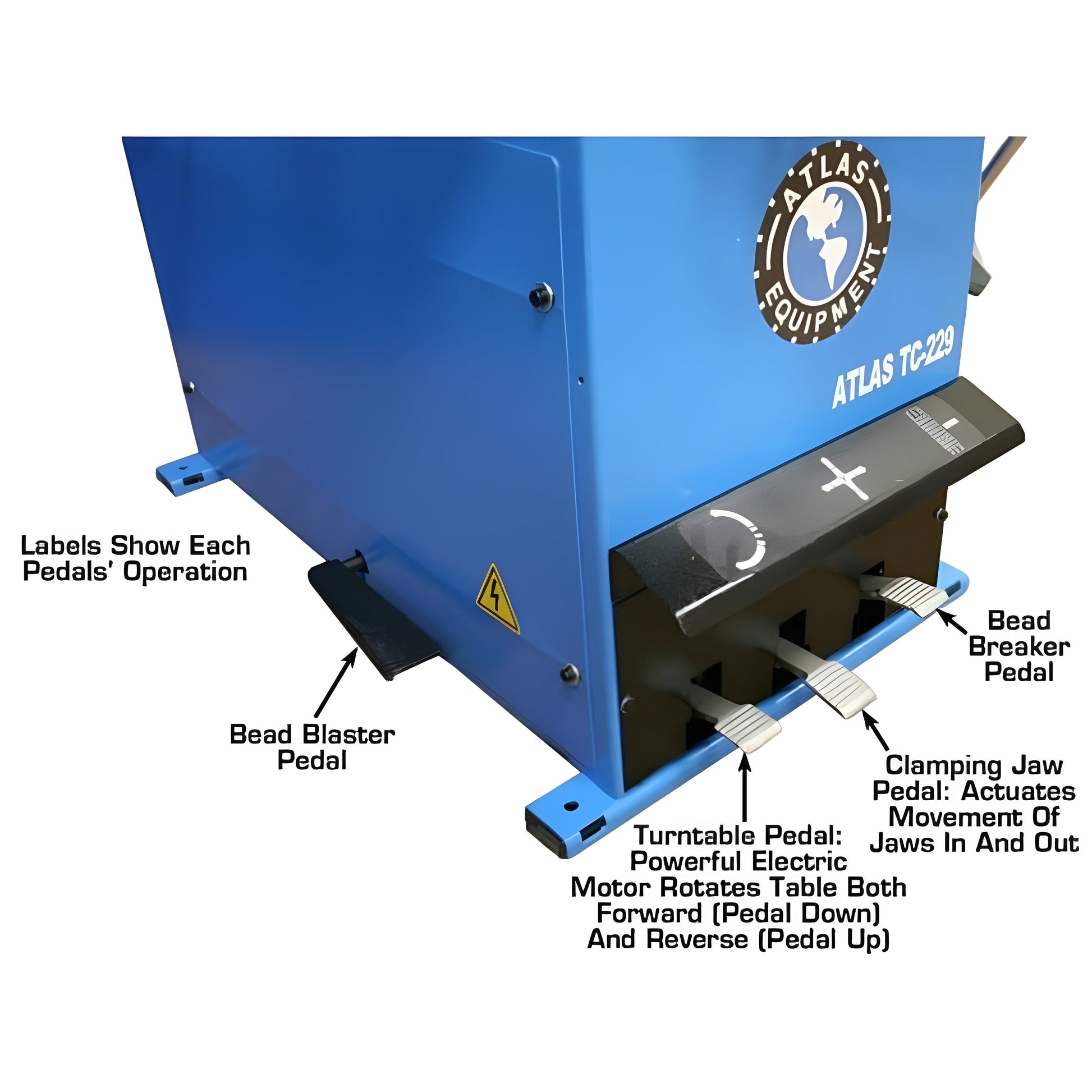

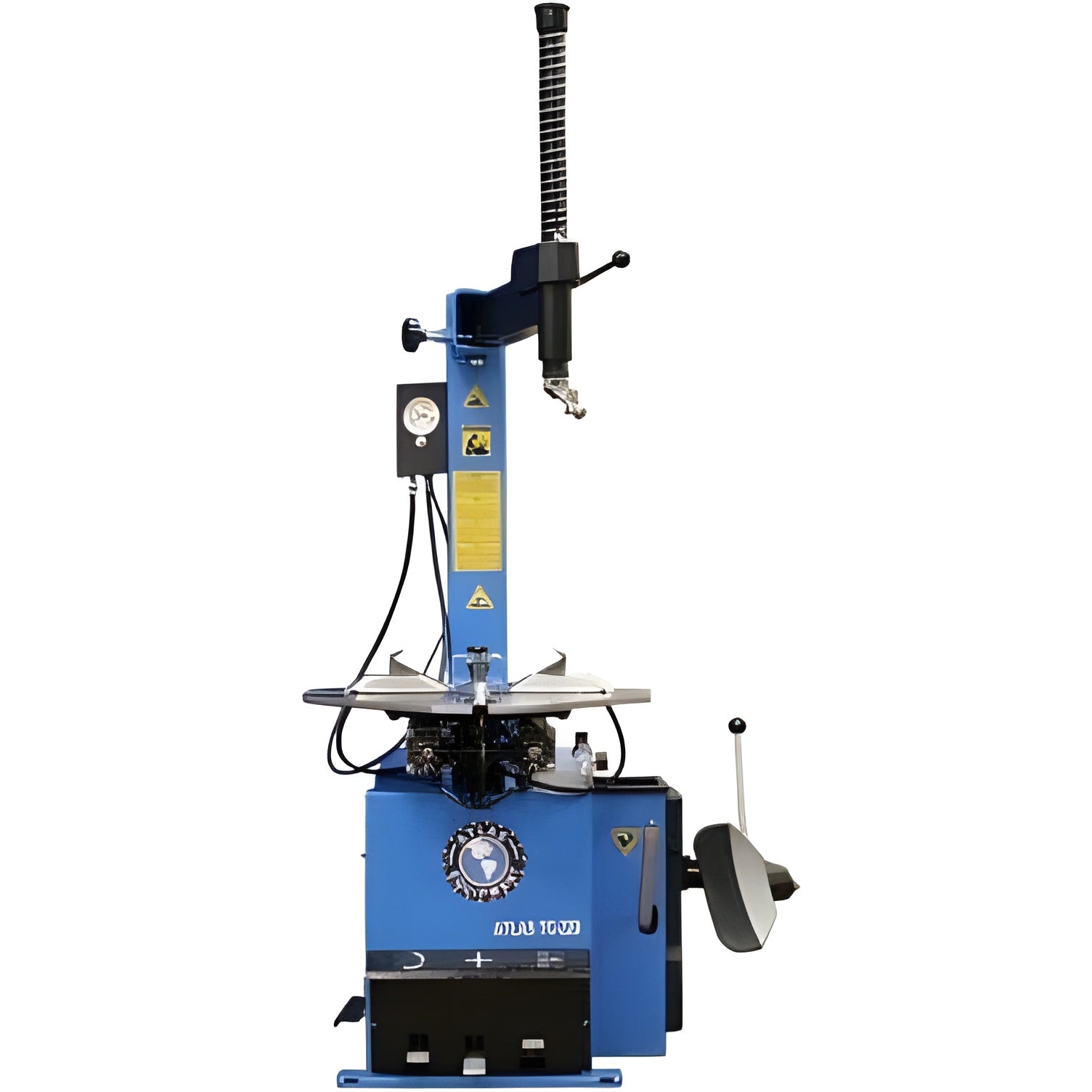

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

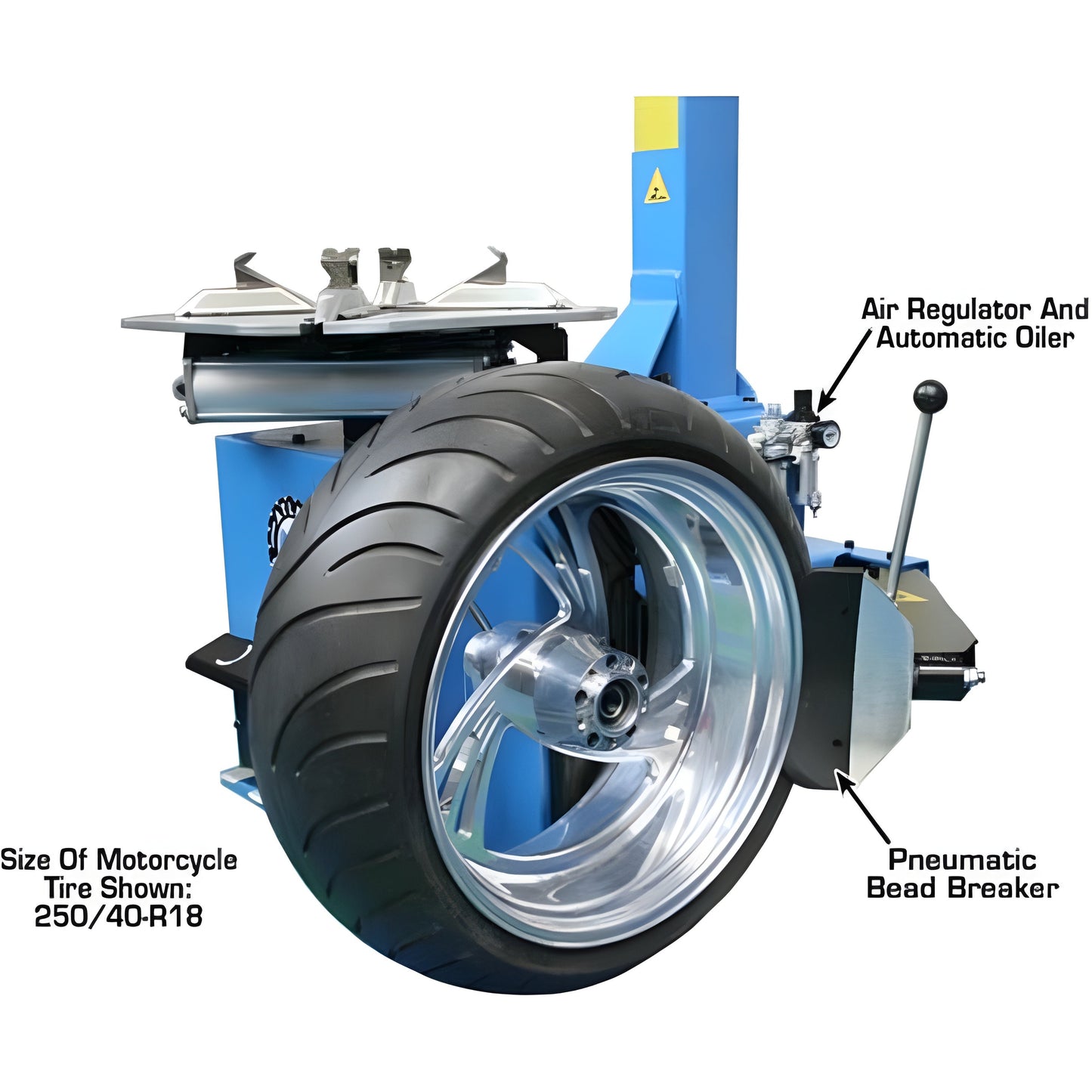

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

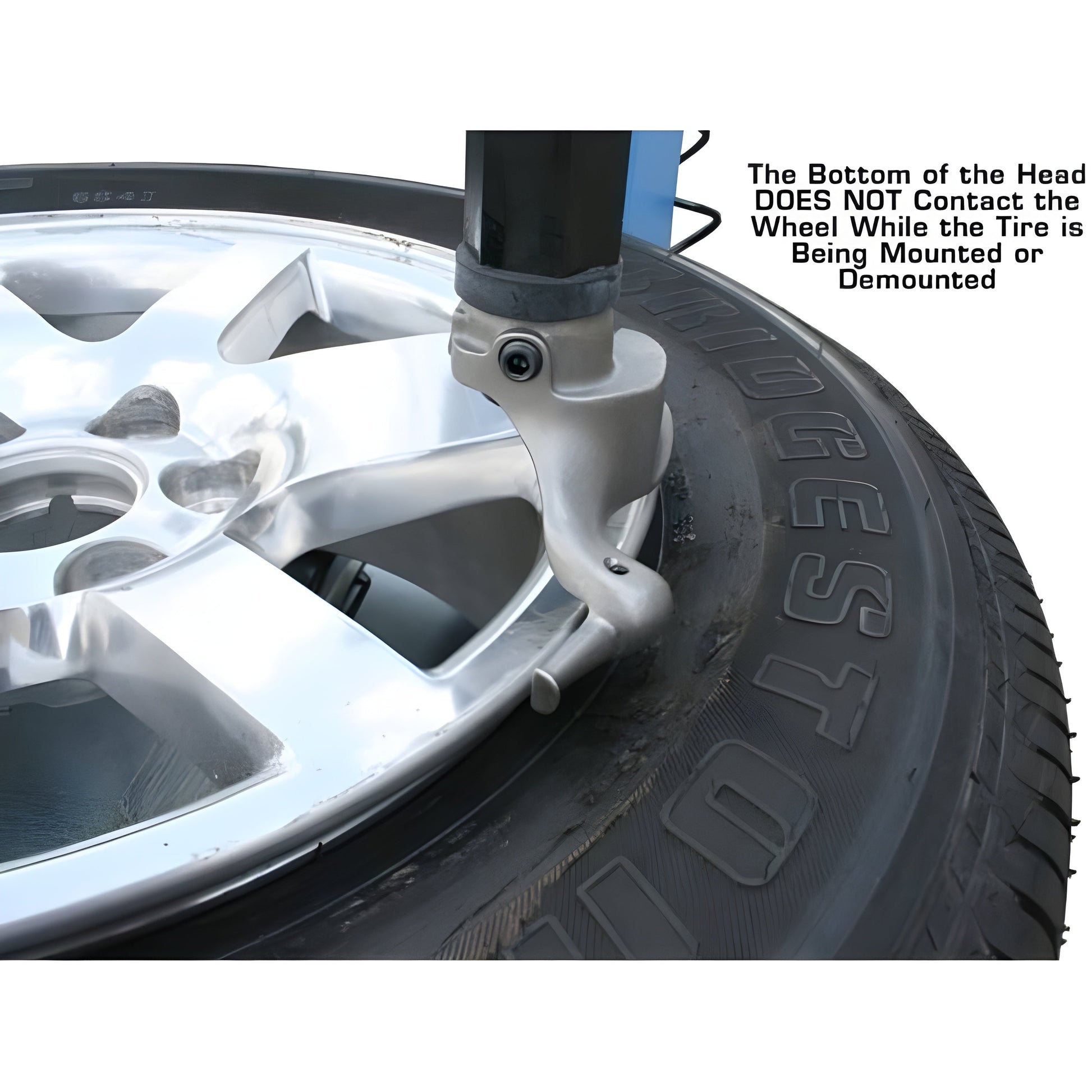

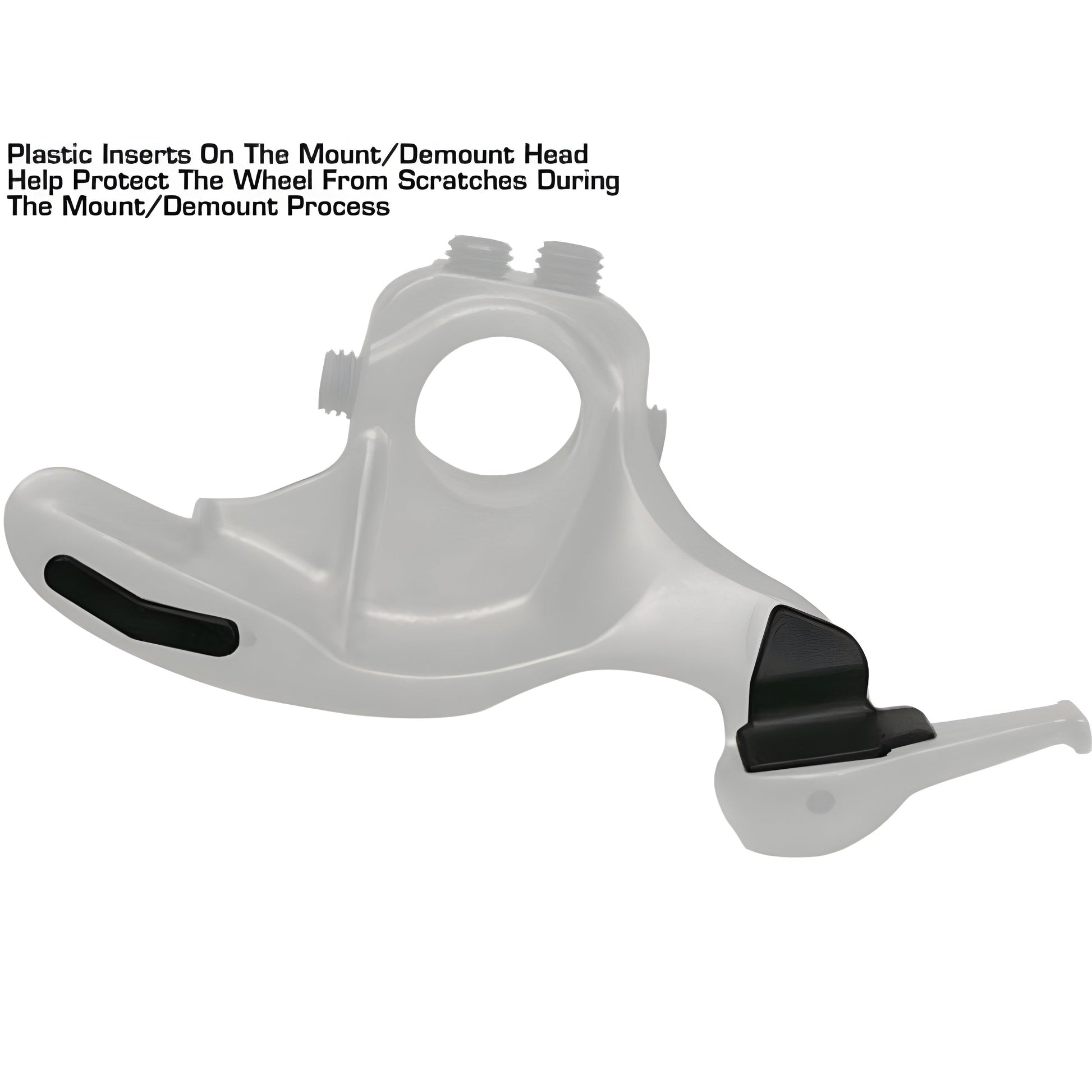

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

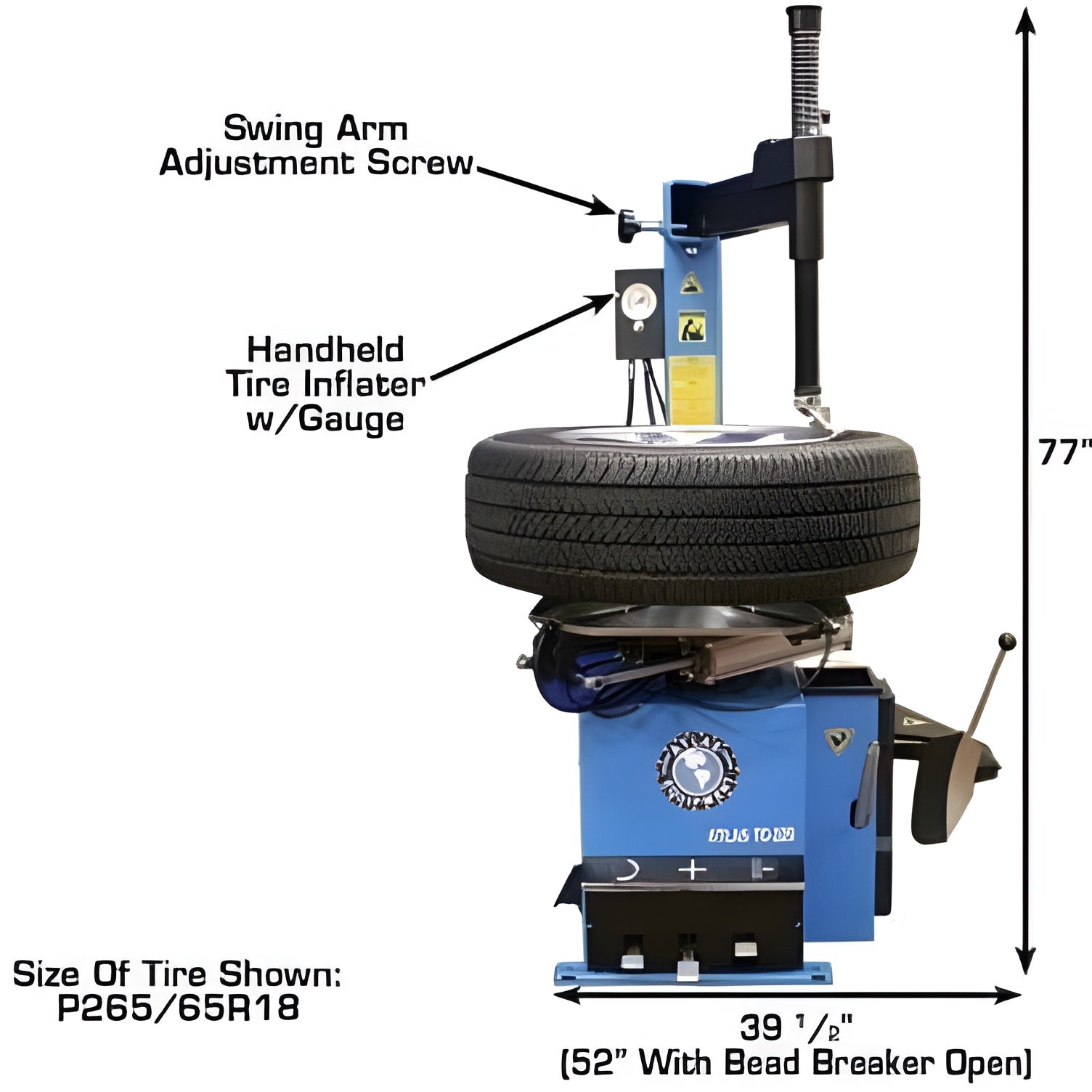

- Column mounted inflator box w/ gauge Included

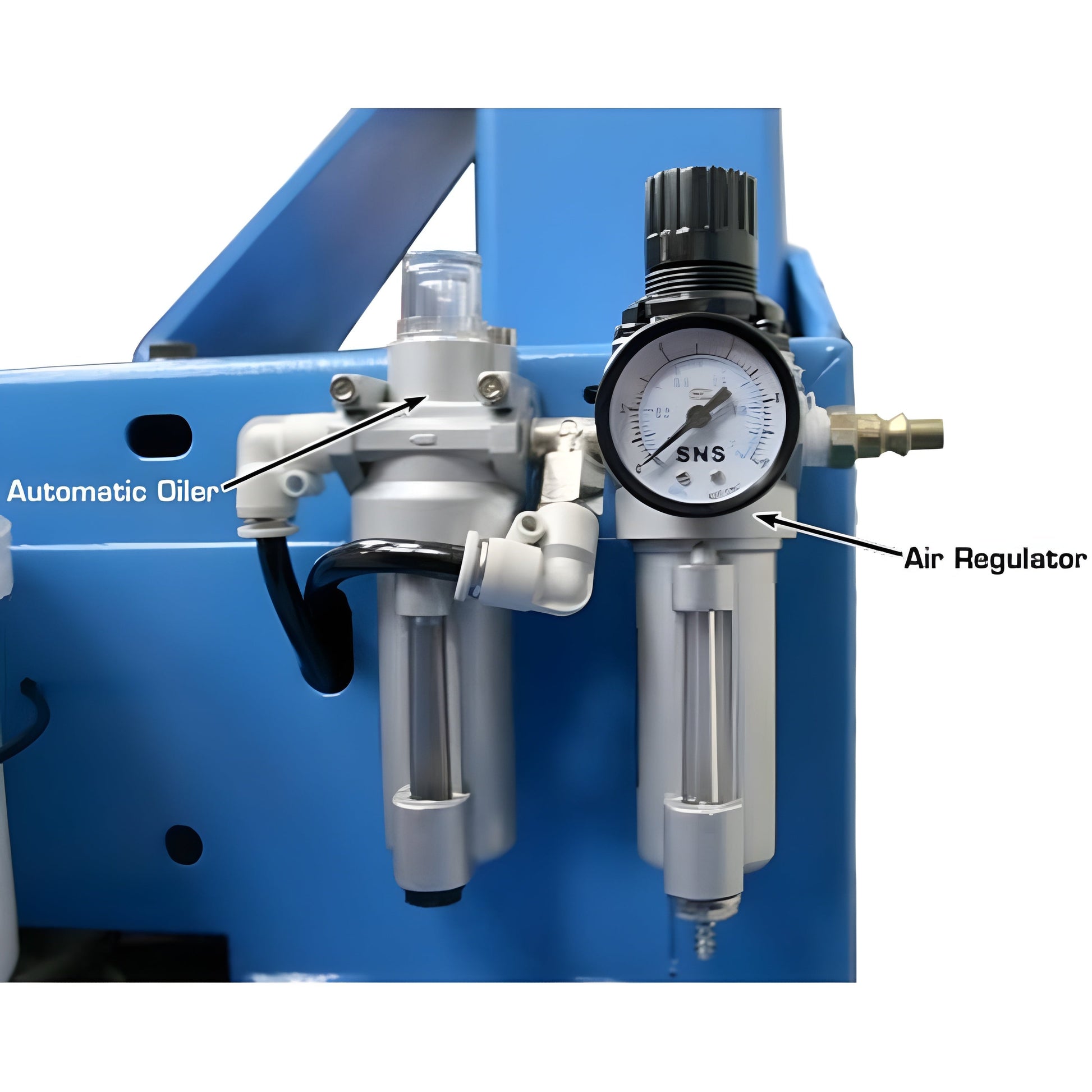

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

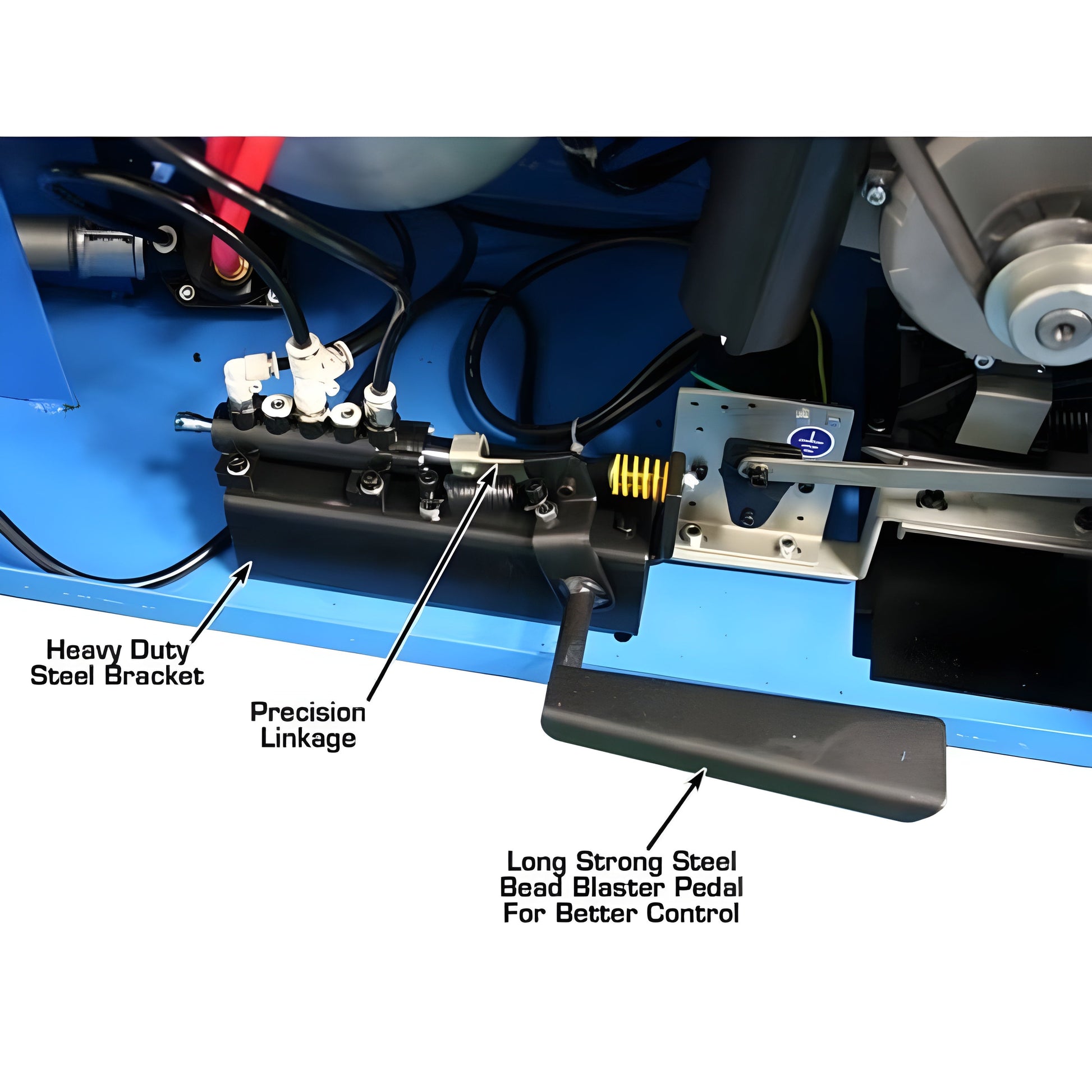

- Built in “Beadblaster”
WB11 Wheel Balancer
- Computer Controlled Motorized Spin Balancer
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Caliper
Specifications
| Rims |
Steel, Aluminum, Alloy |

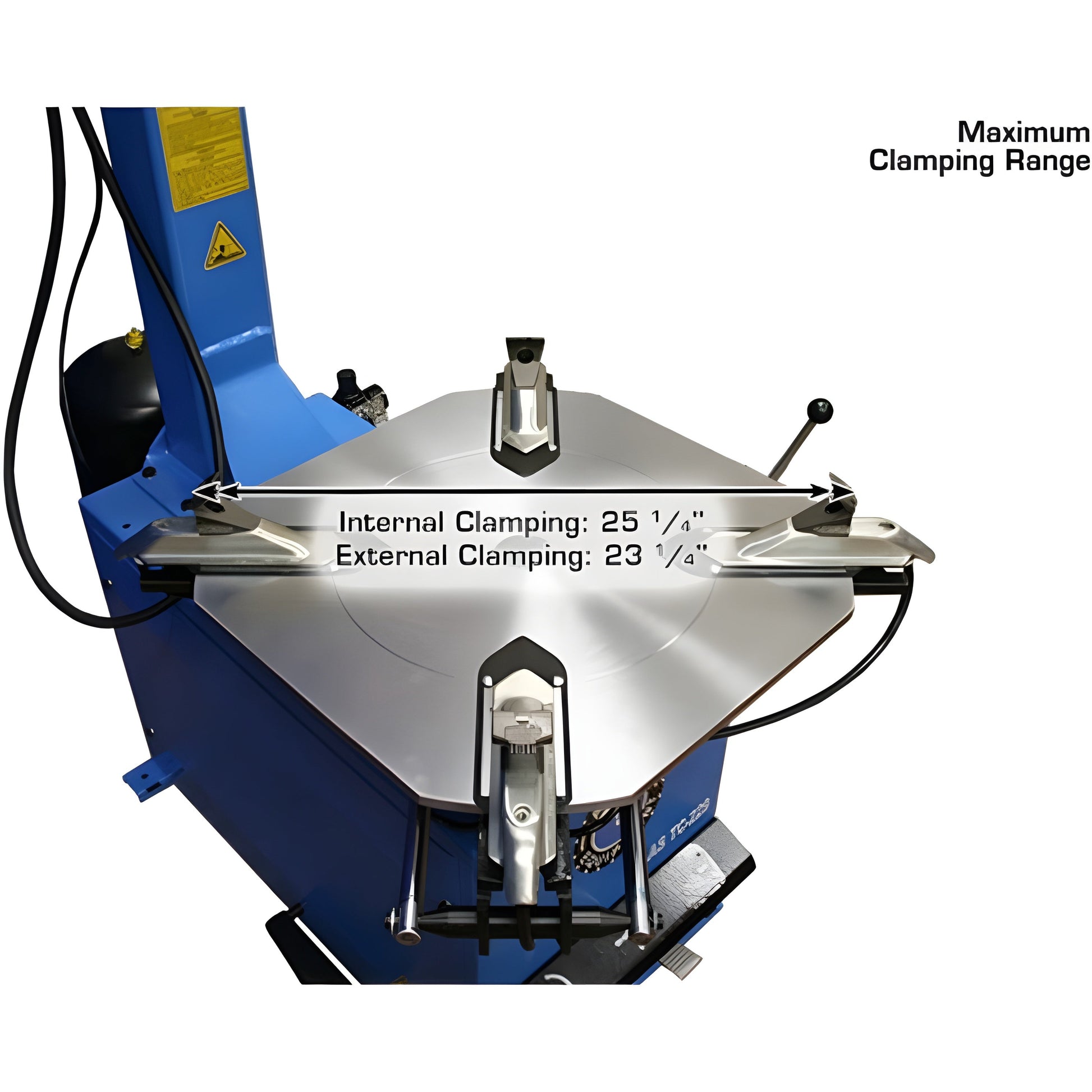

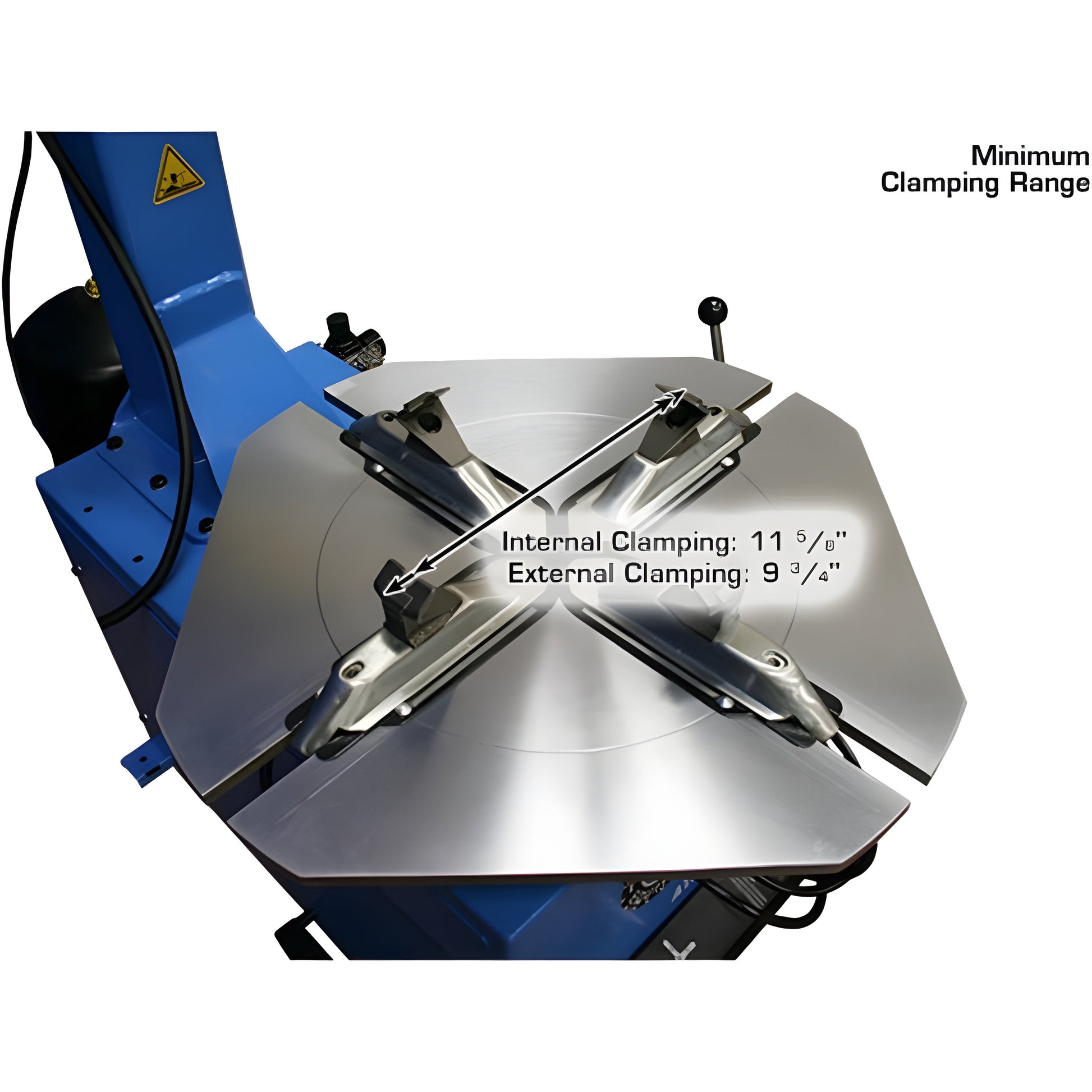

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Shipping Weight |
550 lbs. |
| Atlas® WB11 Specifications |
|
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB11 Manual
What our Expect Think
-
Complete Tire Service Package – The Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package provides everything you need for efficient tire mounting and balancing in one convenient set.
-
High-Performance Tire Changing – The TC229 Rim-Clamp Tire Changer includes a Beadblaster feature, making tire bead seating quick and easy while ensuring no damage to rims.
-

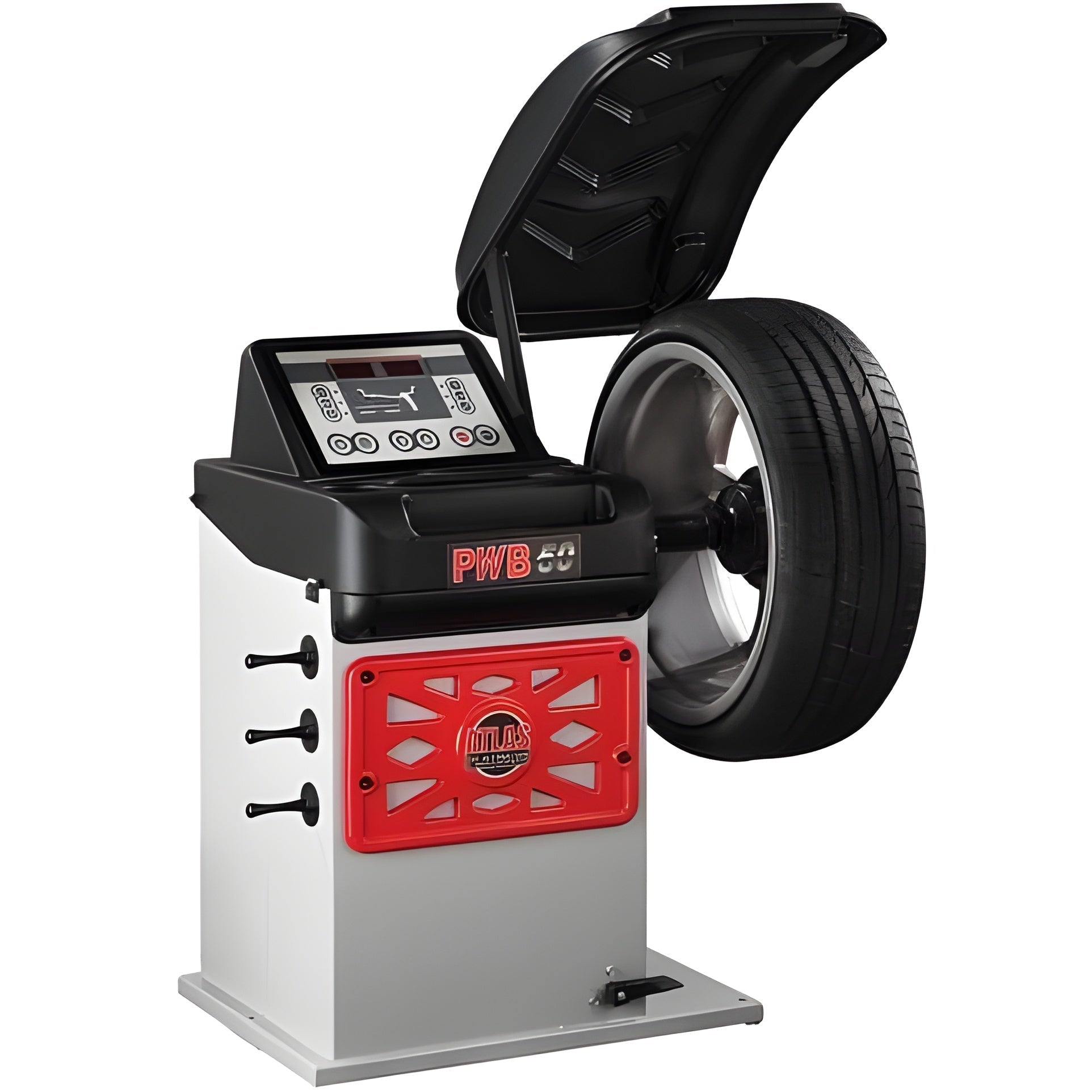

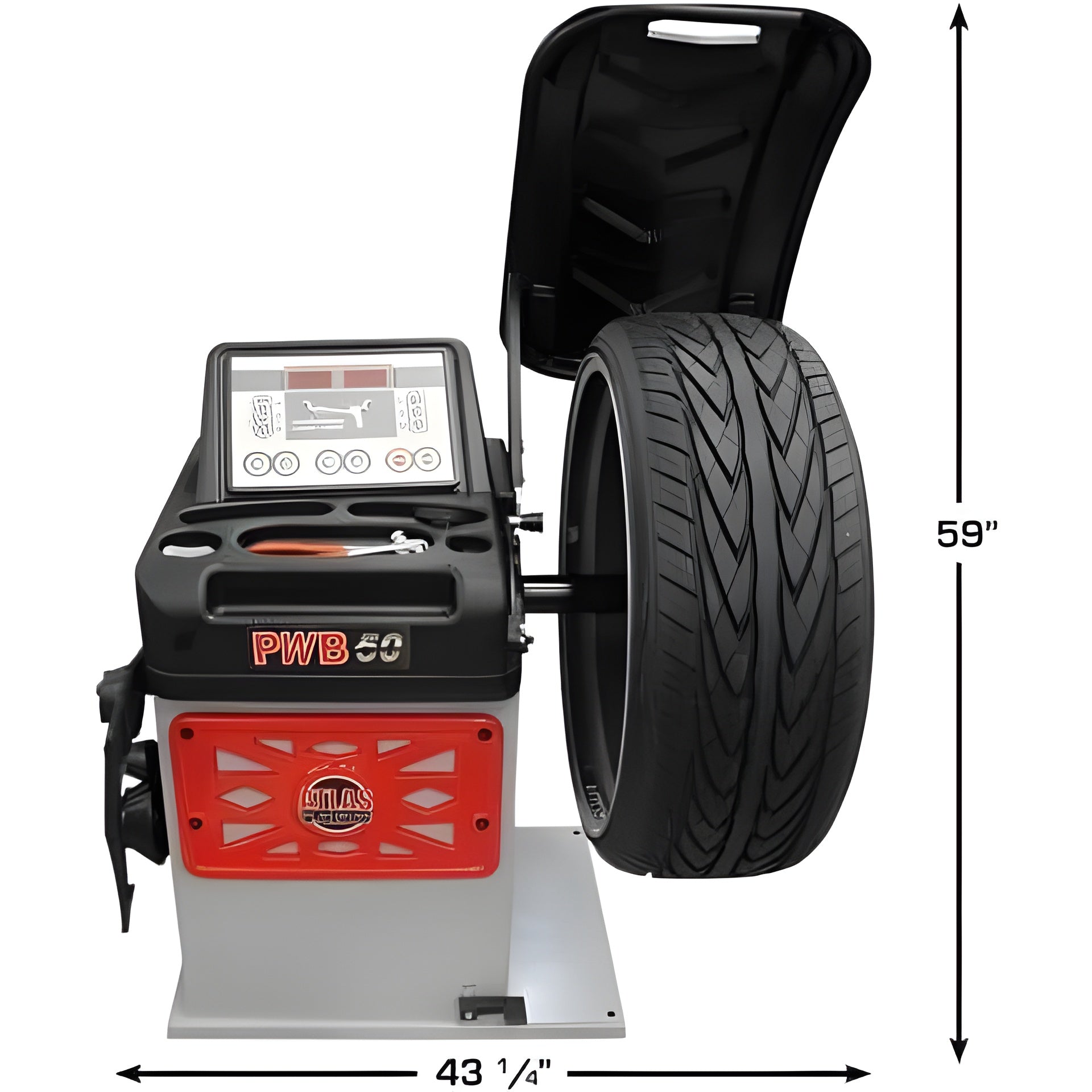

Precision Balancing – The PWB50 Wheel Balancer offers precise and reliable balancing for a smooth ride, helping you avoid vibrations and extending tire life.
-
Time-Saving – With the combination of tire changing and balancing in a single package, your shop can streamline its workflow and increase productivity.
-
Durability and Efficiency – Both the TC229 and PWB50 are built for high-volume use, providing years of dependable service in automotive and tire shops.
-
Ease of Use – Designed with user-friendly controls, this combo package reduces setup time and allows technicians to work with precision and efficiency.
Q&A
Q: What is the Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package is a comprehensive tire service solution that includes the TC229 tire changer and the PWB50 wheel balancer, designed for efficient tire changing and balancing.
Q: What is included in this combo package?
A: This package includes the Atlas TC229 Tire Changer and the PWB50 Wheel Balancer, providing everything needed for fast, professional-grade tire installation and balancing.
Q: Is the Atlas TC229 Tire Changer easy to operate?
A: Yes, the TC229 is user-friendly with features like adjustable clamps, a powerful bead breaker, and a rim-clamp system, making it easy to change tires efficiently.
Q: What is the capacity of the PWB50 Wheel Balancer?
A: The PWB50 Wheel Balancer can handle a wide range of tire sizes, with a maximum weight capacity of 50 lbs, ensuring precise wheel balancing for most vehicle tires.
Q: Is this combo package suitable for automotive shops?
A: Yes, both the TC229 Tire Changer and PWB50 Wheel Balancer are built for professional, high-volume use, providing reliability and durability for busy tire shops.
Q: Does this package require a lot of space?
A: The TC229 and PWB50 are compact, space-efficient, and designed to fit into most automotive service environments while offering top-tier functionality.
Maintenance Tips
-
Regular Inspection: Check both the tire changer and wheel balancer for any signs of wear, ensuring all moving parts are functioning properly.
-
Keep Machines Clean: Regularly clean both machines, especially around the beadblaster and the wheel balancing system, to prevent debris buildup.
-
Lubricate Moving Parts: Apply lubrication to all moving components of the tire changer to maintain smooth operation.
-
Check Calibration: Periodically calibrate the wheel balancer to ensure accurate wheel balancing.
