Atlas PSP-6000 6,000 lb Portable Single Post Lift - ATEXH-PSP-6000-FPD

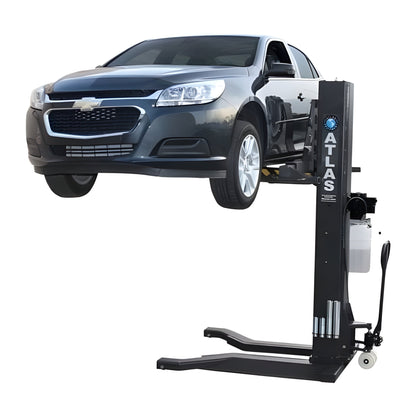

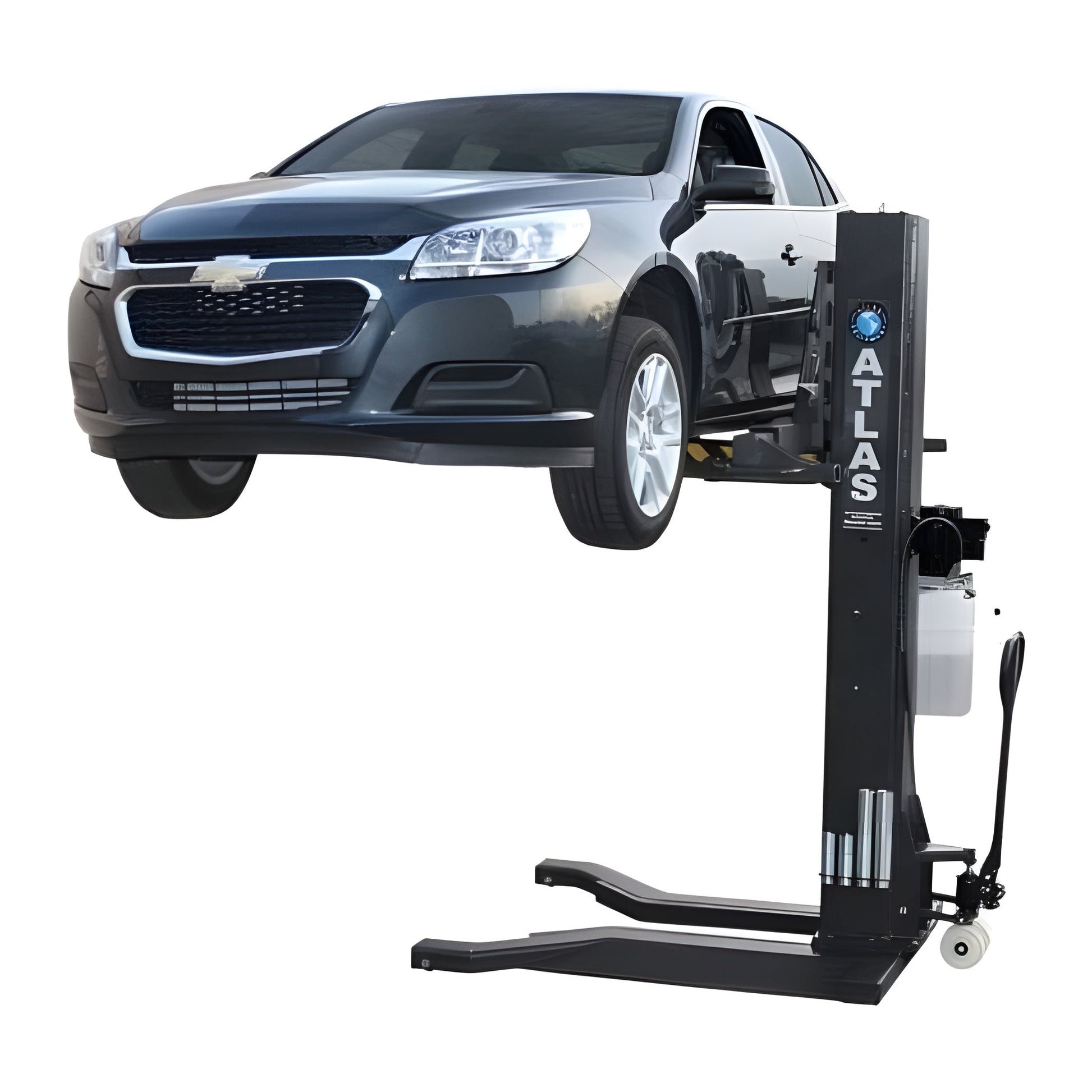

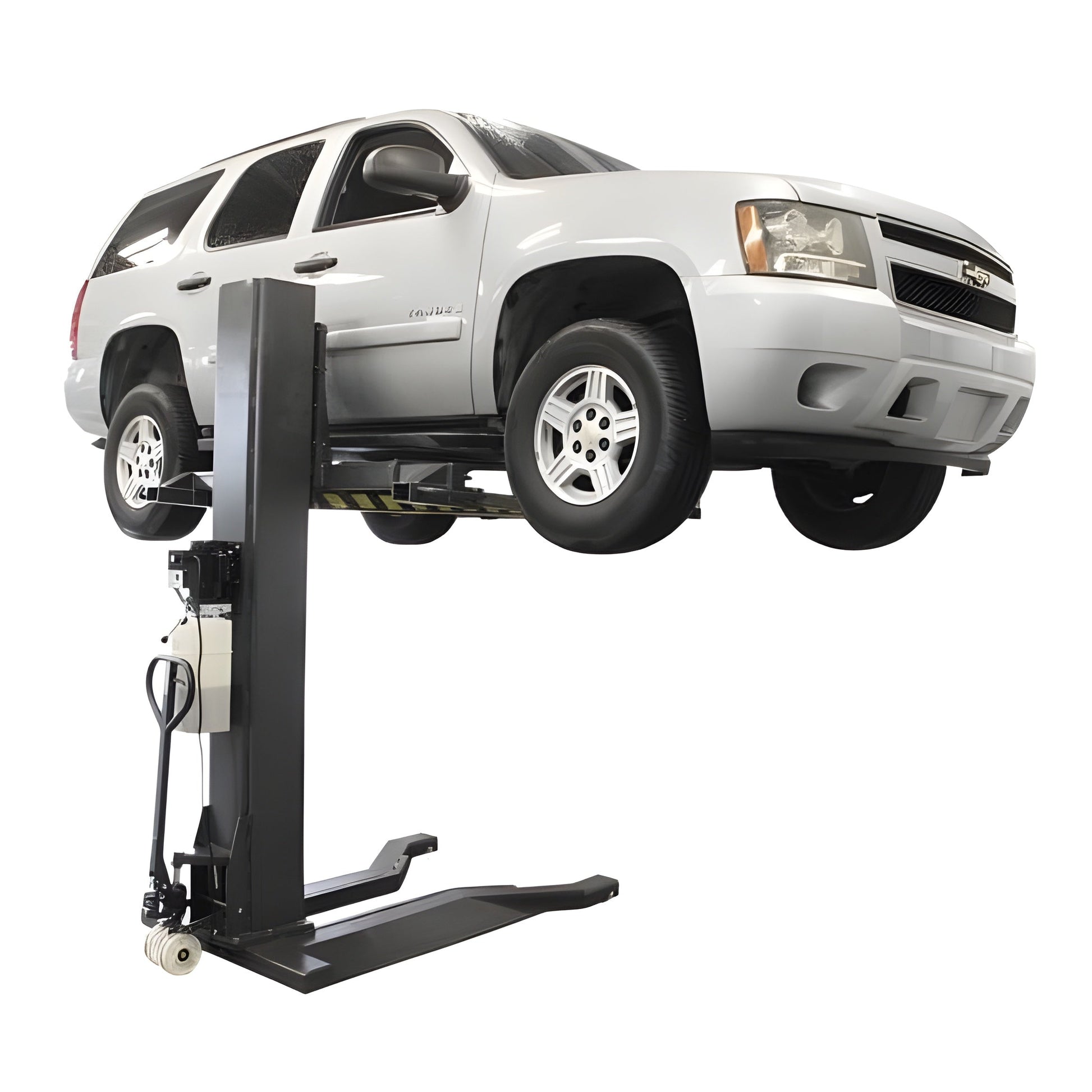

The Atlas PSP-6000 portable single post lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9 foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.The Atlas PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure.
Video
Features
6,000 lbs. Capacity
Portable
Low Profile Design
Rigid Base Construction

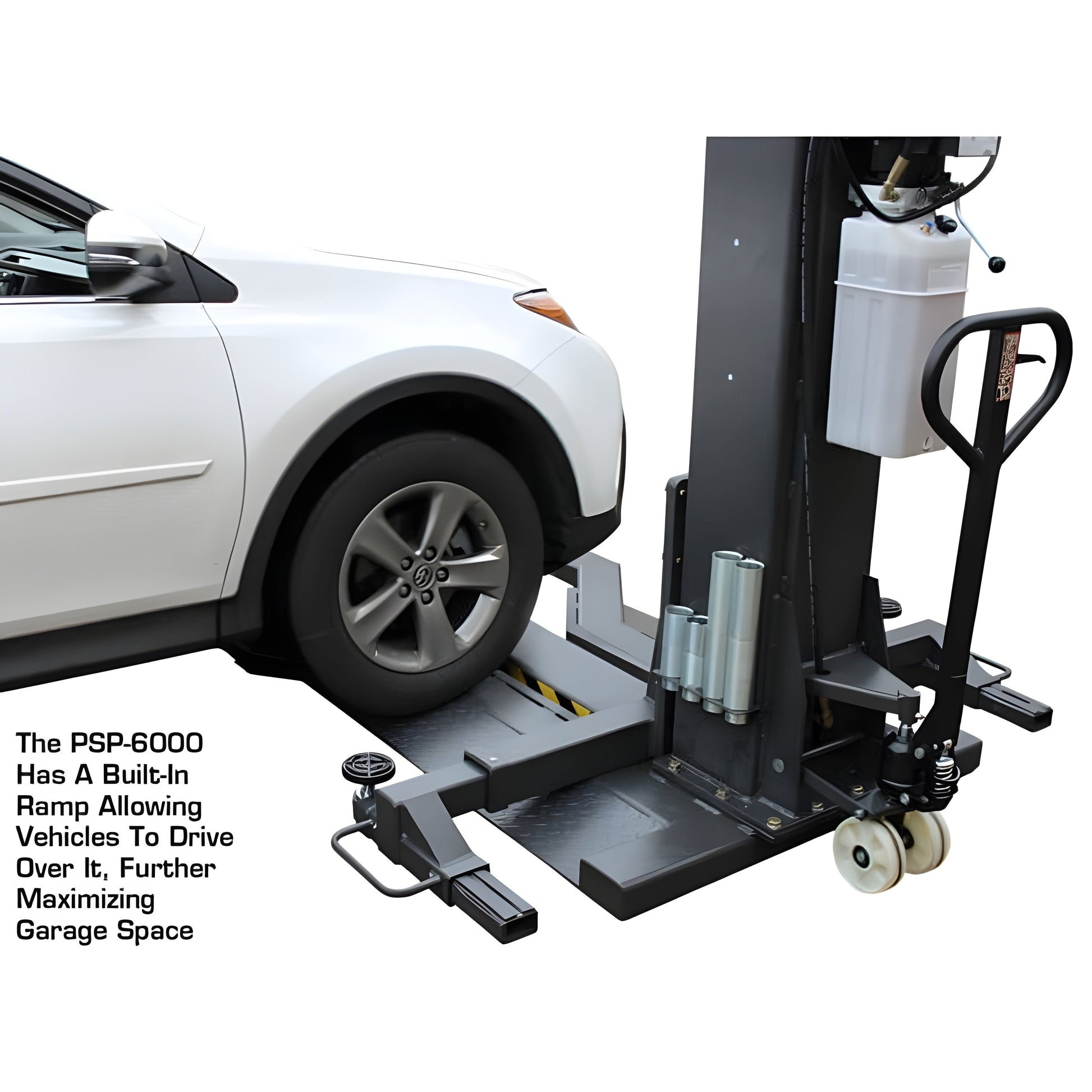

Built in Drive-over Ramps

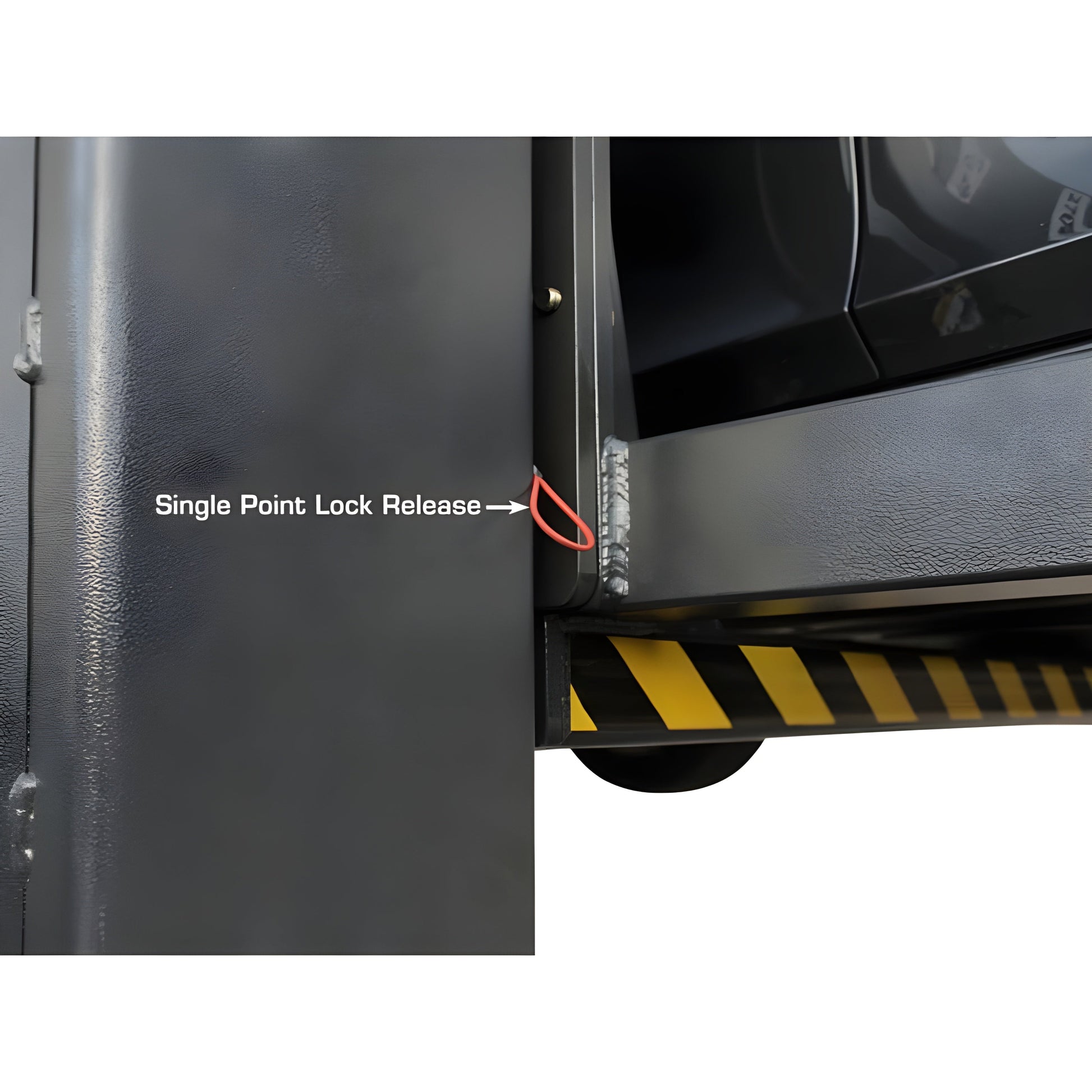

Single Point Lock Release

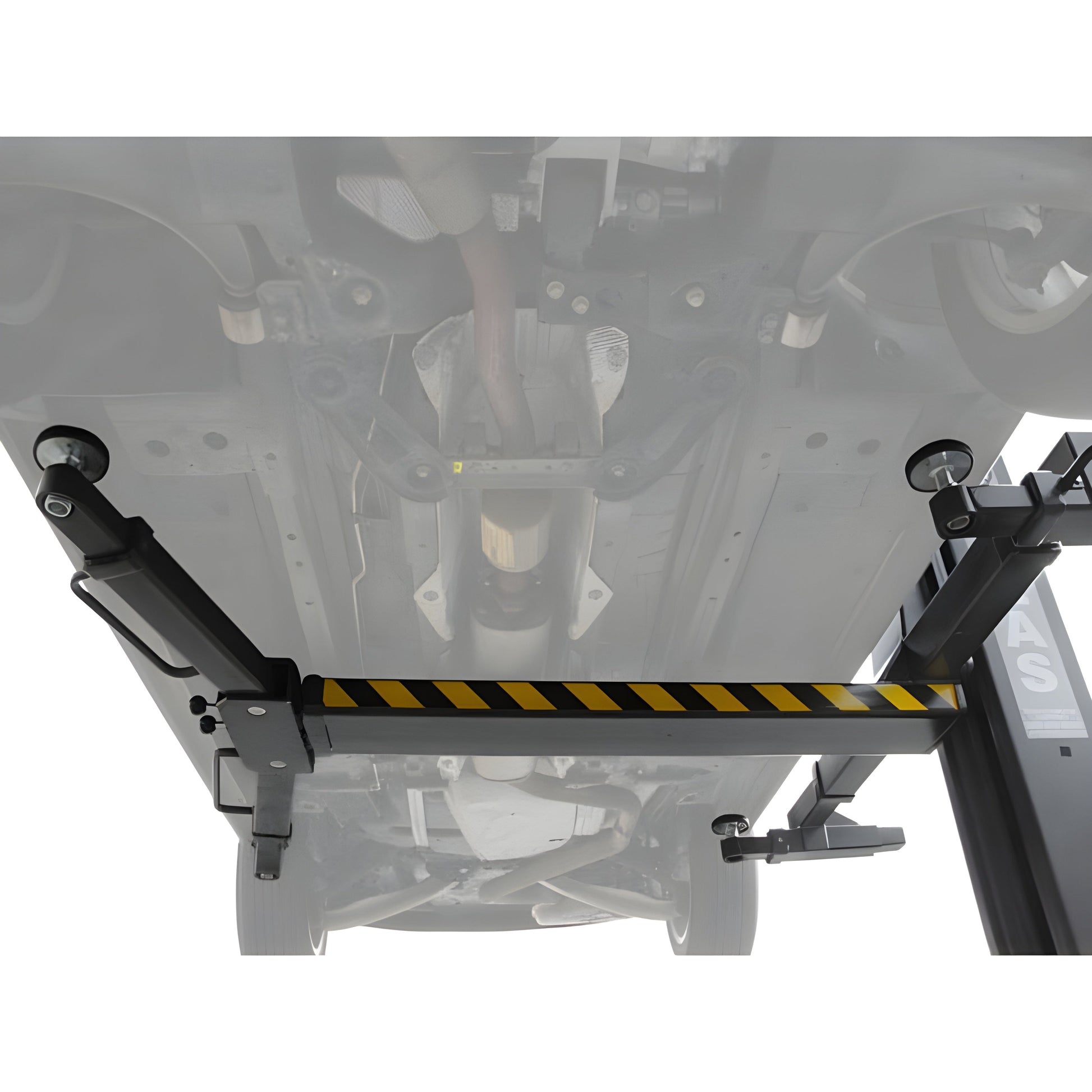

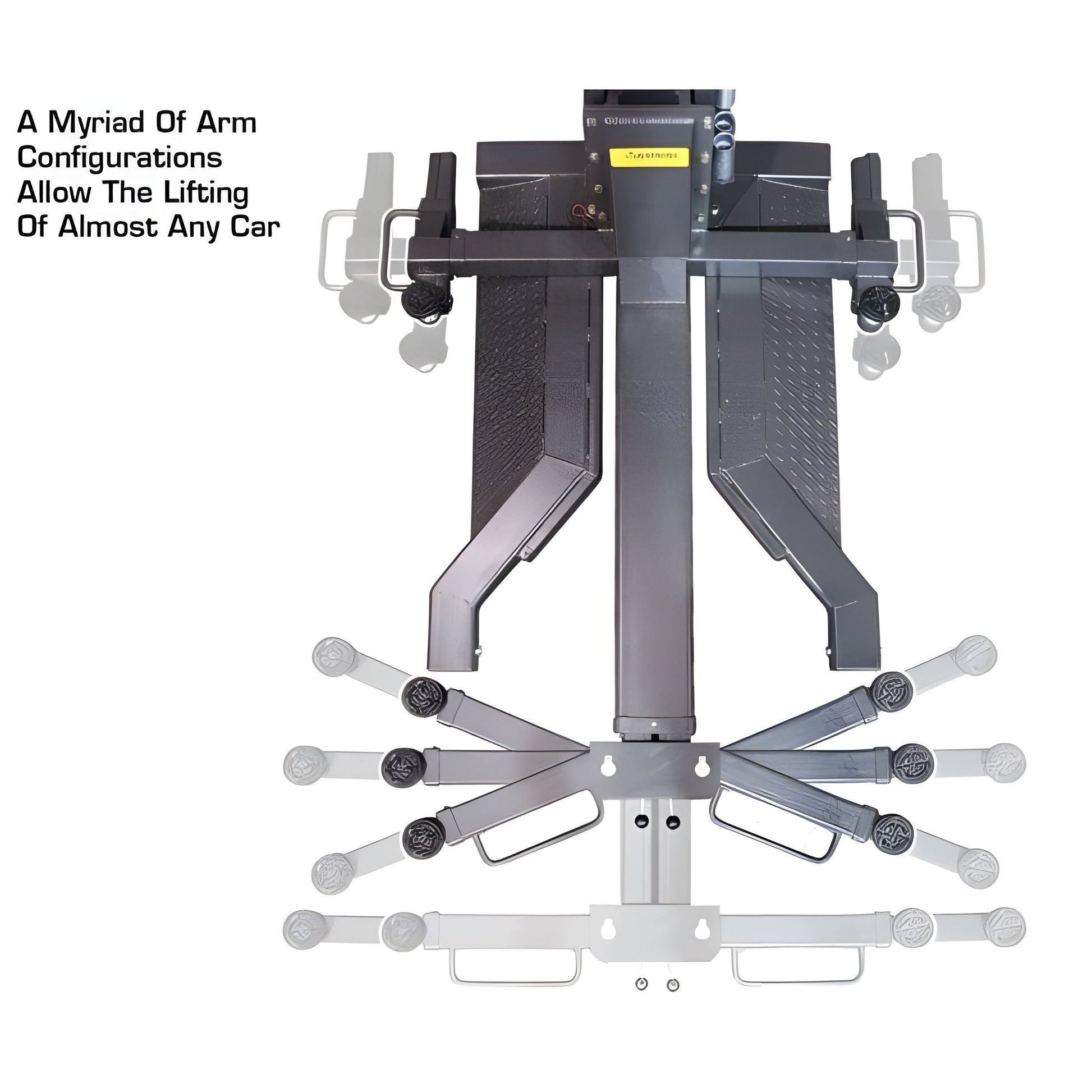

Two-Stage Telescoping Swing Arms
Locking Arm Restraints
Lifting Height: 5′ 11 2/3″ (71 2/3″)
110volt Electric Operation (Requires 30amp Breaker)
Free 8 Piece Truck Adapter Set

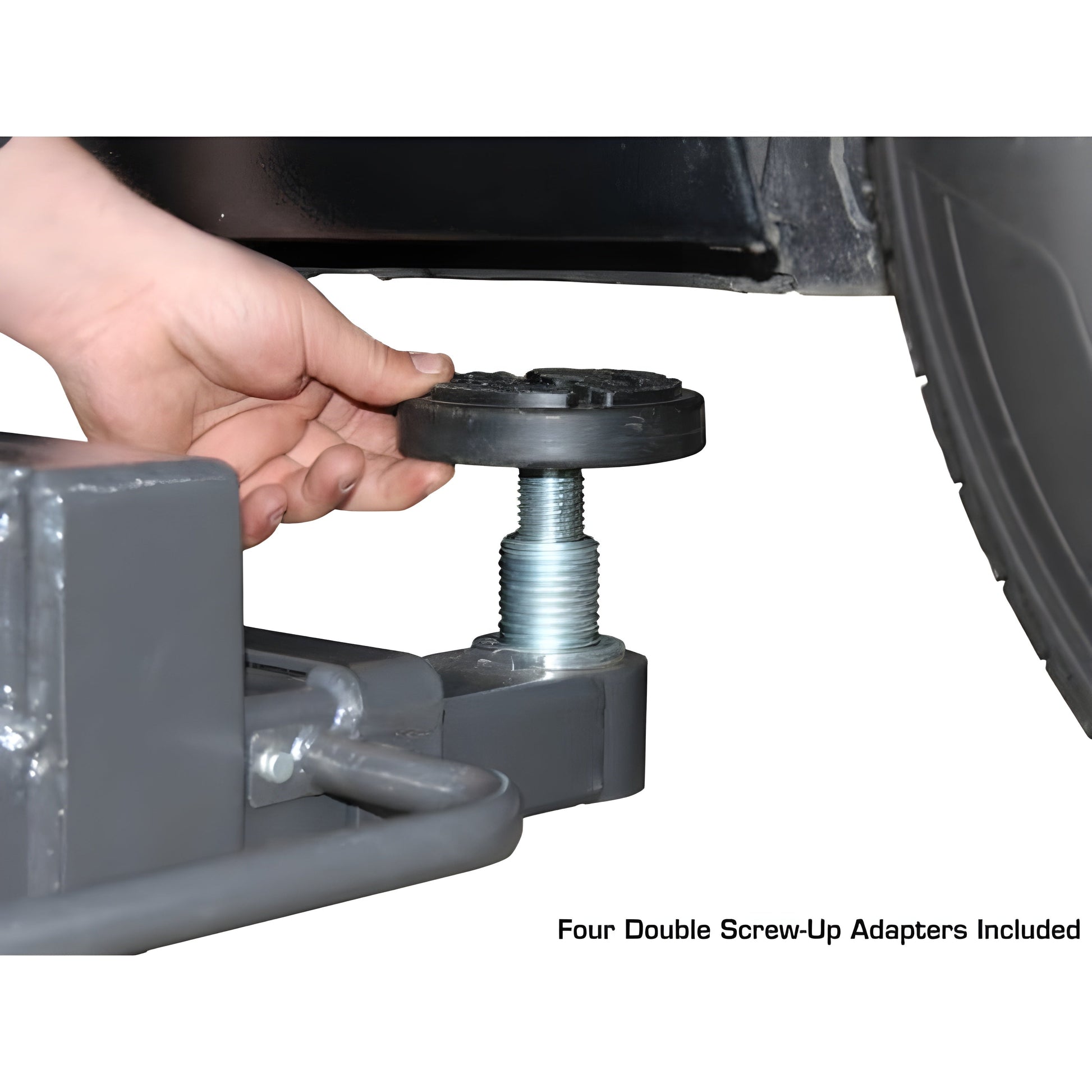

Includes Double Screw-up Adapters
Specifications
Atlas PSP-6000 Specifications
Capacity
6,000 LB.

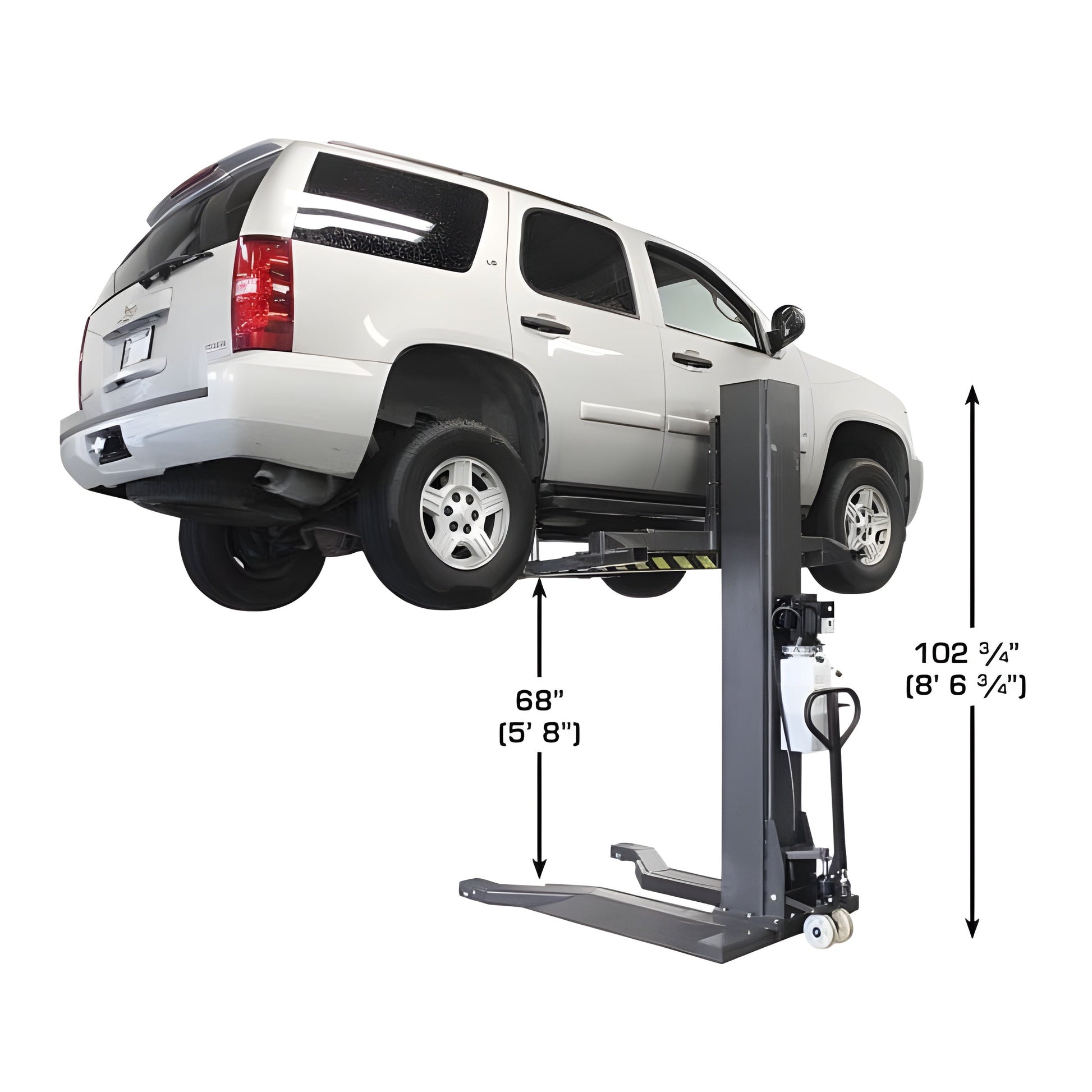

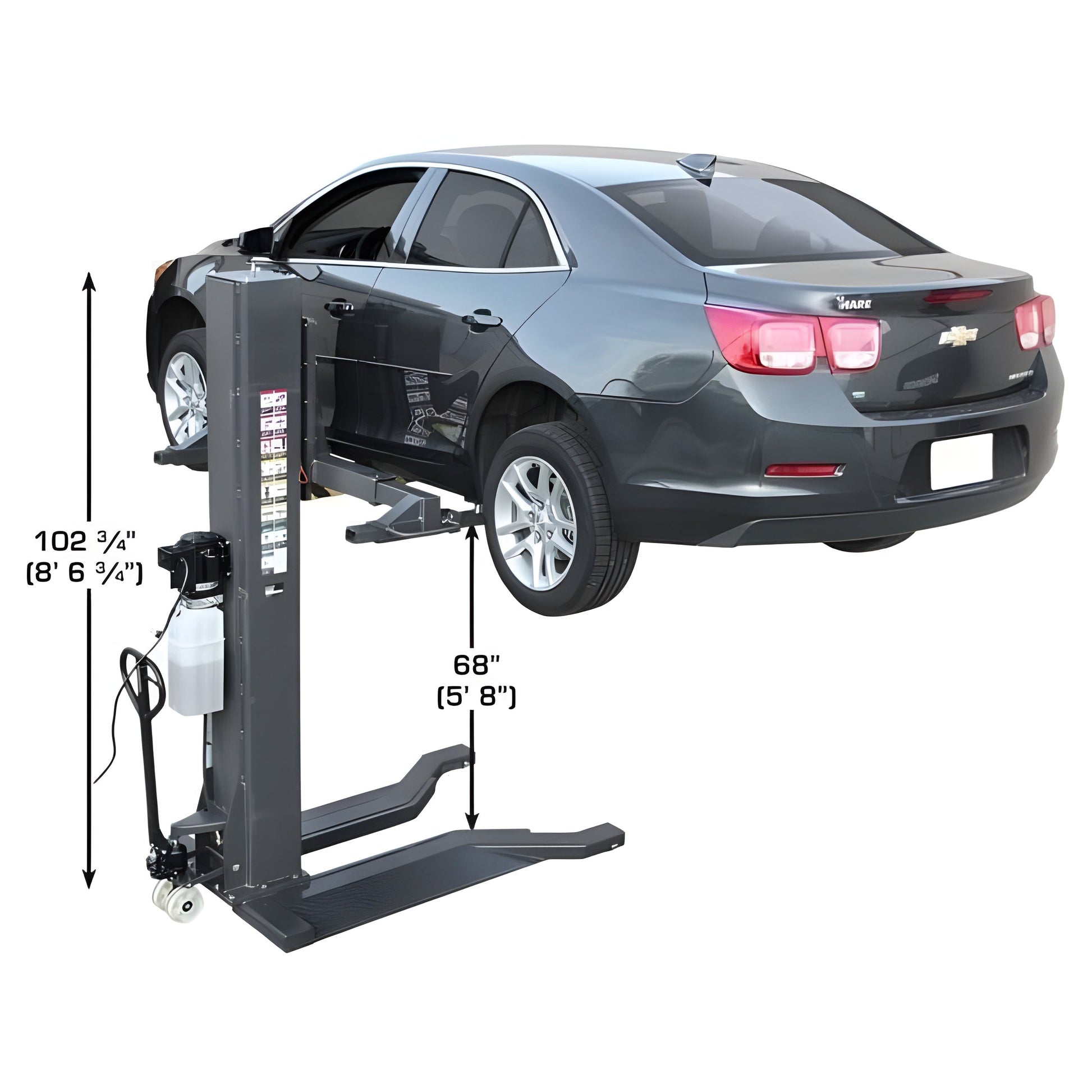

Overall Height
102 3/4" (8' 6 3/4")

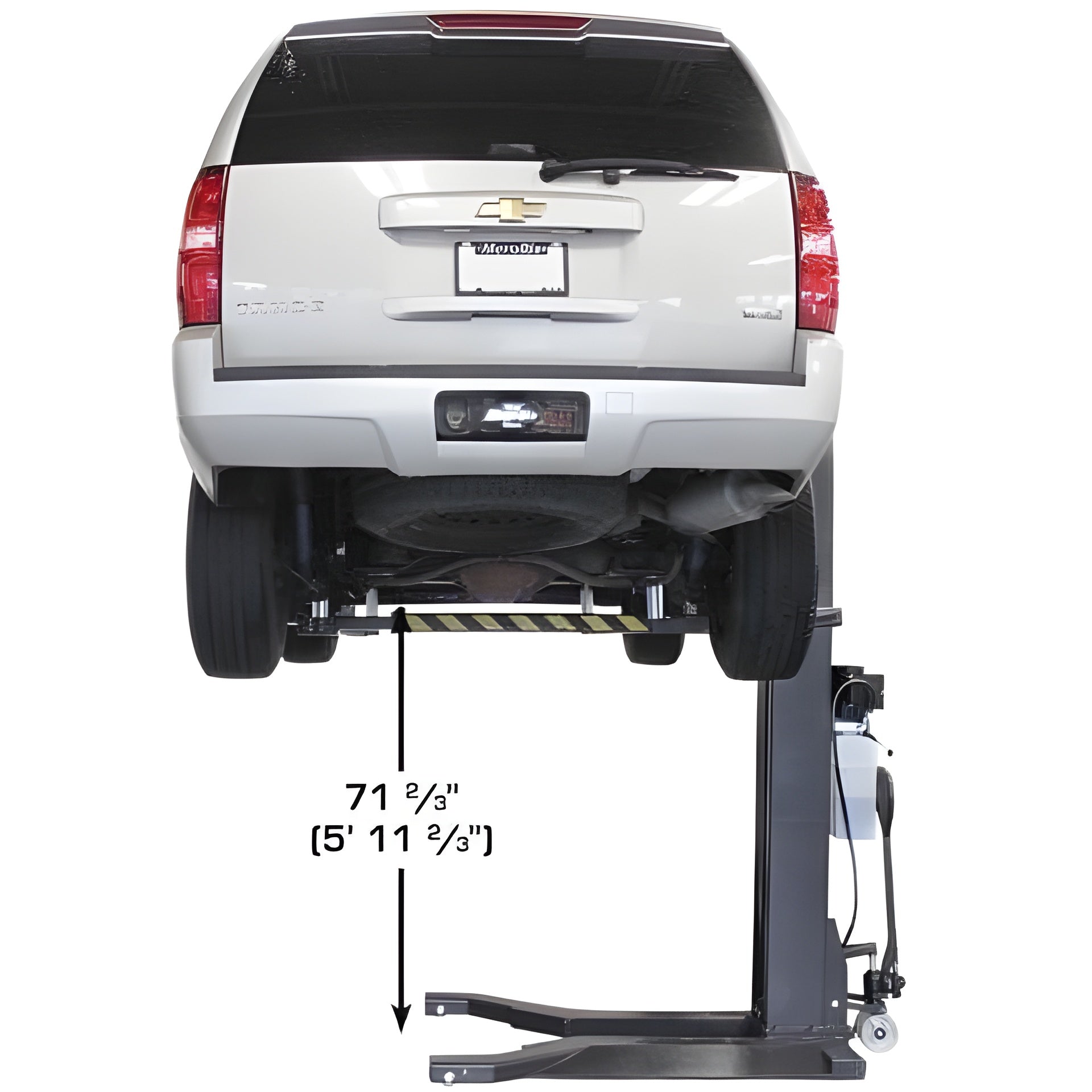

Max. Lifting Height (Without Truck Adapters)
71 2/3" (5' 11 2/3")
Max. Clearance
68" (5' 8")
Minimum Height
5"

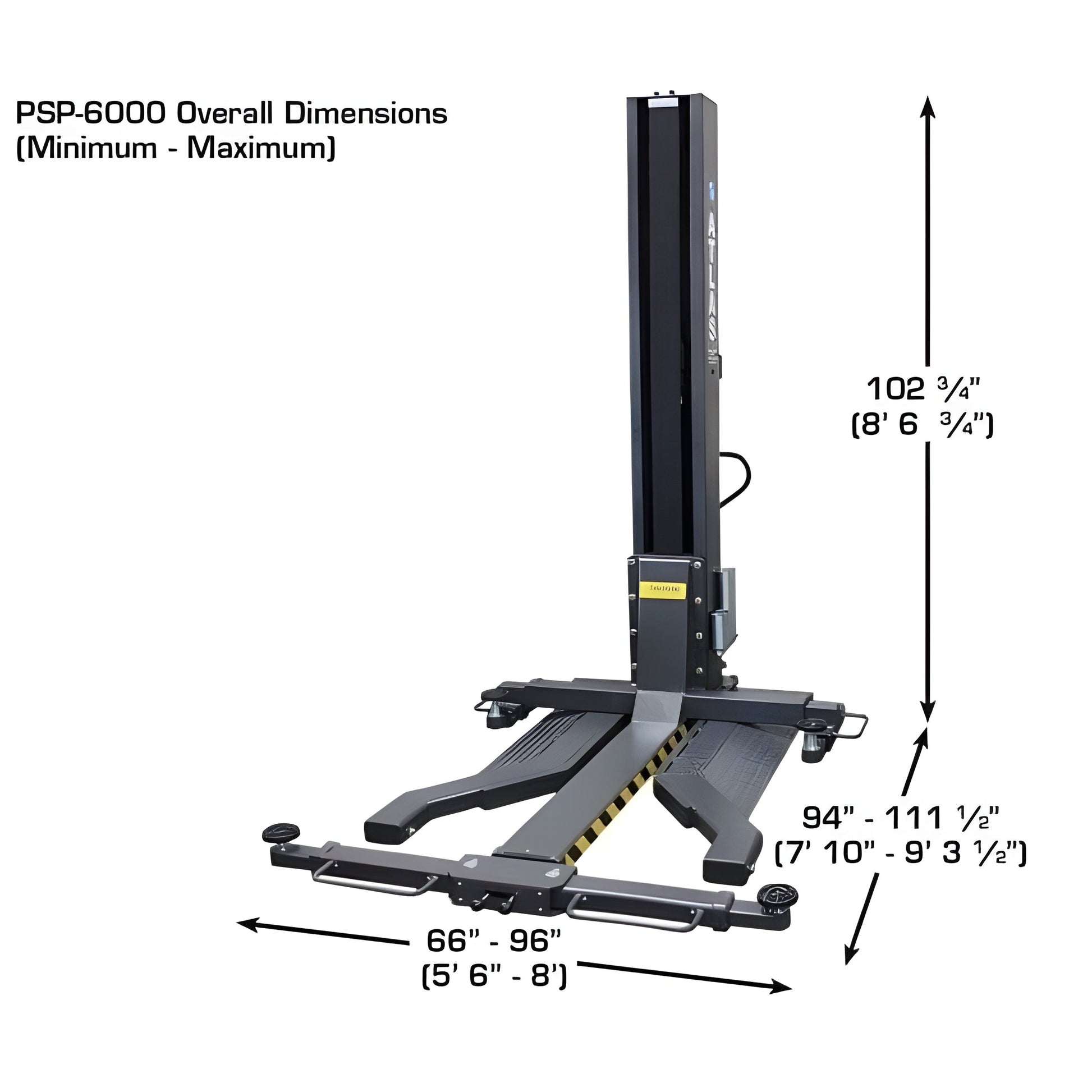

Overall Maximum Dimensions
L: 111 1/2" x W: 96" x H: 102 3/4"
Column Size
10 1/2" x 12 1/2"

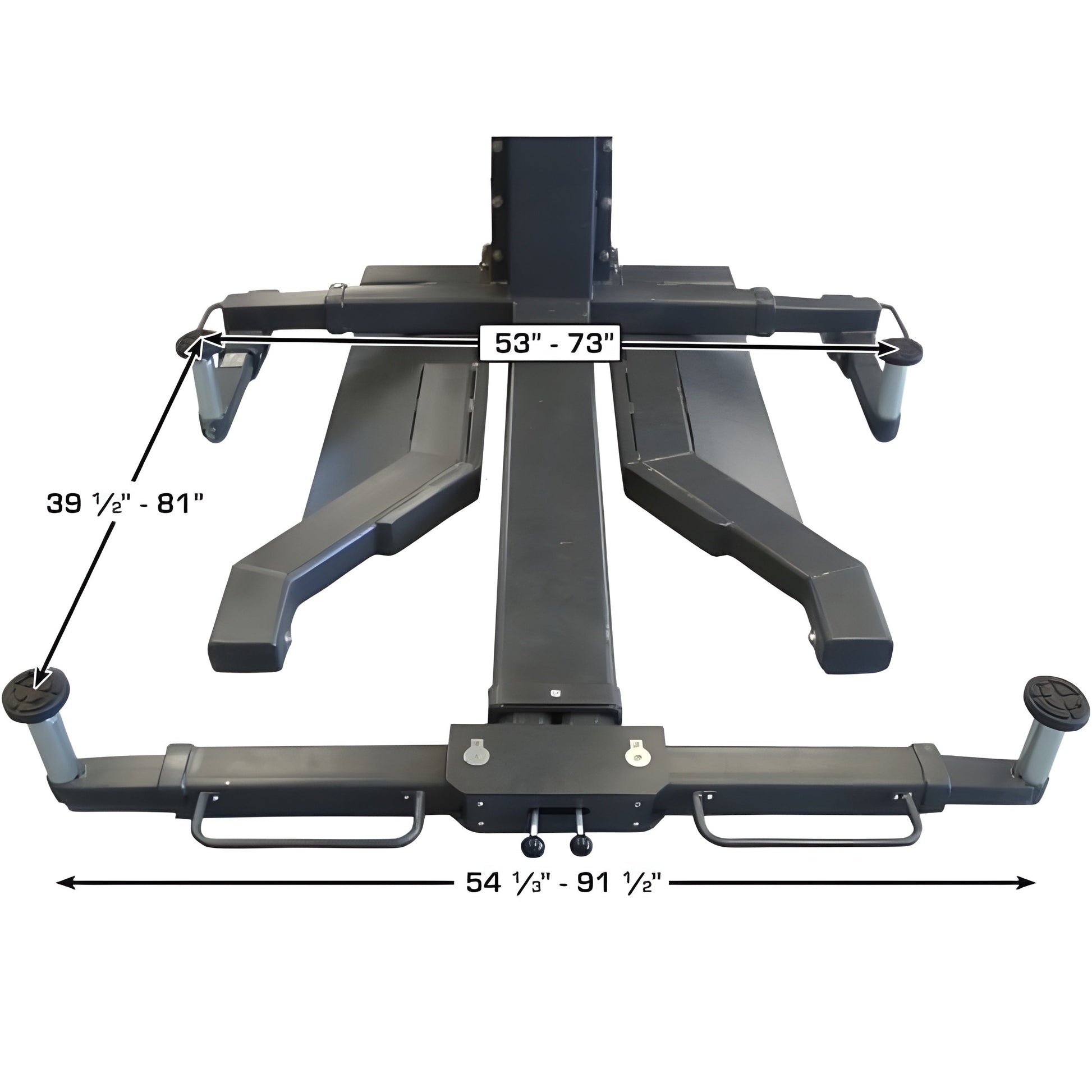

Distance Between Lifting Pads (Column Side to Offside)
39 1/2" to 81"
Distance Between Lifting Pads (Column Side to Column Side)
53" to 73"
Distance Between Lifting Pads (Offside Side to Offside)
6,000 lb. Lifting Capacity – Perfect for sedans, SUVs, and light trucks.
Portable & Space-Saving – Easily move and store the lift when not in use.
Single Post Design – Maximizes floor space while providing full access to the vehicle.
Versatile Applications – Ideal for home garages, detail shops, and professional service centers.
Heavy-Duty Construction – Durable steel frame with a reliable hydraulic system for long-lasting performance.
Q&A
Q: What is the Atlas PSP-6000 Portable Single Post Lift used for? A: The Atlas PSP-6000 is a 6,000 lb. capacity portable single post lift, designed for vehicle maintenance, storage, and light-duty repairs in shops or home garages.
Q: What is the weight capacity? A: It can lift up to 6,000 lbs., making it ideal for cars, small trucks, and SUVs.
Q: What type of power does it require? A: The lift operates on 110V or 220V power, depending on the model.
Q: Is this lift easy to move? A: Yes, the portable design with built-in wheels allows for easy mobility and storage.
Maintenance Tips
Inspect Hydraulic System – Check for leaks, maintain fluid levels, and replace if contaminated.
Lubricate Moving Parts – Apply grease to rollers, lift arms, and pivot points.
Check Safety Locks – Ensure the locking mechanism engages properly before operation.
Inspect Cables & Chains – Look for fraying, wear, or tension issues.
Tighten Bolts & Fasteners – Regularly check all hardware for secure attachment.
Monitor Electrical Components – Ensure proper functioning of power unit and wiring.
Keep Work Area Clean – Remove debris to prevent operational issues.
