Atlas PRO9000 4 Post Lift + RJ6 Rolling Jacks Combo - ATEXH-PRO9-COMBO2-FPD

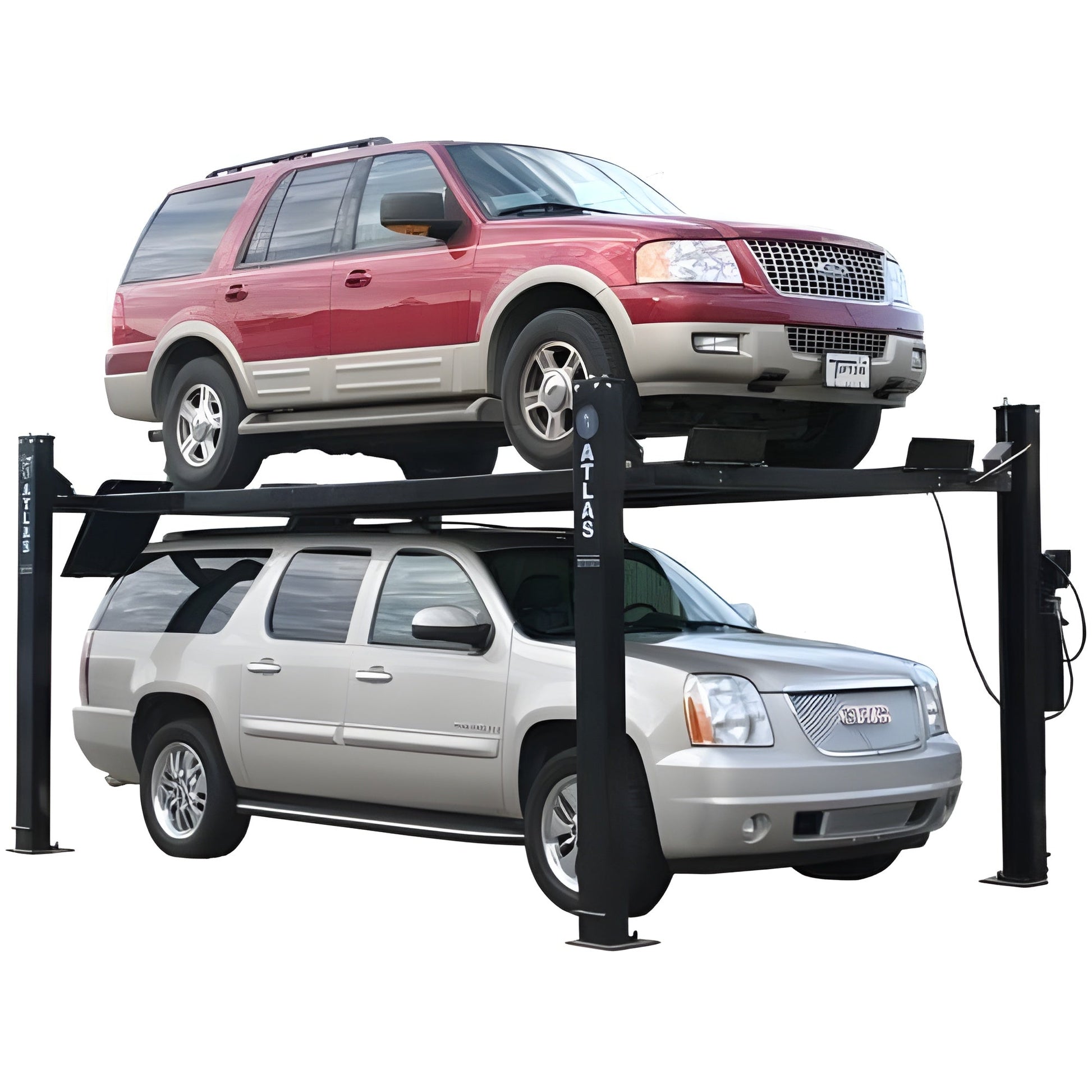

The Atlas Garage PRO9000 4 post lift is a heavy duty hobbyist lift and features the highest lifting capacity of all our Garage PRO series lifts. The Garage PRO9000 is extra long and has the longest runways (we believe) of any portable 9,000 LB. four post on the market. That feature allows the lift to handle some of the longest wheel base vehicles out there. The Garage PRO9000 is extra wide allowing even Diesel Duallys to be driven onto the runways. This lift also features extra height so everything from Smart Cars to a Dually can be parked both below and on the runways.The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service center or “Mr. Homeowner” that needs a PORTABLE professional four post lift at a competitive price.This combo package also includes two of the popular Atlas RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PRO9000
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall/Extra Wide/Extra Long

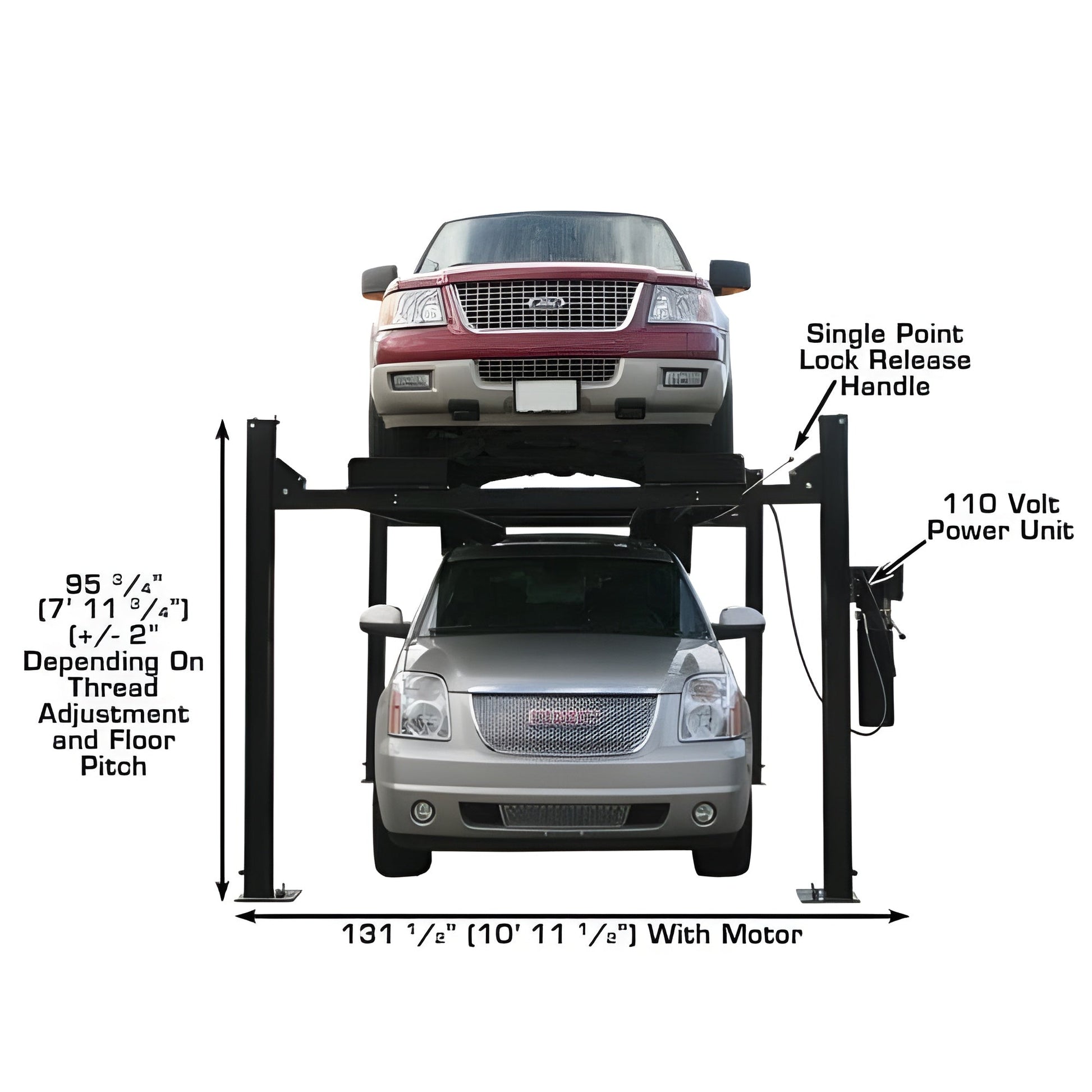

- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System

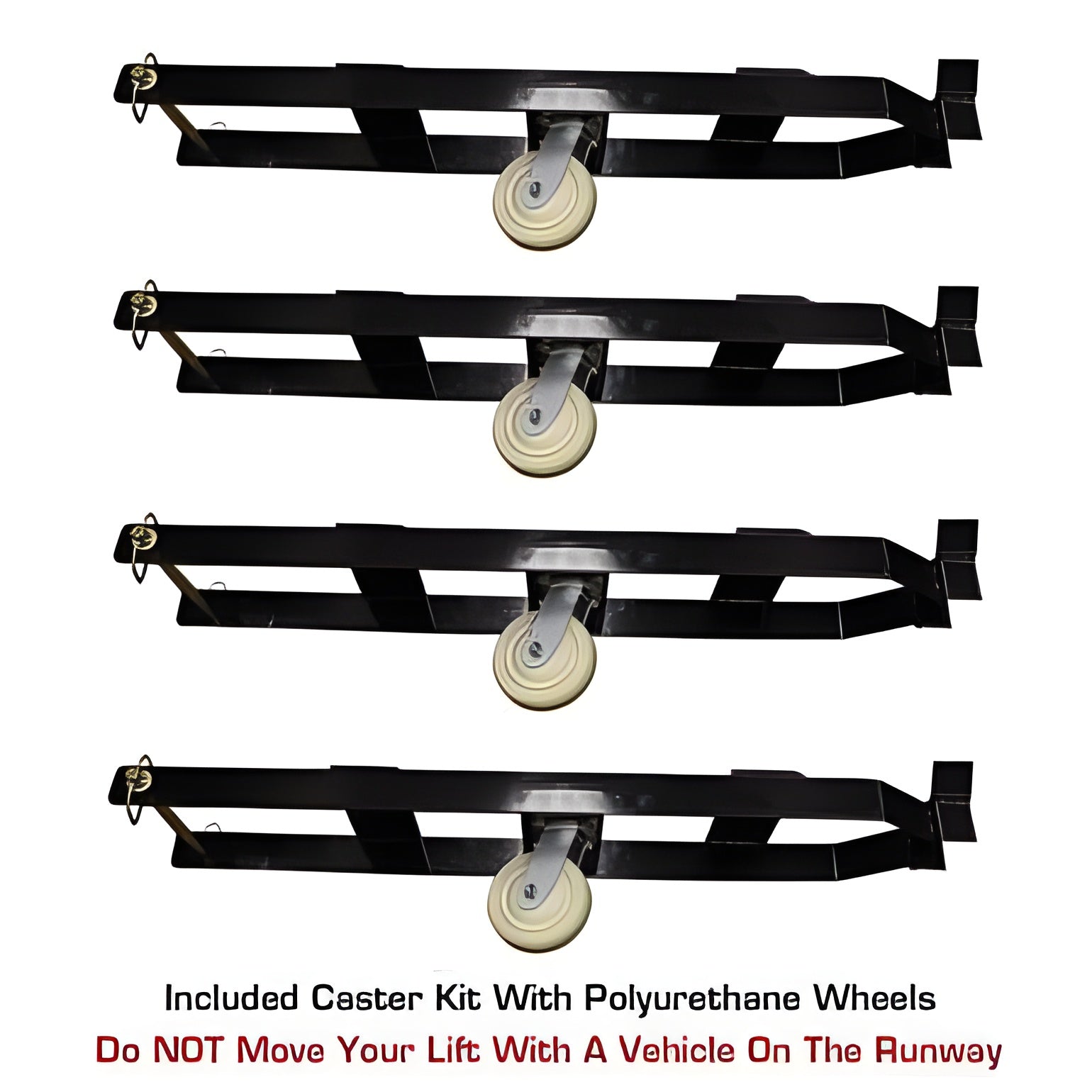

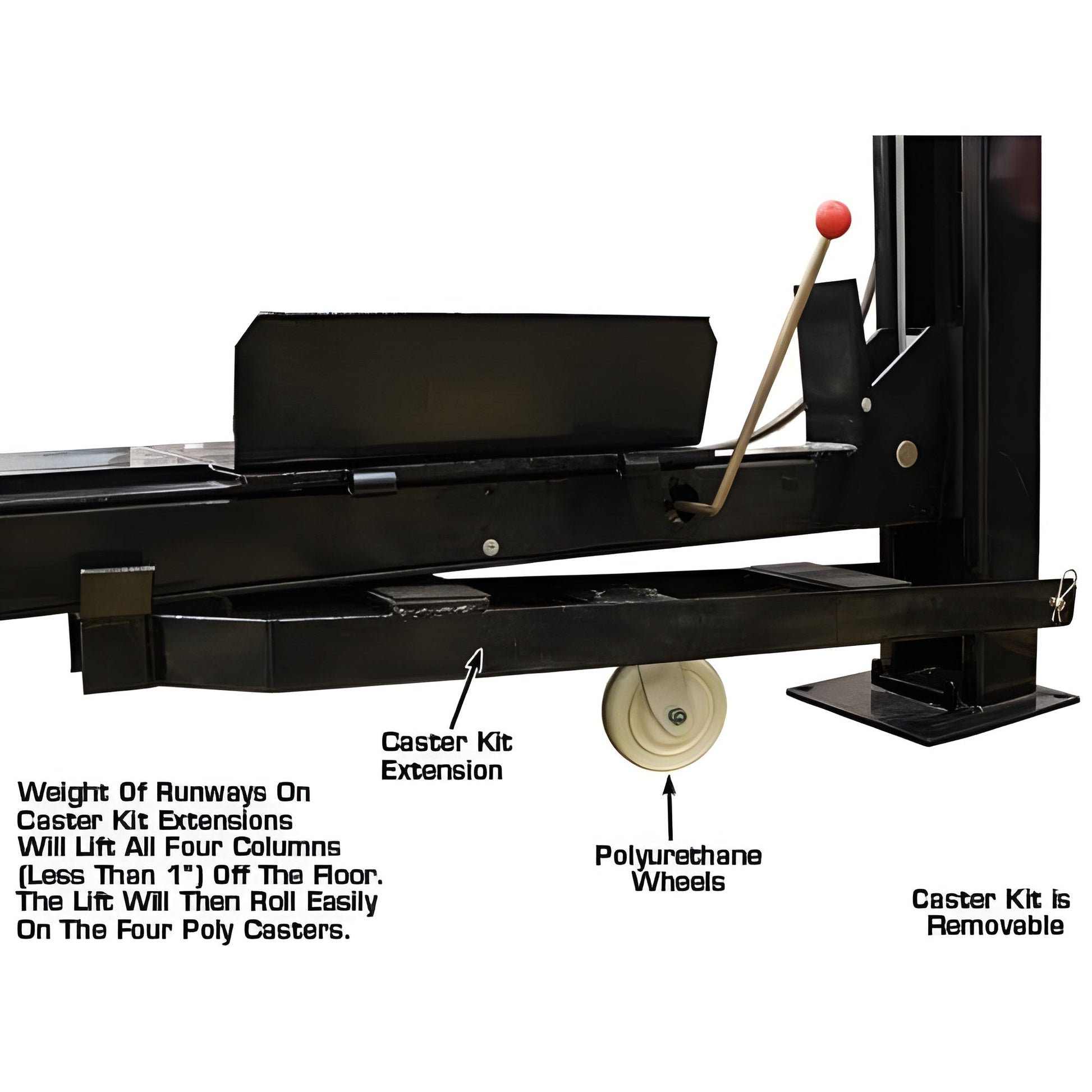

- Caster Kit With Polyurethane Wheels Included

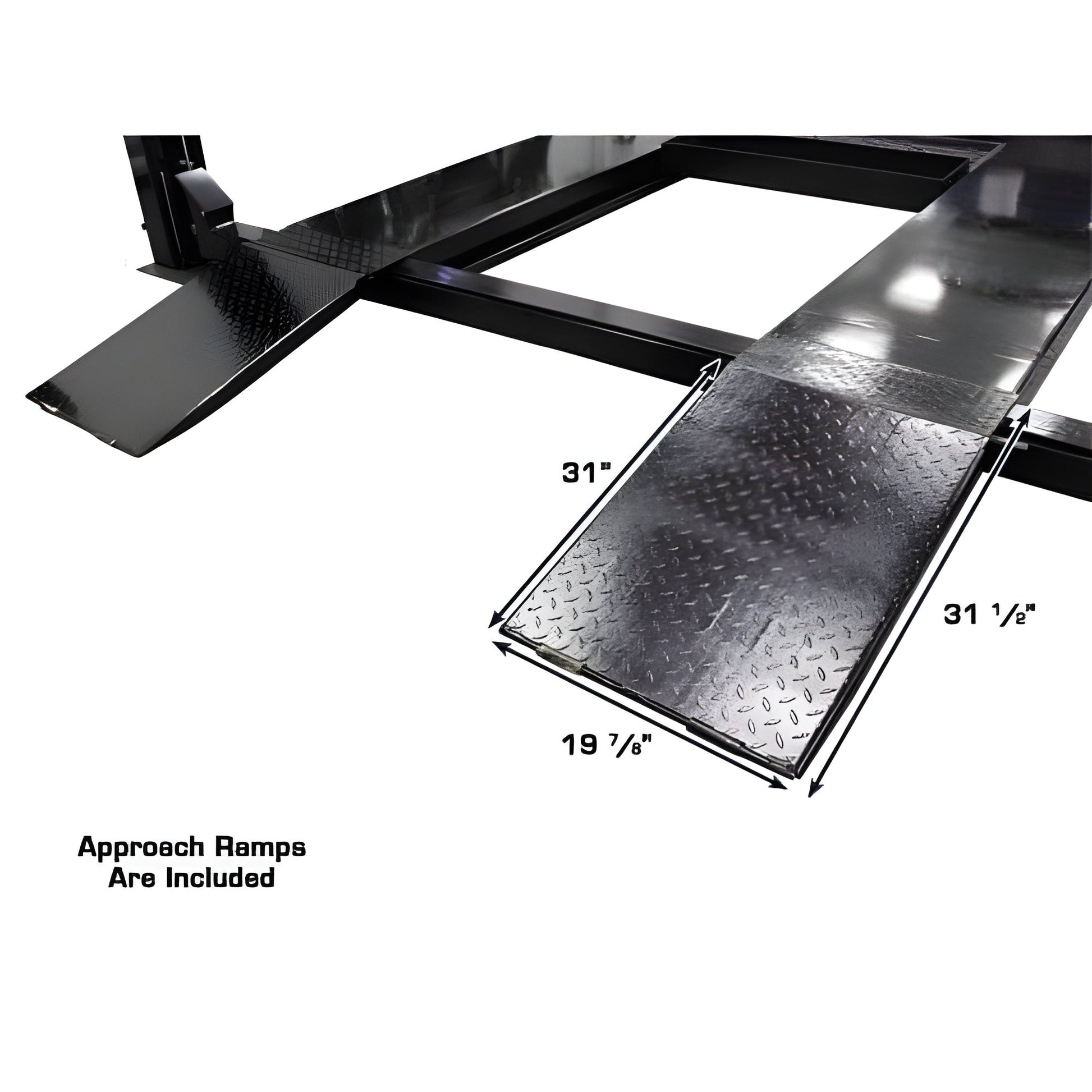

- Steel Approach Ramps Included
- Steel Jack Tray Included

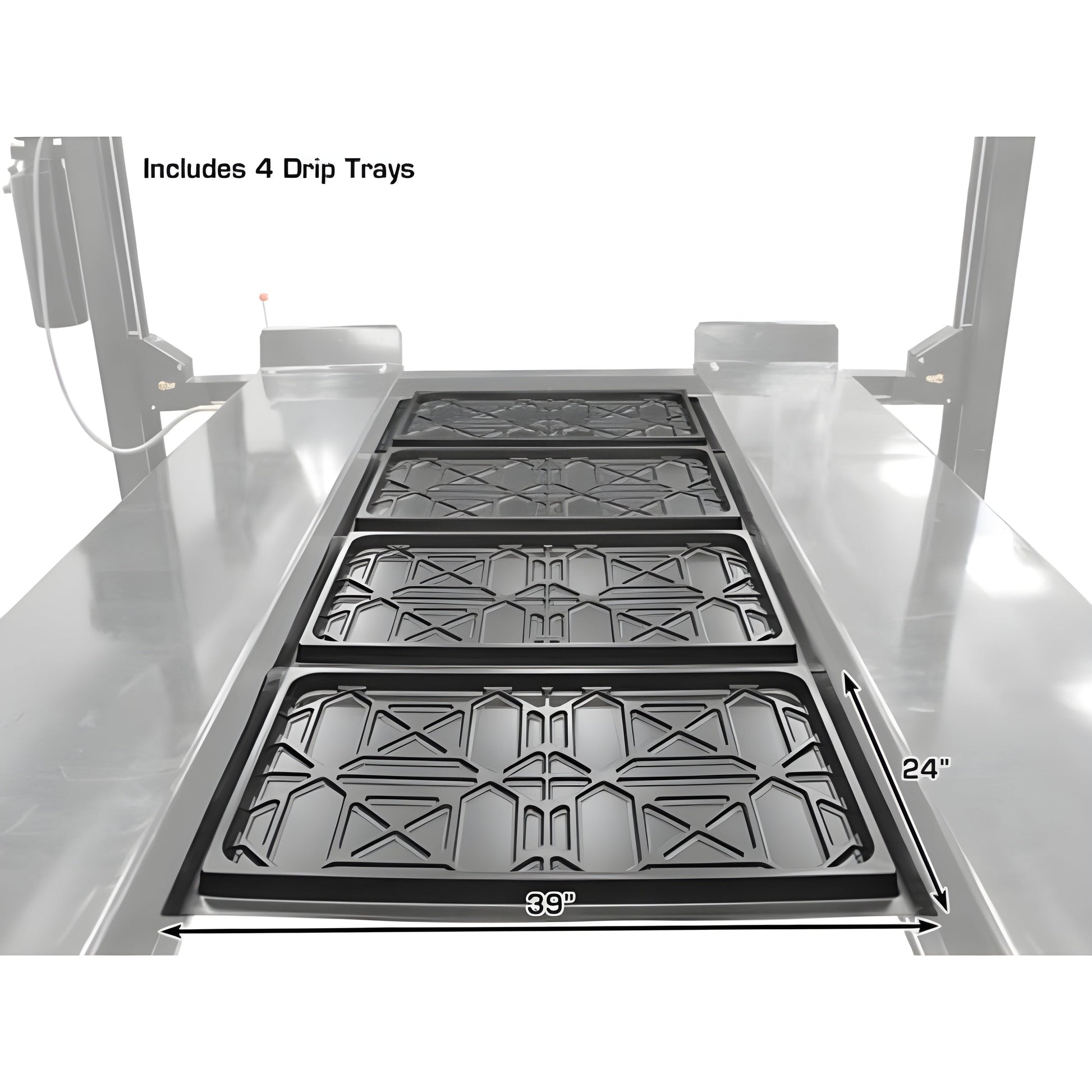

- 4 Plastic Drip Trays Included

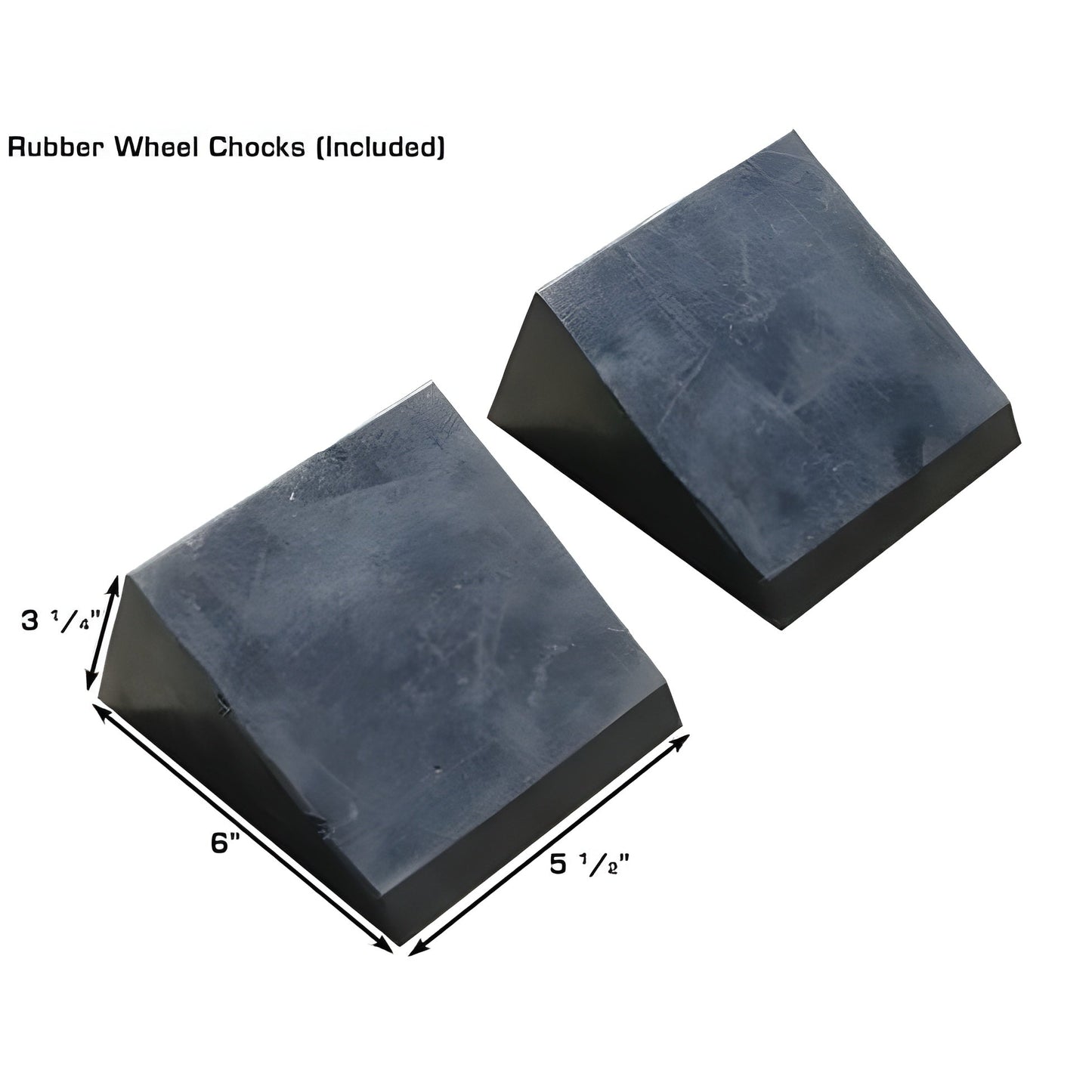

- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)

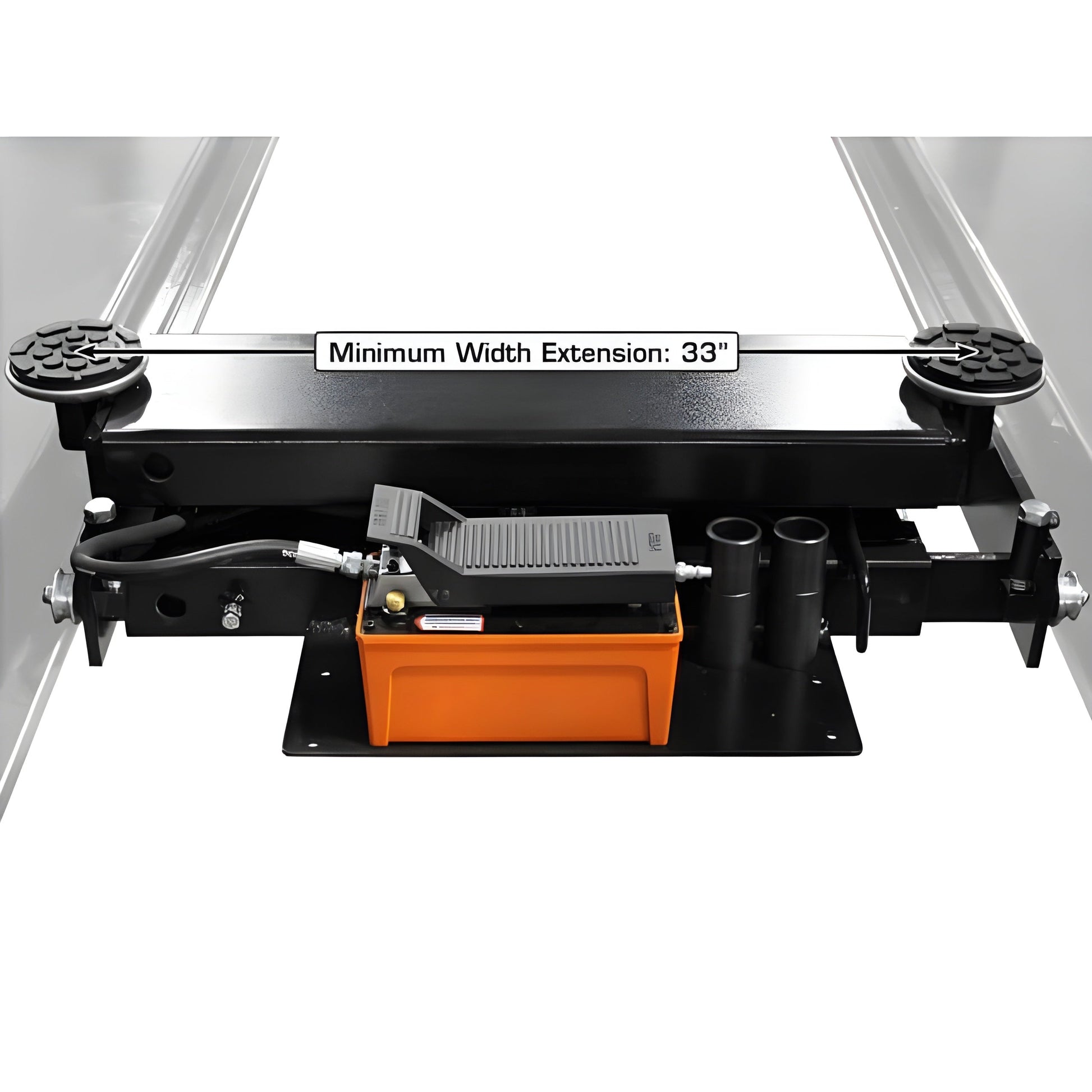

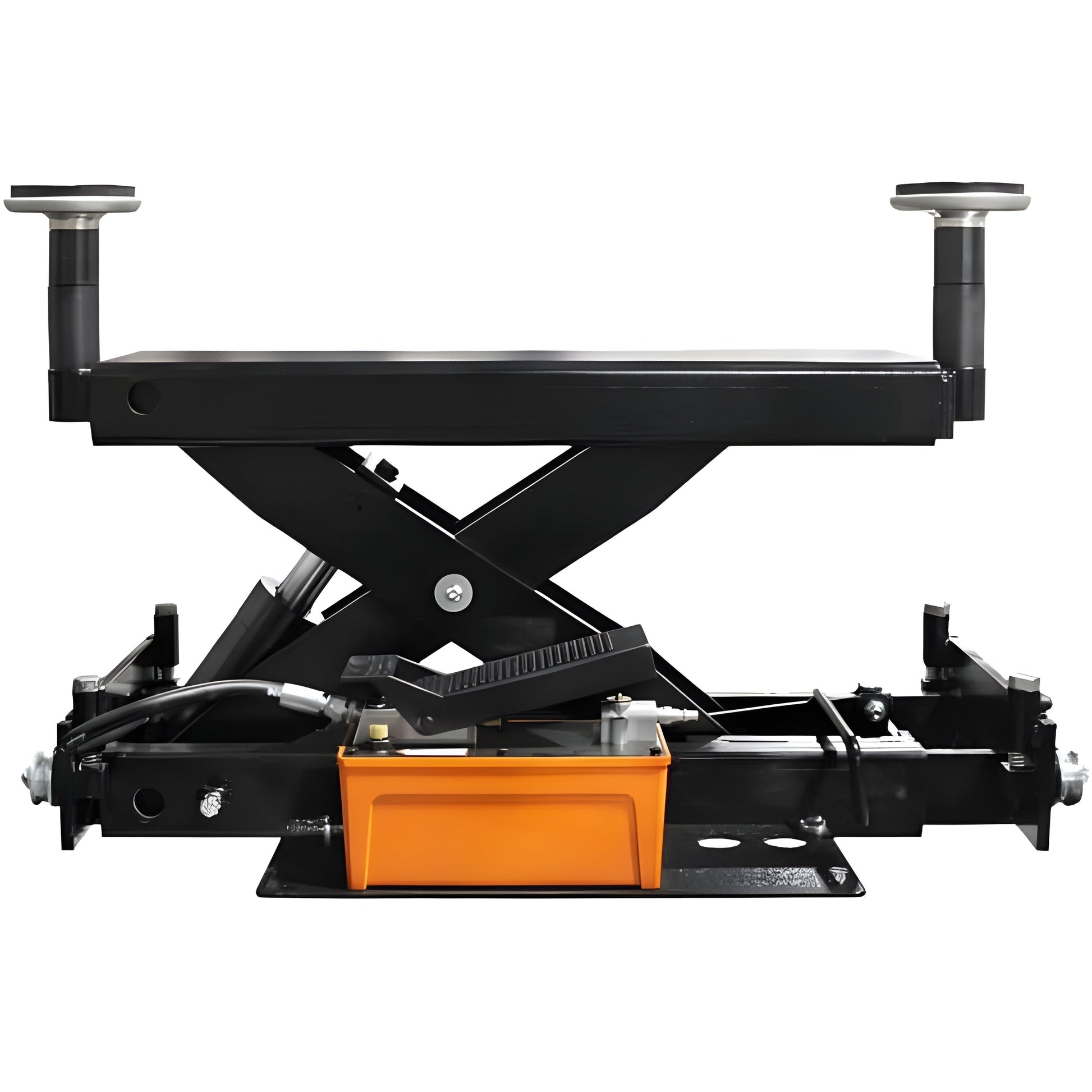

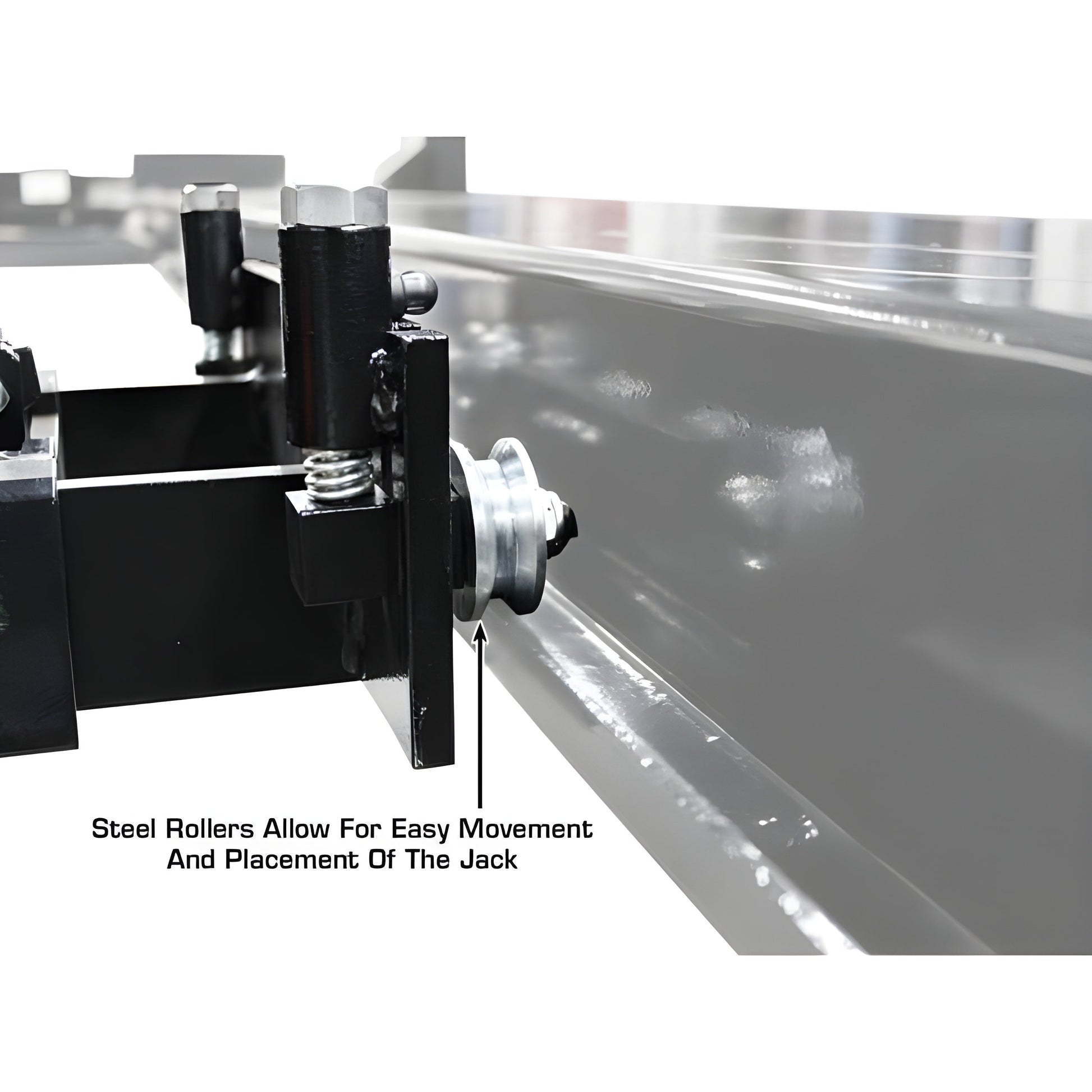

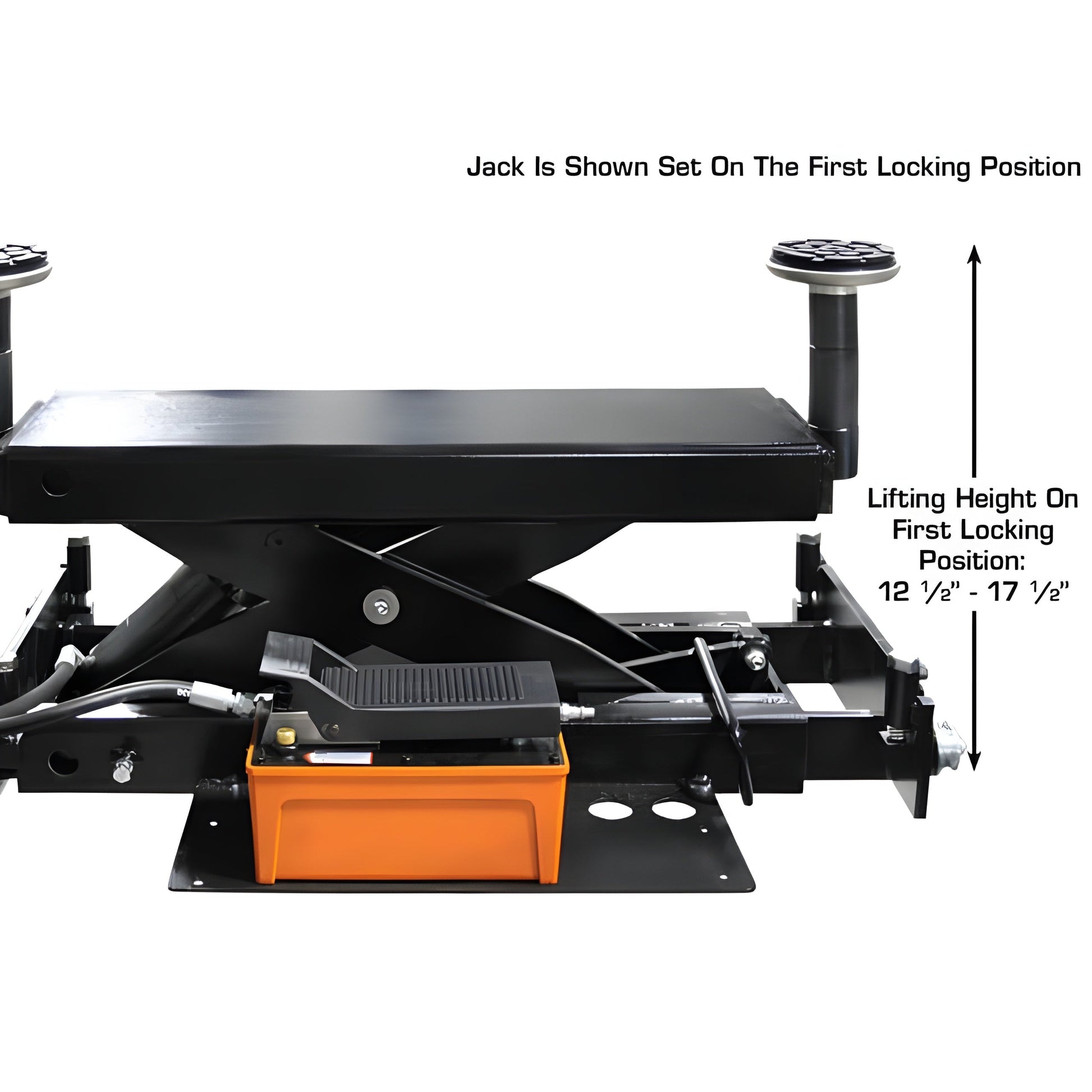

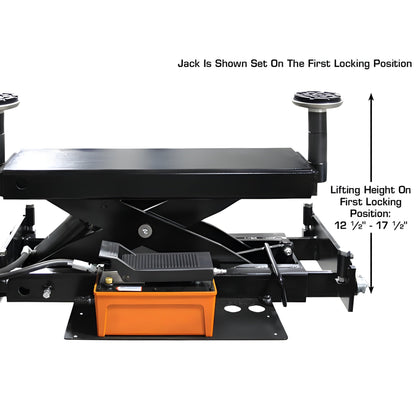

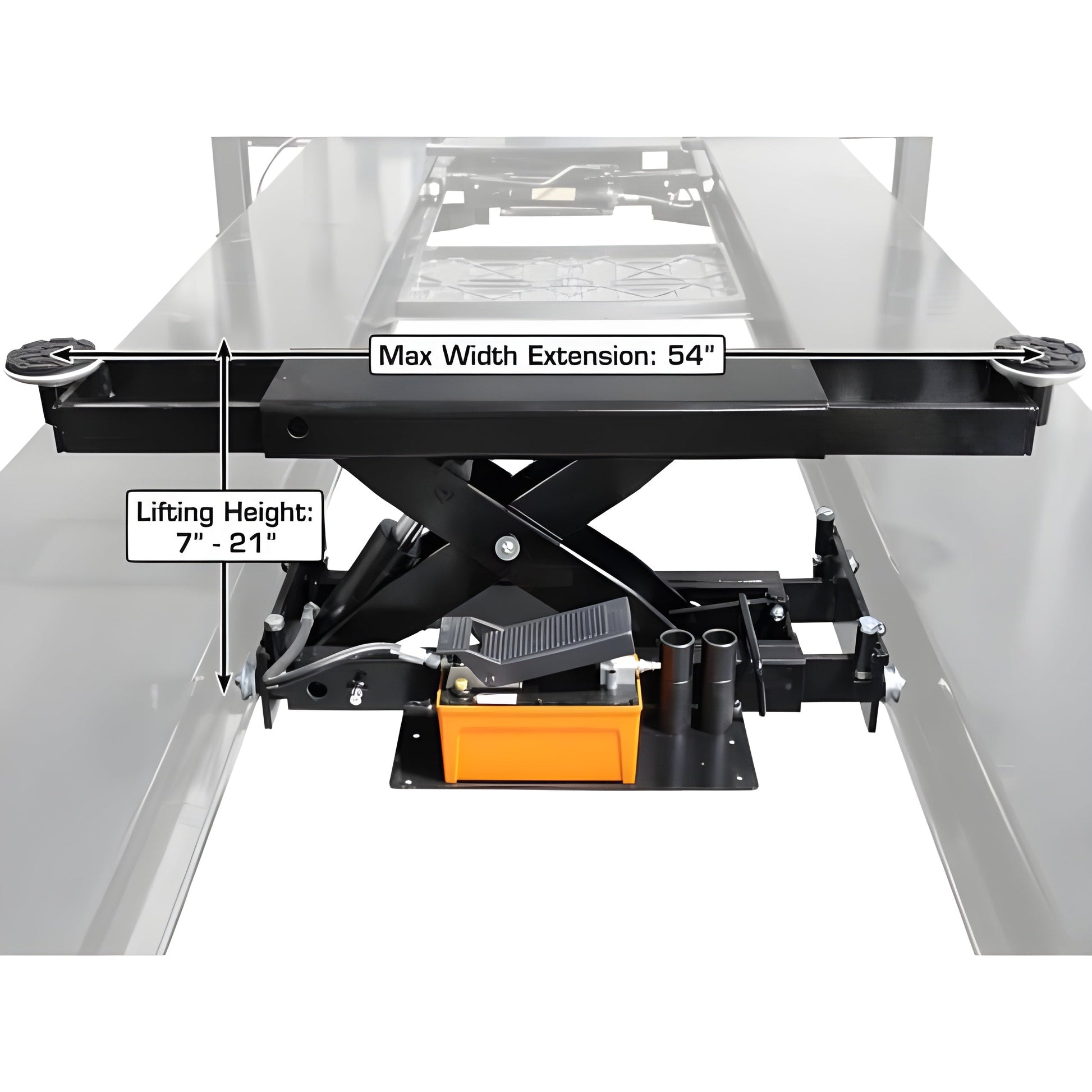

RJ6
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish

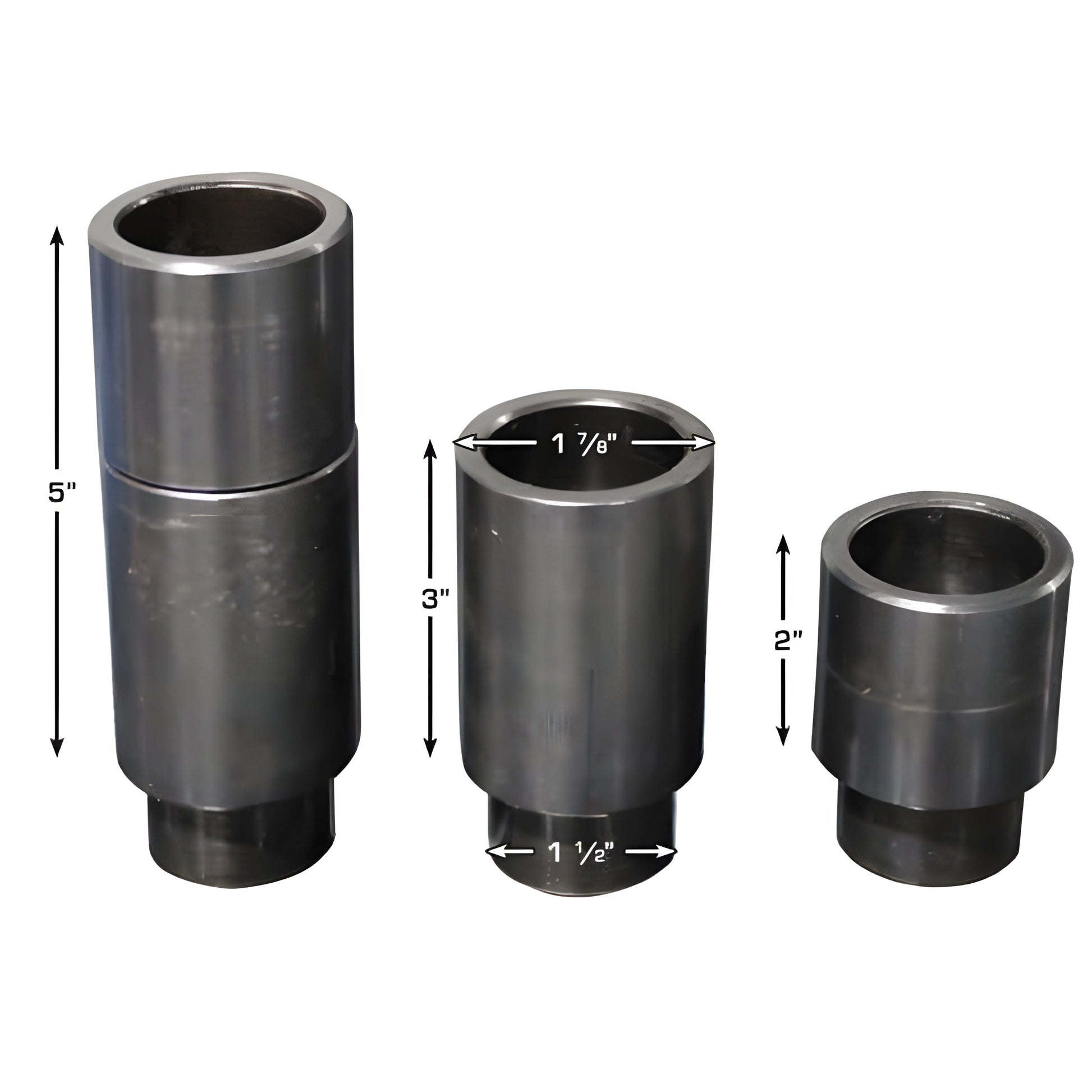

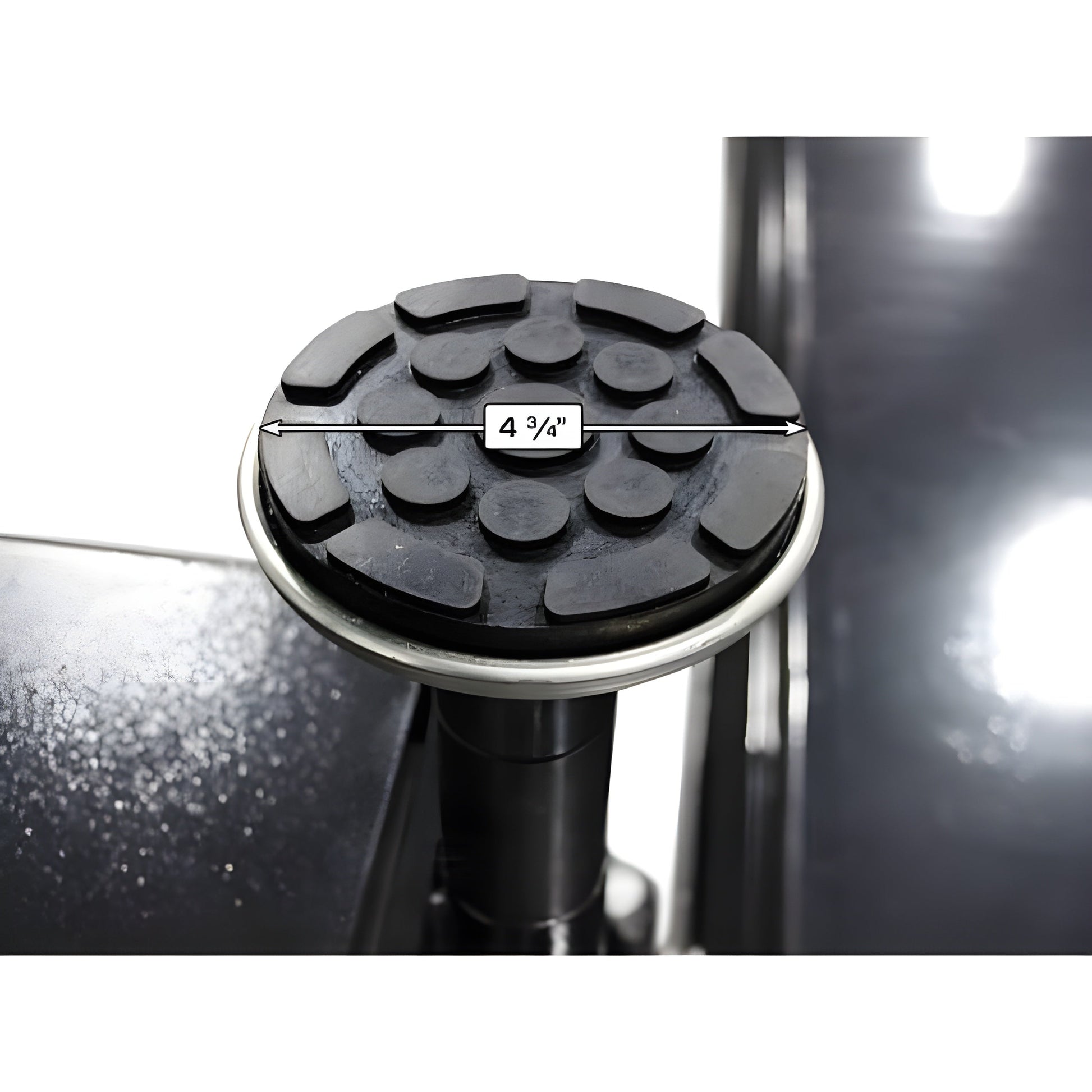

- 4 Piece Truck Adapter Set Included
Specifications

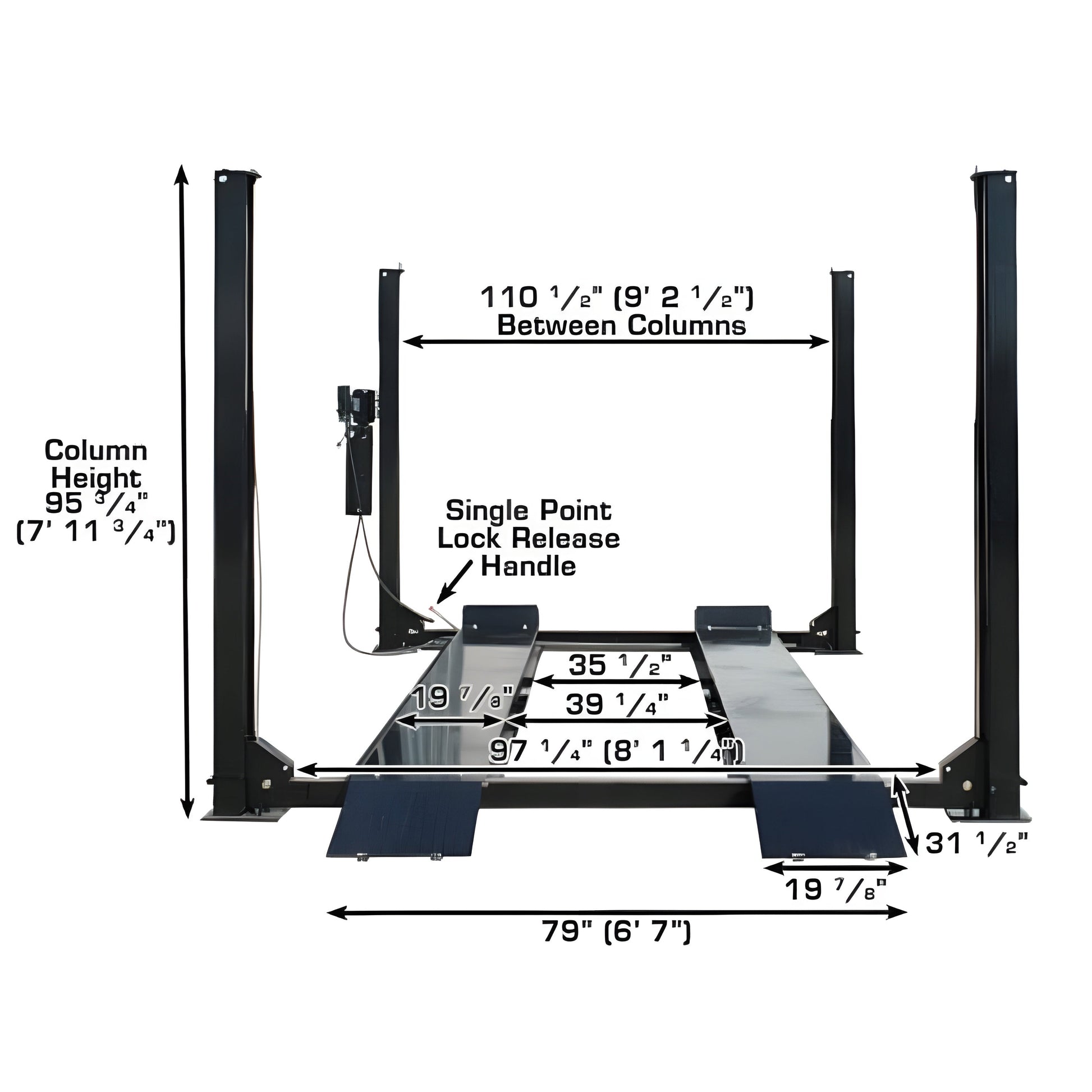

| Atlas Garage PRO9000 Specifications |
| Capacity |
9,000 Lb. |
| Lifting Height To Top Of Runway |
85" (7' 1") |
| Clearance Under Runways |
80 1/4" (6' 8 1/4") |

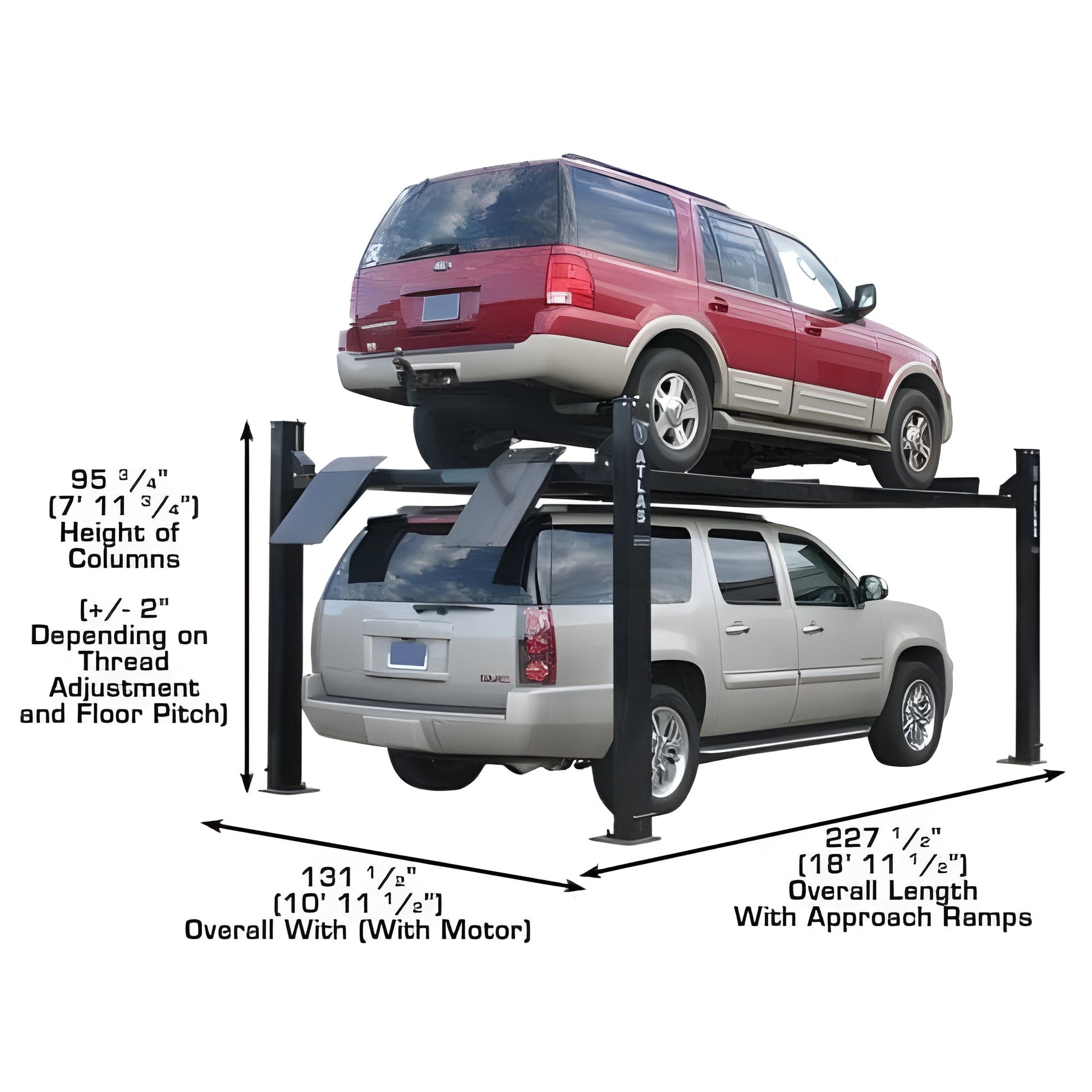

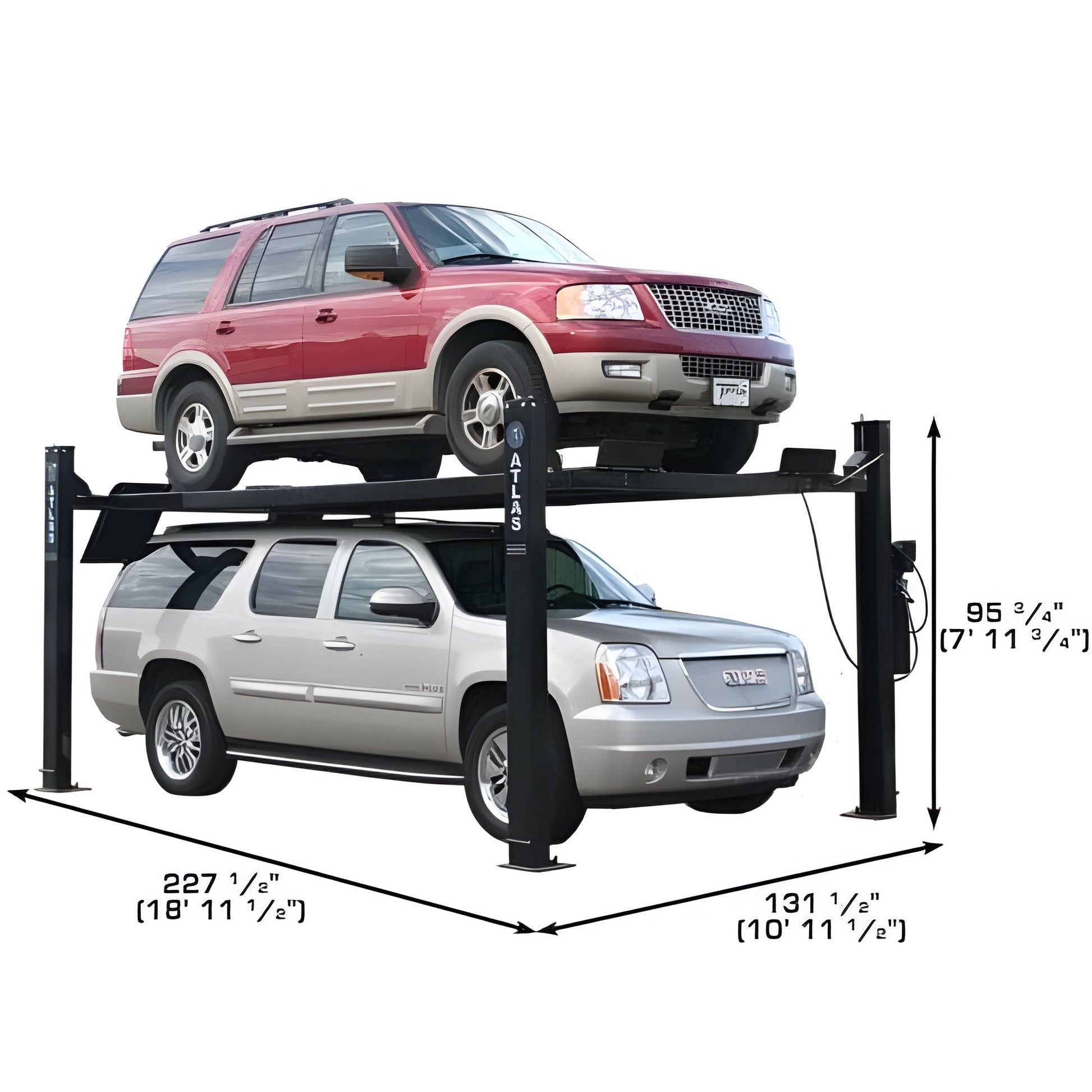

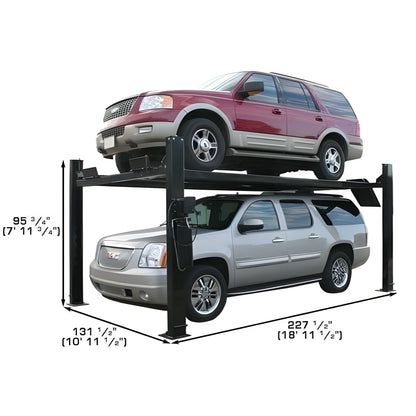

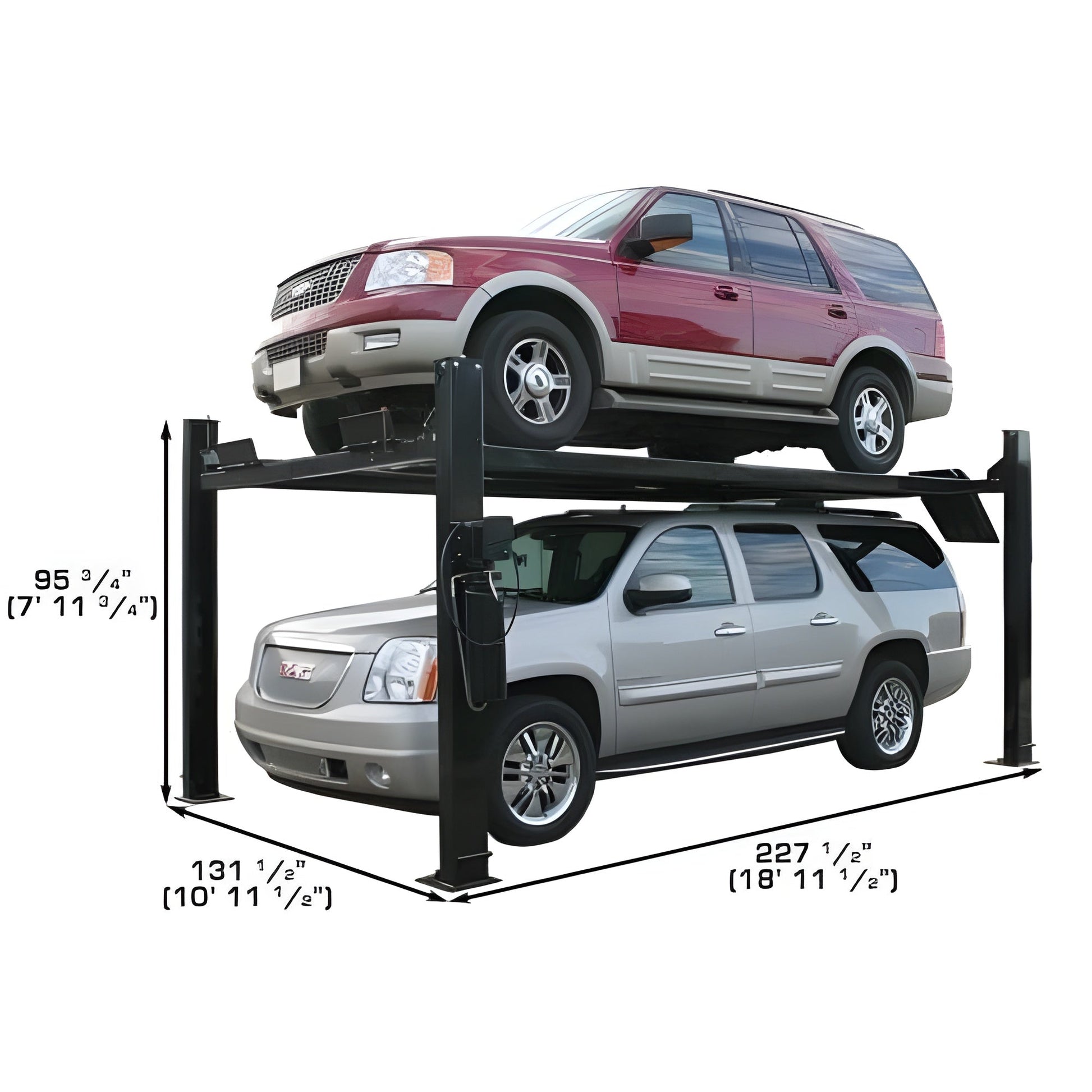

| Height Of Columns |
95 3/4" (7' 11 3/4") |
| Overall Width (Without Motor) |
123 1/2" (10' 3 1/2") |
| Overall Width (With Motor) |
131 1/2" (10' 11 1/2") |

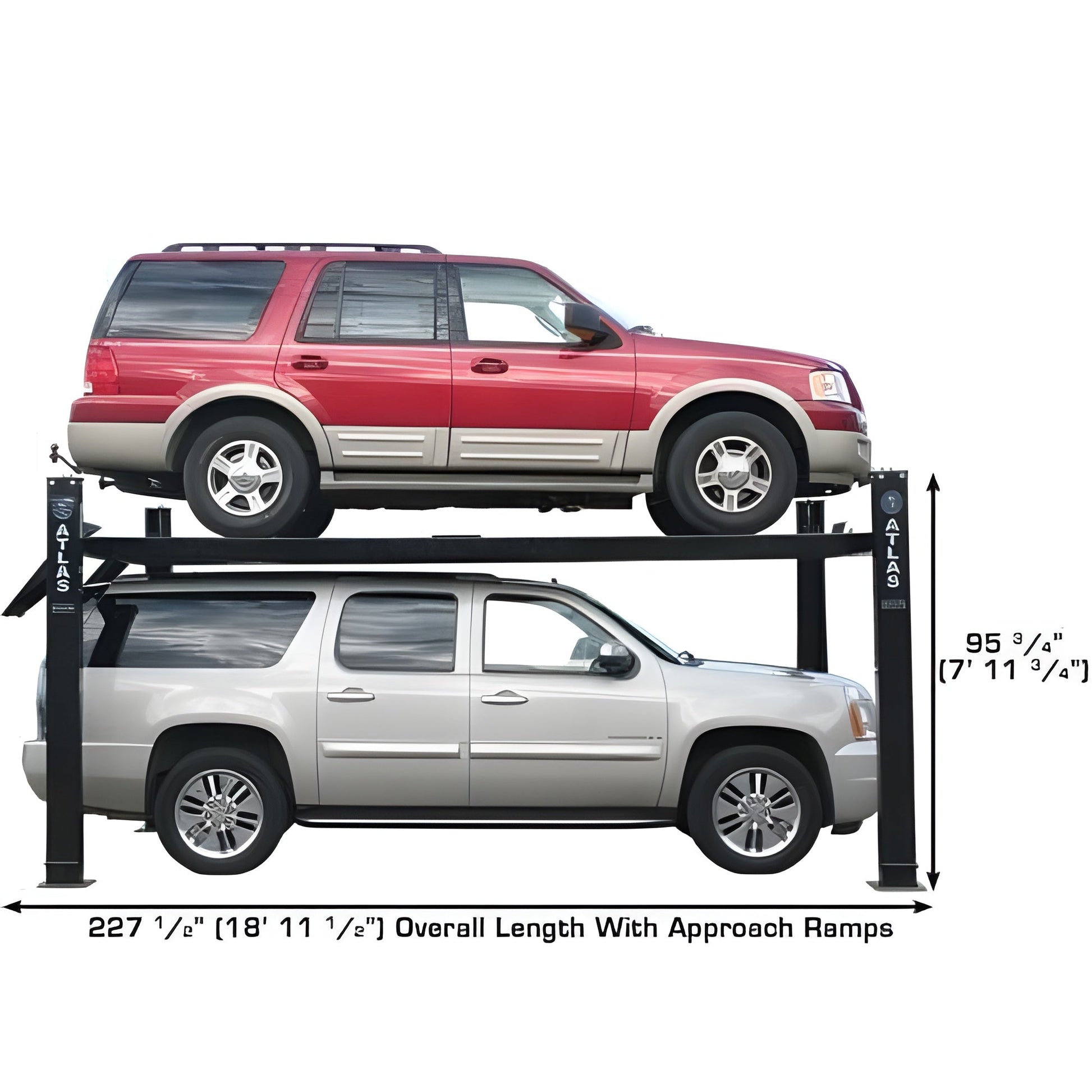

| Overall Length With Approach Ramp |
227 1/2" (18’ 11 1/2”) |
| Approach Ramp |
31" (2' 7") |
| Runway Width |
21 1/4" (w/ Rails) or 20" (Driving Surface) |
| Runway Length |
199 1/2" (16' 7 1/2") |

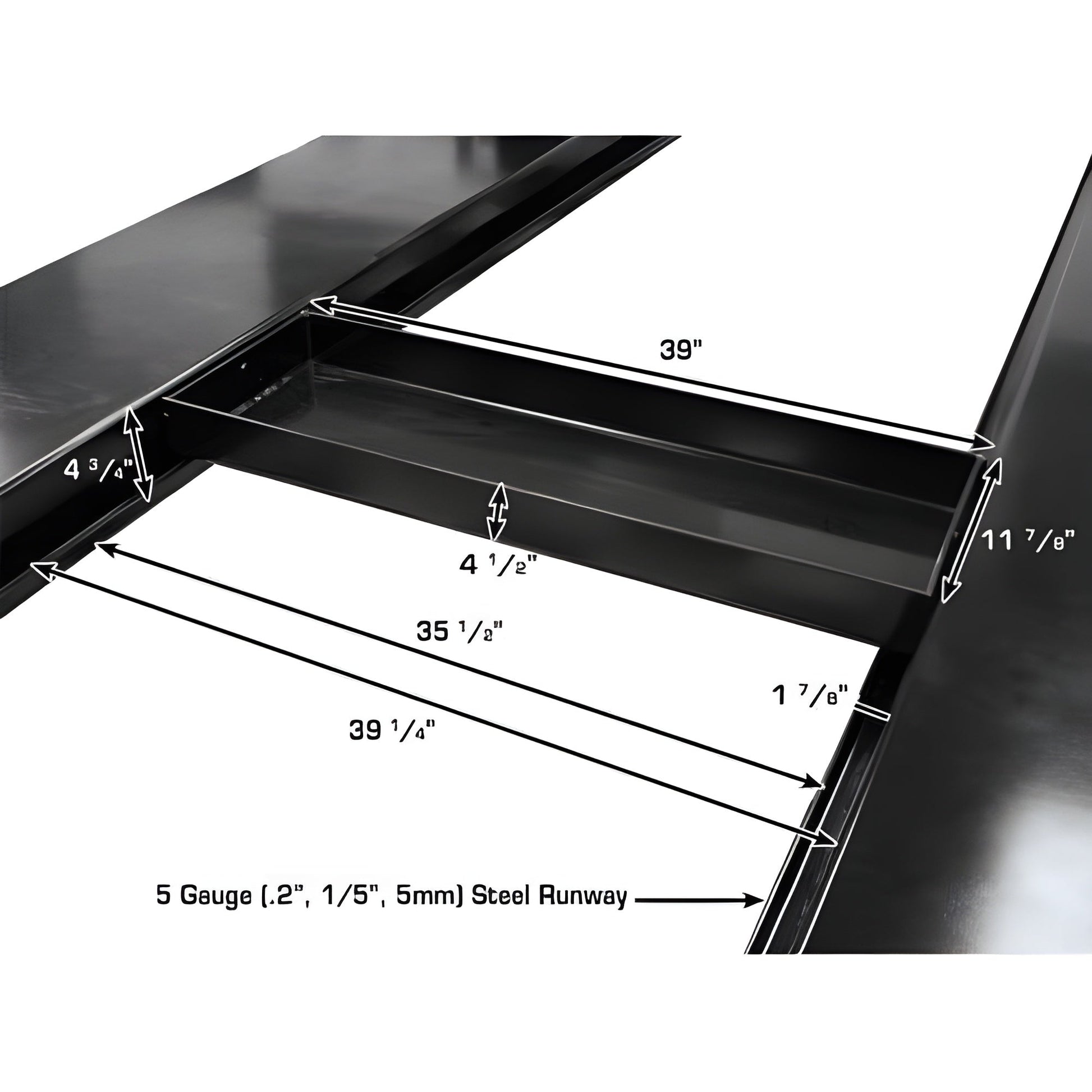

| Runway Thickness |
4 3/4" |
| Width Between Runways |
39 3/4" (3' 3 3/4") |
| Width Between Runway Rails |
35 1/2" (2’ 11 1/2") |
| Outside Runway To Outside Runway |
79" (6' 7") |
| Clearance Between Columns |
110 1/2" (9' 2 1/2") |
| Length Between Columns |
184 1/2" (15' 4 1/2") |
| Maximum Wheel Base |
187" (15' 7") |
| Drive Thru (Outside Of Tire To Outside Of Tire) |
97 1/4" (8' 1 1/4") |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
Manual
Atlas Garage Pro 9,000 Manual
Atlas RJ6 Parts List
What our Expect Think
-
9,000 lb. Lifting Capacity – Perfect for cars, SUVs, and light trucks.
-
4-Post Stability – Ensures safe and secure vehicle lifting.
-
RJ6 Rolling Jacks Included – Allows wheel-free lifting for brake and suspension work.
-
Extended Platform Design – Accommodates longer vehicles with ease.
-
Heavy-Duty Steel Construction – Built for long-term durability and reliability.
Q&A
Q: What is the Atlas PRO9000 4-Post Lift + RJ6 Rolling Jacks Combo used for?
A: The Atlas PRO9000 is a heavy-duty 4-post lift designed for vehicle storage, maintenance, and repairs. The included RJ6 rolling jacks allow for wheel-free lifting, making tire, brake, and suspension work more efficient.
Q: What is the weight capacity?
A: This lift has a 9,000 lb capacity, making it suitable for cars, trucks, SUVs, and other heavy vehicles.
Q: What type of vehicles is it best for?
A: This lift is ideal for cars, trucks, SUVs, and extended wheelbase vehicles that need additional clearance and support.
Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure safe operation and optimal performance.
Maintenance Tips
-

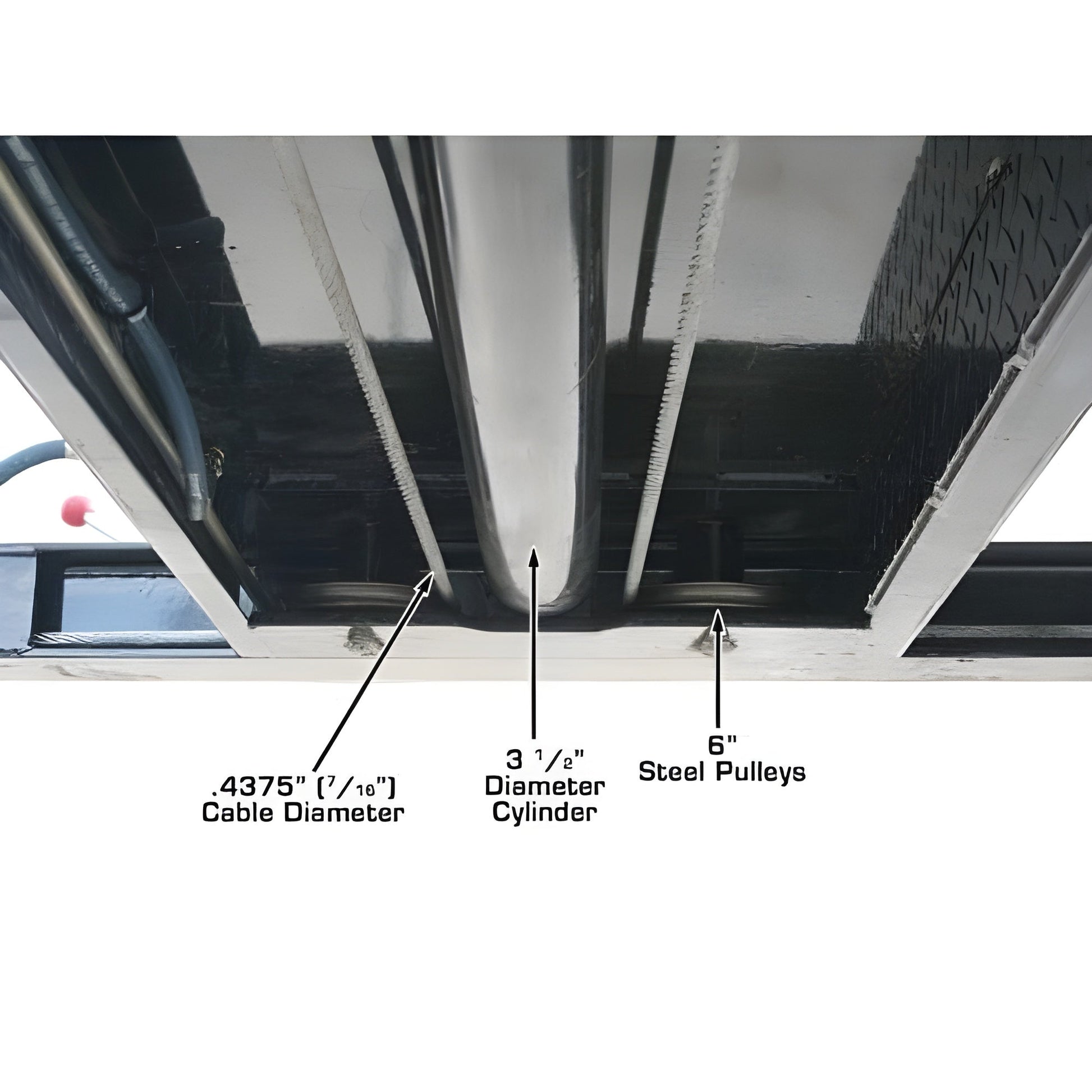

Inspect Cables & Pulleys – Regularly check for fraying, wear, and proper tension.
-
Lubricate Moving Parts – Apply grease to pulleys, rollers, and jack rails for smooth operation.
-
Monitor Hydraulic Fluid – Keep levels optimal and replace if contaminated.
-
Check Safety Locks – Ensure locks engage fully before lifting.
-
Inspect Rolling Jacks – Verify smooth movement and proper lifting function.
-
Tighten Fasteners – Secure all bolts and anchor points periodically.
-
Keep Platforms Clean – Remove debris for safe vehicle positioning.
