Atlas Lawnmower Adapter for 2-Post Lift - ATEATLMA-FPD

Atlas Lawnmower Adapter for 2-Post Lift - ATEATLMA-FPD

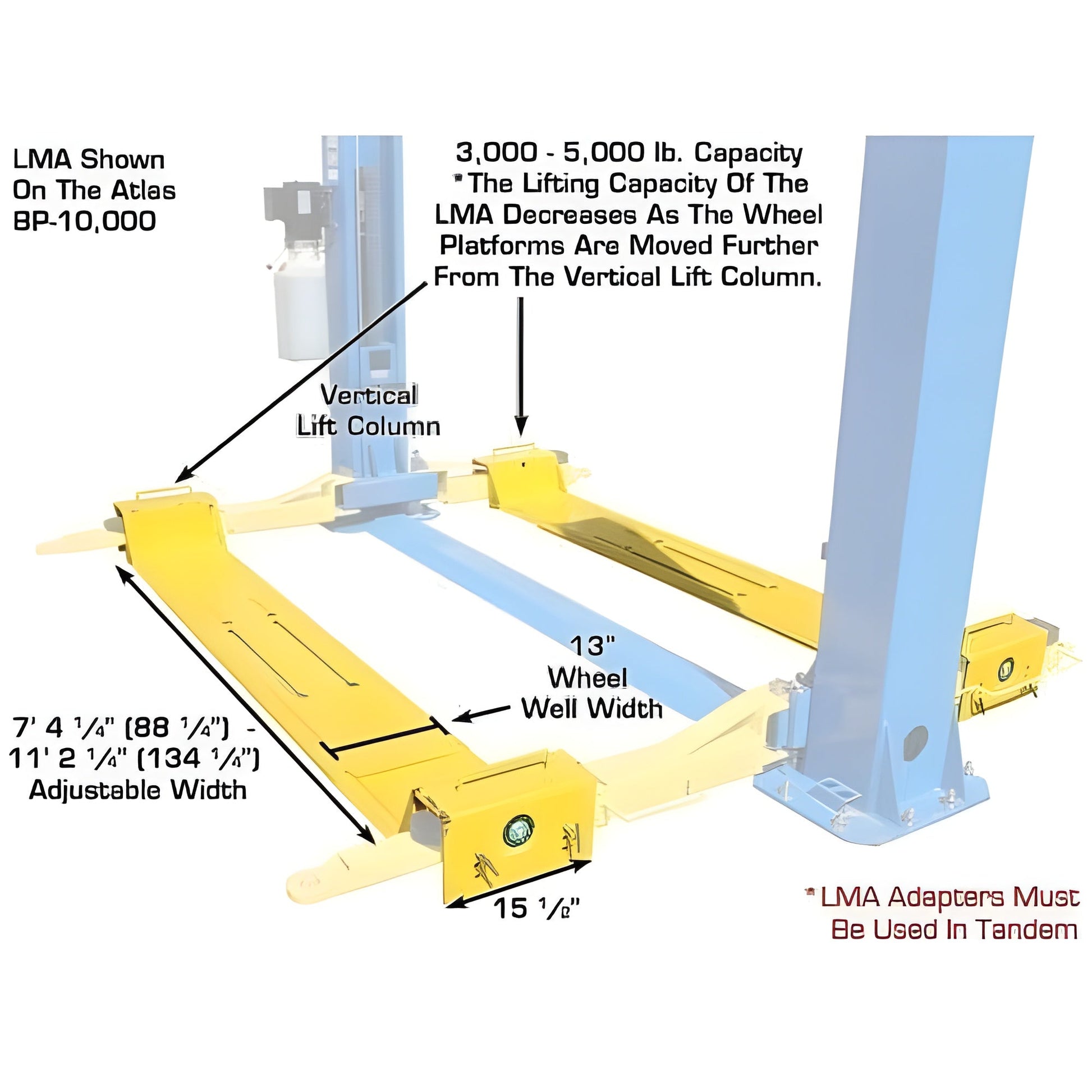

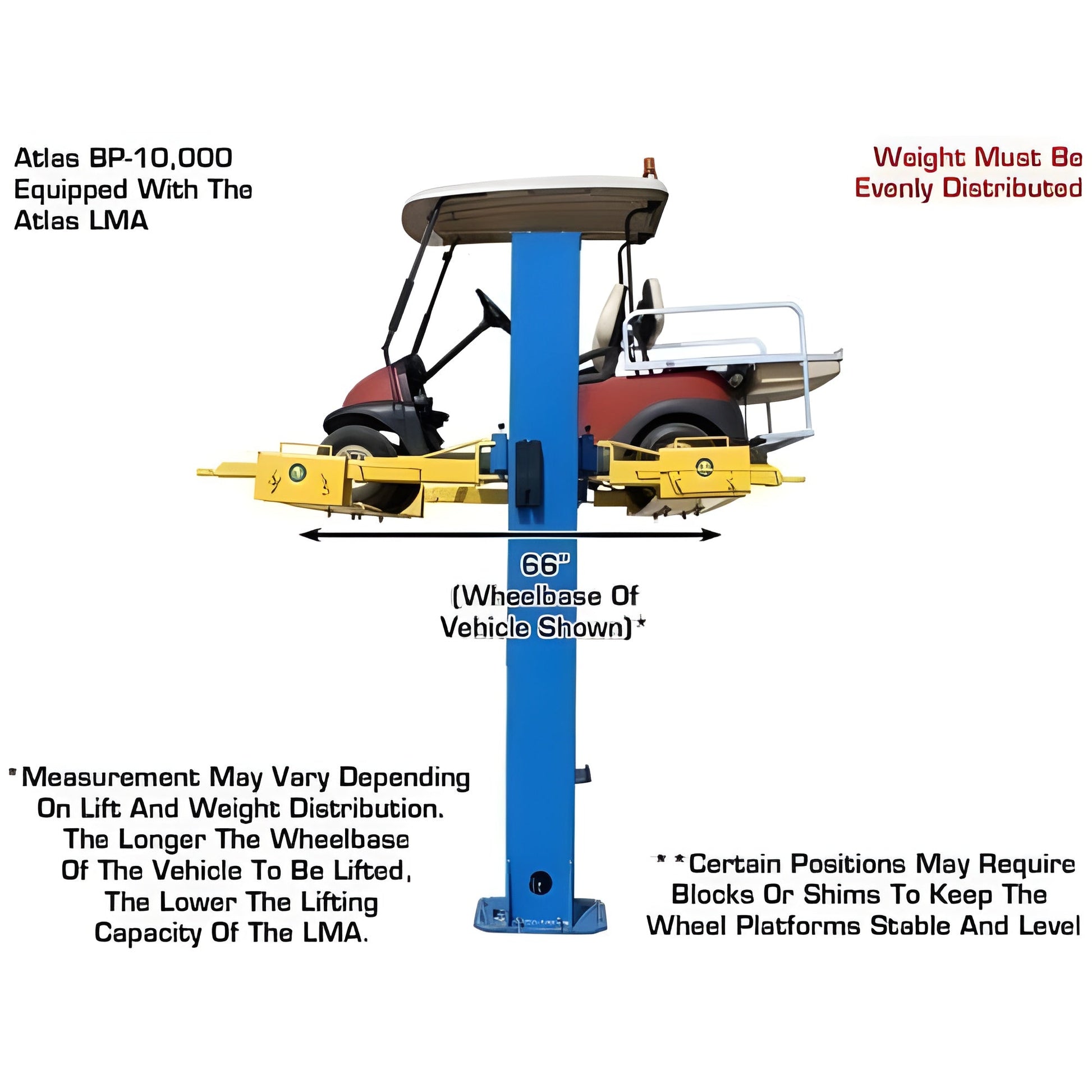

The Atlas LMA is designed to work with most two post above ground lifts with symmetric arms. There are many factors that will determine the SAFE weight capacity of the Atlas LMA on YOUR lift. Many above ground two post lifts are OVERRATED. Your 9,000 LB or 10,000 LB two post may be (in reality) only an 8,000 LB. two post lift. That REAL 8,000 LB capacity translates into four lift arms that are capable of lifting (and safely supporting) 2,000 LB. each. If you are lifting an 8,000 LB. vehicle on an 8,000 LB. lift, then the weight of the vehicle needs to be evenly distributed on each of the four lifting arms.This same principle is applied when using the Atlas® LMA as an accessory on your lift, YOU MUST distribute the weight as evenly as possible. First, consider the weight of the LMA (600 LB) and deduct that from the lifting capacity of your lift. Your 8,000 LB. lift (with a properly positioned LMA) has a new lifting capacity of 7400 LB. Second, the closer the LMA plate is positioned to the vertical columns, the greater the lifting capacity of the LMA. As the LMA adapter plates are moved farther apart (toward the end of the arm), the lifting capacity of the LMA is reduced.You should DEDUCT 3,000 LB. capacity from your lift when the two LMA plates are spaced farthest apart (90″). When the LMA plates are positioned near the columns, then the weight capacity of the lift with the LMA installed should be DECREASED by 2,000 LB. If you are using an 8,000 LB. two post lift, and you have the wheelbase dimensions set at 32″, then the NEW lifting capacity of the lift would be 5,400 LB. If you position the LMA plates so that the wheelbase is 90″, then the NEW lifting capacity would be 4,400 LB.Balance is also important when using the LMA. If you are lifting a mower (or other vehicle) that is extremely heavy on one end, then you should position the LMA plate supporting the “heavy” end close to the column and extend the opposite LMA plate (supporting the “lighter” end) further out on the arm to accommodate the necessary wheelbase.

Features

• “Lawnmower” Adapter for 2-Post Lifts

• Includes 4 plates and all hardware

• Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)

• Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)

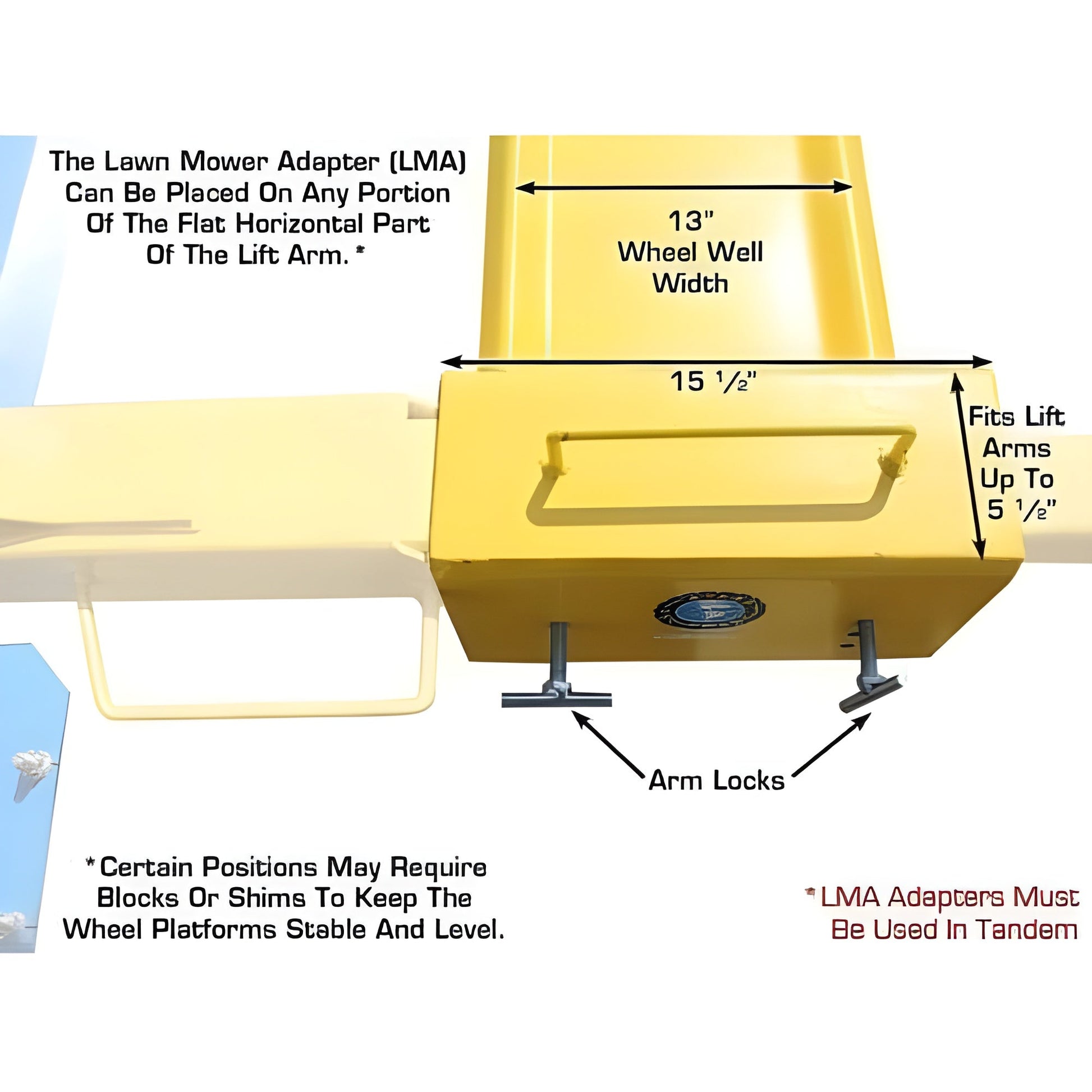

• Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)

Specifications

Manual

Atlas Lawn Mower Adapter Assembly Guide

What our Expect Think

• Perfect for Lawn Equipment: The Atlas Lawnmower Adapter for 2-Post Lifts is designed to easily lift lawnmowers and similar small vehicles, making it an essential accessory for servicing lawn equipment.
• Heavy-Duty Construction: Built with durable materials, this adapter is sturdy enough to handle the weight and demands of lawnmower maintenance, ensuring long-term reliability.
• Easy to Use: The adapter easily attaches to 2-post lifts, offering a quick and convenient way to raise lawnmowers for repairs, maintenance, or storage.
• Increased Versatility: This accessory expands the functionality of your 2-post lift, making it a versatile tool for both automotive and small equipment lifting needs.
• Improved Safety: Includes secure locking mechanisms for safe and stable lifting, ensuring that lawnmowers stay in place while being serviced.
• Space-Efficient: Ideal for garages with limited space, the adapter allows for easy lifting without taking up much additional room.
• Time-Saving: Makes maintenance and repairs on lawnmowers more efficient, improving productivity in both home and professional settings.

Q&A

Q: What is the Atlas Lawnmower Adapter for?
A: The Atlas Lawnmower Adapter is designed to be used with 2-post lifts to safely lift lawnmowers for maintenance, repairs, or storage. It provides a stable platform and secure attachment for lifting lawnmowers.

Q: Is this adapter compatible with all 2-post lifts?
A: The Atlas Lawnmower Adapter is specifically designed for use with Atlas 2-post lifts. It may not be compatible with other brands, so it's recommended to check compatibility before purchasing.

Q: What is the weight capacity of the Atlas Lawnmower Adapter?
A: The Atlas Lawnmower Adapter can handle the weight of most standard lawnmowers, typically up to 1,500 lbs, depending on the lift's specifications.

Q: How does the Atlas Lawnmower Adapter work?
A: The adapter attaches easily to the lifting arms of an Atlas 2-post lift. Once in place, it secures the lawnmower, allowing for safe and stable lifting for repairs or maintenance.

Q: Does the Atlas Lawnmower Adapter require any special installation?
A: The adapter is designed for easy installation with minimal assembly. Simply attach it to your 2-post lift following the included instructions for a quick setup.

Q: Can this adapter be used for other vehicles or equipment?
A: The Atlas Lawnmower Adapter is specifically designed for lawnmowers and may not be suitable for other types of equipment. For other vehicles, Atlas offers other compatible adapters.

Q: Is the Atlas Lawnmower Adapter durable?
A: Yes, the Atlas Lawnmower Adapter is made from high-quality materials designed for durability and long-term use, providing reliable performance when lifting lawnmowers.

Q: Is the Atlas Lawnmower Adapter easy to store?
A: The Atlas Lawnmower Adapter is compact and easy to store when not in use, taking up minimal space in your workshop or garage.

Maintenance Tips

• Inspect for Wear and Tear – Regularly check the lawnmower adapter for any signs of wear, cracks, or deformation. If any damage is found, replace the damaged parts to maintain safe operation.
• Lubricate Moving Parts – Apply lubricant to any moving components, such as pins or hinges, to ensure smooth adjustments and prevent rust or corrosion.
• Check Attachment Mechanisms – Ensure the adapter is securely attached to the lift arms and is properly aligned. Tighten any loose bolts or fasteners.
• Clean After Use – Remove any dirt, grass, or debris from the adapter after each use to maintain cleanliness and prevent buildup that could affect performance.
• Inspect Hydraulic System – If the lift uses hydraulic mechanisms, check the system for leaks or fluid loss, and ensure the adapter functions properly with the lift's hydraulic capabilities.
• Test Stability – Before lifting any equipment, test the stability of the adapter by lifting a small, light load to verify it is secure and performing correctly.
• Check Load Capacity – Make sure the lawnmower adapter is being used within its specified weight limit to avoid strain on the lift or adapter.
• Rust and Corrosion Prevention – Periodically inspect for rust or corrosion and apply a rust-preventative spray on exposed metal parts to extend the lifespan of the adapter
