Atlas Garage PRO8000EXT-L 8,000 lb Extra Tall/Extra Long 4-Post Lift - ATEXH-PRO8000EXT-L-FPD

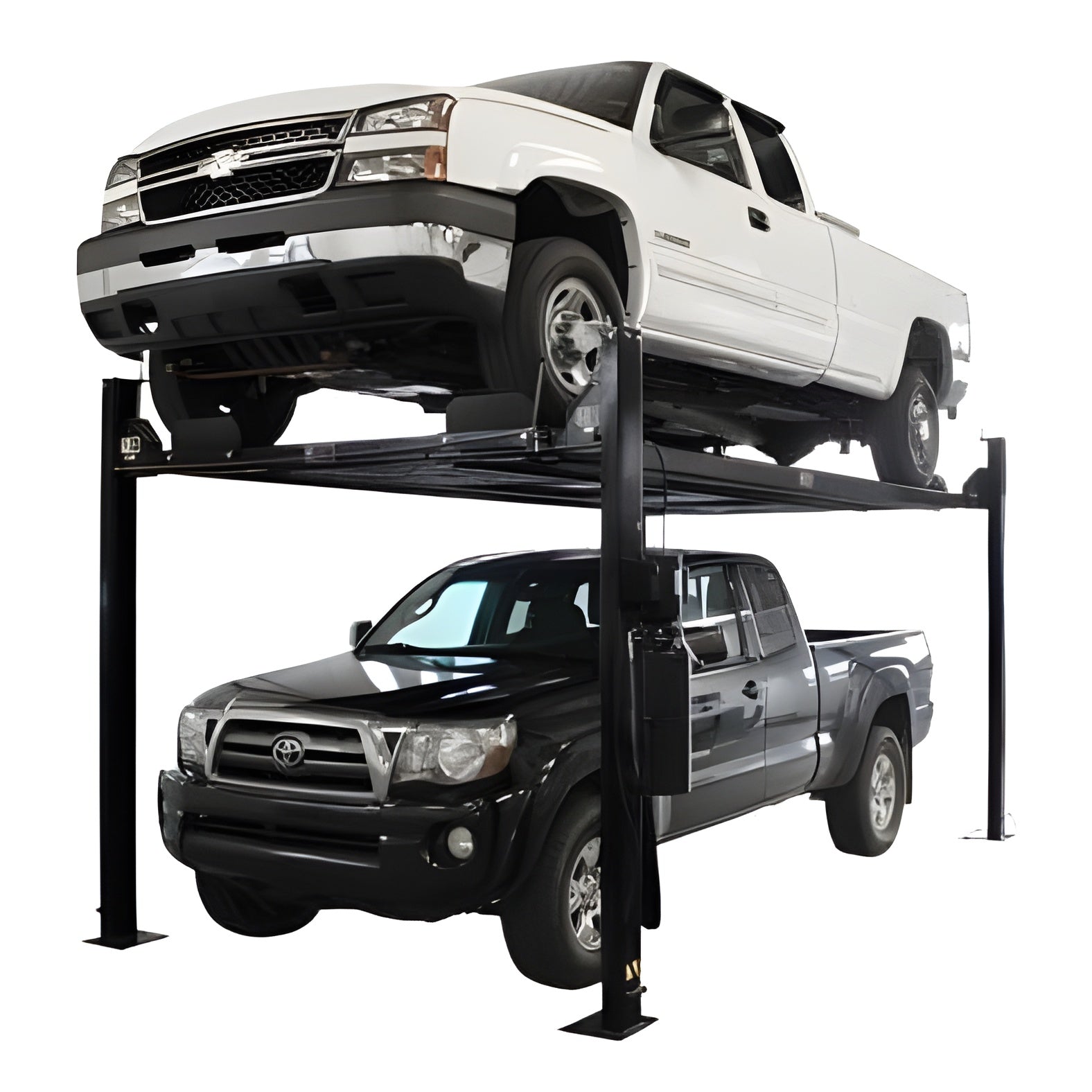

The Atlas Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!The Atlas Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not desinged for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..The Atlas Garage PRO8000EXT-L includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.Many customers who purchased this lift also purchased the Atlas RJ35.
Video
Features
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Extra Tall/Extra Long
- Diamond Plated Runways

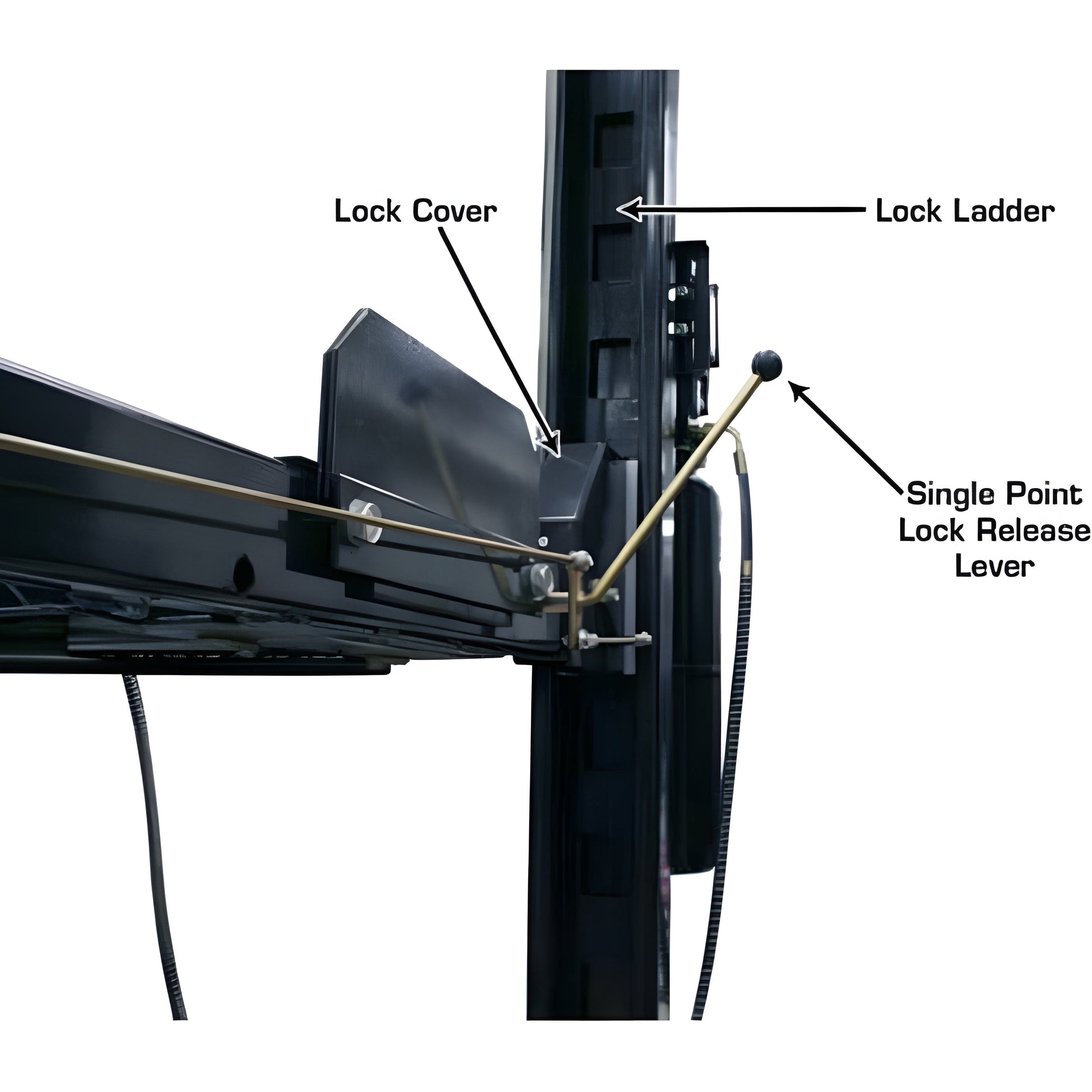

- Single-Point Lock Release

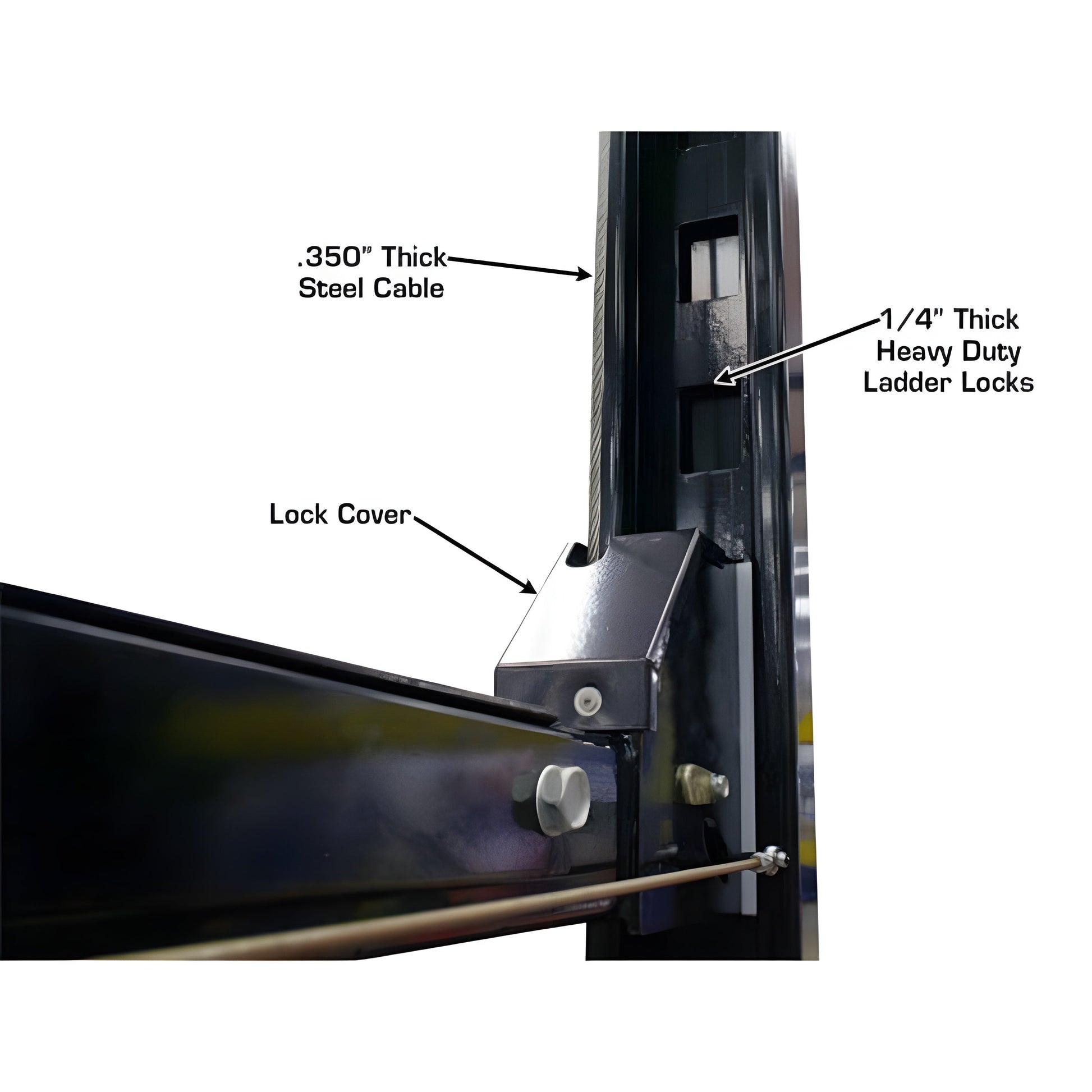

- Lock Ladder Design

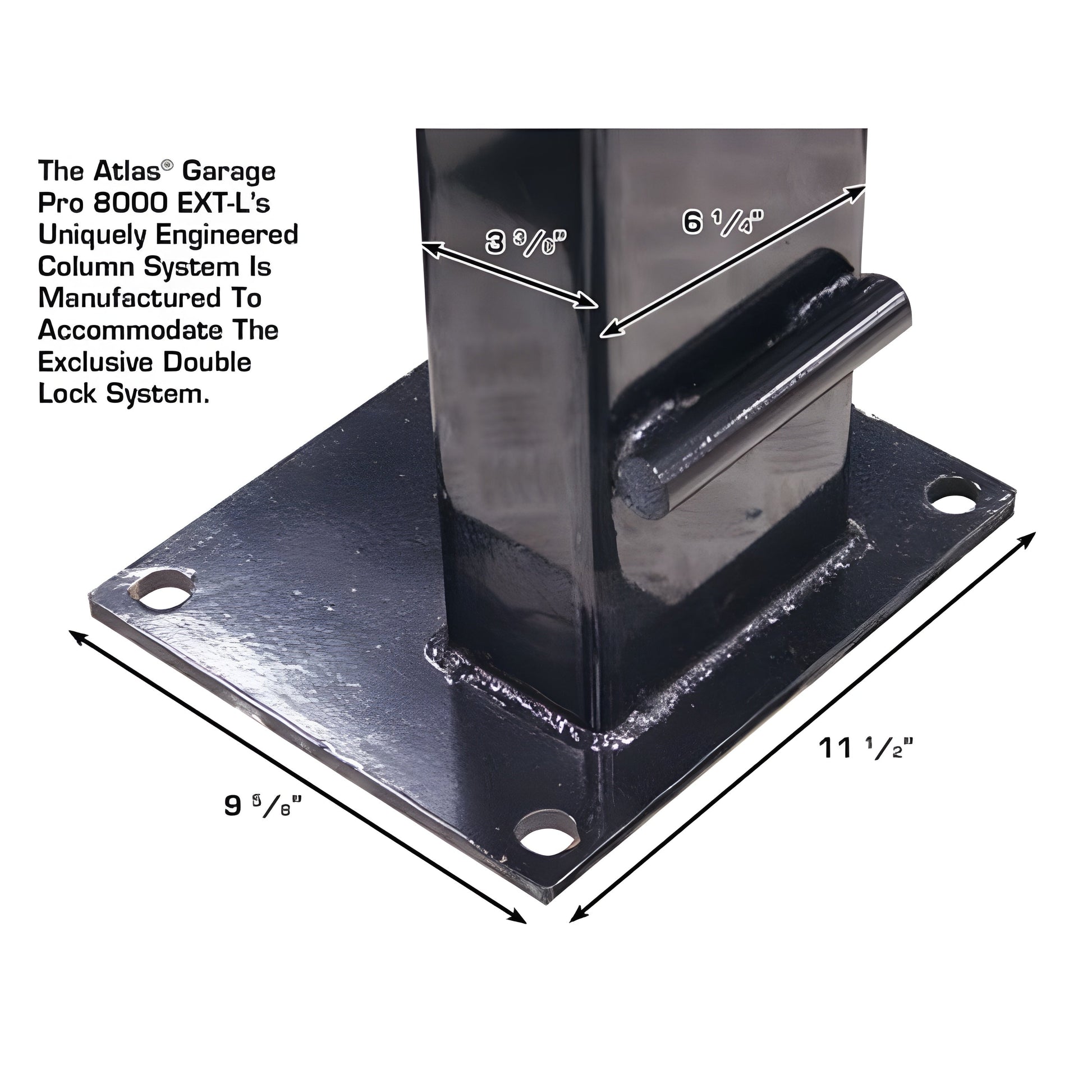

- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included

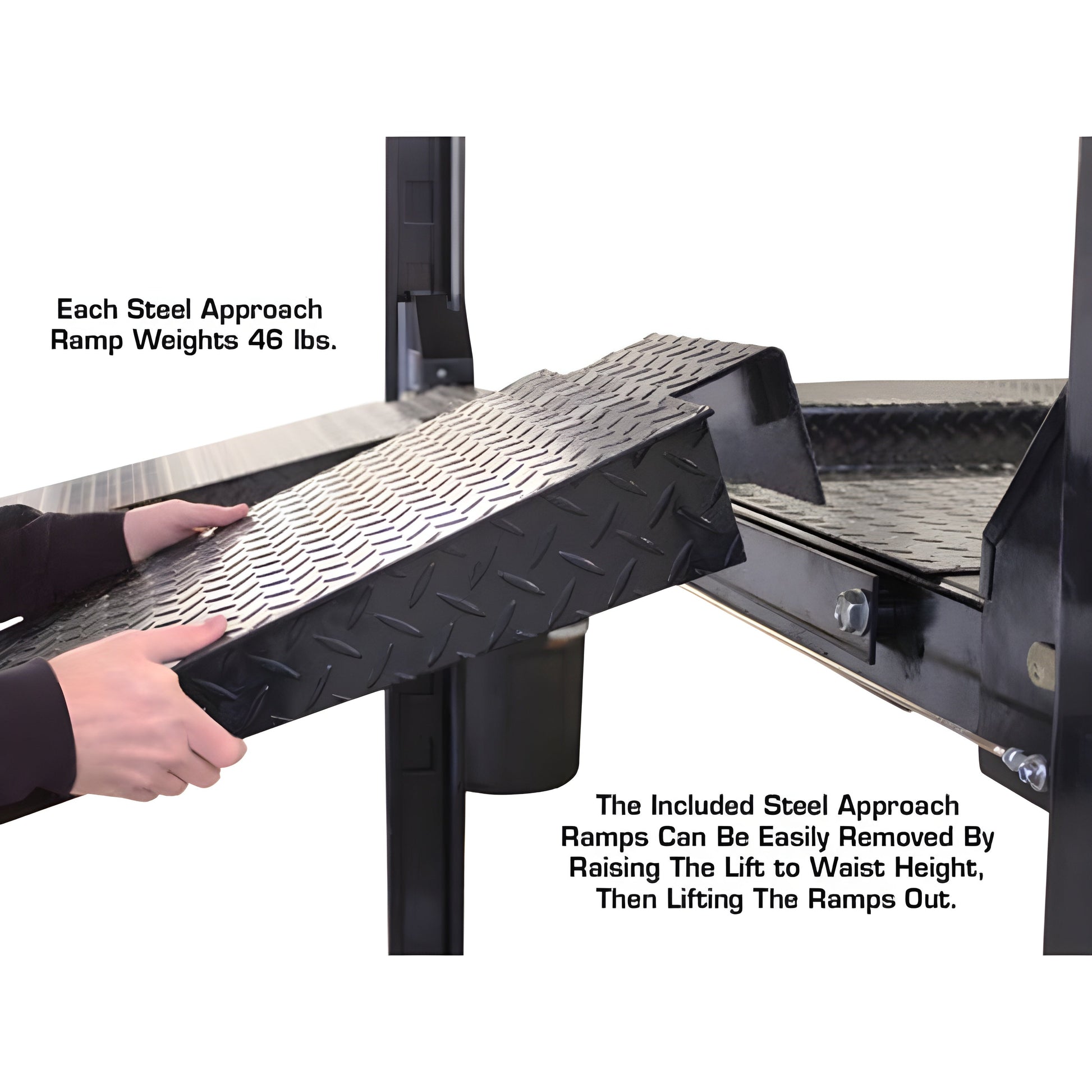

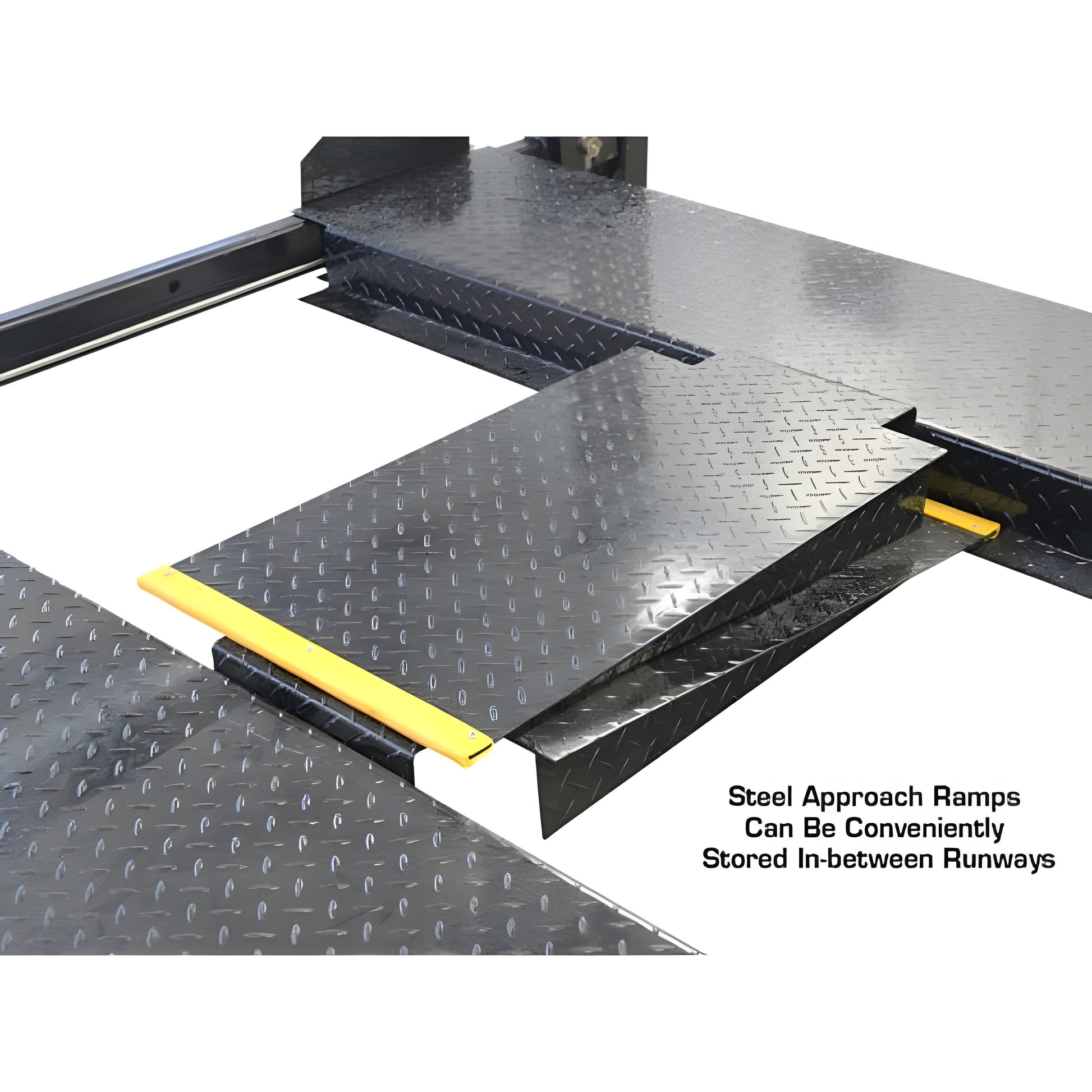

- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles

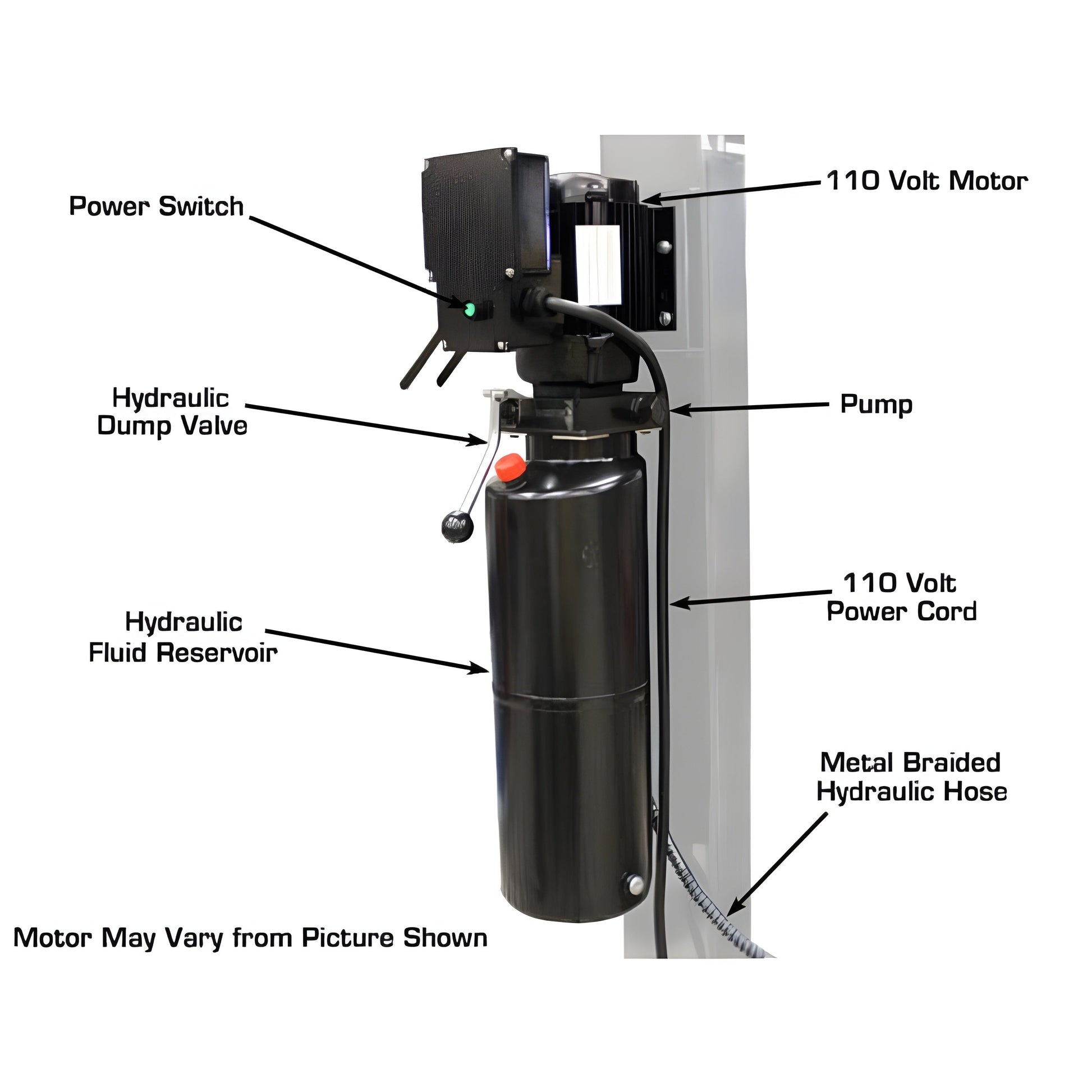

- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
Specifications
| Atlas Garage PRO8000EXT-L Specifications |
|
| Capacity |
8,000 Lb. |

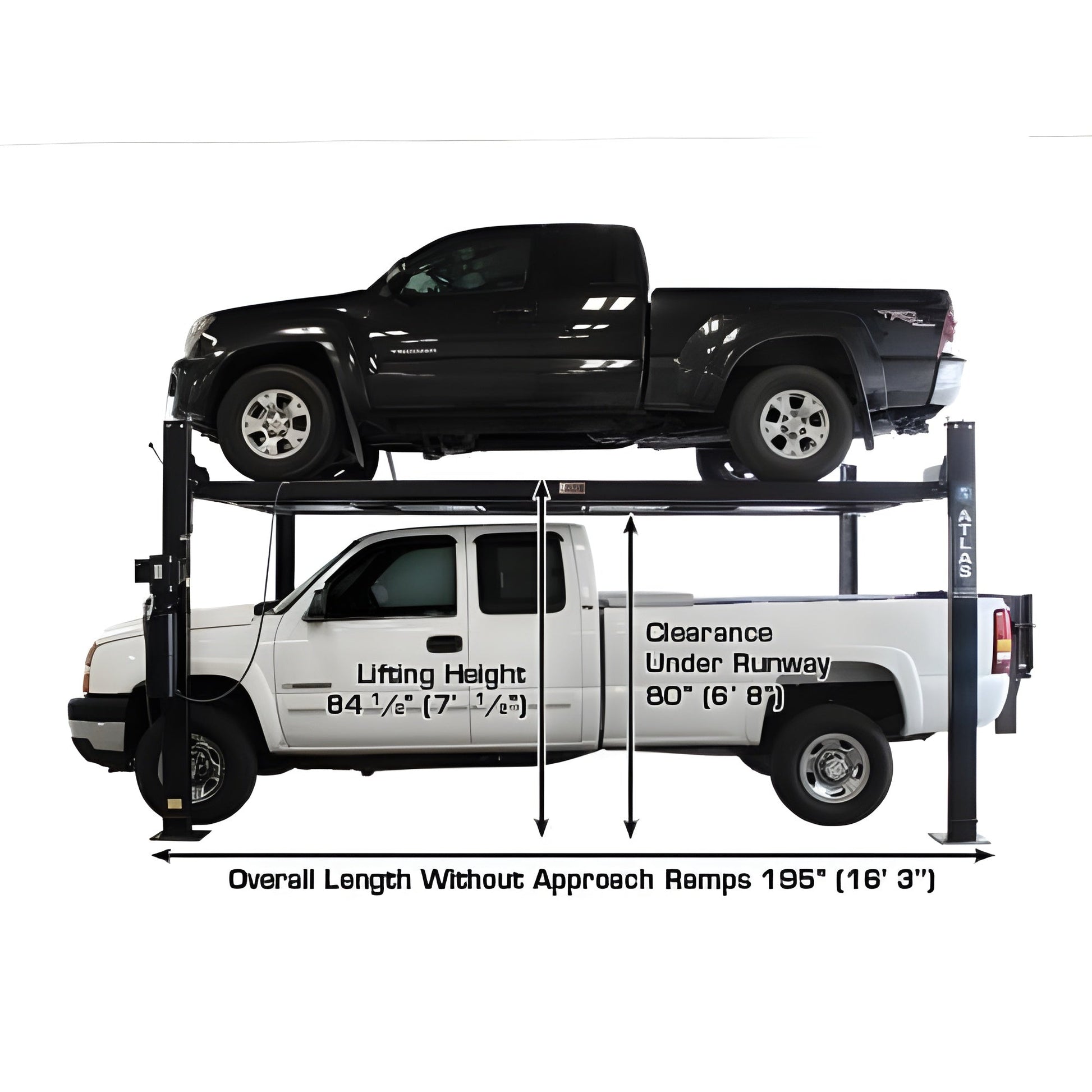

| Lifting Height To Top Of Runway |
84" (7') |
| Clearance Under Runways |
78 1/2" (6' 6 1/2") |

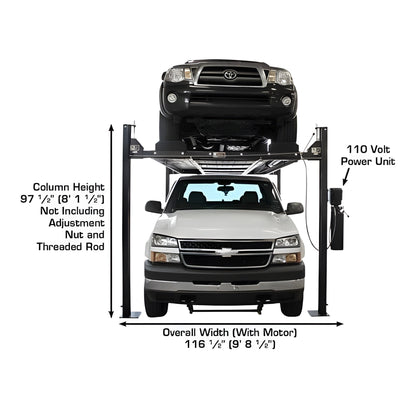

| Height Of Columns |
98 1/2" (8' 2 1/2") |
| Overall Width (Without Motor) |
108" (9’) |

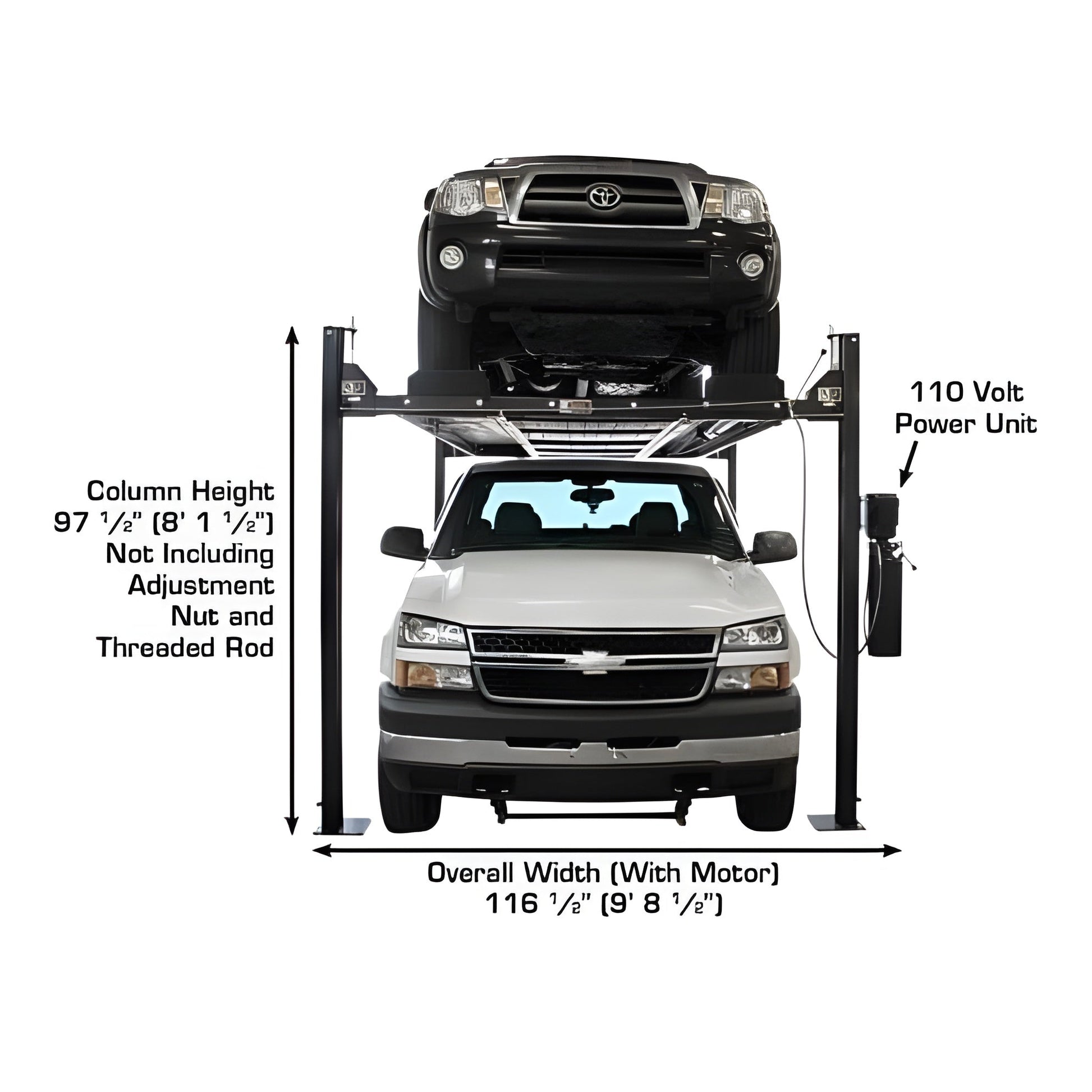

| Overall Width (With Motor) |
116 1/2" (9' 8 1/2") |
| Overall Length With Approach Ramp |
222" (18’ 6”) |

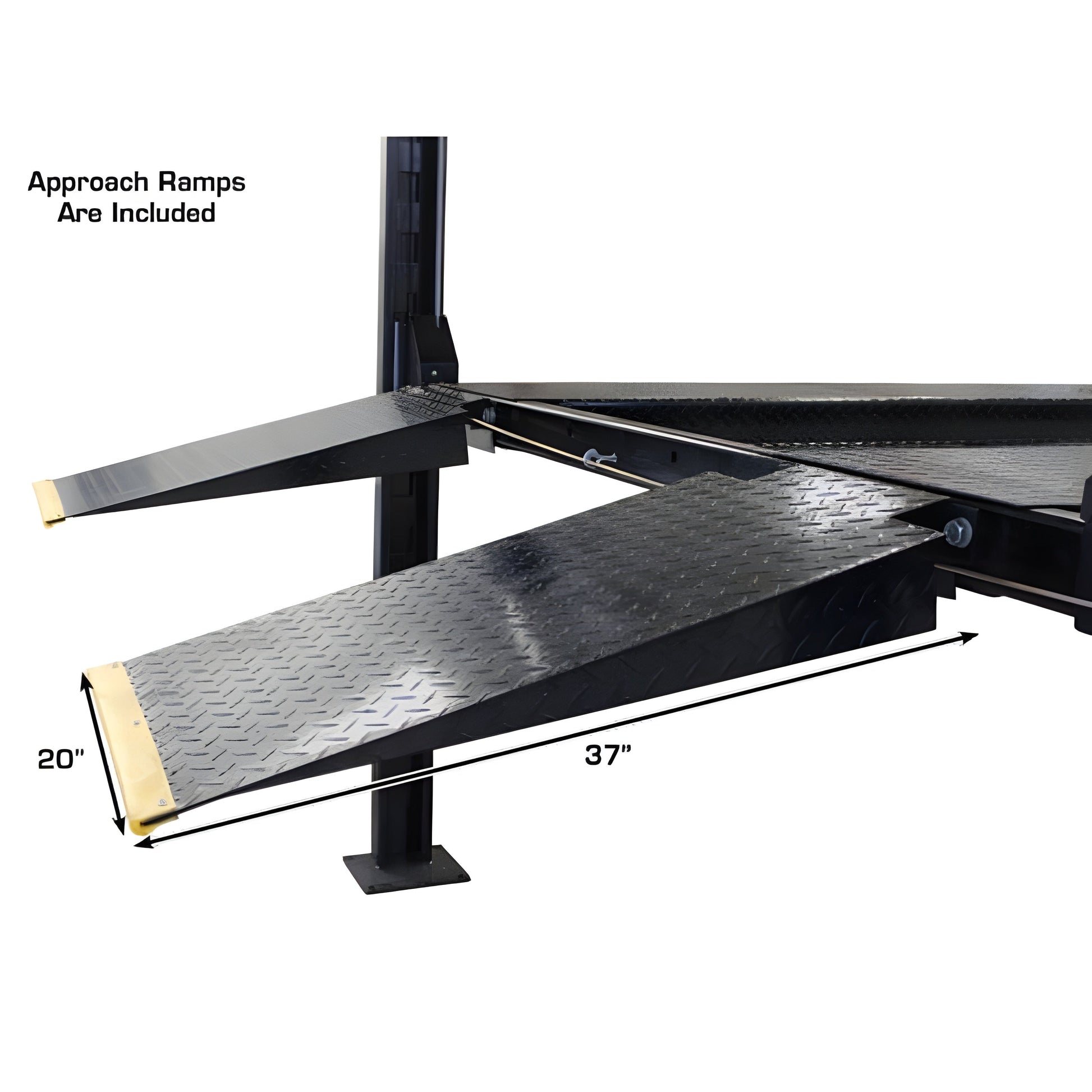

| Approach Ramp |
37" (3' 1") |
| Runway Width |
22" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length |
185" (15’ 5”) |

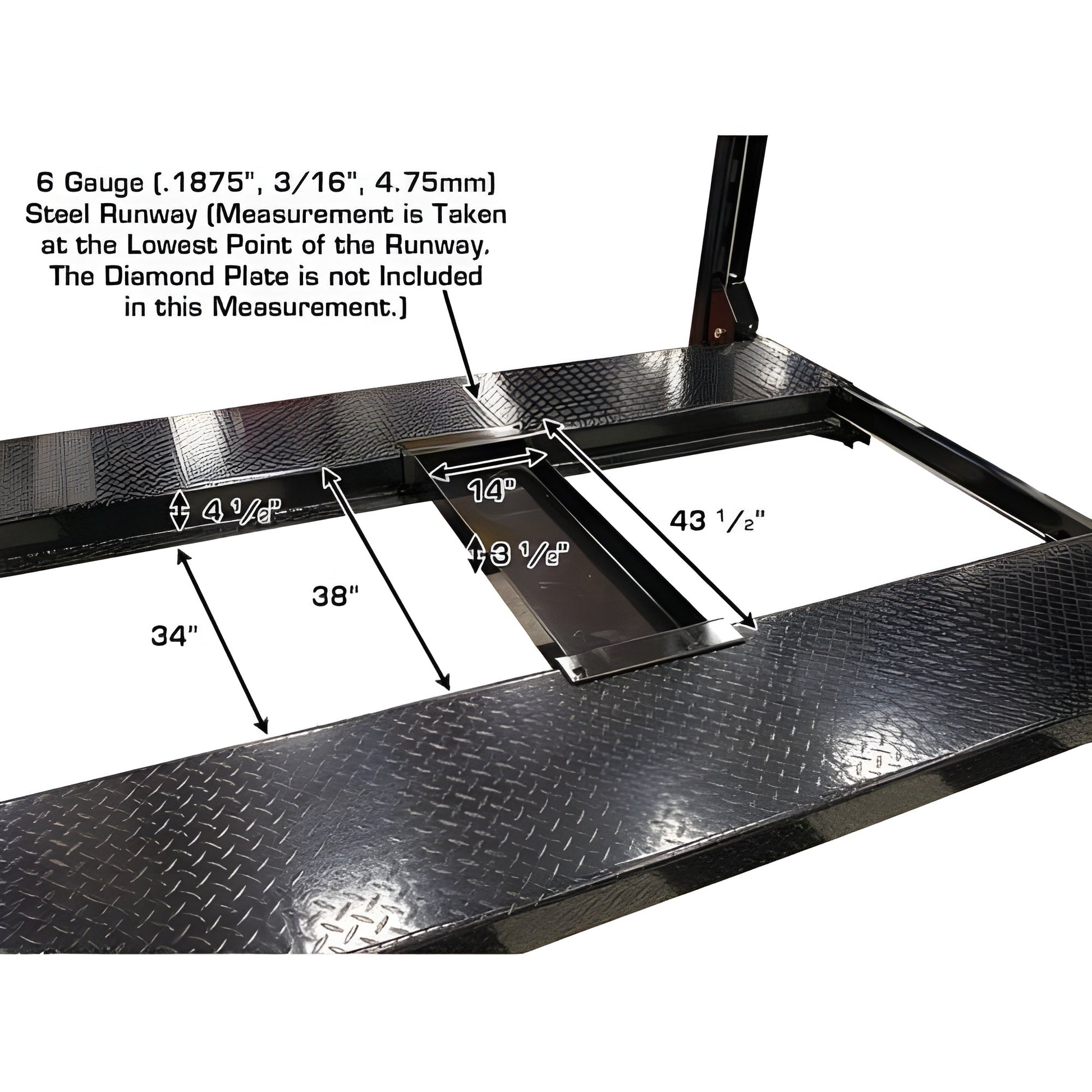

| Runway Thickness |
4 1/2" |
| Width Between Runways |
38" (3' 2") |
| Width Between Runway Rails |
34" (2’ 10") |
| Outside Runway To Outside Runway |
77 3/4" (6' 5 3/4") |

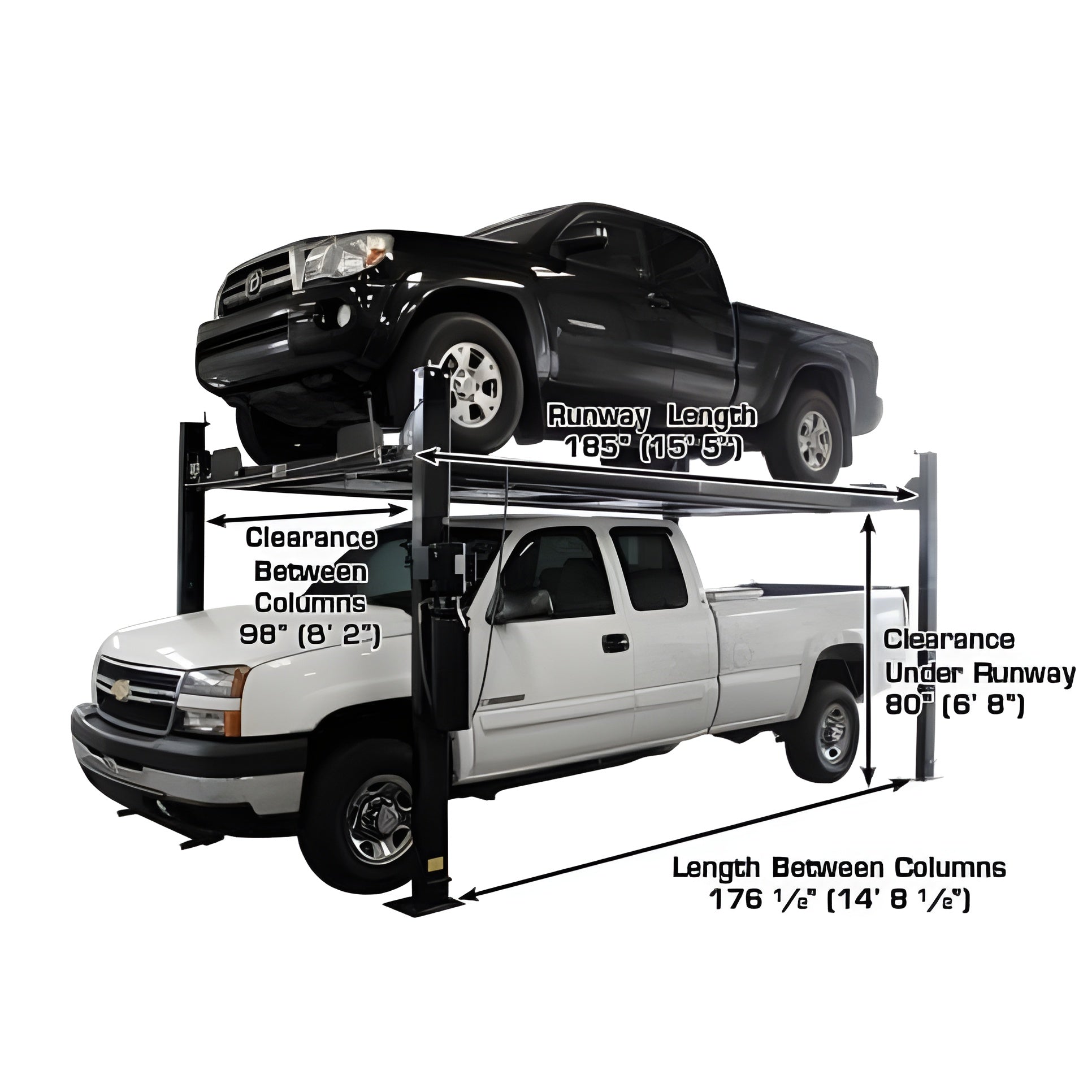

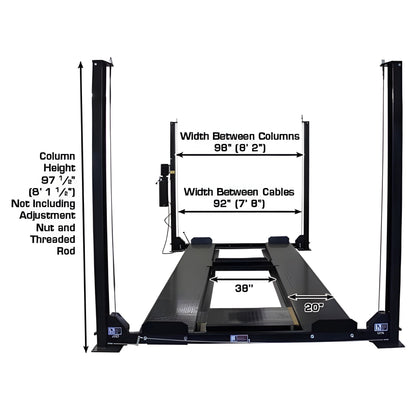

| Clearance Between Columns |
98" (8’ 2") |

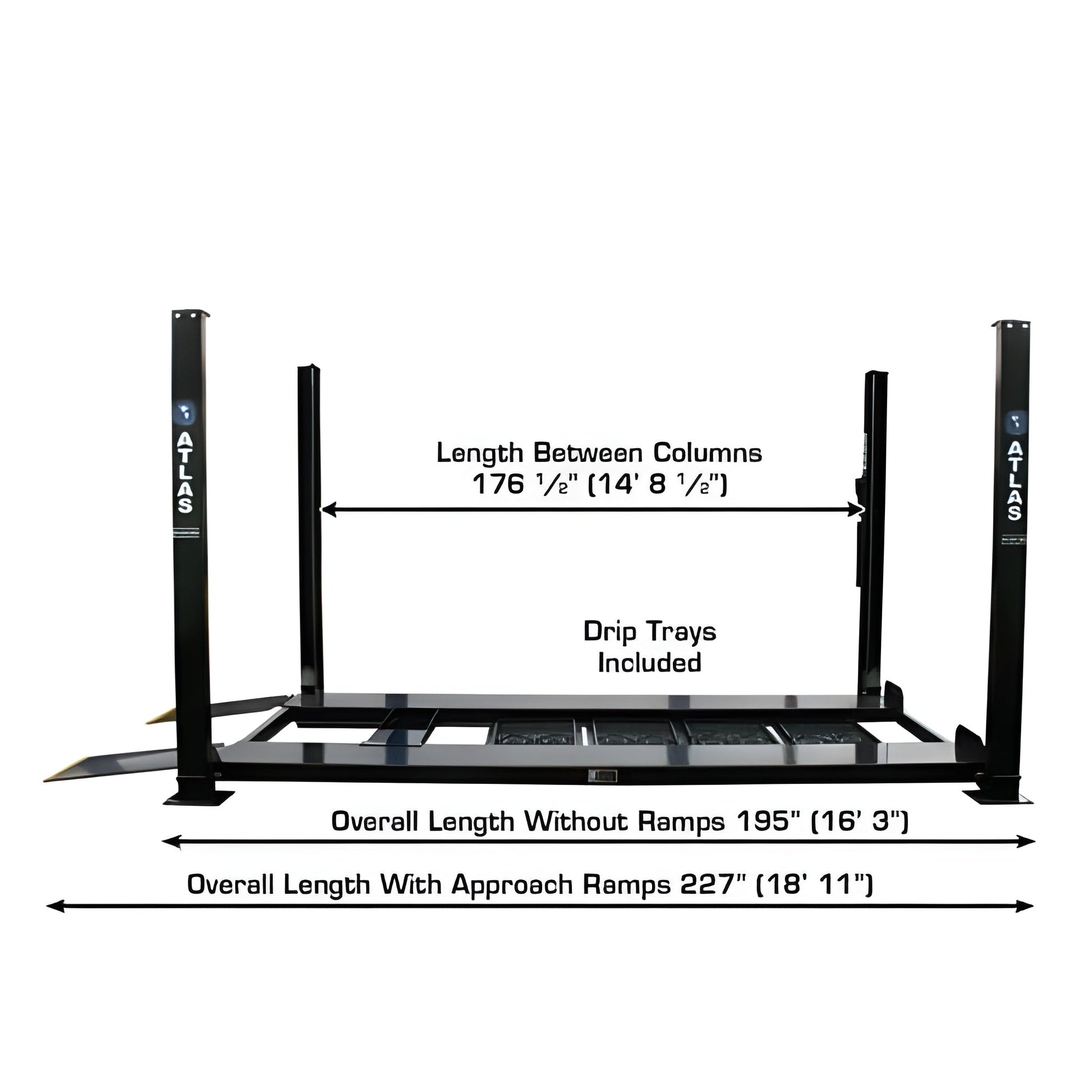

| Length Between Columns |
176 1/2" (14’ 8 1/2") |

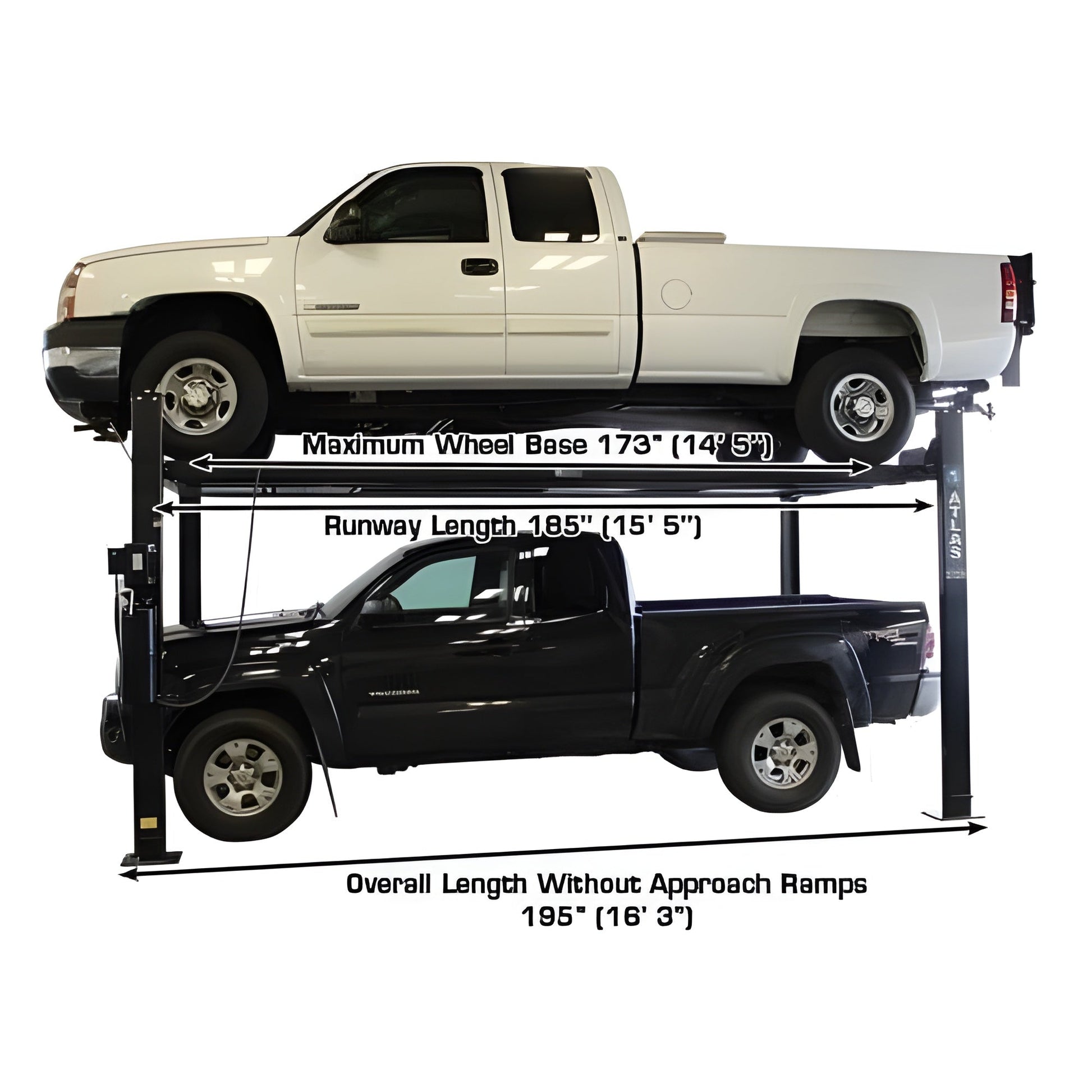

| Maximum Wheel Base |
173" (14' 5") |

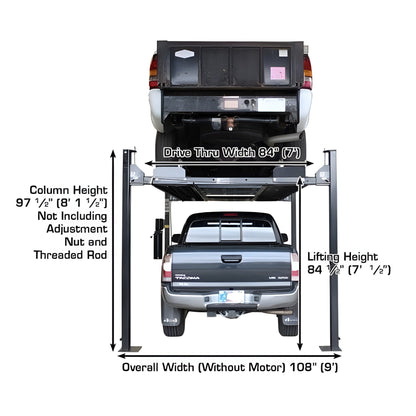

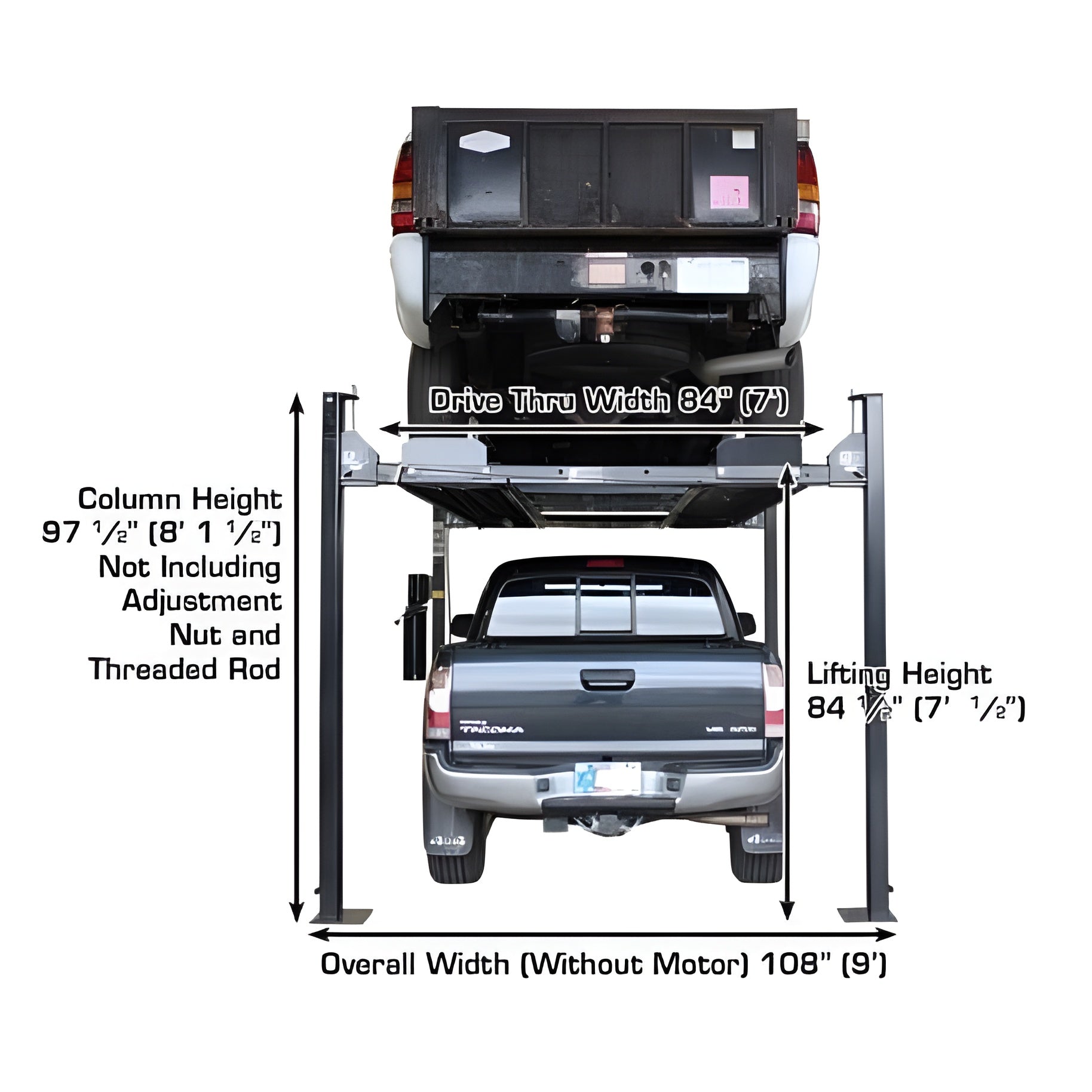

| Drive Thru (Outside Of Tire To Outside Of Tire) |
84" (7’) |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
Manual
Atlas Garage PRO8000EXT-L Manual
Atlas Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
What our Expect Think
-
Extra Tall & Extra Long: The Atlas Garage PRO8000EXT-L 4-post lift offers an 8,000 lb capacity with both extra height and length, making it perfect for large and tall vehicles, including trucks, SUVs, and longer cars.
-
Heavy-Duty Construction: Built with high-quality, durable steel, this lift is designed for heavy-duty use, ensuring longevity and reliable performance for both professional and home garages.
-
Efficient Hydraulic System: Equipped with a smooth hydraulic lifting system that ensures easy and precise lifting and lowering of vehicles, saving time during service or storage.
-
Ample Vehicle Clearance: With extra height and length, this lift provides enough clearance for larger vehicles or extended vehicles, making it ideal for lifted trucks, RVs, or long-body cars.
-
Space-Saving Design: The 4-post configuration allows for maximum use of garage space while providing the added benefit of long vehicle storage.
-
Safety First: Includes safety features such as secure locking positions and safety cables to ensure secure operation and prevent accidental drops.
-
Professional-Grade: Perfect for garages, workshops, and service centers that require reliable lifting solutions for taller and longer vehicles.
Q&A
Q: What is the lifting capacity of the Atlas PRO8000EXT-L 4-post lift?
A: The Atlas PRO8000EXT-L has an impressive 8,000 lb lifting capacity, making it suitable for lifting heavy-duty vehicles, such as trucks, vans, and larger SUVs.
Q: How is the PRO8000EXT-L different from the regular PRO8000EXT?
A: The PRO8000EXT-L is extra tall and extra long, providing additional length and height clearance for lifting larger vehicles or for those needing more space between the lift's posts. This makes it ideal for extended vehicles or low-profile work.
Q: Can the PRO8000EXT-L be used in both home and professional settings?
A: Yes, the PRO8000EXT-L is designed for both home garages and professional workshops, providing the strength and versatility needed for a variety of automotive maintenance tasks.
Q: Is the Atlas PRO8000EXT-L lift safe to use?
A: Absolutely. The PRO8000EXT-L is equipped with safety locks at multiple heights and features a durable steel frame for secure lifting, ensuring both safety and stability when raising and lowering vehicles.
Q: What vehicles can be lifted with the Atlas PRO8000EXT-L?
A: The extra tall and extra long design allows the PRO8000EXT-L to accommodate longer and taller vehicles, such as extended-cab trucks, full-sized vans, and heavy-duty SUVs.
Q: Does the PRO8000EXT-L require professional installation?
A: Yes, the PRO8000EXT-L requires professional installation to ensure it is set up correctly and operates safely, particularly due to its size and the complexity of its lifting mechanism.
Q: How does the PRO8000EXT-L operate?
A: The PRO8000EXT-L uses a hydraulic lifting system for smooth, efficient operation. The lift comes with easy-to-use controls and multiple safety features, ensuring user-friendly operation.
Q: Is the PRO8000EXT-L suitable for professional workshops?
A: Yes, the PRO8000EXT-L is designed for professional use, offering a robust and durable solution for frequent use in automotive repair, maintenance, and storage.
Maintenance Tips
-
Inspect Hydraulic Components – Regularly check hydraulic fluid levels and inspect for leaks in the hydraulic lines and cylinders to maintain consistent lifting power.
-
Lubricate Moving Parts – Apply lubricant to all moving components, such as posts, lift arms, and rails, to ensure smooth and efficient operation while minimizing wear.
-
Check Safety Mechanisms – Test the safety locks, limit switches, and emergency release mechanisms to ensure they engage and function correctly for secure lifting.
-
Examine Cables and Pulleys – Inspect the cables, pulleys, and chains for any signs of wear or fraying, and replace any damaged parts immediately to maintain safe operation.
-
Clear Debris – Keep the lift free from dirt, grease, and debris, especially around the moving parts, to ensure proper function and prevent any hindrance to lifting.
-
Inspect Alignment – Ensure the lift is properly aligned and level to prevent uneven lifting or wear, and adjust the setup if needed for optimal performance.
-
Treat Rust and Corrosion – Regularly inspect the lift for rust or corrosion, particularly in exposed areas, and apply rust inhibitors or protective coatings as necessary.
-
Routine Testing – Conduct regular operational tests, including lifting and lowering cycles, to ensure the lift works efficiently and safely under load.
