Atlas ALI Complete Alignment Kit - ATEAP-PVL-ALIKIT-FPD

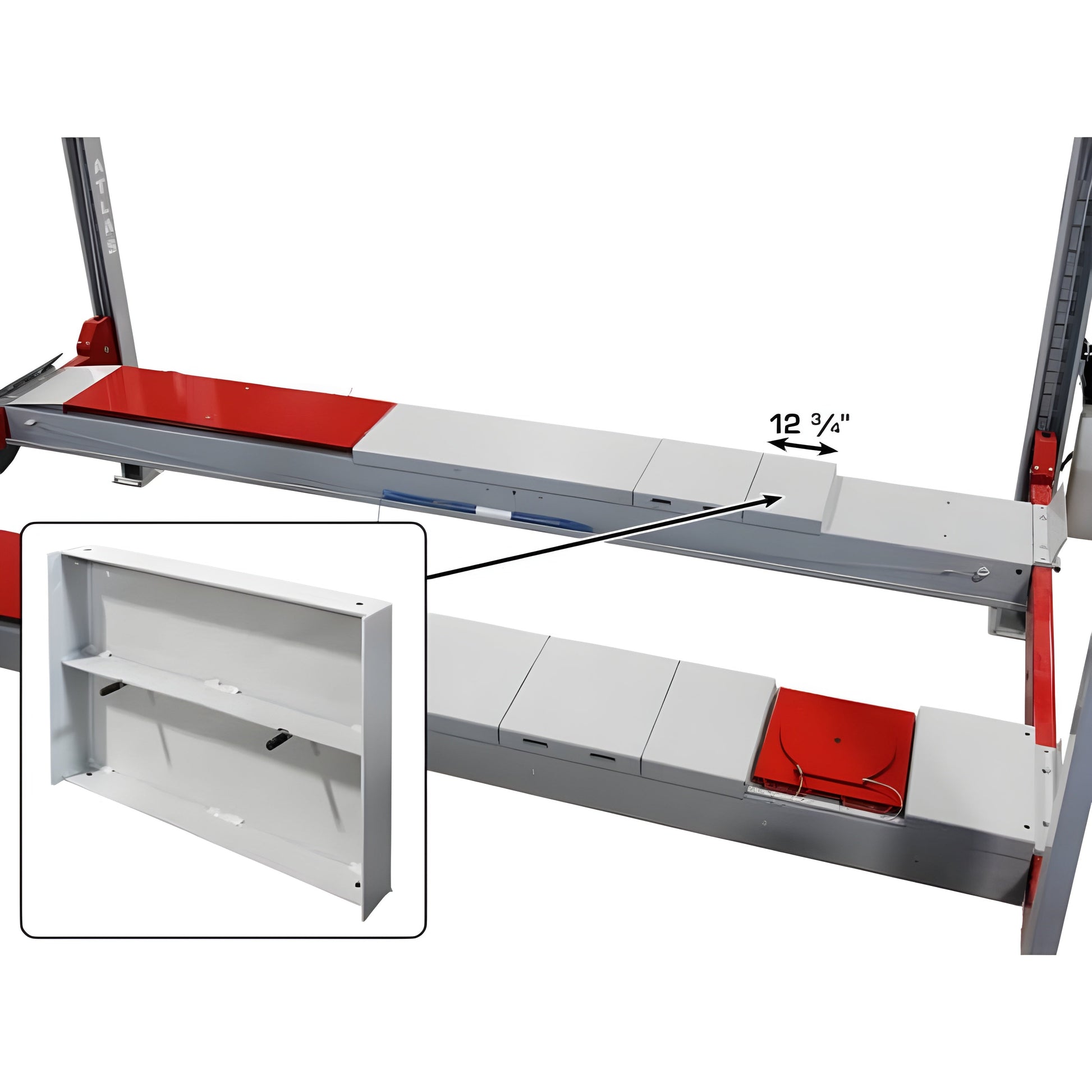

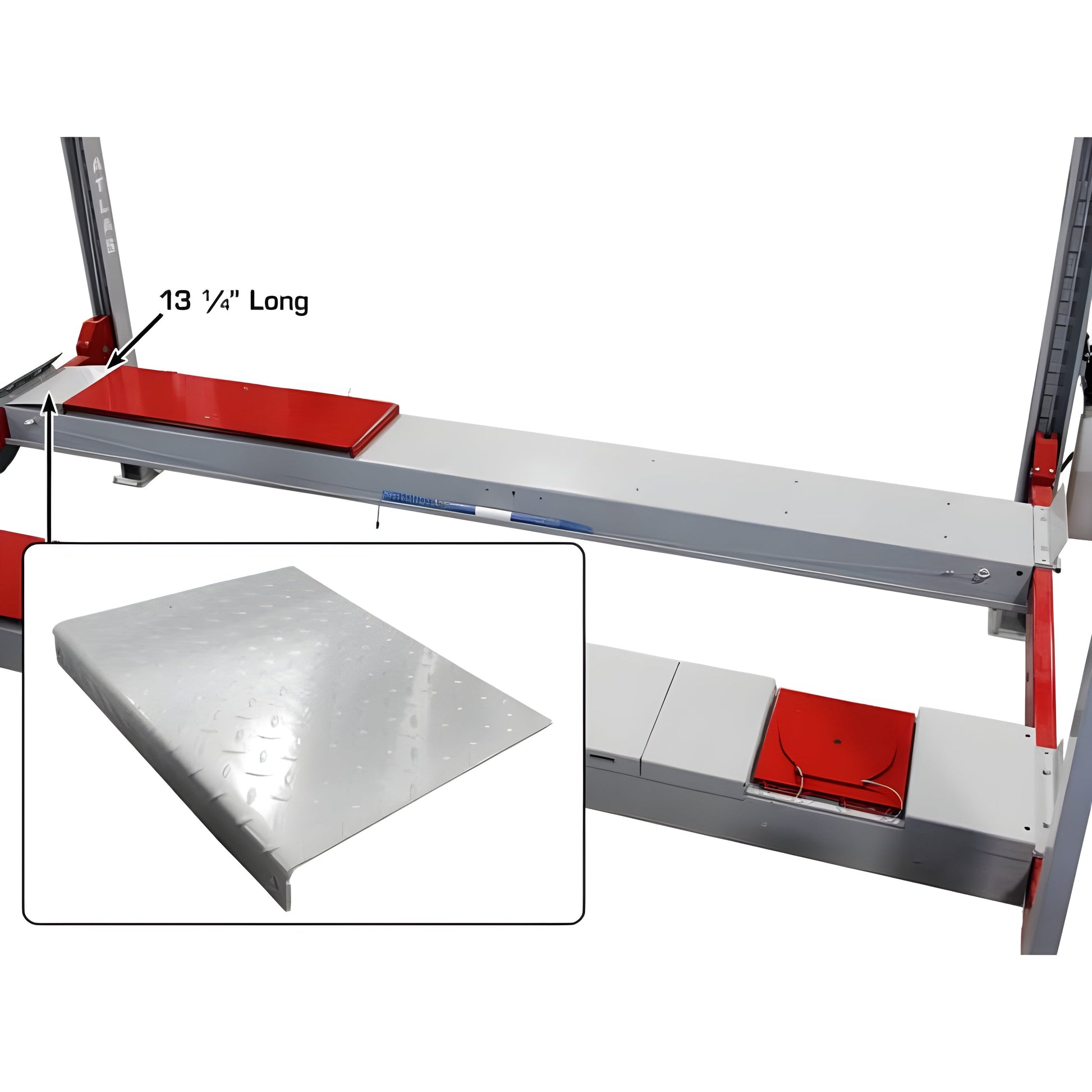

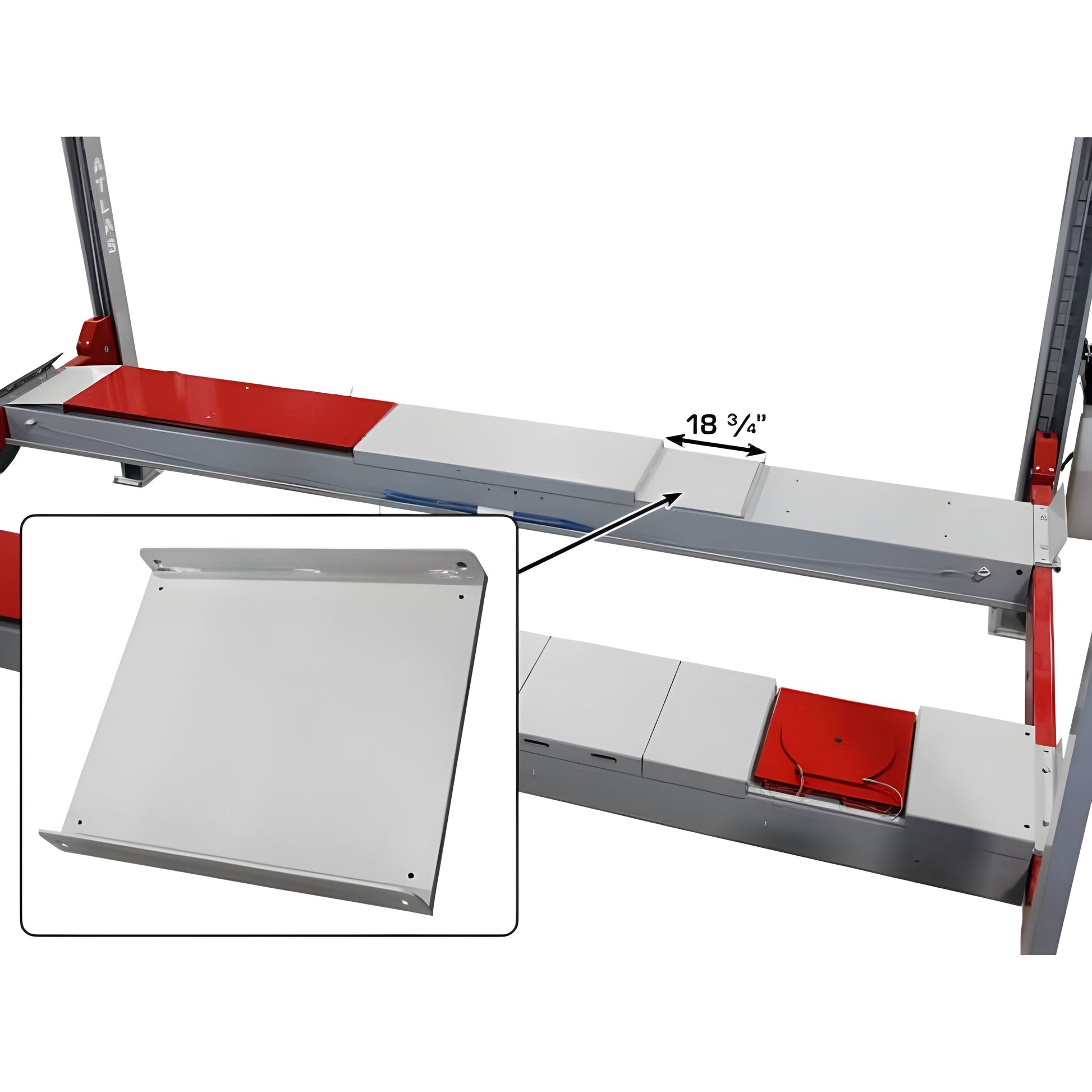

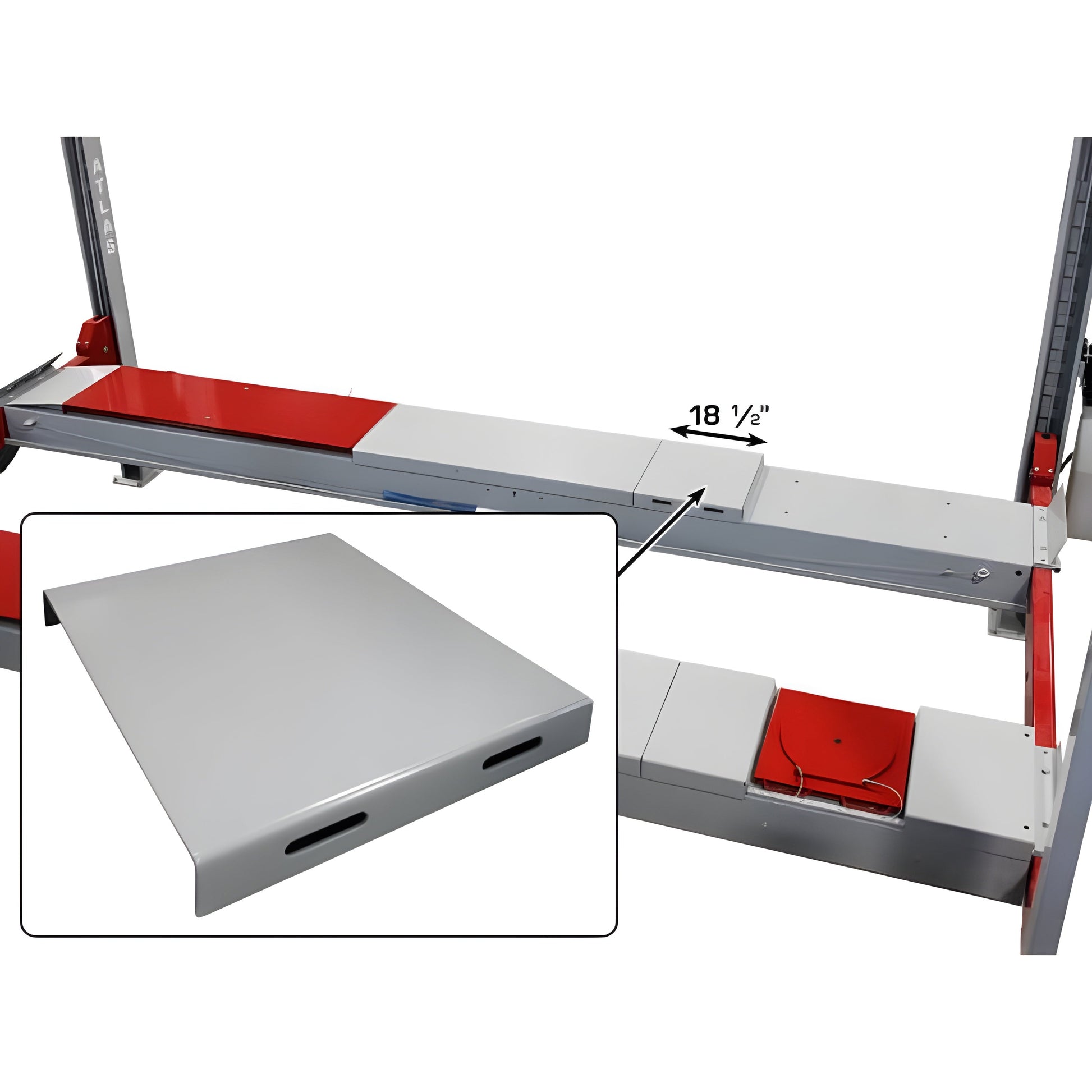

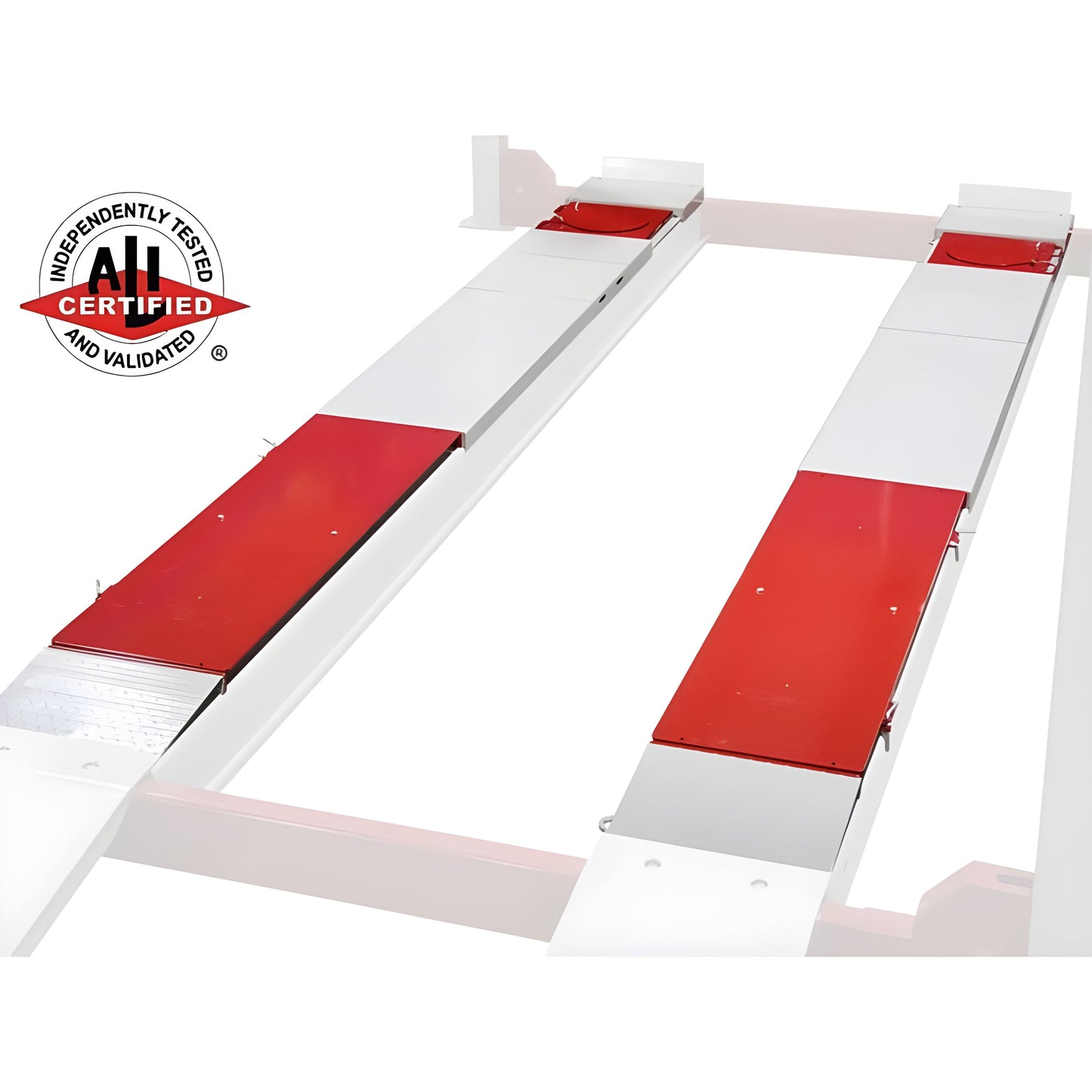

Atlas ALI Complete Alignment KitThe Atlas Platinum Alignment Kit includes a set of heavy duty ball bearing slip plates along with two heavy duty turntables and all other necessary ramps and spacers. The alignment kit bolts on to your Atlas Platinum PVL14 four post lift or other commercial grade 4-Post lift, turning it into a alignment lift.Many permanent alignment kits found on four post alignment lifts are recessed into the runways of the lift. It is very difficult to prevent dirt, chemicals, salt, and other foreign material from becoming embedded in the rolling or sliding mechanisms of the turn tables or the slip plates. The Atlas Platinum Alignment Kit is positioned above the runways to allow easy access for service and cleaning. Even if you permanently mount the Atlas Platinum Alignment Kit, it can still be removed periodically (simply remove the bolts) to allow a thorough cleaning and servicing of all moving parts.
Features

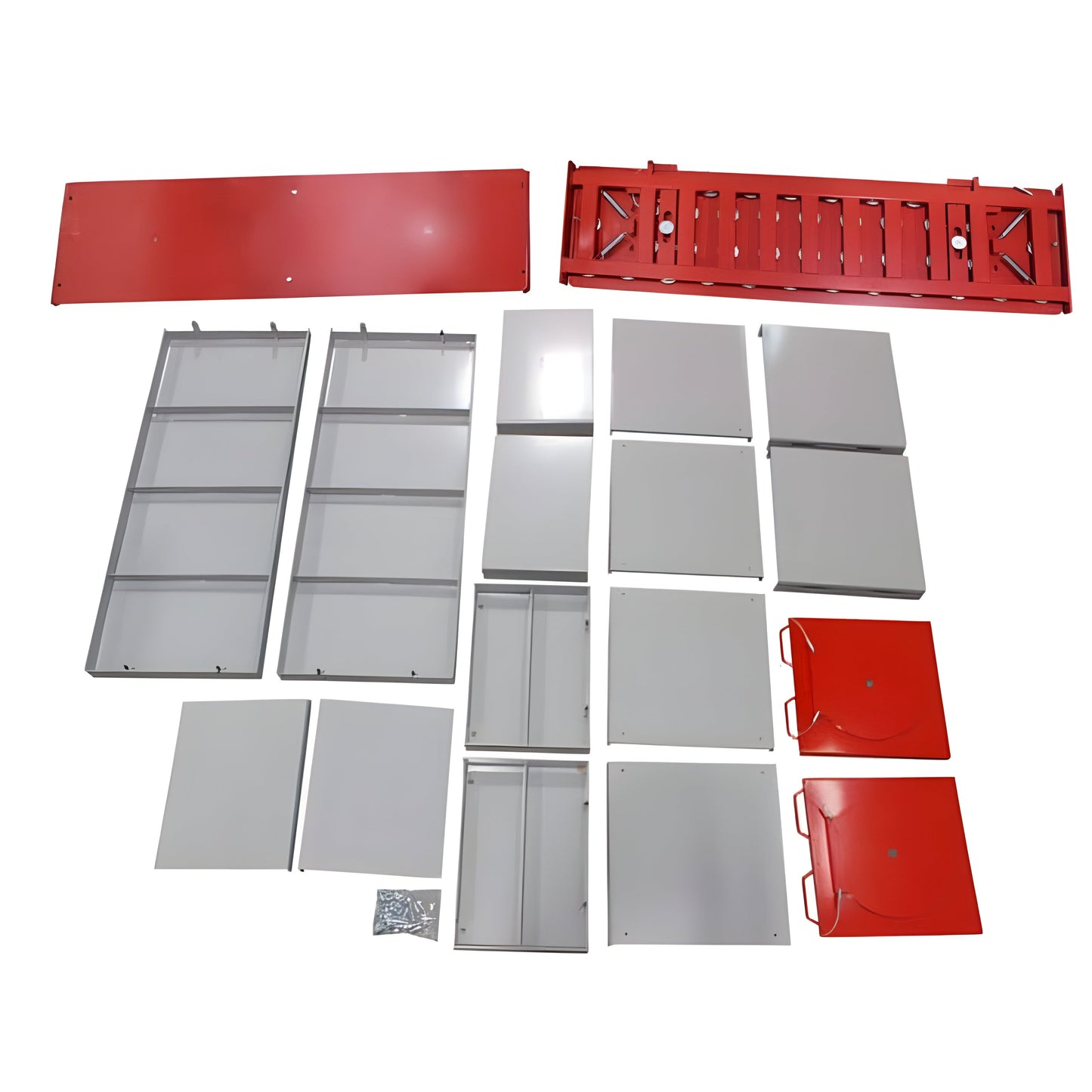

- Includes Slip Plates and Turntables

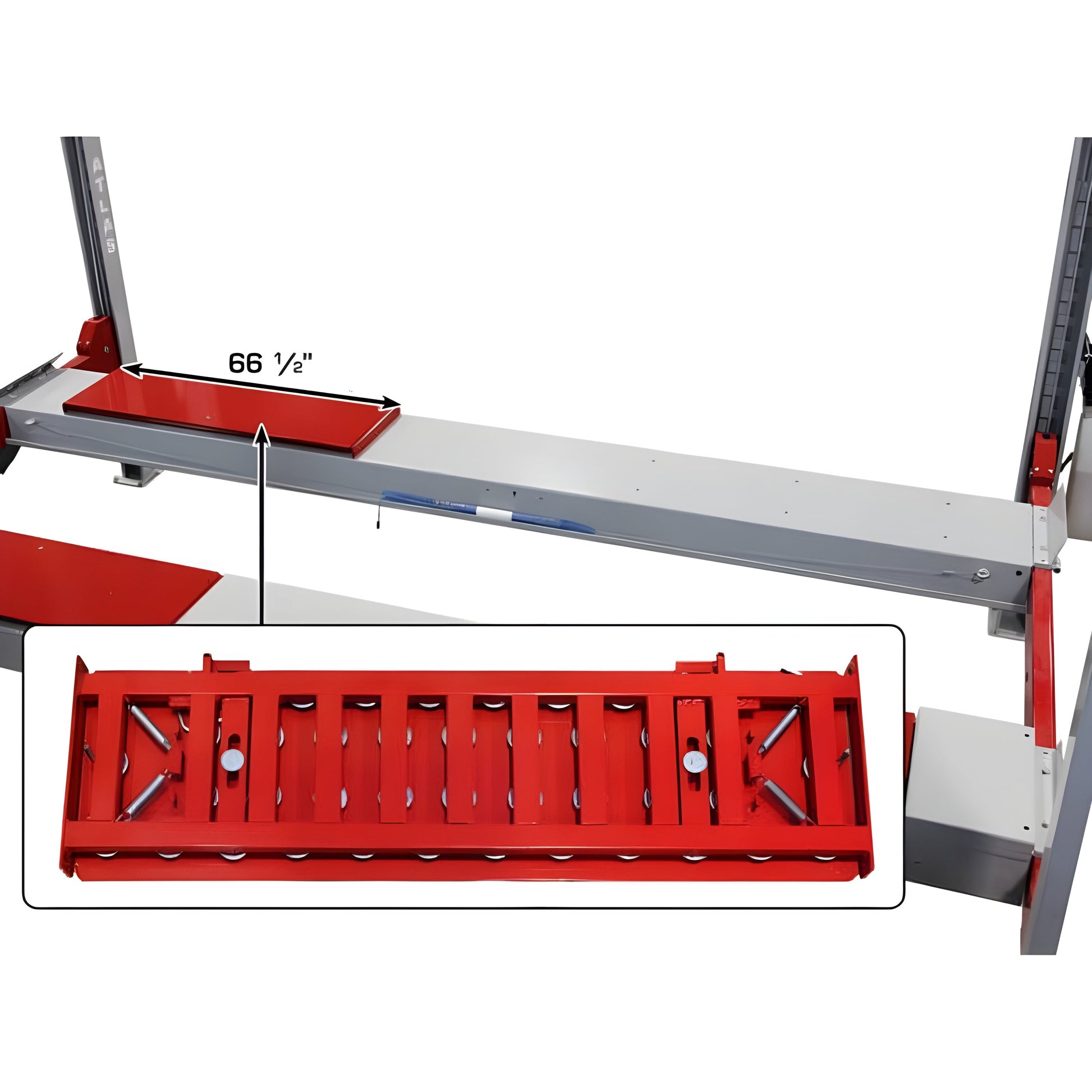

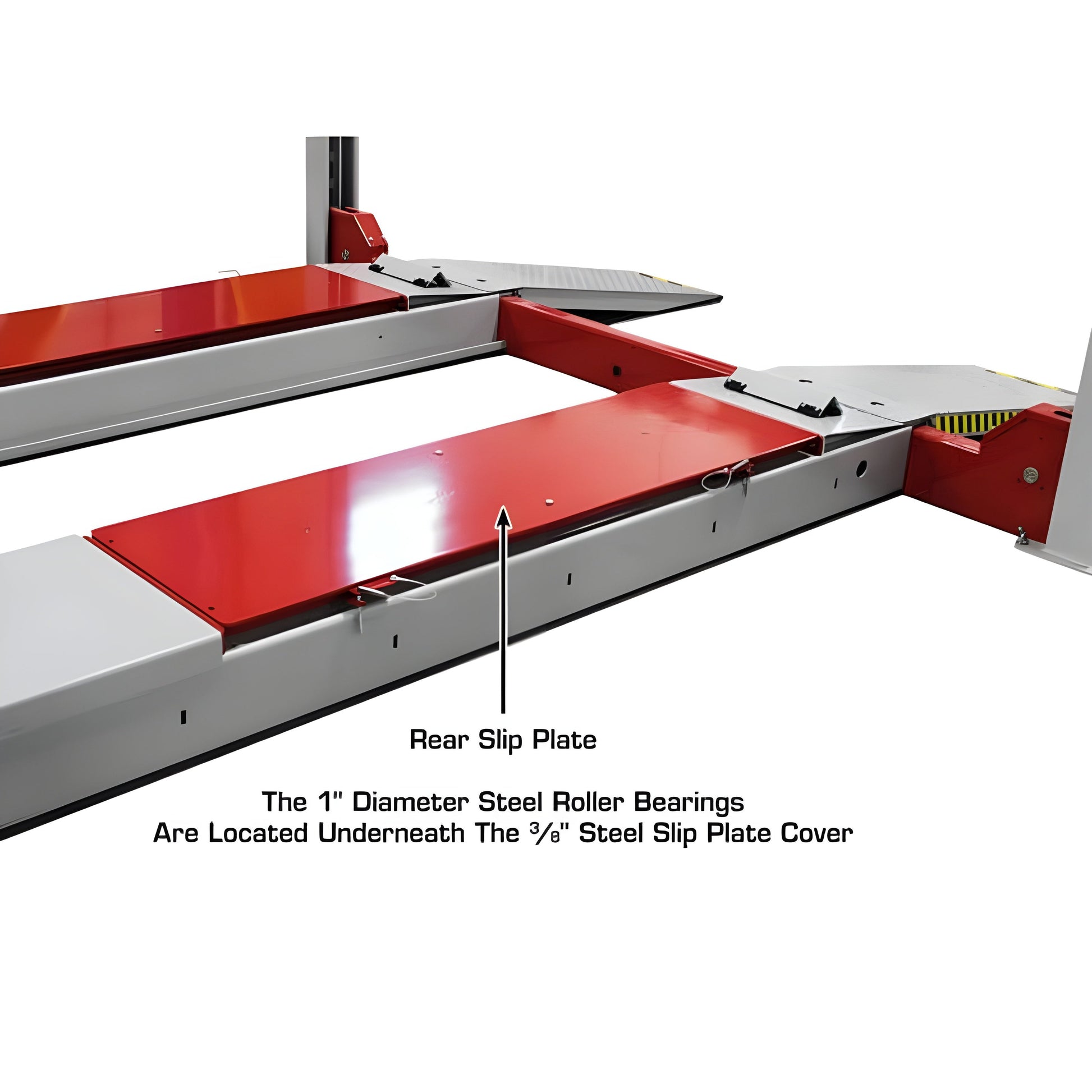

- 1" Diameter Steel Roller Bearings on rear Slip Plate
- Can be removed and added when needed
- Shipping Weight: 1,000 lbs.
- 1 Year Parts Only Warranty
Specifications
| Maximum Capacity |
14,000 lb. |
| Overall Length |
199 1/3" (16' 7 1/3") |
| Overall Width (Each Side) |
20 5/8" |
| Minimum Wheel Base |
75 2/5" (6' 3 2/5") |
| Maximum Wheel Base |
148 2/3" (12' 4 2/3") |
| Minimum Turntable Recess |
1 1/2" |
| Maximum Turntable Recess |
2" |

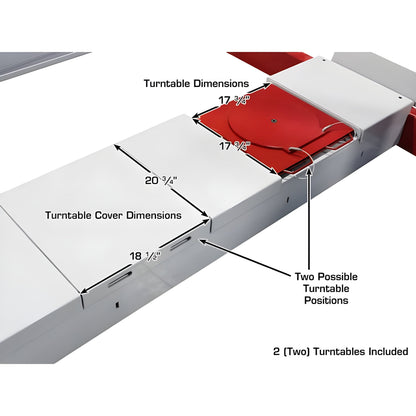

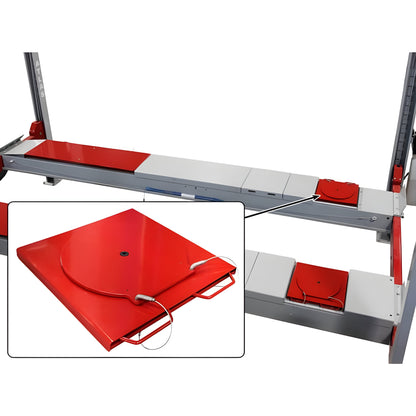

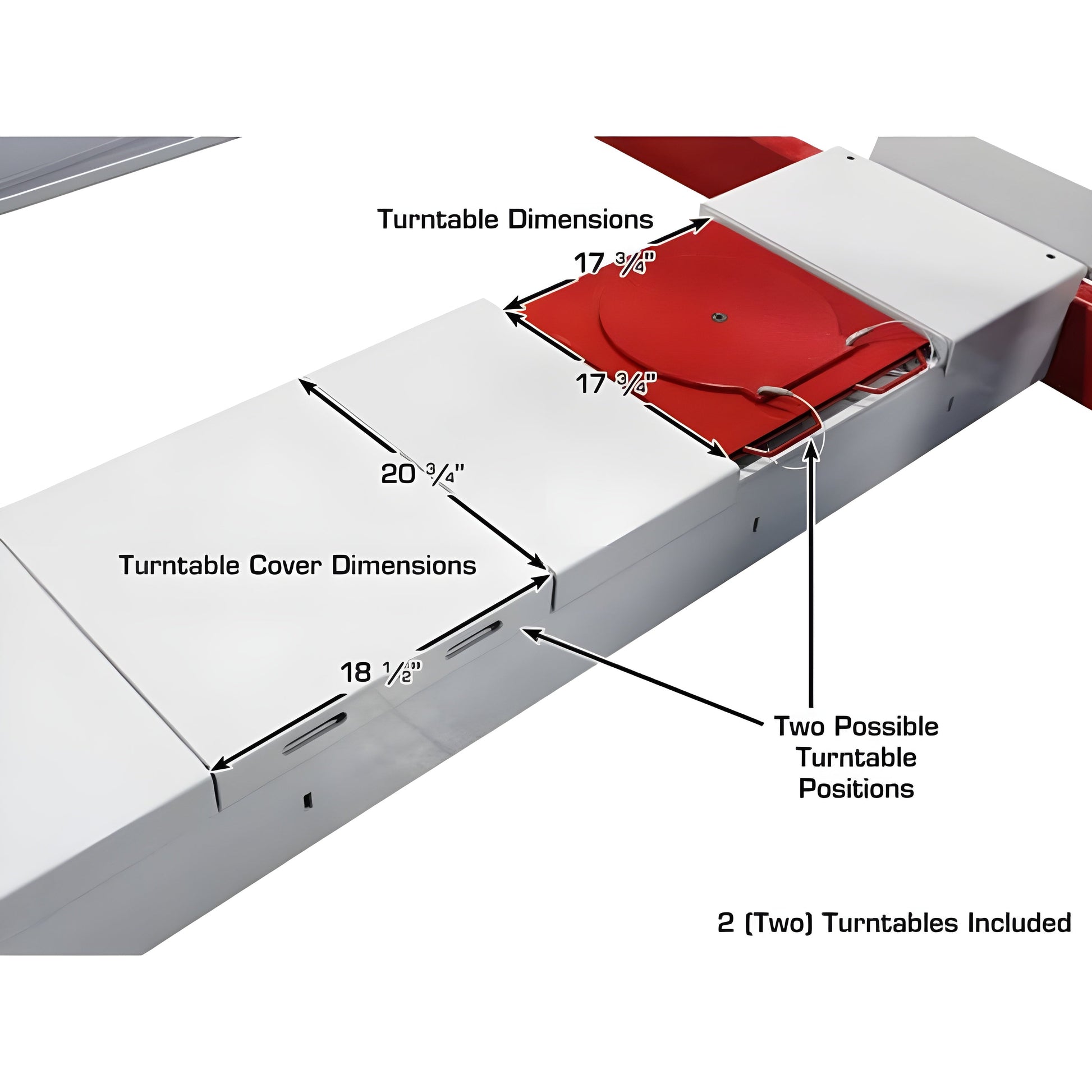

| Turntable Dimensions |
17 1/2" x 17 1/2" x 1 1/2" |

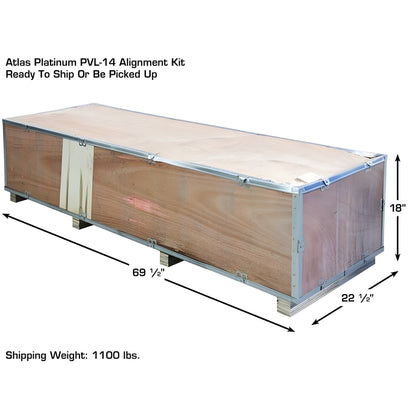

| Shipping Weight |
1,100 lbs. |
Documents
Atlas Platinum Alignment Kit Manual
What Our Experts Think
-
Comprehensive Alignment Solution: Includes everything needed for precision alignments.
-
Heavy-Duty Construction: Built for long-term durability in professional shops.
-
Turntables & Wheel Stands: Ensures accurate and efficient alignment adjustments.
-
Adjustable & Versatile: Compatible with a wide range of vehicles.
Q&A
Q: What is included in the Atlas ALI Complete Alignment Kit?
A: This kit includes turn plates, slip plates, alignment stands, and accessories needed for precision wheel alignment.
Q: What types of vehicles can it accommodate?
A: It is designed for cars, SUVs, and light trucks, making it ideal for professional alignment services.
Q: Is it compatible with all lifts?
A: Yes, it is universally compatible with most 2-post and 4-post lifts.
Q: What are the key benefits of this kit?
A: It provides accurate wheel alignment, enhanced stability, and increased efficiency in automotive shops.
Maintenance Tipe
-
Daily Inspection – Check for loose bolts, worn components, and hydraulic leaks.
-
Lubrication – Apply grease to moving parts and pivot points regularly.
-
Turntable & Slip Plate Care – Keep surfaces clean and ensure smooth operation.
-
Weight Capacity – Do not exceed the recommended load limit to prevent damage.
-
Sensor Calibration – Regularly check alignment sensors for accuracy.
-
Cable & Hose Maintenance – Inspect for wear, cracks, or leaks and replace if necessary.
-
Annual Check-Up – Conduct a full system inspection and replace worn components.
