Atlas 9KOHX 9,000 lb Overhead 2-Post Lift - ATEXH-9KOHX-FPD

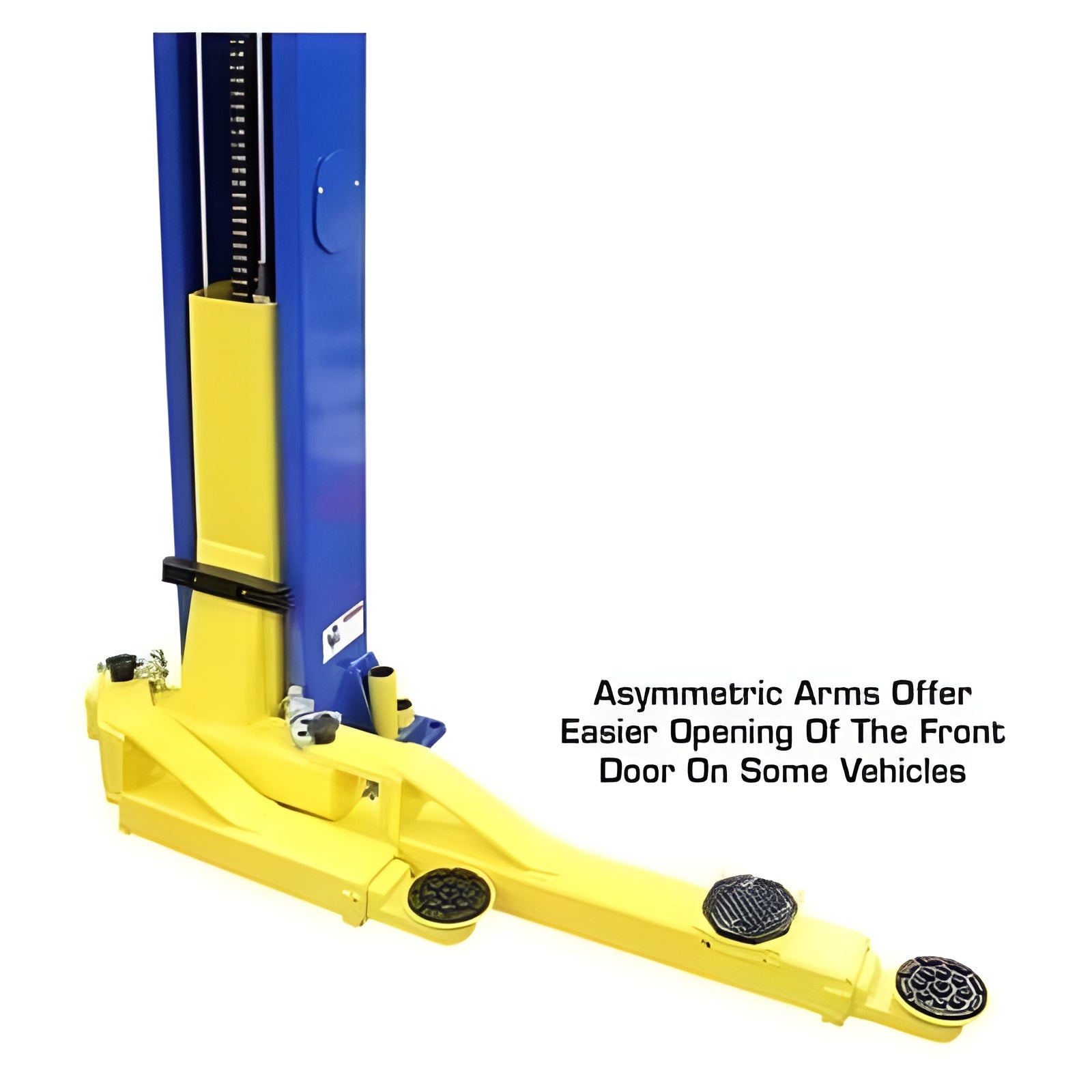

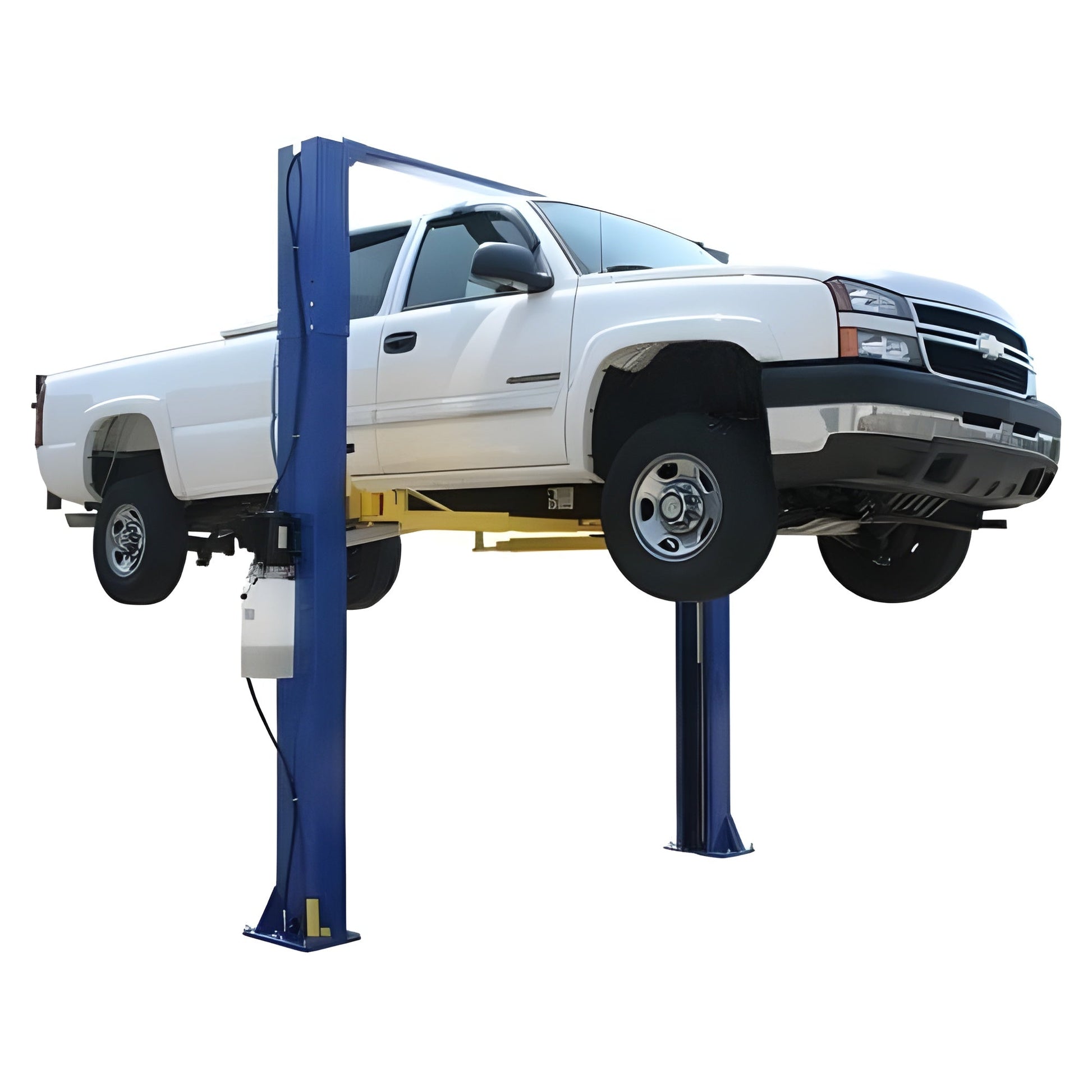

Atlas Overhead 9,000lb. Capacity 2-Post LiftThe light duty Atlas 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for Mr. Homeowner or small commercial shops looking to service cars, SUVs and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11' 6" or 11' 10", allowing it to fit in almost any standard garage.The Atlas 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas 9KOHX two post chain over roller lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.
Features
- 9,000 lb. Capacity
- Overhead, Open-Floor design

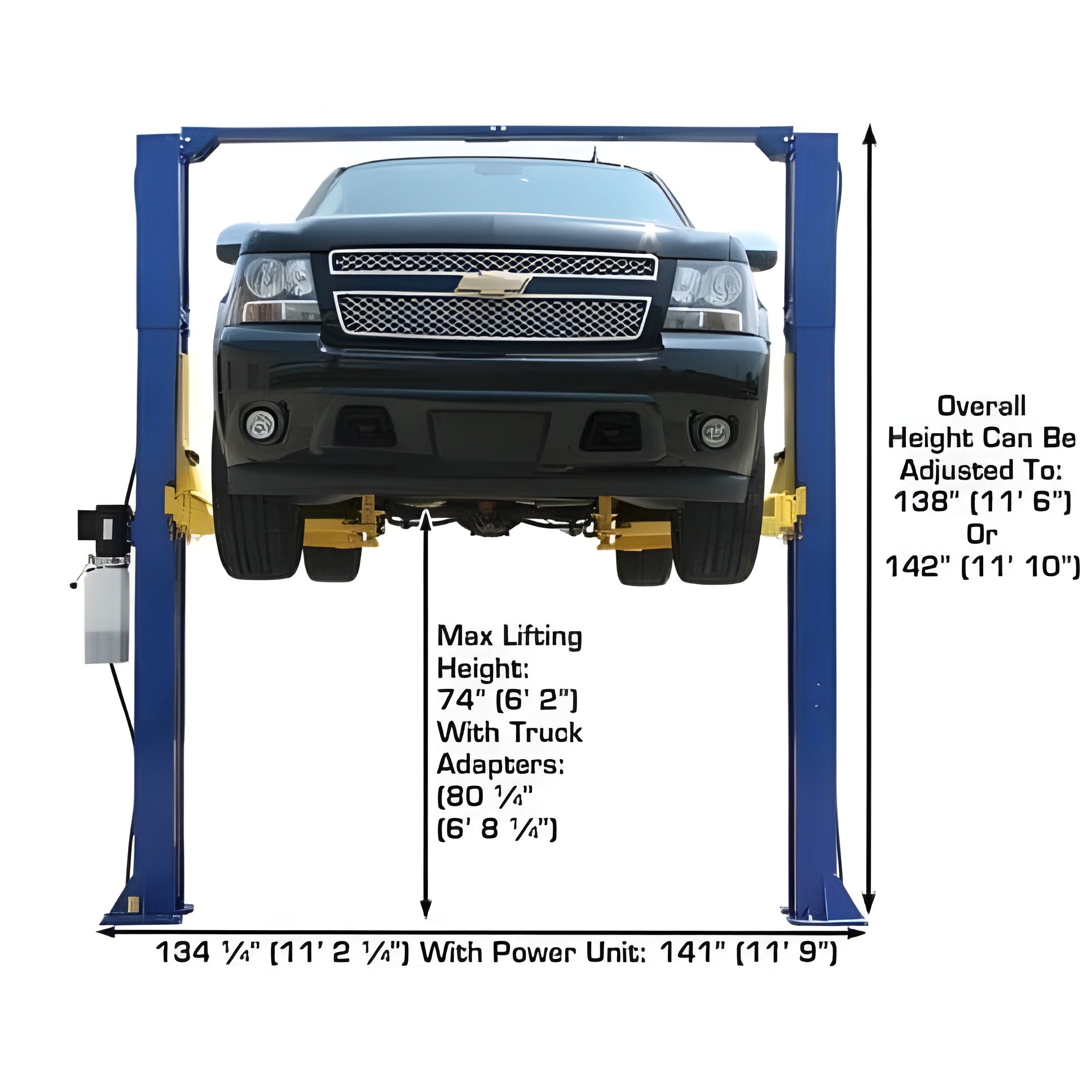

- Overall Height: 138" (11' 6") or 142" (11' 10")

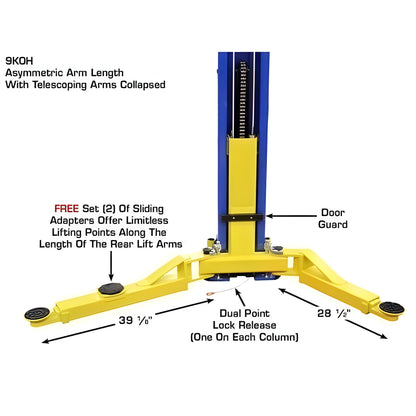

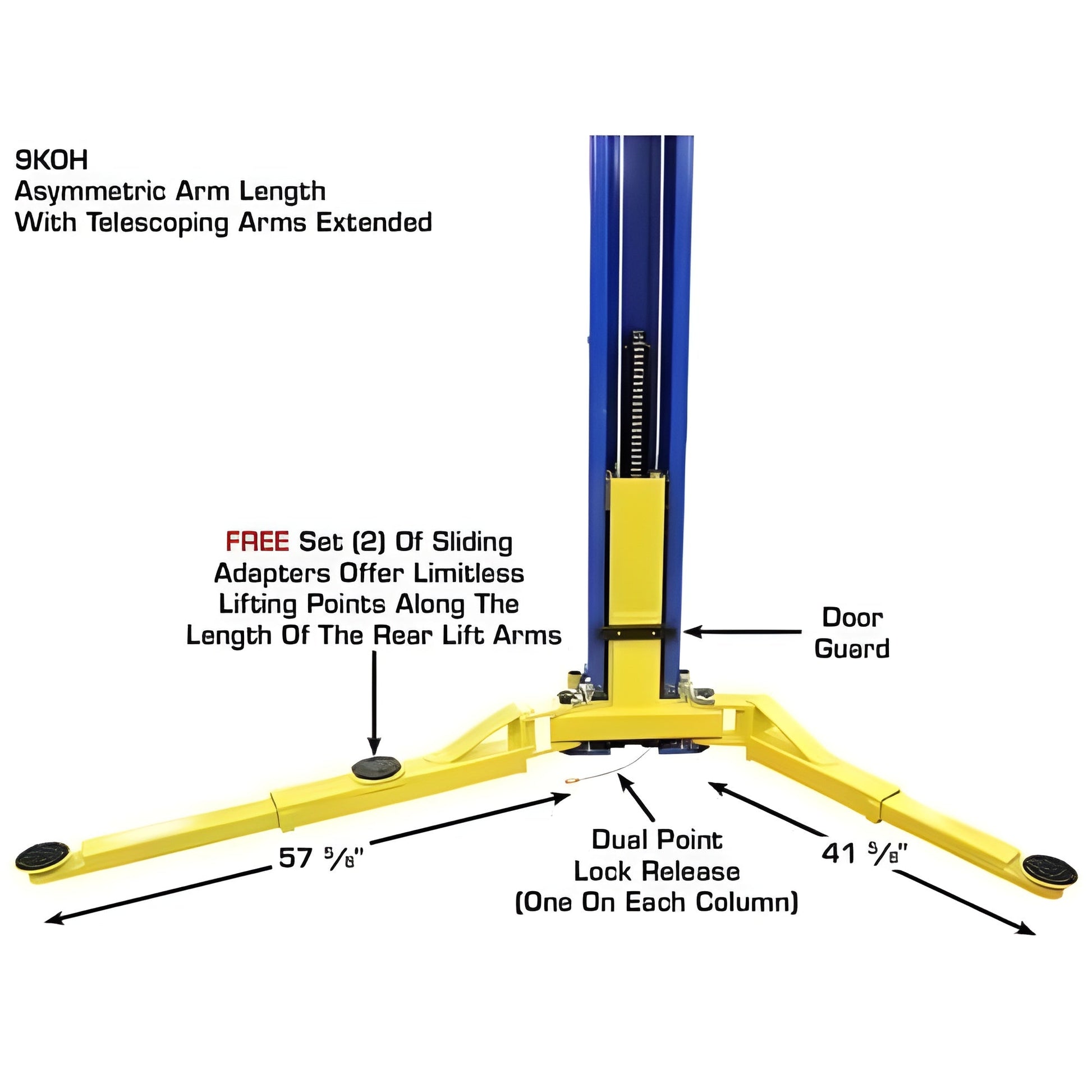

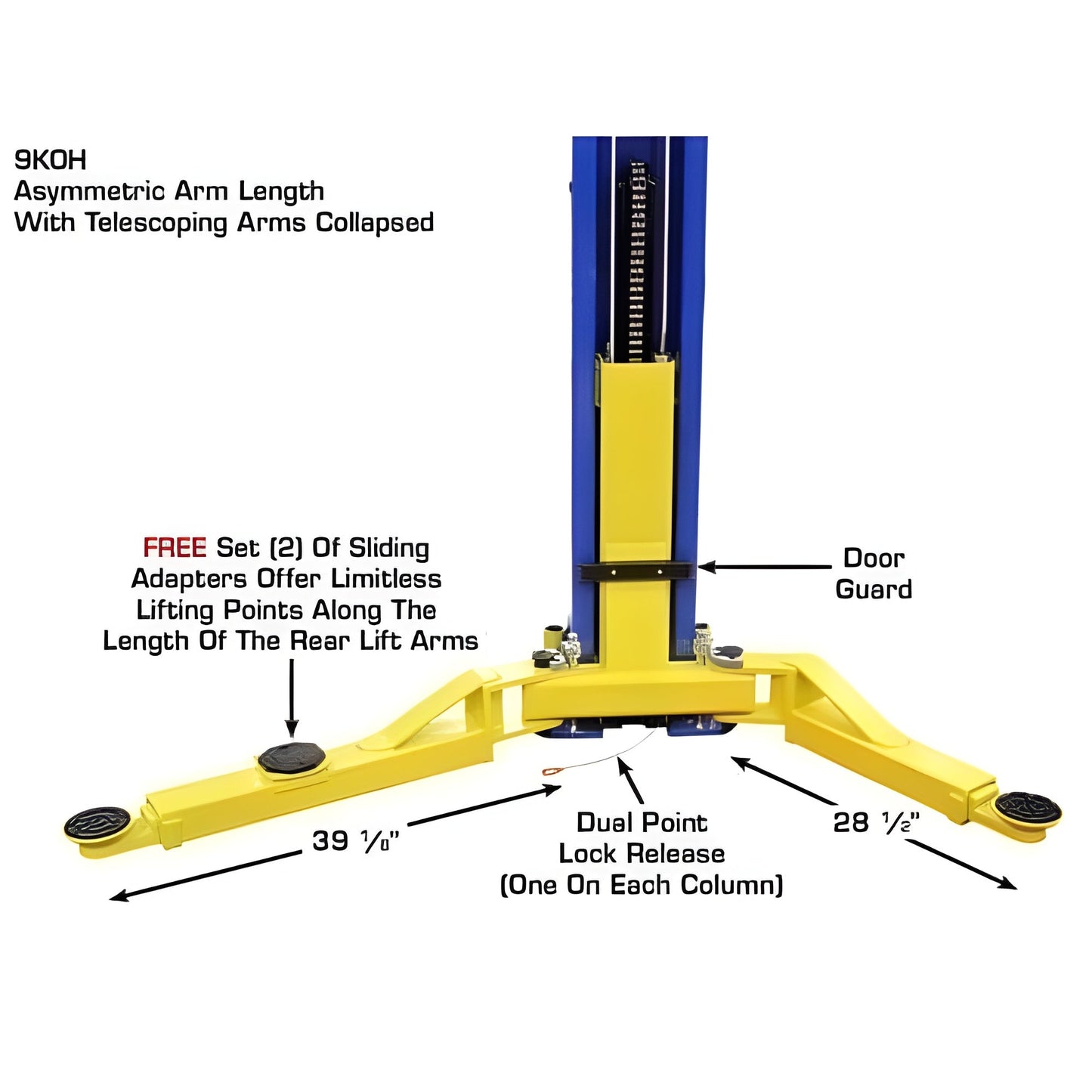

- Asymmetric/Symmetric Arms

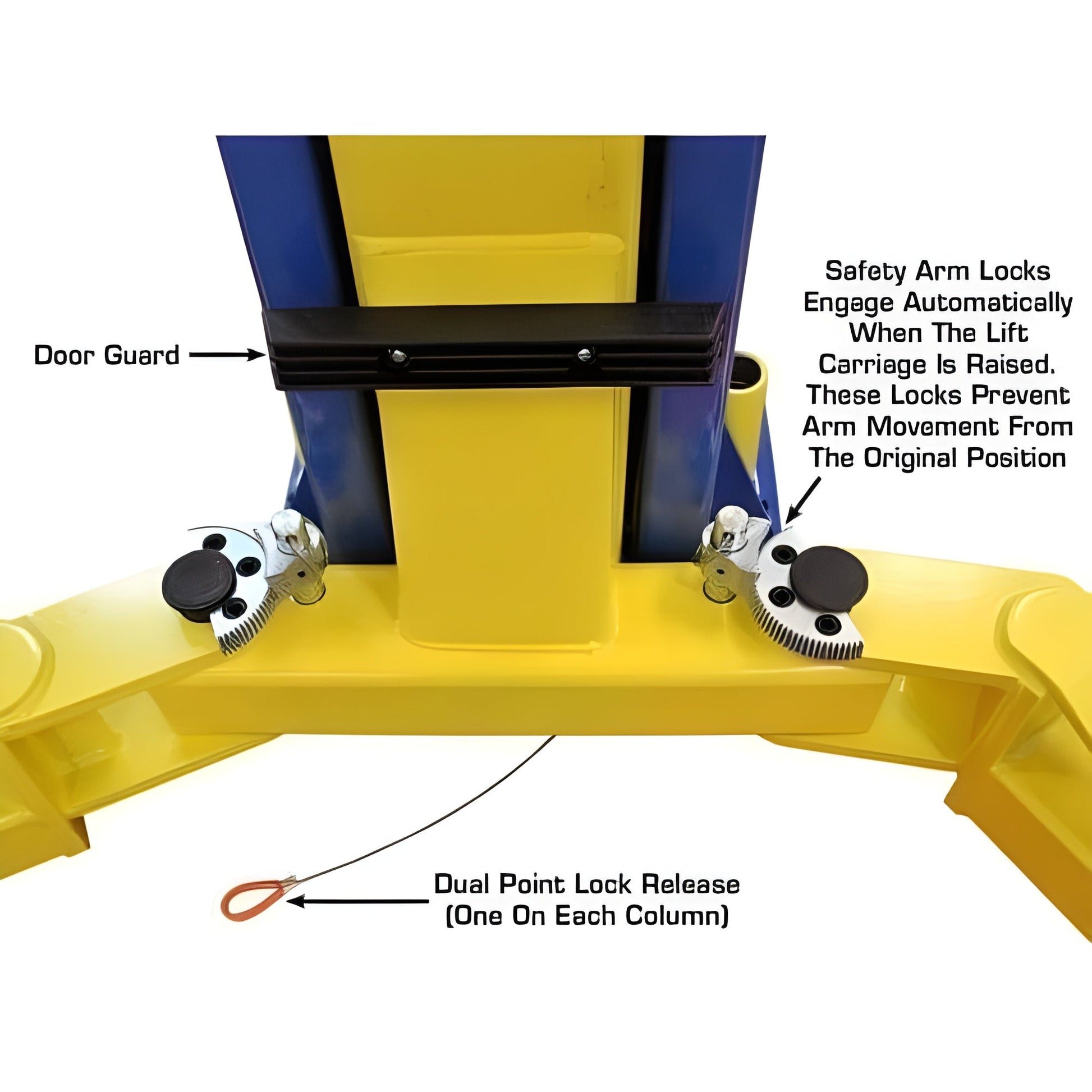

- Automatic Arm Restraints
- Dual-Point Lock Release

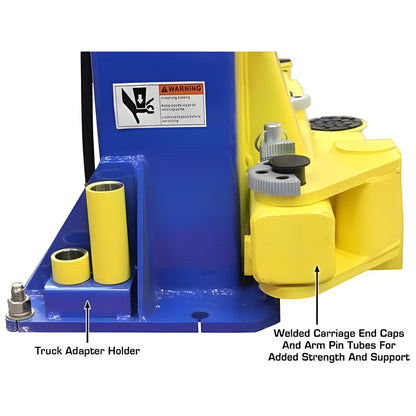

- Rubber Guards on Carriages

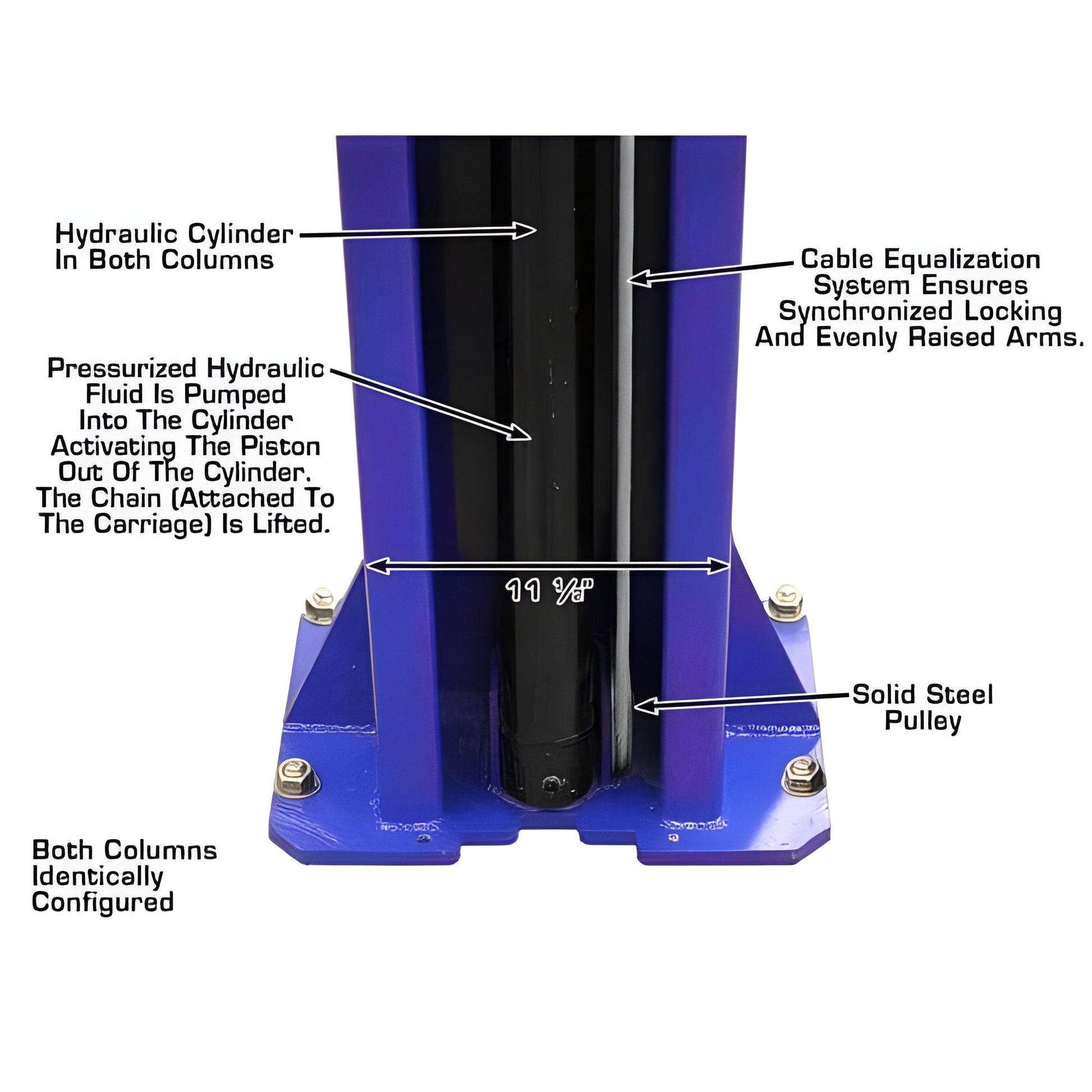

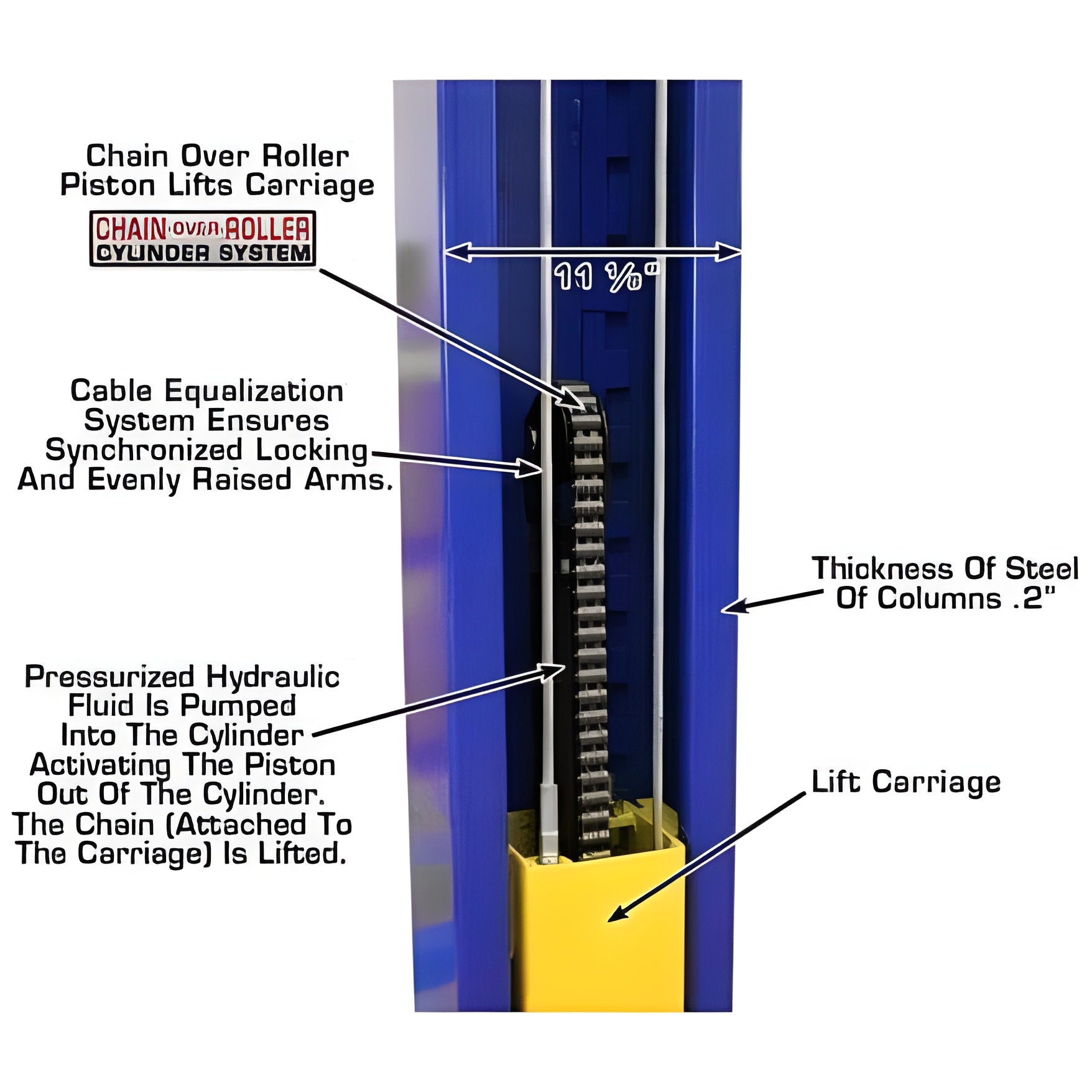

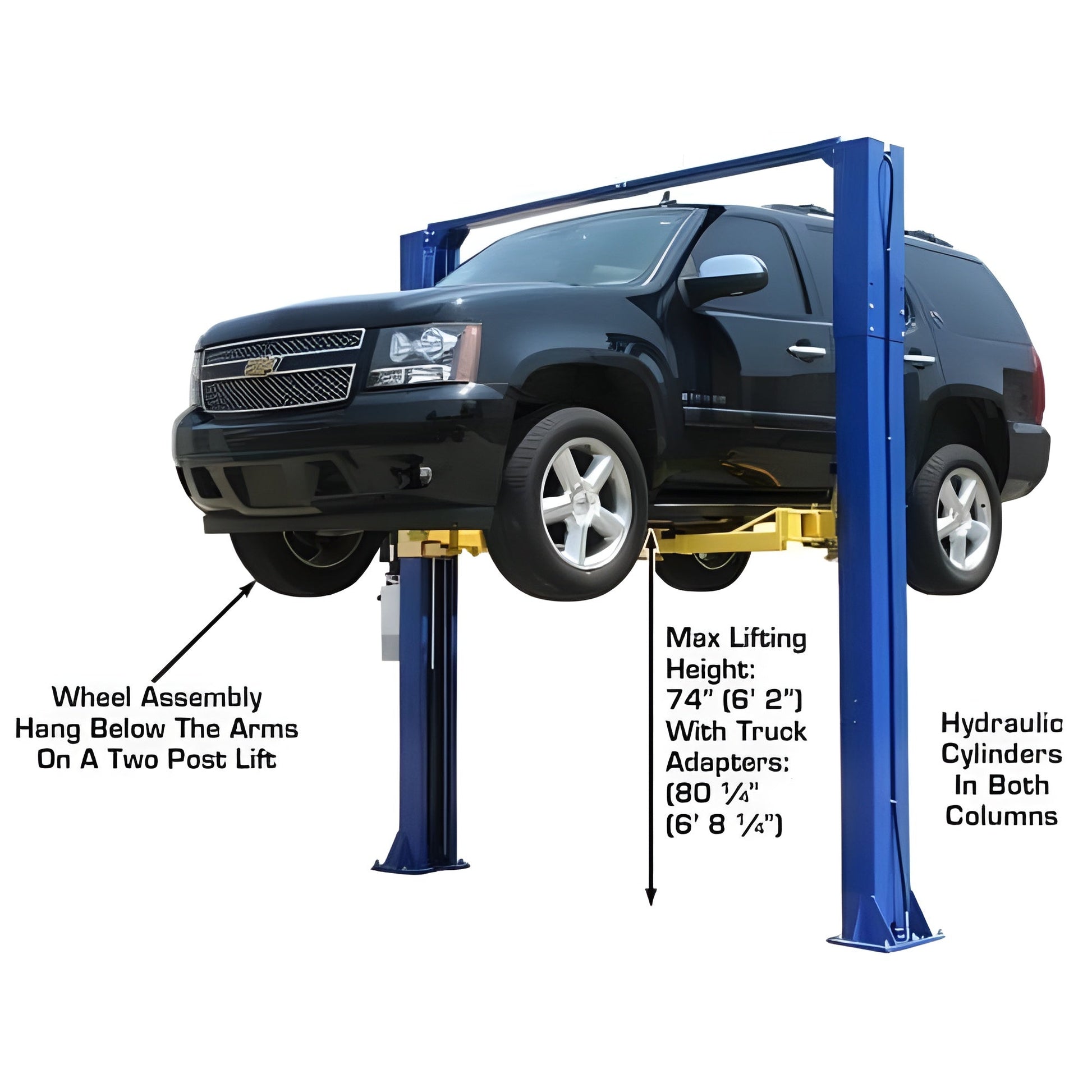

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System

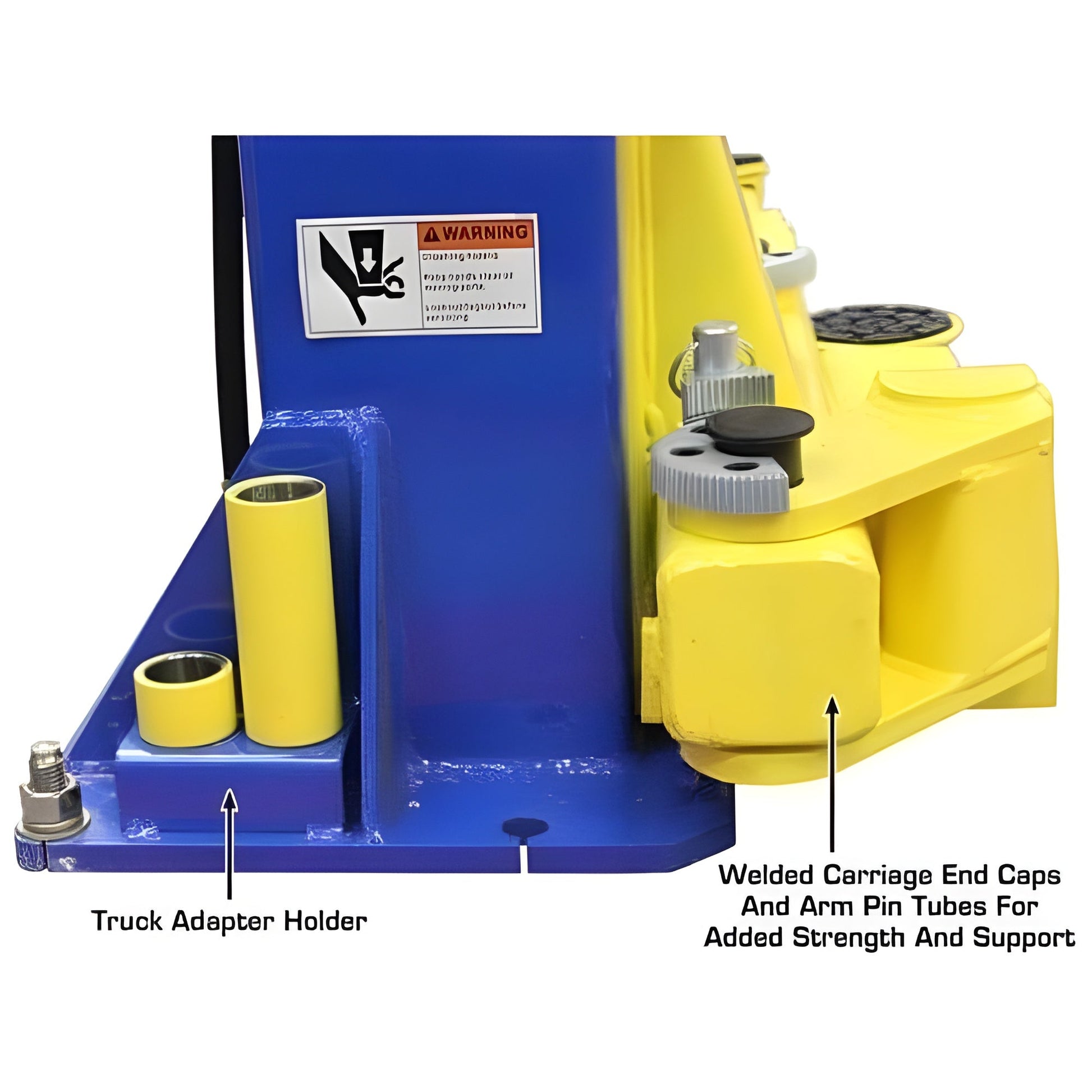

- Free 8 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters
- Mounting Hardware Included
- Shipping Weight: 1,450 lbs.
- 2 yr Structural 1 yr Hydraulic Warranty Parts Only
Specification
| Capacity |
9,000 LB. |

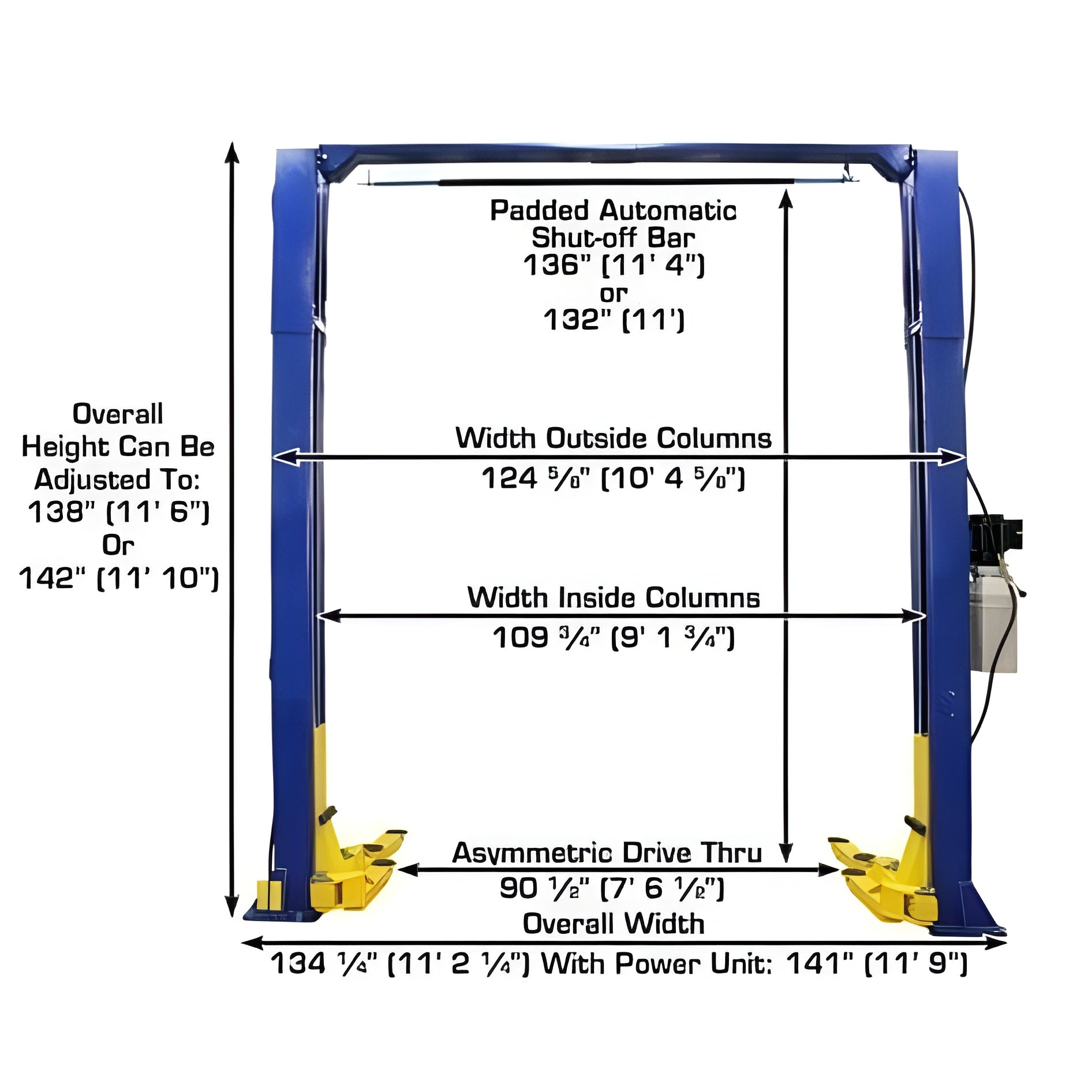

| Overall Height |
138" (11 6") or 142 (11 10) |
| Overall Floor Width |
134 1/2" (11 2 1/2") |
| Outside Column to Outside Column |
124 7/8" (10 4 7/8") |

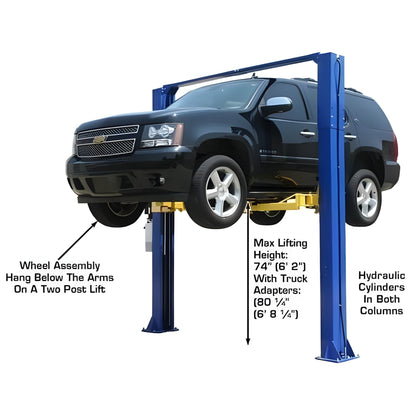

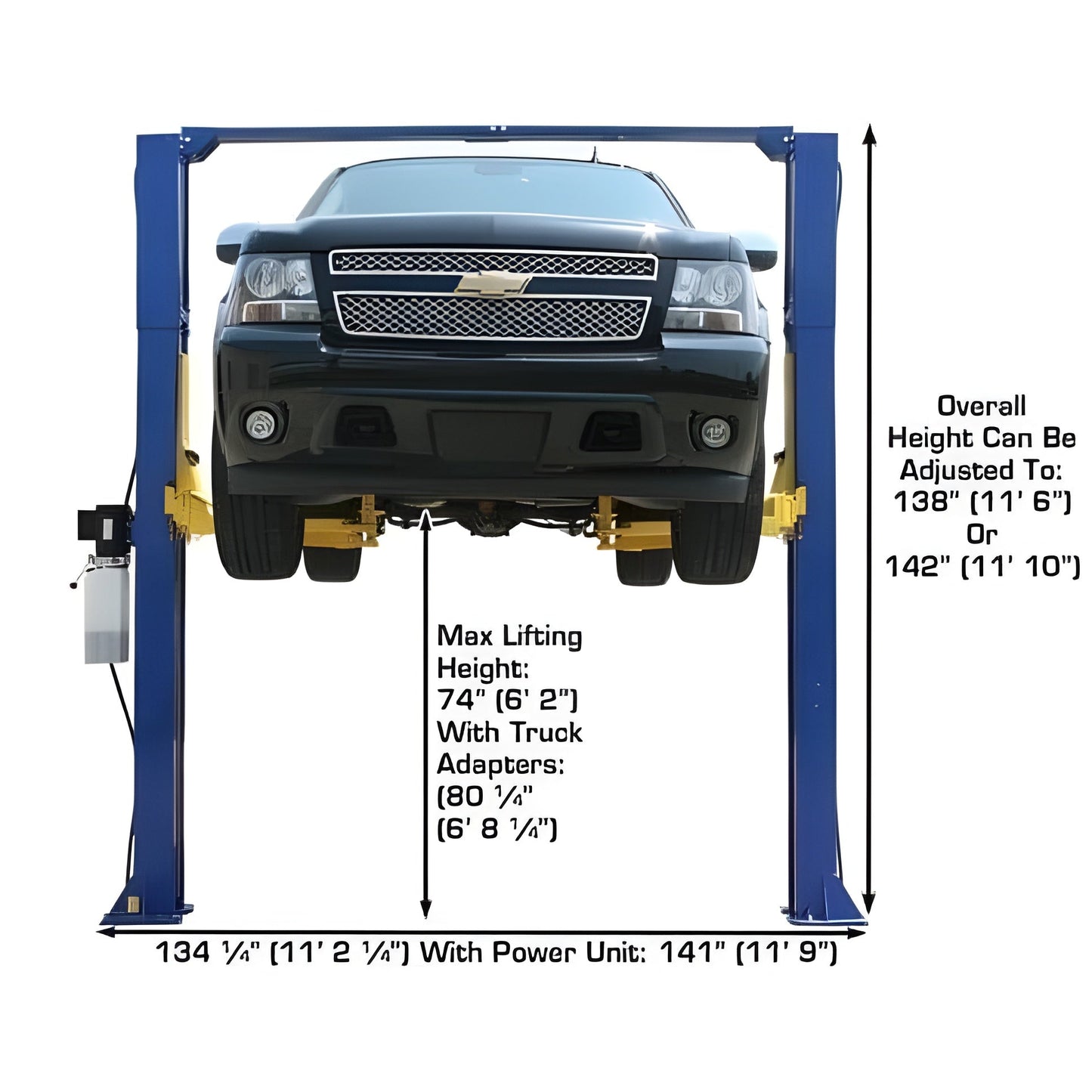

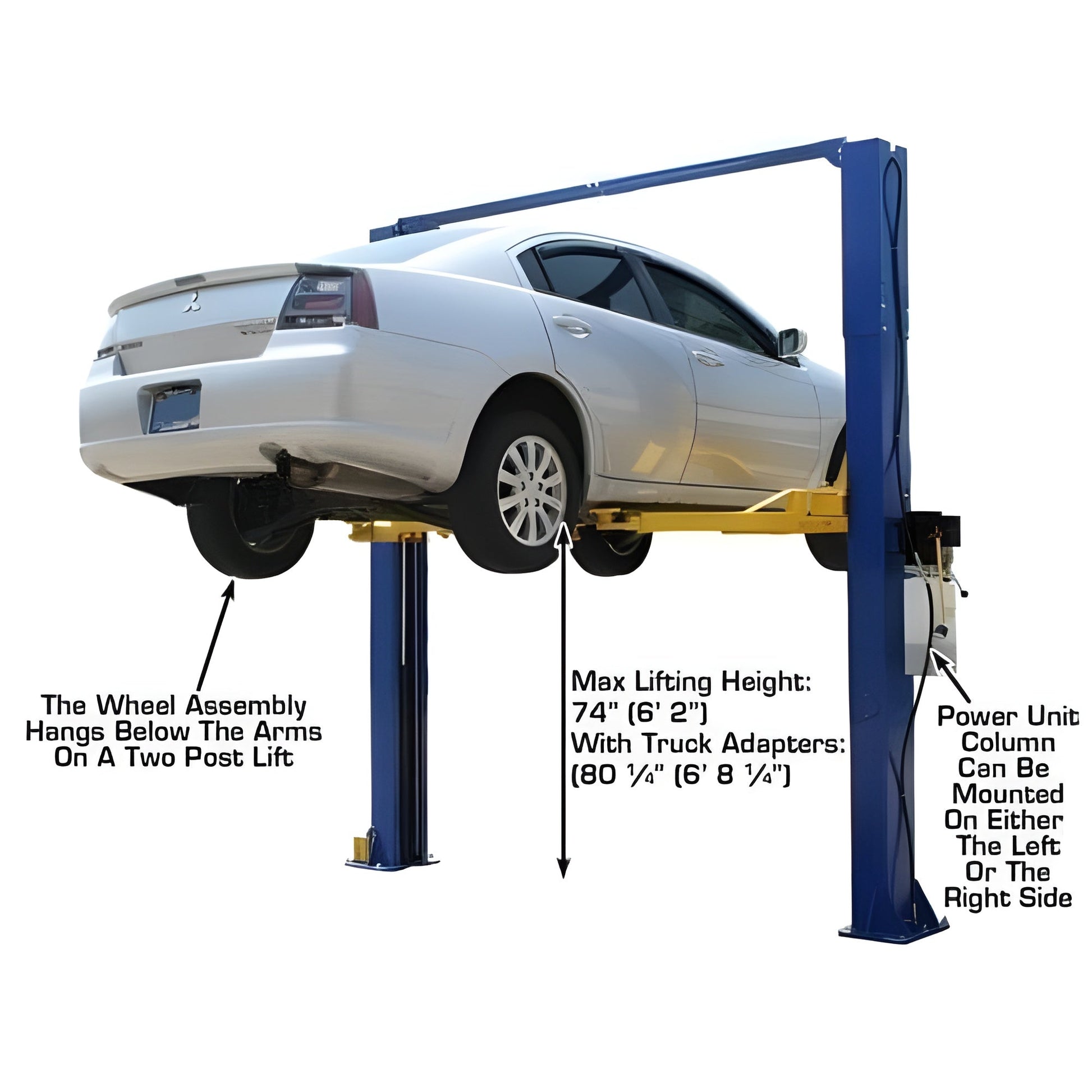

| Maximum Lift Height (Without Adapters) |
74 1/2" |
| Maximum Lift Height (With Adapters) |
81" |
| Minimum Arm Height |
4" |
| Inside Column |
110 (9 2) |

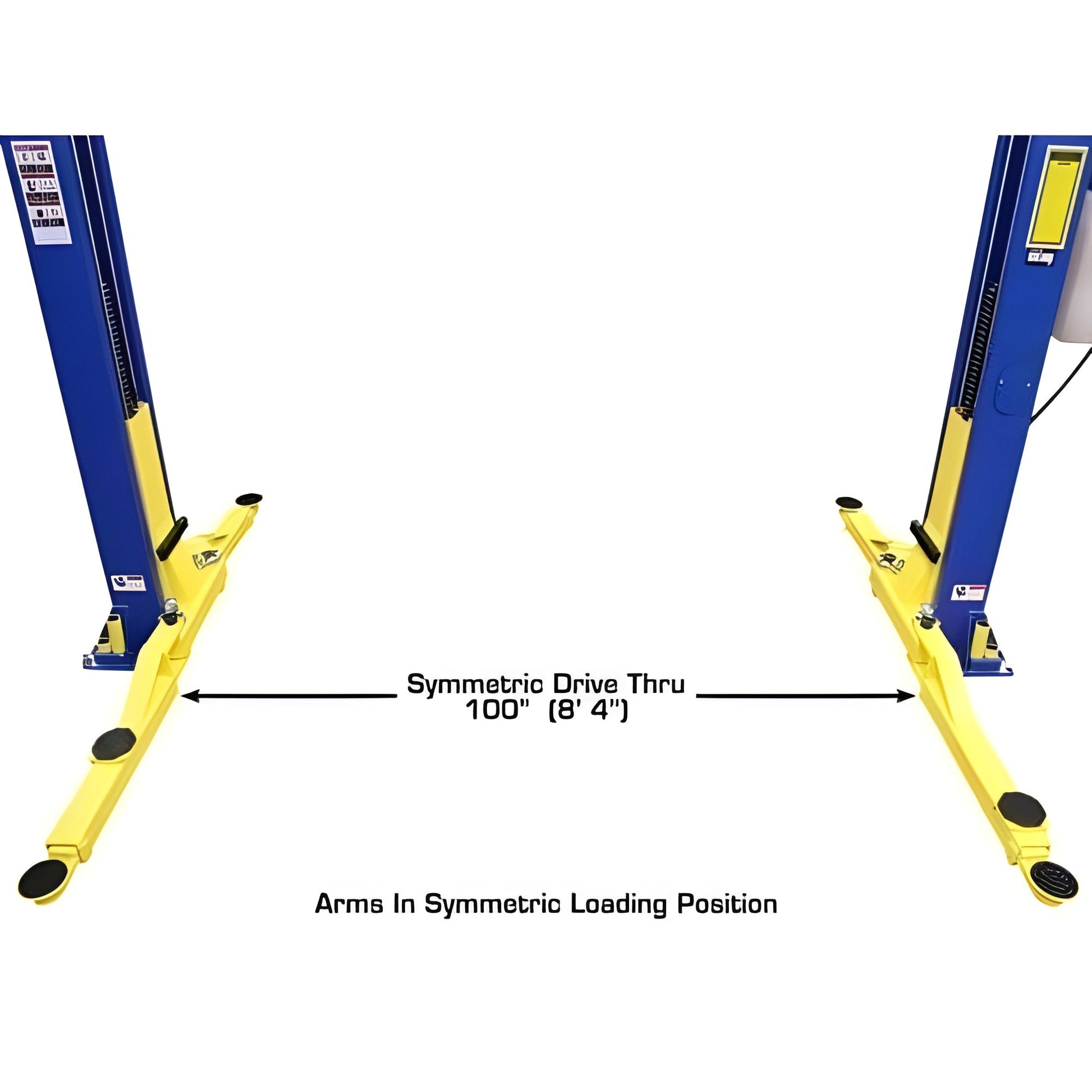

| Drive Thru |
100 (8 4) Symmetric/ 90 1/2" (7 6 1/2) Asymmetric |
| Column Size |
7 1/4" x 11" |
| Column Thickness of Steel |
5mm |
| Base Of Lift |
14 1/4" x 18" |

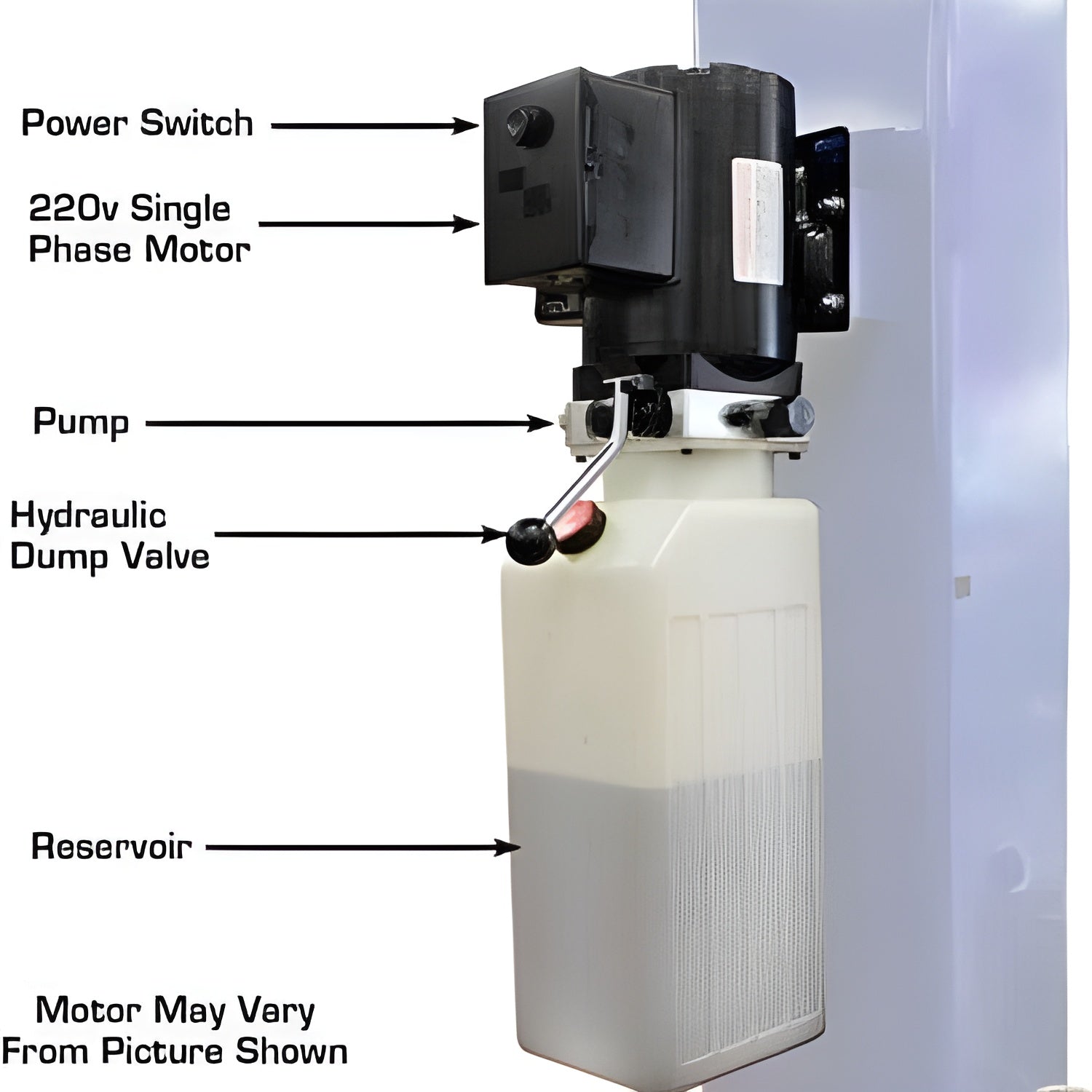

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
1,450 LBS. |

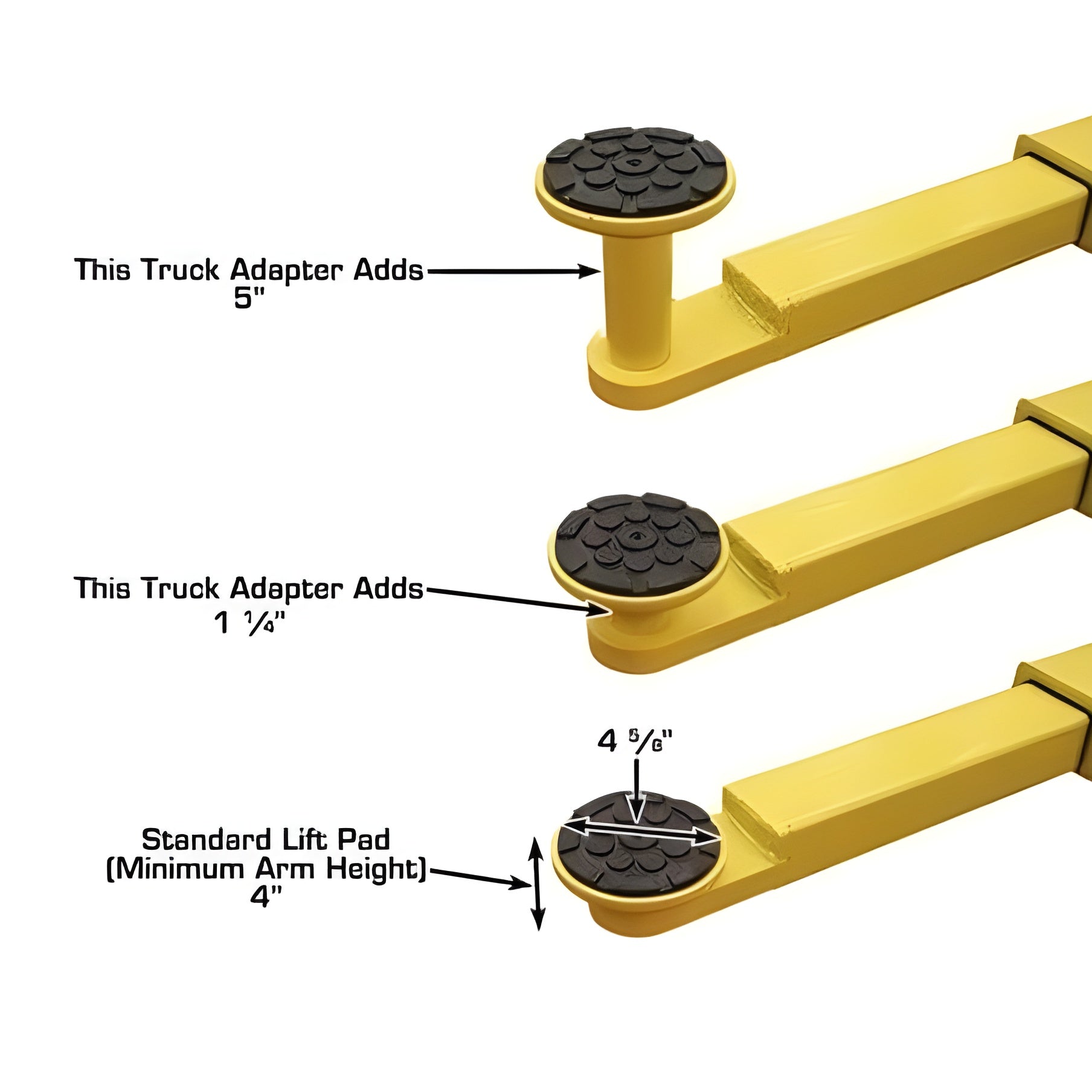

| Adapter Heights |
4 Each 1.5, 5 |
| Arm Hole/Adapter Peg Size |
1.5 |
| Requires a minimum of 4" of concrete with a 3000 psi. rating |
|
Documents
Atlas 9KOHX Manual
Atlas 9KOHX Cylinder Bleeding Procedure(Do this immediately after installation)
What Our Experts Think
-
9,000 lb Capacity: Perfect for cars, SUVs, and light-duty trucks.
-
Overhead Design: Keeps the floor clear for easy access and maneuverability.
-
Symmetric & Asymmetric Arms: Provides flexibility for various vehicle types.
-
Commercial-Grade Construction: Durable steel frame ensures long-lasting performance.
-
Automatic Safety Locks: Enhances security during lifting and servicing.
-
High-Rise Lifting: Ideal for shops needing extra clearance for undercarriage work.
Q&A
Q: What is the weight capacity of the Atlas 9KOHX lift?
A: It has a 9,000 lb capacity, ideal for cars, trucks, and SUVs.
Q: What type of lift is this?
A: It is an overhead (clear floor) 2-post lift, allowing for unobstructed workspace beneath the vehicle.
Q: What is the maximum lifting height?
A: It lifts vehicles up to approximately 78 inches, making it suitable for most repair shops.
Q: What power supply is required?
A: It operates on a 220V single-phase power supply.
Maintenance Tipe
-
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables.
-
Lubrication – Grease pulleys, chains, and moving parts monthly.
-
Hydraulic System – Monitor fluid levels and inspect hoses for cracks or leaks.
-
Safety Locks – Ensure locking mechanisms engage properly and remain debris-free.
-
Cable & Chain Tension – Regularly adjust and inspect for even wear.
-
Annual Check-Up – Perform a full inspection and replace worn components.
