Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift w/ LMA Combo - ATEXH-9KBPX-COMBO-FPD

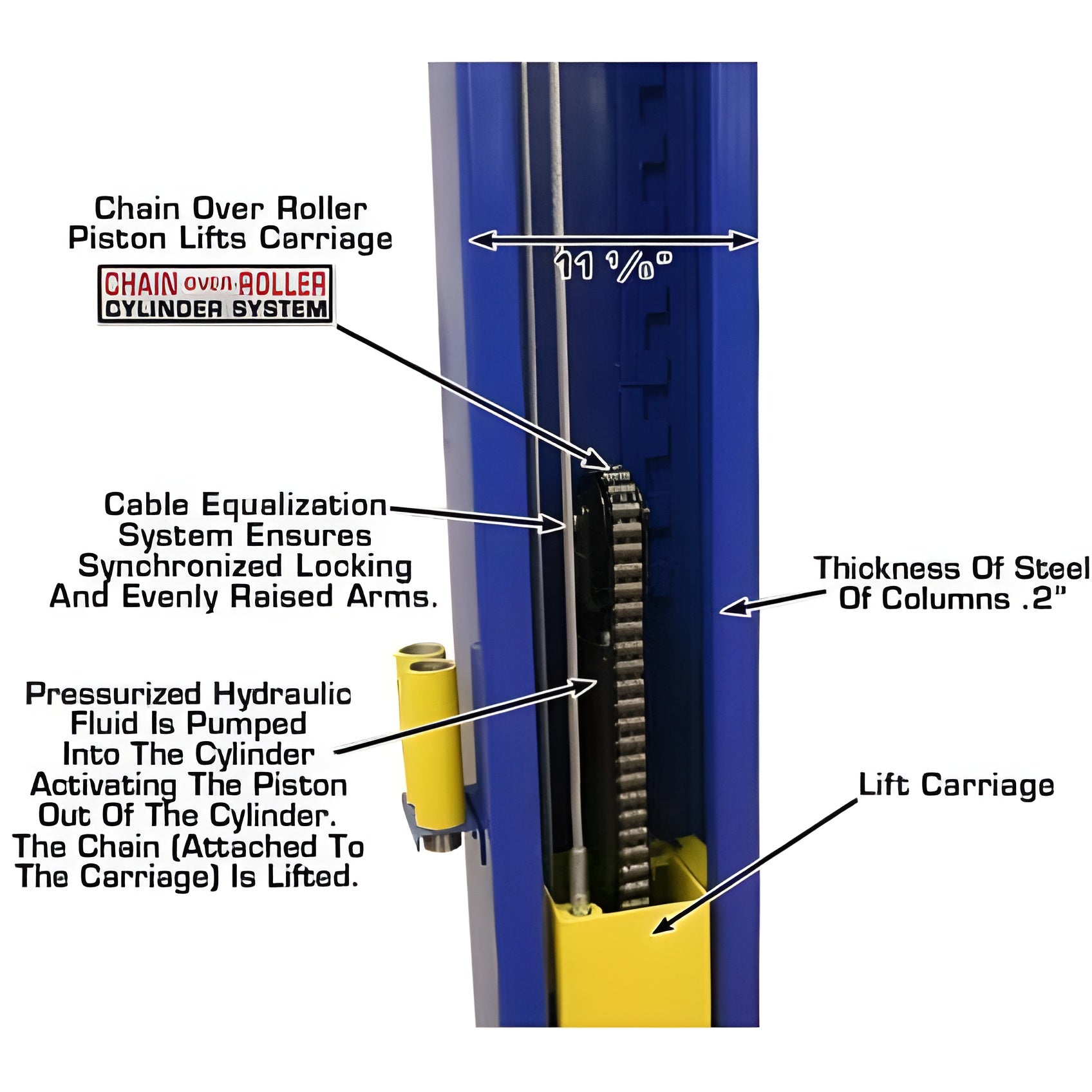

The Atlas 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

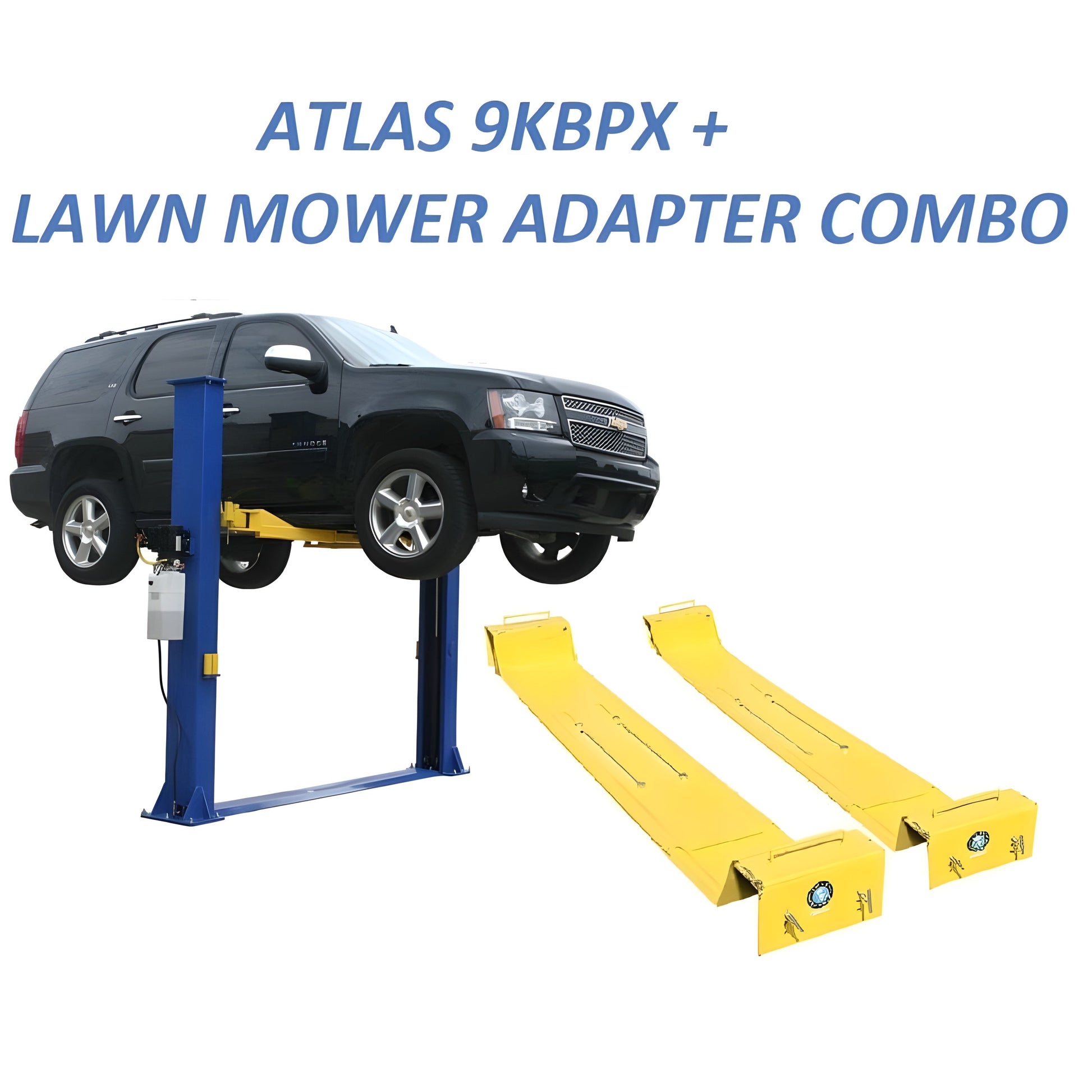

This combo includes the Atlas Lawn Mower Adapter or LMA. The LMA allows the 2-Post lift to better raise ATV’s, UTV’s, and lawn mowers. The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles. The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.
Features
9KBPX
- 9,000 lb. Capacity
- Baseplate, Open-Top Style Lift
- Designed For Low Ceiling Clearance – 9′ 3 ½” Columns

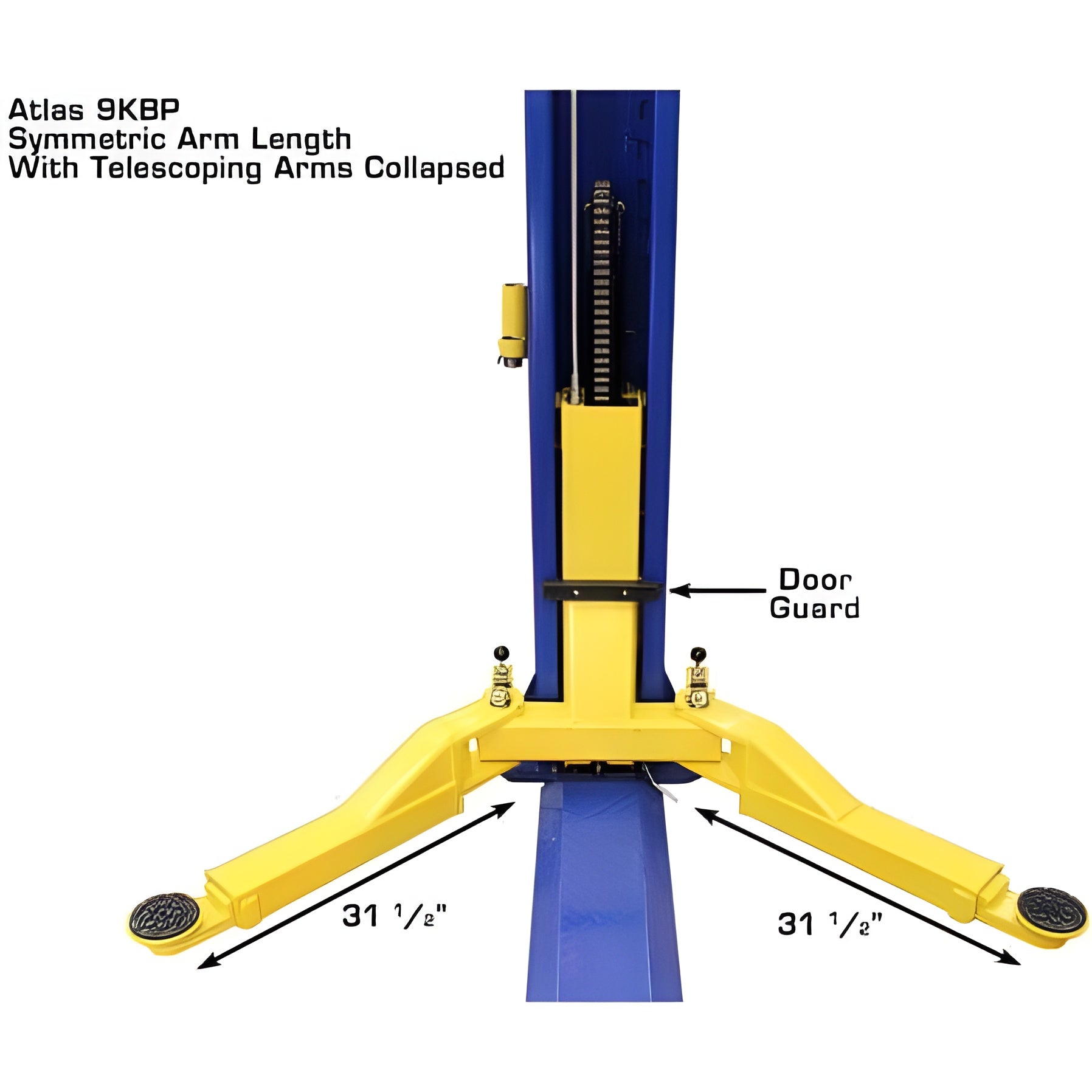

- Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)
- Free 8 Piece Truck Adapter Set
- Automatic Arm Restraints

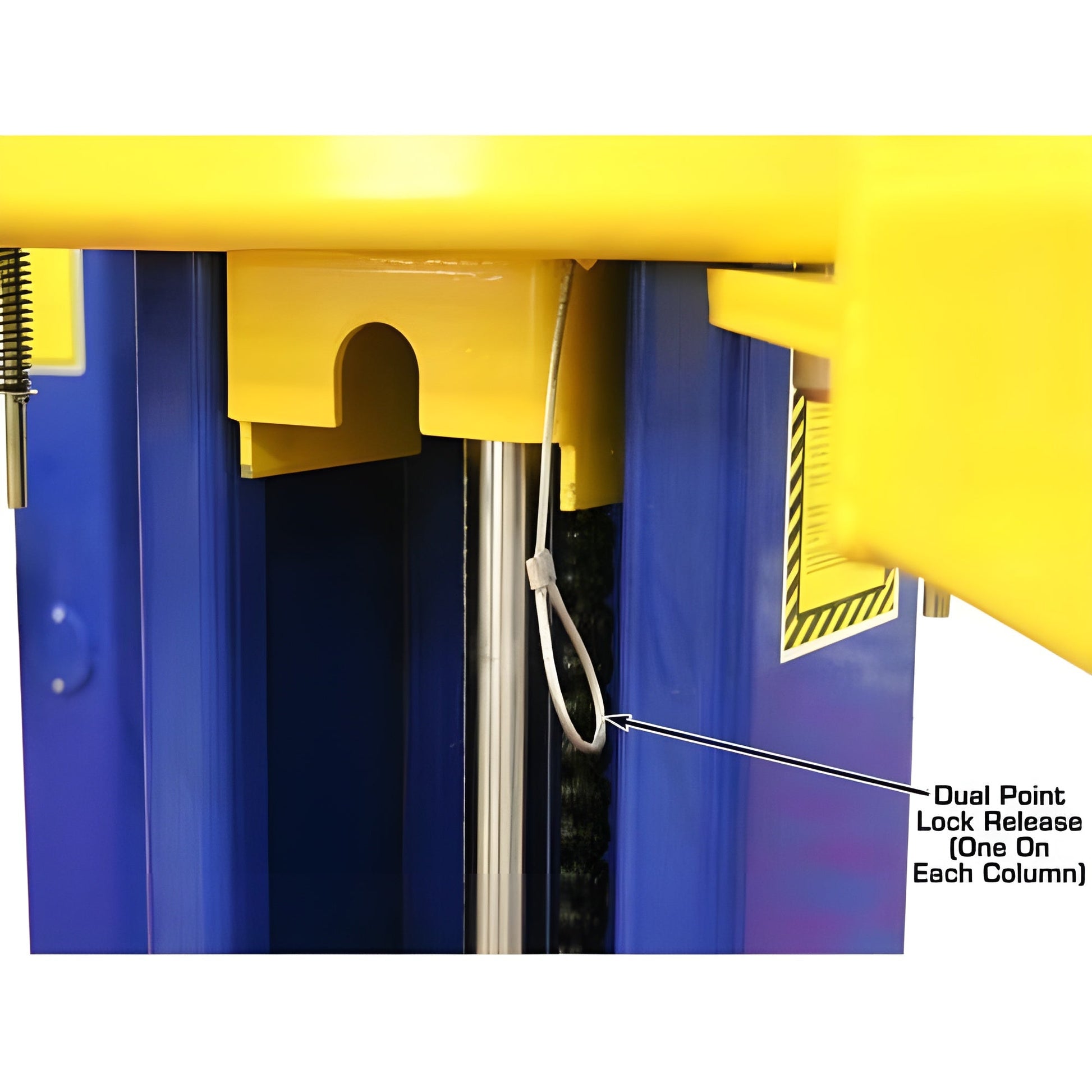

- Dual Point Lock Release
- Mounting Hardware Included
- Shipping Weight: 1,400 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
LMA
- “Lawnmower” Adapter for 2-Post Lifts
- Includes 4 plates and all hardware
- Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
- Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)
- Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)
Specifications
| Capacity |
9,000 LB. |
| Overall Height |
111 1/2" (9’ 3 1/2") |

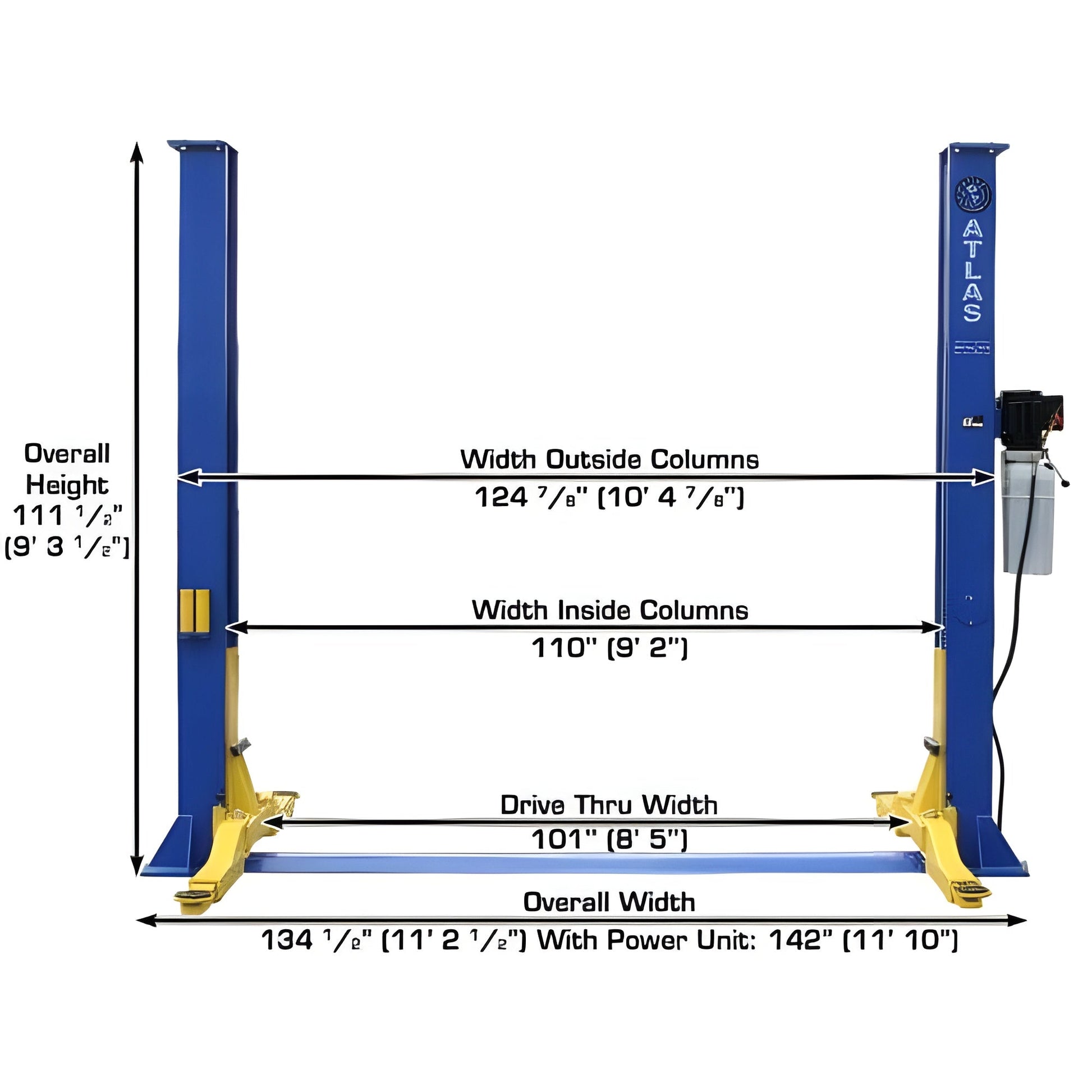

| Overall Floor Width |
134 1/2" (11’ 2 1/2") |
| Outside Column to Outside Column |
124 7/8" (10’ 4 7/8") |

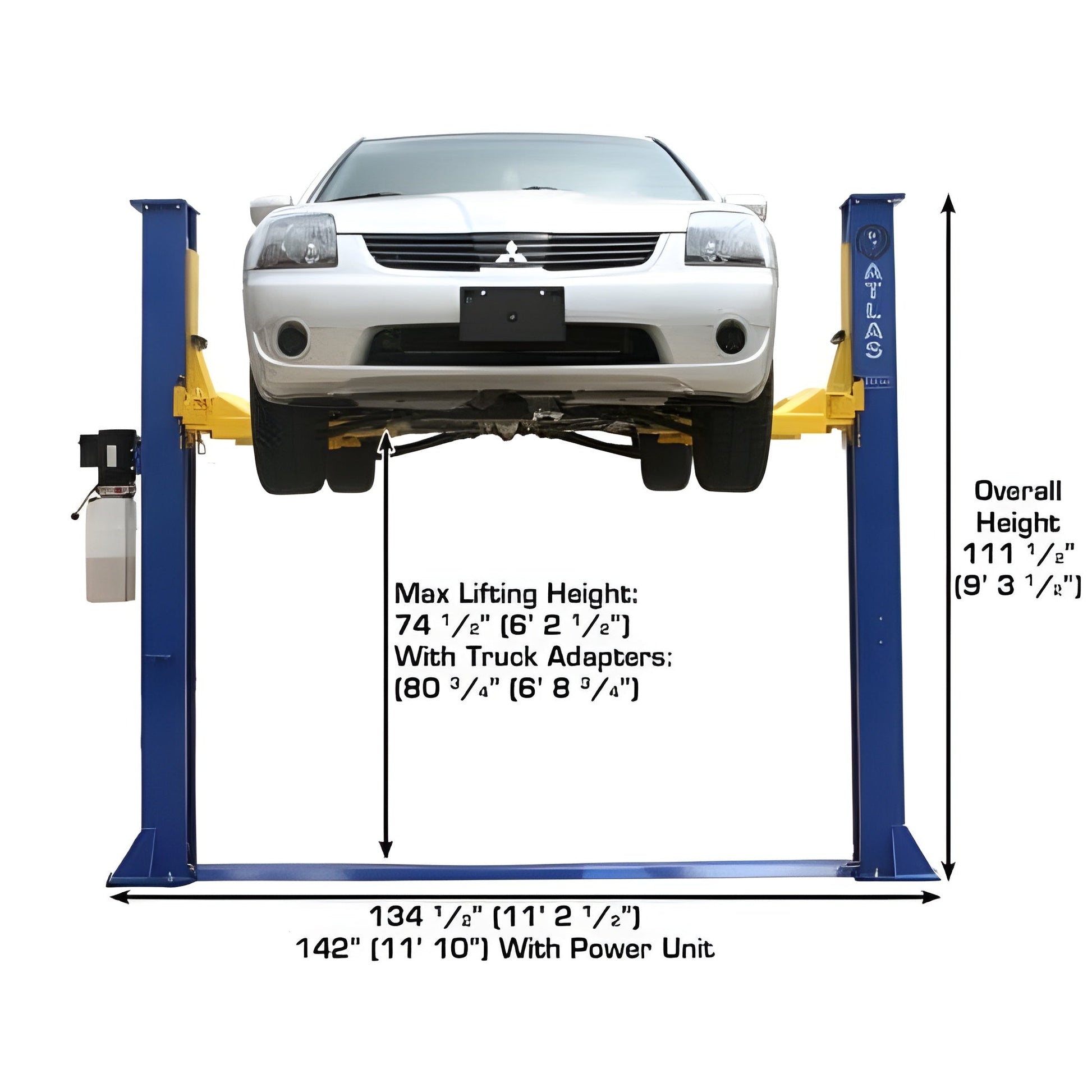

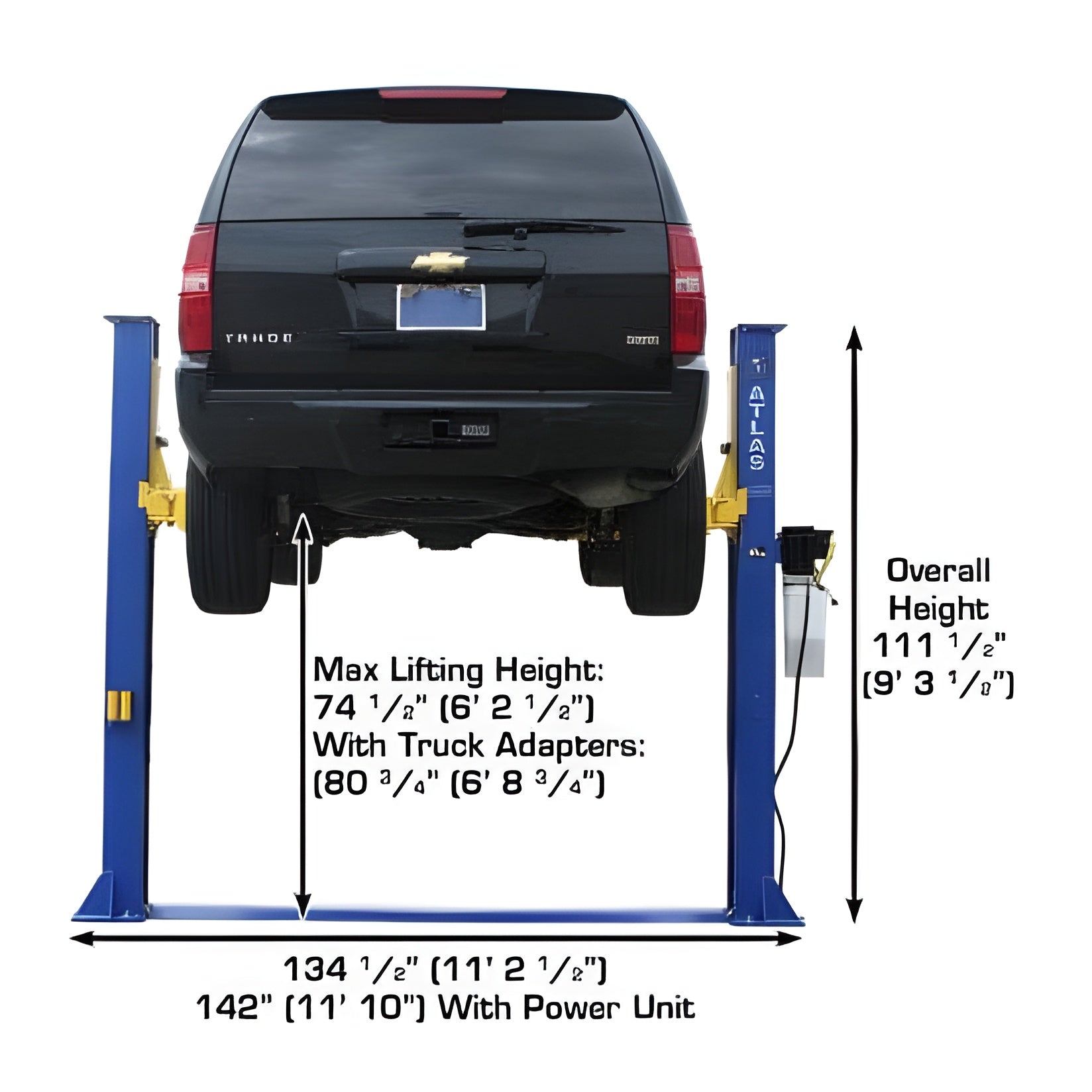

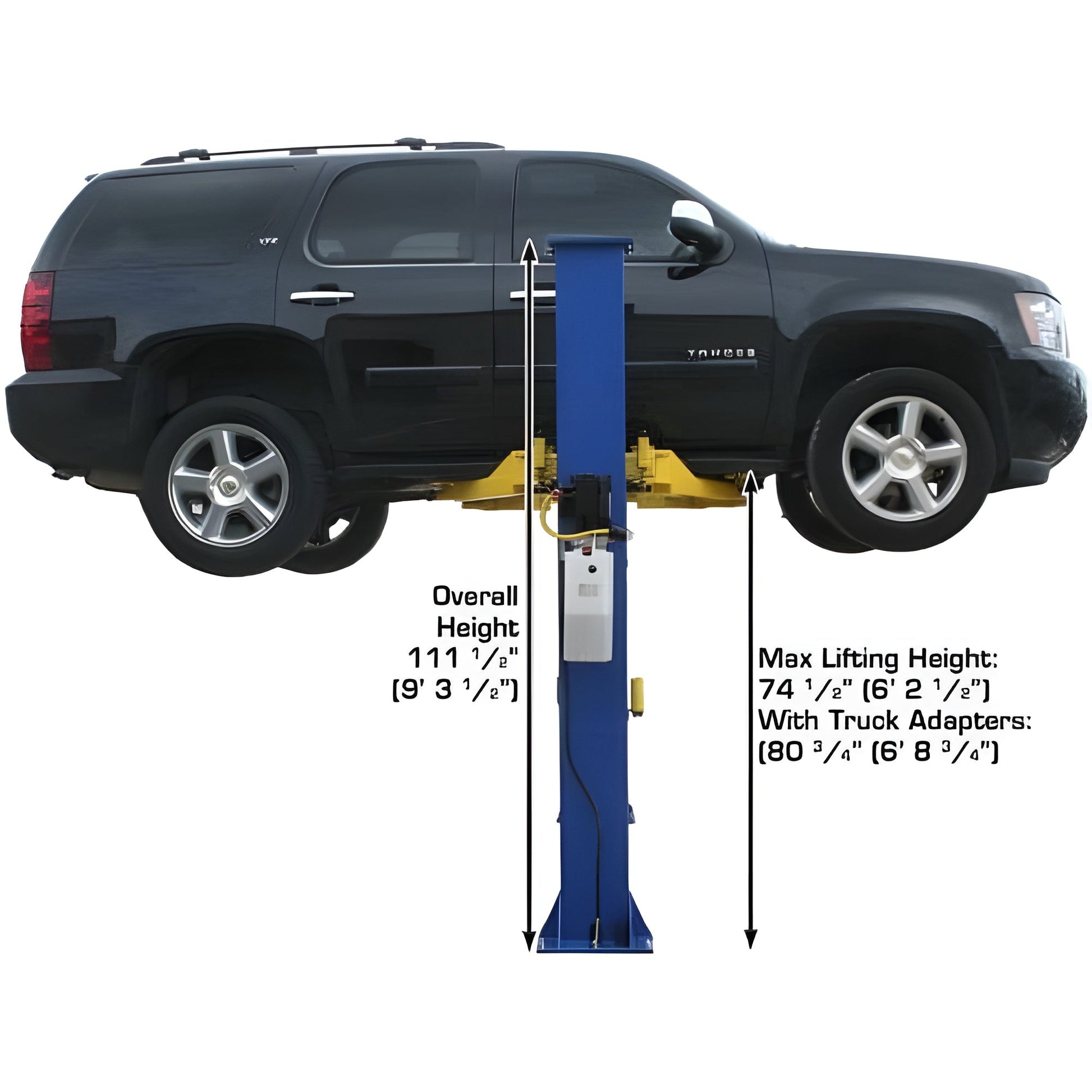

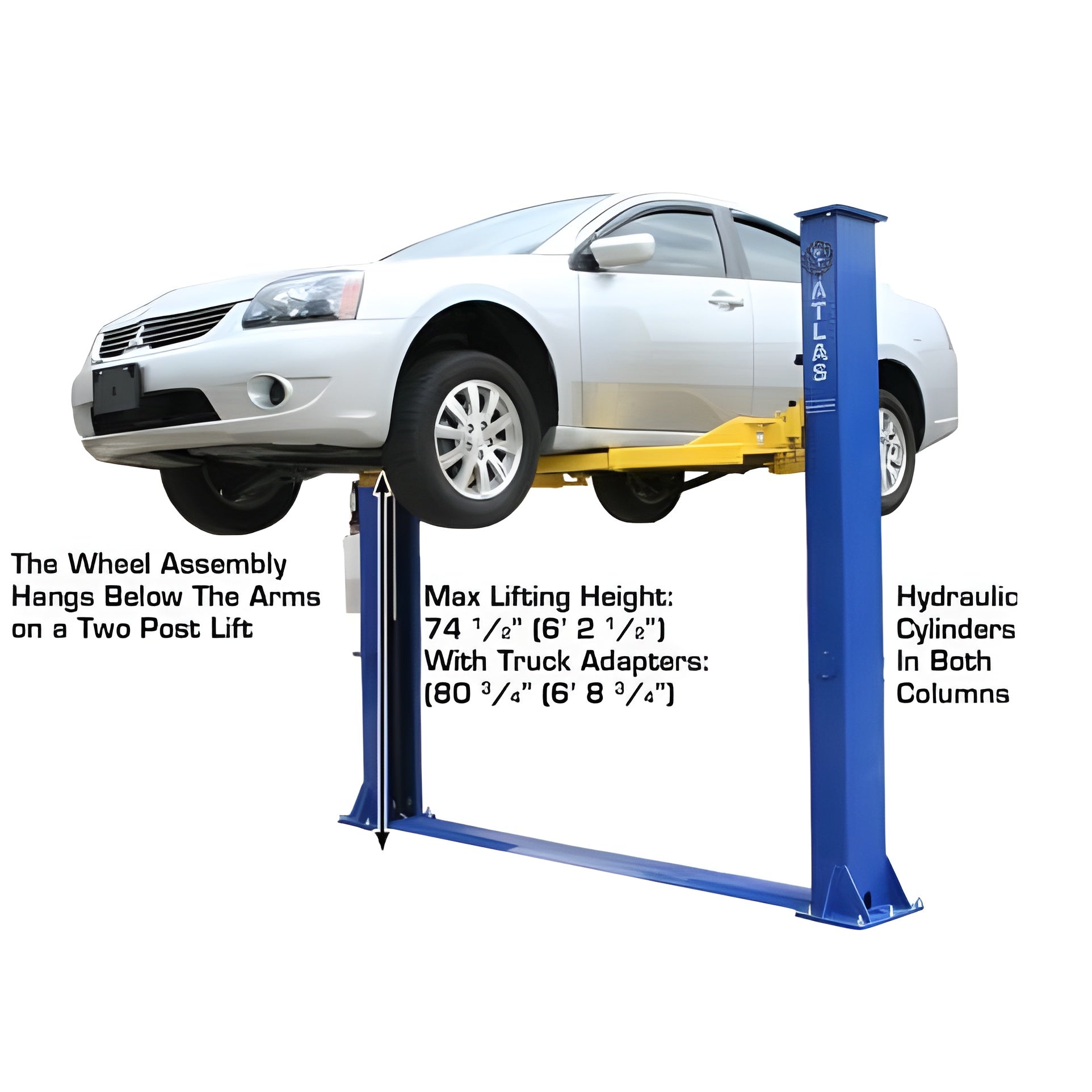

| Maximum Lift Height (Without Adapters) |
74 1/2" |
| Maximum Lift Height (With Adapters) |
81" |
| Minimum Arm Height |
4" |
| Inside Column |
110” (9’ 2”) |
| Drive Thru |
101” (8’ 5”) |
| Column Size |
7 1/4" x 11" |
| Column Thickness of Steel |
5mm |

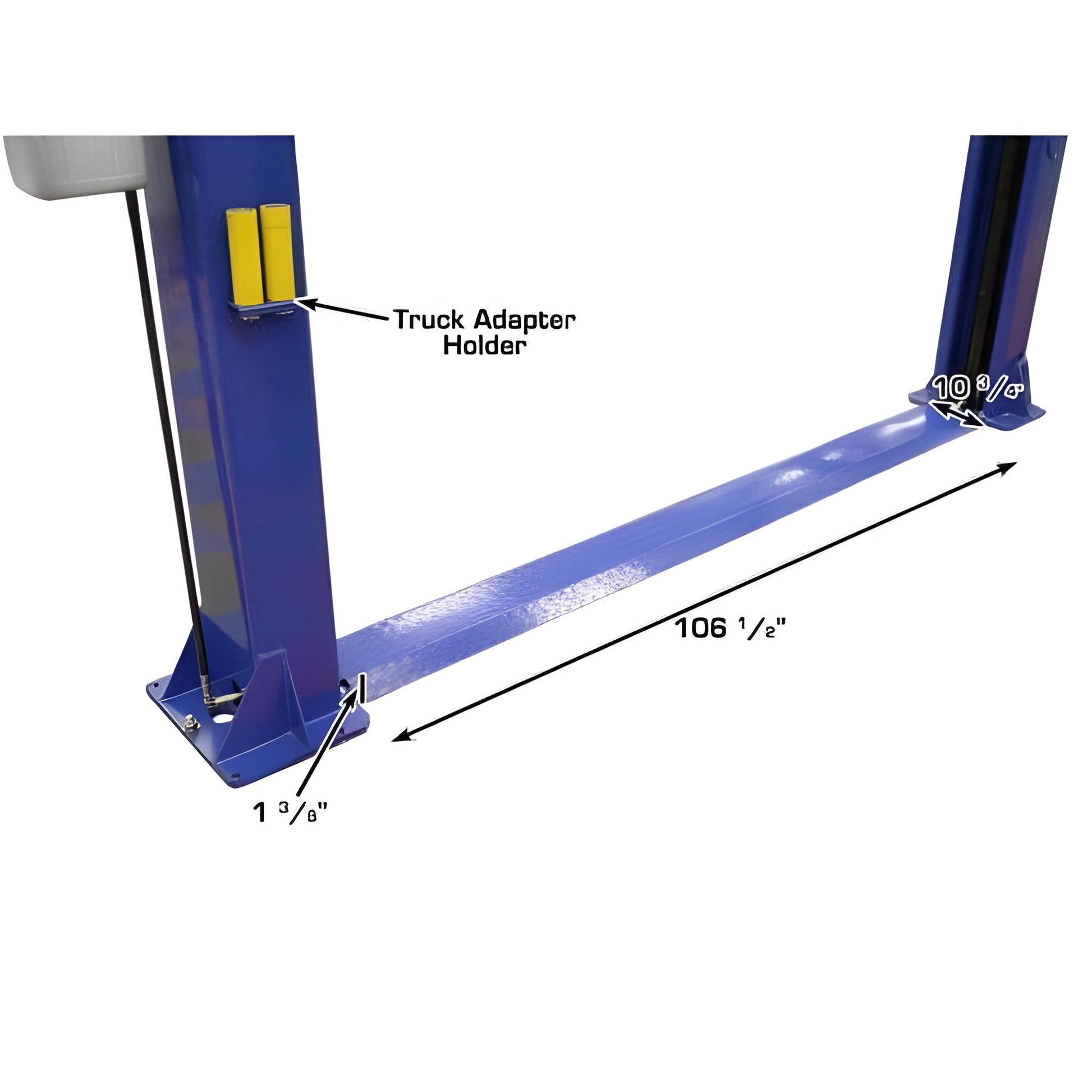

| Base Of Lift |
14 1/4" x 18 1/4" |

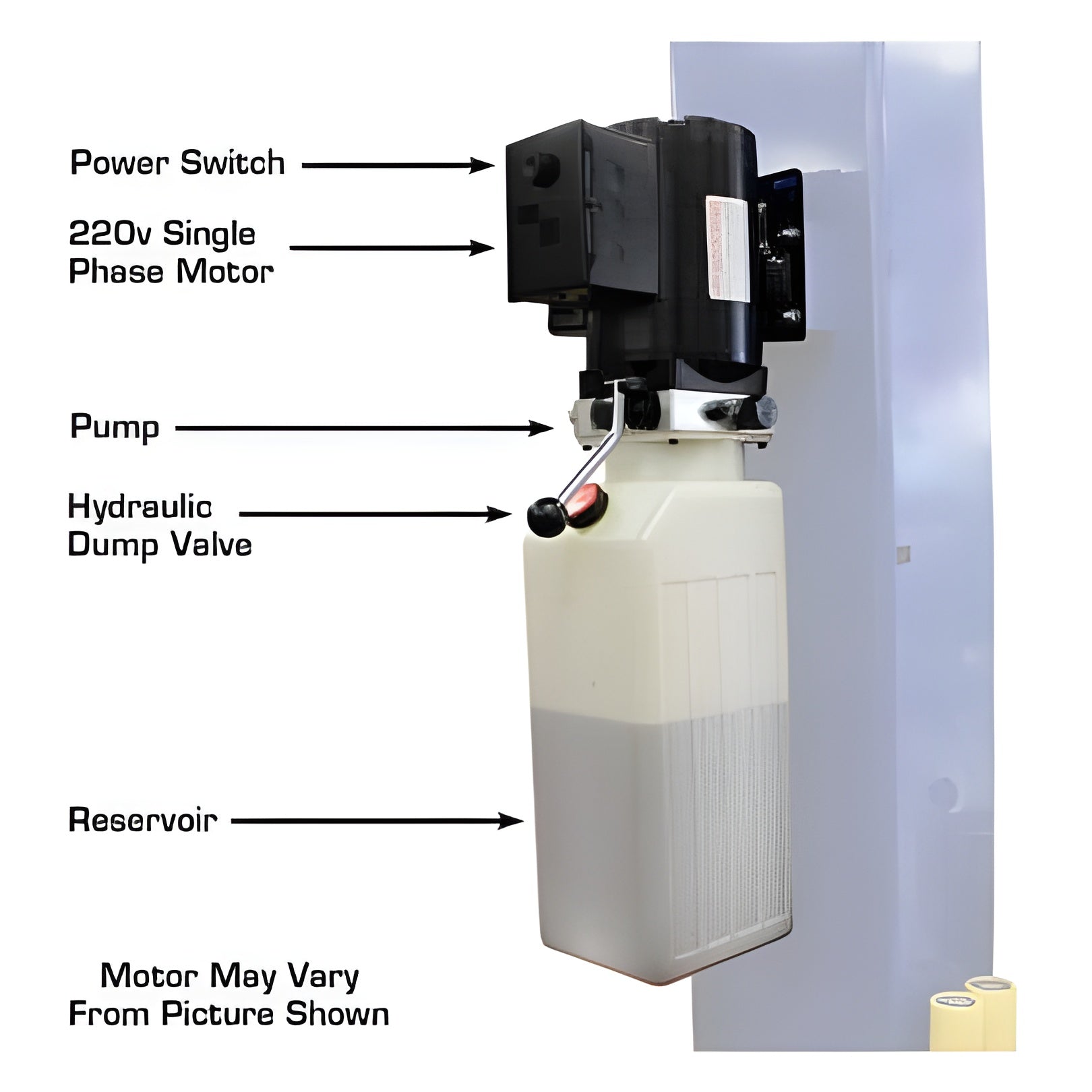

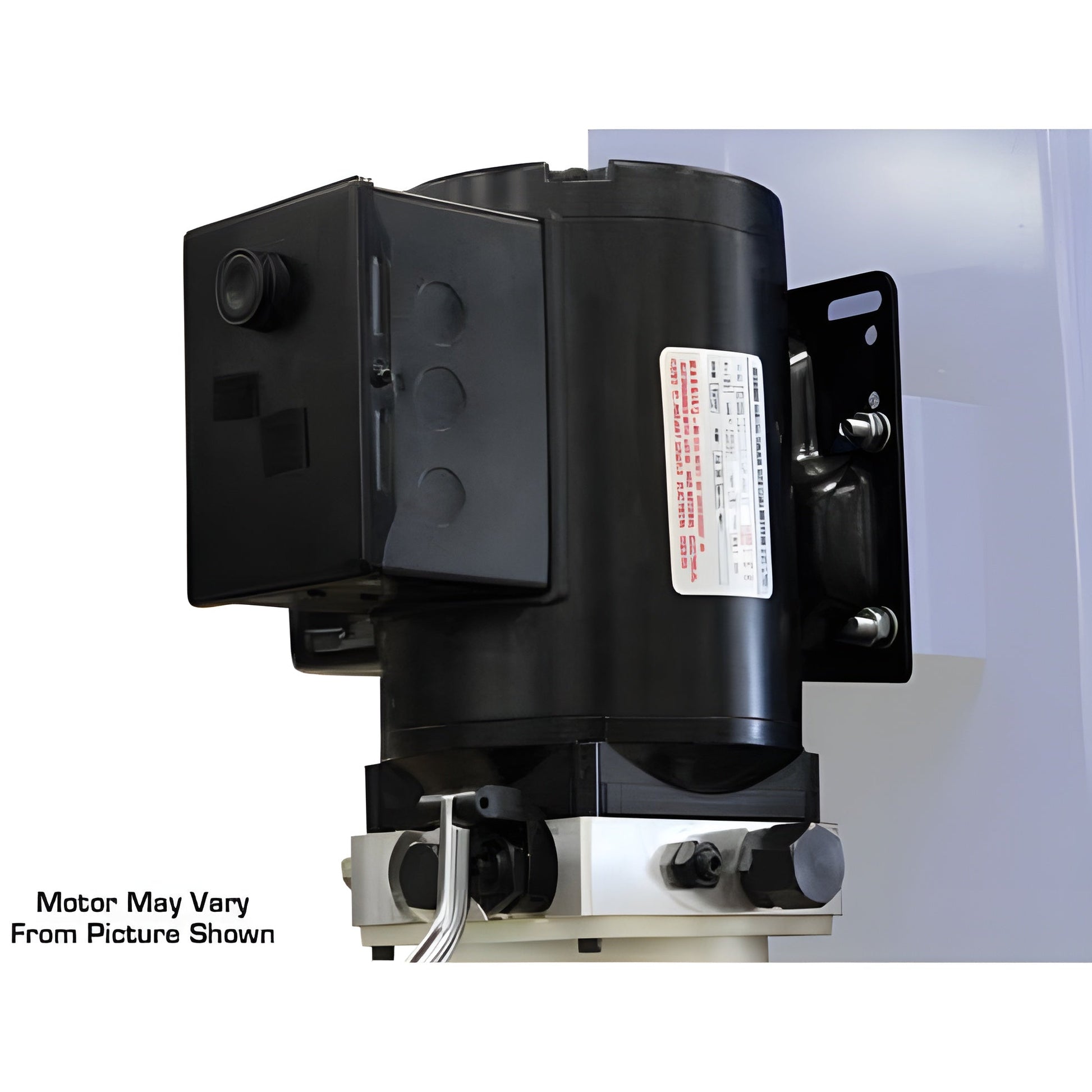

| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
1,400 LBS. |
| Adapter Heights |
4 Each 1.5”, 5” |
| Arm Hole/Adapter Peg Size |
1.5” |
| Requires a minimum of 4" of concrete with a 3000 psi. rating |
|
| Capacity |
Up To 5,000 lbs. * |
| Adjusts In Width |
8' 11" |
| Wheel Base |
32" to 90" ** |
| Wheel Well Width |
12" |
| Thickness Of Steel |
1/4" (2 Gauge) |
| Shipping Weight |
600 lbs. |
| LMA Consists Of Two Wheel Platforms. Lift not included. |
|
| * May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA. |
|
| ** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level. |
|
Documents
Atlas 9KBPX Manual
Atlas 9KBPX Cylinder Bleeding Procedure (Do this immediately after installation)
What Our Experts Think
-
heavy-Duty Lifting Capacity: Supports up to 9,000 lbs, perfect for cars, SUVs, and light trucks.
-
Baseplate Design: Ideal for low-ceiling garages, maximizing space without sacrificing strength.
-
LMA (Lift Machine Arm) Combo: Enhanced versatility with adjustable arms for a secure and balanced lift.
-
Durable Construction: Robust steel frame with a powder-coated finish for long-lasting reliability.
-
Safety Features: Includes automatic arm restraints and a dual-point lock release for added security.
-
Versatile Installation: Works with concrete floors 4" or thicker, requiring no overhead clearance.
-
User-Friendly Operation: Hydraulic system ensures smooth lifting and lowering.
Q&A
Q: What is the lifting capacity of the Atlas 9KBPX?
A: It can lift up to 9,000 lbs, suitable for most cars, SUVs, and light trucks.
Q: What type of vehicles can this lift accommodate?
A: It supports low-profile cars and taller trucks with its LMA (Low-Mid Adapters) combo.
Q: What is the lift height and clearance?
A: The maximum lift height is approximately 72 inches, with a baseplate design ideal for low-ceiling garages.
Q: Does it include safety features?
A: Yes, it has automatic arm restraints, a dual-point safety lock release, and heavy-duty steel construction.
Q: What power supply is required?
A: It operates on a 220V single-phase power supply.
Maintenance Tipe
-
Daily Inspections – Check for leaks, loose bolts, and worn cables or chains.
-
Lubrication – Apply grease to pulleys and chains monthly. Keep posts and lift arms clean.
-
Hydraulic System – Monitor fluid levels and replace as needed. Inspect hoses for wear.
-
Safety Locks – Ensure lock mechanisms engage properly and are free of debris.
-
Load Balance – Always position vehicles evenly to prevent uneven wear.
-
Annual Check-Up – Perform a full safety inspection and replace worn components.
