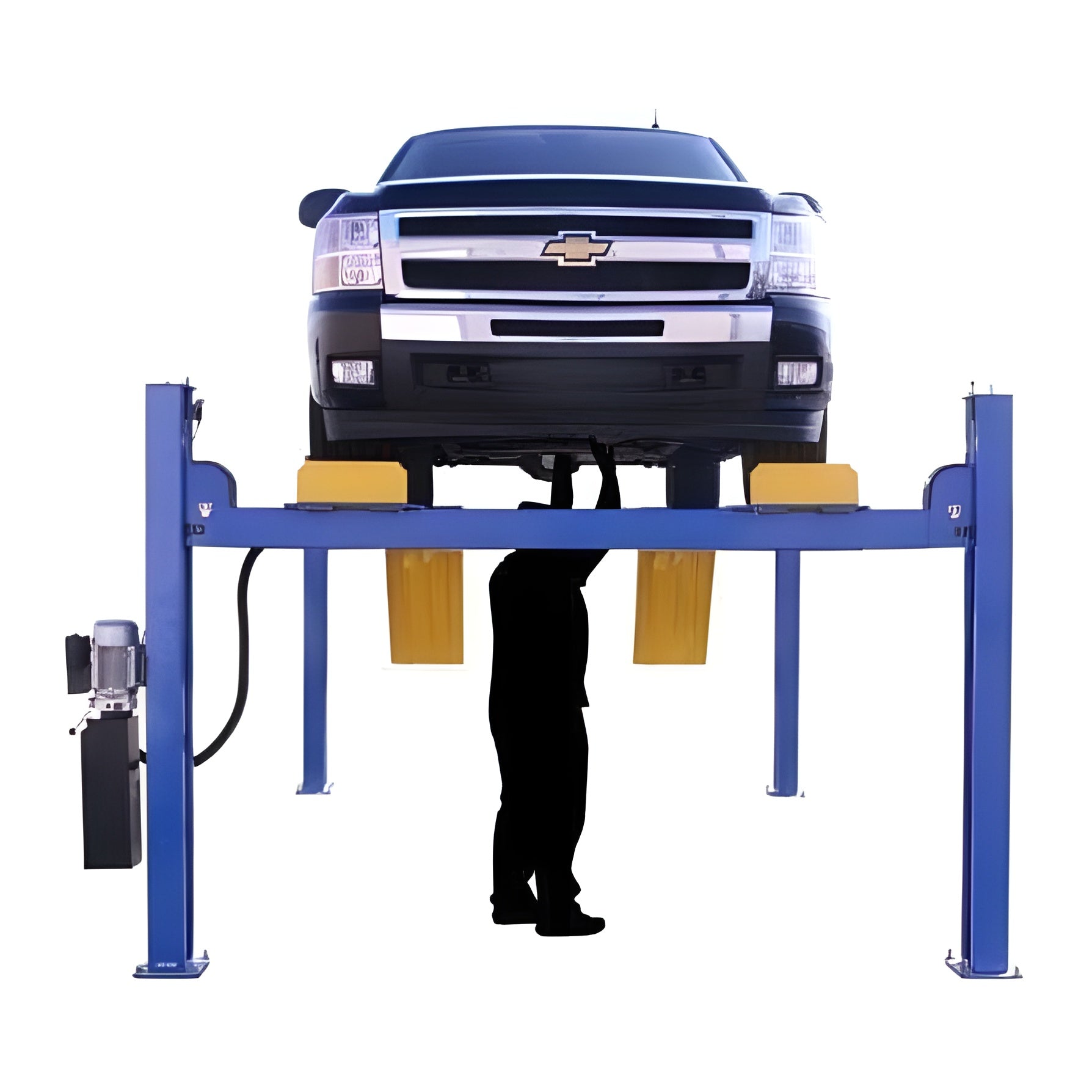

The Atlas 414 14,000 pound capacity heavy duty four post lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitors lifts.
The Atlas 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 414 has been manufactured to the same exacting specifications for many years.

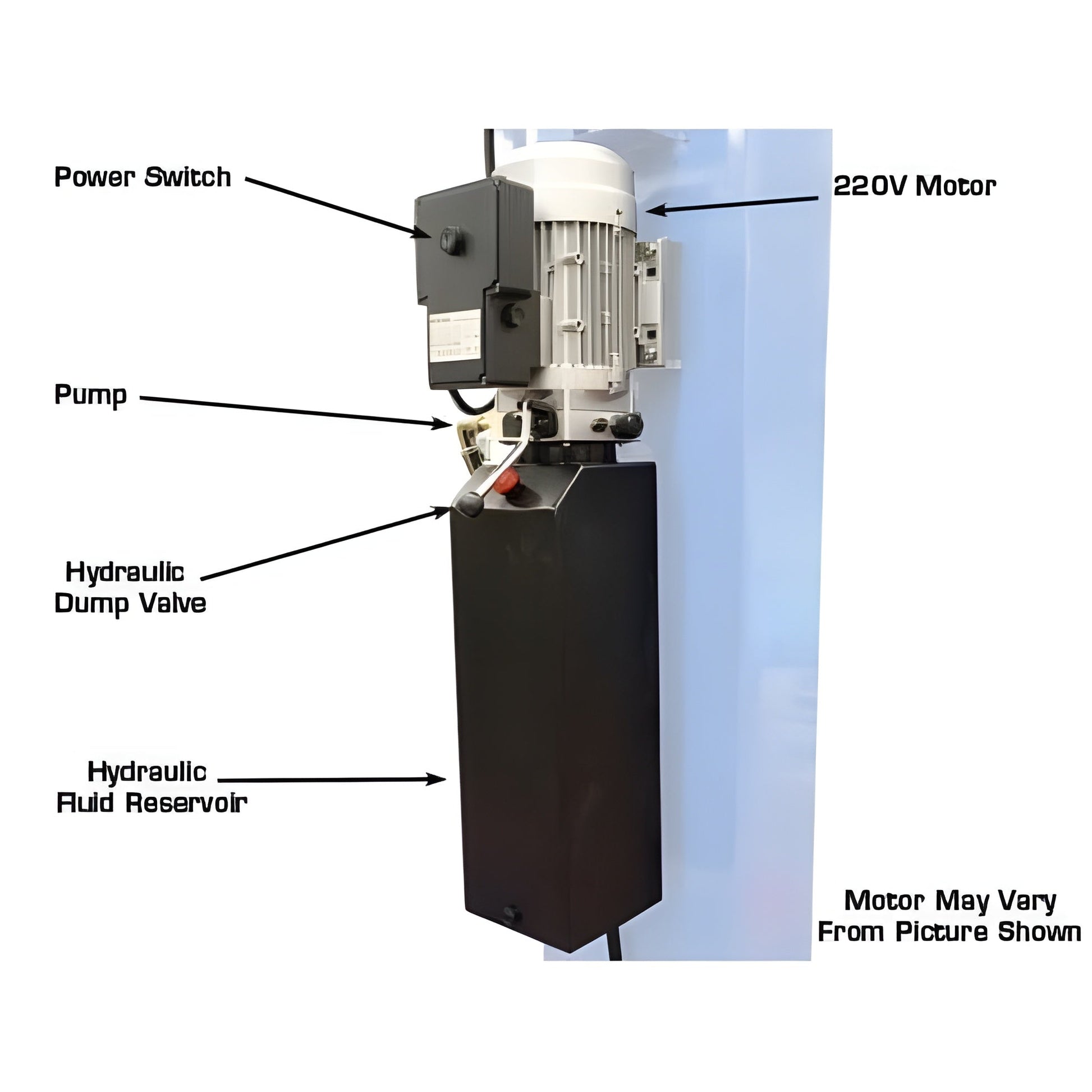

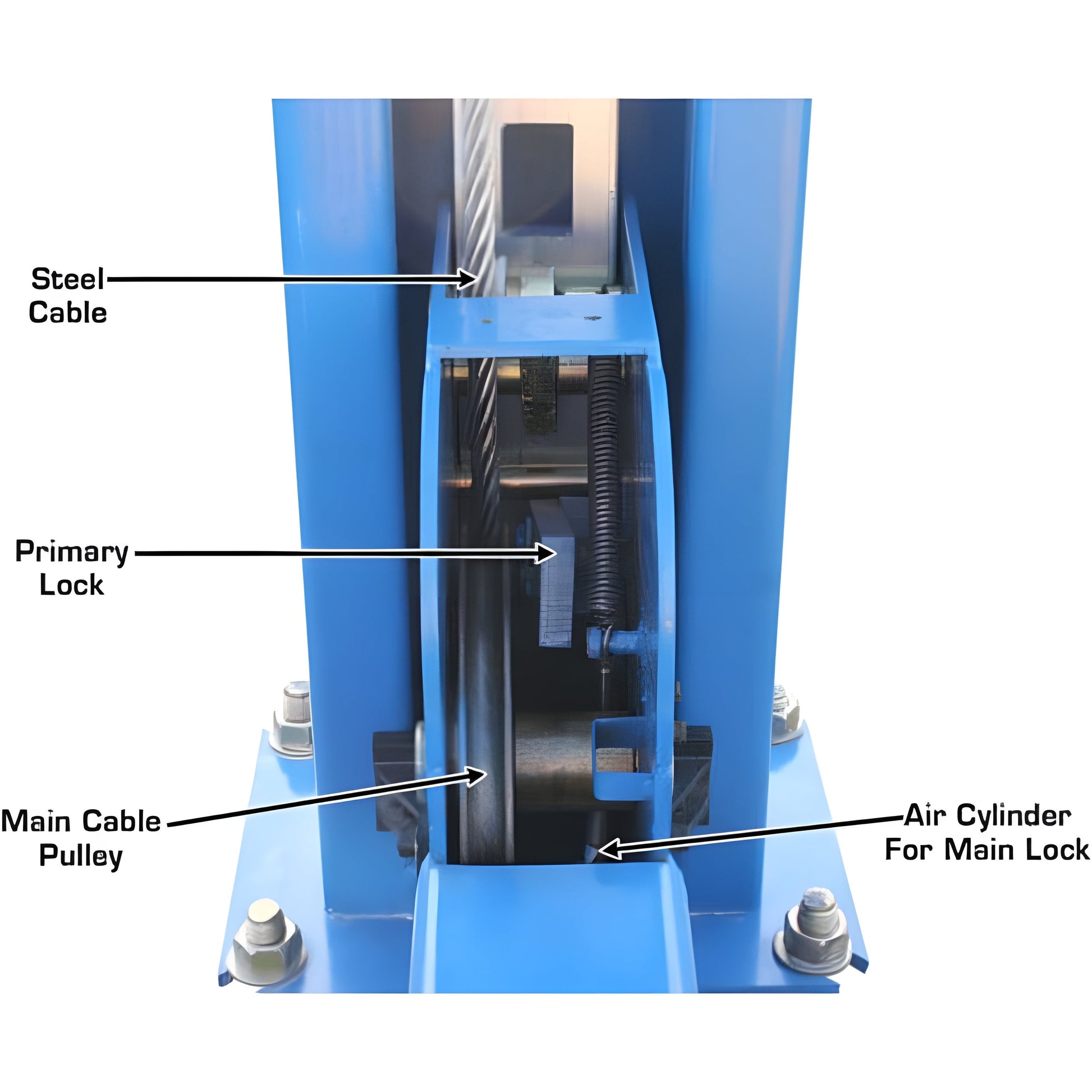

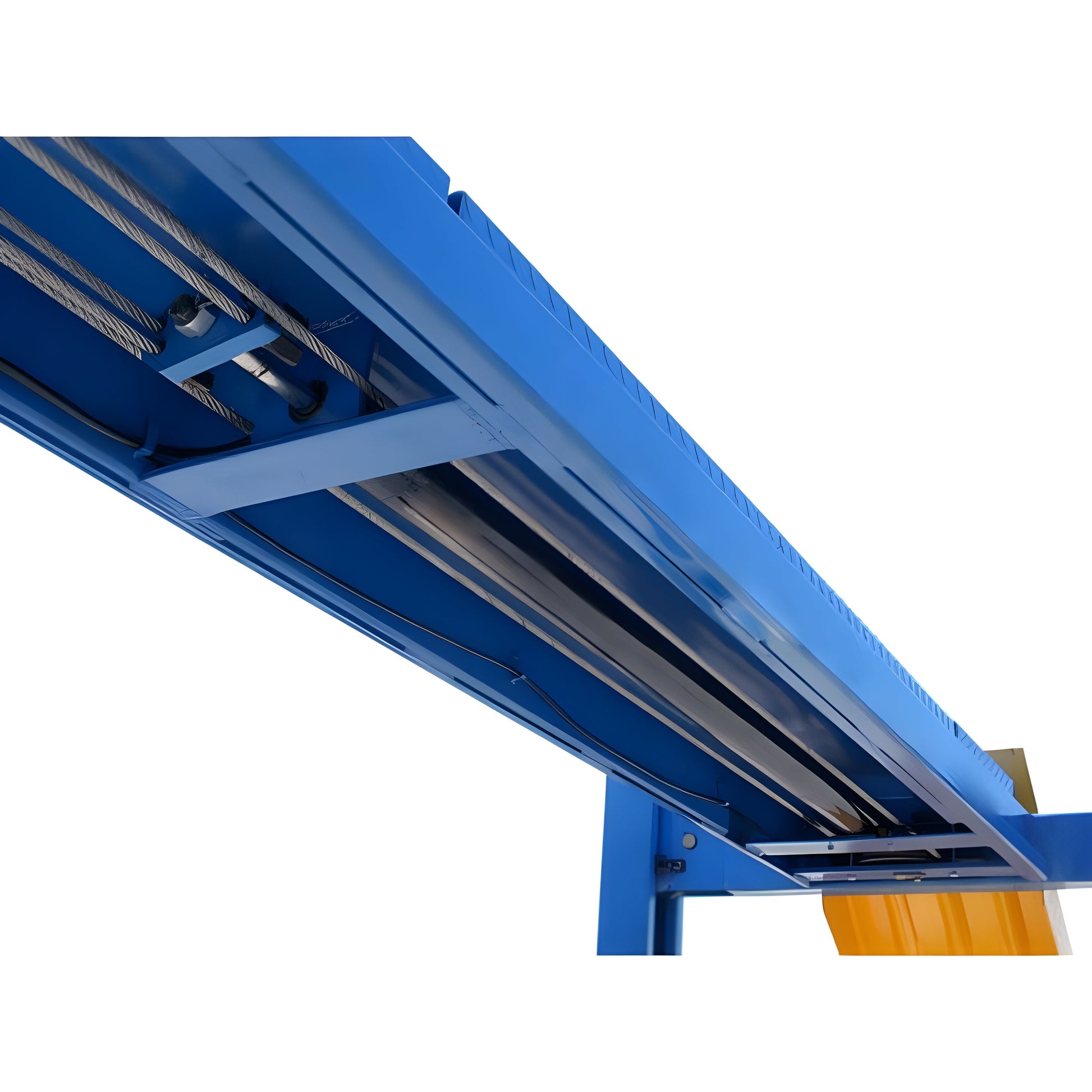

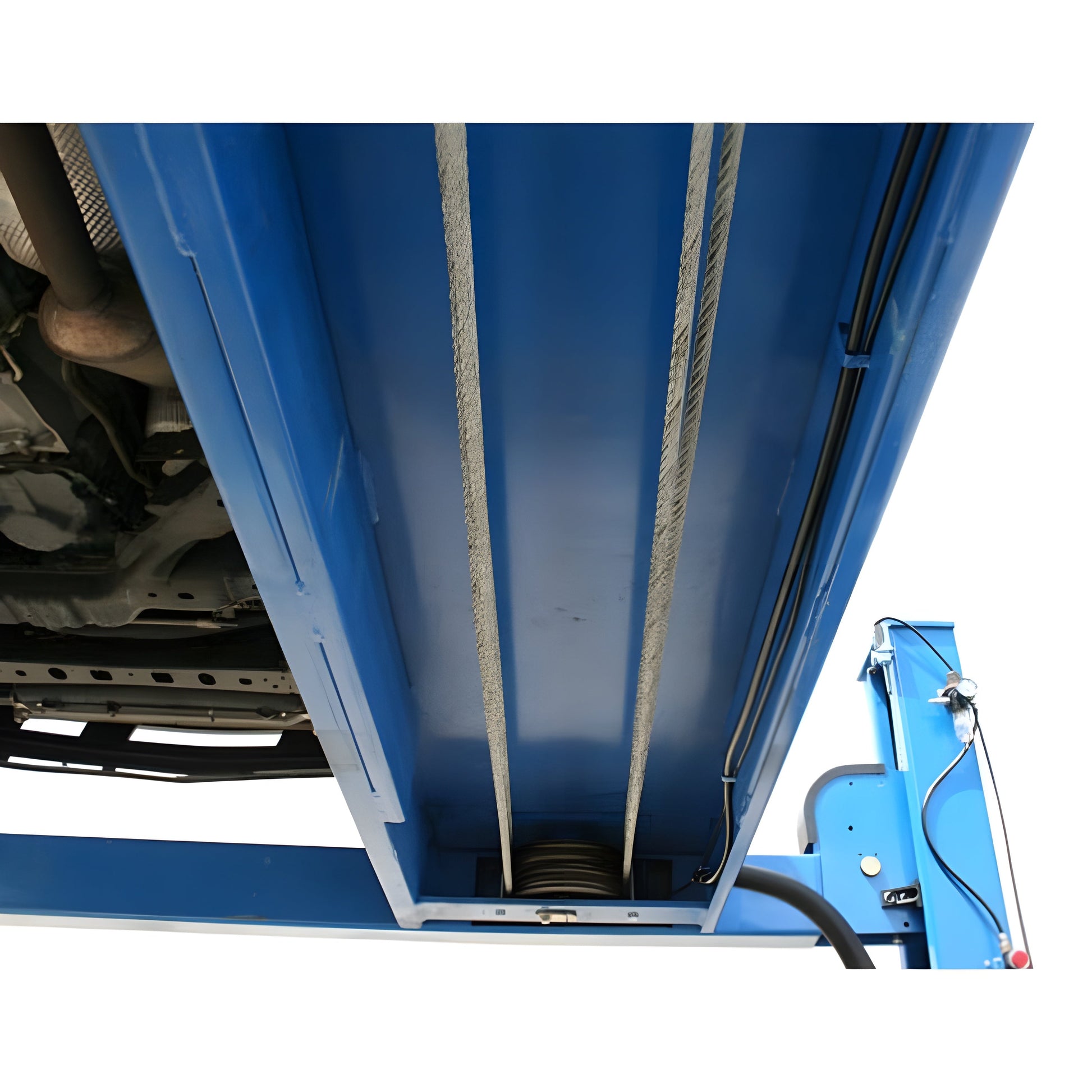

The Atlas 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an old style chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to level properly and the exposed hydraulic cylinder is responsible for numerous door dings.
Finally, the Atlas 414 features tracks between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ8000BK) on the lift. Rolling jacks sold separately.
Video
Features
14,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways

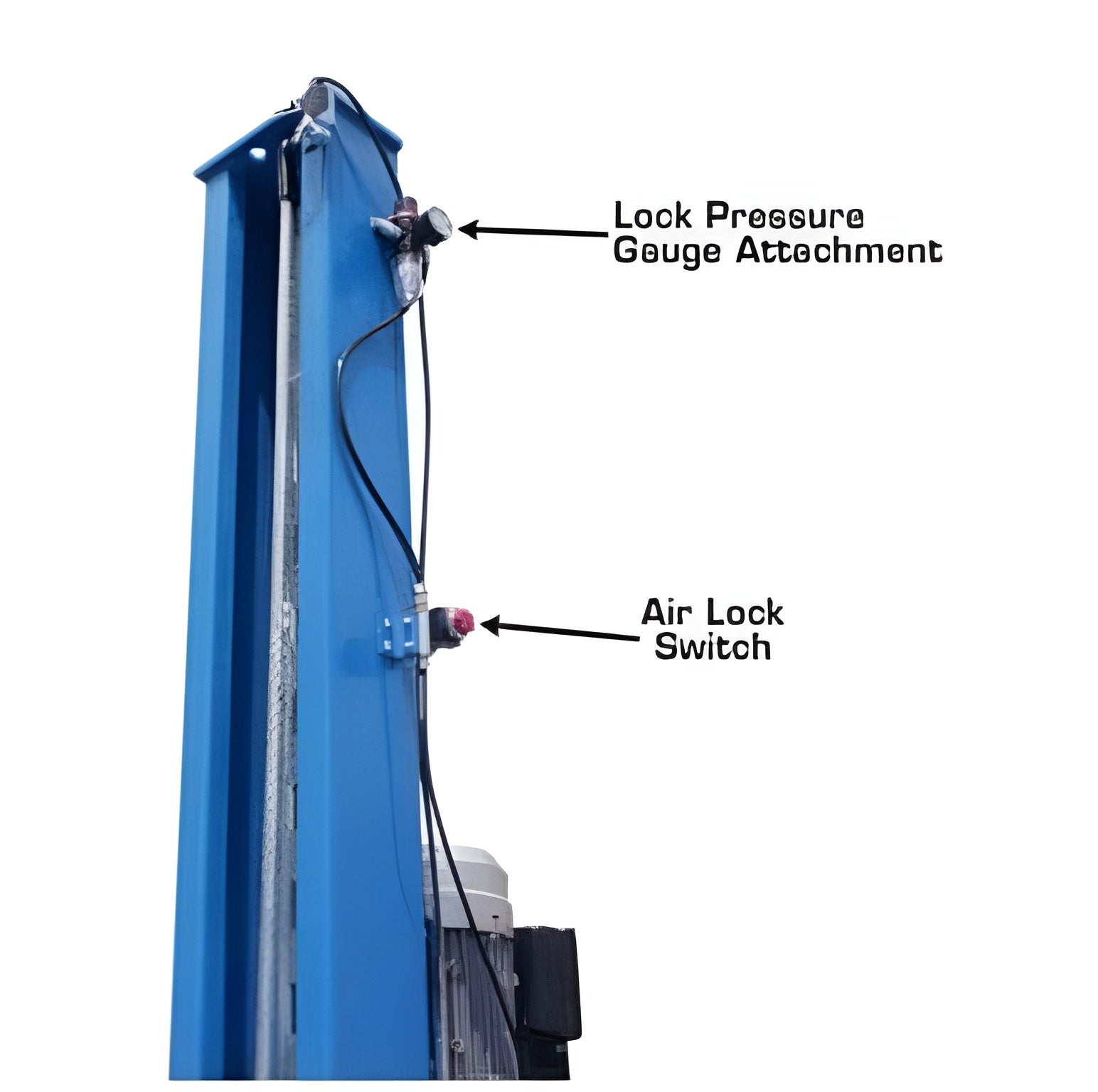

Air Operated Single Point Lock Release (External Air Supply Required)

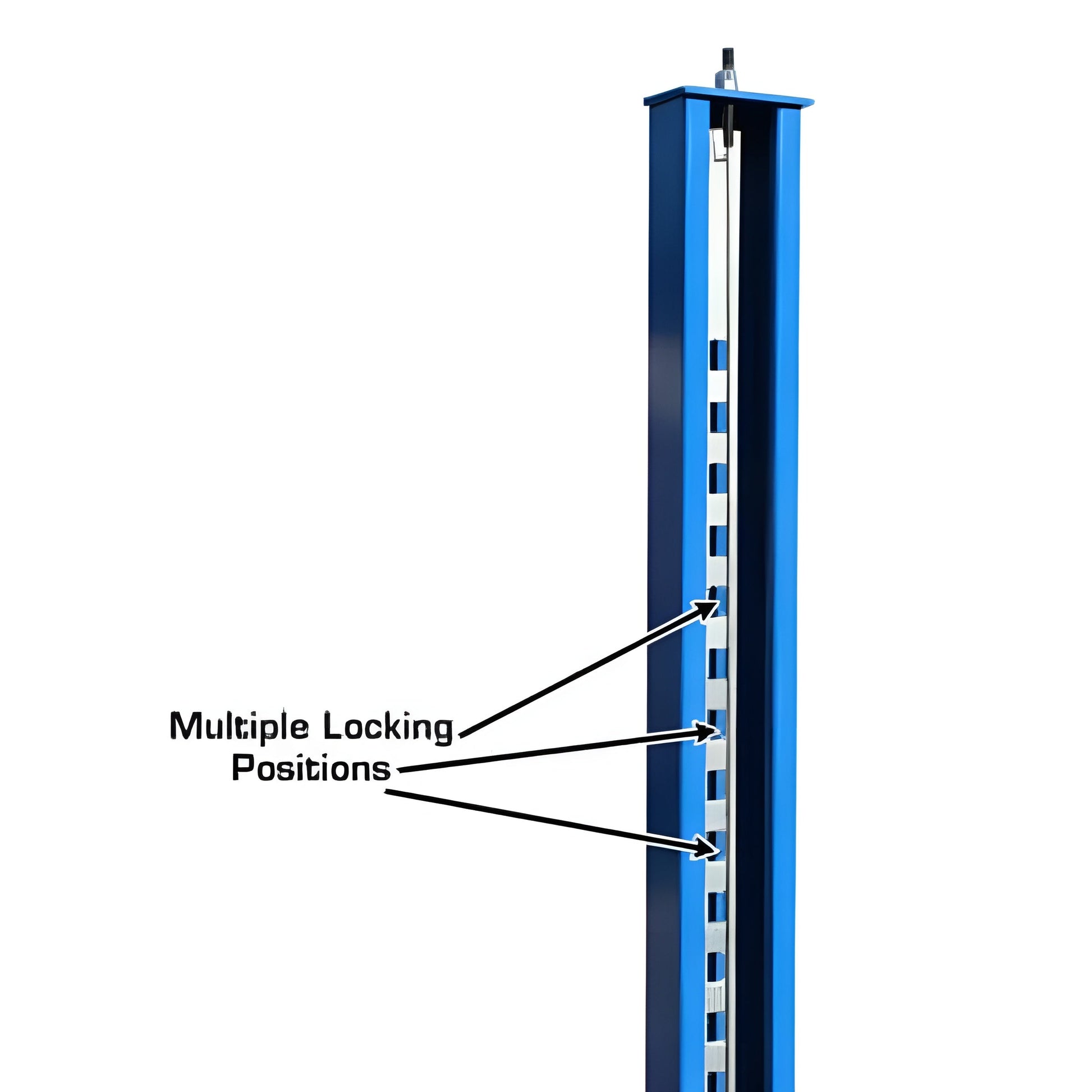

Lock Ladder Design
Double Lock Safety System
Powder Coat Finish

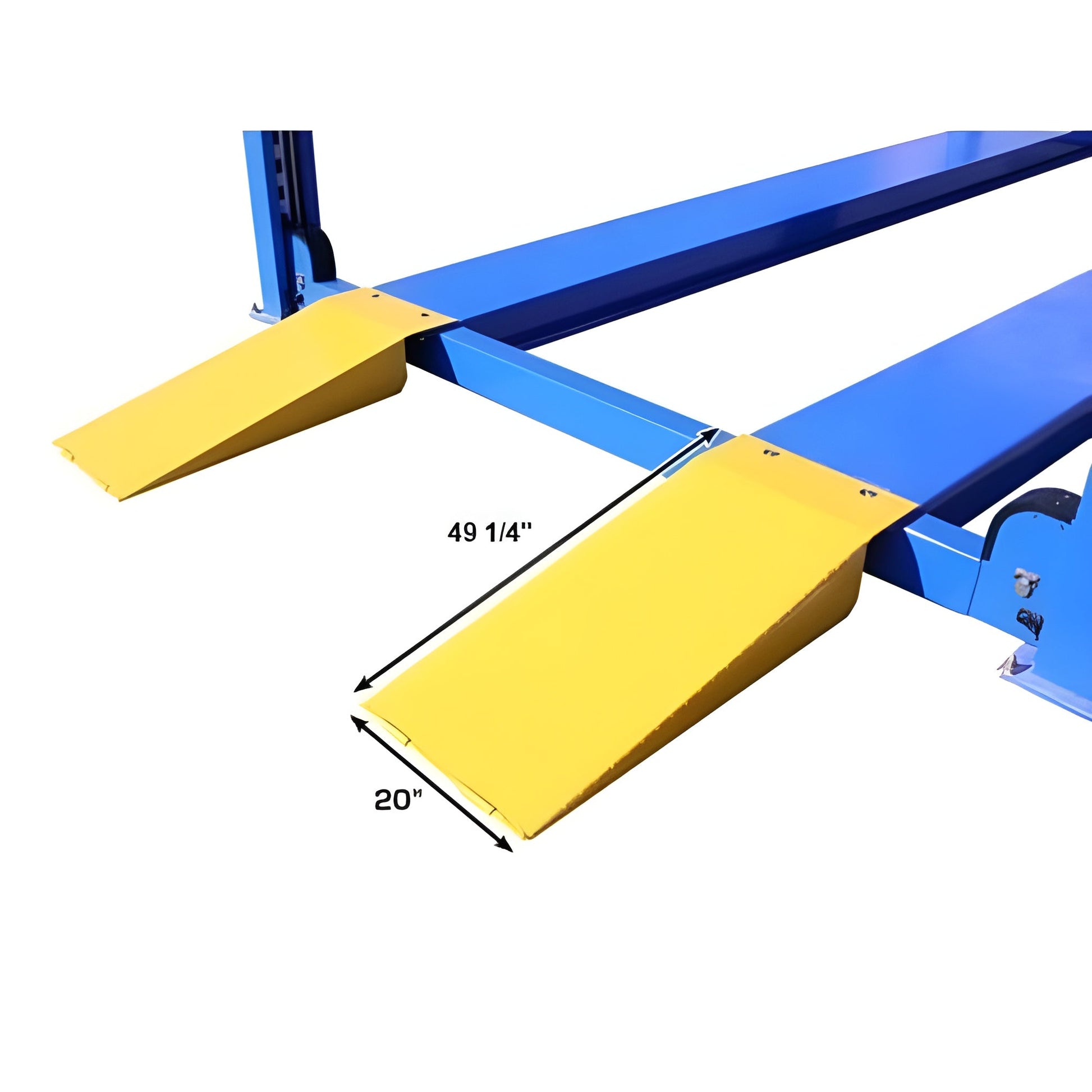

Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)
Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)
Specifications
Capacity
14,000 lb.

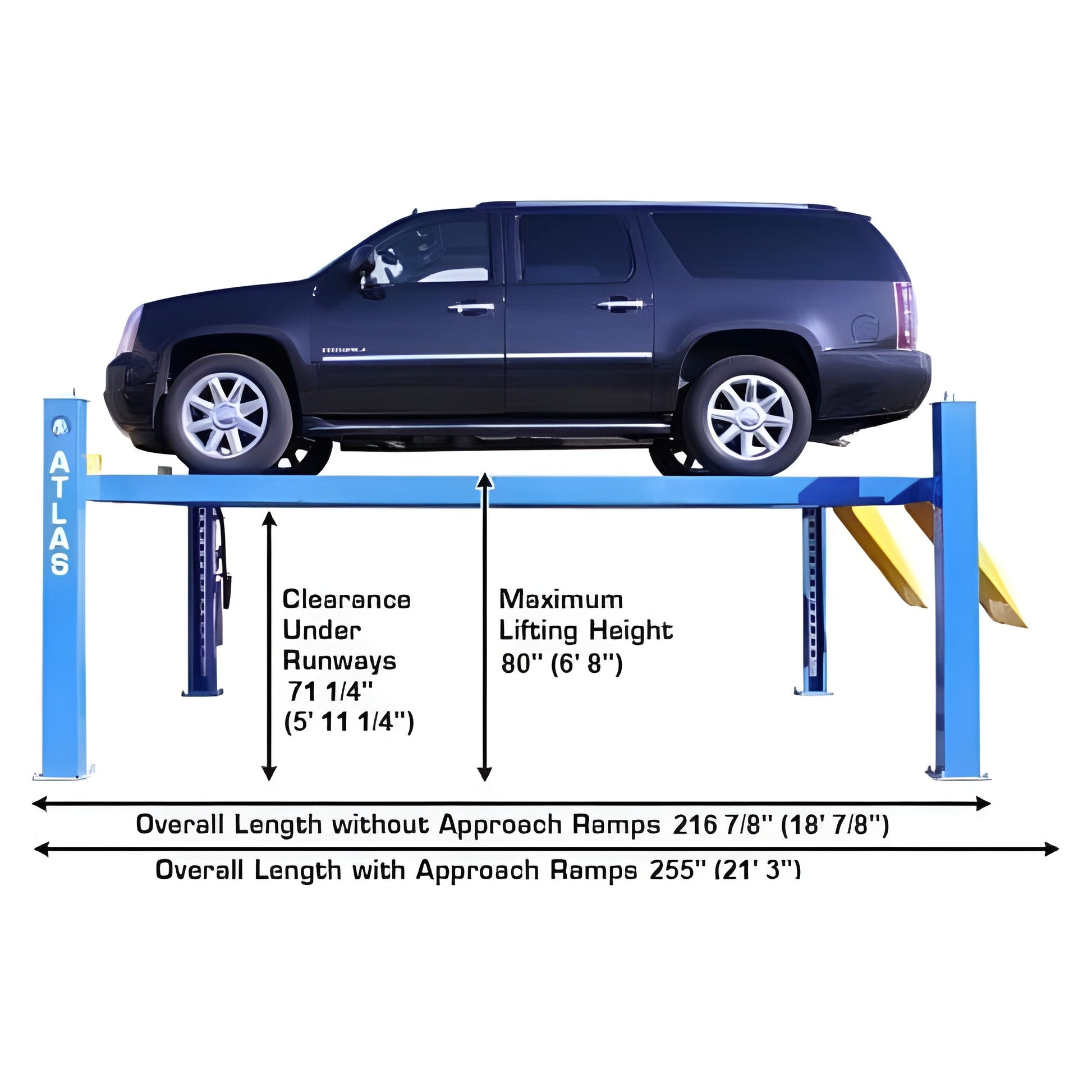

Lifting Height
80" (6' 8")

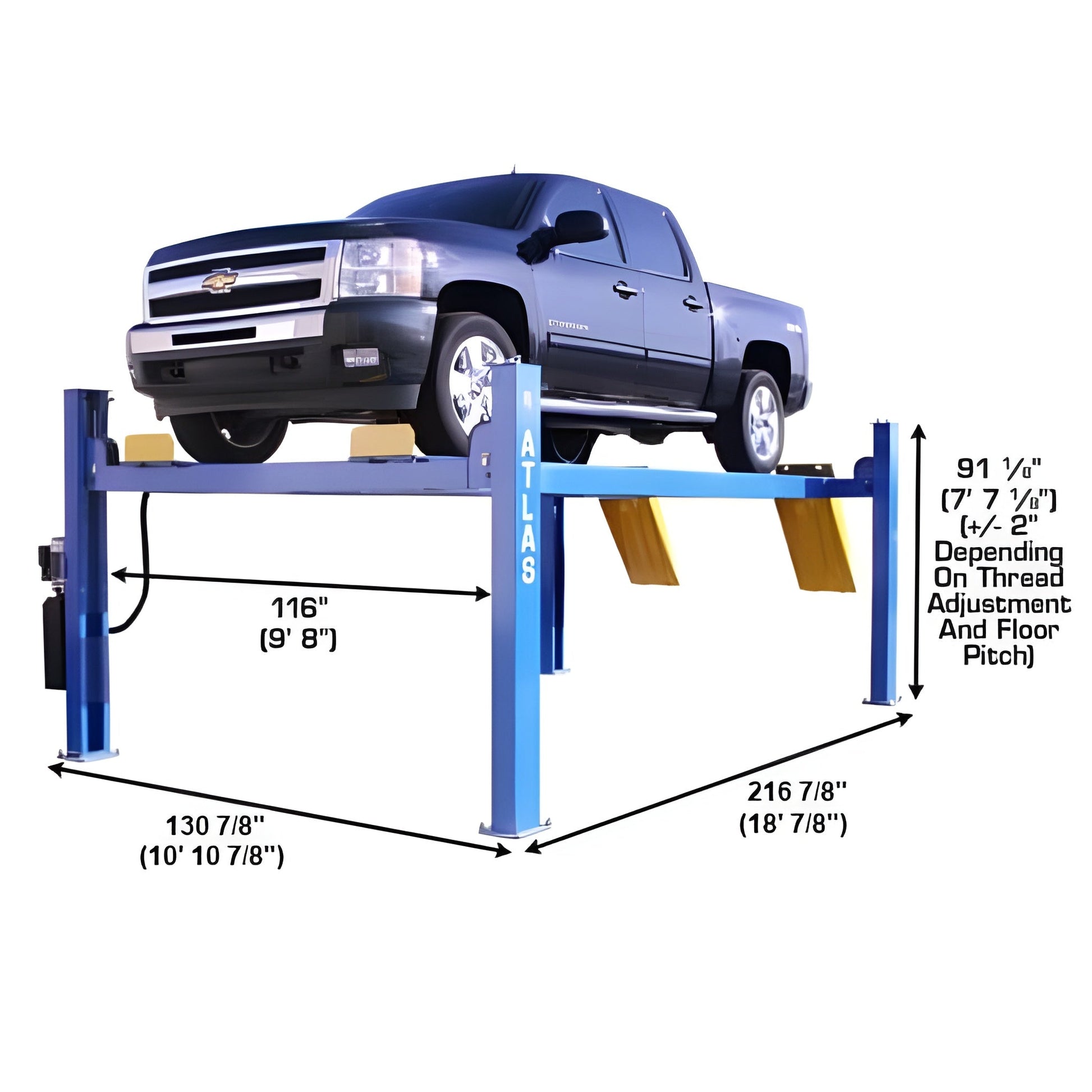

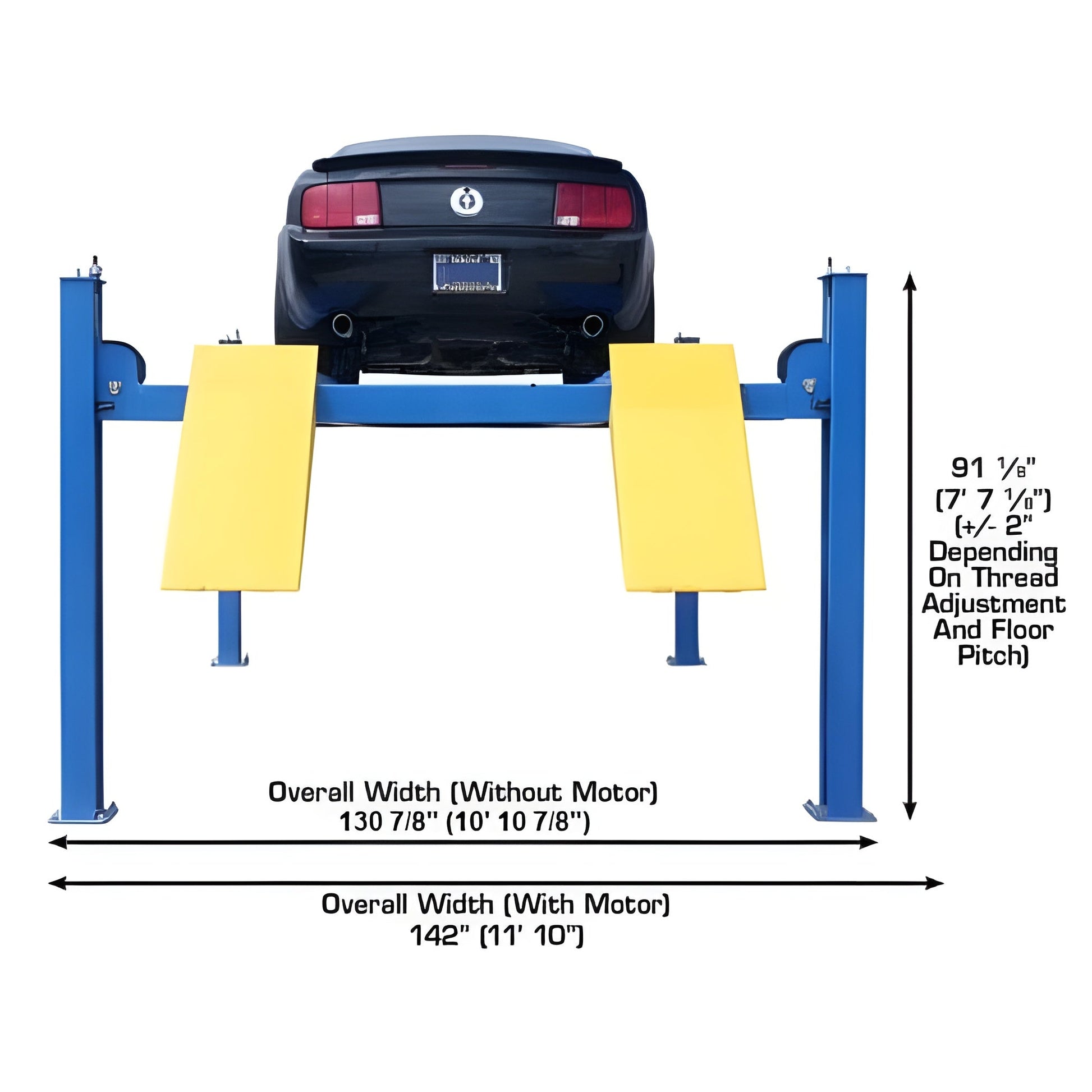

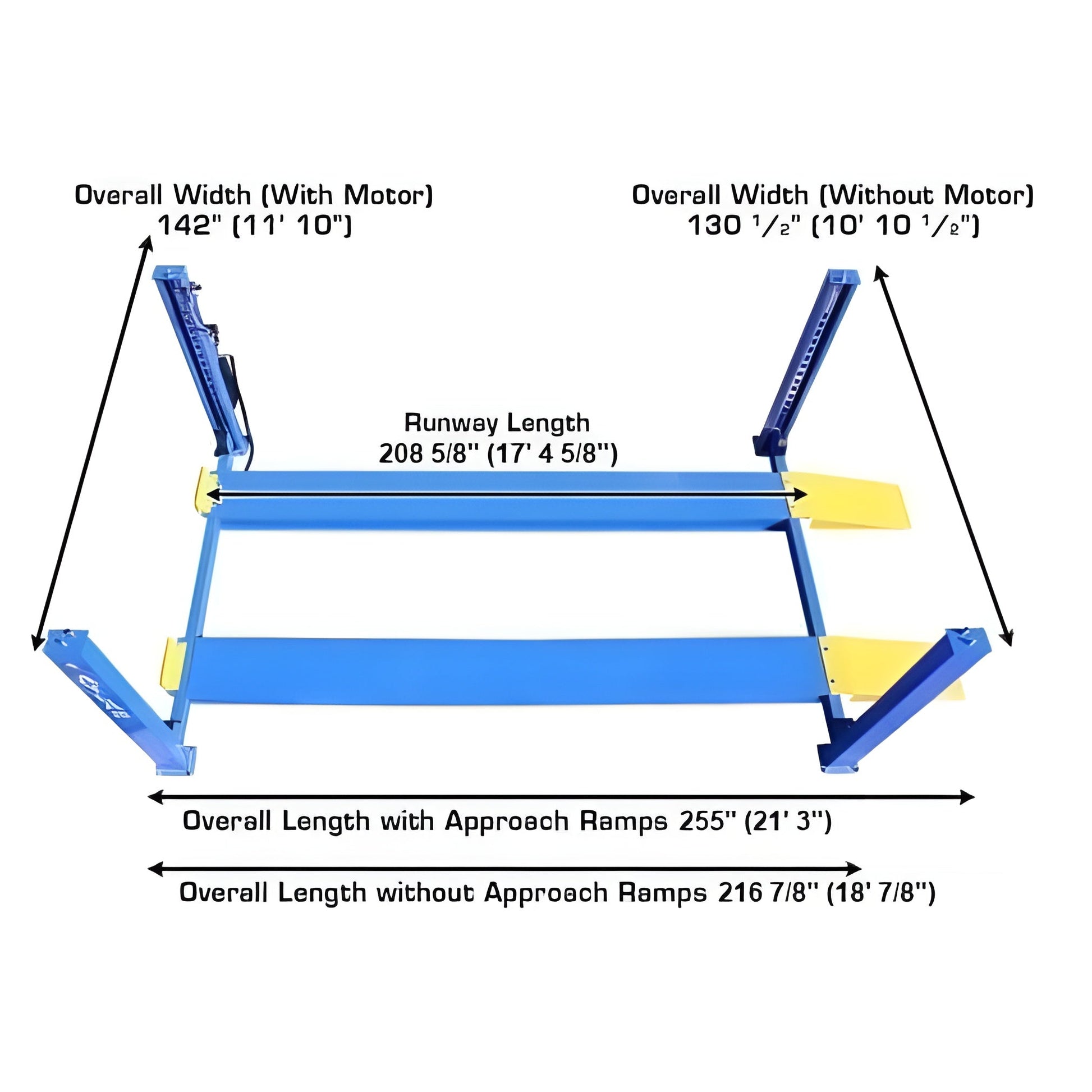

Overall Width Of Columns (Without Motor)
130 7/8" (10' 10 7/8")
Overall Width Of Columns (With Motor)
138 7/8" (11' 6 7/8")
Overall Length With Approach Ramp
255" (21' 3")
Length Between Columns
197 1/4" (16' 5 1/4")
Runway Length
208 5/8" (17' 4 5/8")
Runway Width
20"
Thickness Of Runway
8 3/4"

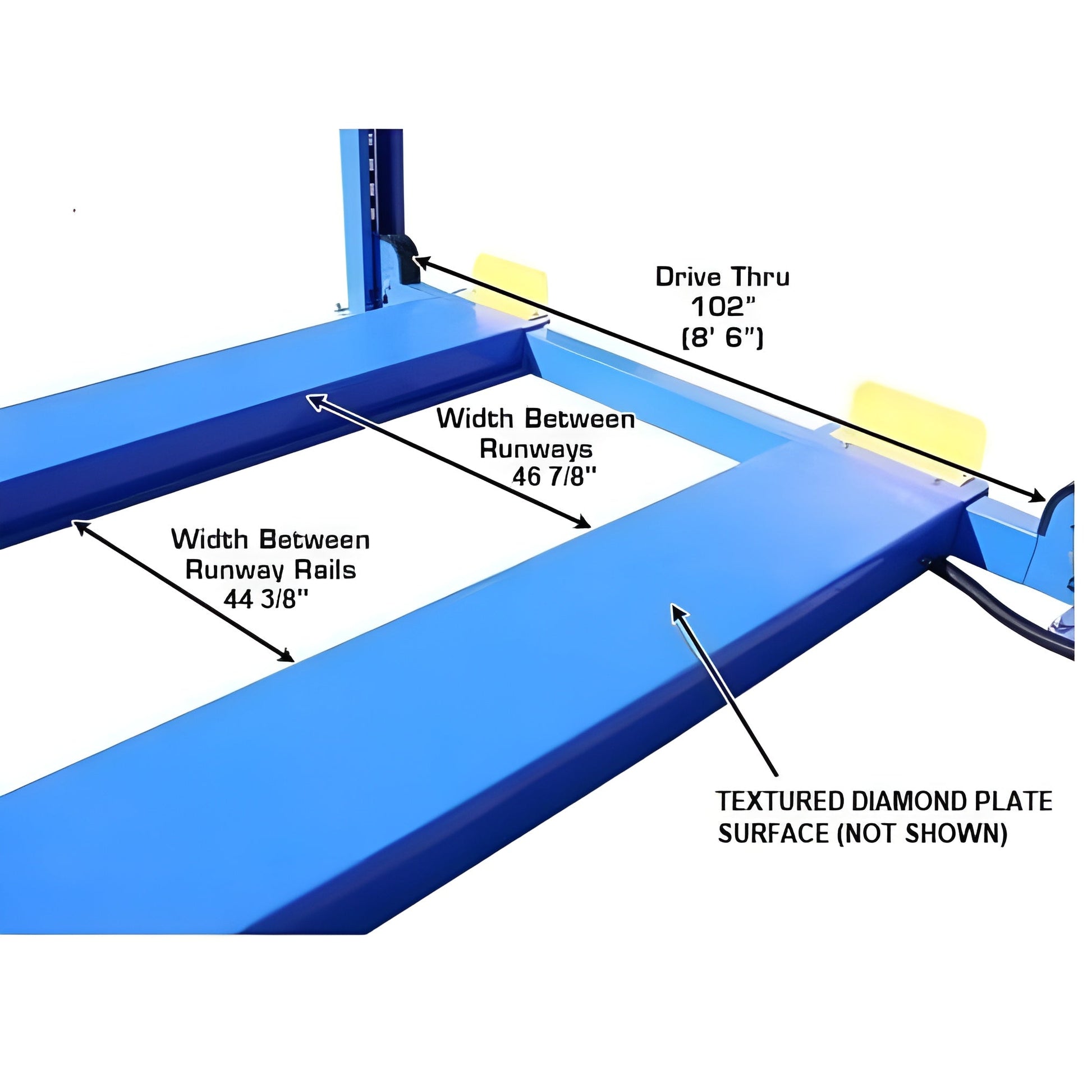

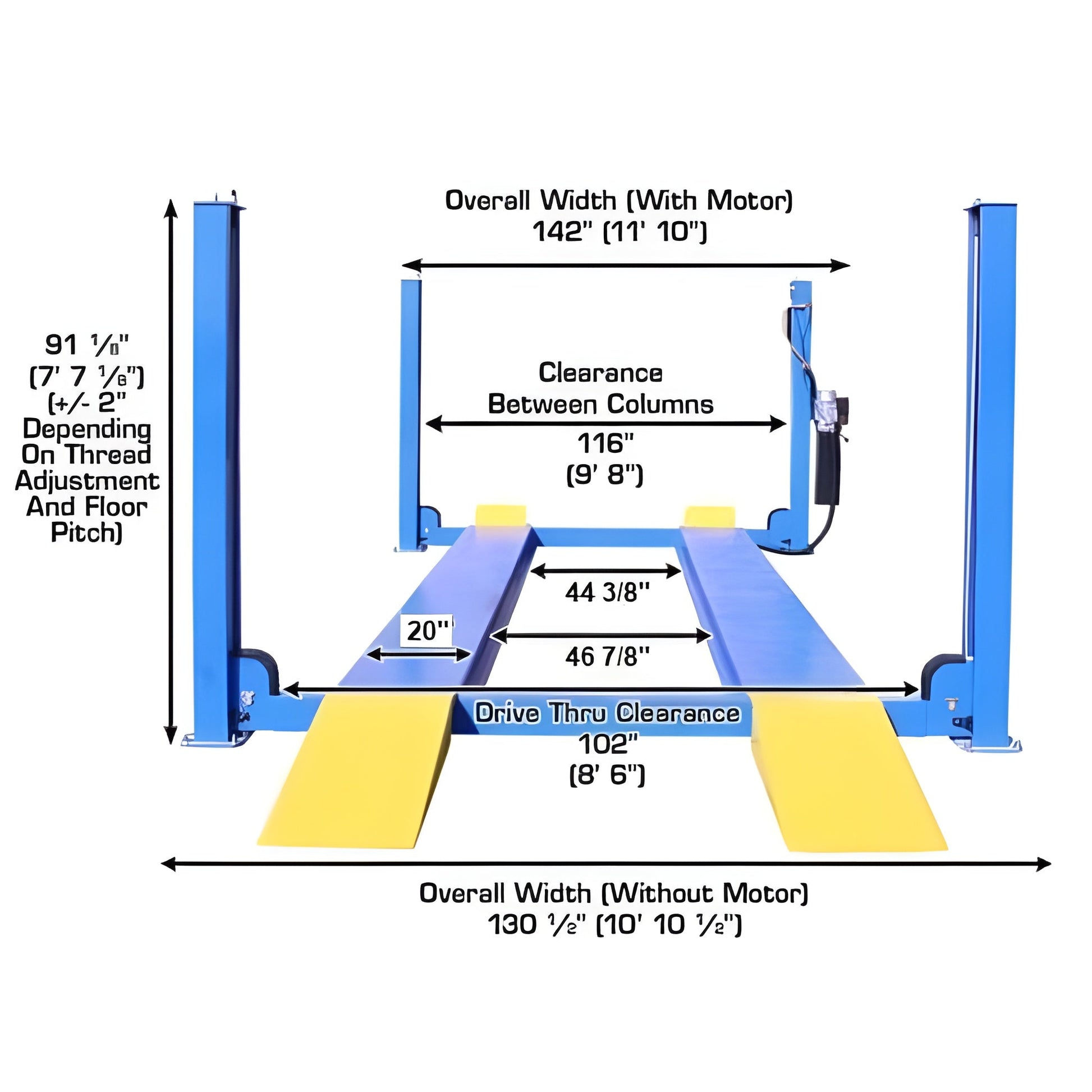

Width Between Runways
46 7/8" (w/ Rail 44 3/8")
Outside Runway To Outside Runway
86 7/8" (7' 2 7/8")
Clearance Under Runways
71 1/4" (5' 11 1/4")
Clearance Between Columns
116" (9' 8")
Height Of Columns
91 1/8" (7' 7 1/8")
Maximum Wheel Base
197" (16' 5")
Drive Thru
102 1/8" (8' 6 1/8")
Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement
220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Manual
Atlas ATTD-414 Manual
Atlas 414 Cylinder Bleeding Procedure (Do this immediately after installation)
What our Expect Think
14,000 lb Capacity: Handles heavy-duty trucks, SUVs, and commercial vehicles.
Robust 4-Post Design: Ensures maximum stability and long-term durability.
Smooth Drive-On Ramps: Easy vehicle positioning for efficient operation.
Versatile Use: Ideal for storage, repairs, and maintenance in commercial settings.
Reliable Hydraulic System: Provides smooth and controlled lifting.
Q&A
Q: What is the weight capacity of the Atlas 414 lift? A: It has a 14,000 lb capacity, perfect for heavy-duty trucks, vans, and commercial vehicles.
Q: Is this lift designed for wheel alignments? A: No, the Atlas 414 is a general-purpose 4-post lift and does not include alignment features.
Q: What is the maximum lifting height? A: It lifts vehicles up to approximately 75 inches.
Q: What power supply does it require? A: It operates on a 220V single-phase power supply.
Maintenance Tips
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables.
Lubrication – Grease pulleys, cables, and moving parts monthly for smooth operation.
Hydraulic System – Monitor fluid levels and inspect hoses for cracks, leaks, or wear.
Safety Locks – Ensure locks engage properly and remain free from debris.
Cable Tension – Regularly adjust and inspect cables for even wear.
Annual Check-Up – Conduct a full system inspection and replace worn components.
