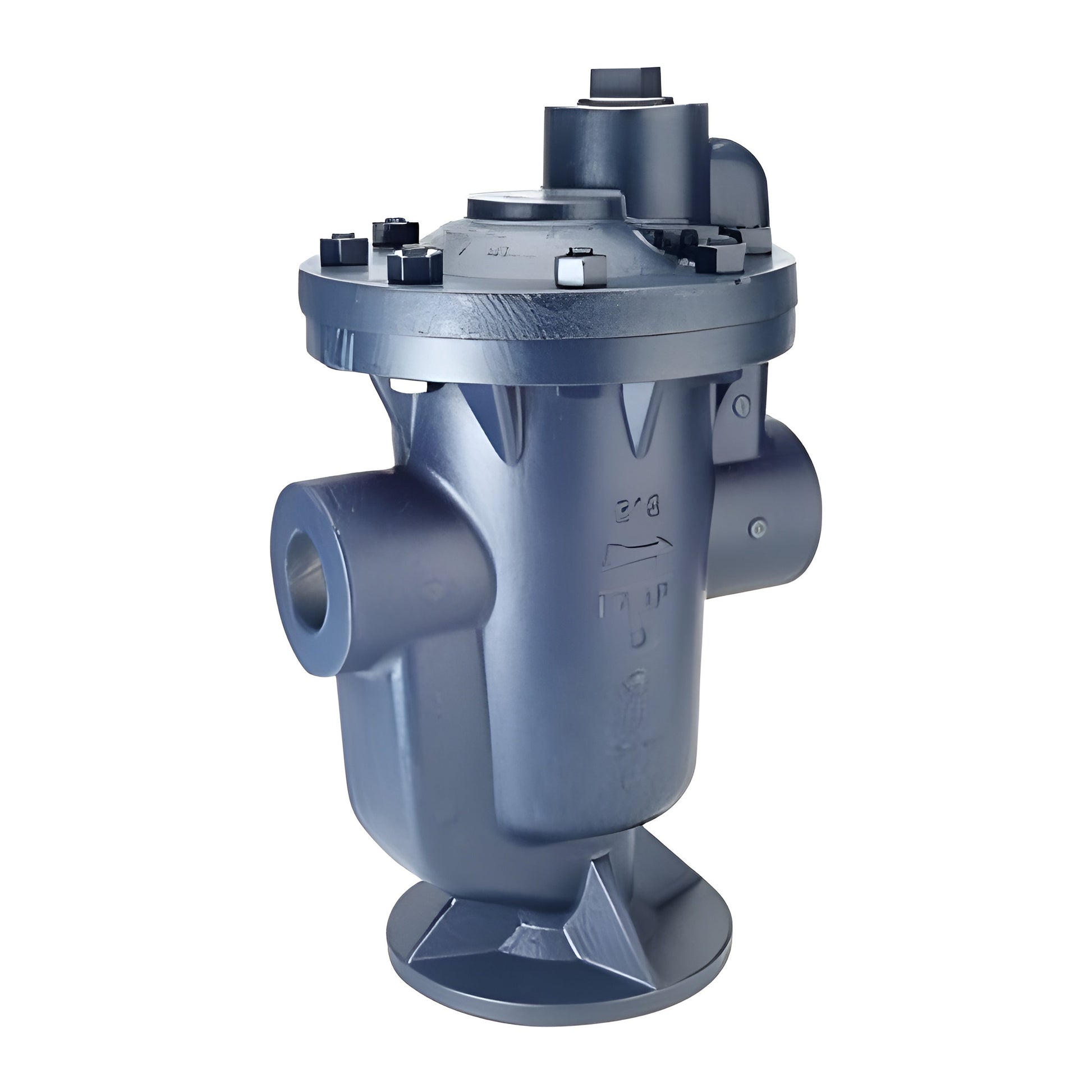

Armstrong International C5318-32 Armstrong 814 Inverted Bucket Trap - C5318-32
The Armstrong 814 Inverted Bucket Steam Trap, model C5318-32 from Armstrong International, facilitates precise steam management with its 1-inch NPT in-line horizontal configuration. This product is crafted from robust cast iron, ensuring durability and resistance against wear, corrosion, and hydraulic shock. It efficiently handles up to 6,000 pounds of steam per hour, apt for high-demand environments
.The Armstrong 814 model excels in performance under varying loads and back pressures and features easy maintenance of venting air and non-condensable gases. It’s ideal for industrial applications requiring reliable and efficient steam trapping.
Features
- 180 PSI maximum operating pressure.
- Designed for venting air quickly in heat exchange systems.
- Heavy-duty stainless steel bucket included.
 Specifications
| Material |
Cast Iron |
| Connection Size |
1 inch |
| Maximum Pressure |
180 PSI |
| Orifice Size |
9/32 inch |
| Capacity |
6,000 lbs/hr |
| Configuration |
In-Line Horizontal |
| Brand |
Armstrong International |
| MPN |
C5318-32 |
What our Expect Think
-
Efficient Steam Management: Inverted bucket design ensures reliable steam and condensate management for optimal system performance.
-
Durable Construction: Built with high-quality materials for long-lasting reliability in demanding conditions.
-
High-Pressure Capability: Suitable for various steam systems, providing effective operation even under pressure.
-
Precise Operation: Ensures efficient air and condensate removal, maintaining the efficiency of your system.
-
Easy Installation: Designed for seamless integration into existing steam systems, simplifying setup and replacement.
Q&A
Q: What is the Armstrong International C5318-32 Inverted Bucket Trap?
A: The C5318-32 is a high-efficiency inverted bucket steam trap designed for condensate removal in steam systems, offering reliable performance in industrial and commercial applications.
Q: Is this steam trap suitable for all steam systems?
A: The C5318-32 is ideal for use in a variety of steam systems. Verify compatibility with your system’s specifications before purchasing.
Q: How does the inverted bucket design improve performance?
A: The inverted bucket design allows for efficient condensate drainage while preventing water hammer, ensuring optimal system operation and reducing maintenance needs.
Q: Does it require professional installation?
A: Yes, professional installation is recommended for optimal setup and to ensure long-lasting performance.
Maintenance Tips
-
Inspect for Leaks – Regularly check for steam or fluid leaks around the trap's connections to ensure a secure seal and efficient operation.
-
Clean the Bucket and Strainer – Periodically clean the inverted bucket and strainer to remove debris or scale buildup that may hinder performance.
-
Check for Corrosion – Inspect the trap’s components for signs of rust or corrosion, particularly around the inlet and outlet, and replace if needed.
-
Verify Bucket Movement – Ensure the inverted bucket moves freely and isn’t obstructed by buildup or wear that could affect its function.
-
Monitor Pressure – Make sure the trap operates within its recommended pressure range to avoid over-pressurization and prevent damage.
-
Check for Proper Drainage – Confirm that the condensate drainage is unobstructed and flows properly to prevent water buildup.
-
Annual Inspection – Have a technician perform an annual inspection to ensure the trap functions as intended and address any issues early.
