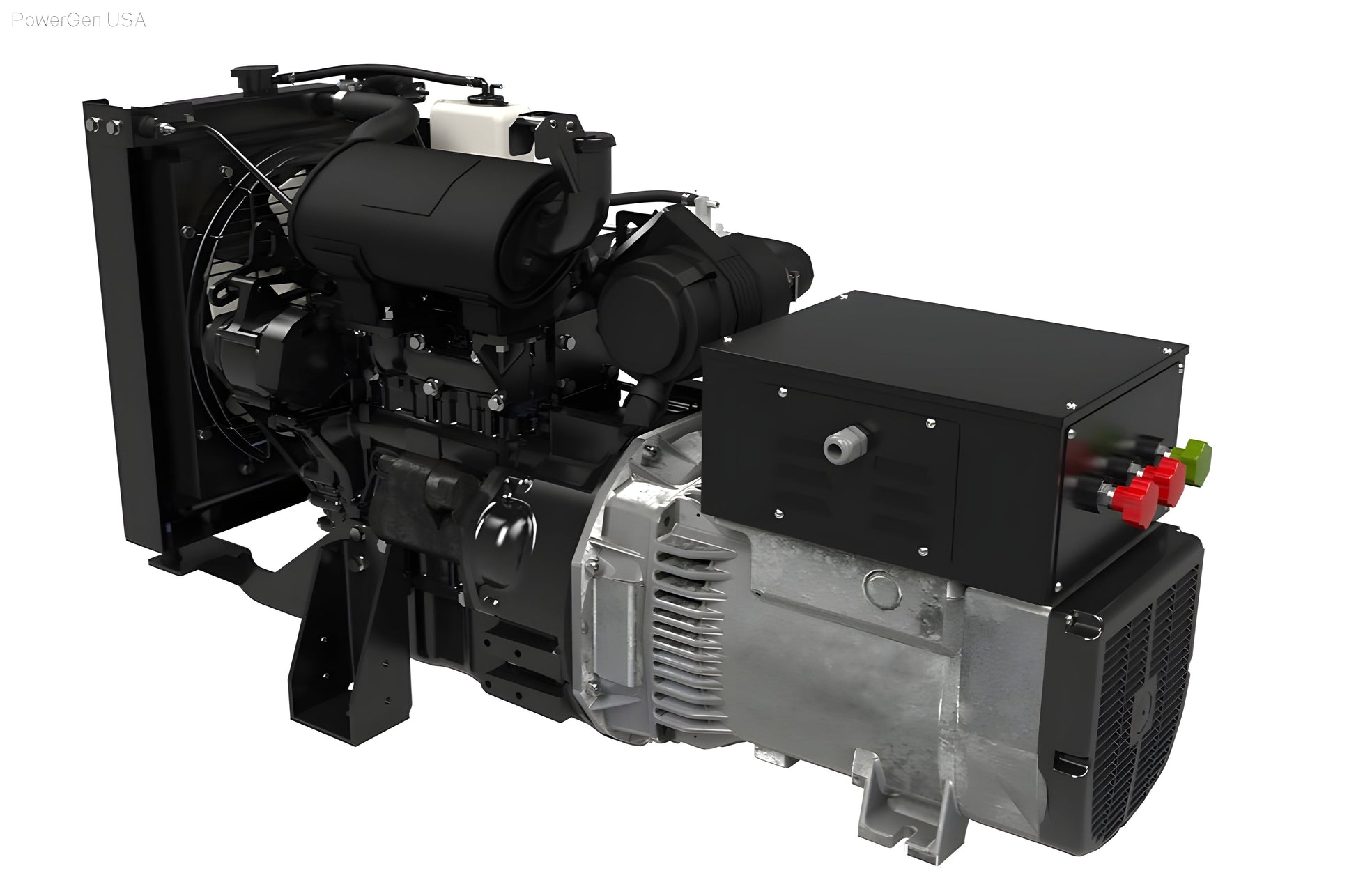

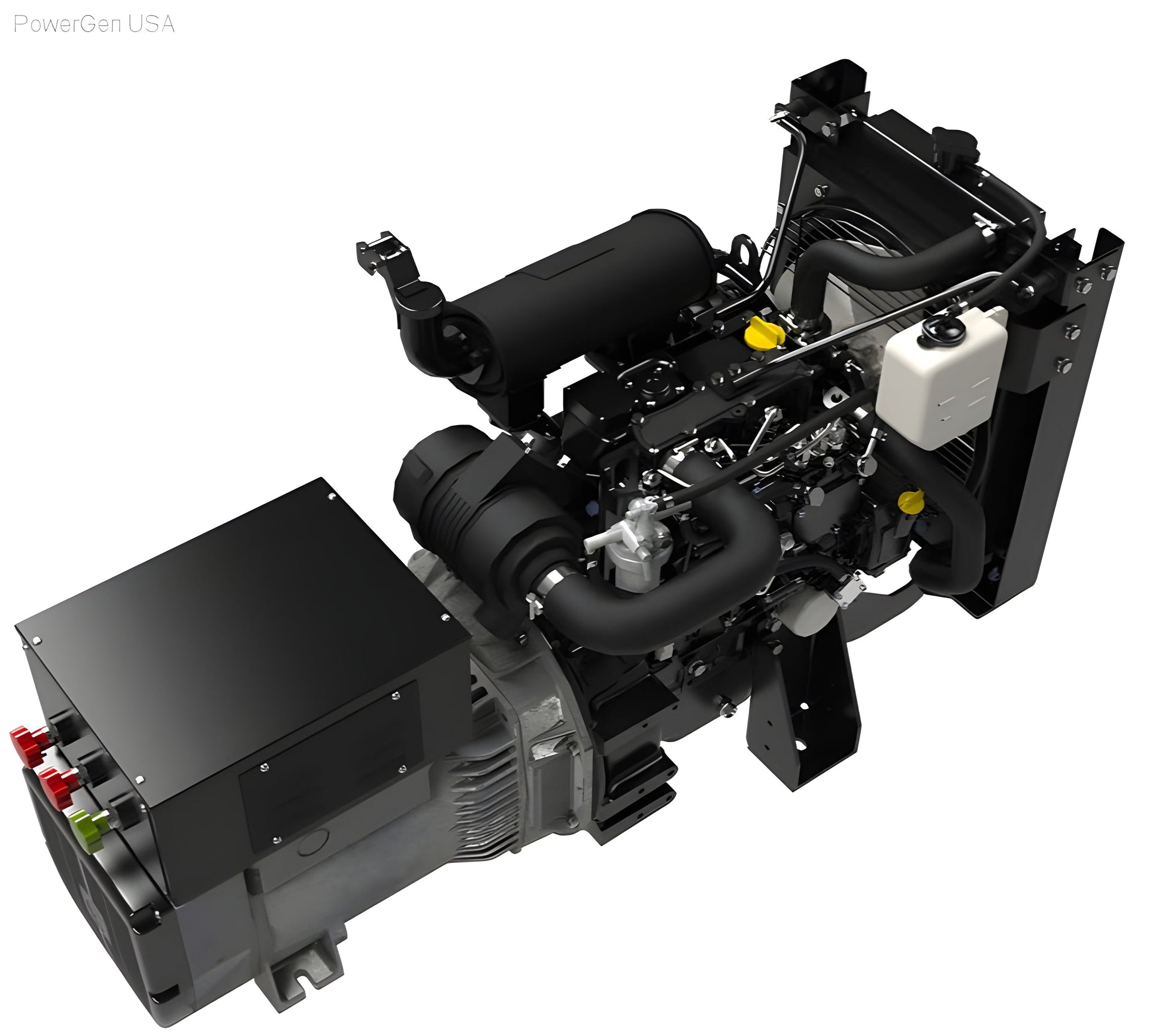

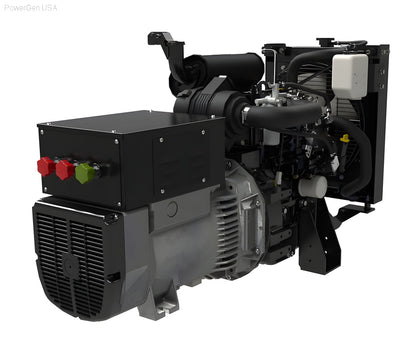

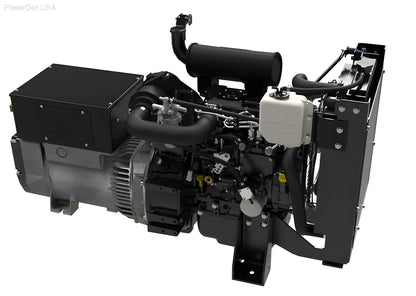

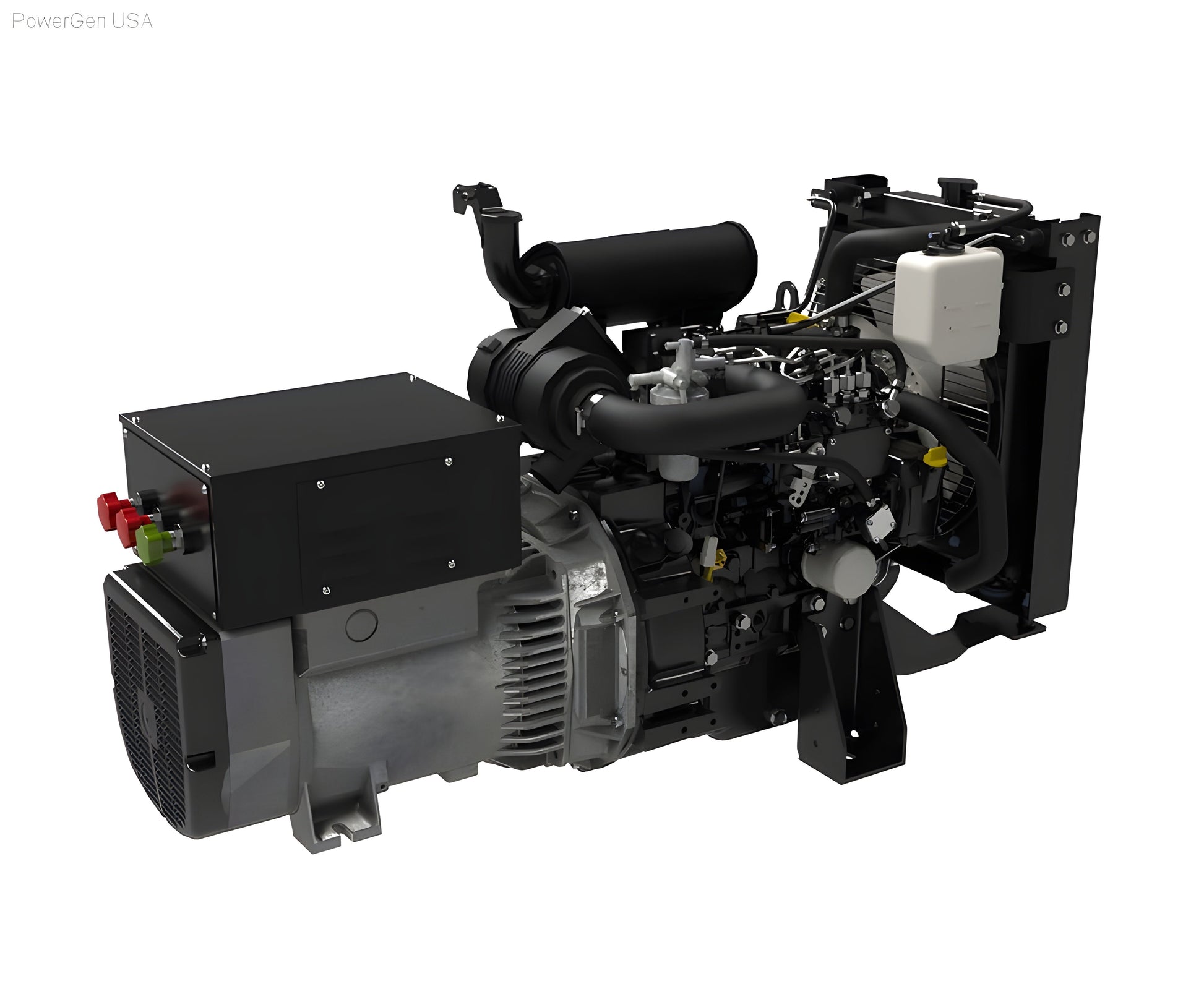

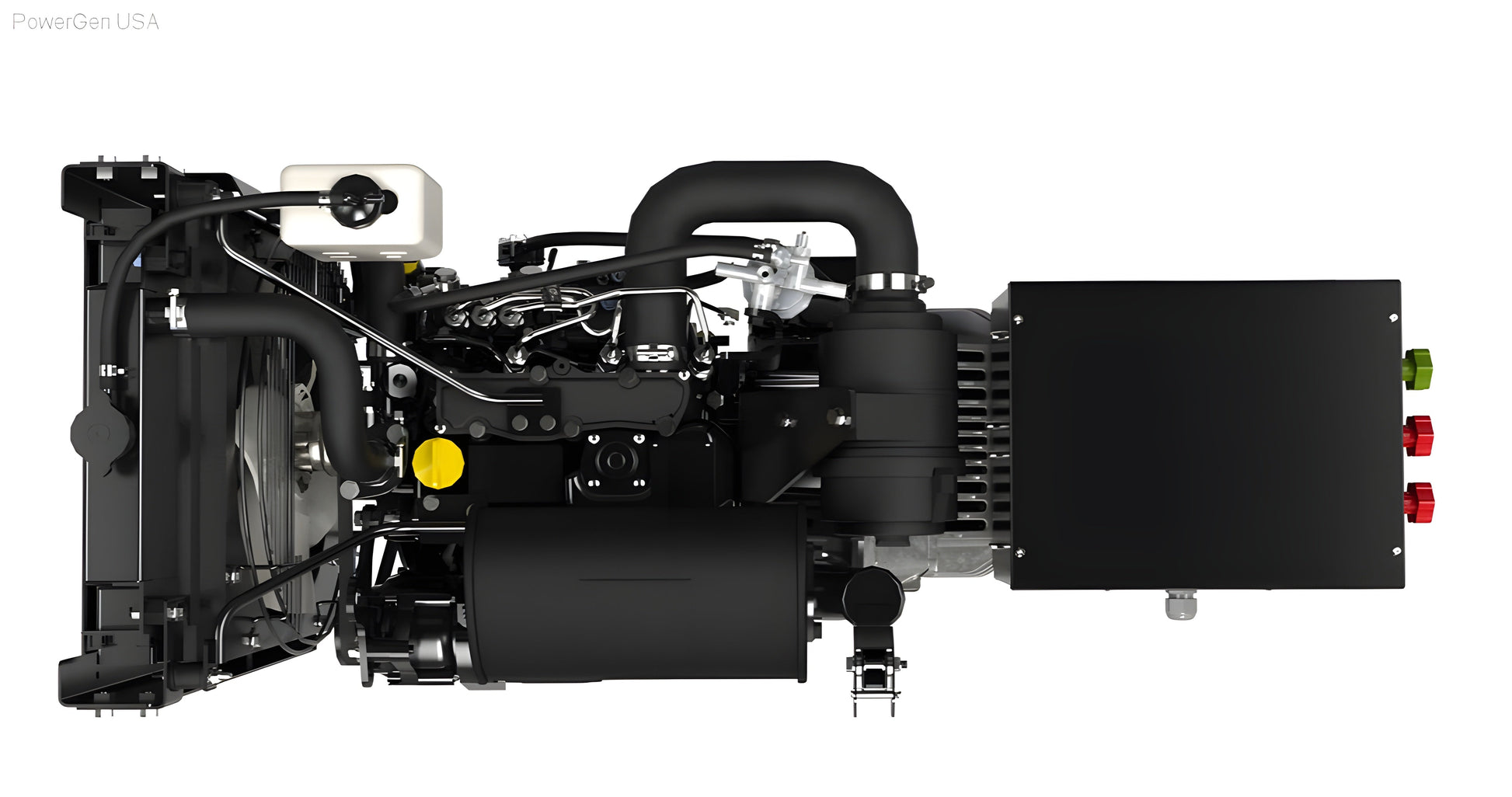

Aurora Generators 8kW 48 Volt DC Generator/ No Canopy Enclosure - PowerGen USA - AGi10P-48-O

Aurora Generators 8kW 48 Volt DC Generator/ No Canopy Enclosure - PowerGen USA - AGi10P-48-O

DC Generators are a fast and convenient way to charge batteries. AURORA DC Generators like this one use liquid engines, slow-turning diesel engines for less noise, more power and super long life.

 Auto-Start is included and is compatible with all two-wire starting systems.

 Optional large fuel tank and remote monitoring and control are also available.

SPECIFICATIONS

ENGINE

 • Manufacturer | Yanmar

• Model - 3TNV70-GGE |  TIER4 Final Emission Standard

• Three Cylinder

• Power Output - 6 kWe

• Emission Certification - Tier 4 Final
• RPM - 1800

• Displacement -

• Glow Plugs

 ALTERNATOR SPECIFICATIONS

• MeccAlte | Zanardi  or Linz Electric

• Model - AL3-A 1S or 4V48 ESB4-48

• 48 Volts  (45-58 Volts Adjustable)

• Current | 125 Amp

• Efficiency 82%

• Ripple < 3%

• RPM | 1800

• Regulation | Electronic RT-DC Regulator

• Voltage accuracy -+ 2%

• Cooling | Winding Fan / Rectifier: Electric Fan

• Protection | Underspeed & Exciter Current

• Insulation | Chass H

• Temperature Rise | Class H

• Protection | IP 21

 INSTRUMENTATION & CONTROL

• Advanced Generator Controller

• Make - DynaGen

• Model - TG350

• Auto-Start & two-wire remote start compatible.

• Displays voltage, speed, frequency, battery, fuel level, oil pressure, coolant temp, and more.

• 150 Event Log

• Easy to use.

• User re-programmable

• Password Protected

 FUEL TANK

• Integral 45L / 12 Gallon Welded Steel Tank

• Electronic Fuel Level Sensor

• Vented Fuel Fill / Cap

 CONSTRUCTION

• All stainless steel fasteners used.

• Powder-coated steel enclosure

• Powder-coated steel frame

• Vibration Mounts on engine and alternator

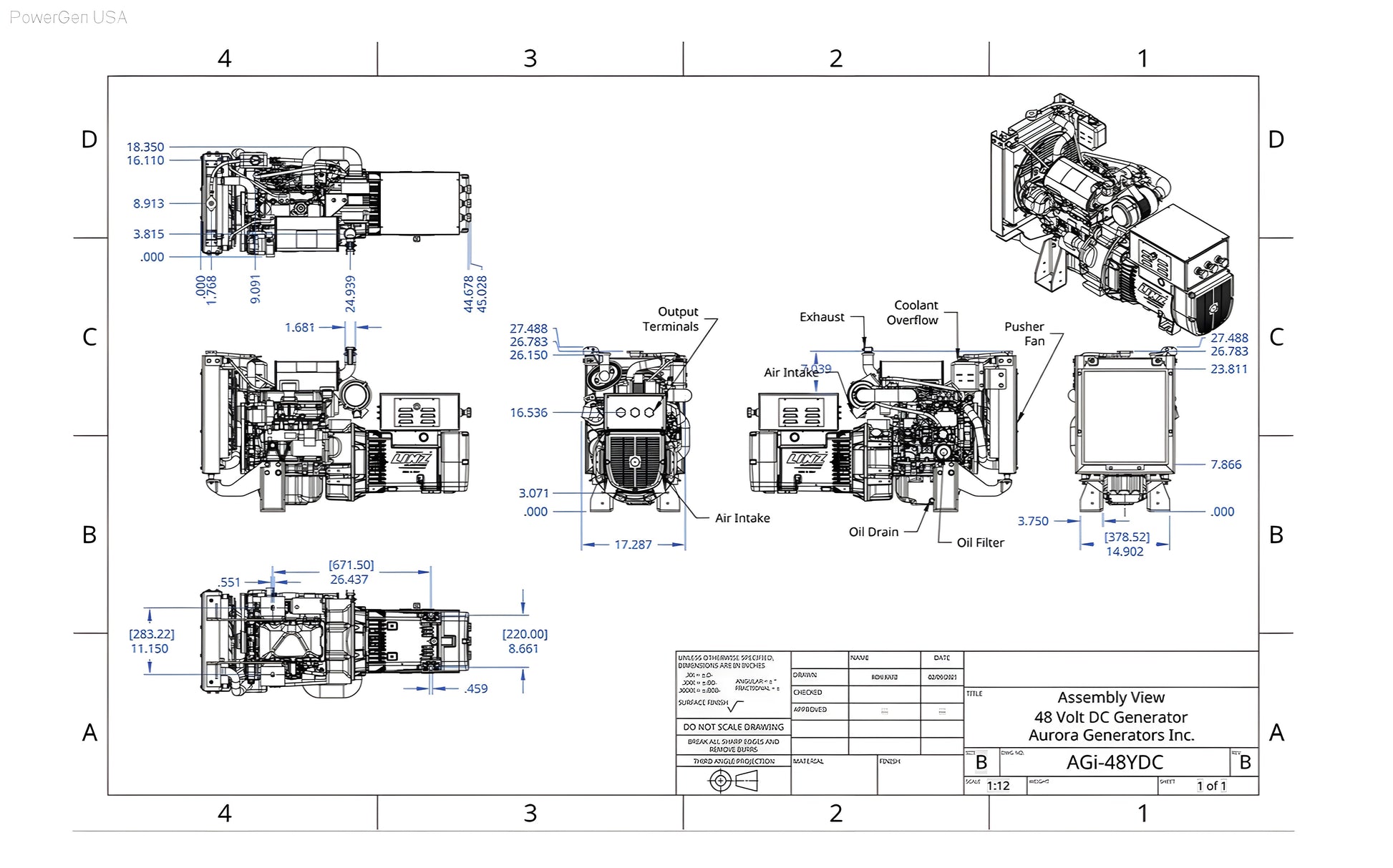

• Dimensions -  57" x 33" x 40" (L x W x H)

• Weight - 950 lbs

 WHAT'S INCLUDED

• Includes Battery & Cables

• Includes Temperature Sensor

• Includes Radiator Coolant Level Sensor

WARRANTY

2 Years/2000 Hours

What Our Experts Think

• 8kW 48V DC Power Output: The Aurora AGi10P-48-O Diesel Generator provides 8kW of reliable 48V DC power, ideal for off-grid systems, renewable energy storage, and remote locations where DC energy is essential.

• Fuel-Efficient Diesel Engine: Powered by a durable diesel engine, this generator offers excellent fuel efficiency, low emissions, and long-lasting performance, minimizing maintenance costs and ensuring dependable power.

• Open Enclosure for Customization: The open-frame design allows for easy access to the generator, providing flexibility for installation, servicing, and integration into various systems, making it ideal for users who need customization.

• Rugged and Durable Construction: Built with industrial-grade materials, the AGi10P-48-O is designed to handle continuous operation and perform reliably in harsh environments, ensuring long-term durability and performance.

• Extended Runtime & Cost-Effectiveness: Diesel-powered generators provide longer runtimes and better fuel efficiency compared to gasoline models, making this unit an efficient and cost-effective solution for extended power needs.

• Versatile Applications: Perfect for off-grid energy solutions, renewable energy setups, backup power in remote locations, or any application requiring 48V DC power.

• Made in the USA: Manufactured by PowerGen USA, ensuring high-quality craftsmanship, reliable performance, and long-term durability.

Q&A

Q: What is the Aurora Generators 8 kW 48 Volt DC Generator - No Canopy Enclosure?
A: The AGi10P-48-O is an 8 kW 48-volt DC diesel generator, designed with an open-frame configuration (no canopy enclosure), providing reliable power for applications that require 48V DC electricity, such as off-grid systems or backup power solutions.

Q: What are the benefits of the open enclosure design?
A: The open-frame design allows for better airflow, easier maintenance access, and a more cost-effective solution, making it ideal for installations where weather protection is not necessary.

Q: Is this generator suitable for off-grid or backup power applications?
A: Yes, it is perfect for off-grid systems, remote locations, and backup power needs requiring 48V DC electricity, such as for solar or wind energy systems.

Q: How fuel-efficient is the diesel engine?
A: The diesel engine provides excellent fuel efficiency, durability, and low maintenance, making it a cost-effective and long-lasting power source.

Q: Does this generator include an automatic transfer switch (ATS)?
A: No, an ATS is not included, but it can be added separately for automatic power switching during outages.

Q: Where is this generator manufactured?
A: It is manufactured in the USA by PowerGen USA, ensuring high-quality construction and reliable performance.

Maintenance Tips

• Oil & Filter Changes – Change oil and filters every 100–250 hours to maintain engine efficiency.
• Fuel System Maintenance – Use clean diesel, drain water separators, and replace fuel filters regularly to avoid clogging.
• Battery Care – Ensure the battery is fully charged and terminals are clean for reliable operation.
• Cooling System Check – Monitor coolant levels and inspect for leaks or blockages in the radiator and hoses.
• Air Filter Maintenance – Clean or replace air filters regularly to maintain airflow and prevent engine strain.
• Run Generator Monthly – Operate under load to keep components lubricated and prevent fuel degradation.
• Inspect Belts & Hoses – Check for wear, cracks, or leaks and replace any damaged components.
• Monitor Exhaust & Ventilation – Ensure proper airflow, and watch for unusual smoke or odors during operation.
• Electrical System Check – Tighten loose connections and inspect wiring for faults or damage.
• Schedule Professional Servicing – Annual servicing ensures reliable performance and extends the generator’s life.
