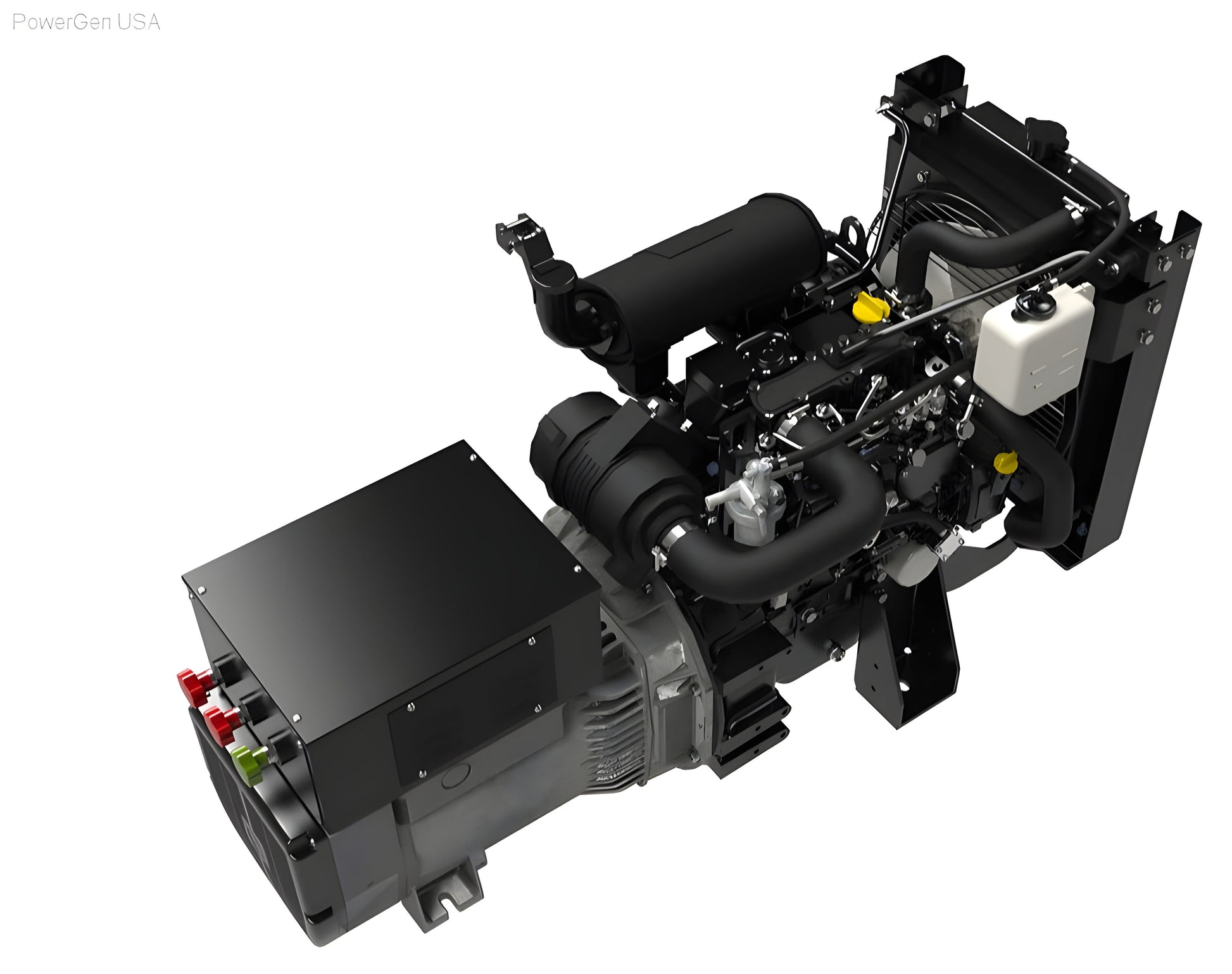

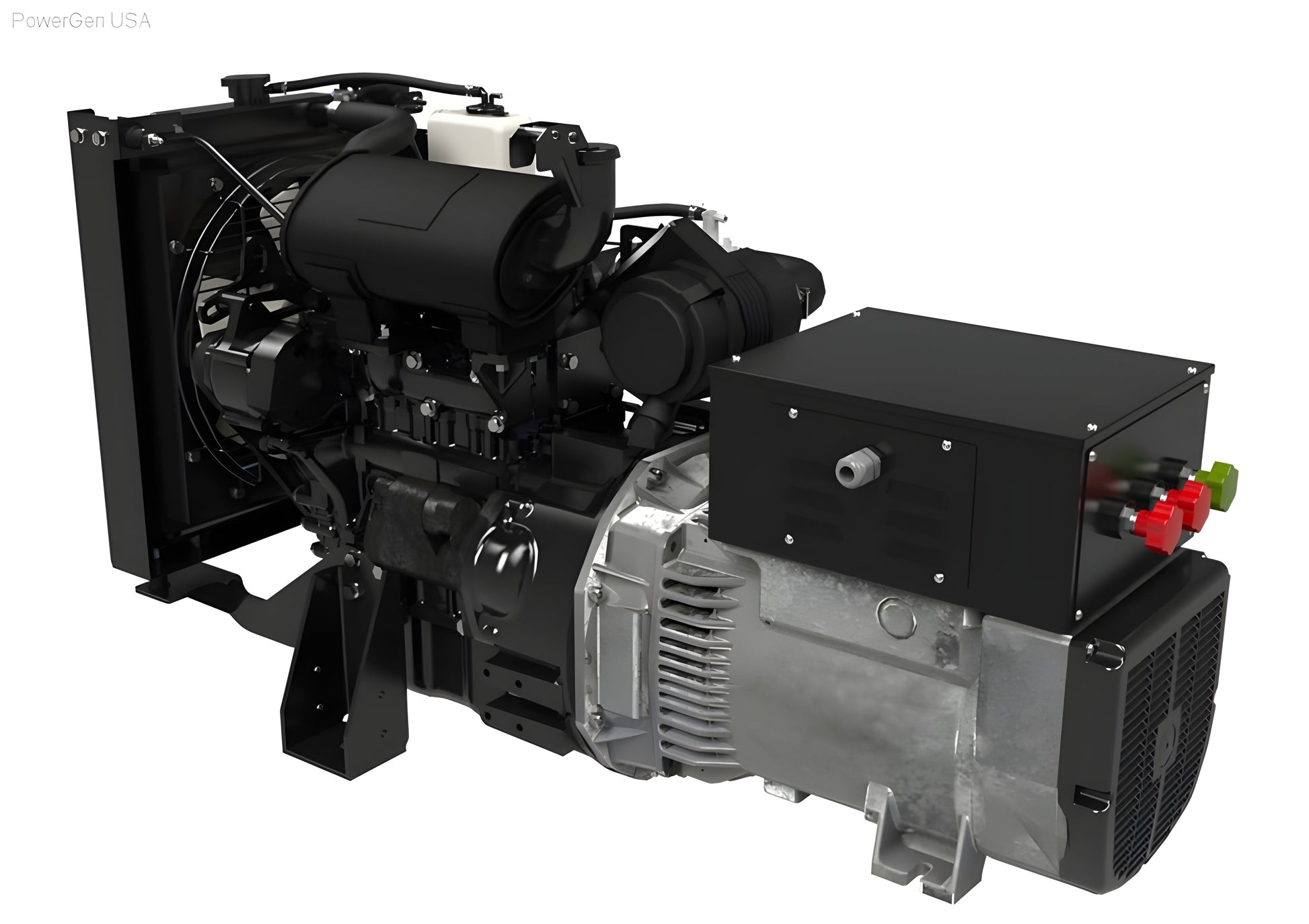

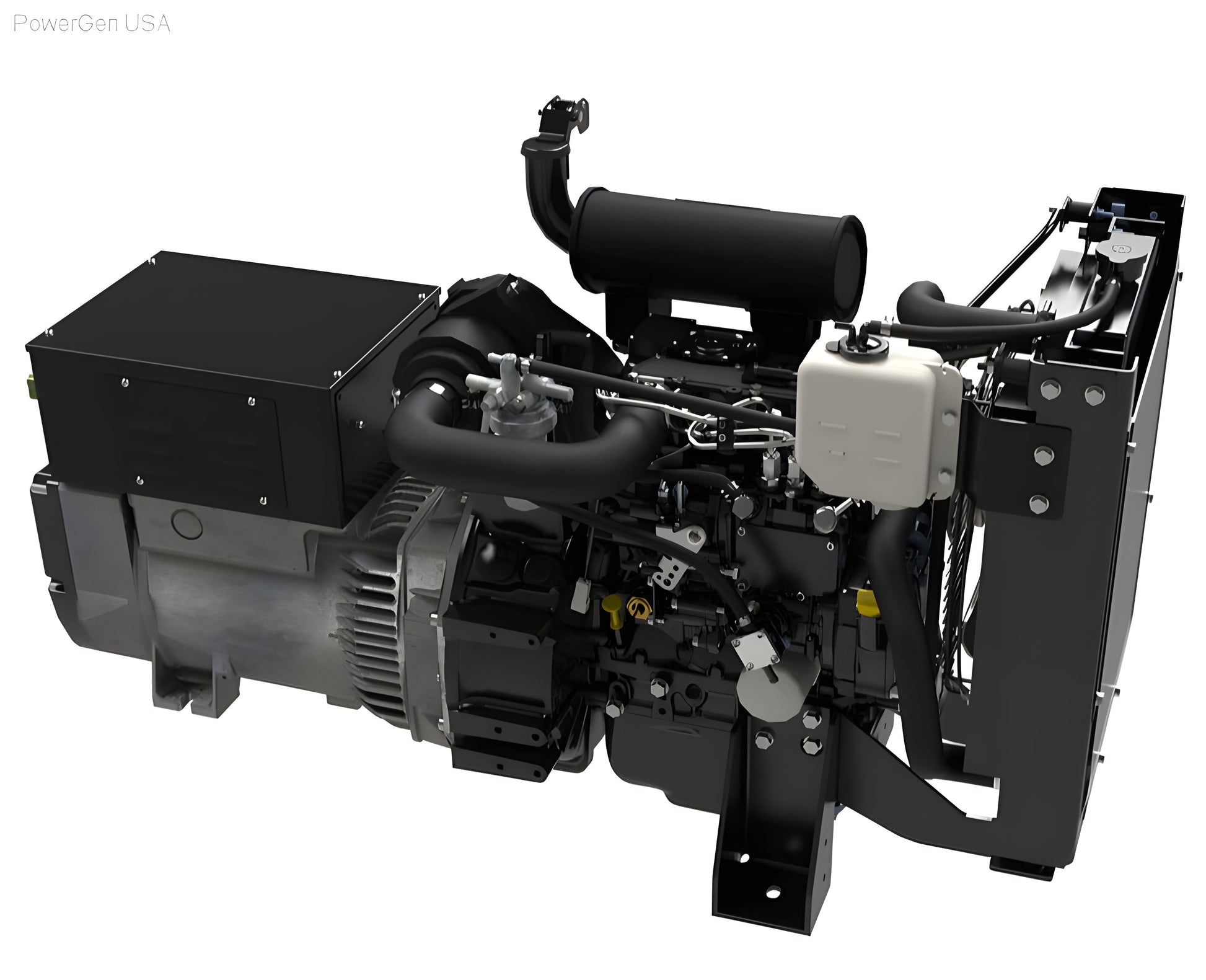

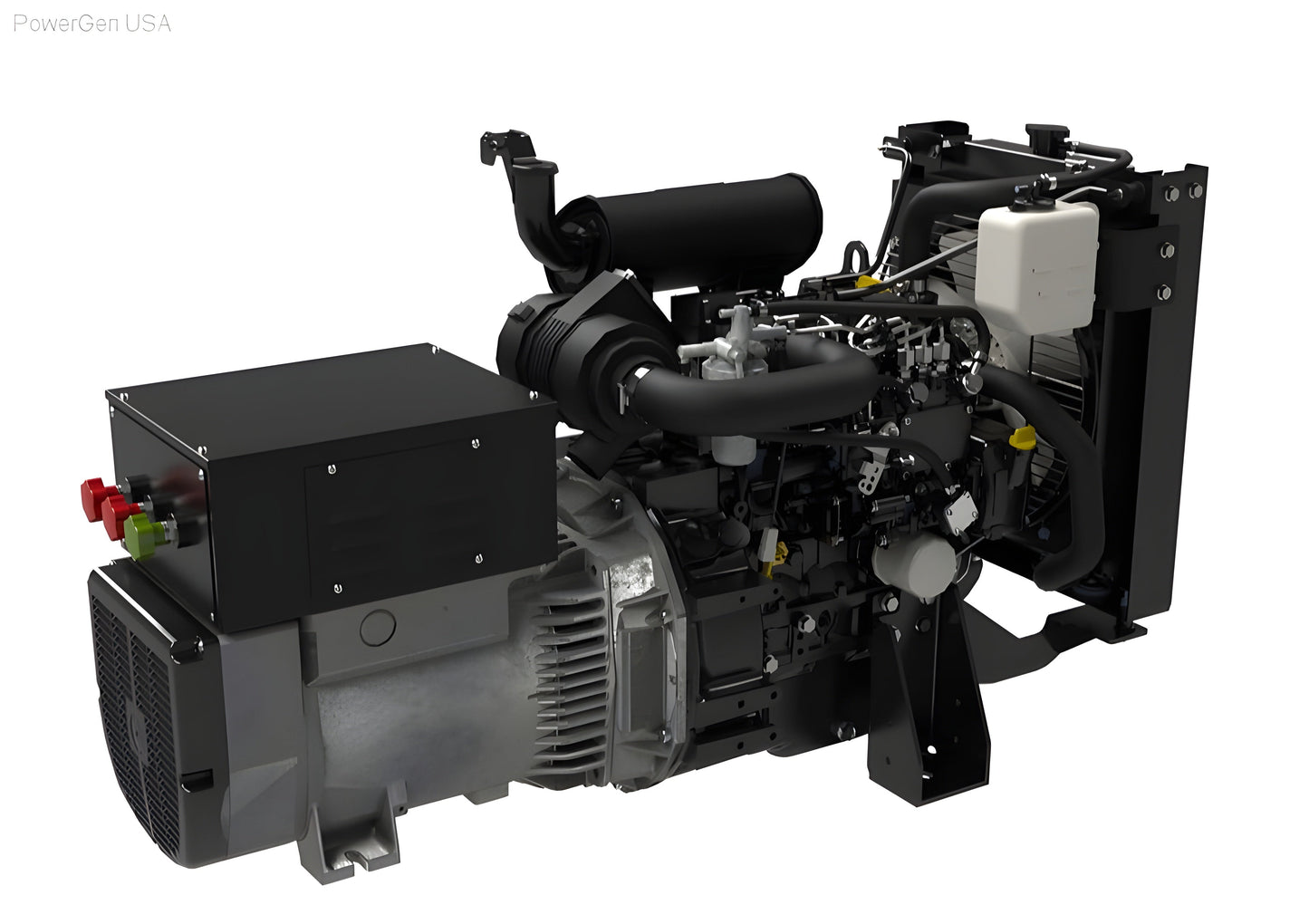

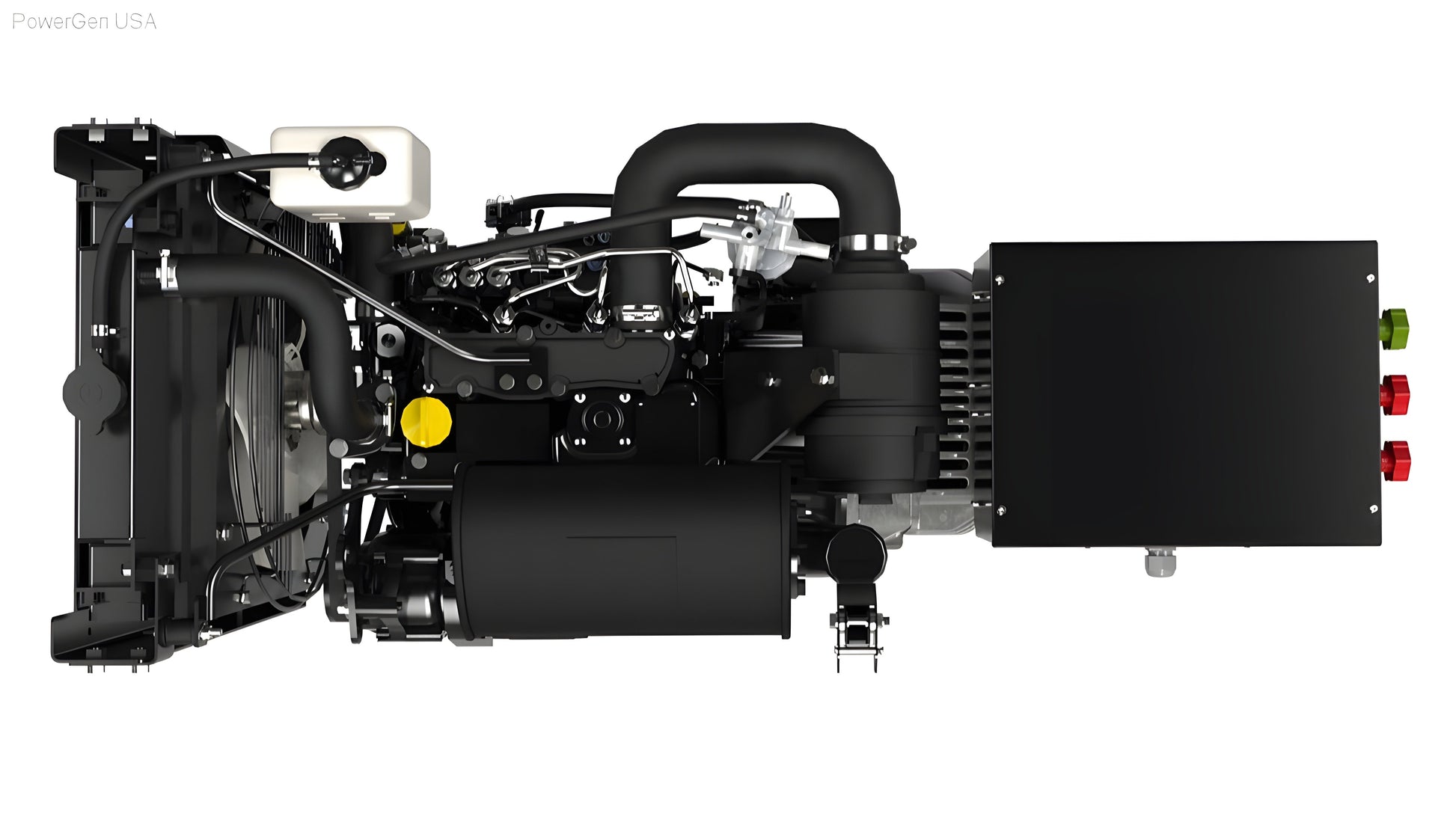

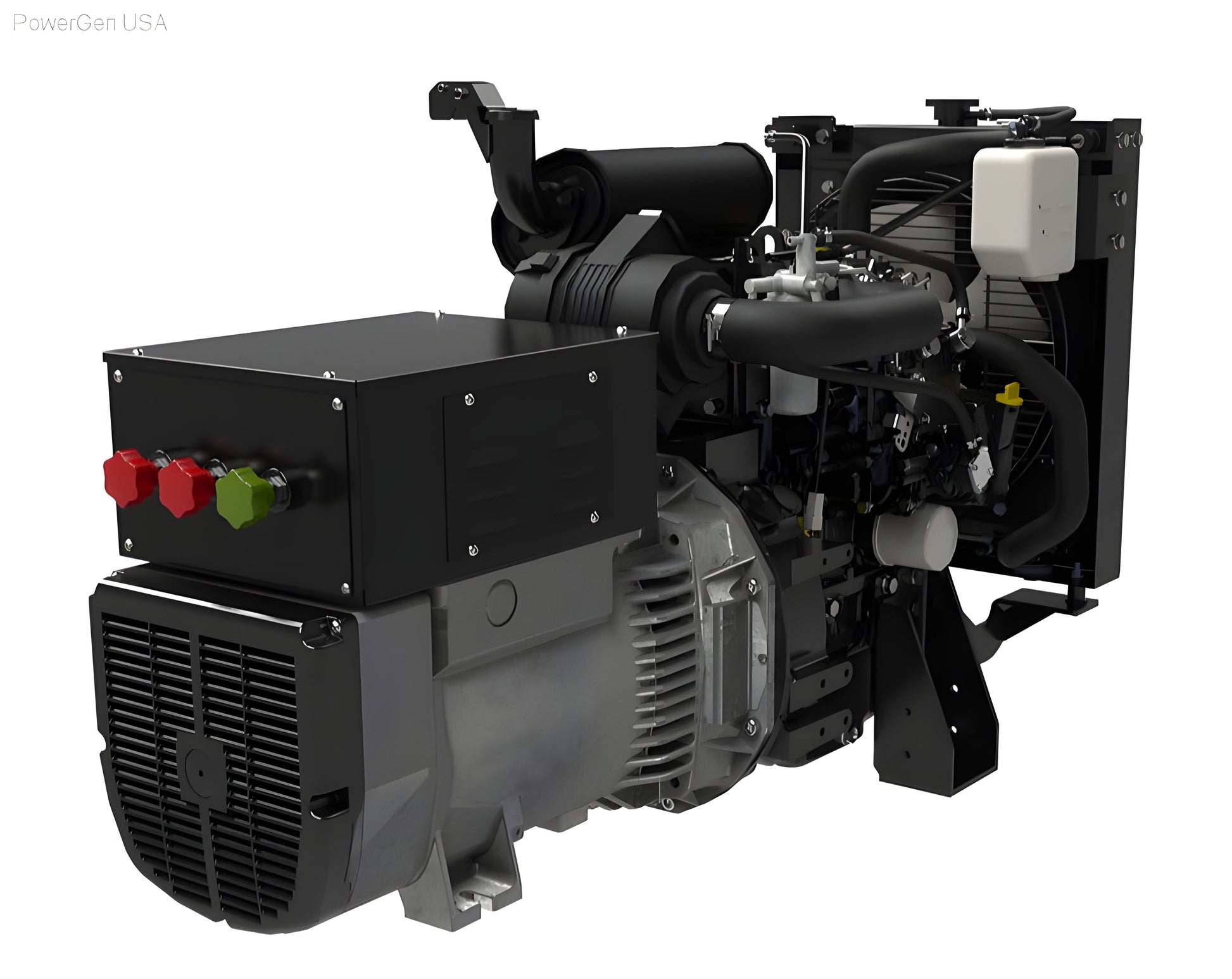

Aurora Generators 8kW 24 Volt DC Generator/Open Enclosure - PowerGen USA - AGi10P-24-O
DC Generators are a fast and convenient way to charge batteries. AURORA DC Generators like this one use liquid engines, slow-turning diesel engines for less noise, more power and super long life.
Auto-Start is included and is compatible with all two-wire starting systems.
Optional large fuel tank and remote monitoring and control are also available.
SPECIFICATIONS
• Manufacturer | Yanmar
• Model - 3TNV70-GGE | TIER4 Final Emission Standard
• Three Cylinder
• Power Output - 6 kWe
• Emission Certification - Tier 4 Final
• RPM - 1800
• Displacement - 1.642 Litre
• Glow Plugs
ALTERNATOR SPECIFICATIONS
• MeccAlte | Zanardi
• Model - AL3-A 1S/4V24
• 24 Volts (20-32 Volts Adjustable)
• Current | 250 Amp
• Efficiency 82%
• Ripple < 3%
• RPM | 1800
• Regulation | Electronic RT-DC Regulator
• Voltage accuracy -+ 2%
• Cooling | Winding Fan / Rectifier: Electric Fan
• Protection | Underspeed & Exciter Current
• Insulation | Chass H
• Temperature Rise | Class H
• Protection | IP 21
INSTRUMENTATION & CONTROL
• Advanced Generator Controller
• Make - DynaGen
• Model - TG350
• Auto-Start & two-wire remote start compatible.
• Displays voltage, speed, frequency, battery, fuel level, oil pressure, coolant temp, and more.
• 150 Event Log
• Easy to use.
• User re-programmable
• Password Protected
FUEL TANK
• Integral 45L / 12 Gallon Welded Steel Tank
• Electronic Fuel Level Sensor
• Mechanical Fuel Level Sensor
• Vented Fuel Fill / Cap
CONSTRUCTION
• All stainless steel fasteners used.
• Powder-coated steel enclosure
• Powder-coated steel frame
• Vibration Mounts on engine and alternator
• Dimensions - 57" x 33" x 40" (L x W x H)
• Weight - 950 lbs
WHAT'S INCLUDED
• Includes Battery & Cables
• Includes Temperature Sensor
• Includes Radiator Coolant Level Sensor
WARRANTY
2 Years/2000 Hours
What Our Experts Think
-
8kW 24V DC Power Output: The Aurora AGi10P-24-O Diesel Generator delivers 8kW of 24V DC power, making it an excellent choice for off-grid systems, solar power storage, and remote applications where direct current energy is needed.
-
Efficient Diesel Engine: Powered by a reliable diesel engine, this generator provides exceptional fuel efficiency, low emissions, and long-lasting performance, reducing the need for frequent maintenance.
-
Open Enclosure for Easy Access: The open-frame design allows for optimal ventilation, quick servicing, and easy installation, making it highly customizable and suitable for a wide range of configurations.
-
Rugged and Durable Construction: Built with heavy-duty components, the AGi10P-24-O is designed to perform reliably in demanding environments and withstand continuous operation under tough conditions.
-
Cost-Effective & Extended Runtime: Diesel engines typically offer longer runtimes and better fuel efficiency than gasoline-powered generators, ensuring lower operating costs and longer operational periods.
-
Versatile Applications: Ideal for off-grid energy solutions, remote job sites, and backup power in 24V DC applications, providing consistent and reliable power where it’s needed most.
-
Made in the USA: Manufactured by PowerGen USA, ensuring superior craftsmanship, durability, and high-quality performance.
Q&A
Q: What is the Aurora Generators 8 kW 24 Volt DC Generator - Open Enclosure?
A: The AGi10P-24-O is an 8 kW 24-volt DC diesel generator designed with an open-frame configuration, providing reliable power for applications requiring DC electricity, such as off-grid systems and backup power.
Q: What are the benefits of the open enclosure design?
A: The open-frame design offers better airflow, easier access for maintenance, and a lower-cost option for installations where weather protection is not required.
Q: Is this generator suitable for off-grid or backup power applications?
A: Yes, it is ideal for off-grid systems, remote sites, and as a backup power solution for 24-volt DC applications.
Q: How fuel-efficient is the diesel engine?
A: The diesel engine provides excellent fuel efficiency, durability, and minimal maintenance, making it a reliable and cost-effective long-term power solution.
Q: Does this generator include an automatic transfer switch (ATS)?
A: No, an ATS is not included, but it can be added separately for automatic power switching during outages.
Q: Where is this generator manufactured?
A: It is manufactured in the USA by PowerGen USA, ensuring high-quality construction and reliable performance.
Maintenance Tips
-
Oil & Filter Changes – Change oil and filters every 100–250 hours to maintain engine efficiency.
-
Fuel System Maintenance – Use clean diesel, drain water separators, and replace fuel filters regularly to avoid blockages.
-
Battery Care – Ensure the battery is fully charged and terminals are clean for reliable starting power.
-
Cooling System Check – Monitor coolant levels and inspect for radiator blockages or leaks.
-
Air Filter Maintenance – Clean or replace air filters regularly to prevent engine strain and optimize airflow.
-
Run Generator Monthly – Operate under load to keep components lubricated and prevent fuel system issues.
-
Inspect Belts & Hoses – Check for wear, cracks, or leaks and replace parts as necessary.
-
Monitor Exhaust & Ventilation – Ensure proper ventilation and check for unusual smoke or odors.
-
Electrical System Check – Tighten loose connections, and inspect wiring and control systems.
-
Schedule Professional Servicing – Annual inspections ensure long-term reliability and performance.
