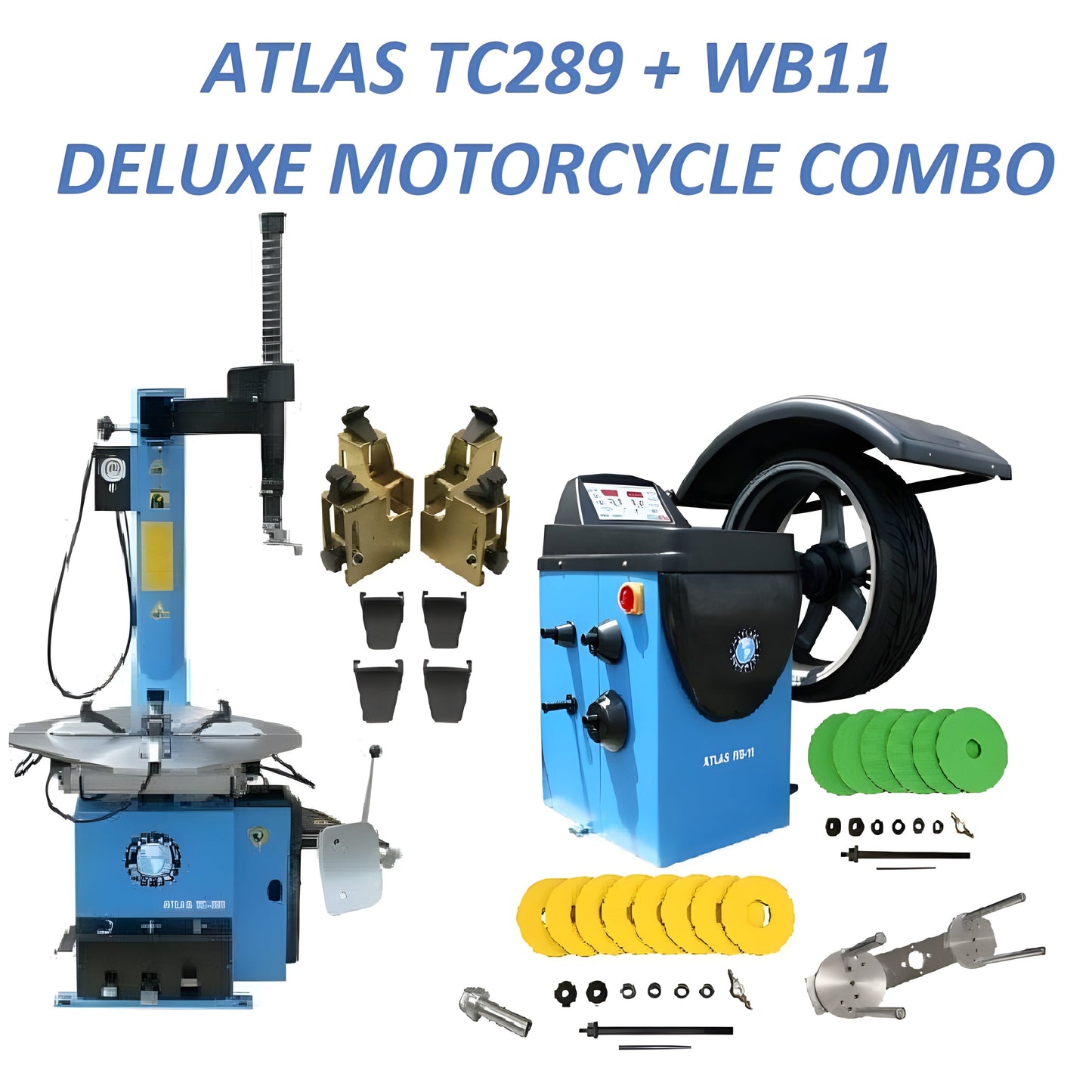

Atlas TC289 Tire Changer + WB11 Deluxe Motorcycle Wheel Balancer Combo Package - ATETCWB-MC-COMBO2-FPD
This combination package includes the Atlas TC289 rim-clamp swing arm tire changer & the Atlas WB11 computerized spin balancer and motorcycle adapters to handle a wide range of MC tires. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas
Features

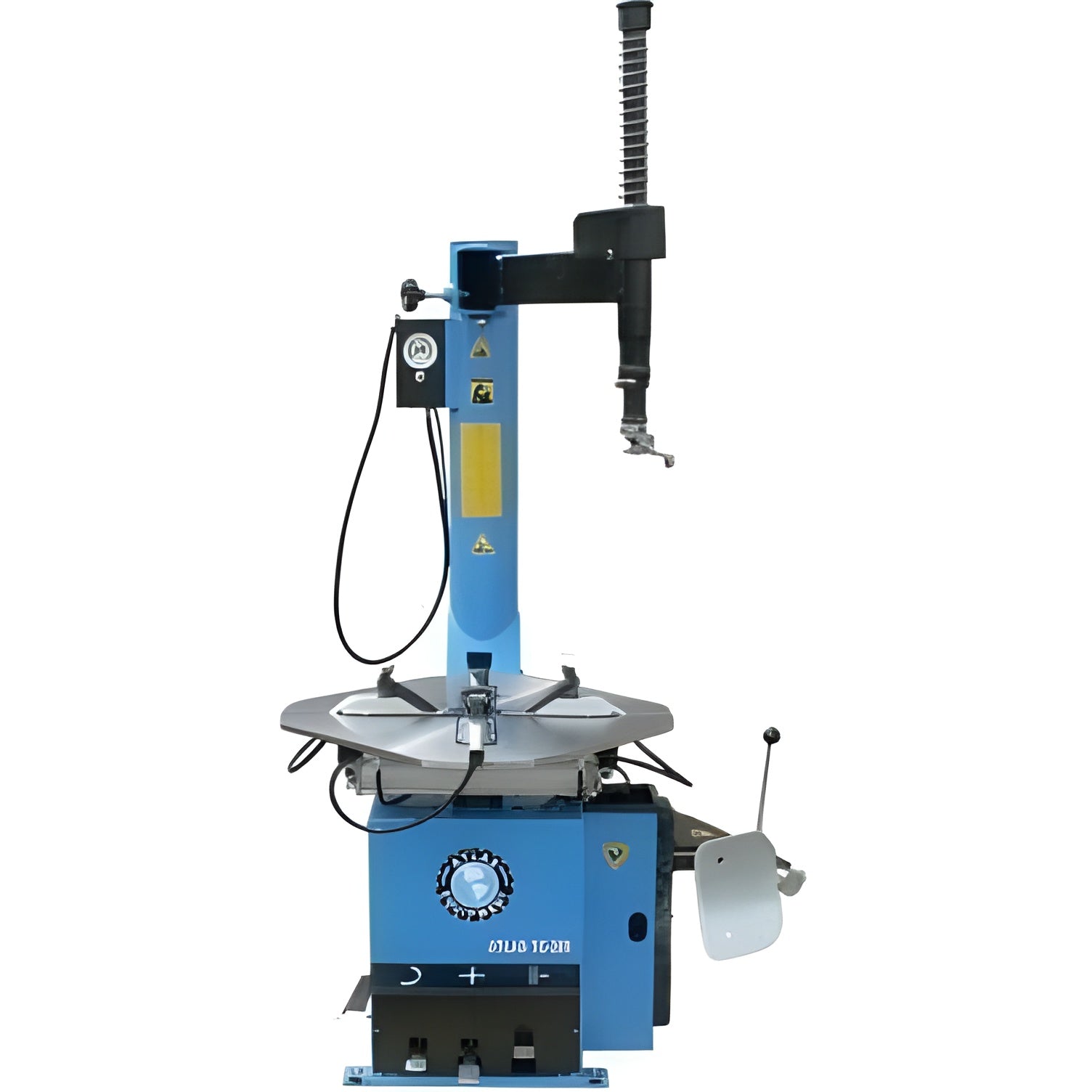

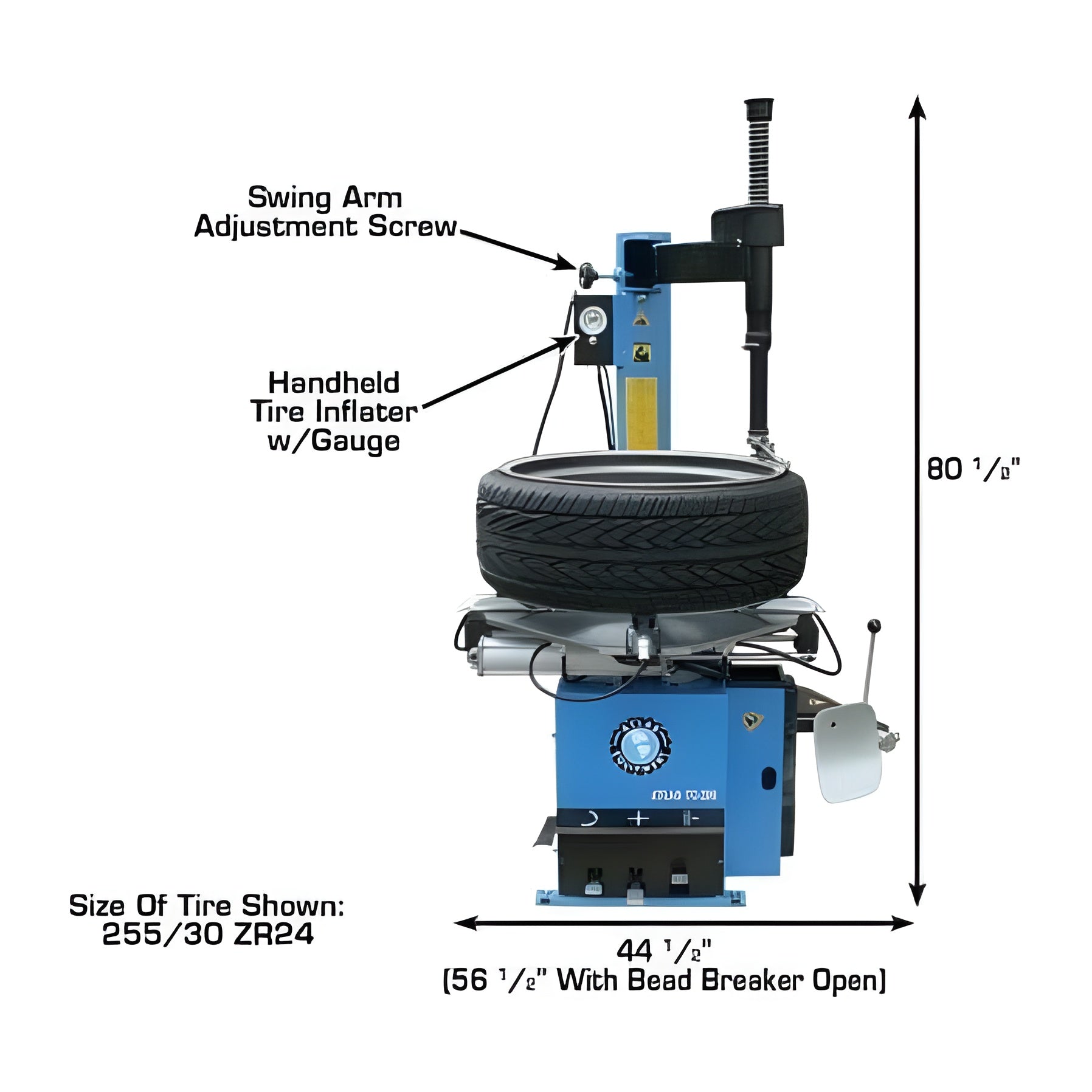

TC289 Tire Changer
- Rim Clamp/Swing Arm Tire Changer
- Deluxe Motorcycle Adapters w/ Plastic Jaw Covers Included
- Extra Large Turntable, More Clearance
- Built-in “Beadblaster”

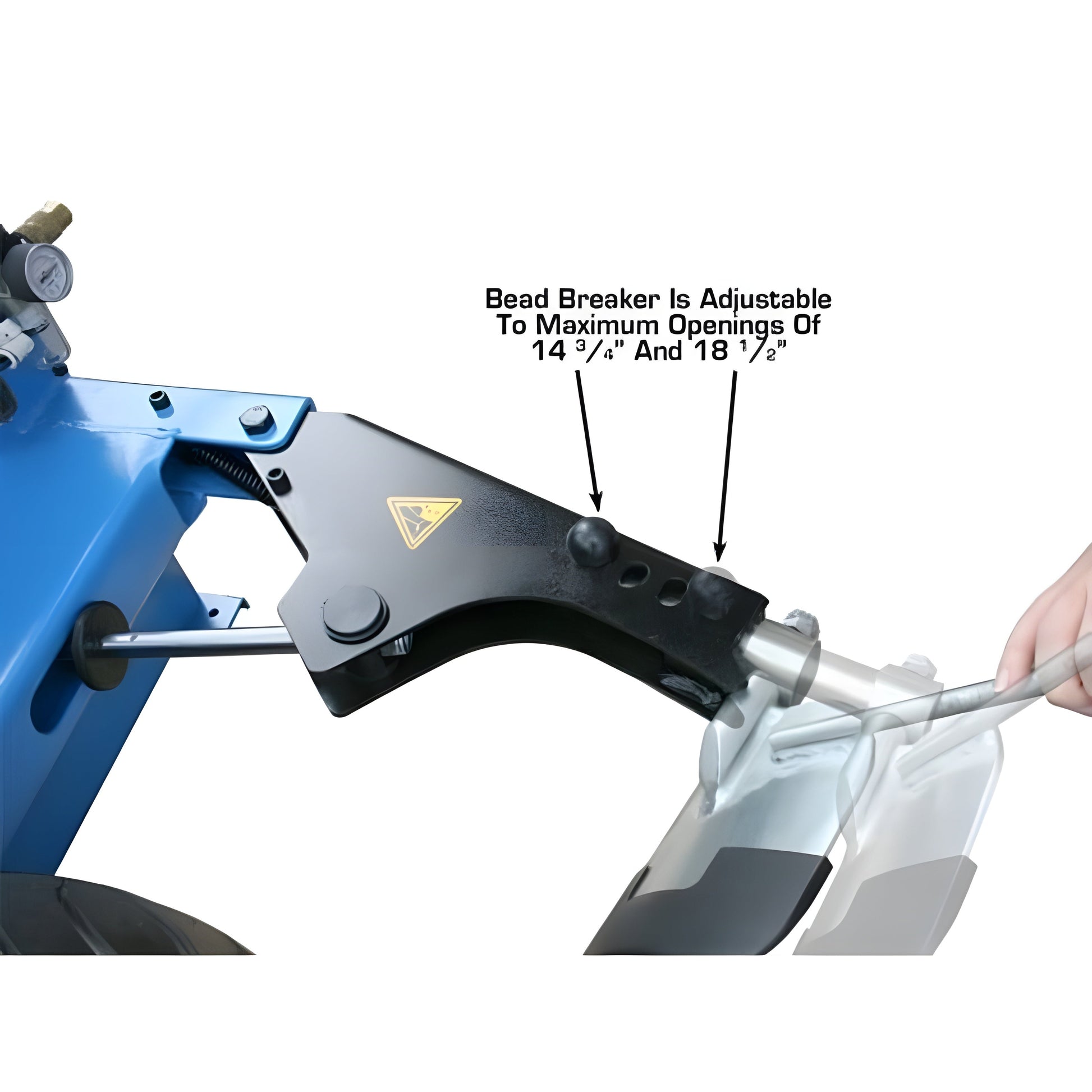

- Adjustable Bead Breaker Plate
- Adjustable jaws, 3 mounting positions
- Oiler, Filter, Regulator included (external air supply required)

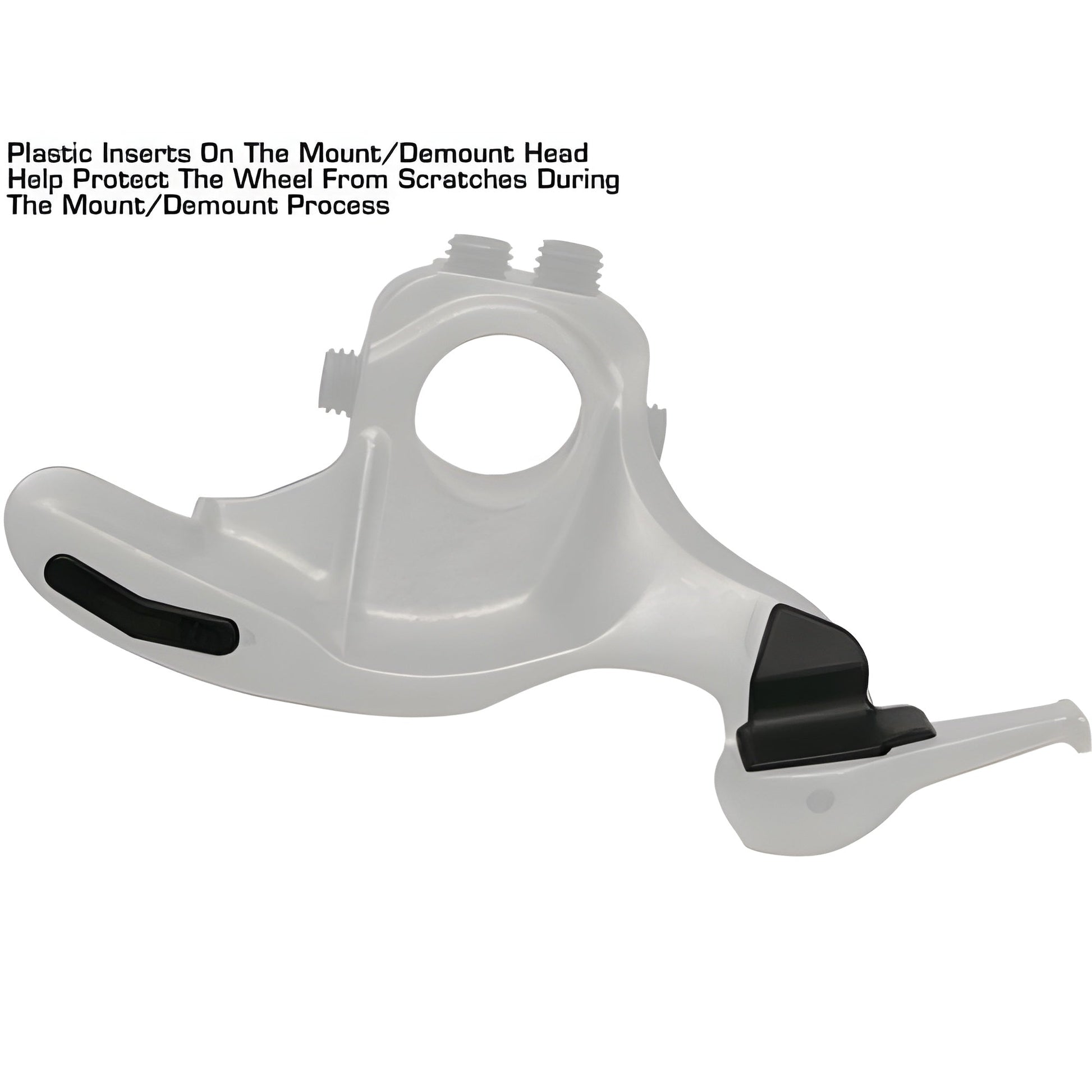

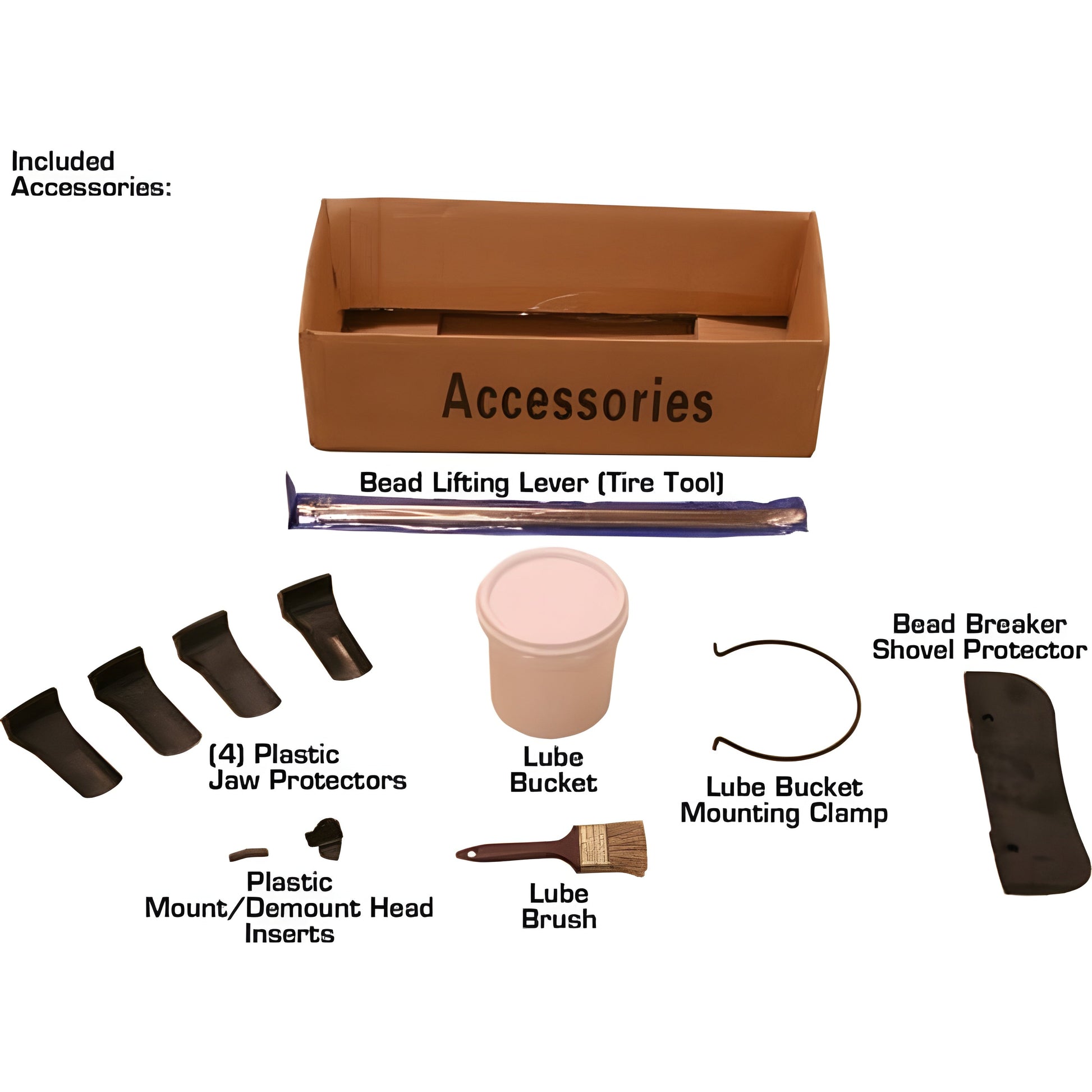

- Plastic Protectors included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included
WB11 Wheel Balancer
- Computer Controlled Spin Balancer
- Standard 14mm Motorcycle Adapter Kit Included
- Large 19mm Motorcycle Adapter Kit Included
- 19mm Extension Nut Included
- Spoke Support Adapter Included
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self Diagnosis/Self Calibration
- Display in grams or ounces, in mm or inches
- 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
Specifications
| Rims |
Steel, Aluminum, Alloy |

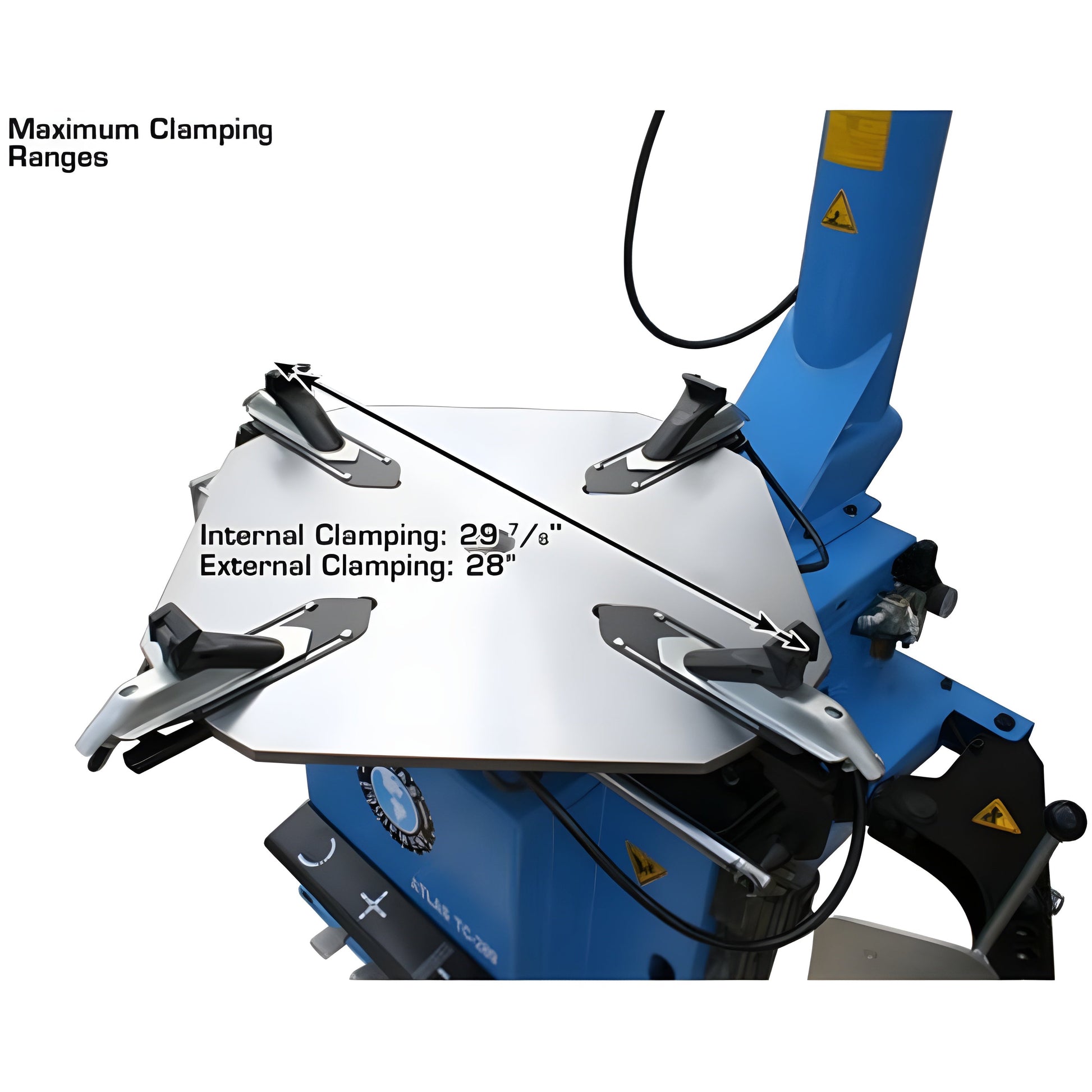

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 11 7/8" - 26" |
| 2) 12 7/8" - 27" |
|
| 3) 13 3/4" - 28" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 13 7/8" - 27 7/8" |
| 2) 14 5/8" - 28 7/8" |
|
| 3) 15 5/8" - 29 7/8" |
|
| Maximum Tire Diameter |
47" |

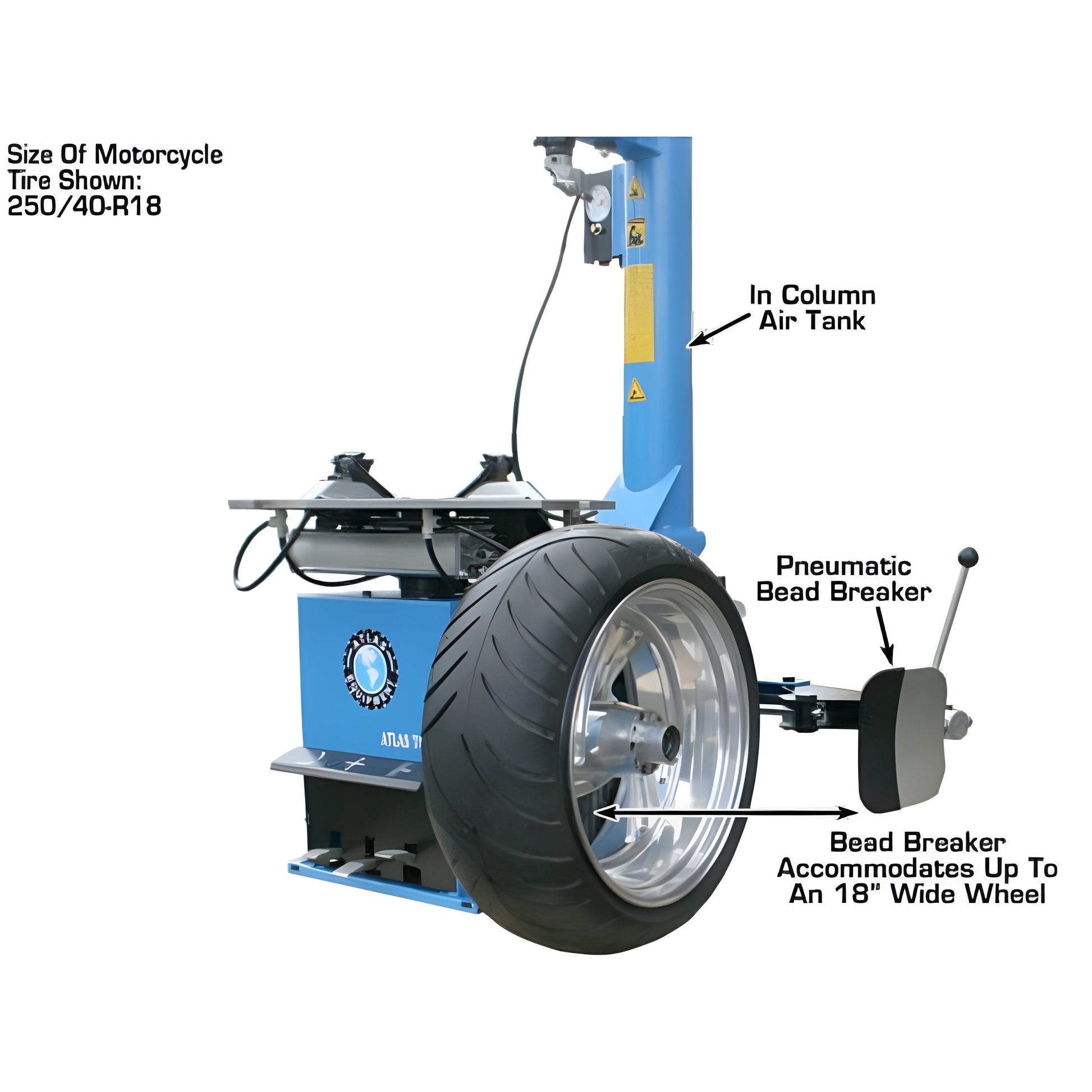

| Maximum Wheel Width (Bead Breaker) |
18" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

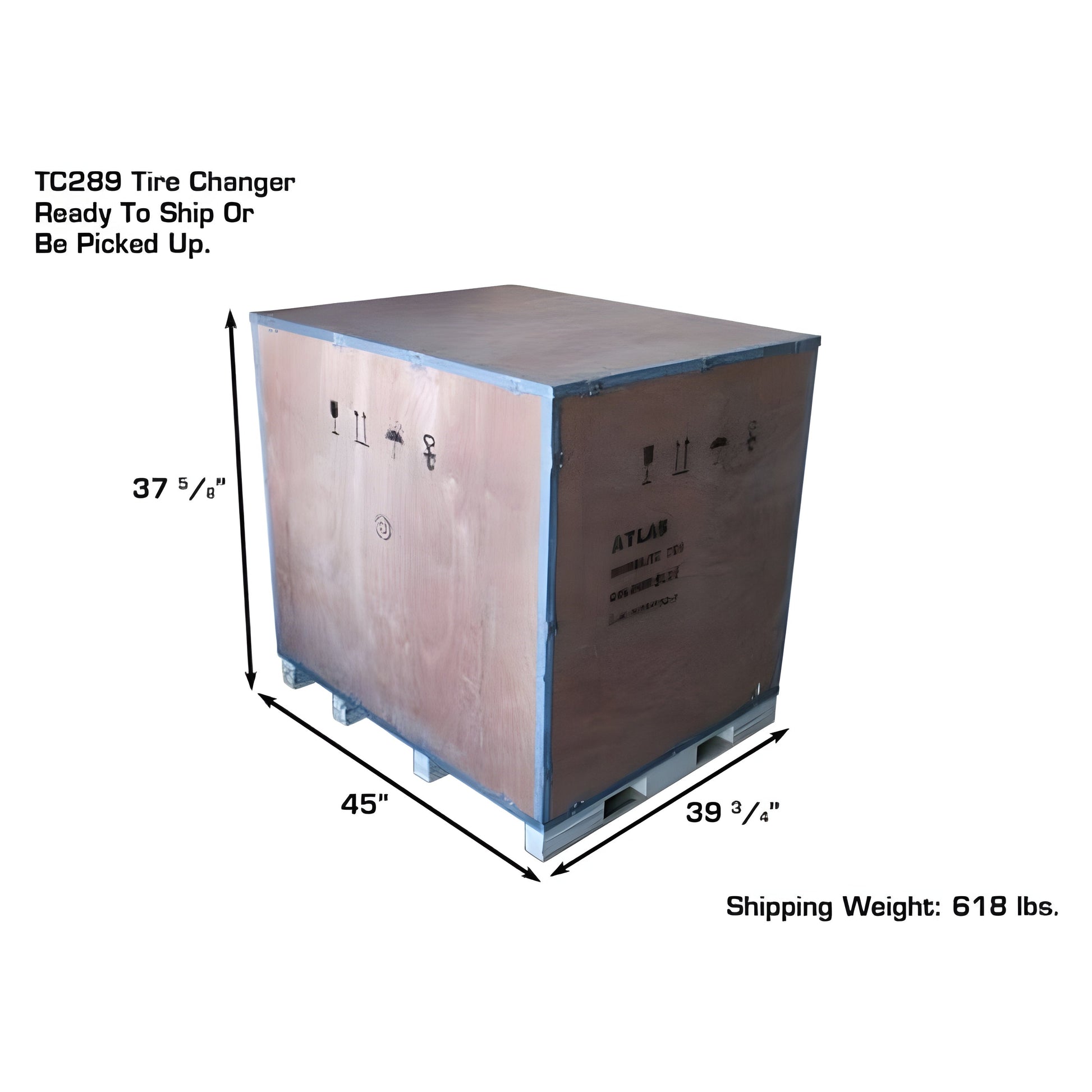

| Shipping Weight |
620 lbs. |
| Atlas WB11 Specifications |
|
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC289 Manual
Atlas WB11 Manual
What our Expect Think
-
Enhanced Efficiency with Dual Assist Arms – The Atlas TC229DAA Tire Changer features dual assist arms, providing extra support for mounting and demounting tires, especially for large or low-profile tires. This significantly reduces operator effort and time.
-
Rim Protection – The rim-clamp design ensures that the tire changer won’t damage the wheel’s edges, making it perfect for high-end or custom rims. The built-in features protect both the tire and the wheel during the process.
-
Heavy-Duty Construction – Designed for high-volume tire shops, the TC229DAA is built with durability in mind. Its solid structure ensures long-lasting performance, even in the most demanding environments.
-
Versatility – Whether it’s standard passenger tires or large commercial tires, this machine can handle a wide range of tire sizes, offering flexibility and reliability for various types of vehicles.
-
User-Friendly Operation – The intuitive controls and setup make it easy for technicians to operate, reducing training time and increasing productivity.
Q&A
Q: What is included in the Atlas TC289 Tire Changer + WB11 Deluxe Motorcycle Wheel Balancer Combo Package?
A: The Atlas TC289 Tire Changer + WB11 Deluxe Motorcycle Wheel Balancer Combo Package includes:
-
Atlas TC289 Tire Changer with advanced rim-clamp technology and a powerful bead breaker, designed specifically for motorcycle tires. It features adjustable mounting heads to accommodate a wide range of tire sizes.
-
Atlas WB11 Deluxe Motorcycle Wheel Balancer, equipped with a digital readout and precision balancing technology for smooth, vibration-free motorcycle wheels. It includes a motorcycle adapter for balancing motorcycle tires and offers multiple balancing modes.
Q: Is this combo package ideal for motorcycle shops?
A: Yes, the Atlas TC289 Tire Changer + WB11 Deluxe Motorcycle Wheel Balancer Combo Package is perfect for motorcycle tire shops and repair facilities, offering specialized equipment for efficiently changing and balancing motorcycle tires with commercial-grade performance and accuracy.
Maintenance Tips
-
Clean After Each Use – Wipe down the tire changer and wheel balancer with a soft cloth to remove any debris or tire residue, especially from the tire changer's mounting head and the balancer's sensors.
-
Lubricate Moving Parts – Apply a light lubricant to moving parts such as the bead breaker, mounting head, and the wheel balancer’s spindle to ensure smooth, efficient operation.
-
Inspect Tire Changer Components – Regularly check the tire changer’s clamps, bead breaker, and mounting arm for wear and damage. Replace any worn-out components to avoid damage to wheels and tires.
-
Calibrate the Wheel Balancer – To maintain accurate wheel balancing, ensure the wheel balancer is regularly calibrated following the manufacturer's guidelines.
-
Tighten All Fasteners – Periodically check and tighten screws, bolts, and nuts on both the tire changer and wheel balancer to avoid loosening over time, which can cause instability.
-
Check for Alignment – Ensure that both the tire changer and the wheel balancer are properly aligned and level to avoid misbalancing tires or damaging rims.
-
Avoid Overloading – Stick to the recommended weight limits to prevent overloading the equipment, which can result in damage or reduced lifespan.
-
Store Properly – When not in use, store the equipment in a dry area and ensure it’s covered or protected from dust and moisture to maintain optimal performance.
