Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package - ATETCWB-COMBO5-FPD
This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas WB41 computerized spin balancer. This combination is perfect for the homeowner, small commercial shop or ATV/Motorcycle dealer looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas
Features

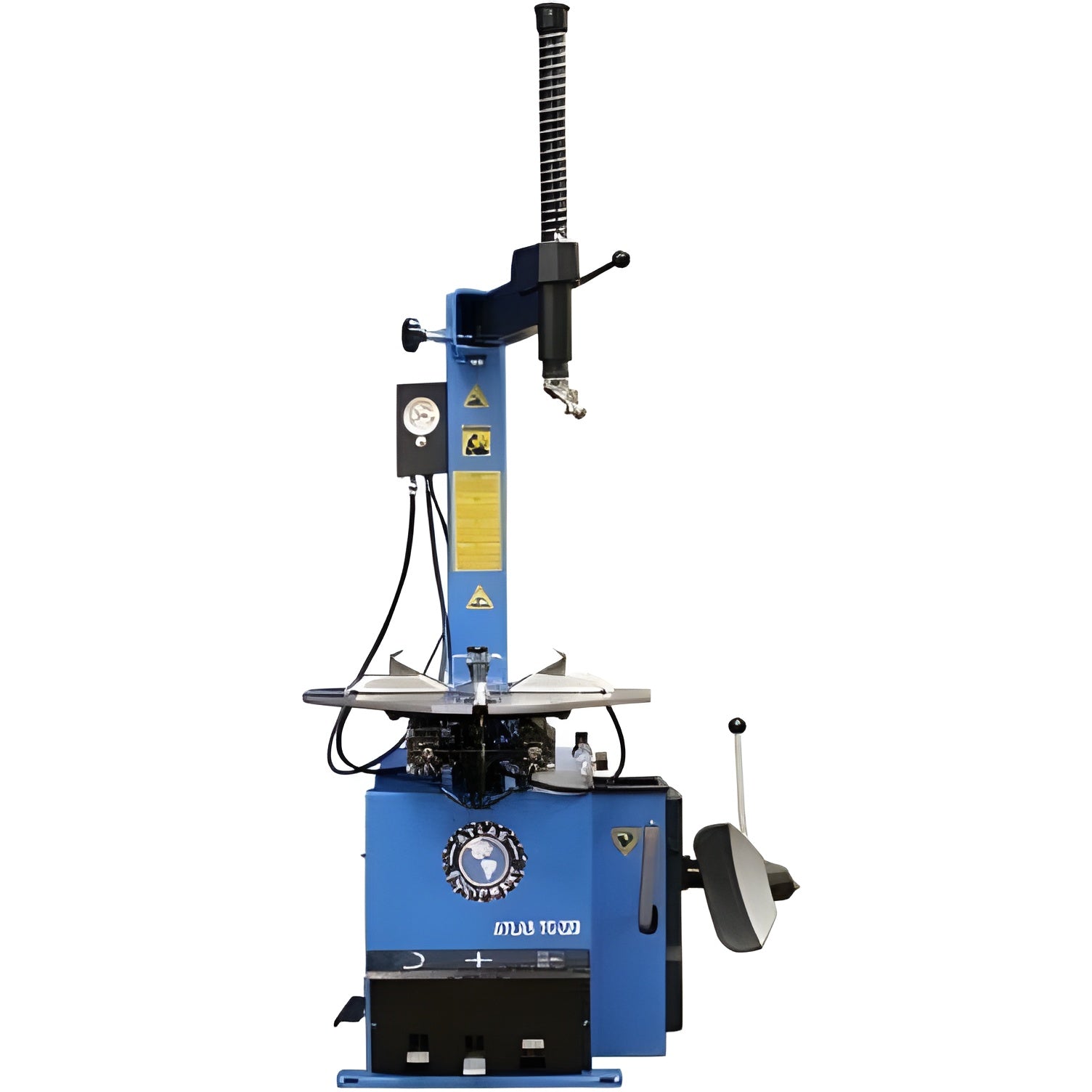

TC229 Tire Changer

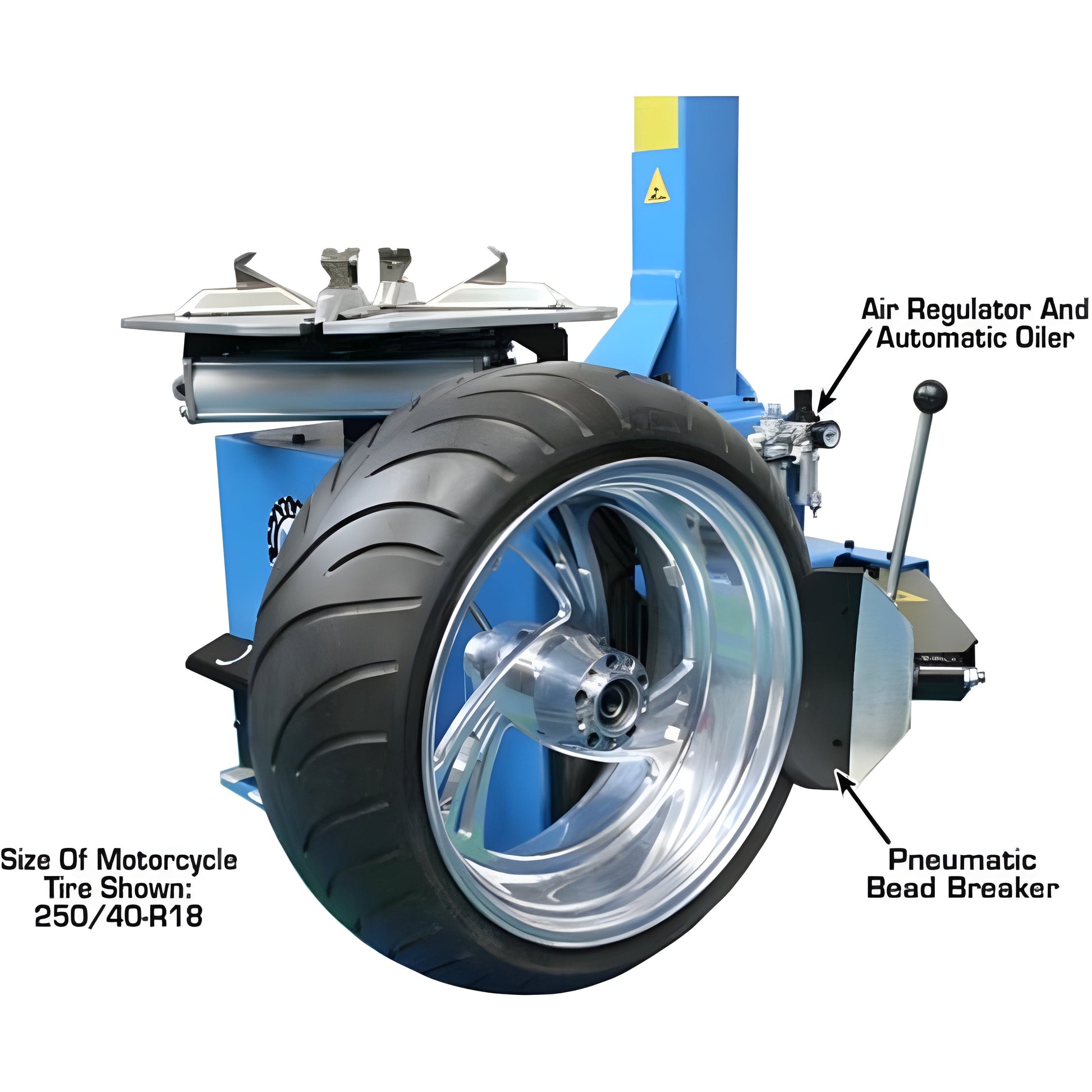

- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

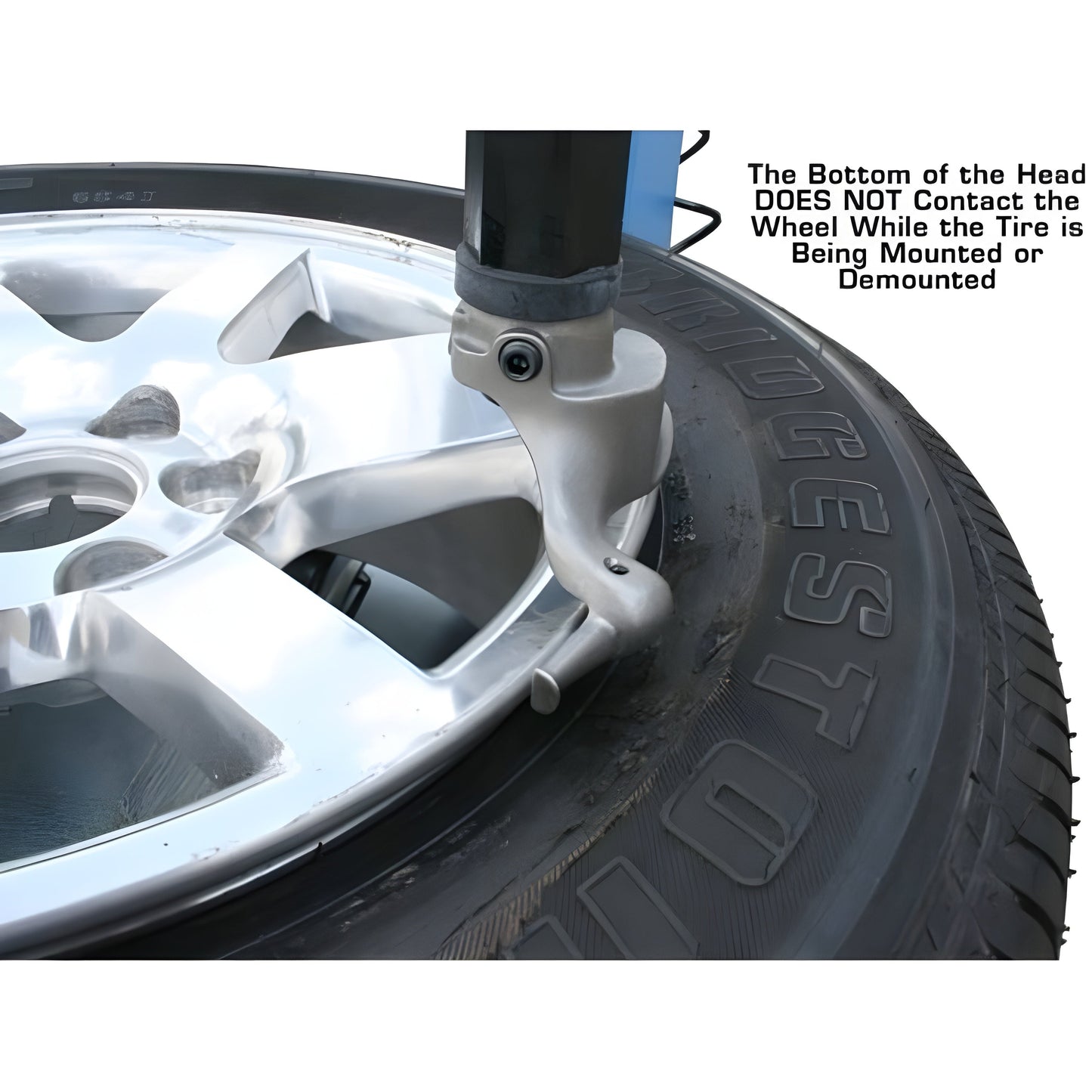

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

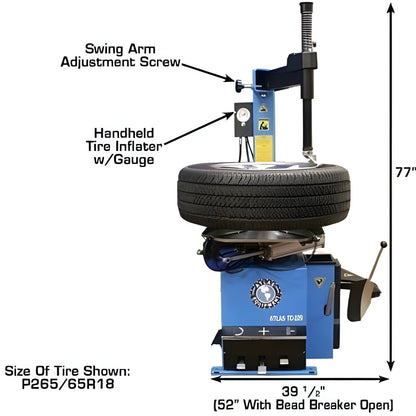

- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included

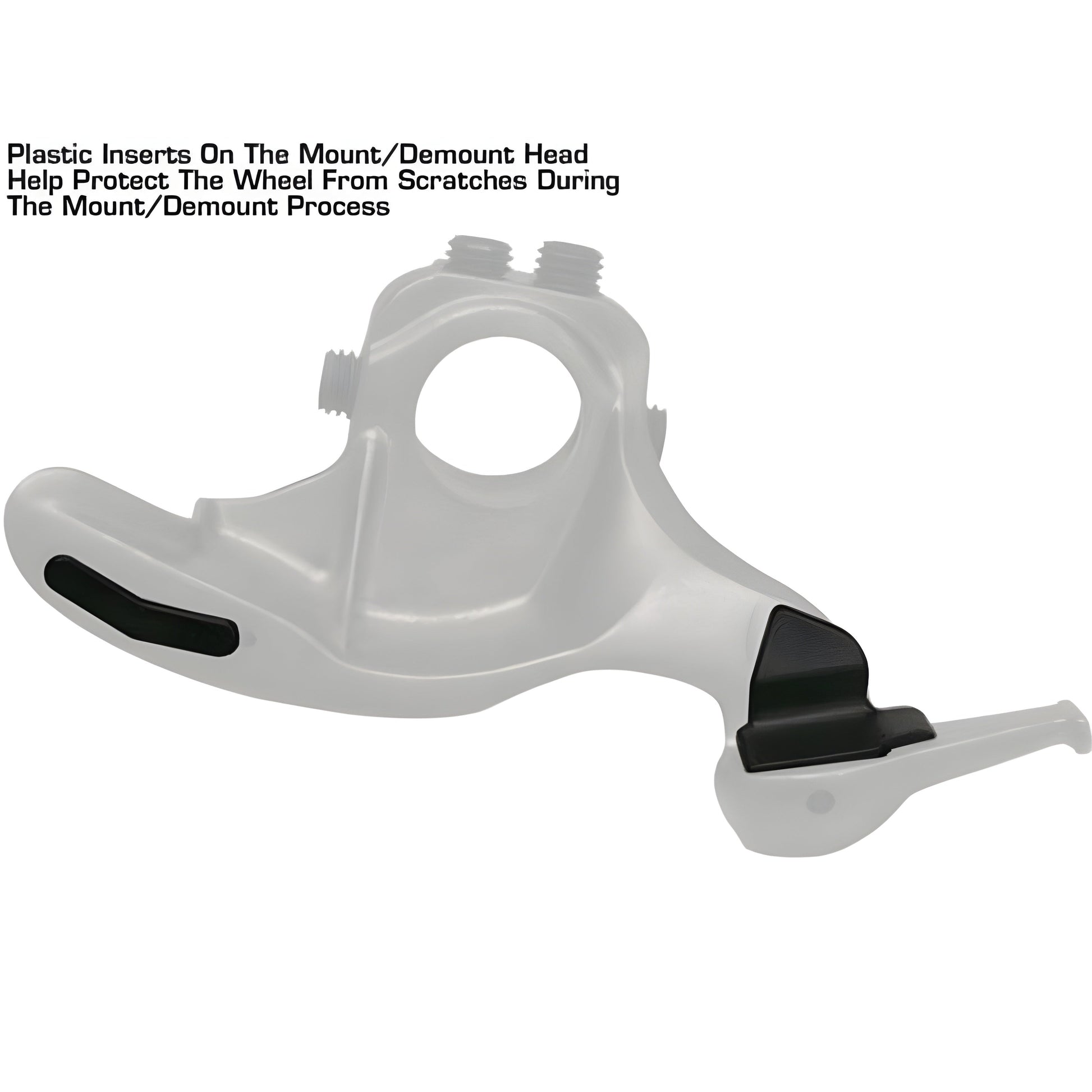

- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”
WB41 Wheel Balancer
- Computer Controlled Motorized Spin Balancer

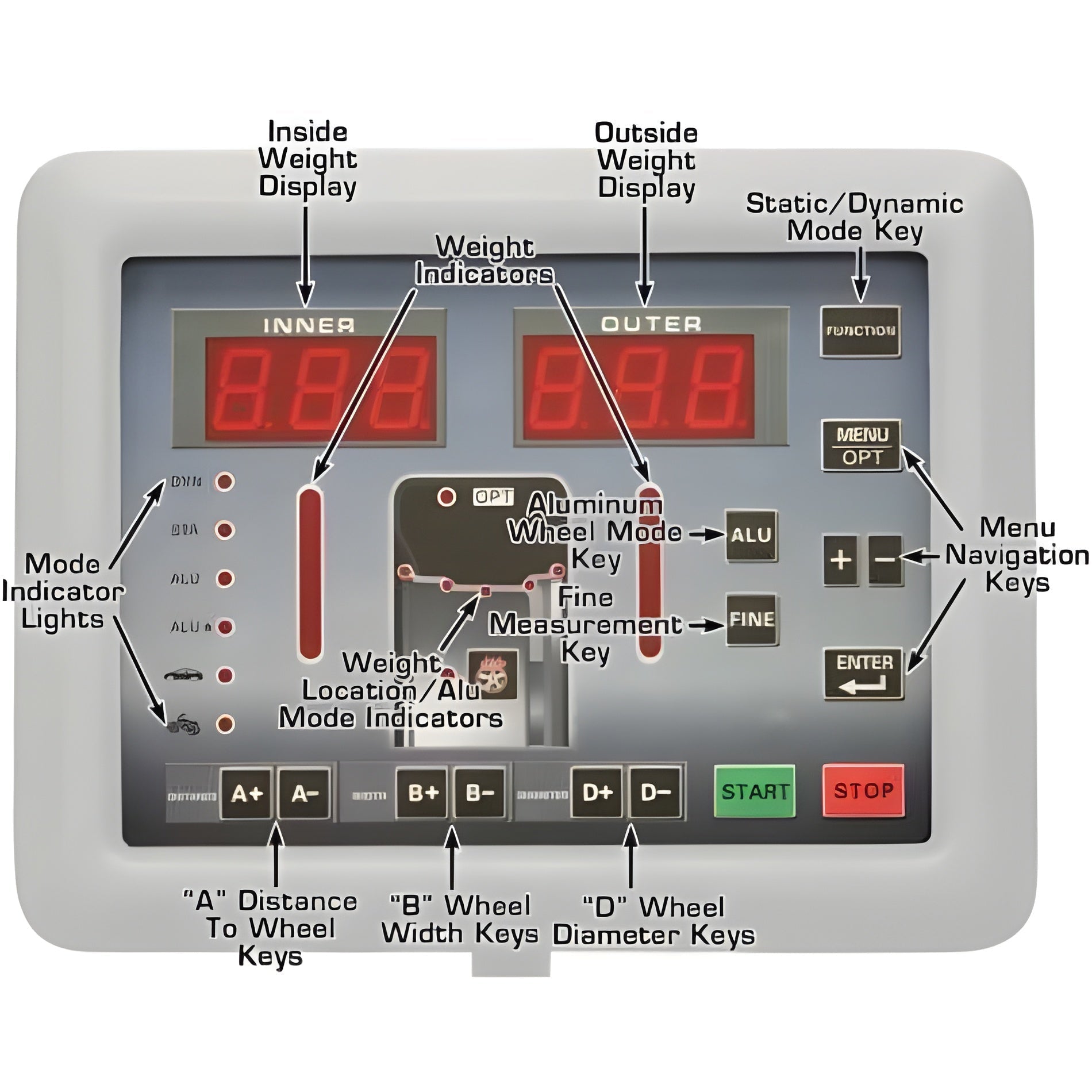

- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed

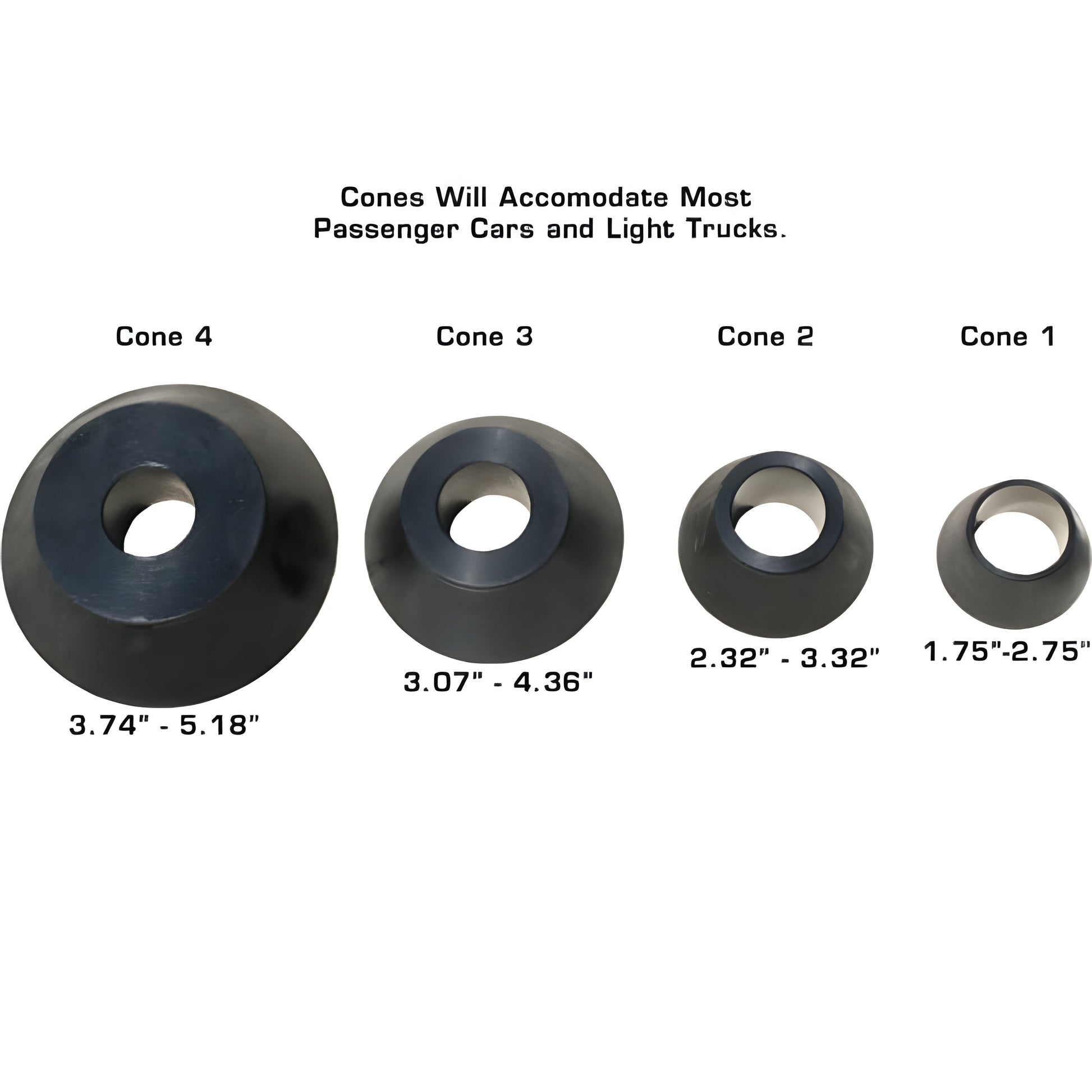

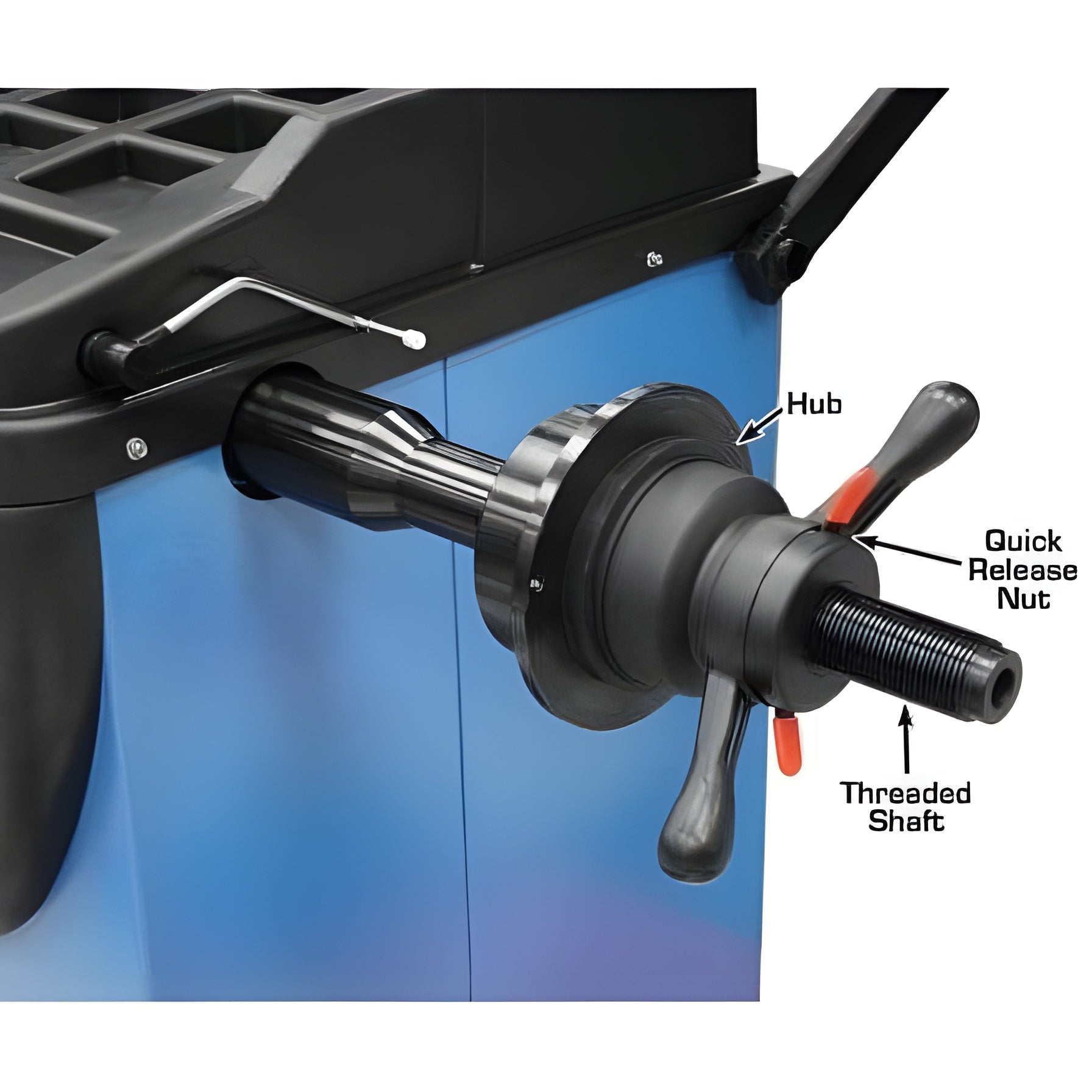

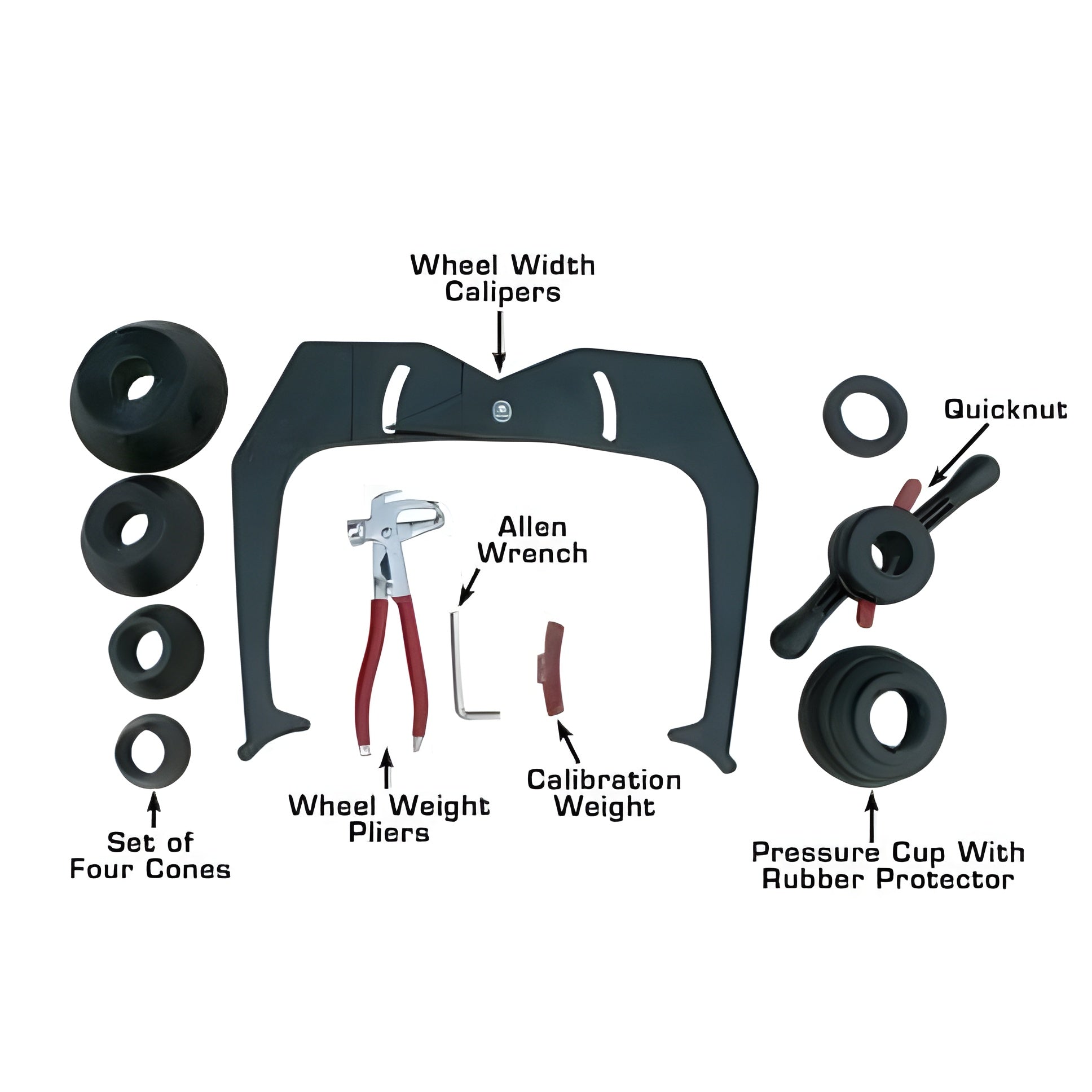

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |

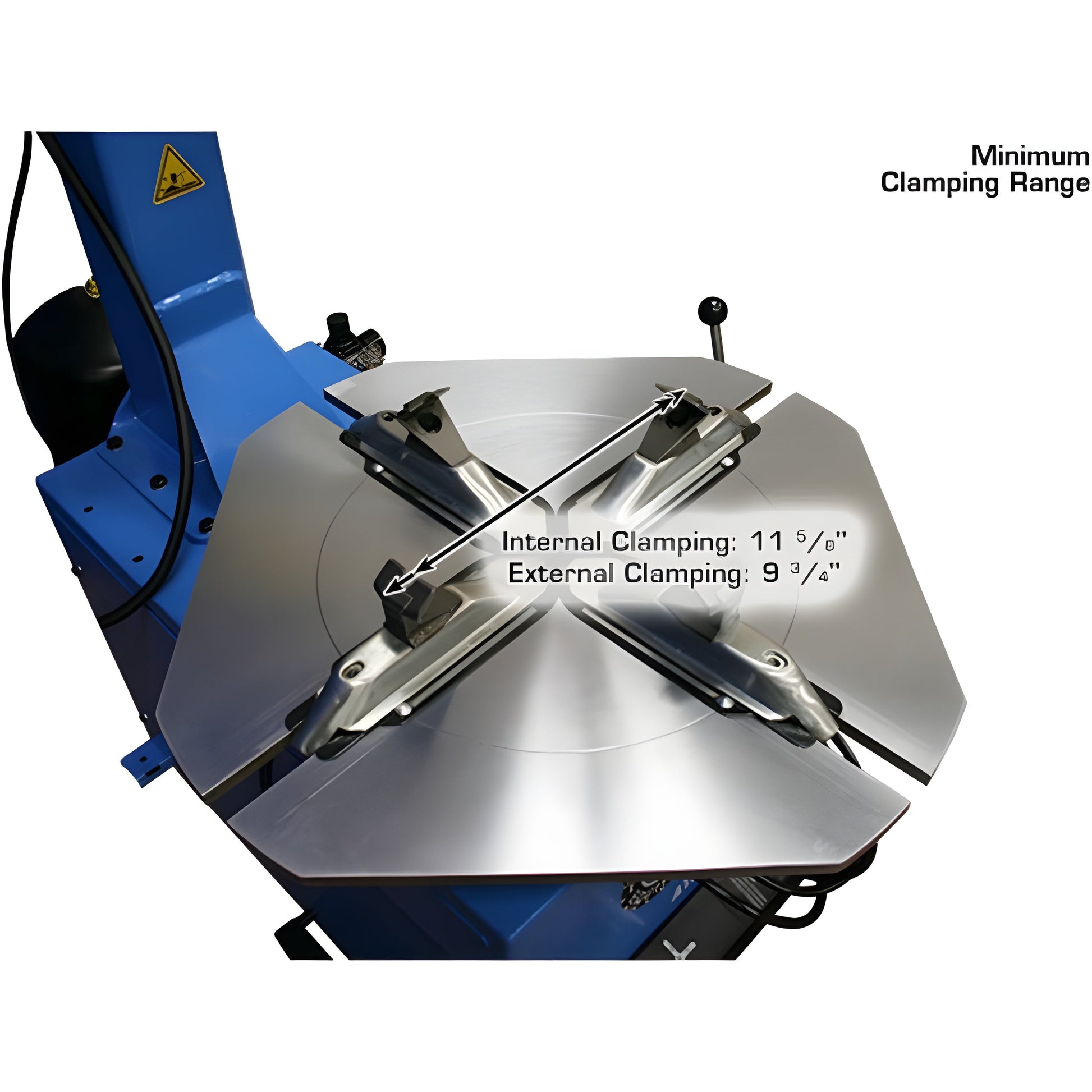

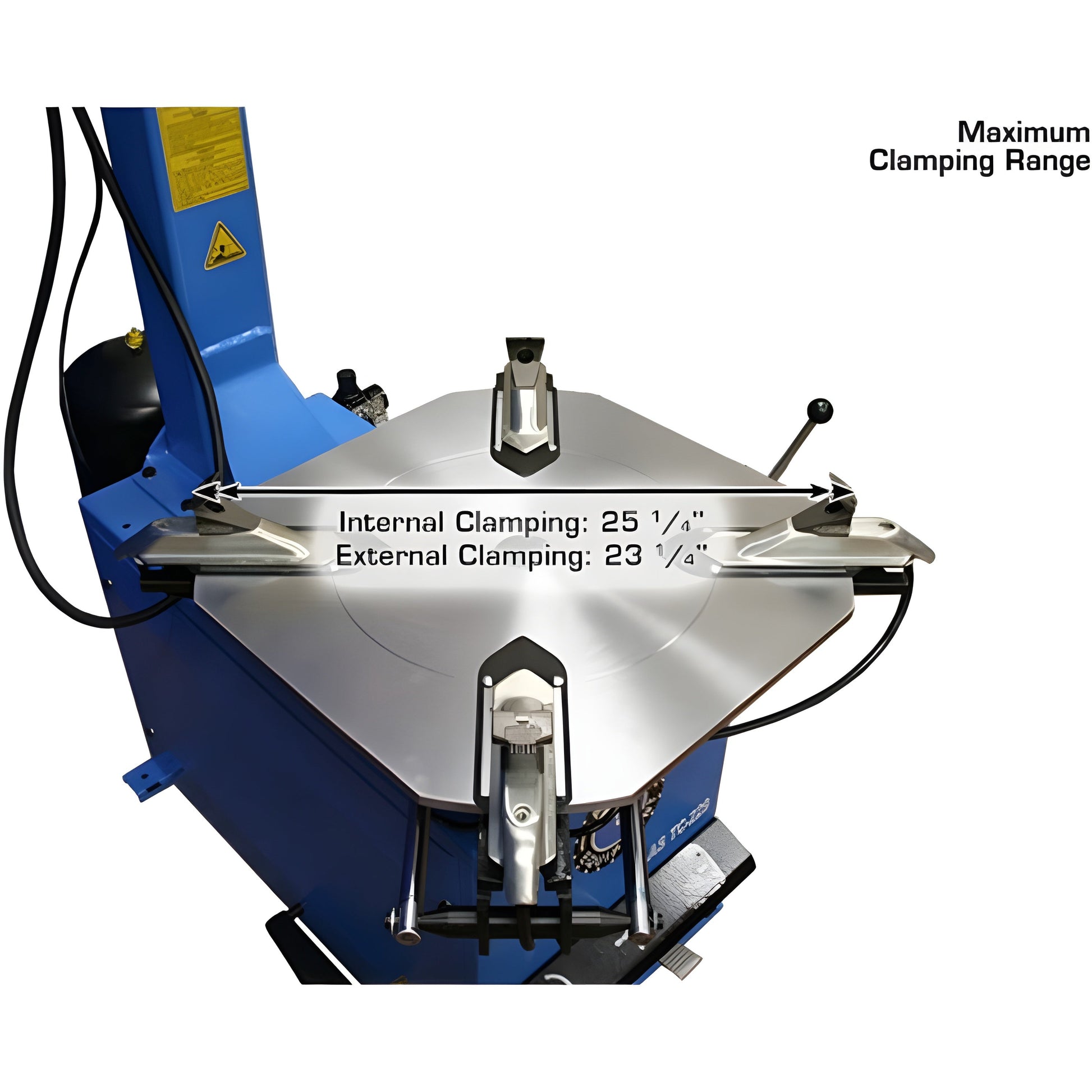

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Shipping Weight |
550 lbs. |
| Atlas® WB41 Specifications |
|
| Max Tire Diameter |
39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) |
10"-32" |
| Rim Width |
1 1/2"-20" |

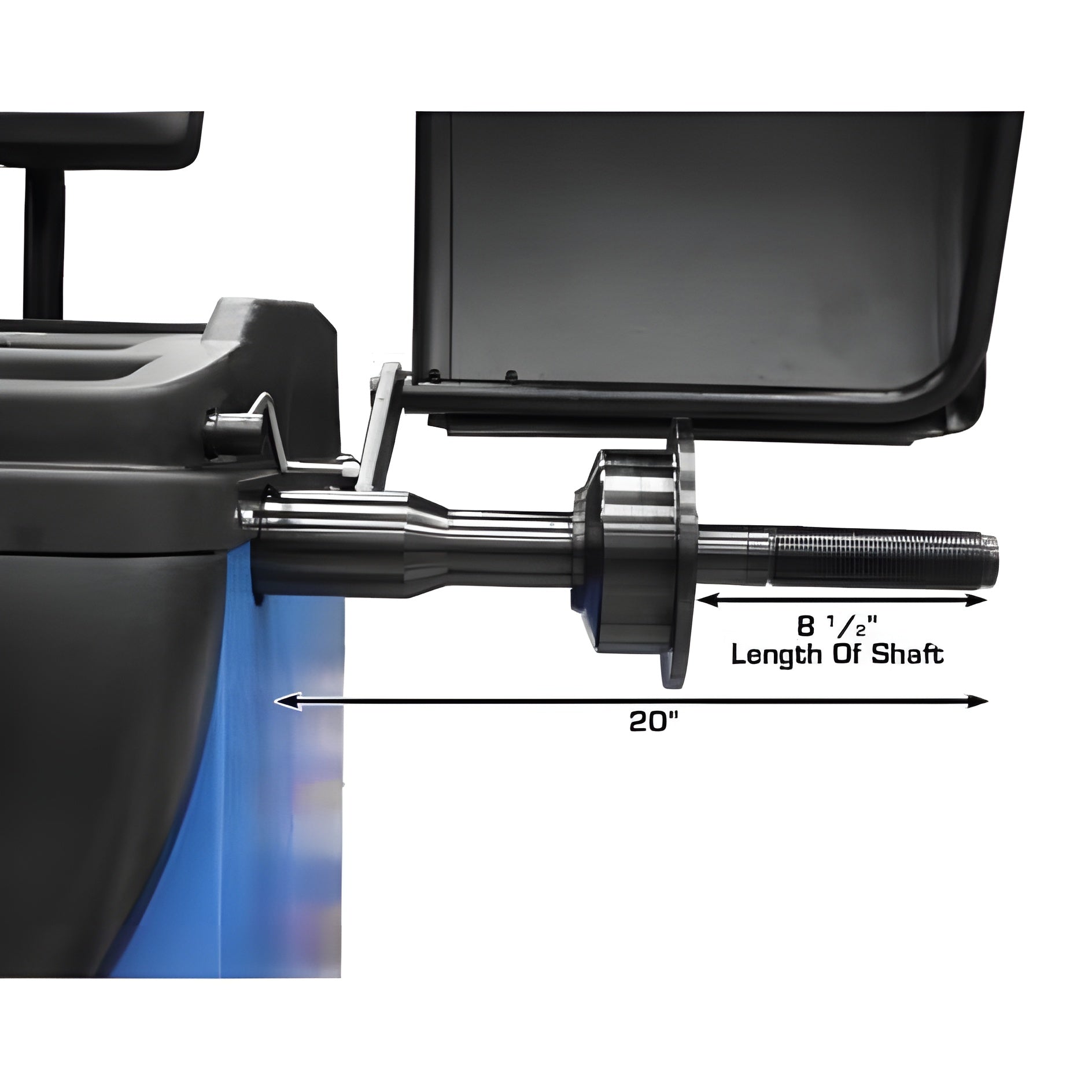

| Shaft Size |
40mm |
| Max. Wheel Weight |
150 lbs. |
| Balancing Speed |
150 rpm |
| Data Entry |
All Dimensions Manual |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Motor |
1/4 HP |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas WB41 Manual
What our Expect Think
-
Comprehensive Tire Service – The Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package combines the power of a high-performance tire changer with a precise wheel balancer, streamlining tire service in one package.
-
Rim Protection – The TC229 Tire Changer features rim-clamp technology, which safely secures tires without damaging the rims, ensuring a high-quality service for all types of wheels.
-
Accurate Wheel Balancing – The WB41 Wheel Balancer delivers accurate results, allowing for smooth driving and reducing vibrations with its easy-to-use calibration and balancing process.
-
Efficient and Time-Saving – This combo is designed for high-volume environments, allowing technicians to change and balance tires quickly, improving workflow and reducing service time.
-
Built for Durability – Both the TC229 and WB41 are constructed with robust materials, offering long-term reliability and performance even in demanding professional environments.
-
Ideal for Professionals – This combo package is perfect for tire shops, automotive service centers, and garages that need reliable and efficient equipment to handle regular tire service demands.
Q&A
Q: What is the Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + WB41 Wheel Balancer Combo Package combines the TC229 tire changer and WB41 wheel balancer, providing an efficient and reliable solution for both tire changing and balancing.
Q: What is included in this combo package?
A: This package includes the Atlas TC229 Tire Changer and the WB41 Wheel Balancer, offering a complete system for professional tire service.
Q: How does the Atlas TC229 Tire Changer work?
A: The TC229 Tire Changer features a rim-clamp system and a powerful bead breaker, making it easy to mount and demount tires, even on difficult rims.
Q: What is the capacity of the WB41 Wheel Balancer?
A: The WB41 Wheel Balancer can handle tires up to 130 lbs, providing precise wheel balancing for a variety of vehicles, from passenger cars to light trucks.
Q: Is this combo package suitable for professional tire shops?
A: Yes, both the TC229 Tire Changer and WB41 Wheel Balancer are designed for high-volume, professional use, offering durability and efficiency for busy automotive shops.
Q: How much space does the combo package require?
A: The TC229 and WB41 are compact, space-saving units that fit well in most shop environments, maximizing both functionality and space efficiency.
Maintenance Tips
-
Routine Inspections: Regularly check both the tire changer and wheel balancer for any signs of wear or damage to keep them in optimal working condition.
-
Keep Equipment Clean: Clean the tire changer, especially around the beadblaster, and the wheel balancer after each use to prevent debris buildup.
-
Lubricate Moving Parts: Apply lubrication to the moving components of both machines to reduce friction and ensure smooth operation.
-
Calibrate the Balancer: Ensure the wheel balancer is calibrated regularly to maintain its accuracy.
