Atlas TC229 Tire Changer + PWB50 Wheel Blancer Combo Package - ATETCWB-COMBO7-FPD
This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas Platinum PWB50 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and the Atlas TC229 carries a and the Atlas Platinum PWB50 carries an extended
Features

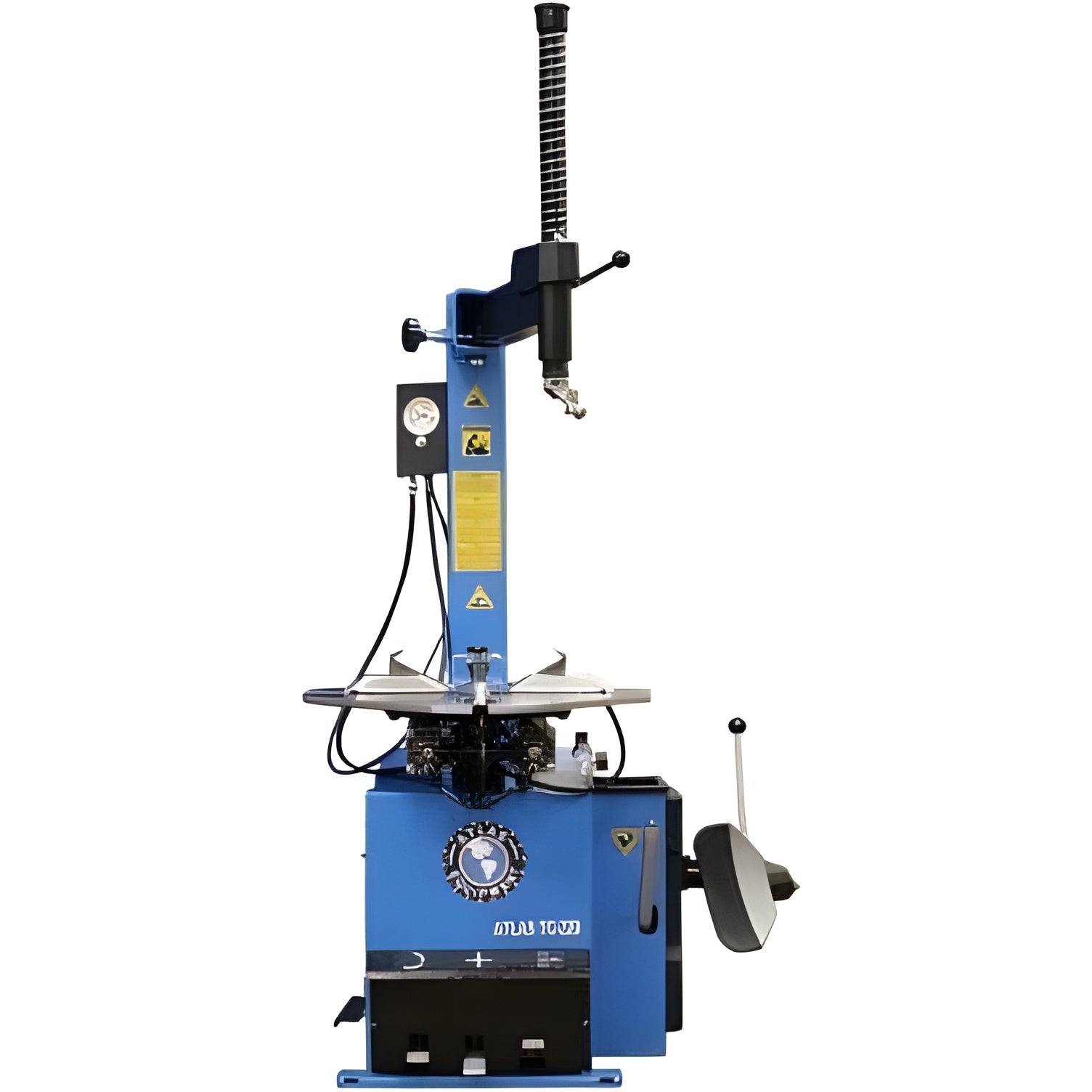

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

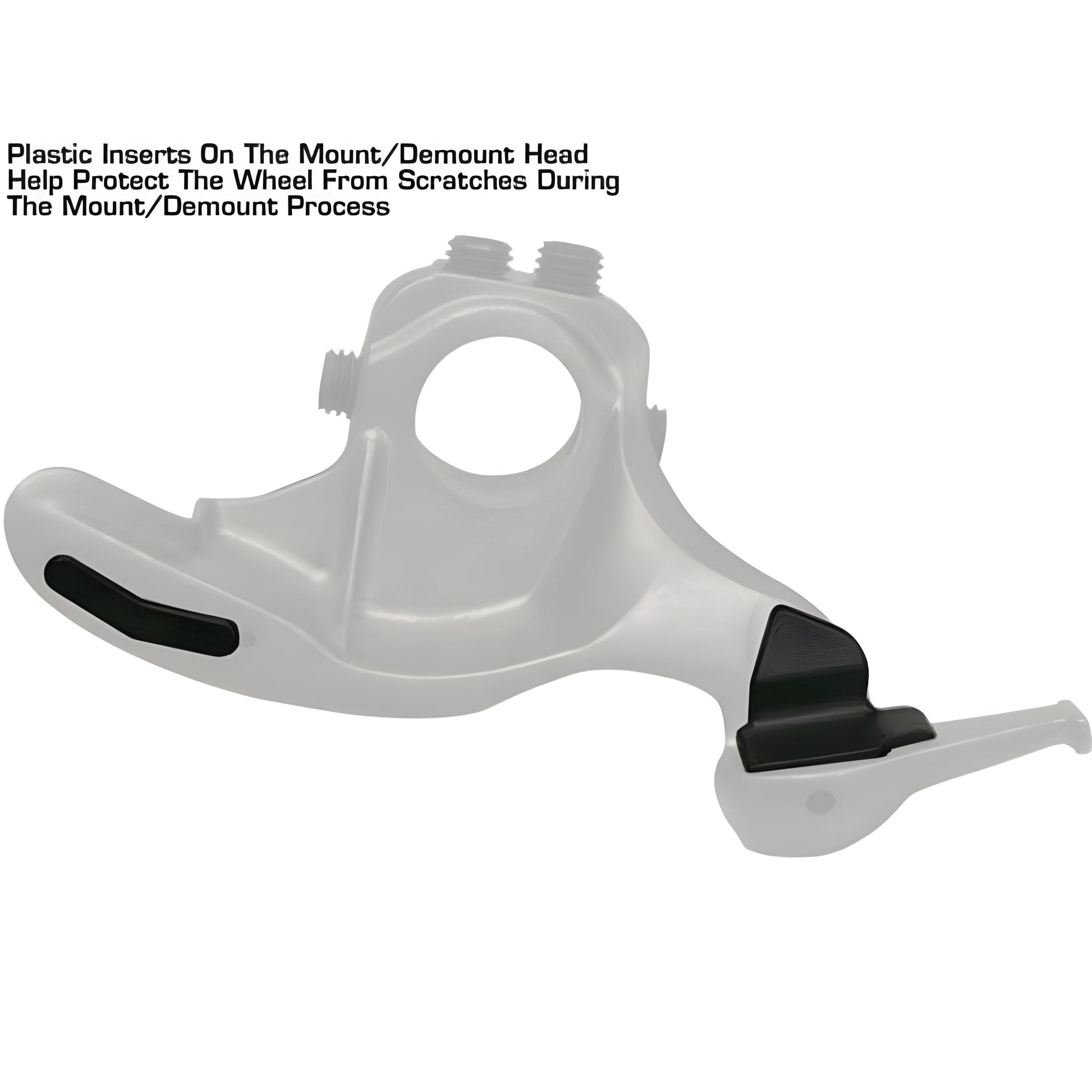

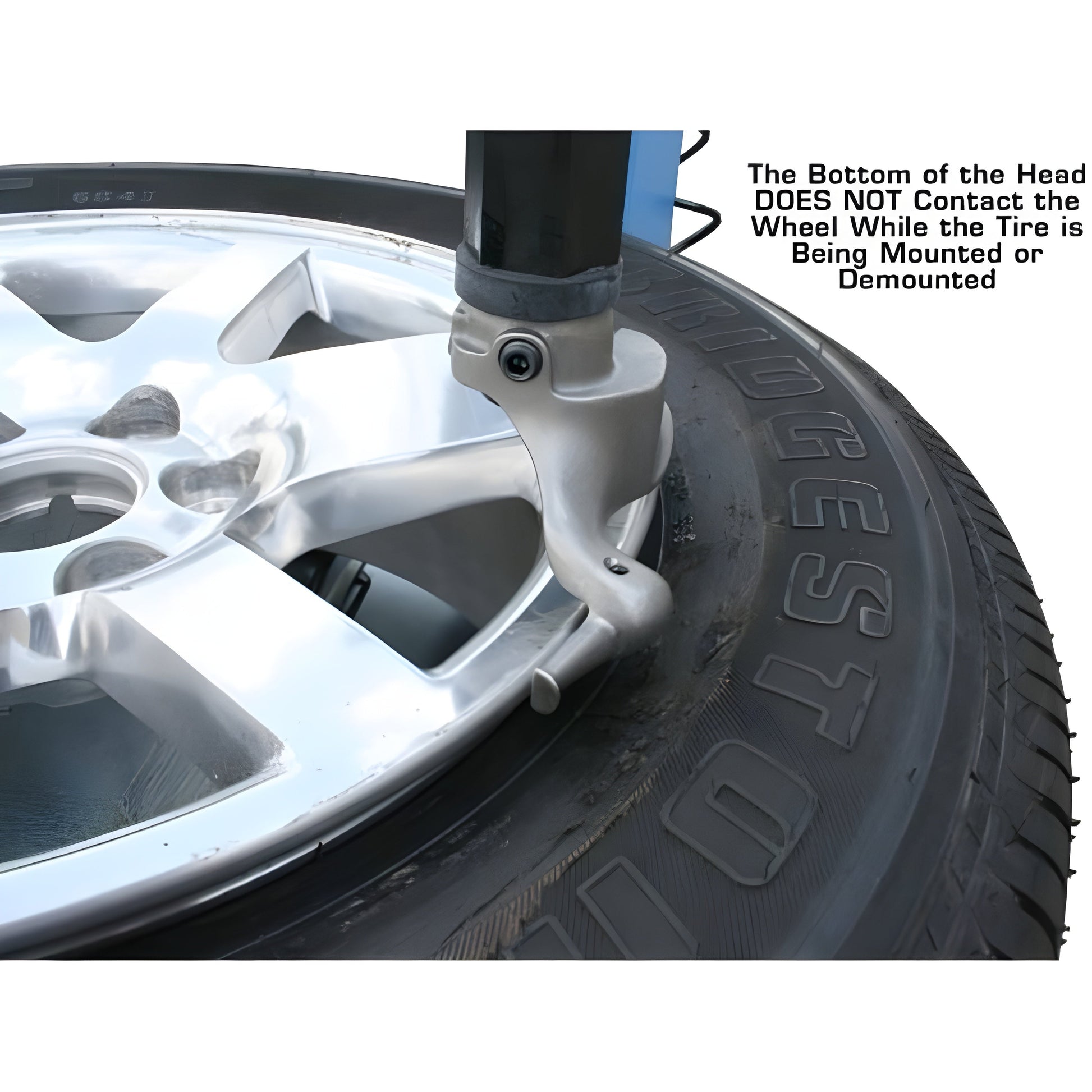

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

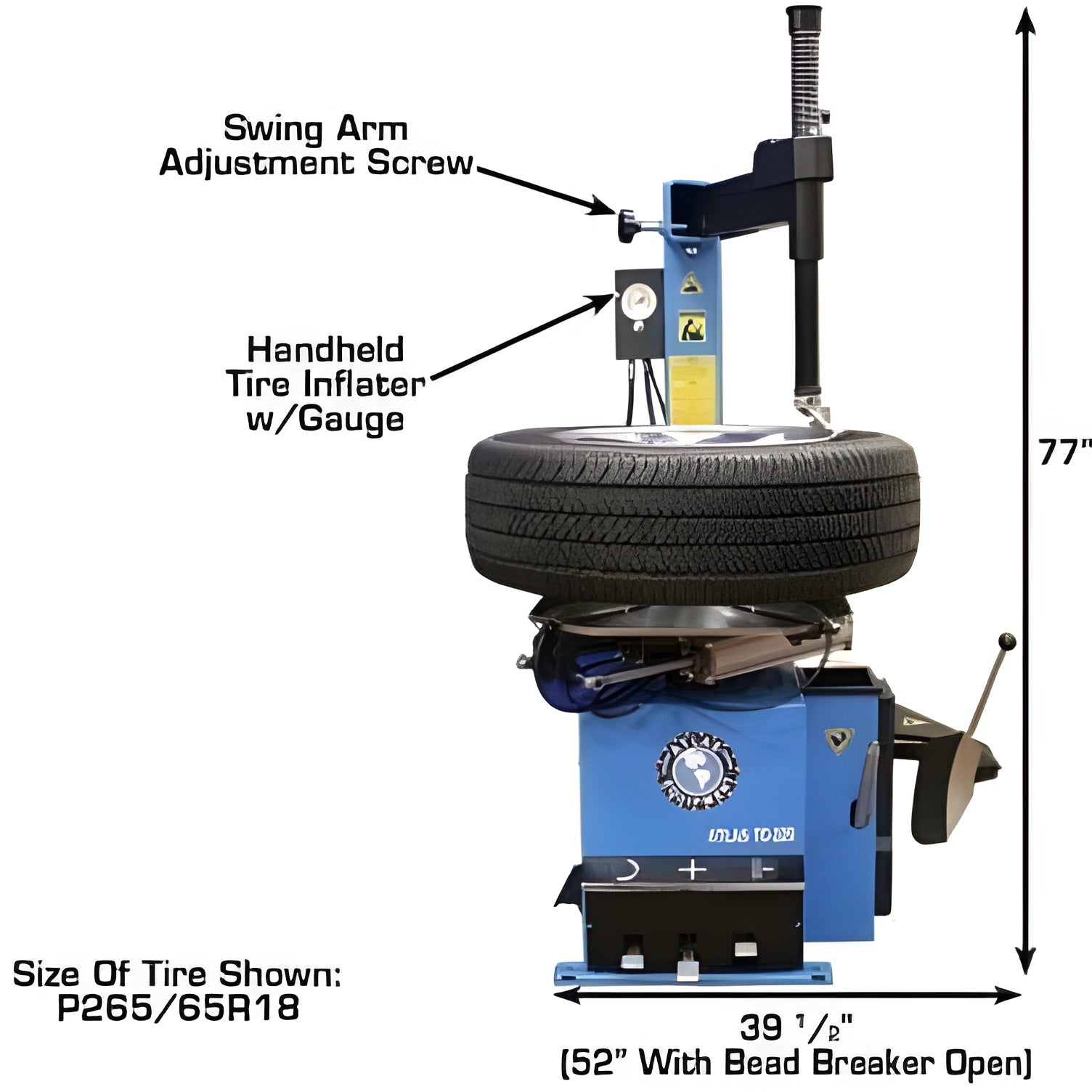

- Column mounted inflator box w/ gauge Included

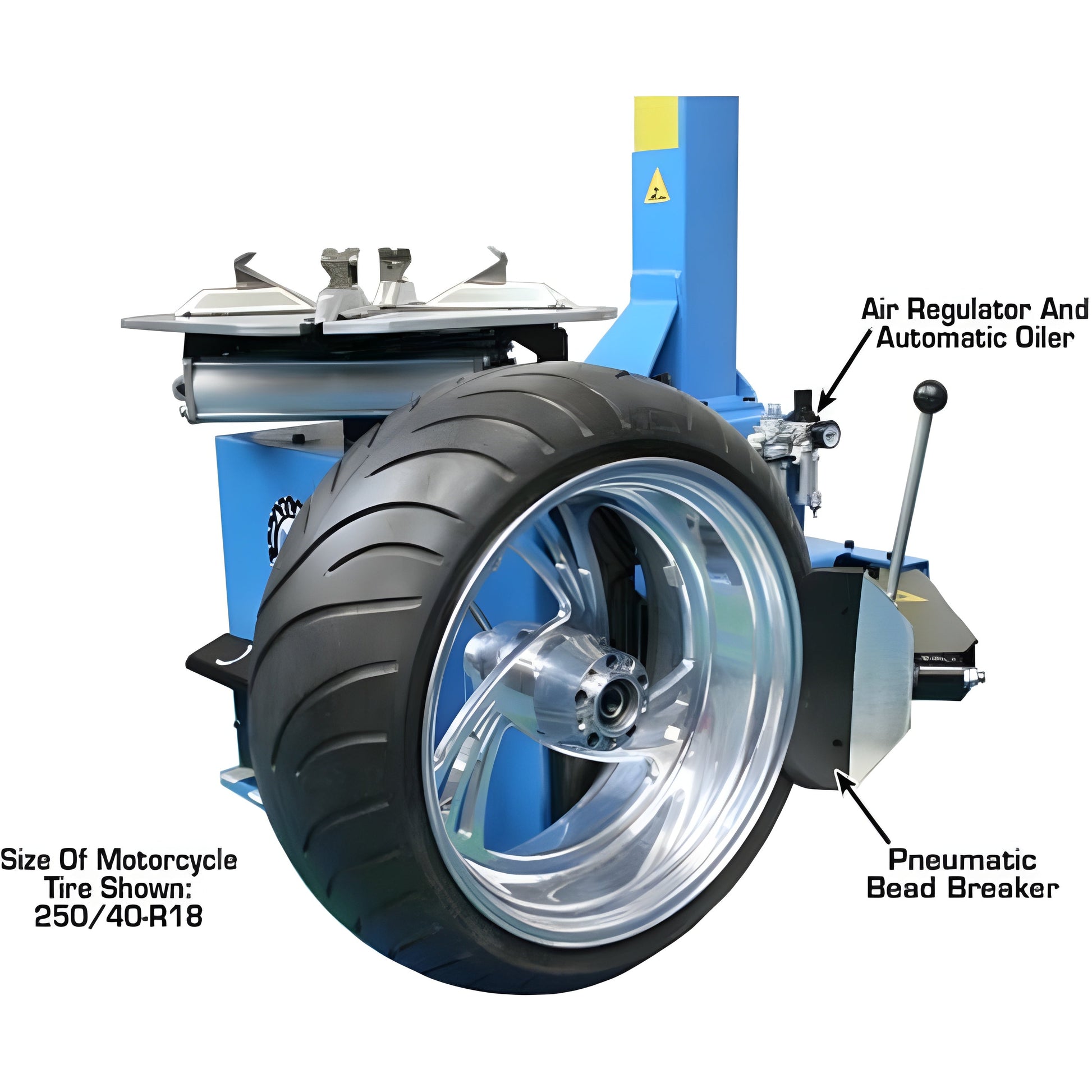

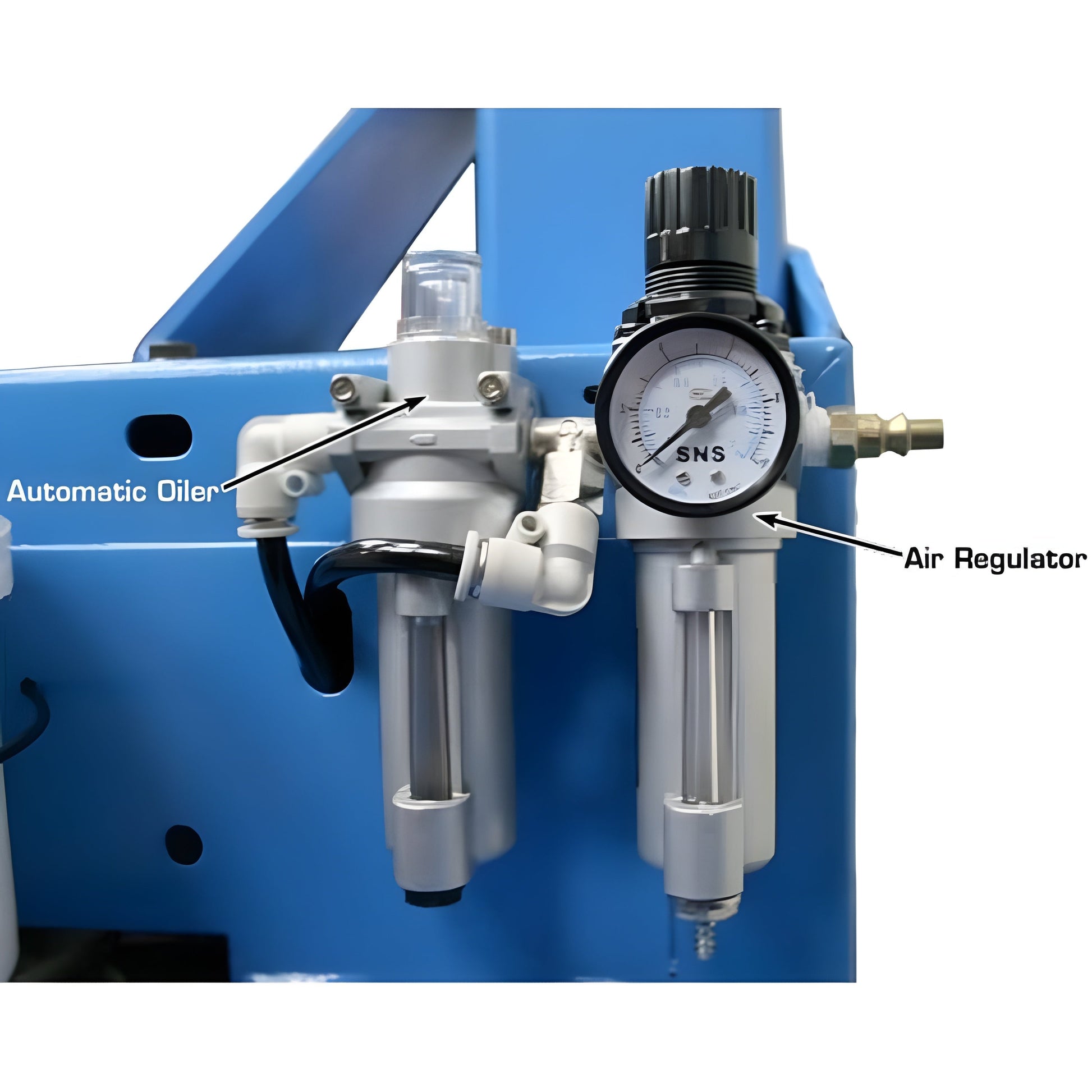

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”

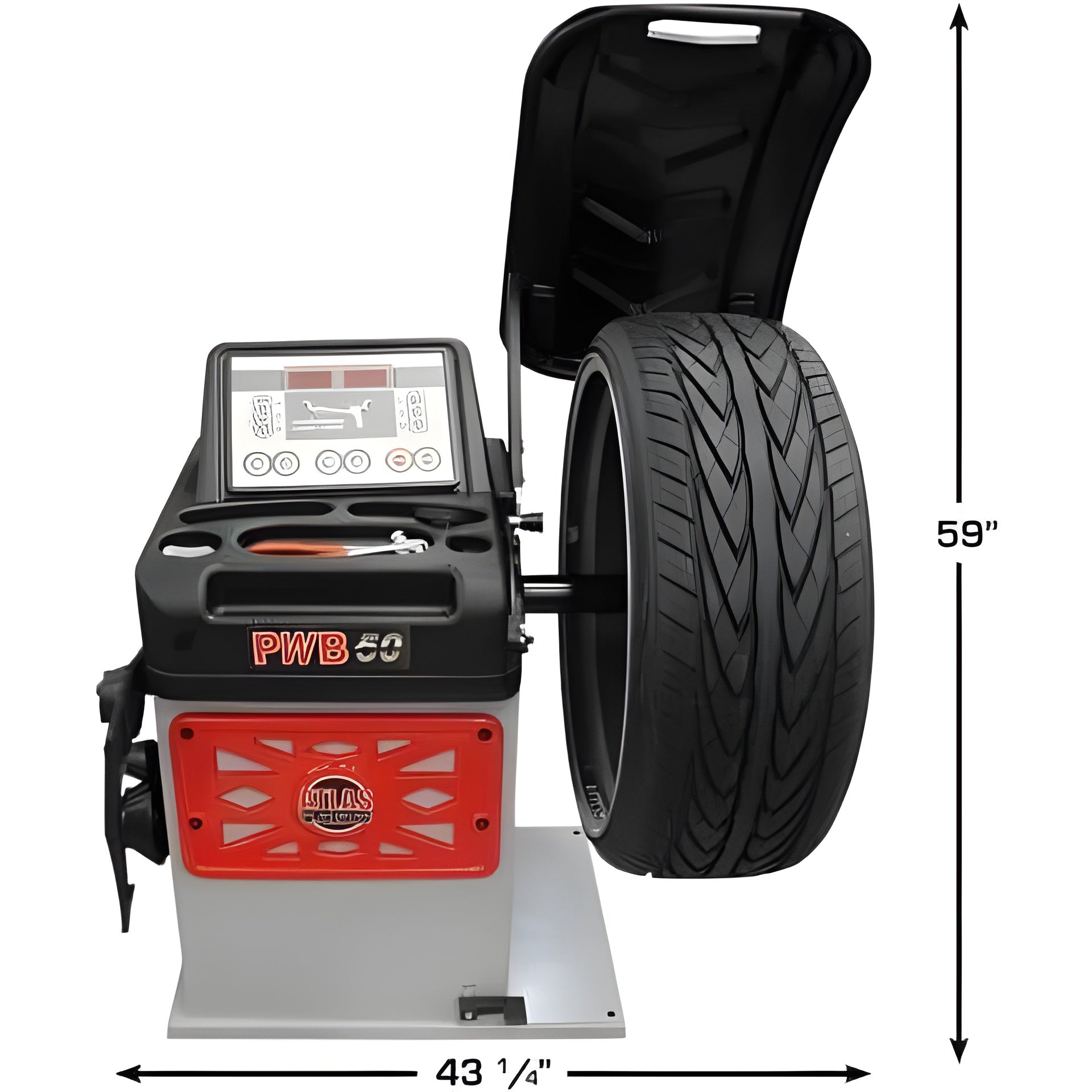

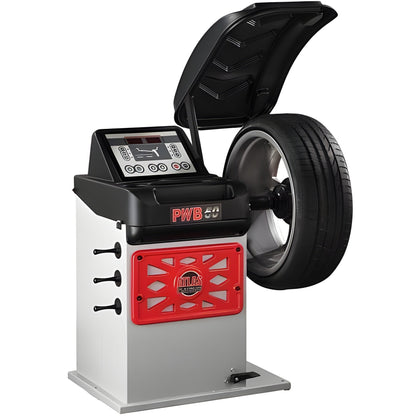

PWB50 Wheel Balancer
- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |

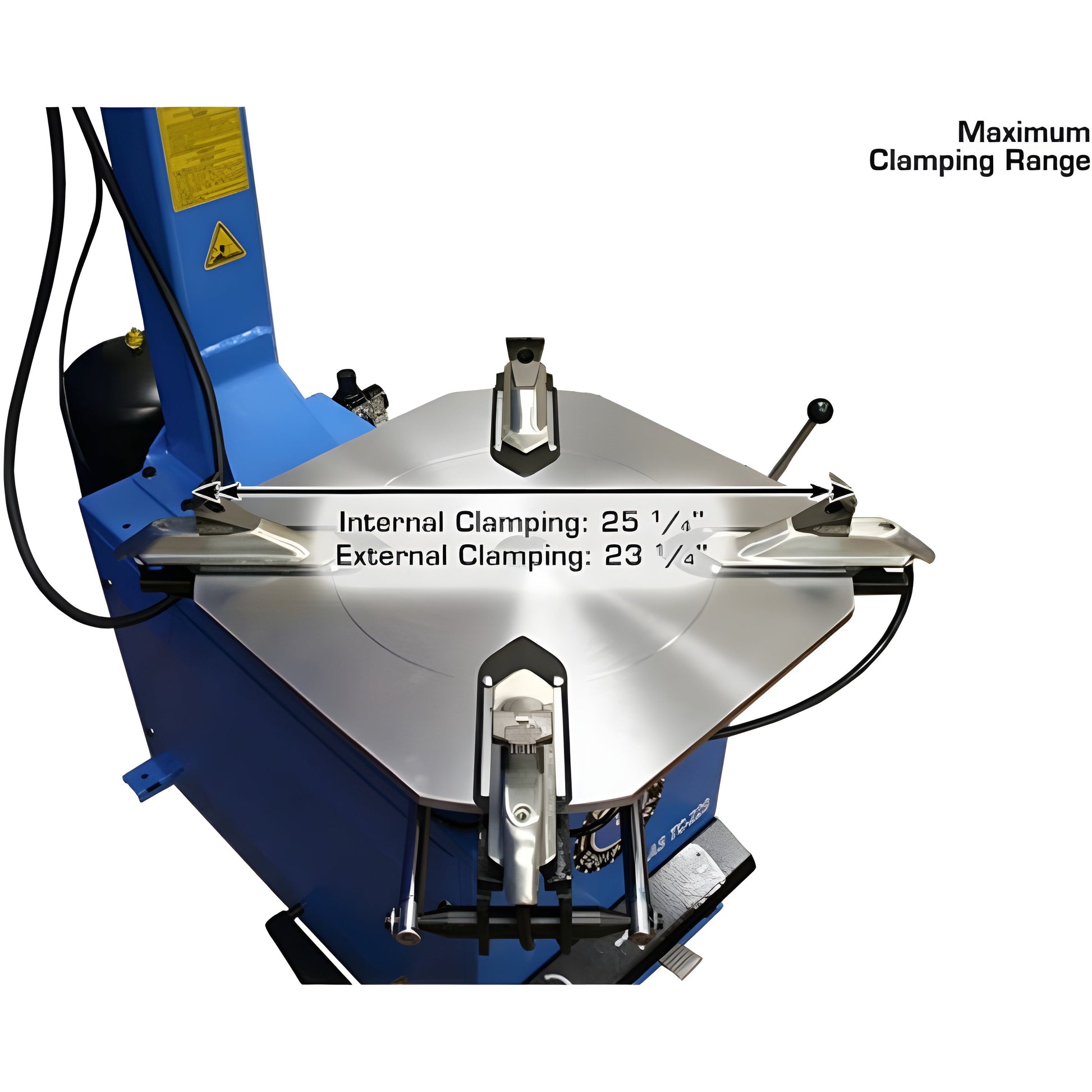

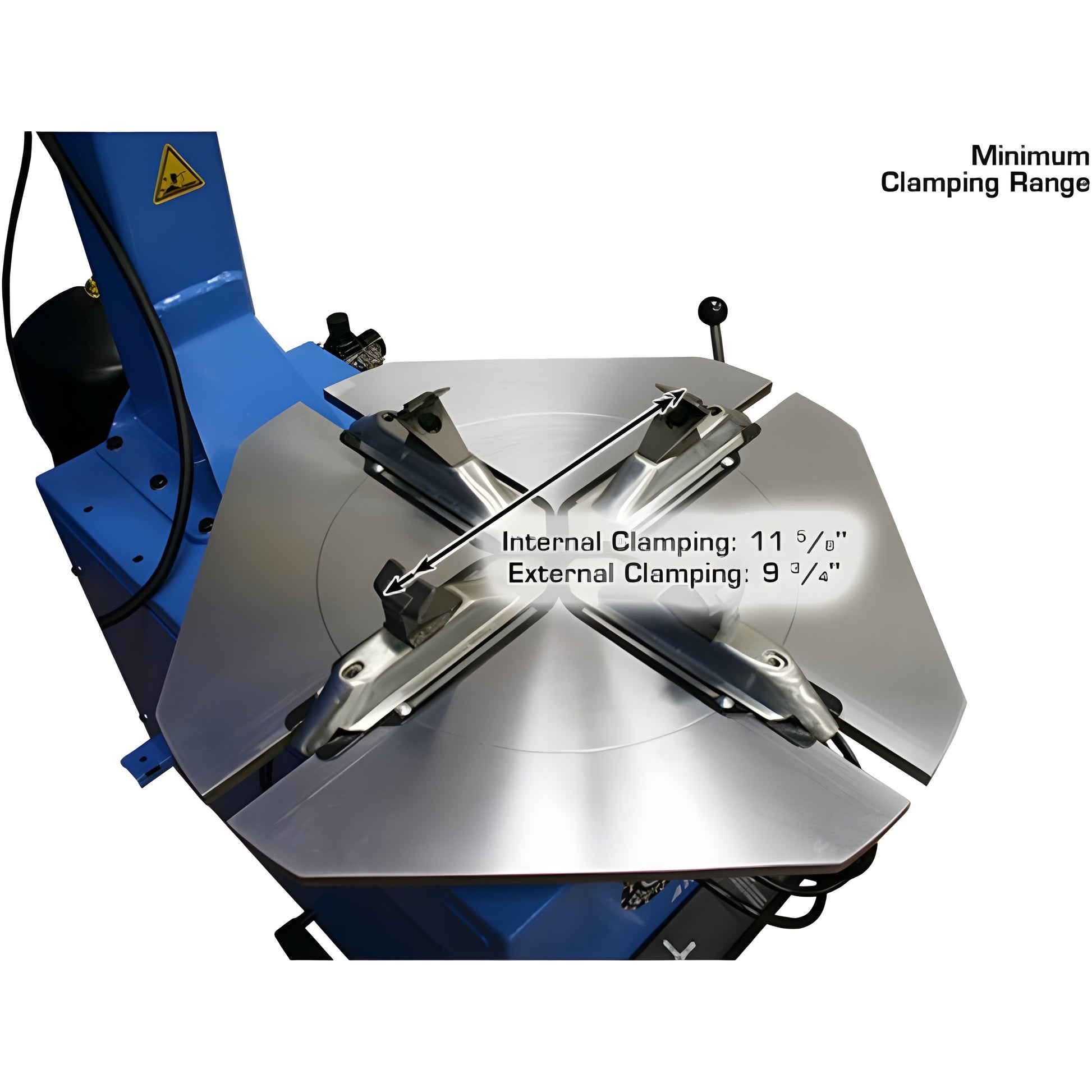

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Shipping Weight |
550 lbs. |
| Atlas® Platinum PWB50 Specifications |
|
| Max Tire Diameter |
43" |
| Rim Sizes (Cars And Light Trucks) |
10"-30" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
165 lbs. |
| Balancing Speed |
130 rpm |
| Data Entry |
Automatic 2D |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Cycle Time |
7 seconds |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas Platinum PWB50 Manual
What our Expect Think
-
Versatile Tire & Wheel Service Solution: The Atlas TC229 Tire Changer and PWB50 Wheel Balancer combo is ideal for shops handling a variety of tire and wheel sizes.
-
User-Friendly Operation: Designed for efficiency, the TC229 tire changer ensures smooth mounting and demounting, while the PWB50 wheel balancer provides precise balancing.
-
Durable & Reliable Performance: Built to withstand heavy shop use, this combo delivers consistent results for professionals and enthusiasts alike.
-
Great Value for Auto Shops: A cost-effective package that enhances workflow and reduces service time for high-demand tire and wheel maintenance.
Q&A
Q: What is included in the Atlas TC229 + PWB50 Combo Package?
A: This package includes the Atlas TC229 Tire Changer and the PWB50 Wheel Balancer.
Q: What tire sizes can the TC229 Tire Changer handle?
A: It accommodates rims from 12" to 26" in diameter.
Q: Does the TC229 have a bead blaster?
A: Yes, it includes a powerful bead blaster for efficient seating.
Q: What type of wheel balancer is the PWB50?
A: It is a computerized, highly accurate wheel balancer with easy-to-read digital display.
Q: What is the max wheel weight capacity for the PWB50?
A: It can handle wheels up to 150 lbs.
Q: Is this combo suitable for commercial use?
A: Yes, it is designed for professional shops and high-volume tire service centers.
Q: Is assembly required?
A: Some assembly is required, but setup is straightforward.
Maintenance Tips
-
Daily Cleaning – Wipe down surfaces, remove debris from clamps, and keep the bead breaker area clean.
-
Lubrication – Apply grease to moving parts (turntable, bead breaker, and air cylinders) monthly.
-
Air Supply Check – Ensure proper PSI and drain moisture from the air compressor regularly.
-
Hydraulic & Electrical Inspection – Check for leaks, worn wires, and loose connections.
-
Calibrate the Balancer – Perform routine calibration for accurate weight measurement.
-
Tighten Fasteners – Regularly inspect bolts, nuts, and fittings for tightness.
-
Proper Storage – Keep in a dry, dust-free environment when not in use.
