Atlas TC229 Tire Changer + PWB50 Wheel Blancer Combo Package - ATETCWB-COMBO7-FPD

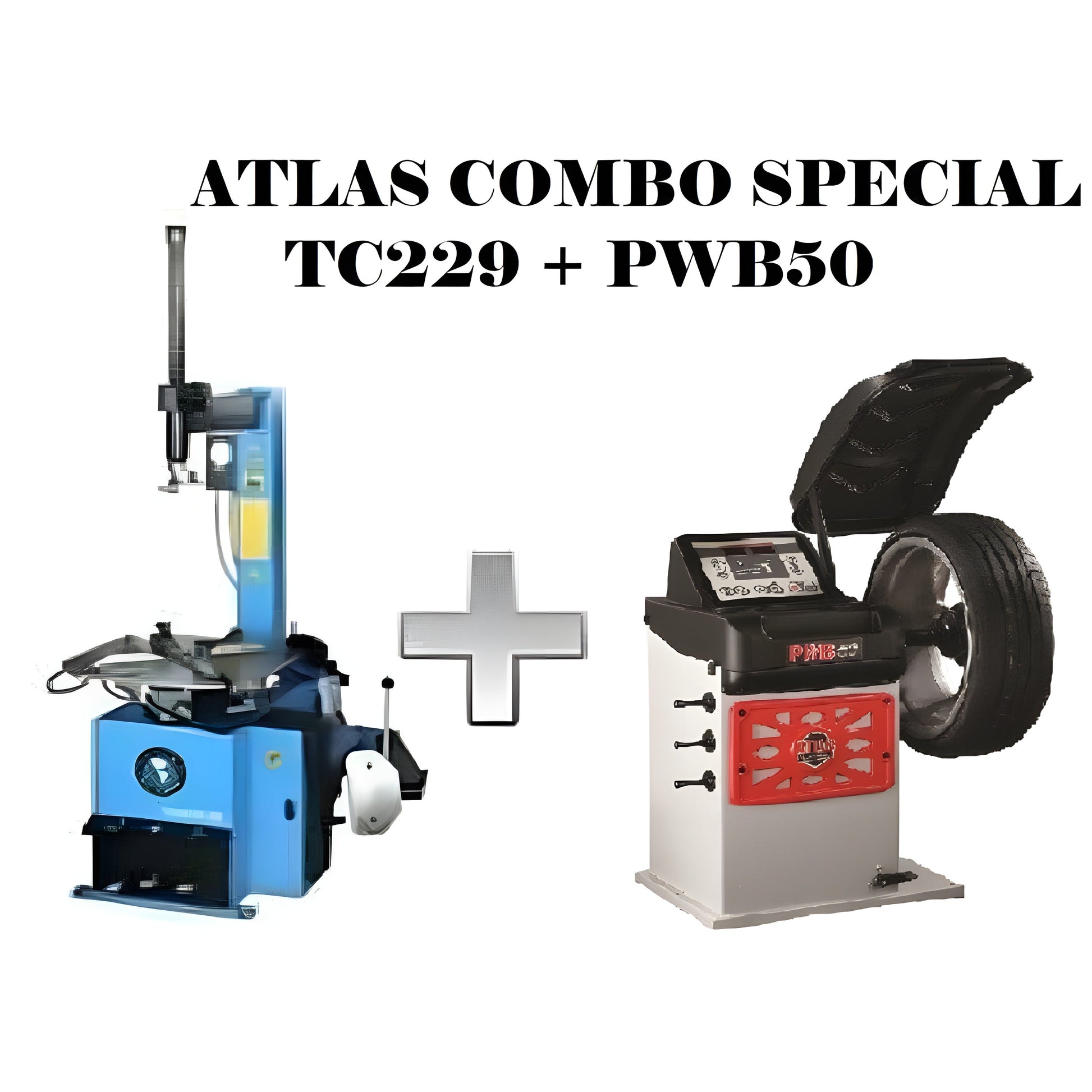

This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas Platinum PWB50 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and the Atlas TC229 carries a and the Atlas® Platinum PWB50 carries an extended
Features

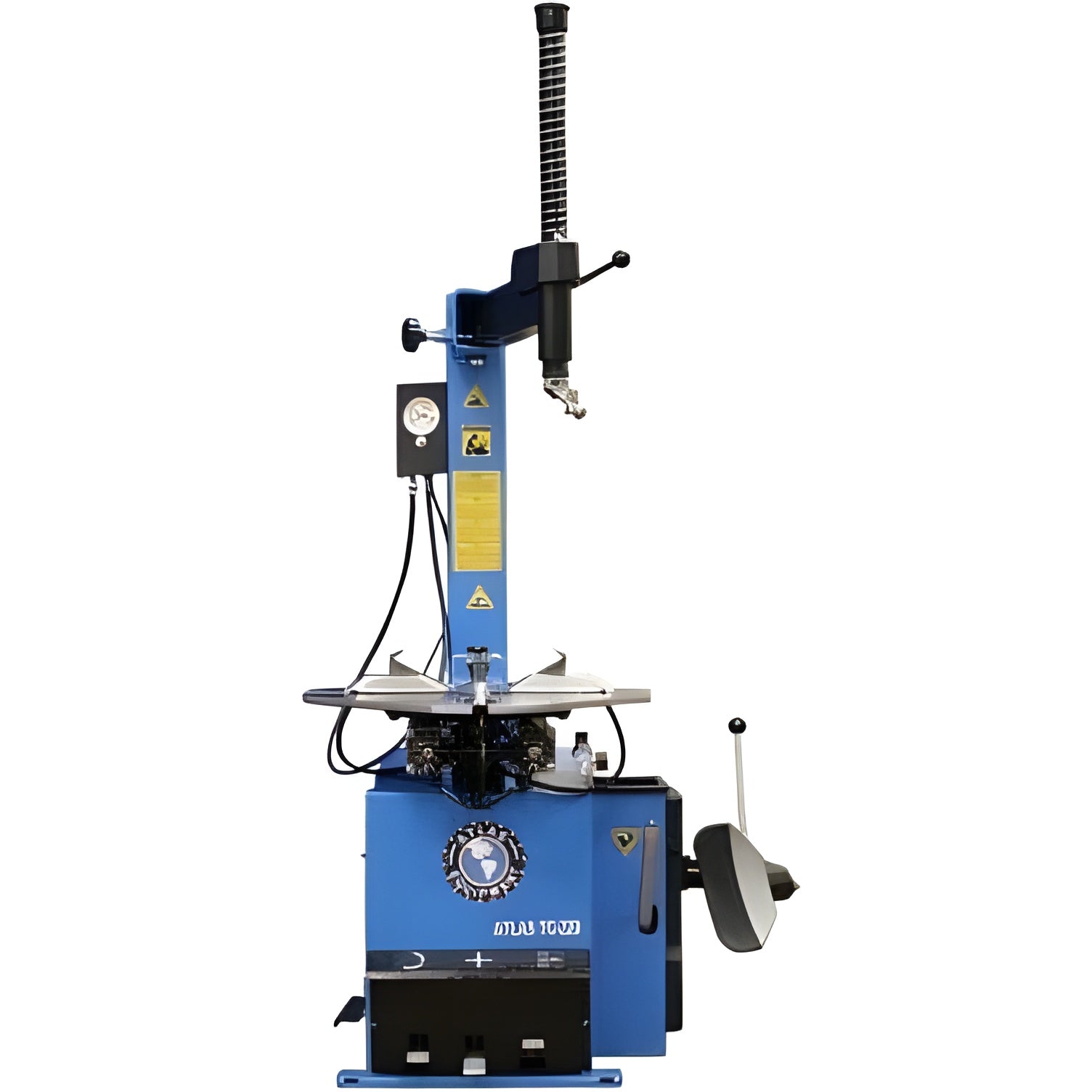

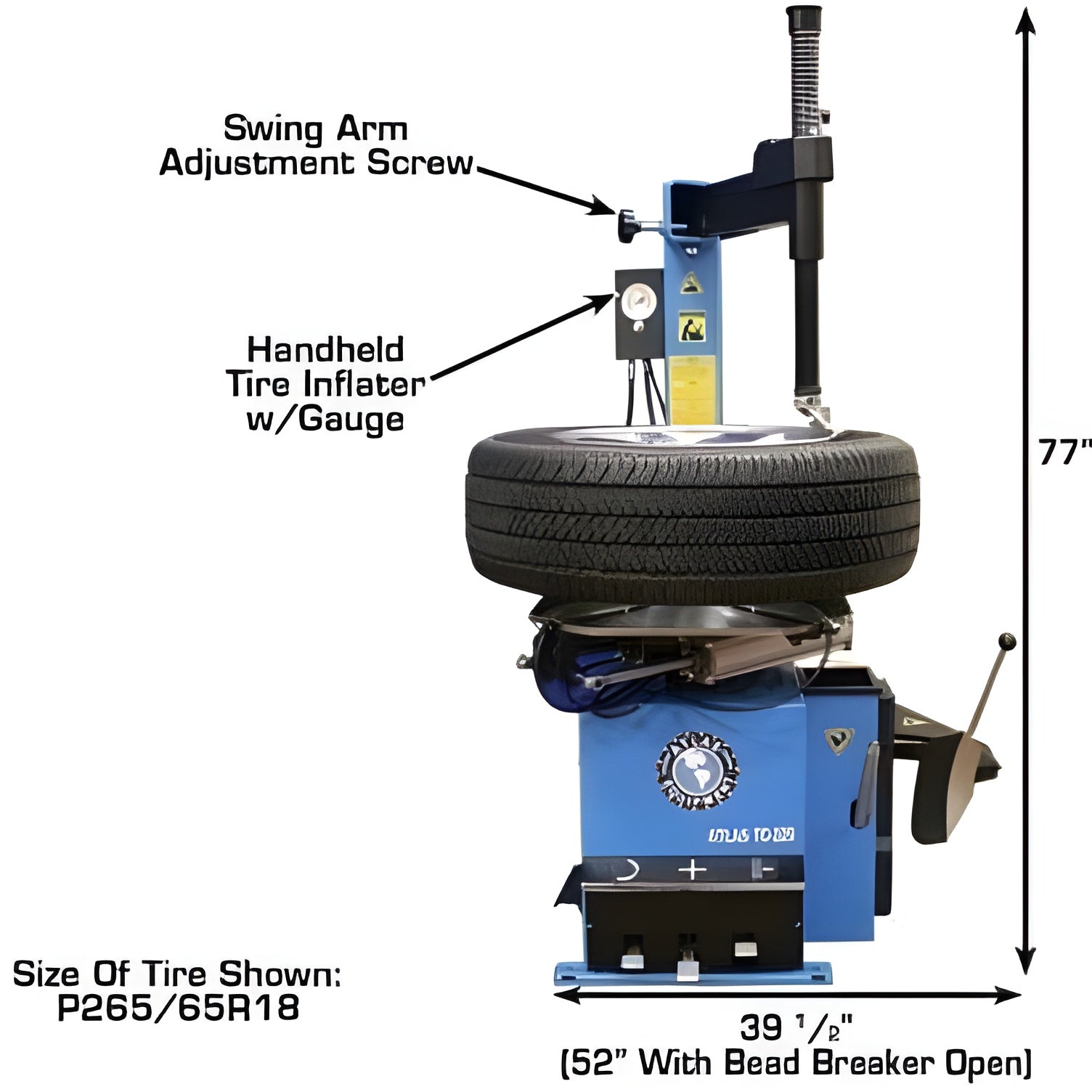

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer

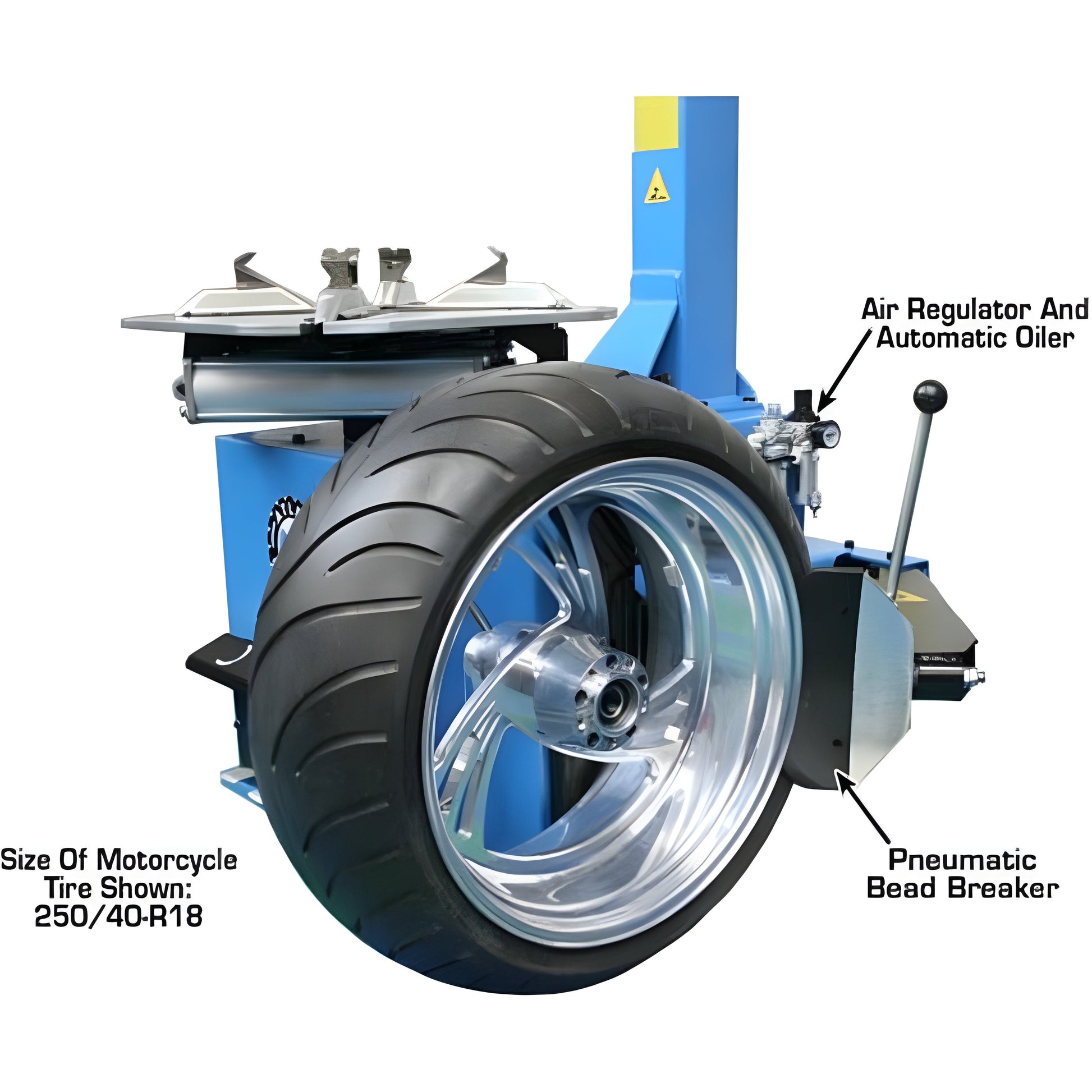

- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions

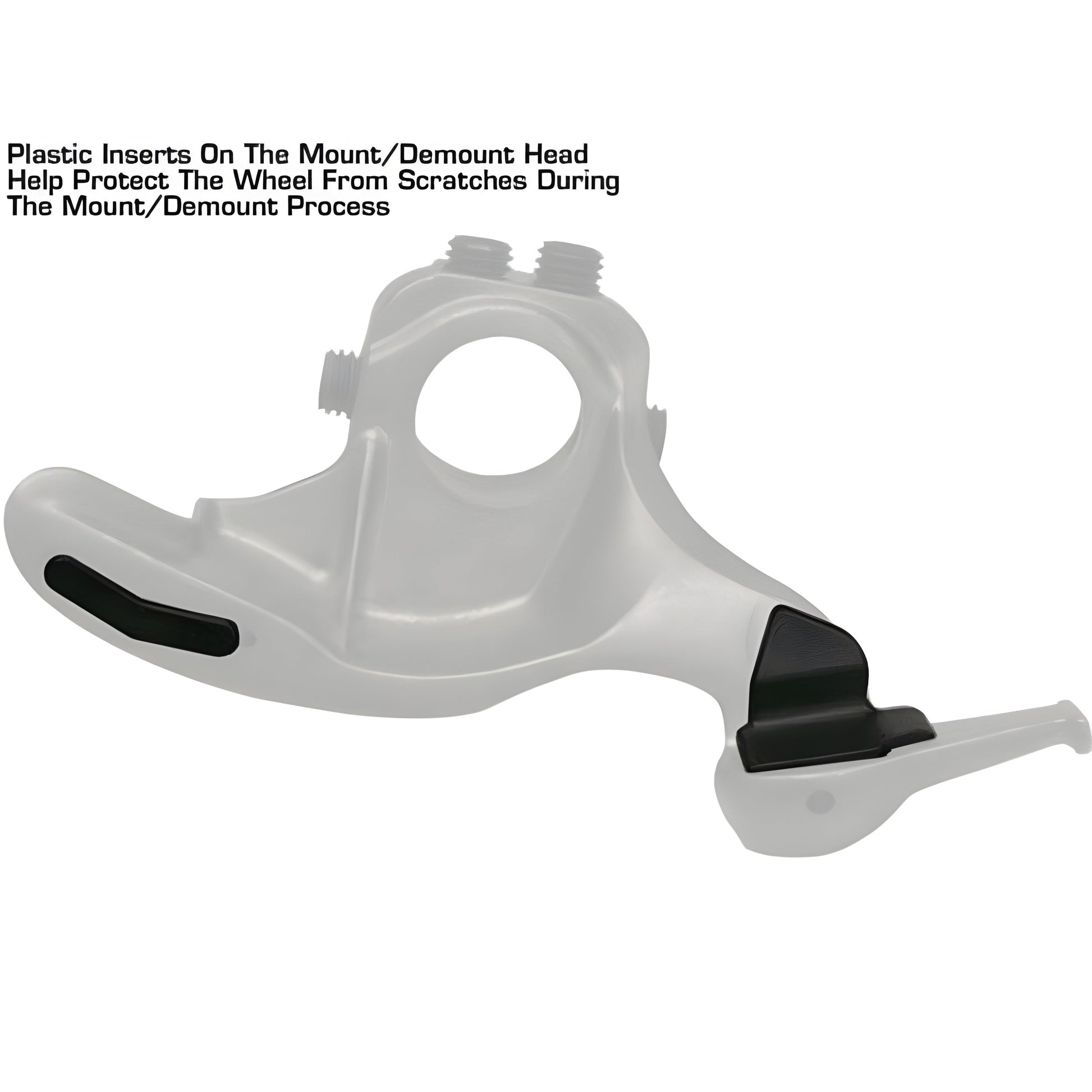

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included

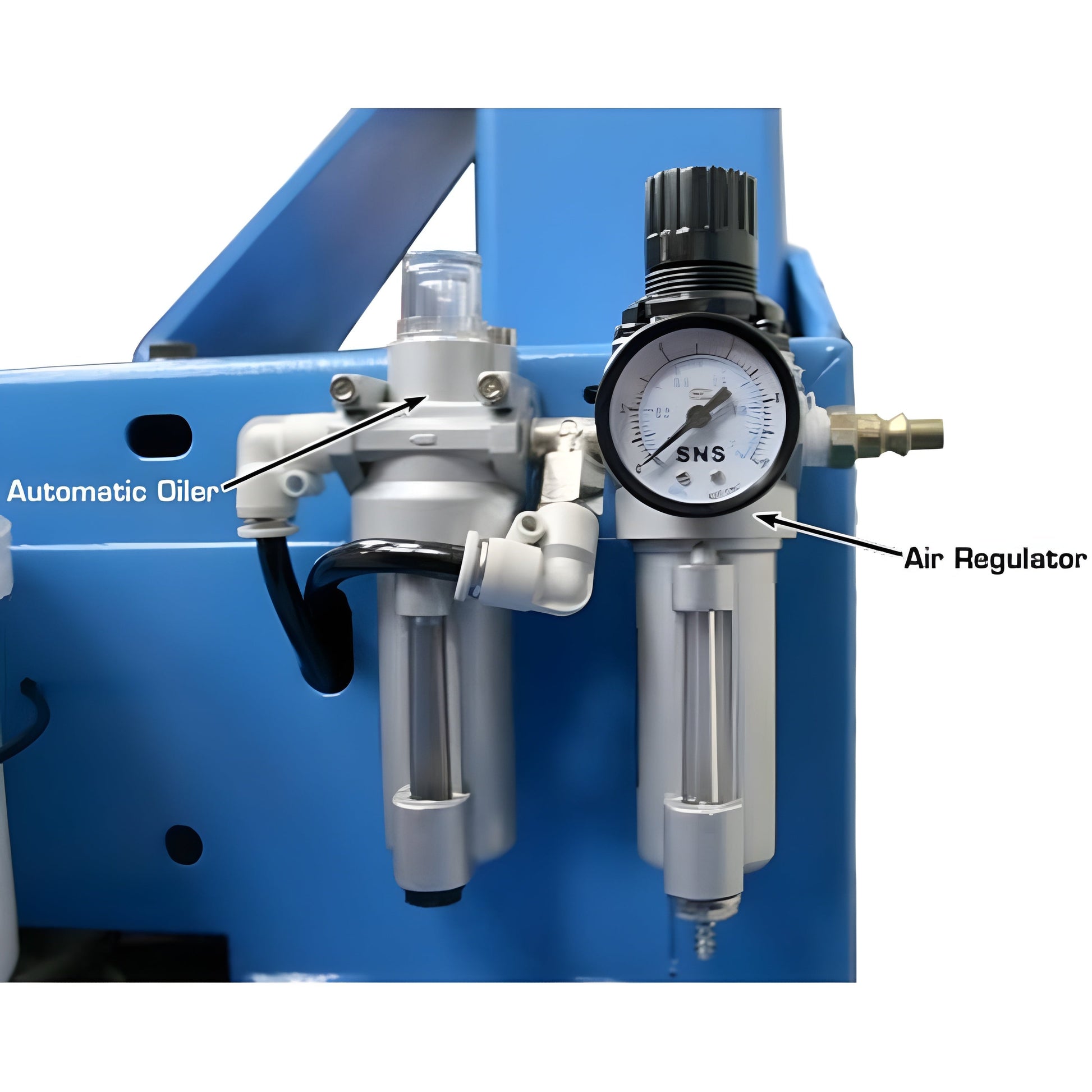

- Filter/Regulator/Lubricator Included

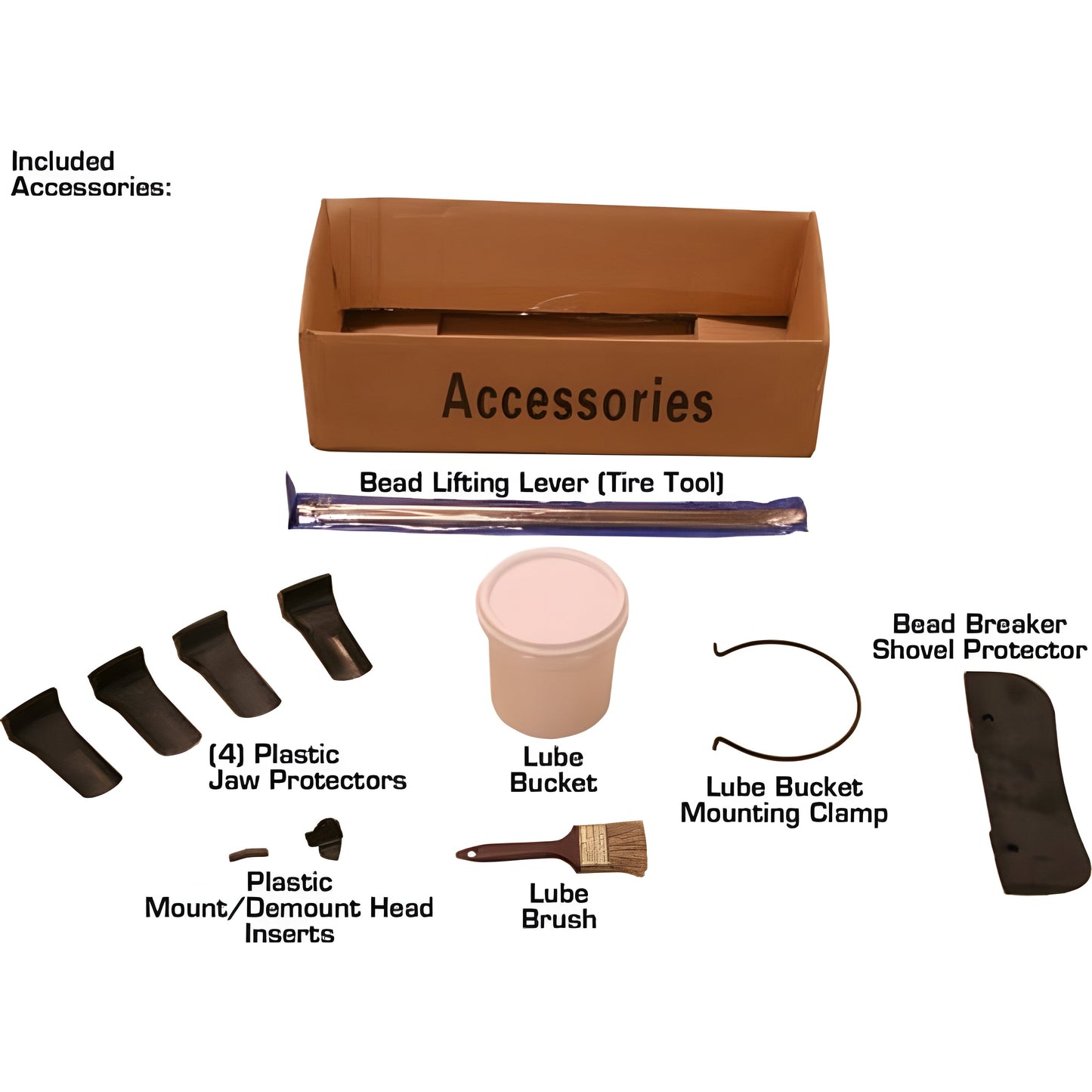

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

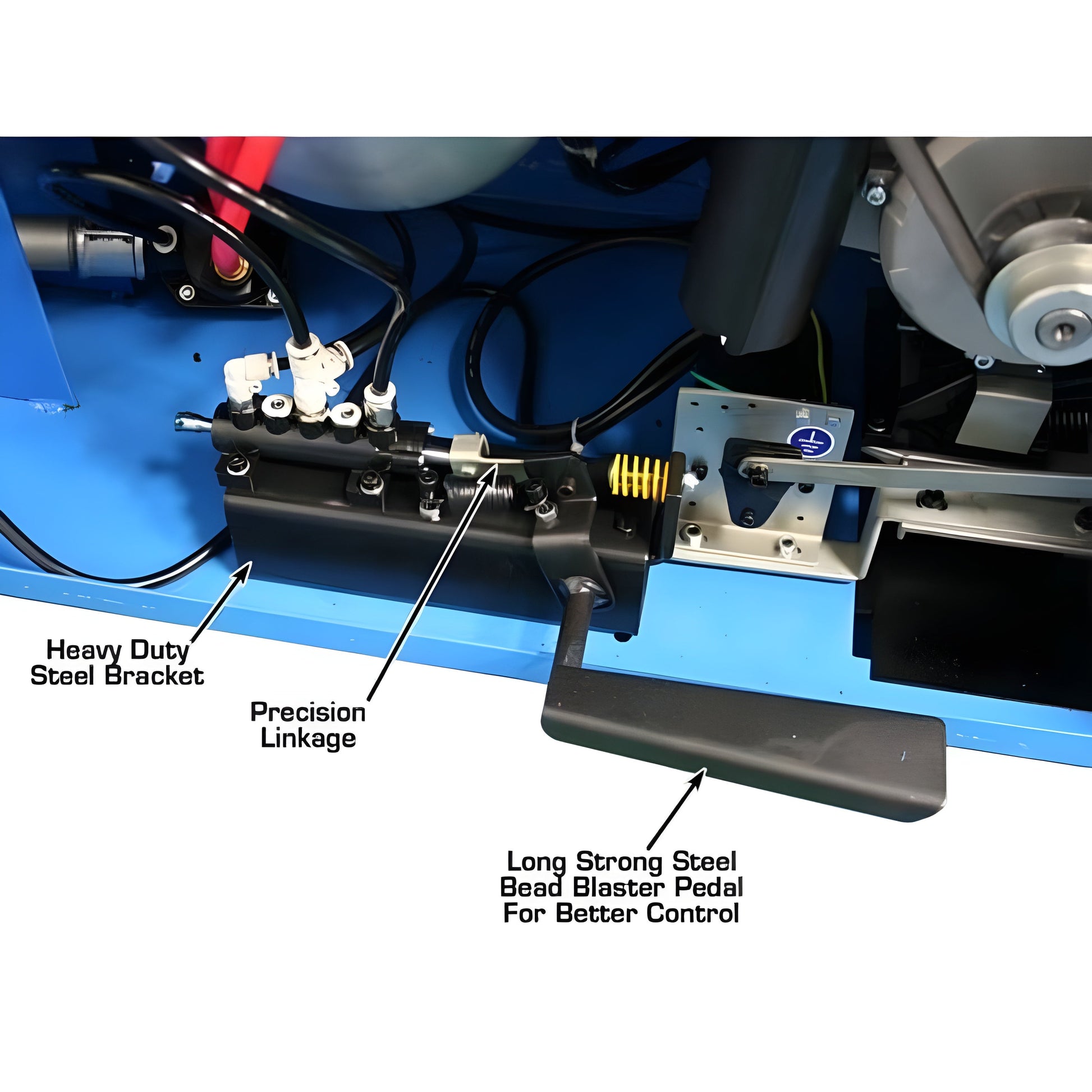

- Built in “Beadblaster”

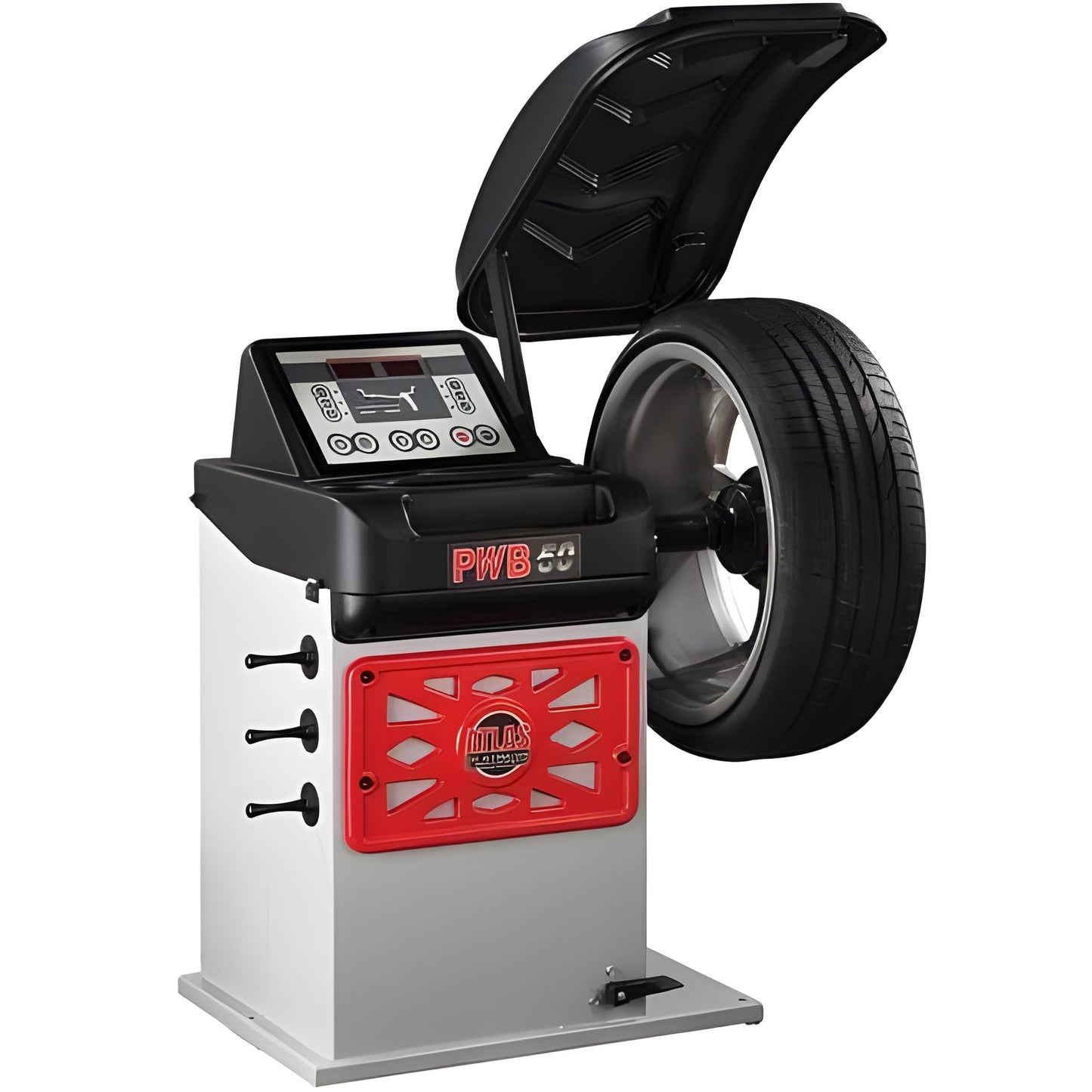

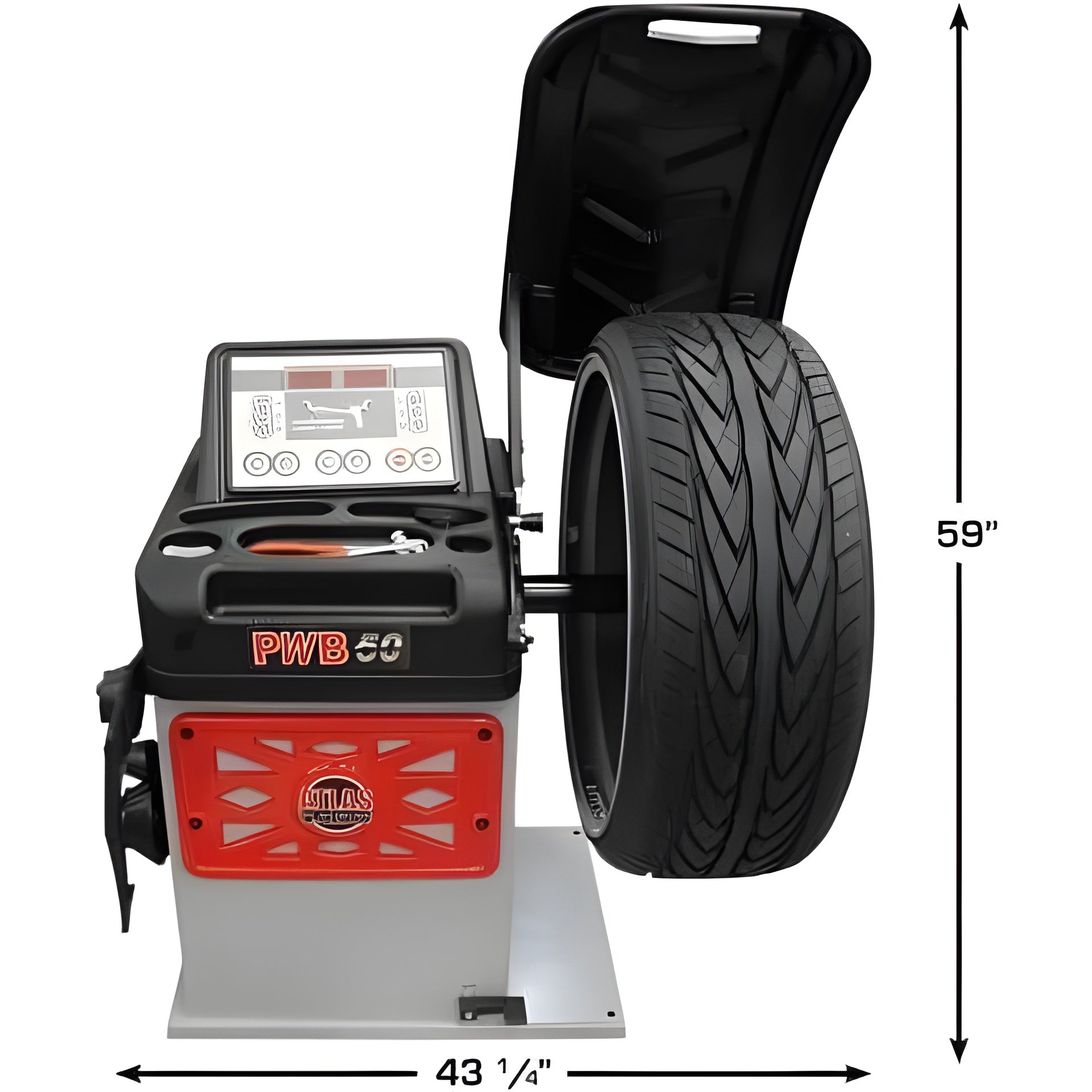

PWB50 Wheel Balancer
- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |

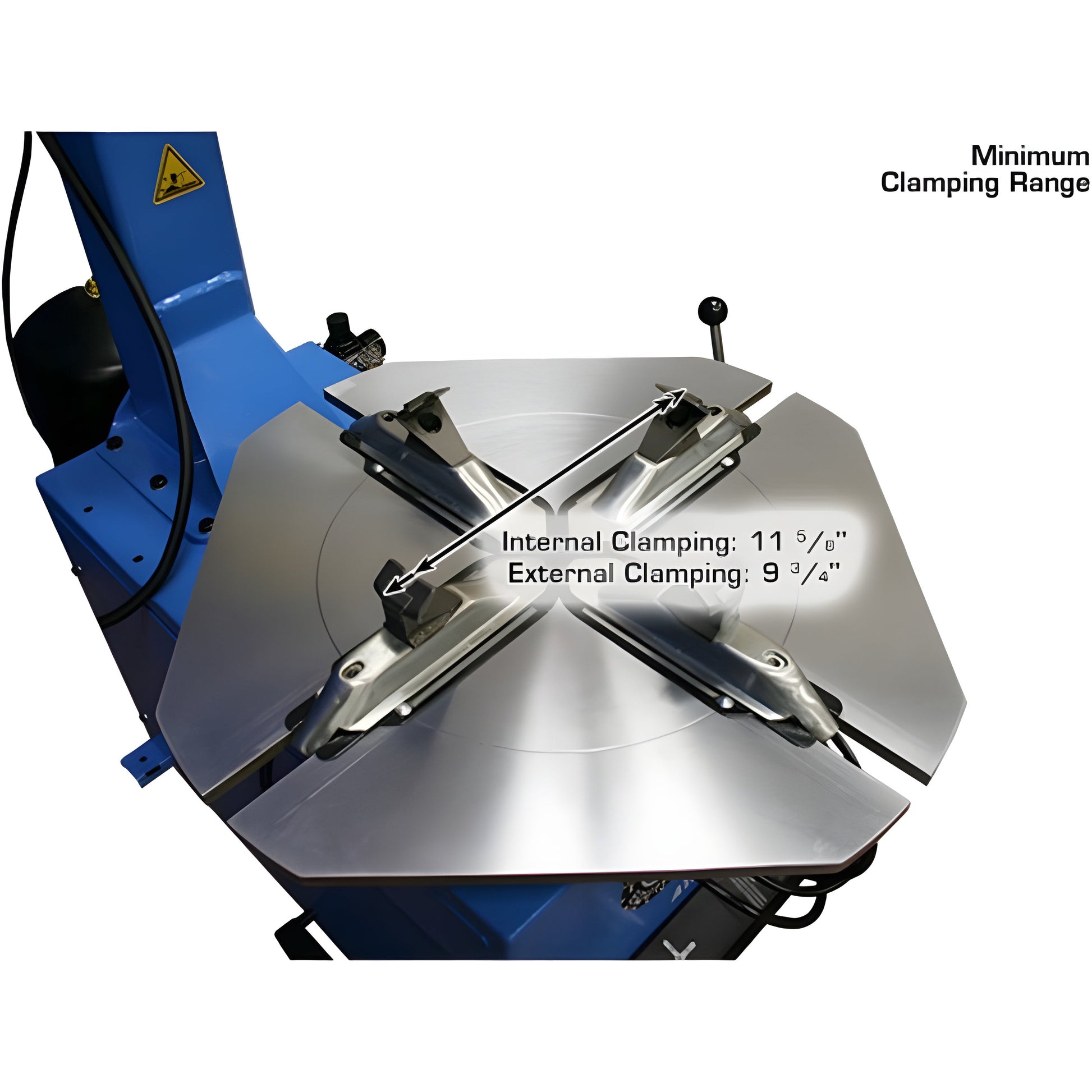

| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|

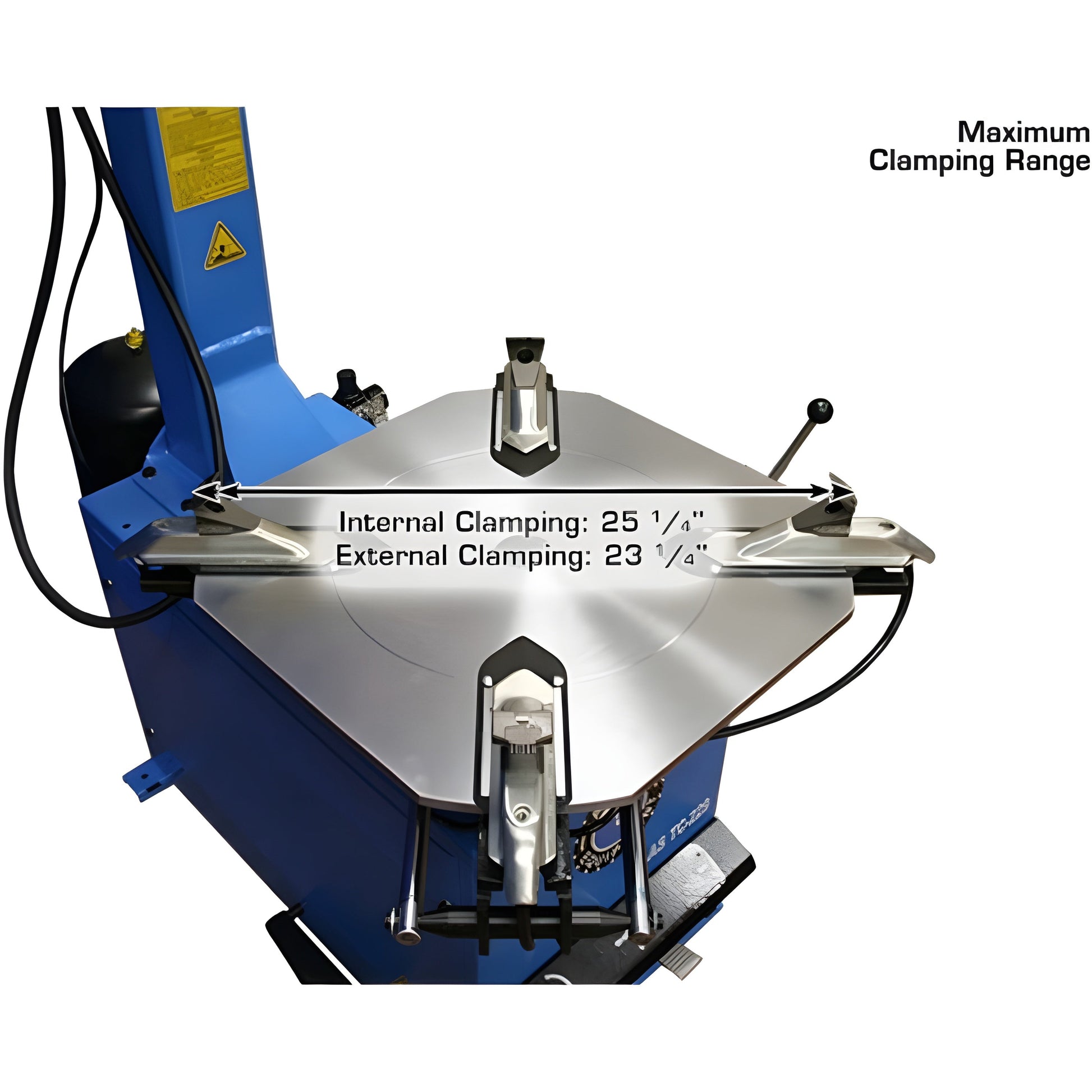

| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |

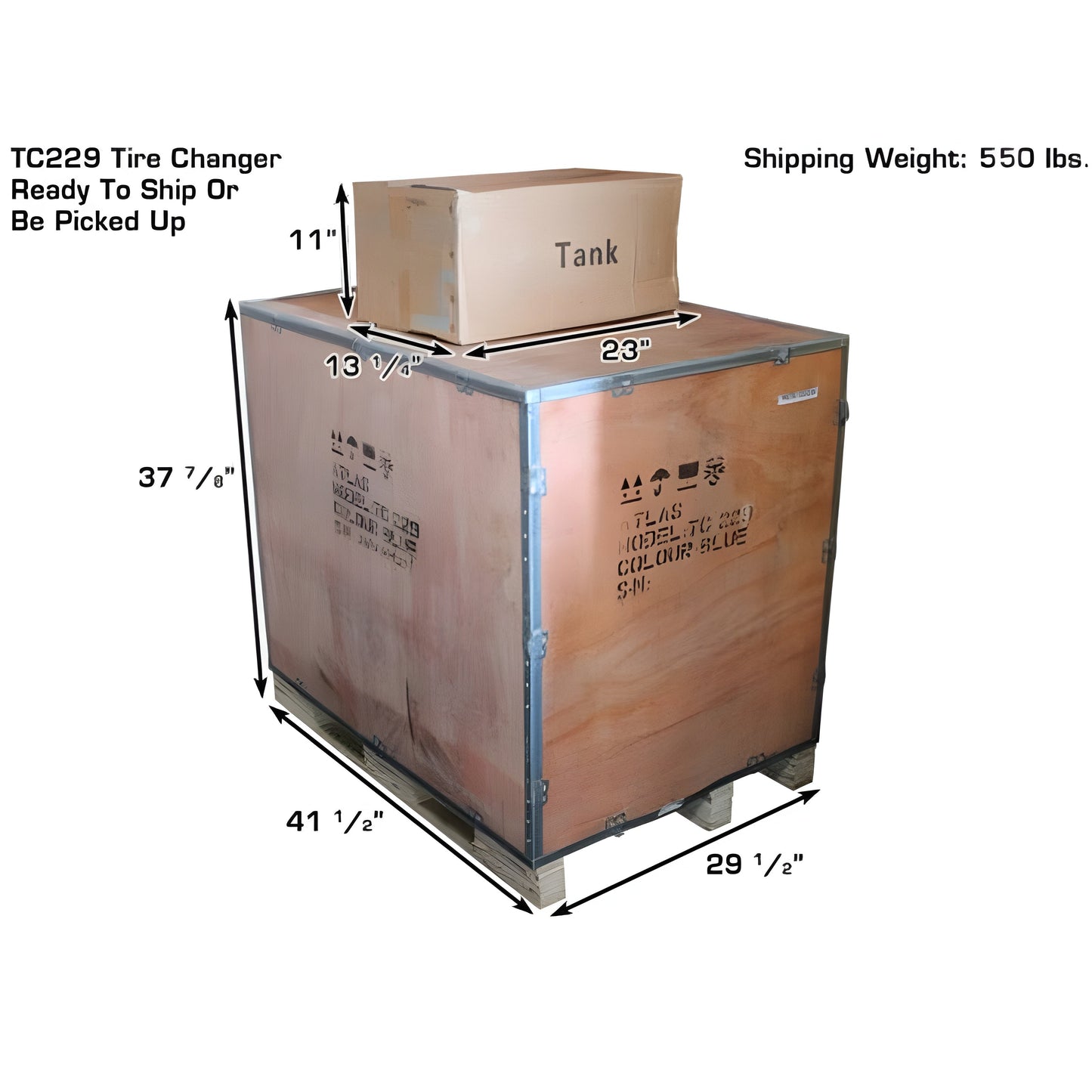

| Shipping Weight |
550 lbs. |
| Atlas Platinum PWB50 Specifications |
|
| Max Tire Diameter |
43" |
| Rim Sizes (Cars And Light Trucks) |
10"-30" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
165 lbs. |
| Balancing Speed |
130 rpm |
| Data Entry |
Automatic 2D |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Cycle Time |
7 seconds |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas Platinum PWB50 Manual
What our Expect Think
-
Complete Tire Service Solution – This combo package includes the Atlas TC229 Tire Changer and the PWB50 Wheel Balancer, making it an all-in-one solution for efficient tire service.
-
High Capacity – The TC229 Tire Changer is designed for heavy-duty use, capable of handling a wide range of tire sizes and types, from passenger vehicles to light trucks.
-
Precision Balancing – The PWB50 Wheel Balancer offers precise and accurate balancing, ensuring smooth rides and increased tire longevity.
-
User-Friendly – Both the tire changer and wheel balancer feature easy-to-use interfaces, reducing operator fatigue and increasing productivity.
-
Durable and Long-Lasting – Built with high-quality materials, this combo is designed for long-term, reliable performance, even in busy automotive shops.
-
Professional Performance – Perfect for auto shops or serious enthusiasts, the combination of these two machines guarantees a professional, high-quality service.
Q&A
Q: What is the Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package is a complete tire changing and balancing solution, combining the TC229 tire changer with the PWB50 wheel balancer for efficient, professional-grade tire service.
Q: What is included in the combo package?
A: The combo package includes the Atlas TC229 Tire Changer and the PWB50 Wheel Balancer, offering a complete set of tools for tire installation and balancing.
Q: Is the Atlas TC229 Tire Changer easy to use?
A: Yes, the TC229 is designed for easy operation, featuring advanced features like a robust bead breaker and adjustable clamps for quick, safe tire changes.
Q: What is the capacity of the PWB50 Wheel Balancer?
A: The PWB50 Wheel Balancer can handle a wide range of tire sizes, up to 50 lbs, ensuring accurate balancing for various vehicle types.
Q: Is the combo package suitable for professional use?
A: Yes, both the TC229 Tire Changer and PWB50 Wheel Balancer are built for high-volume, professional use, offering durability and reliability for automotive shops.
Q: How much space does the combo package require?
A: Both the tire changer and wheel balancer have compact designs, making them ideal for shops with limited space while providing full functionality.
Maintenance Tips
-
Regular Inspection: Check for any loose components, particularly on the tire changer arms and wheel balancer. Tighten as needed.
-
Lubrication: Regularly lubricate moving parts, especially on the bead breaker and tire changer arms, to prevent wear.
-
Cleaning: Clean both machines after each use to remove dirt and debris. Use a damp cloth for the tire changer and a dusting cloth for the balancer.
-
Calibration: Periodically calibrate the wheel balancer for accurate readings and ensure that the tire changer’s mounting heads are correctly aligned.
