Atlas RJ6 6,000 lb Rolling Bridge Jack - ATEATTD-RJ6BK-FPD

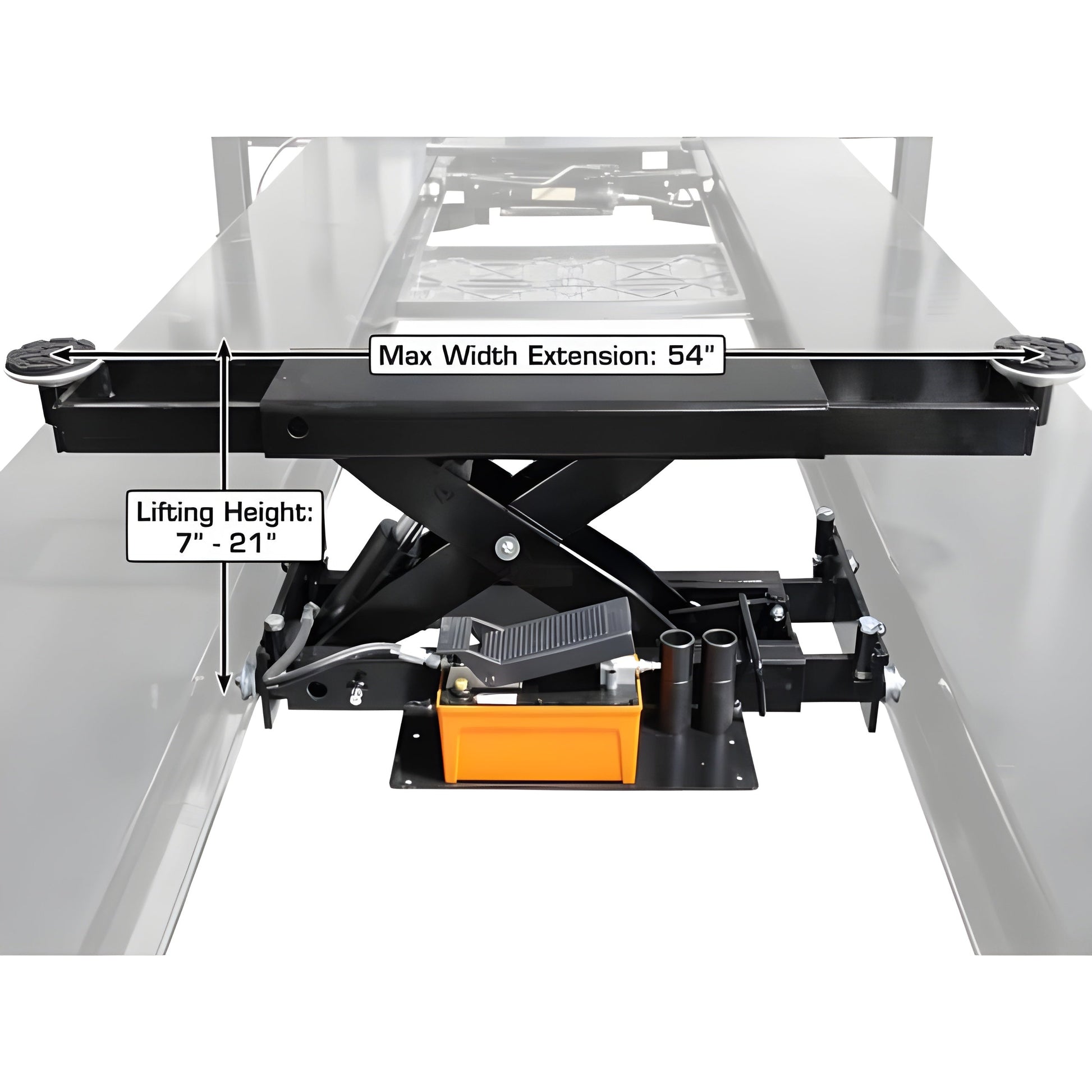

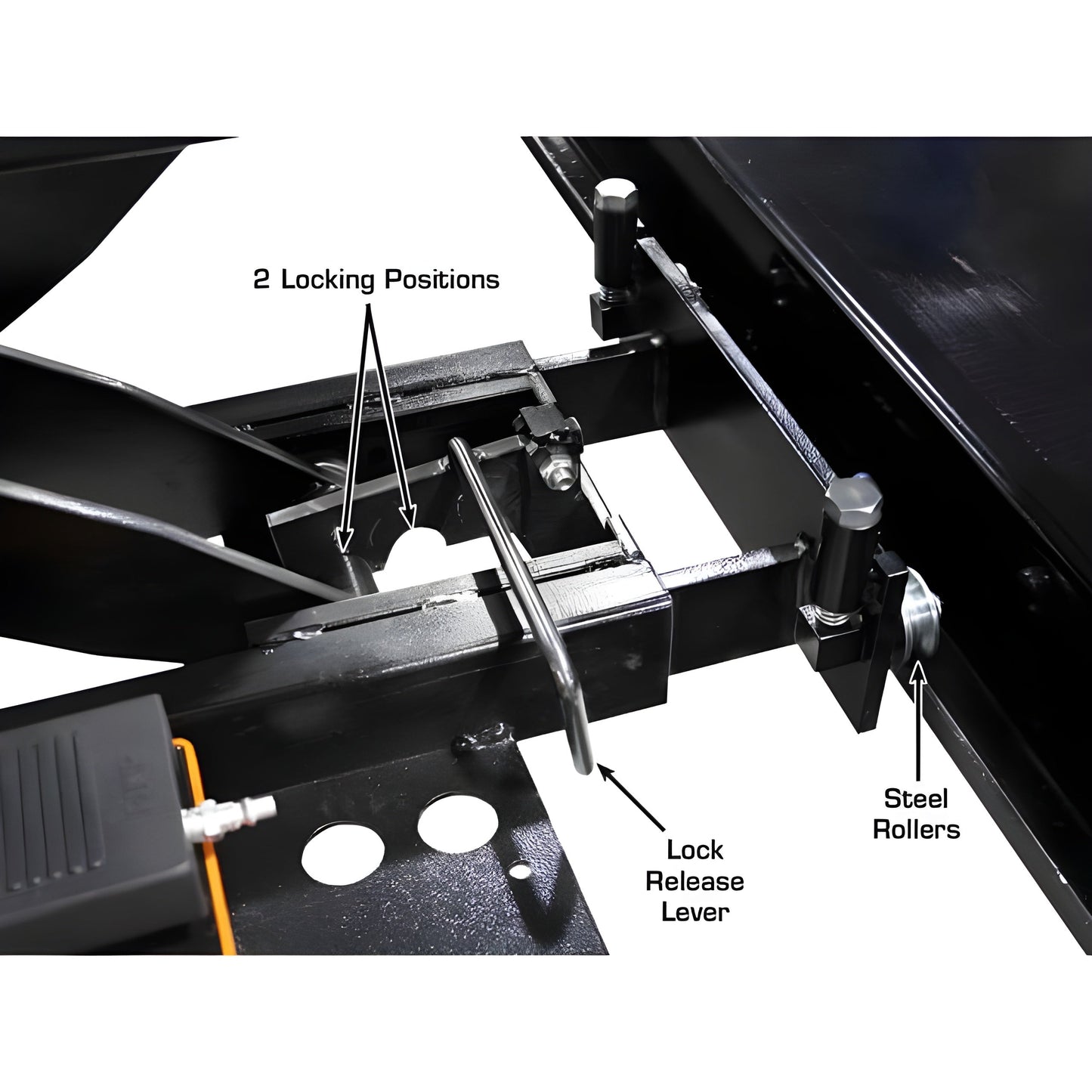

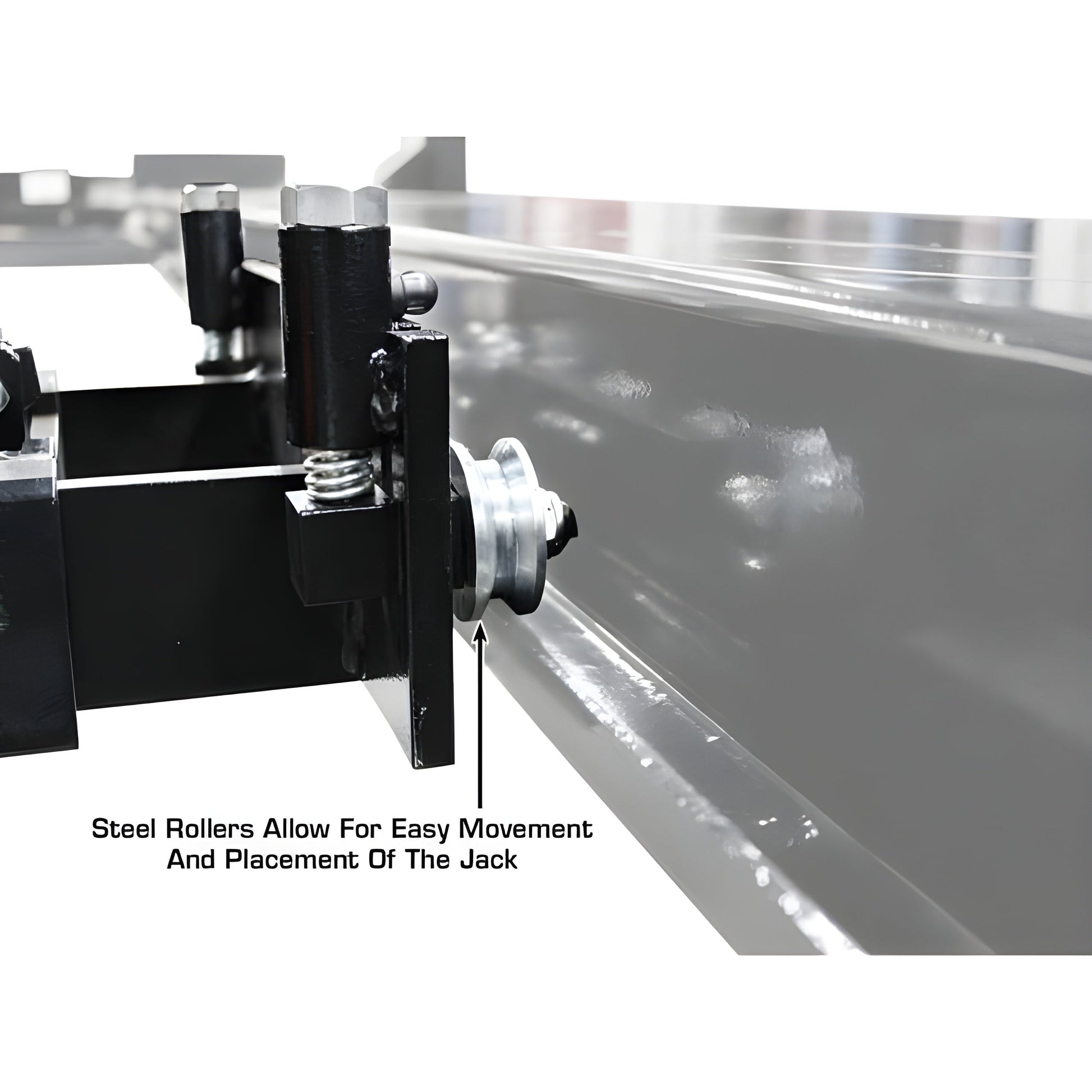

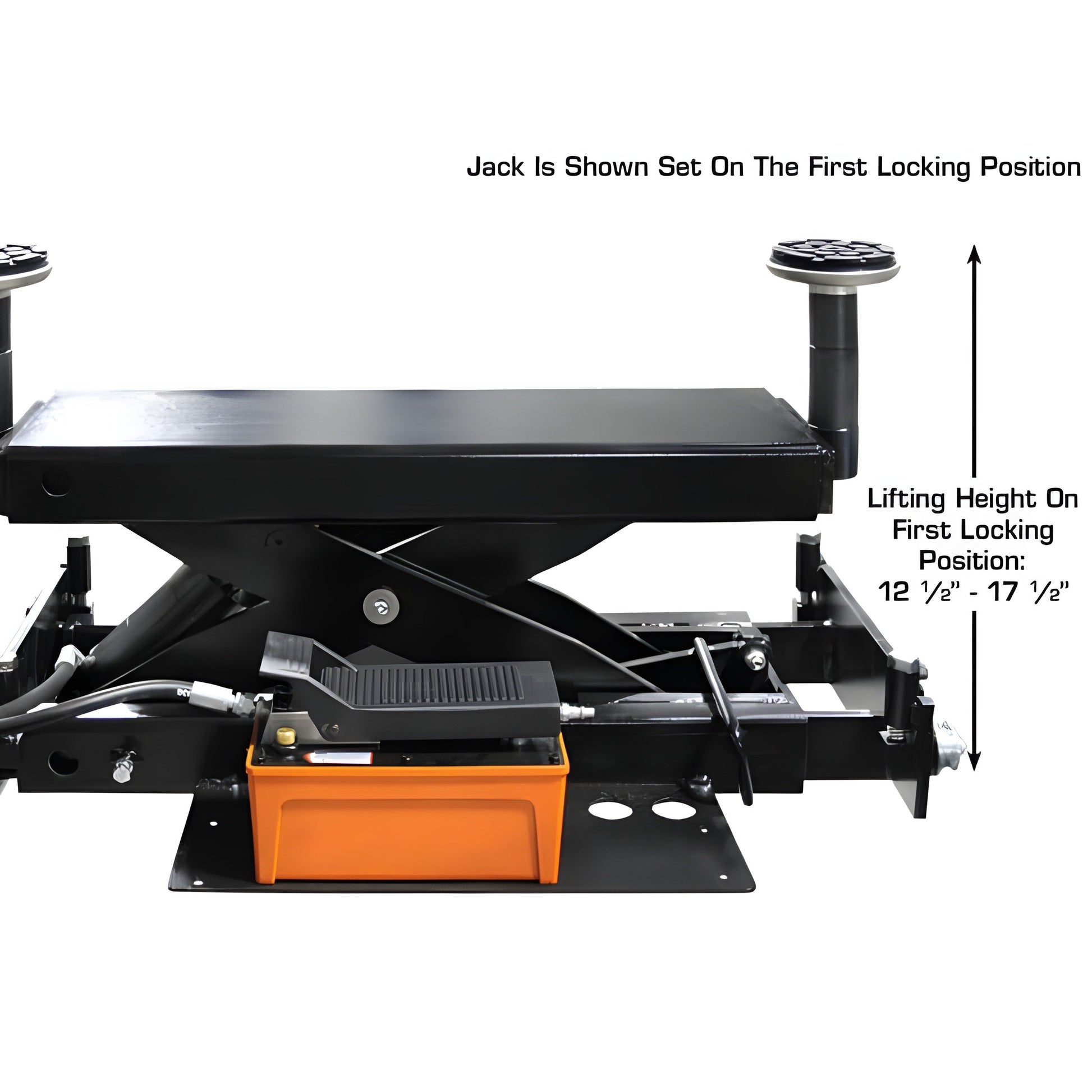

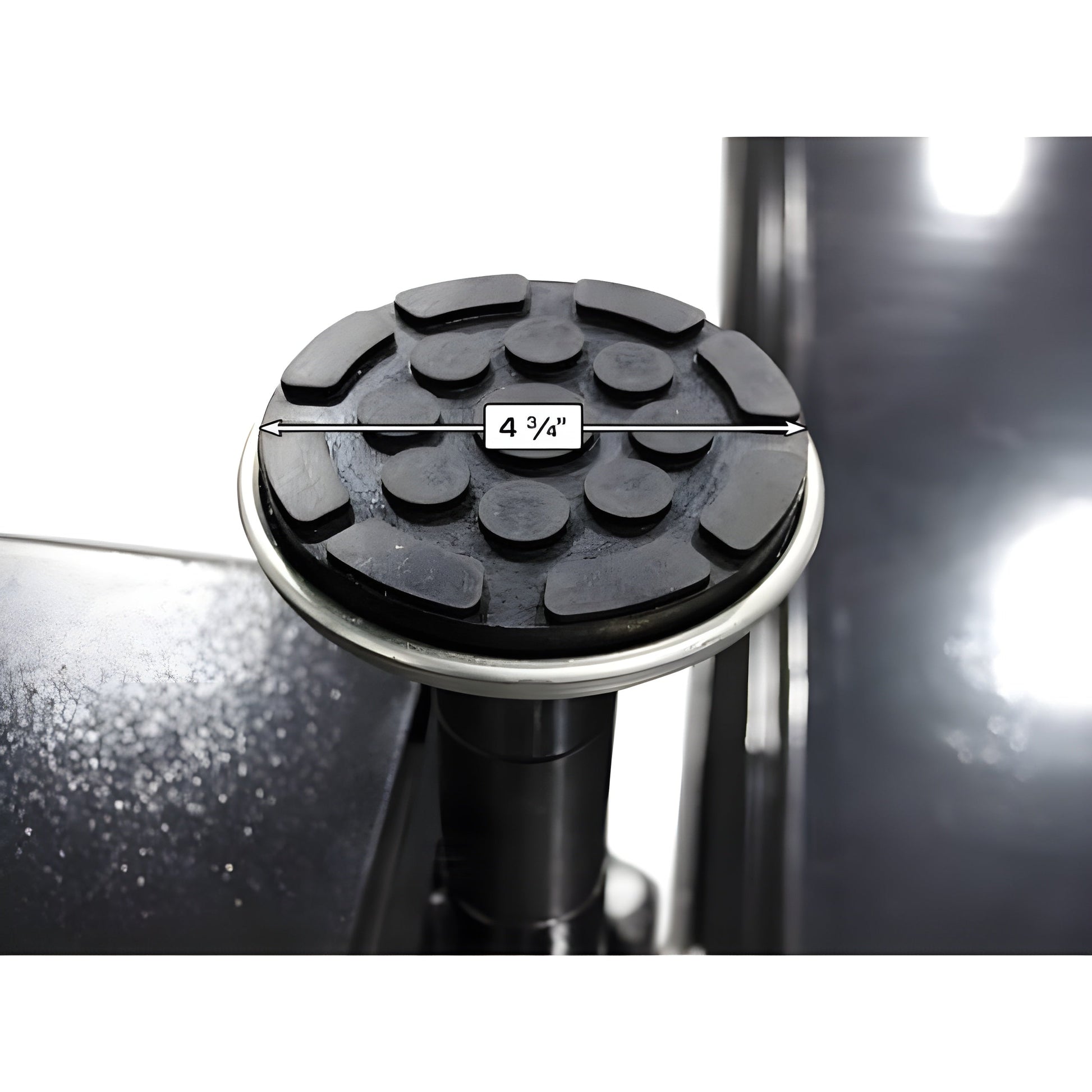

The Atlas RJ6 air/hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.The Atlas RJ6 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ6 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ6 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).IMPORTANT: The Atlas RJ6 is designed and engineered to operate on “delivered” air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.
Features
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)

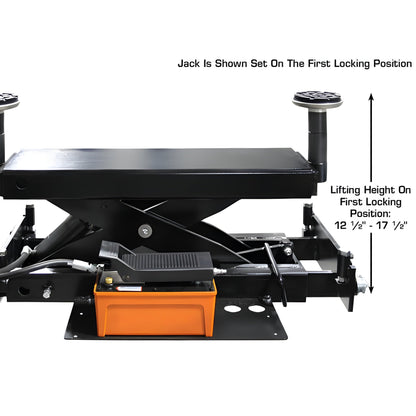

- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
Specifications
| Maximum Capacity |
6,000 lb. |
| Maximum Width |
55" (4' 7") |

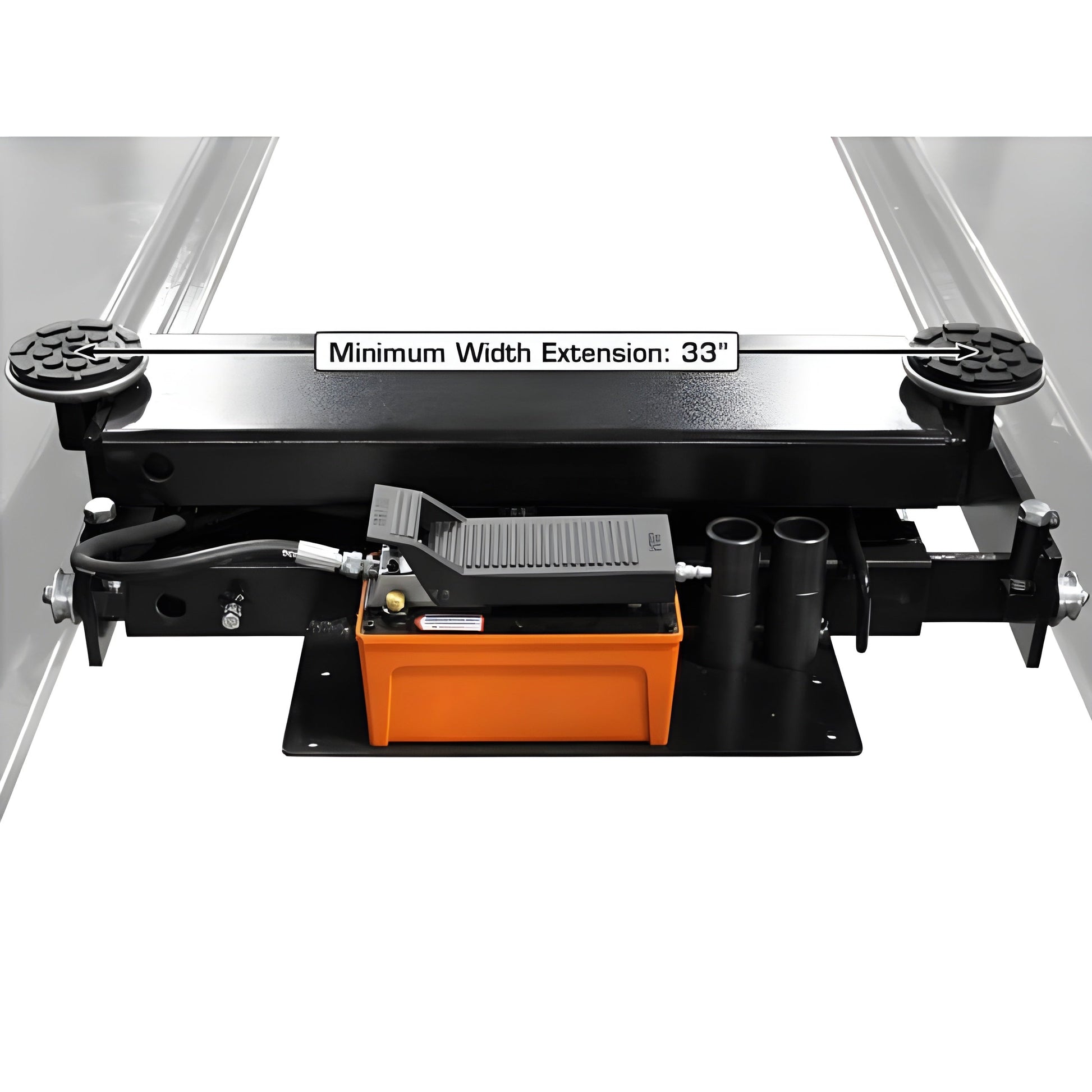

| Minimum Width |
35" (2' 11") |
| Distance Between Runway Capability |
32"-50" |

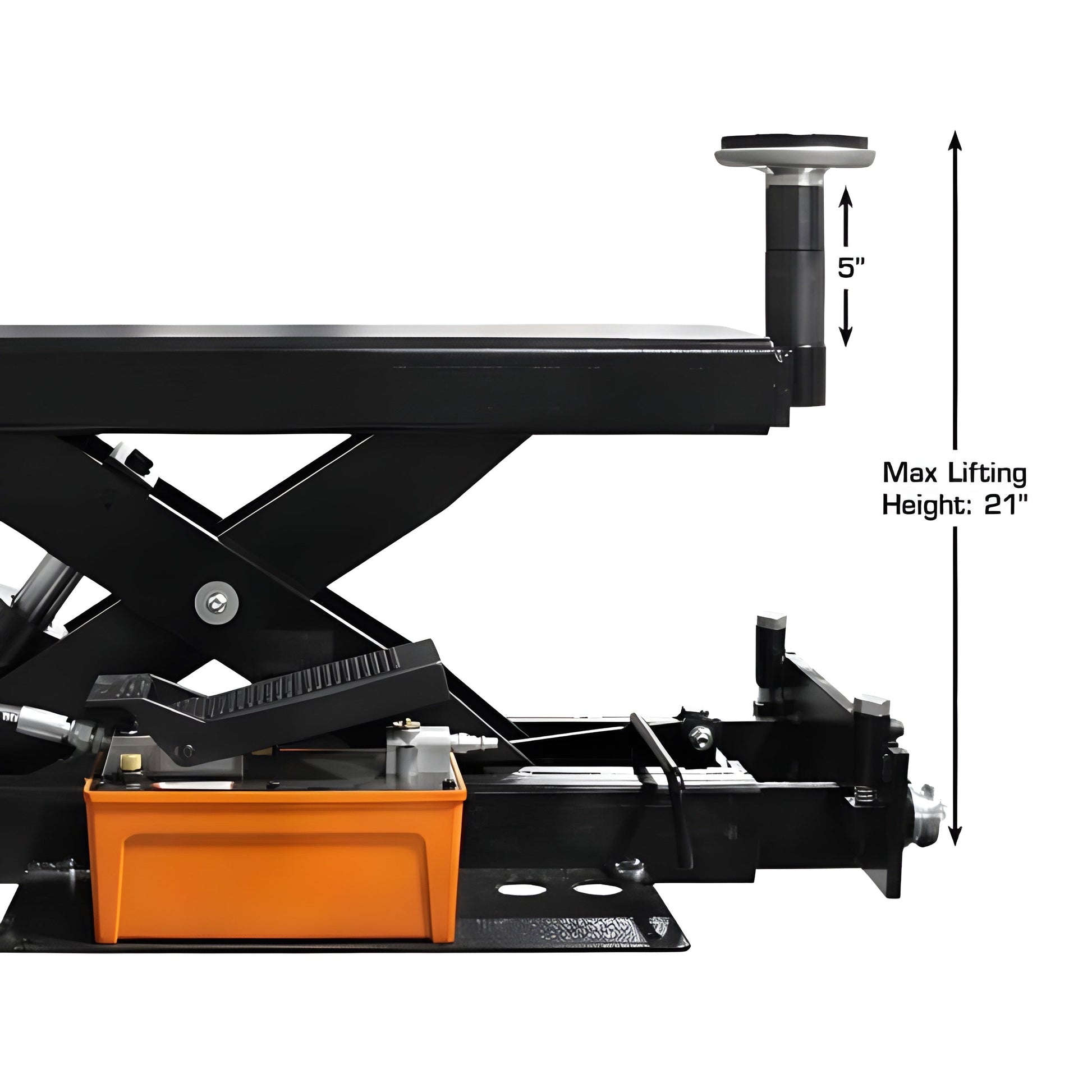

| Maximum Lifting Height (With Adapters) |
21" (1' 9") |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
350 lbs. |
| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
Manual
Atlas RJ6 Manual
Rolling Jack Measuring Guide
What our Expect Think
-
6,000 lb. Lifting Capacity – Perfect for lifting vehicle axles for wheel and brake service.
-
Rolling Bridge Jack Design – Enhances versatility for four-post lifts.
-
Adjustable Width – Compatible with a range of lift models for a secure fit.
-
Durable Steel Construction – Built for heavy-duty use and long-lasting performance.
-
Hydraulic Operation – Provides smooth and controlled lifting for precision work.
Q&A
Q: What is the Atlas RJ6 6,000 lb Rolling Bridge Jack?
A: The Atlas RJ6 is a professional-grade rolling bridge jack with a 6,000 lb weight capacity, designed for lifting vehicles with ease in automotive service centers, workshops, and garages.
Q: What are the key features of the Atlas RJ6?
A: The Atlas RJ6 features smooth mobility, a 6,000 lb weight capacity, and compatibility with most two-post and four-post lifts, making it an essential tool for quick and efficient vehicle lifting.
Q: How does the Atlas RJ6 improve workflow in a workshop?
A: With its high lifting capacity and easy maneuverability, the Atlas RJ6 enhances efficiency by allowing precise lifting and providing more space under vehicles during maintenance.
Q: What vehicles can the Atlas RJ6 lift?
A: The Atlas RJ6 can lift cars, trucks, and other vehicles up to 6,000 lbs, making it ideal for a wide range of vehicle types.
Q: Is the Atlas RJ6 easy to store?
A: Yes, its compact design allows for easy storage in tight spaces, ideal for busy workshops.
Q: What is the weight capacity of the Atlas RJ6?
A: The Atlas RJ6 has a maximum lifting capacity of 6,000 lbs, suitable for heavy-duty lifting.
Maintenance Tips
-
Inspect Hydraulic System – Regularly check for leaks, and ensure fluid levels are correct.
-
Lubricate Moving Parts – Apply grease to all moving components, including wheels and pivot points.
-
Test Safety Locks – Make sure the safety locks are fully engaged before lifting.
-
Check Electrical & Air Systems – Inspect power connections and air hoses for damage or leaks.
-
Tighten Fasteners – Regularly check all bolts and screws to ensure they are secure.
-
Inspect Load Pads – Ensure pads are not worn or damaged and replace if necessary.
-
Clean & Maintain – Keep the lift free of debris, oil, and dirt to prevent damage and ensure smooth
