Atlas RJ-6 6,000 lb Rolling Bridge Jack - ATEATTD-RJ-6-FPD

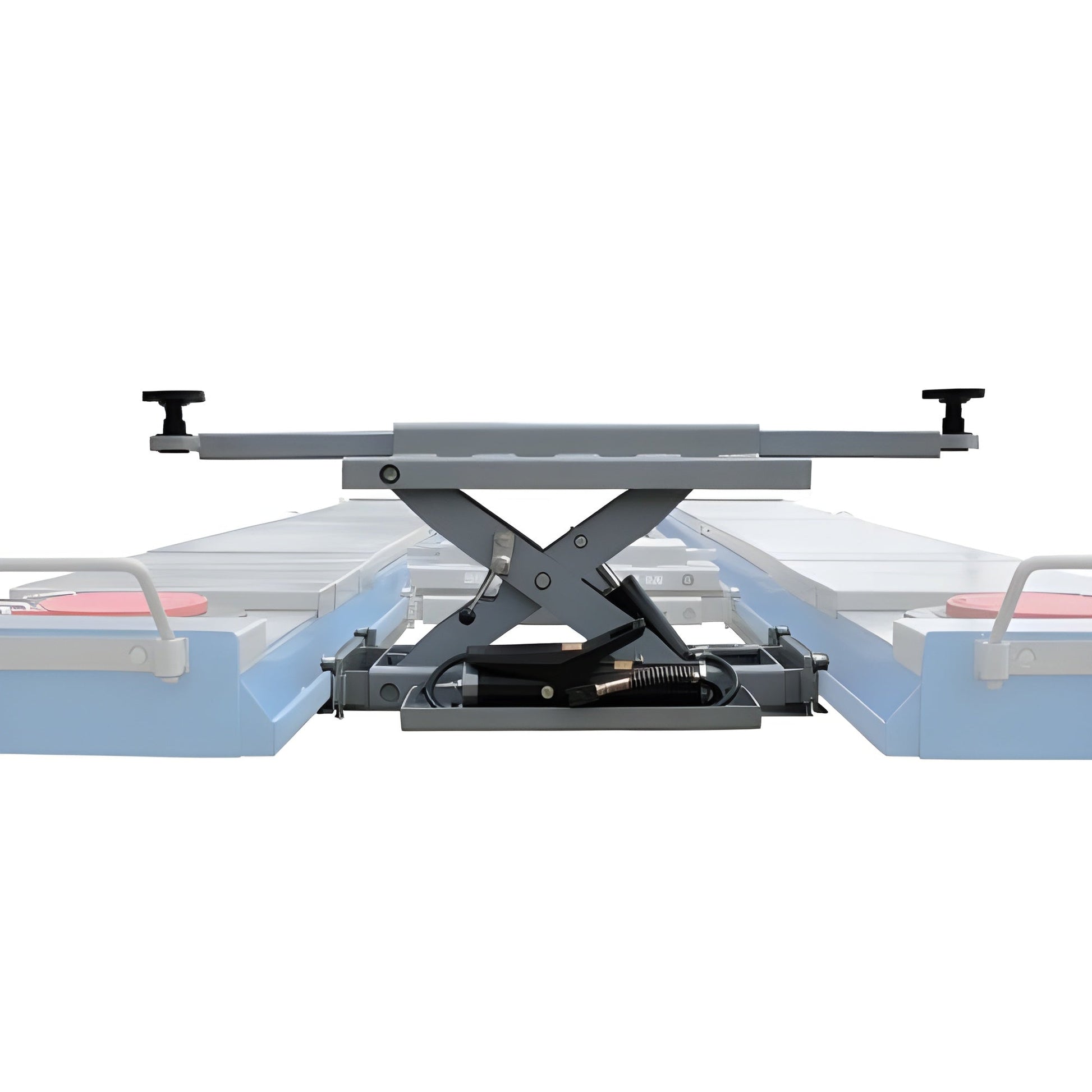

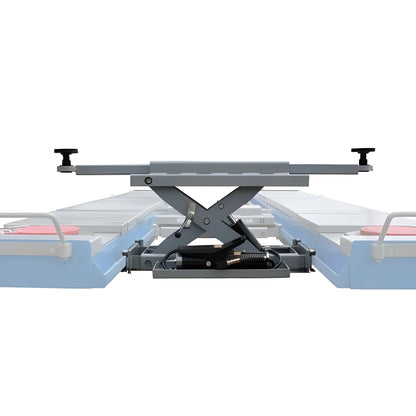

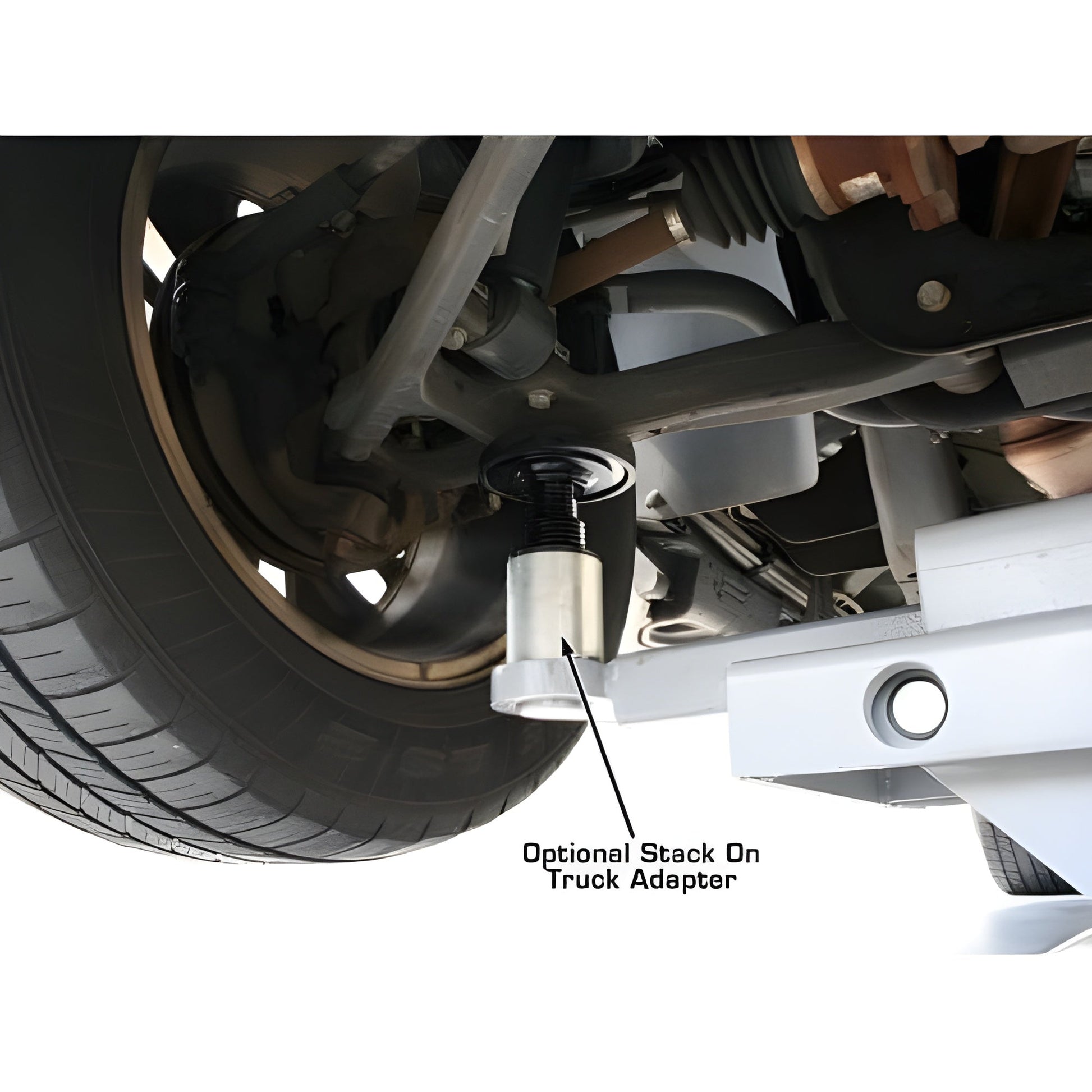

Atlas RJ-6 has telescoping arms that can be extended over the runways of a four post lift. The double screw lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.The Atlas RJ-6 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ-6 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ-6 rolling hydraulic jack features multiple solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).IMPORTANT: The Atlas RJ-6 is designed and engineered to operate on “delivered” air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.
Features
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)

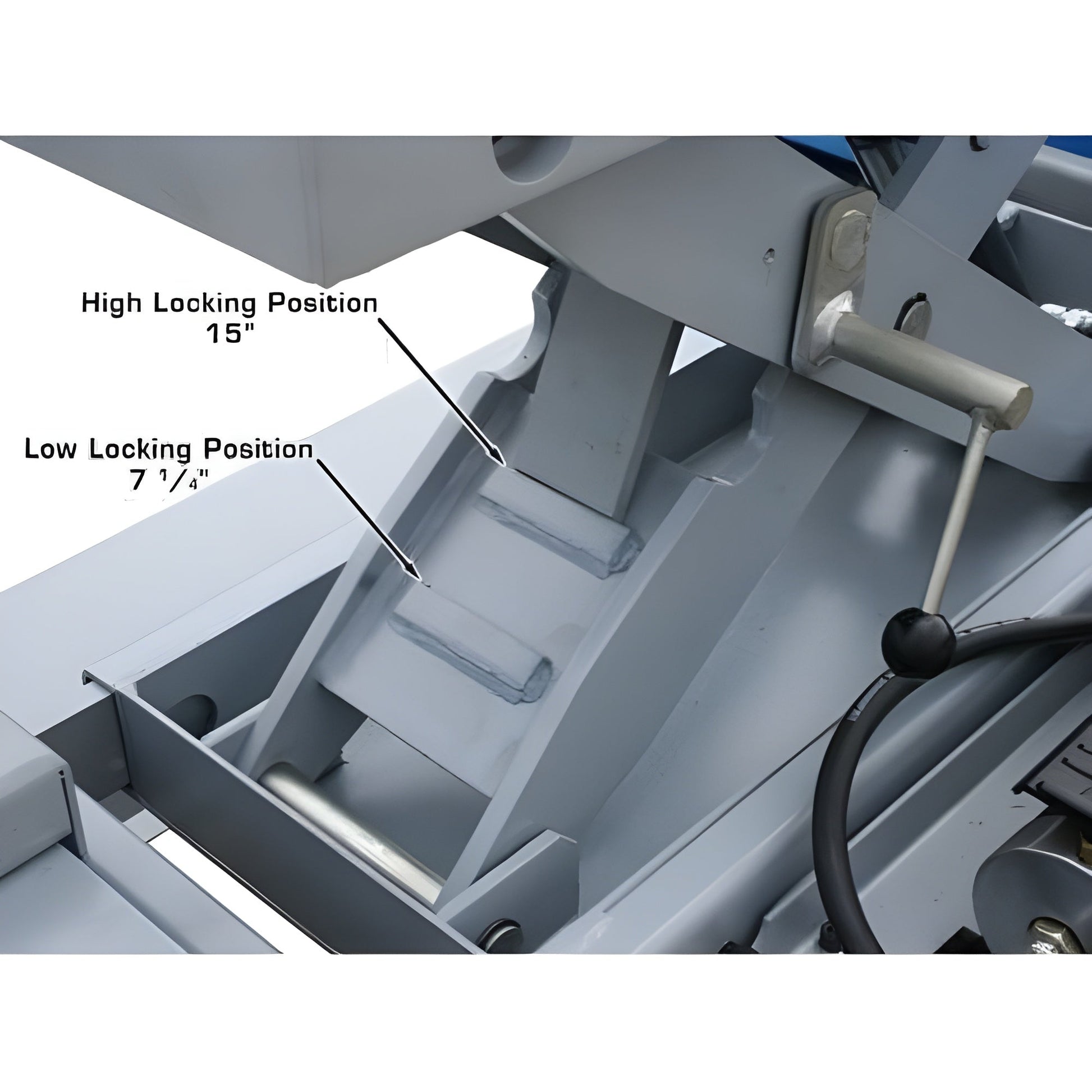

- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- Double Screw-Up Adapters Included

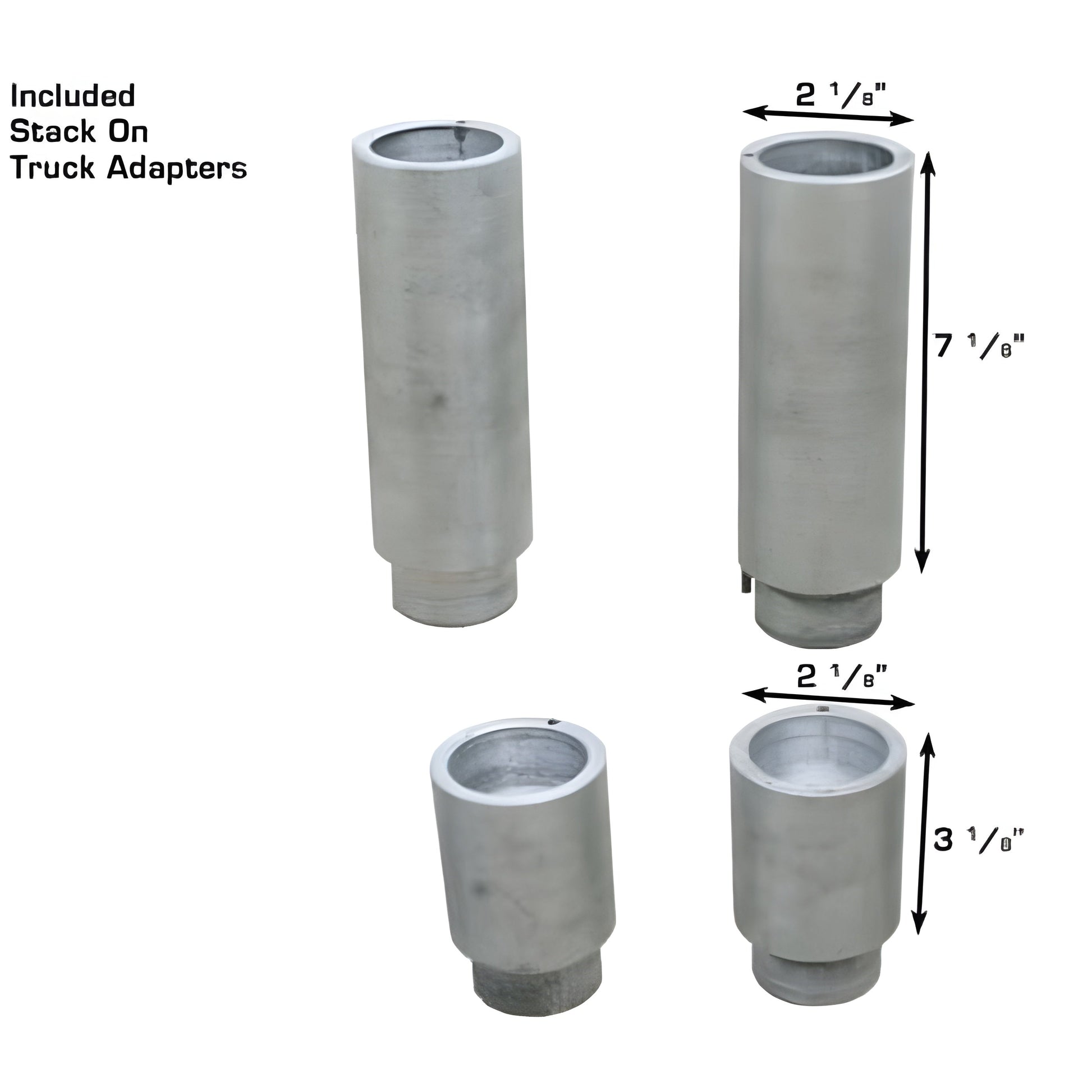

- 4 Piece Truck Adapter Set Included
Specifications
| Maximum Capacity |
6,000 lb. |

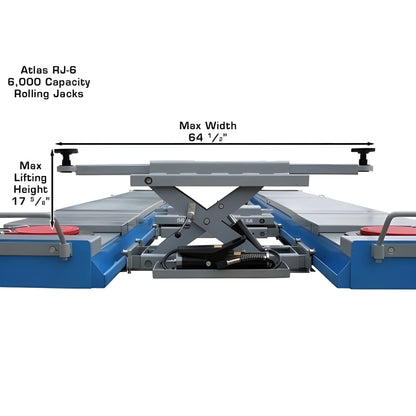

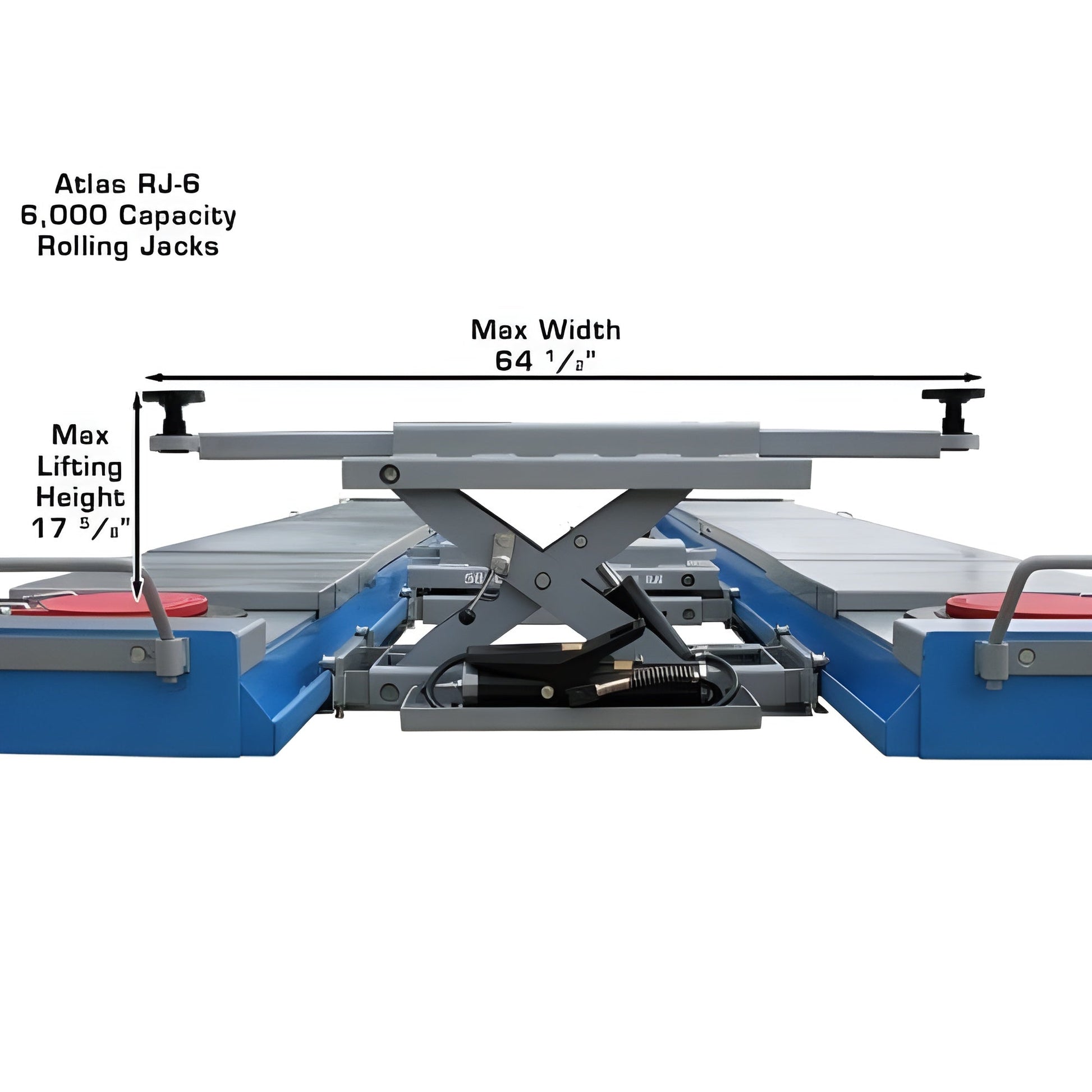

| Maximum Width |
64 1/2 (5' 4 1/2") |

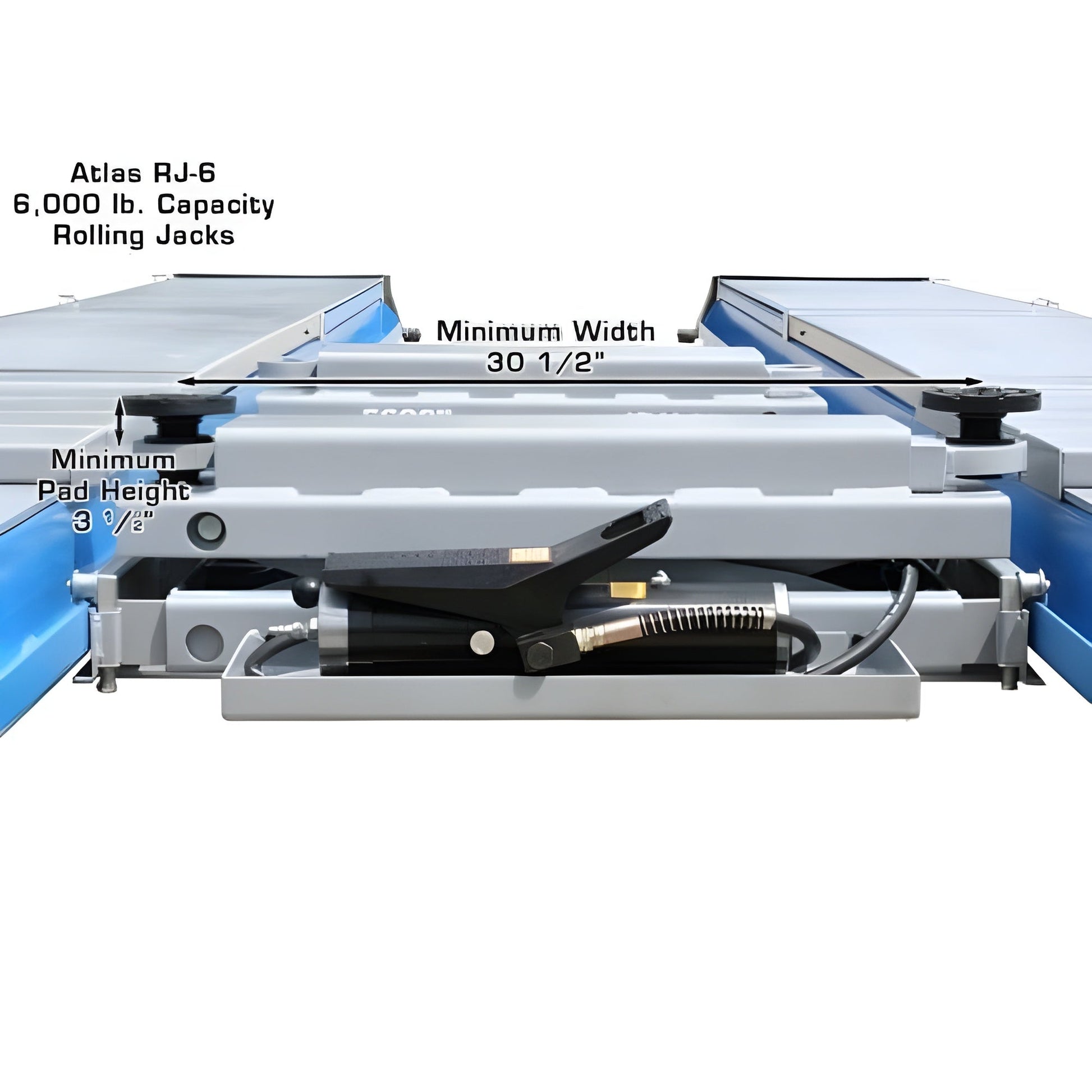

| Minimum Width |
30 1/2" (2' 6 1/2") |
| Distance Between Runway Capability |
31 1/2"- 49 1/2" |

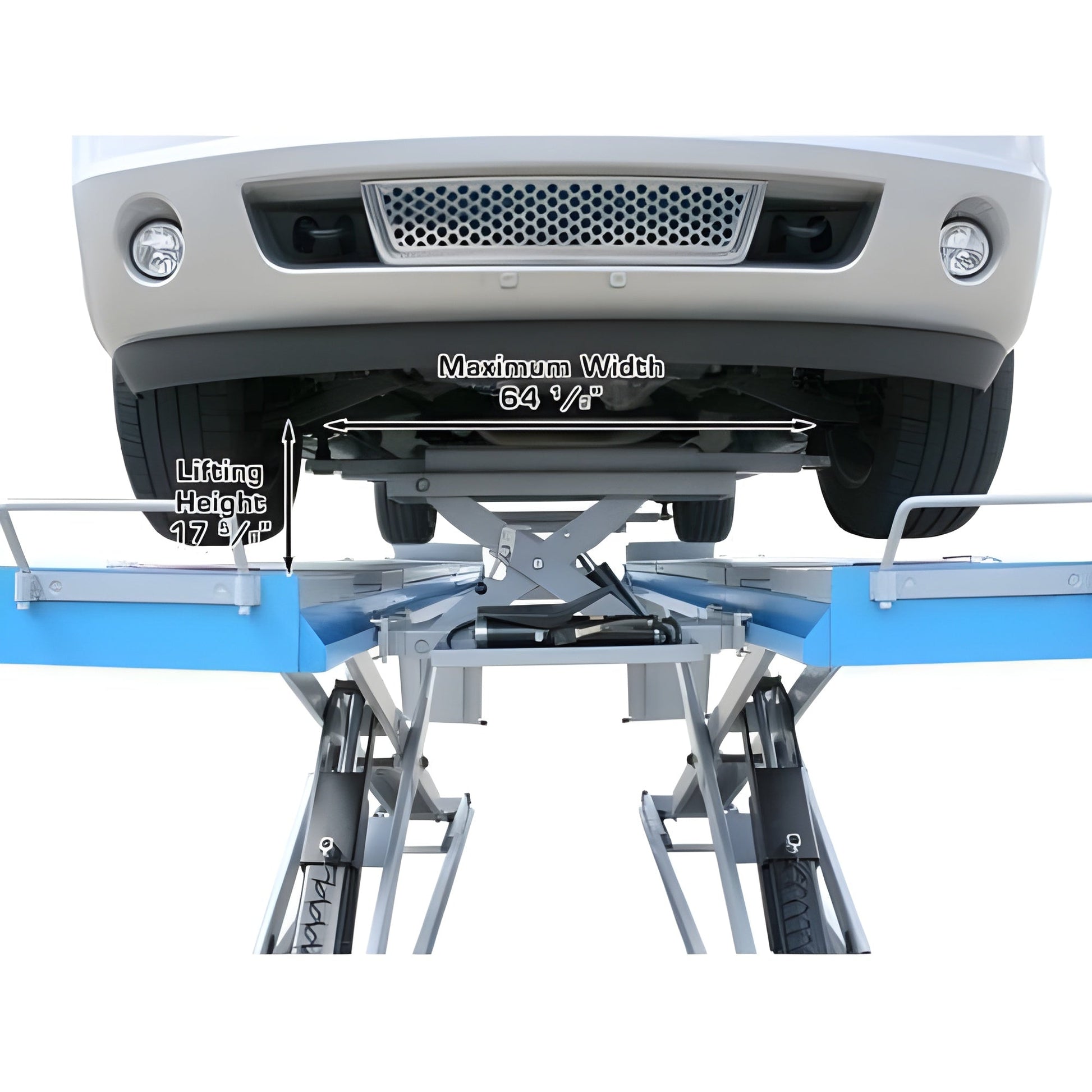

| Maximum Lifting Height (With Adapters) |
17 5/8" (1' 5 5/8") |
| Air Requirement |
70-115 PSI |

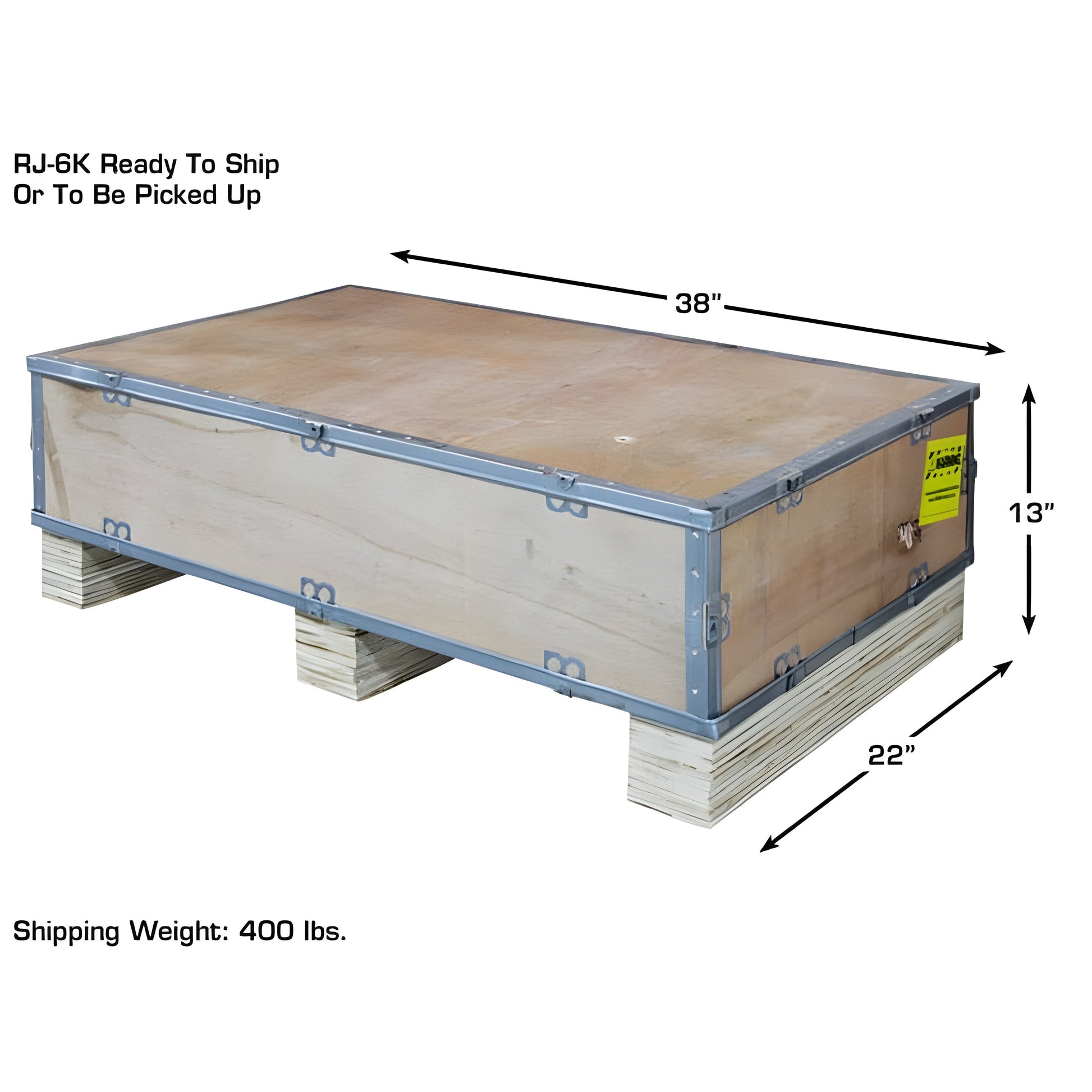

| Shipping Weight |
350 lbs. |
| Adapter Heights |
2 Each 3", 7" |
| Arm Hole/Adapter Peg Size |
2" |
Manual
Atlas RJ-6 Manual
Rolling Jack Measuring Guide
What our Expect Think
-
6,000 lb. Lifting Capacity – Perfect for wheel-free vehicle lifting on 4-post lifts.
-

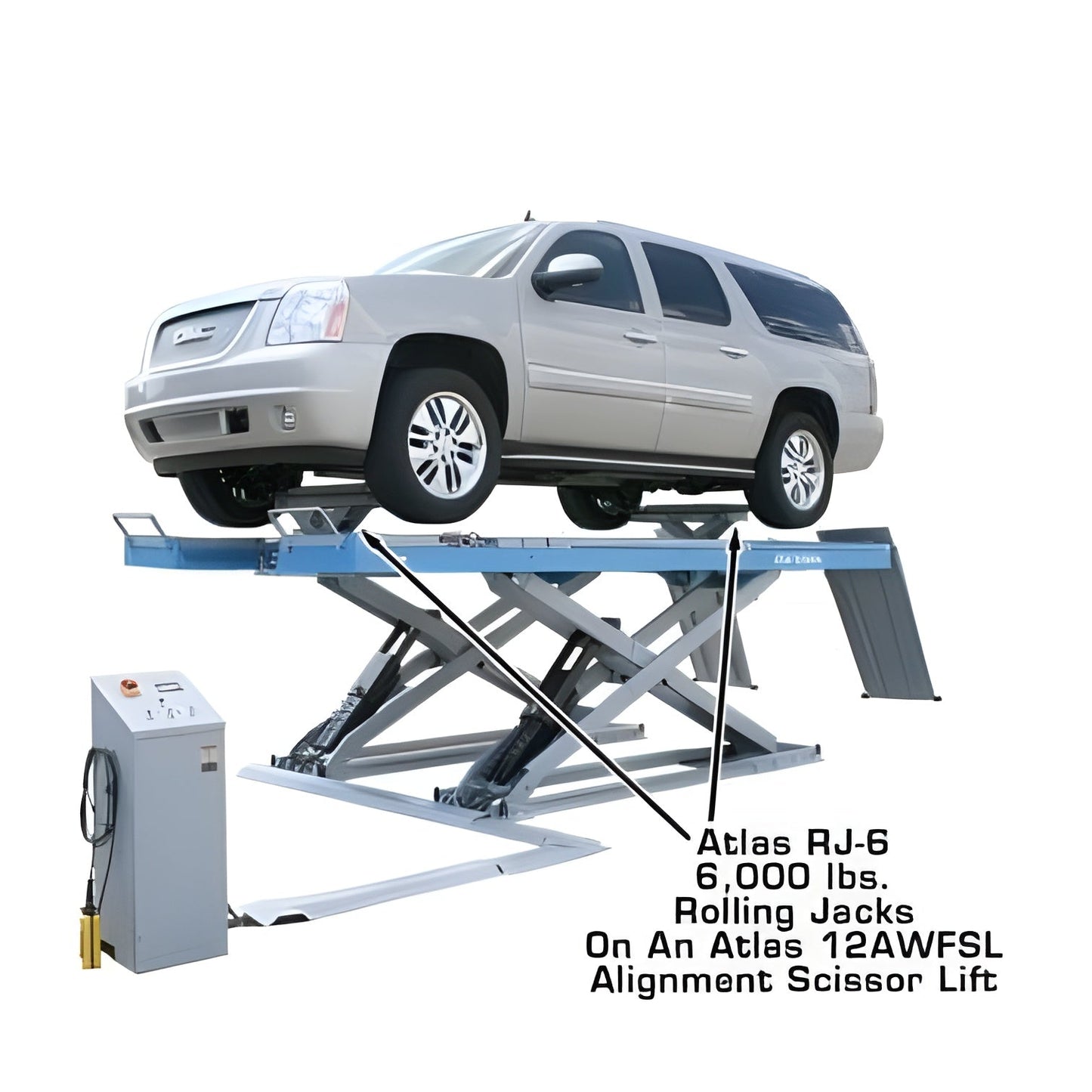

Rolling Bridge Jack Design – Easily slides along lift runways for precise positioning.
-
Heavy-Duty Steel Construction – Ensures durability and reliability in shop environments.
-
Hydraulic Operation – Provides smooth and controlled lifting for professional use.
-
Adjustable Width – Accommodates various vehicle sizes for increased versatility.
Q&A
Q: What is the Atlas RJ-6 6,000 lb Rolling Bridge Jack used for?
A: The Atlas RJ-6 is a rolling bridge jack designed for use with 4-post lifts, allowing for wheel-free lifting to perform tire, brake, and suspension work on vehicles up to 6,000 lbs.
Q: What makes this rolling jack stand out?
A: It features a compact, easy-to-roll design, adjustable lift arms, and a hydraulic pump system for smooth and precise lifting.
Q: Is this jack compatible with all 4-post lifts?
A: The Atlas RJ-6 is designed to fit most Atlas 4-post lifts, but compatibility should be verified based on runway width and clearance.
Maintenance Tips
-
Inspect Hydraulic System – Check hoses, seals, and fluid levels regularly for leaks or wear.
-
Lubricate Moving Parts – Apply grease to pivot points and sliding mechanisms to ensure smooth operation.
-
Check Safety Locks – Ensure the locks engage properly before lifting a vehicle.
-
Monitor Load Capacity – Never exceed the 6,000 lb weight limit to prevent damage.
-
Keep Tracks Clean – Remove debris and dirt from the rails to maintain smooth sliding function.
-
Tighten Fasteners – Regularly check bolts and nuts to keep the jack securely mounted.
