Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo - ATEATPK-PX16ACF-COMBO-FPD

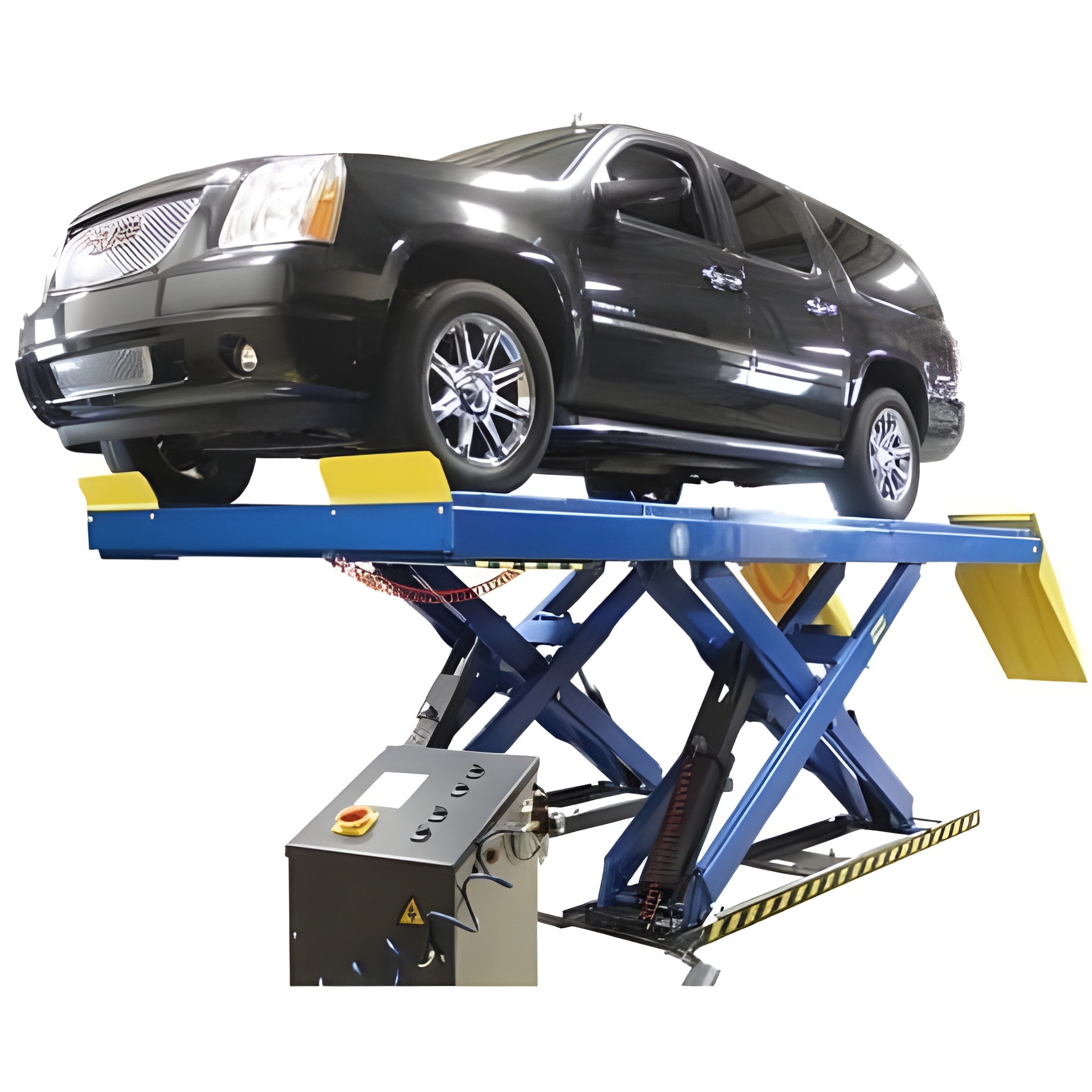

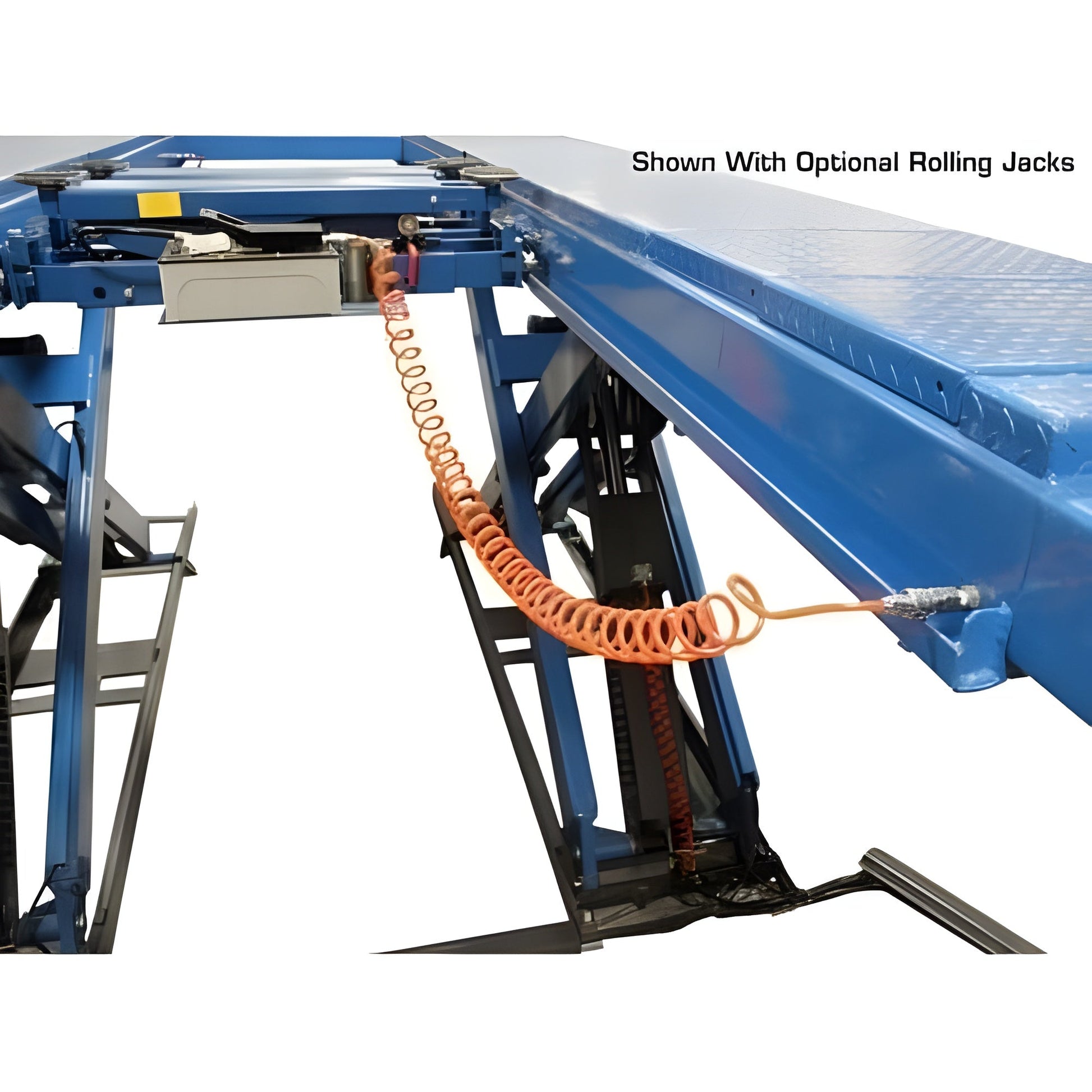

The Atlas PX16A 16,000 lb. capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheelbase trucks and vans.The Atlas PX16A allows the operator to perform 4-wheel alignments for vehicles with wheelbase lengths from 96 inches to 184 inches.The Atlas PX16A includes a set of turntables and built in slip-plates. The lift is equipped with a semi enclosed airline kit routing system to accommodate the optional airline kit. This airline kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.This combo package also includes two of the popular Atlas® RJ8 Rolling bridge jacks. The jacks are perfect for raising a vehicle’s wheels off the lifts runways in order to service tires and brakes.
Video
Features
PX16A
16,000 lb. Capacity
Heavy Duty Commercial Grade Construction
Scissor Alignment Lift
Front Cross-Beam for Added Stability
Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment

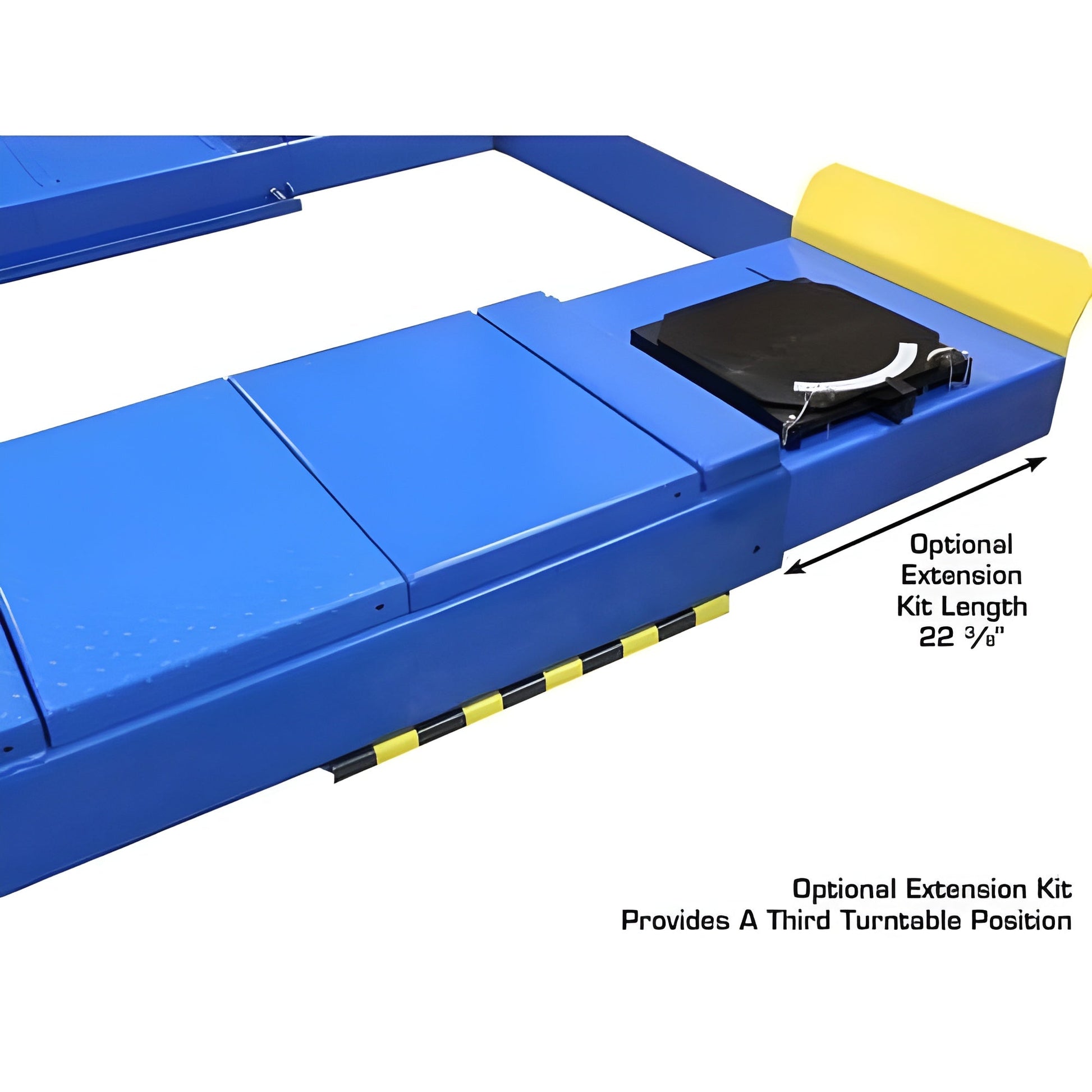

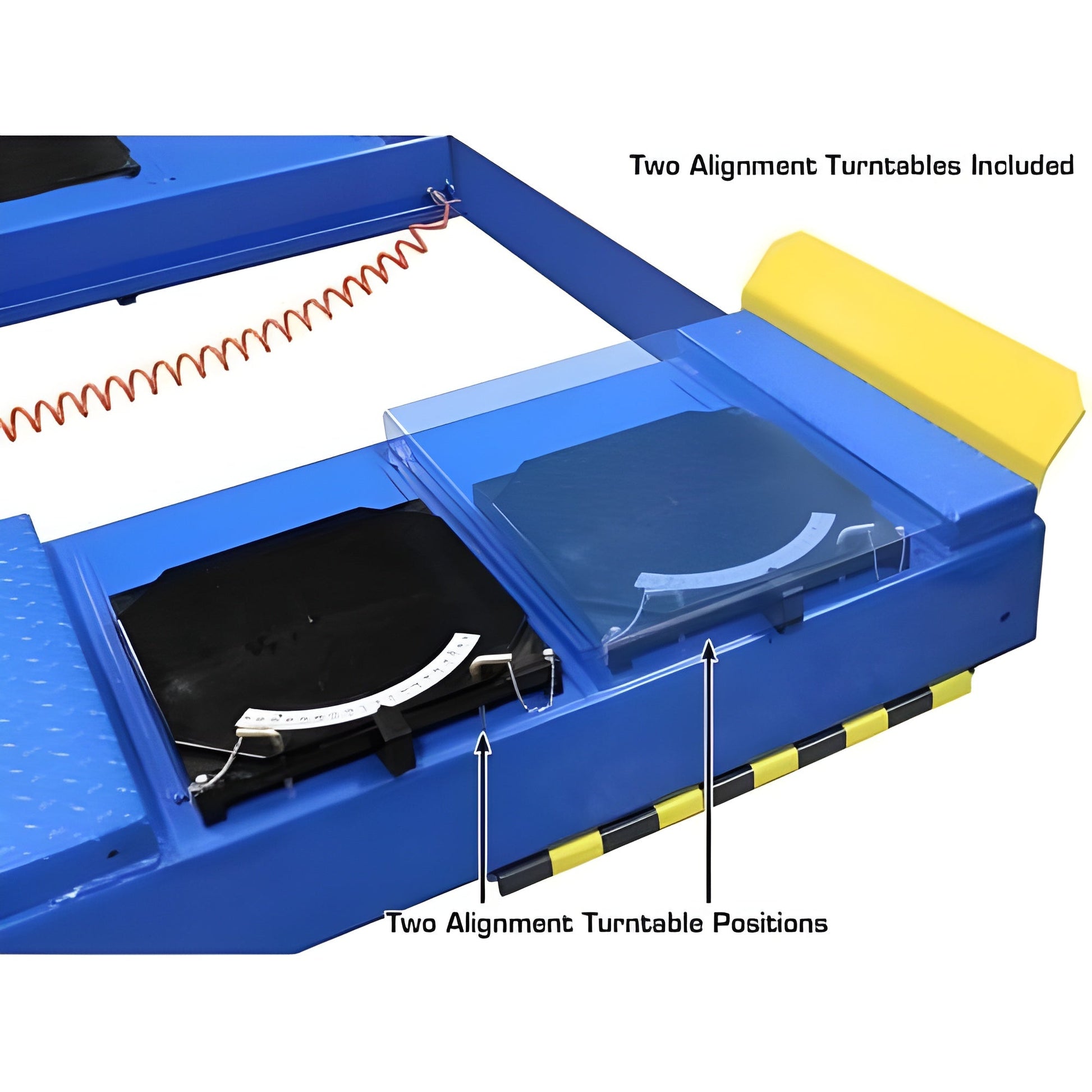

Built-in Slip Plates and Alignment Turntables Included
Recessed Positions for Turntables
Separate Self-Contained Control Unit

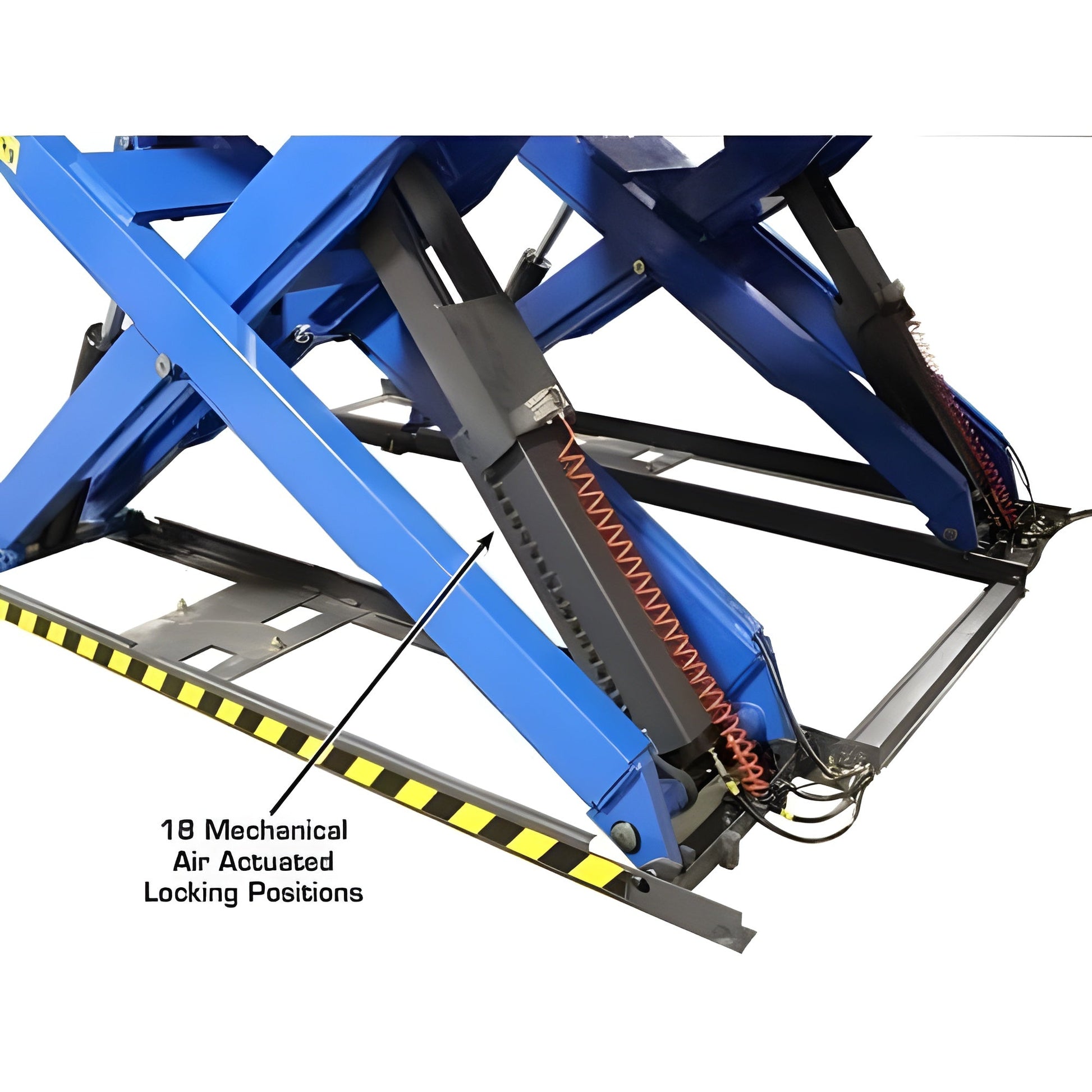

Air Operated Mechanical Safety Locks (External Air Supply Required)
Emergency manual pump for lowering
Overload Valve Included
Lowering Speed Valve Included
Mounting Hardware Included

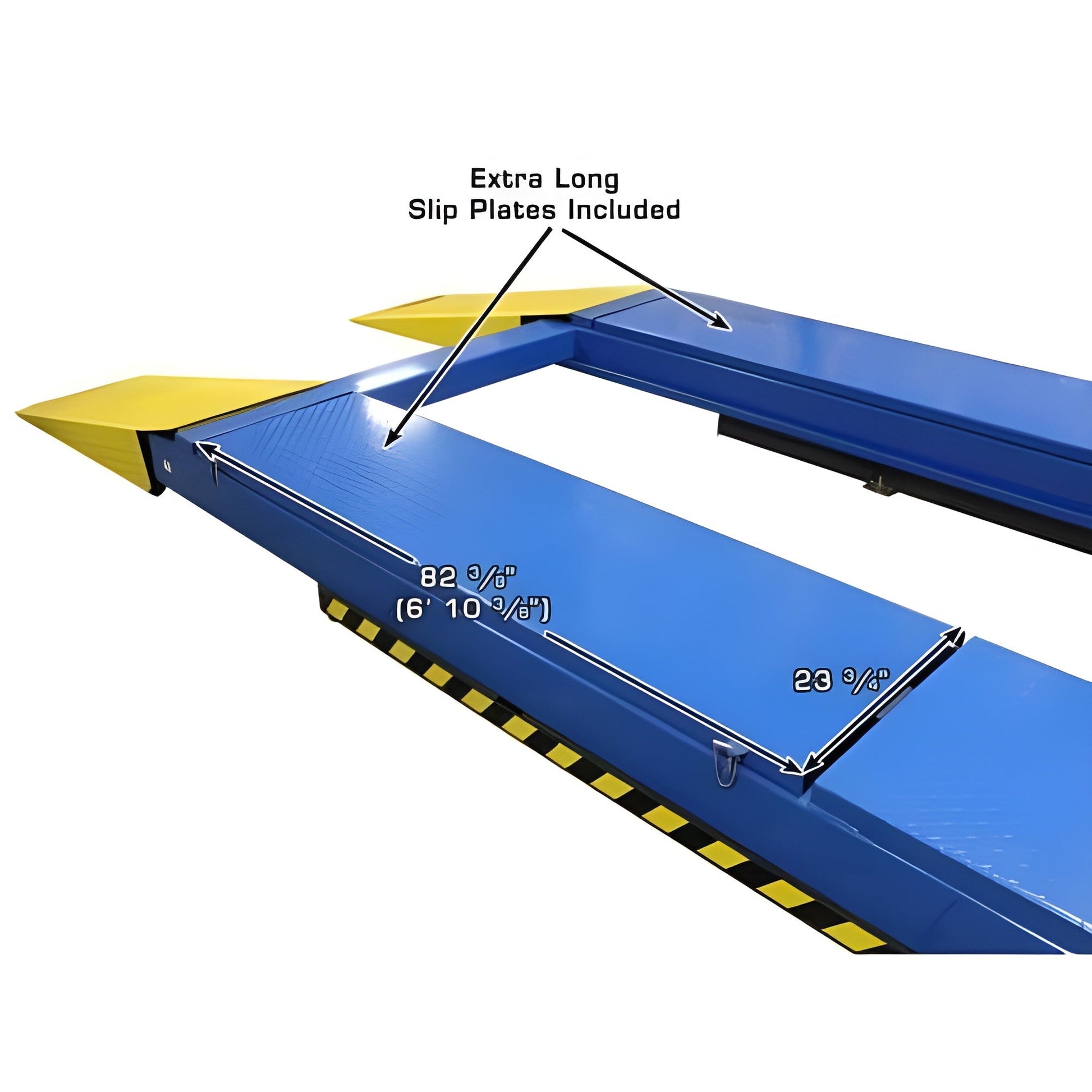

Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96″ to 184″

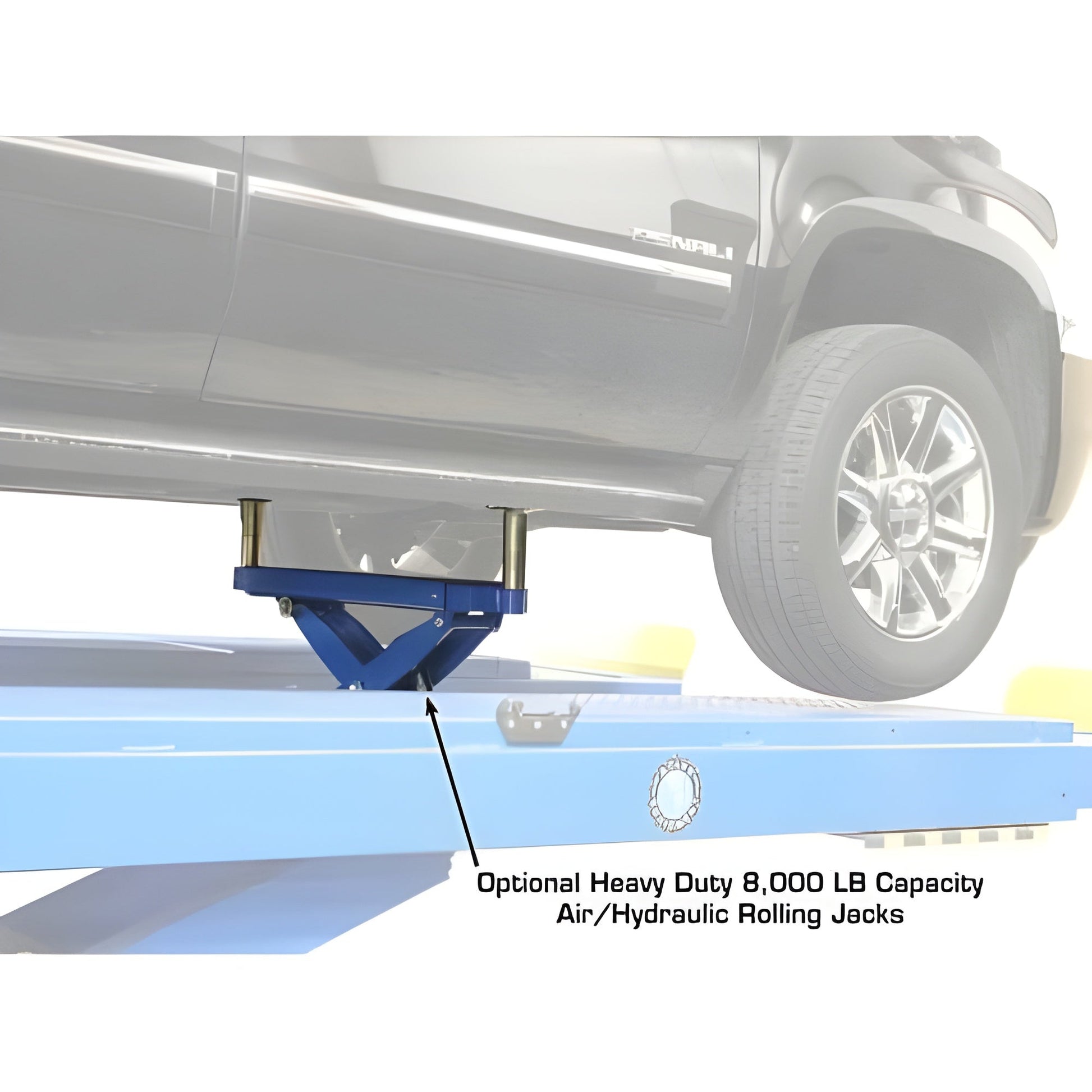

RJ8
8,000 lb. Capacity
Air/Hydraulic Operated (external air supply required)
Multiple Safety Lock Positions
Compact Size with Low Profile
Smooth Rolling Action
Scissor mechanism allows for level lifting
Powder Coated Finish
4 Piece Truck Adapter Set Included
Specifications
Lifting Capacity
16,000 LB

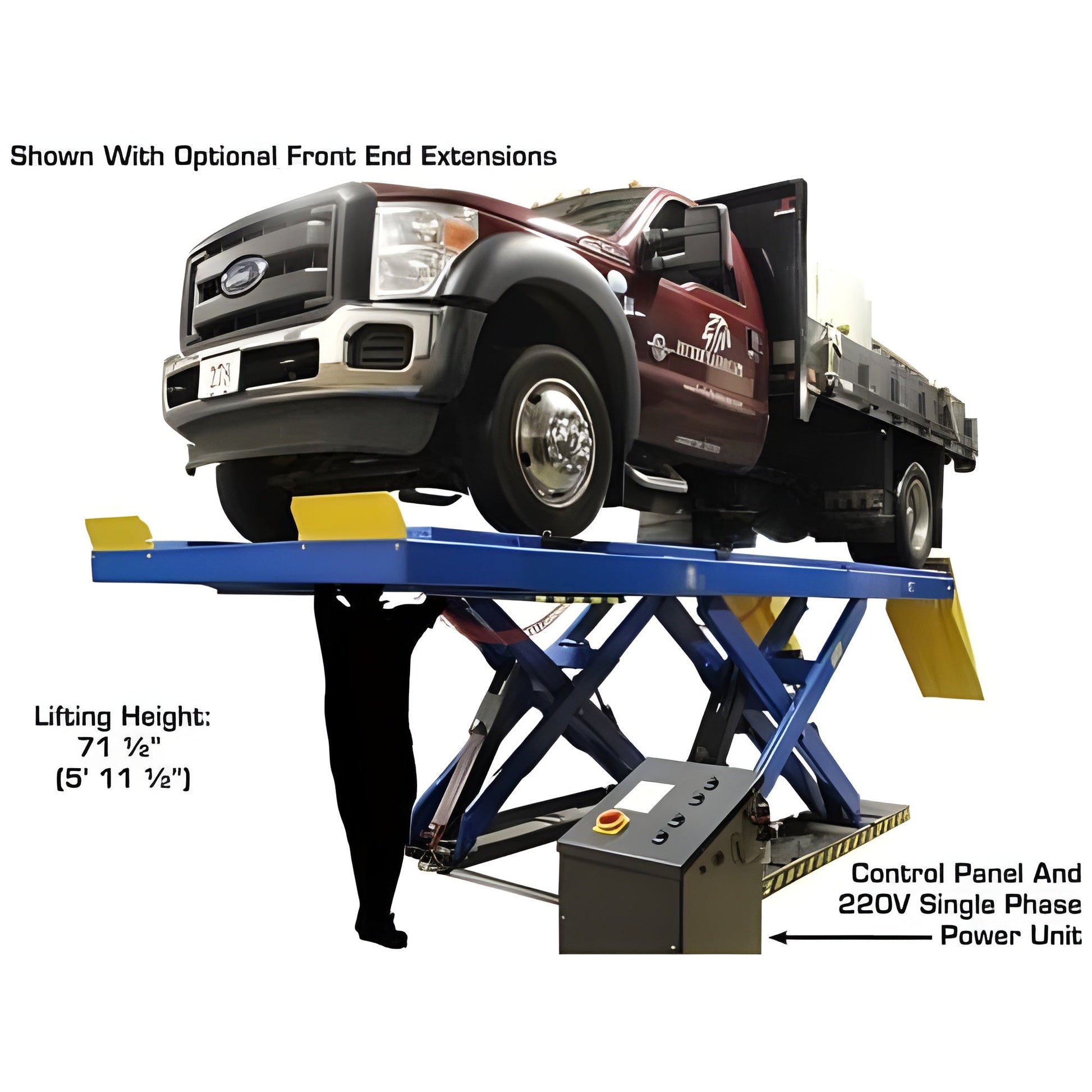

Lifting Height

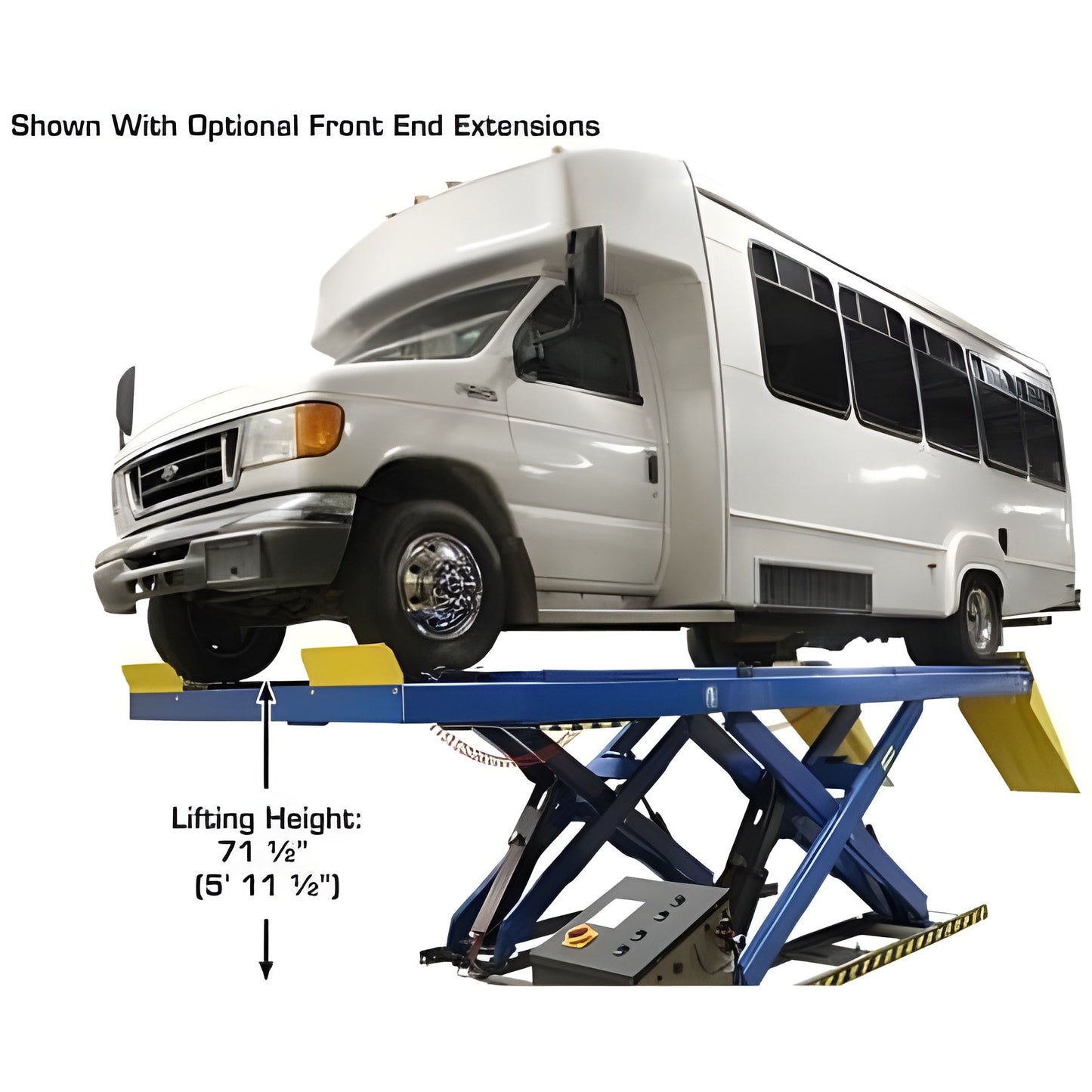

71 1/2" (5' 11 1/2")
Lowered Height
13 1/4"
Overall Width
94" (7' 10")
Overall Length with Approach Ramps
271" (22' 7")
Overall Length without Approach Ramps

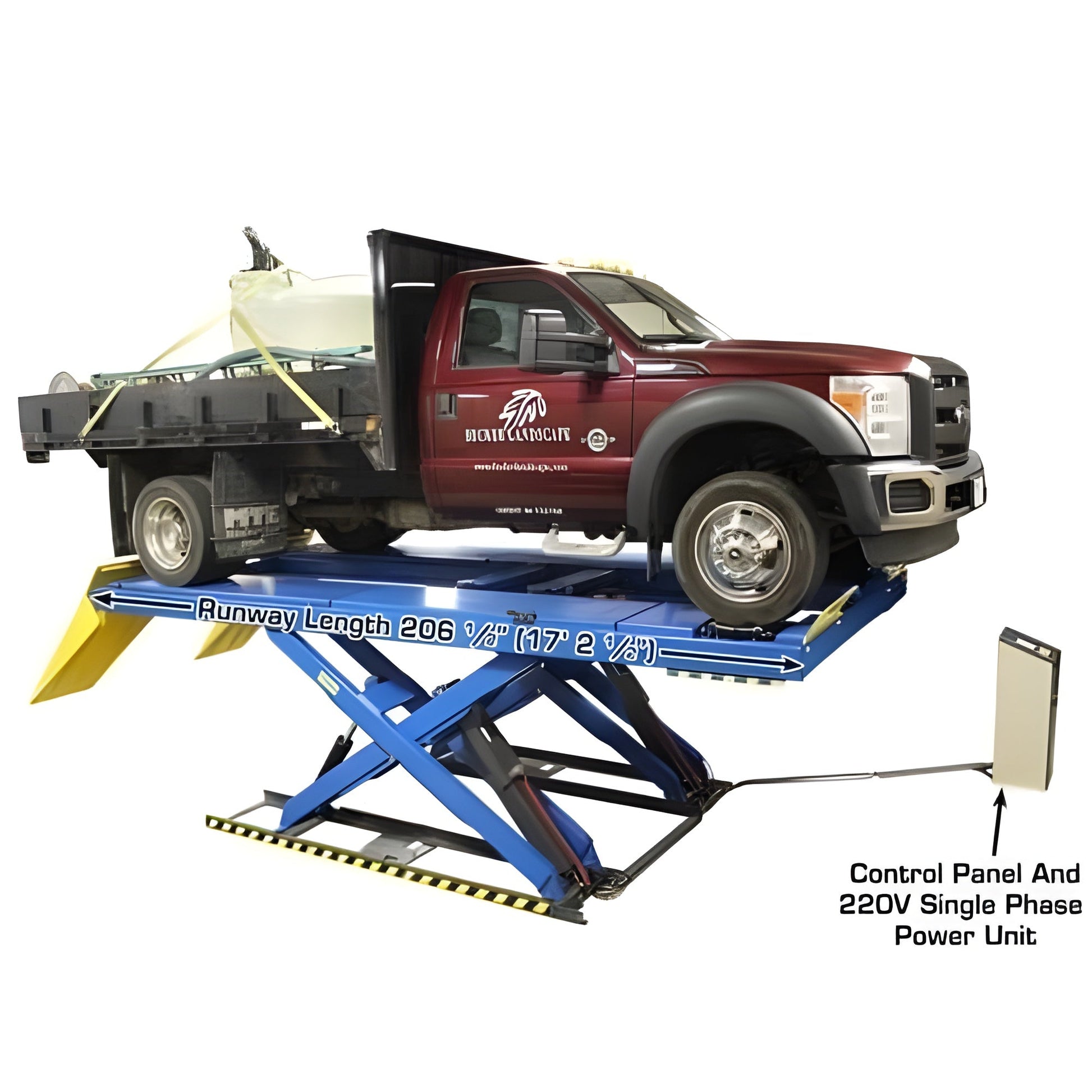

206 1/2" (17' 2 1/2")
Approach Ramp Length
66" (5' 6")
4-Wheel Alignment Wheelbase
Max. 184 in.
4-Wheel Alignment Wheelbase
Min. 96 in.
Runway Width including Rail
23 3/4" (1' 11 3/4")
Width Between Runways
44 7/8"
Width Between Runway Rails
41 3/8"
Air Requirement
90-120 PSI
Motor/Electrical Requirement
220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
Oil Requirement
3.5 Gallons AW32/AW46

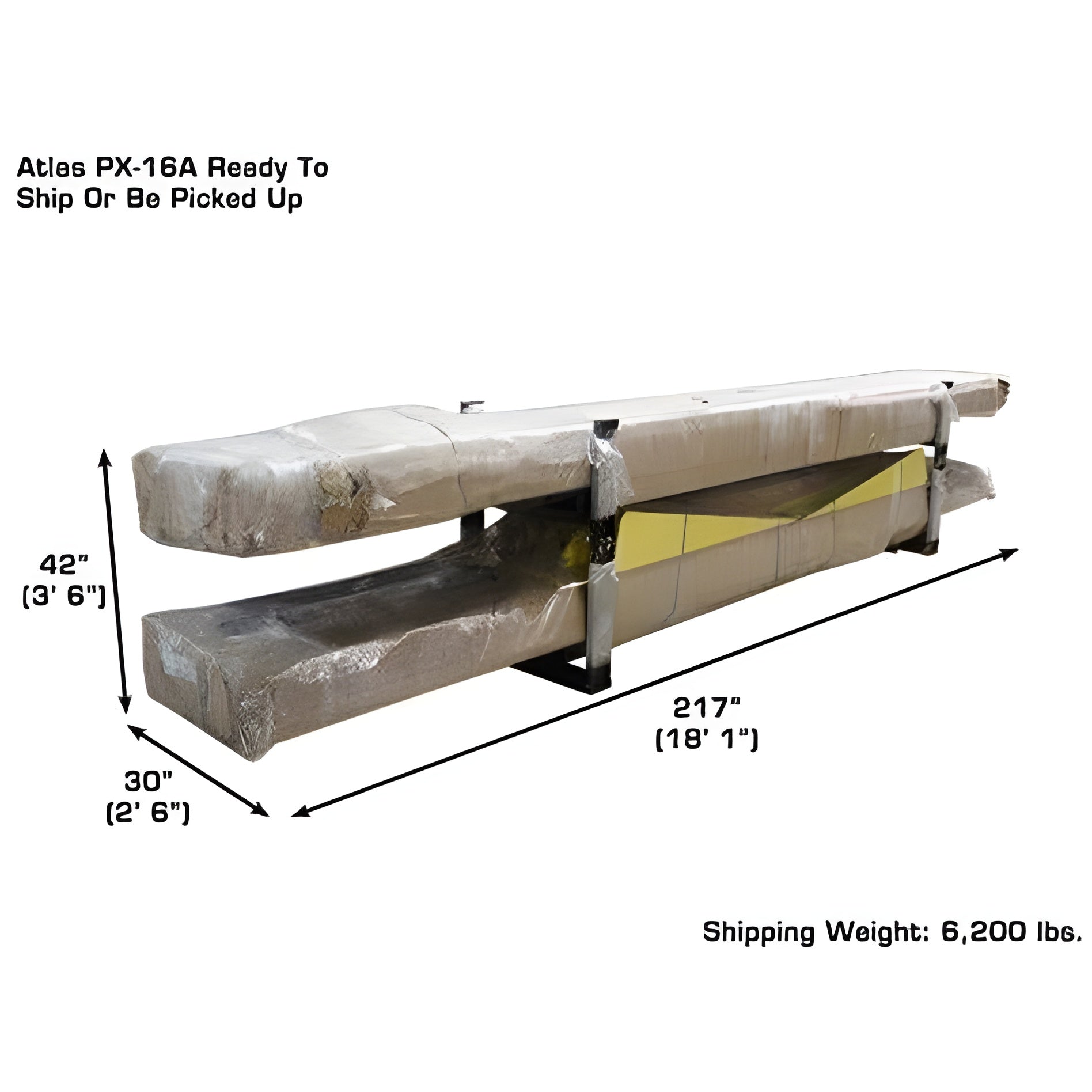

Shipping Weight
6,200 lbs.
Requires a minimum of 6" of concrete with a 3000 psi. rating
16,000 lb. Lifting Capacity – Handles heavy-duty vehicles with ease.
Scissor Lift Design – Provides stability and full undercarriage access for alignments and repairs.
RJ8 Rolling Jack Included – Enhances versatility by allowing wheel-free lifting for tire and brake work.
Flush-Mount or Surface Installation – Adapts to various shop layouts.
Heavy-Duty Construction – Built for durability and long-term use in professional settings.
Q&A
Q: What is included in the Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo? A: This combo includes the Atlas PX16A 16,000 lb. Scissor Alignment Lift and two RJ8 8,000 lb. Rolling Jacks, providing a complete lifting and alignment solution for heavy-duty vehicles.
Q: What is the lifting capacity of the PX16A Scissor Lift? A: The PX16A has a 16,000 lb. capacity, making it suitable for large trucks, SUVs, and commercial vehicles.
Q: What do the RJ8 Rolling Jacks add to this package? A: The RJ8 Rolling Jacks have an 8,000 lb. capacity each, allowing you to lift vehicle axles independently for wheel and brake work.
Q: What type of power does the lift require? A: It operates on 220V single-phase power, ensuring consistent and efficient performance.
Q: Is this combo suitable for professional shops? A: Yes, this lift and jack package is designed for professional auto shops, fleet maintenance, and heavy-duty vehicle repair.
Maintenance Tips
Hydraulic System Check – Inspect hoses, cylinders, and fluid levels for leaks or wear.
Lubricate Moving Parts – Apply grease to hinges, rollers, pivot points, and jack components.
Test Safety Locks – Ensure both lift and rolling jack locks engage properly.
Inspect Platform & Ramps – Check for cracks, rust, or loose fasteners.
Check Air & Electrical Systems – Verify connections for leaks and ensure smooth operation.
Tighten Fasteners – Regularly inspect and secure all bolts and fittings.
Keep Work Area Clean – Remove debris to maintain safe and efficient use.
