Atlas PV12PX 12,000 lb Overhead 2-Post Lift - ATEXH-PV12PX-FPD

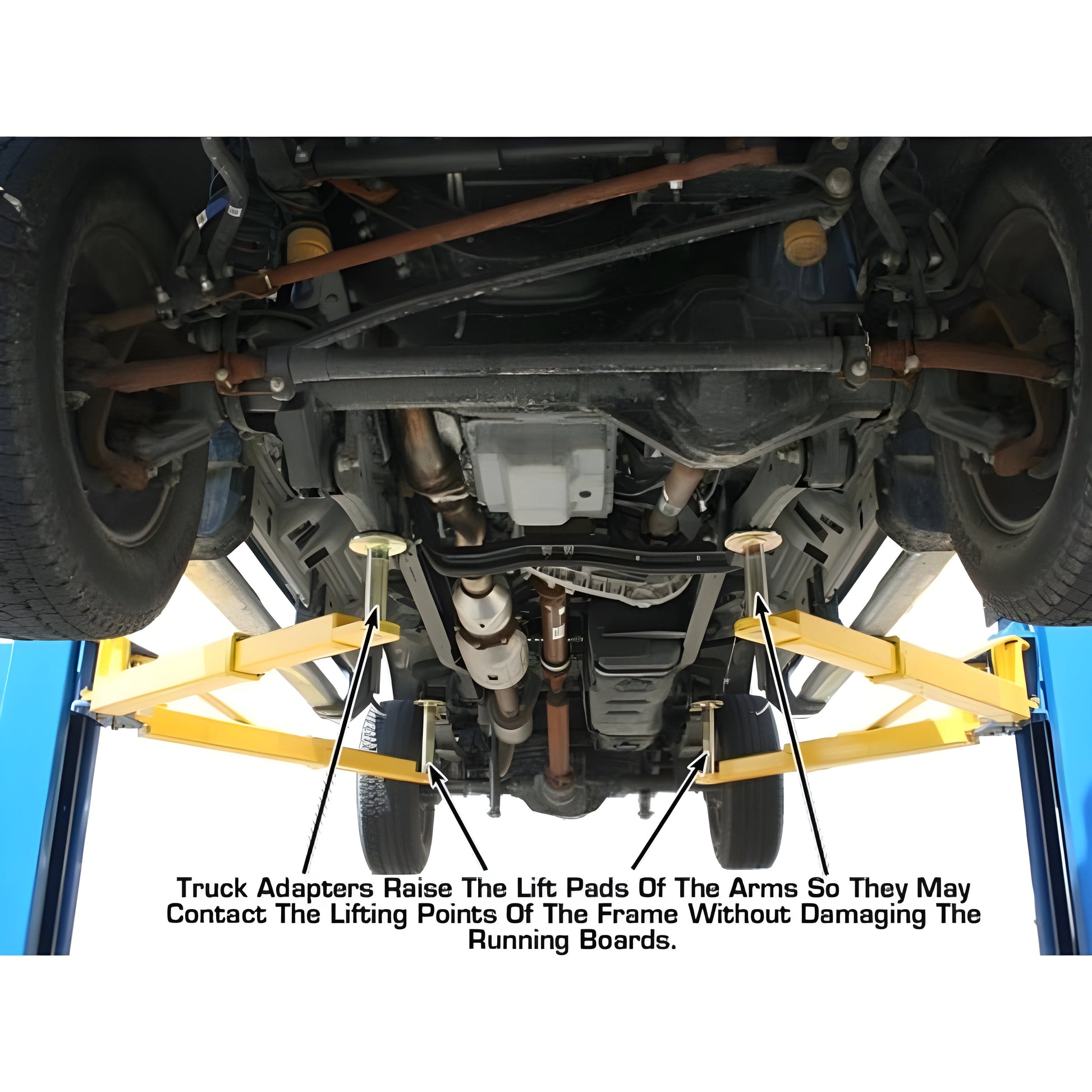

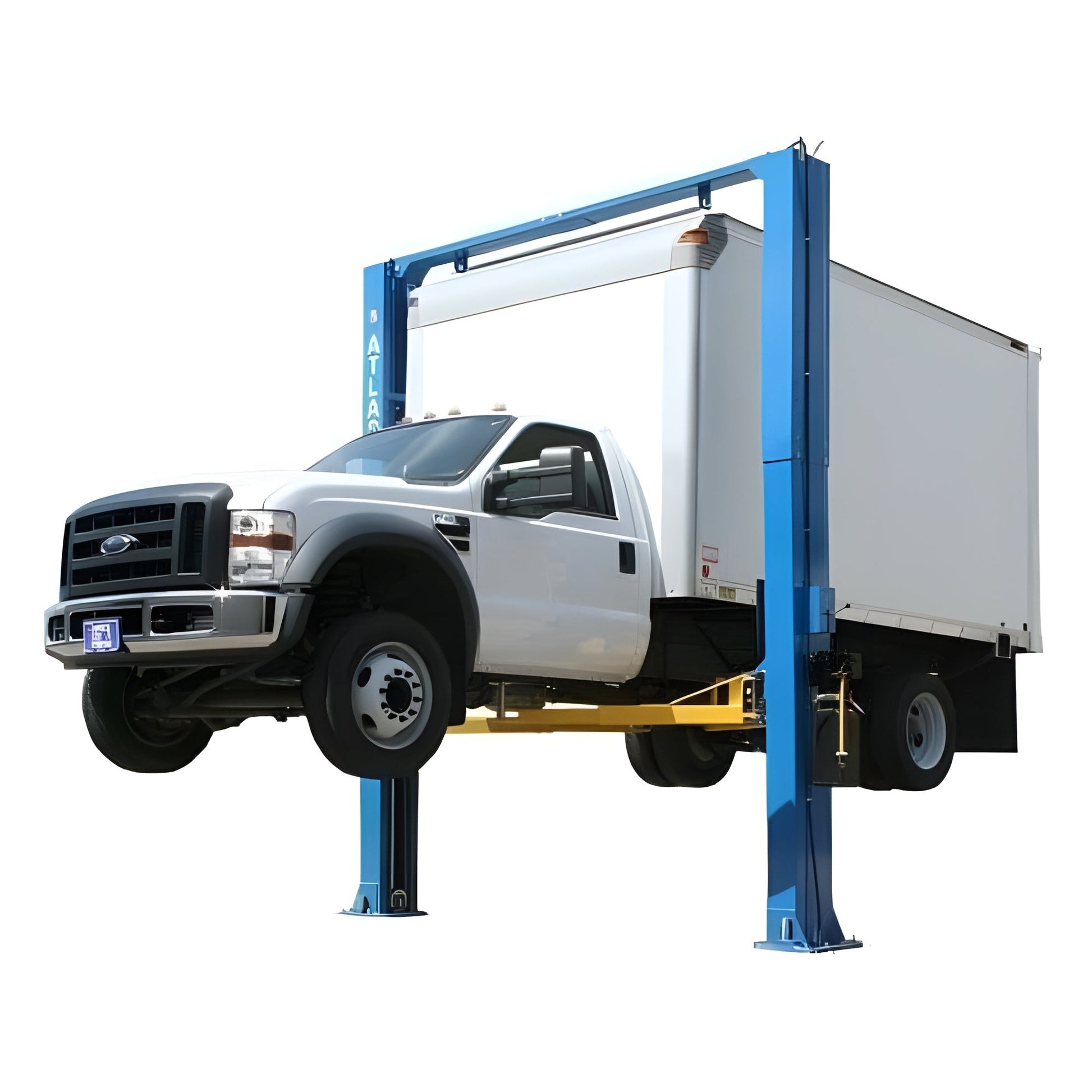

The Atlas PV series represents the absolute best value for the customer who demands a heavy-duty professional grade two post lift at the lowest possible price. Atlas has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.The Atlas PV12PX is a commercial grade lift designed to accommodate both long wheel-base trucks and because of a low pad height, passenger cars. The distance between the symmetrical columns is 123″ with a drive through space of 109″. The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel-base trucks with a variety of running boards. The extra height means extra clearance allowing you to lift vans and box trucks without worry.The Atlas ATEXH-PV12PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches requires the purchase of extra short cables.
Features
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade

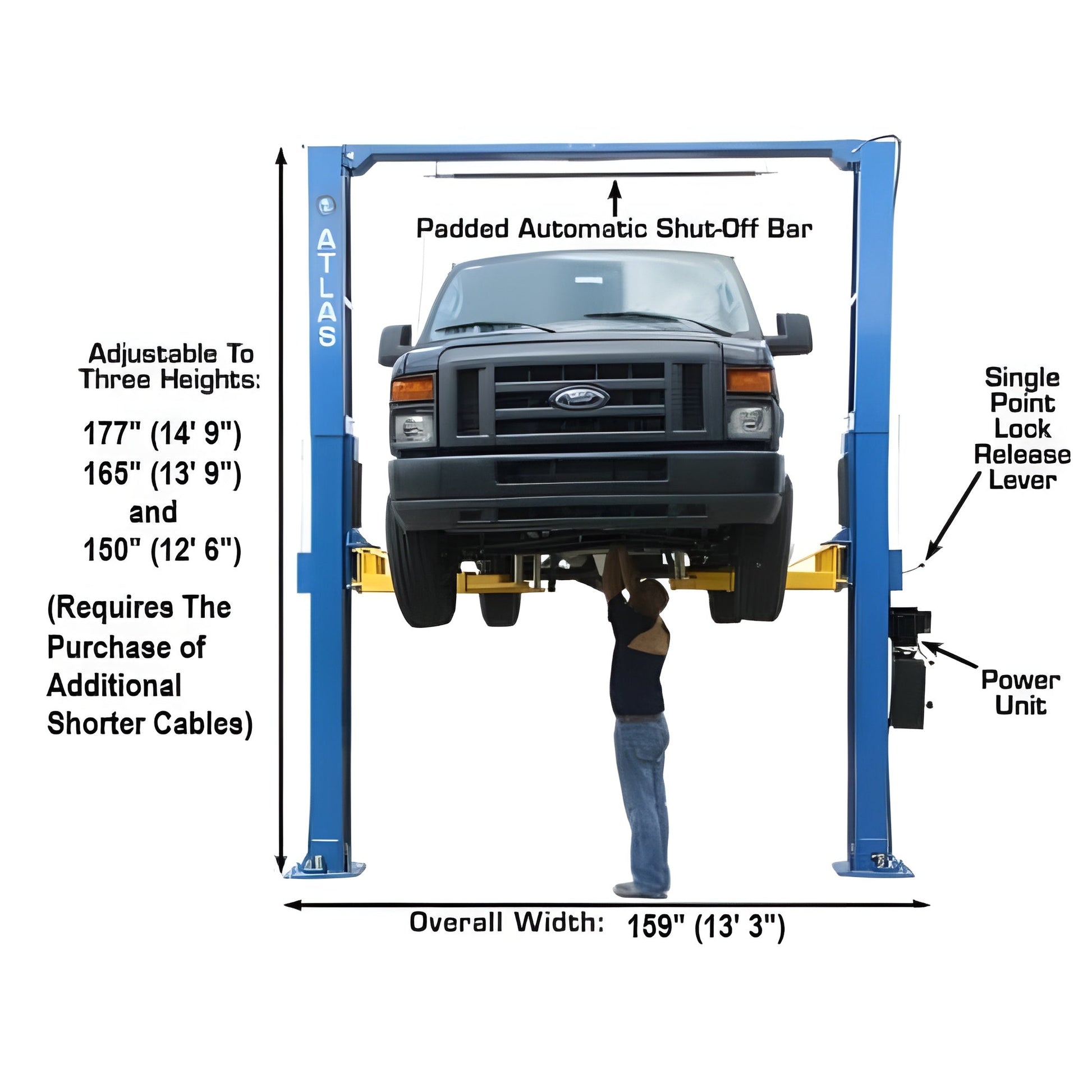

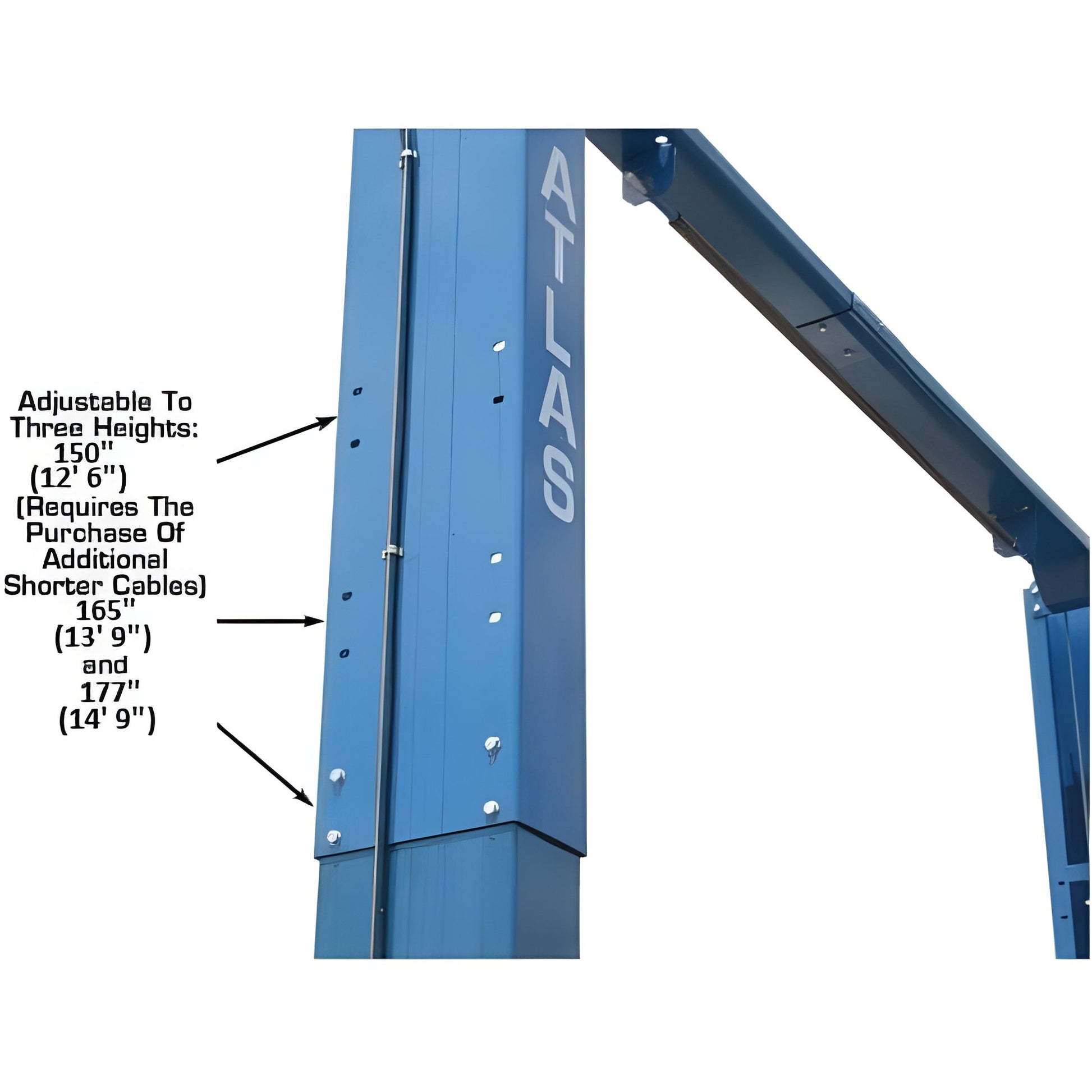

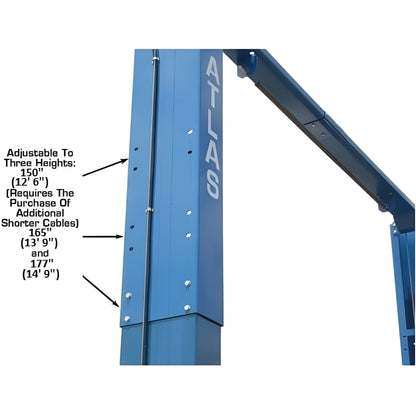

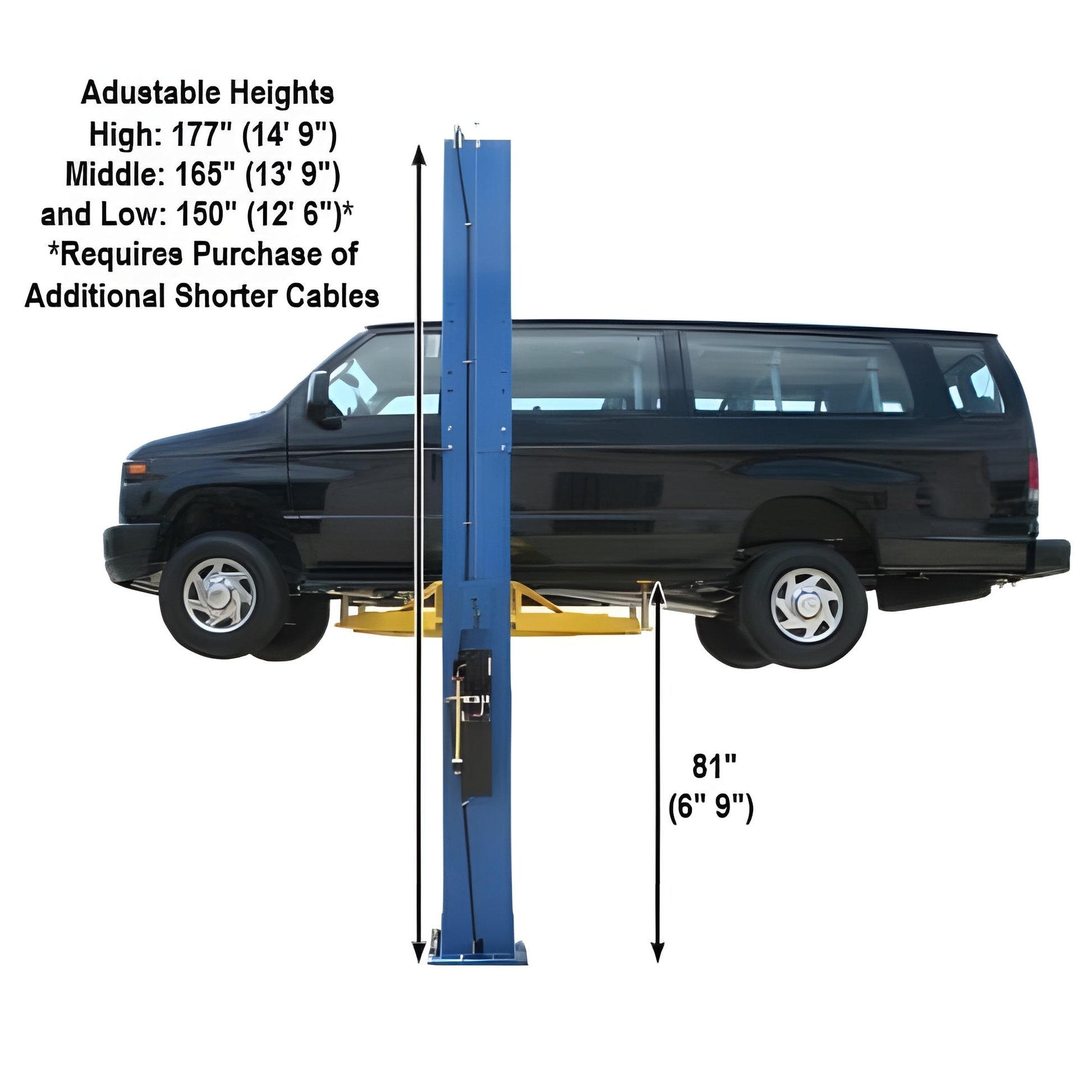

- Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

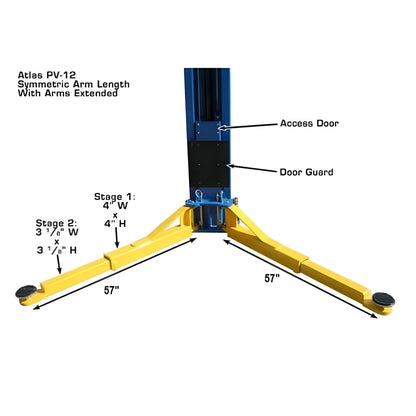

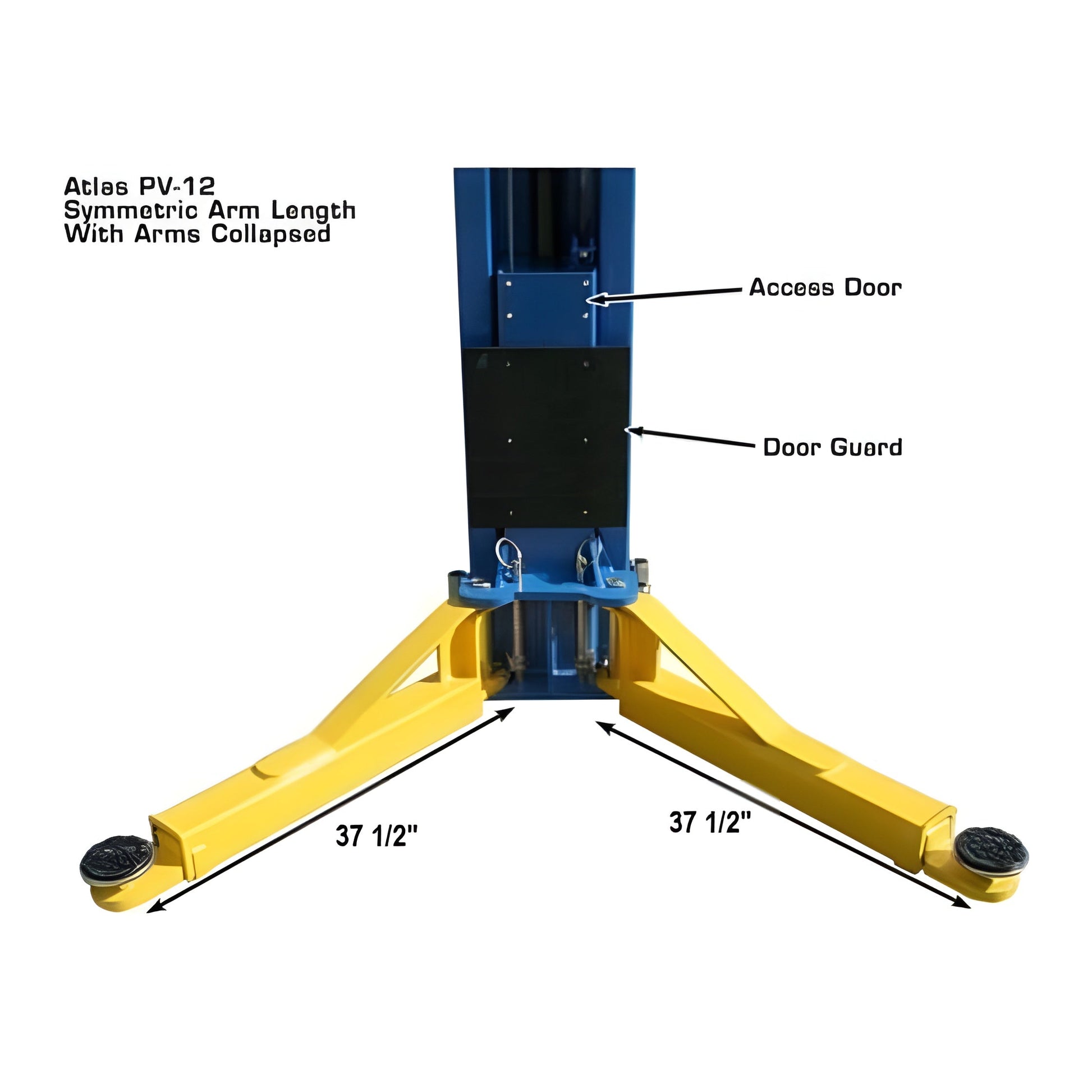

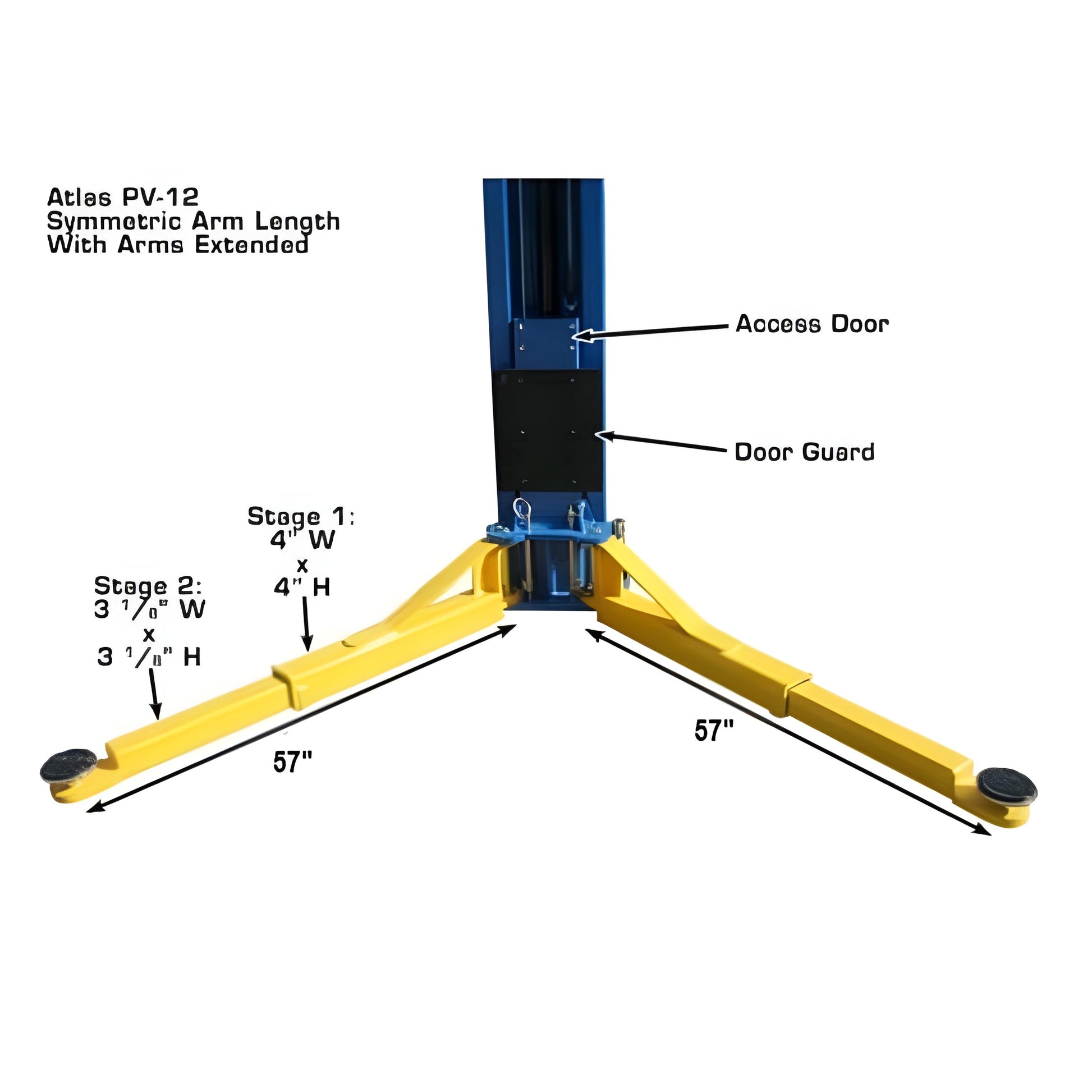

- Symmetric arms
- Automatic Arm Restraints

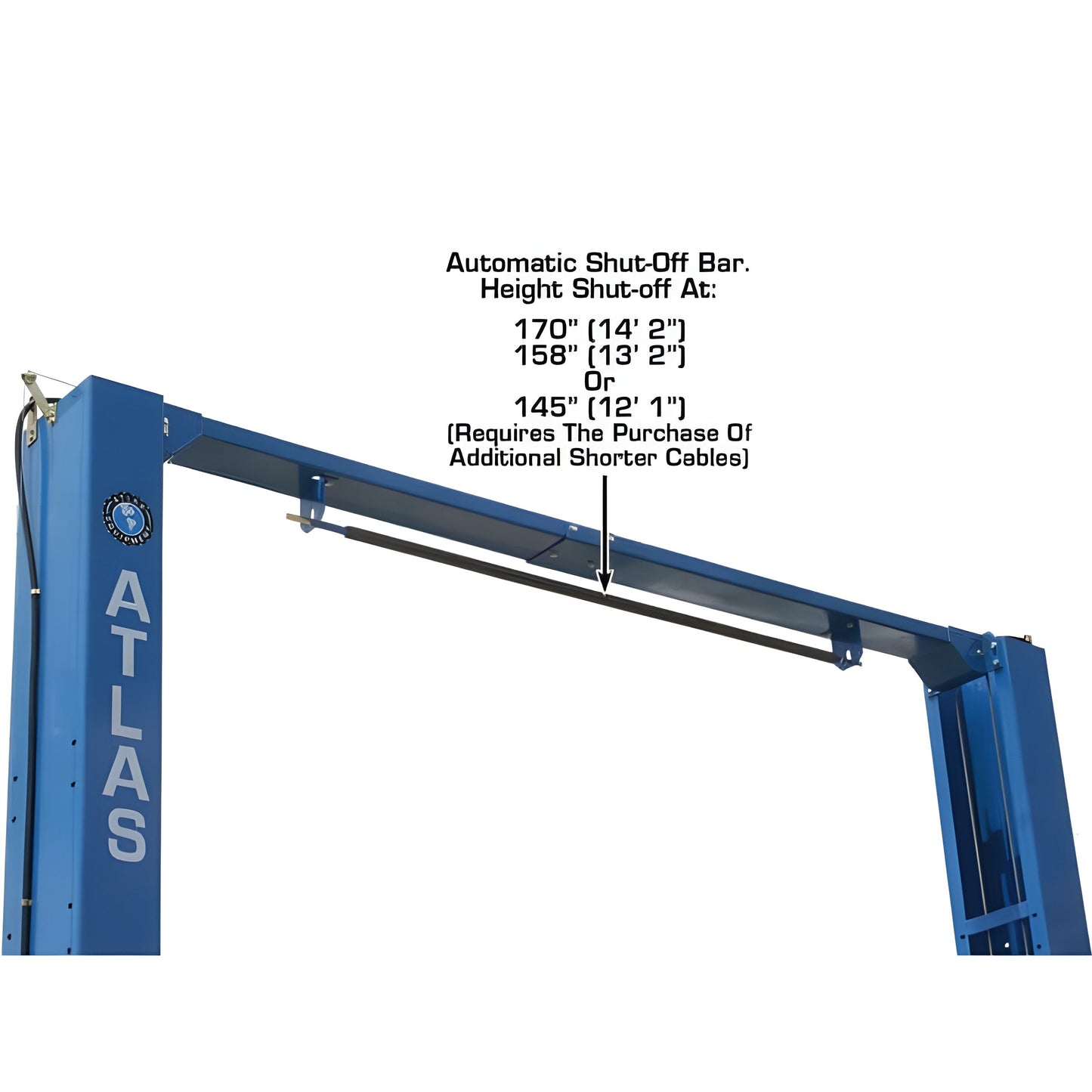

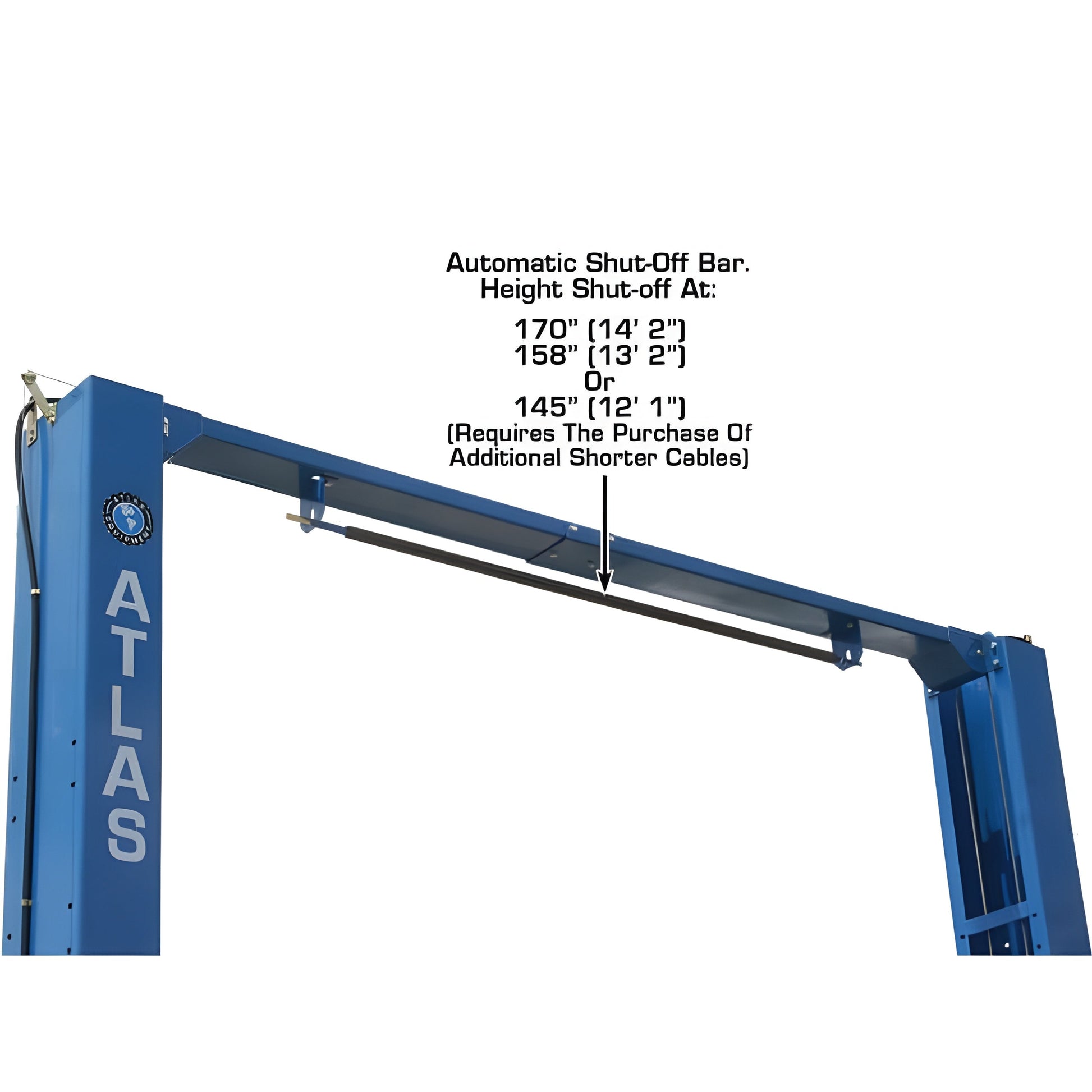

- “Padded” Shut-Off Bar
- Door Guards on Carriages

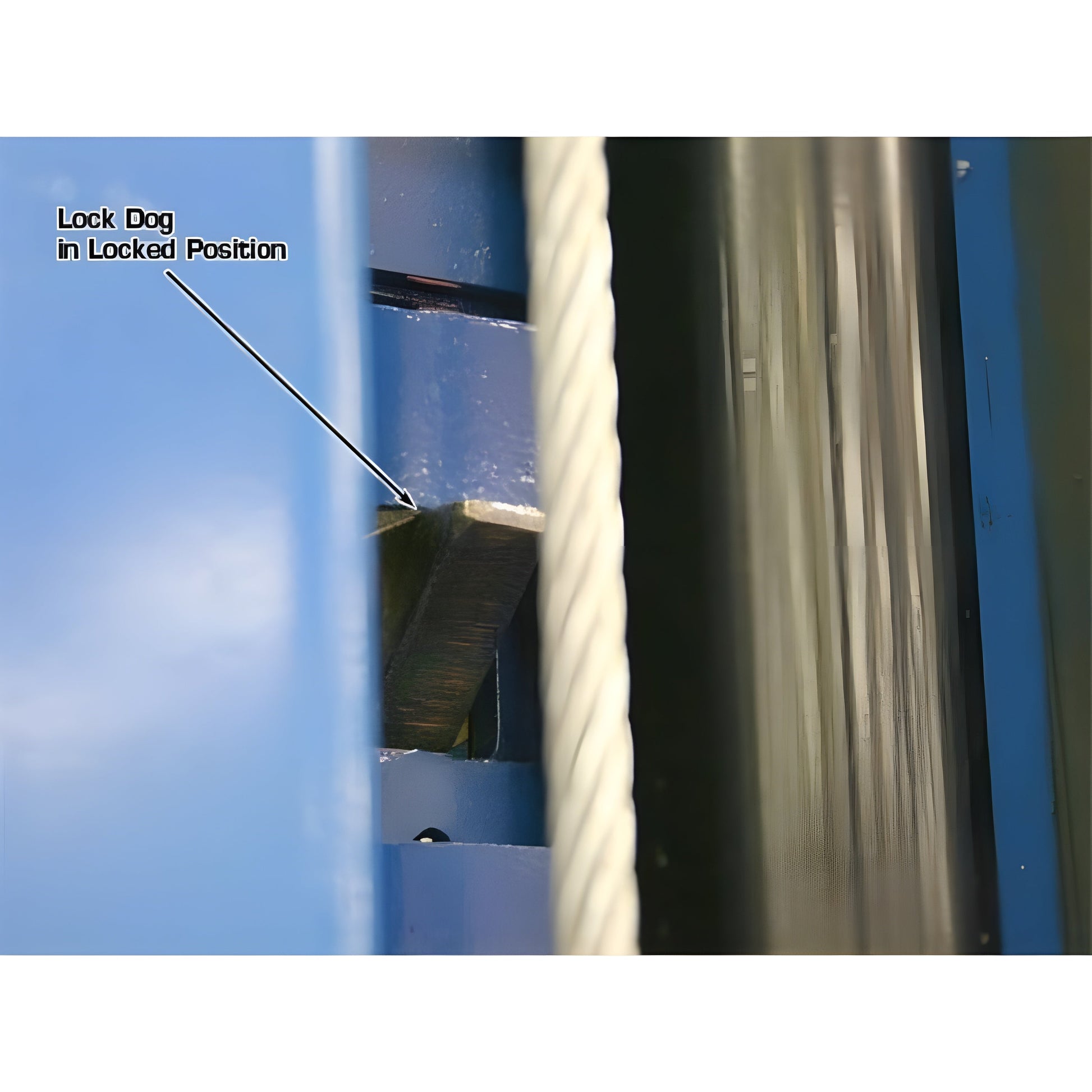

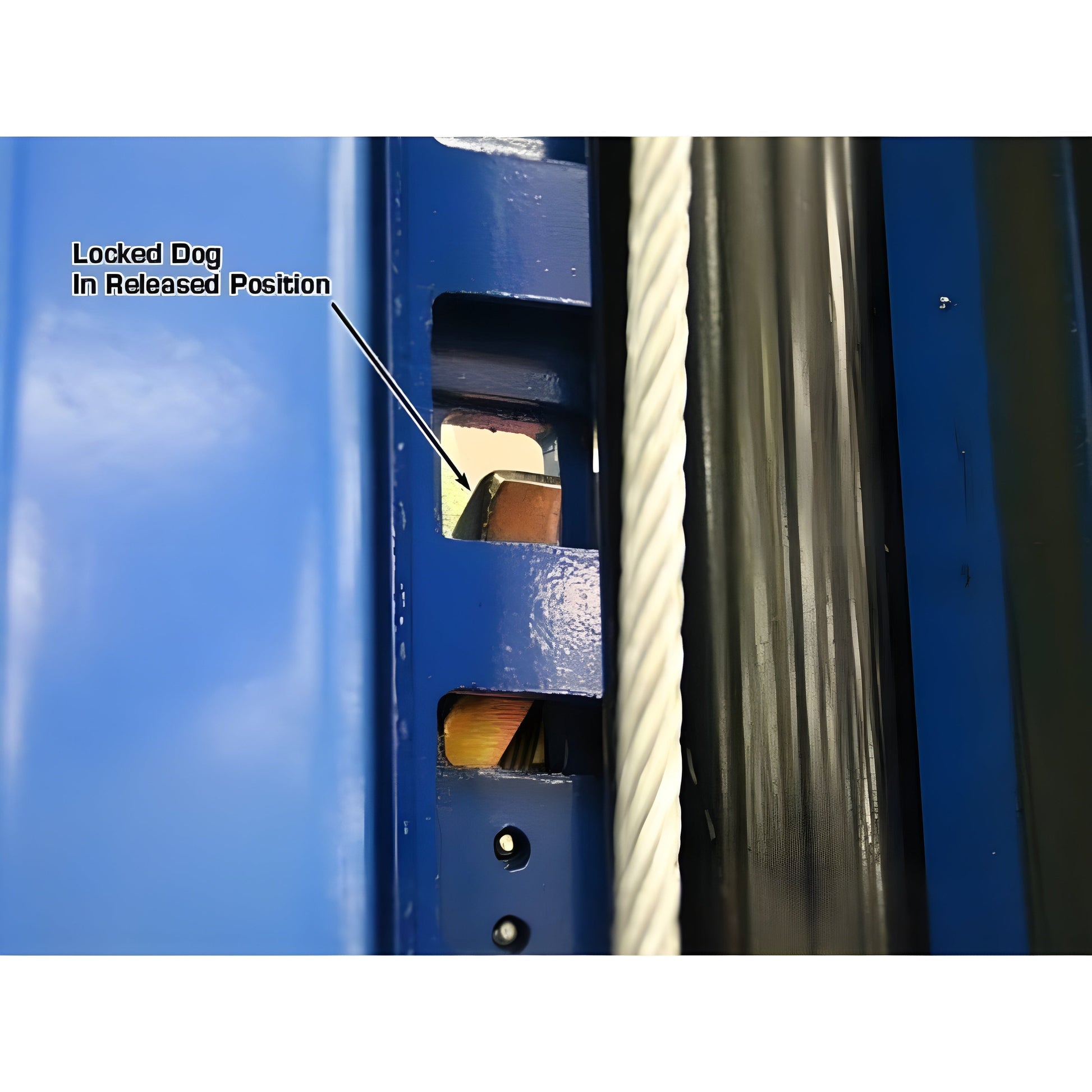

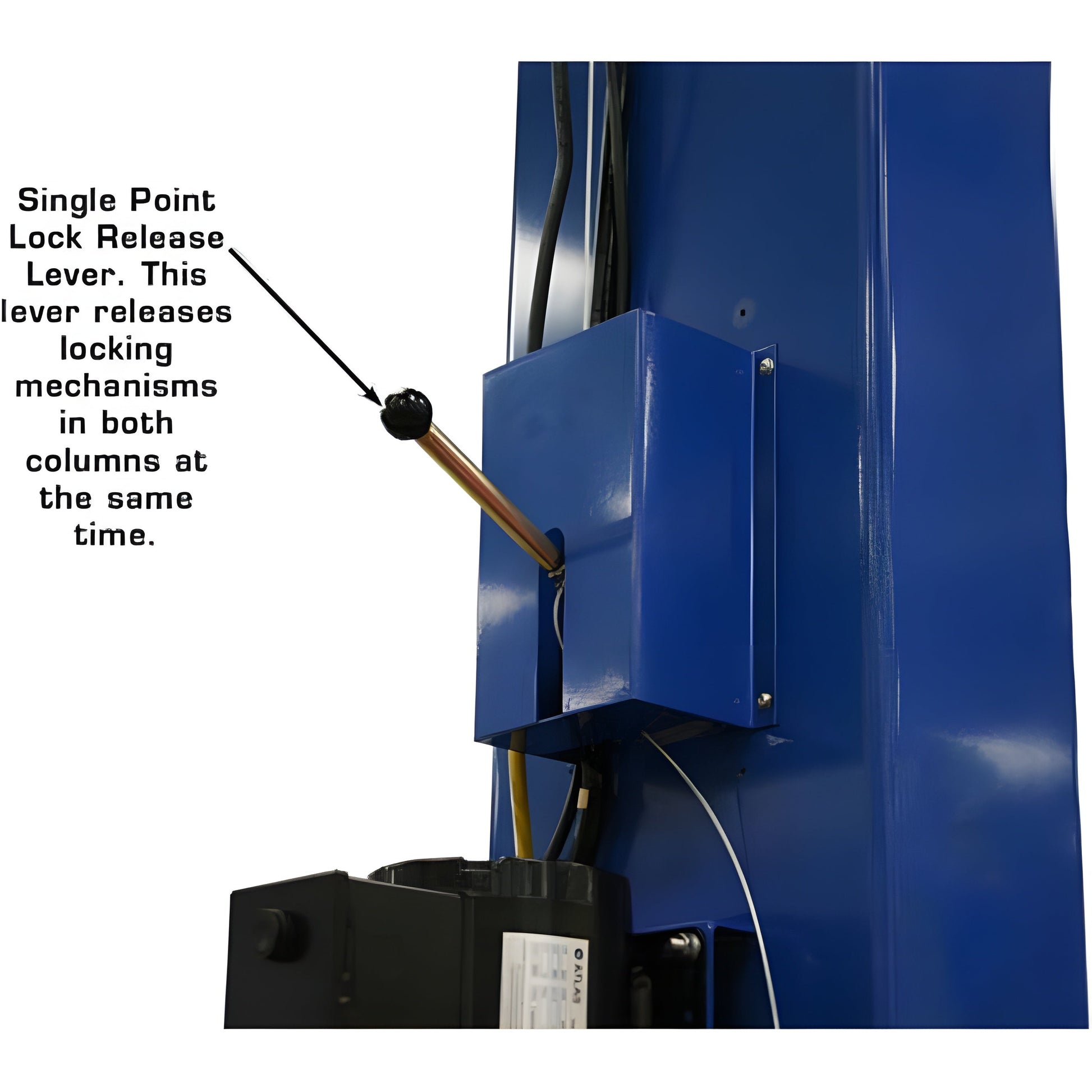

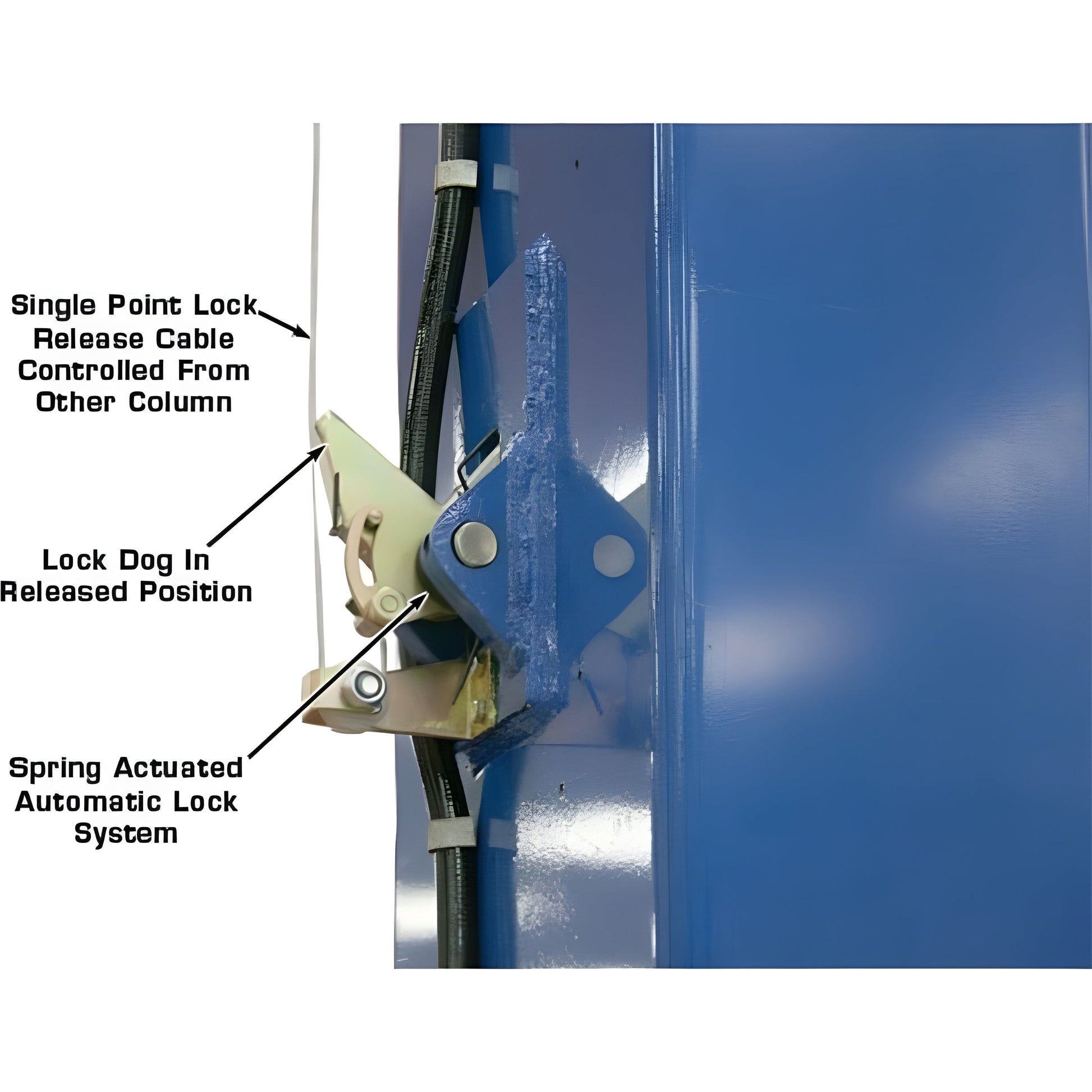

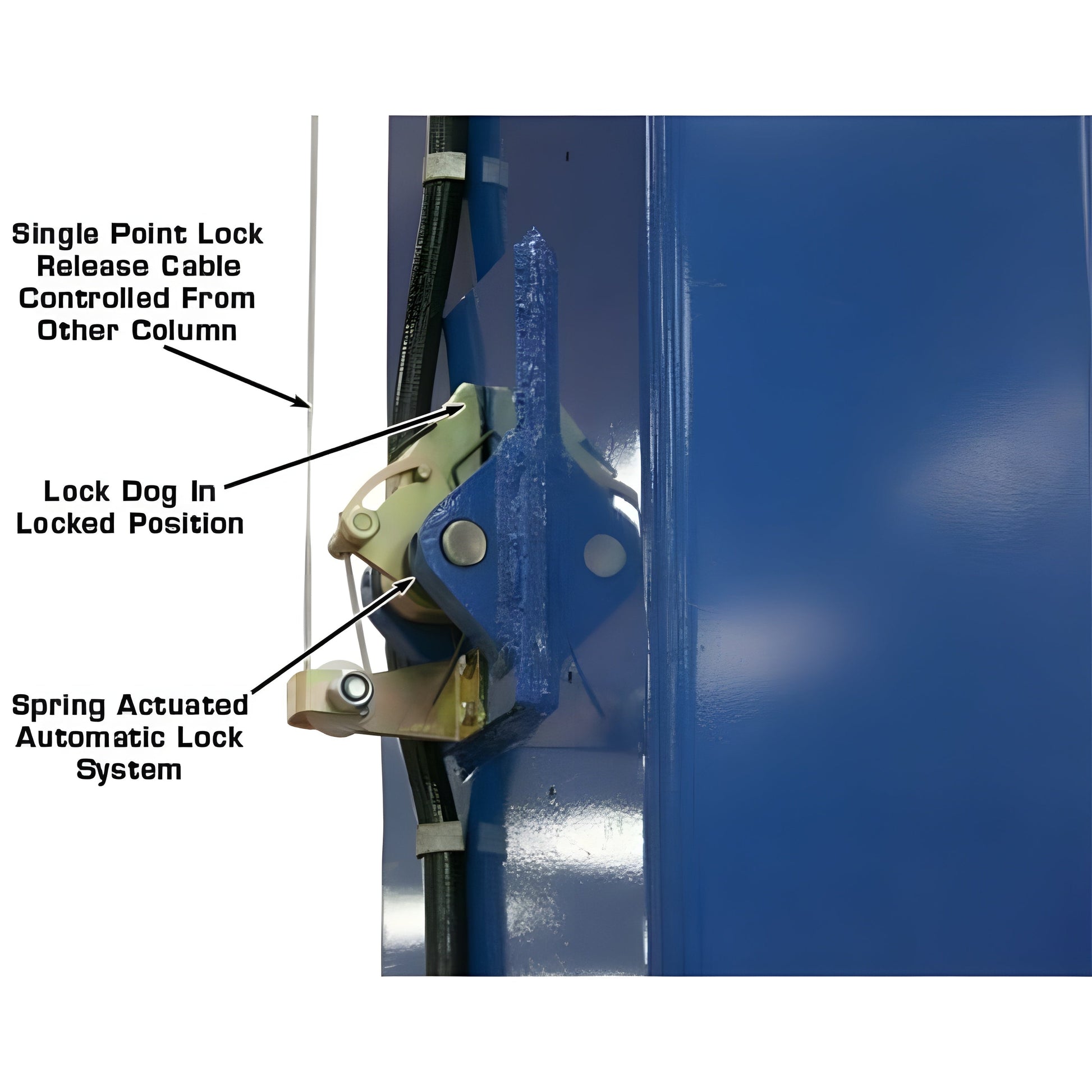

- Single Point Lock Release

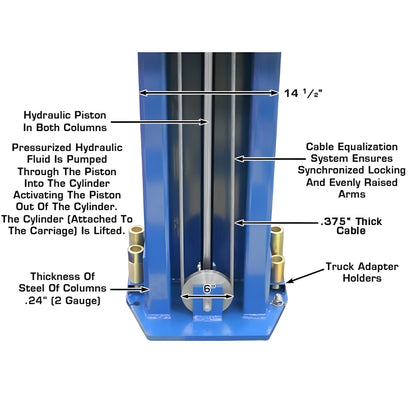

- Direct-Drive Cylinders
- Powder Coat Finish

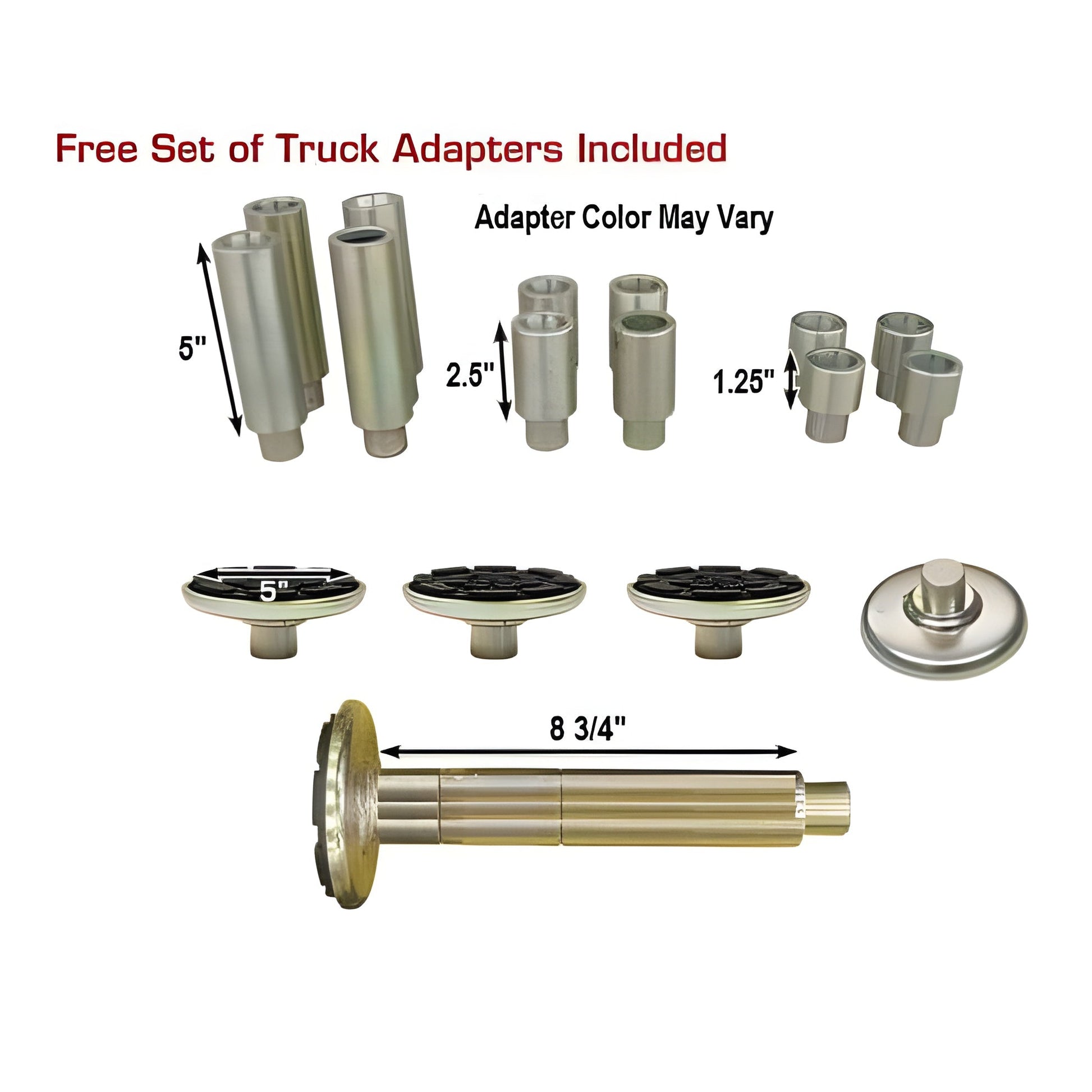

- Free 12 Piece Truck Adapter Set

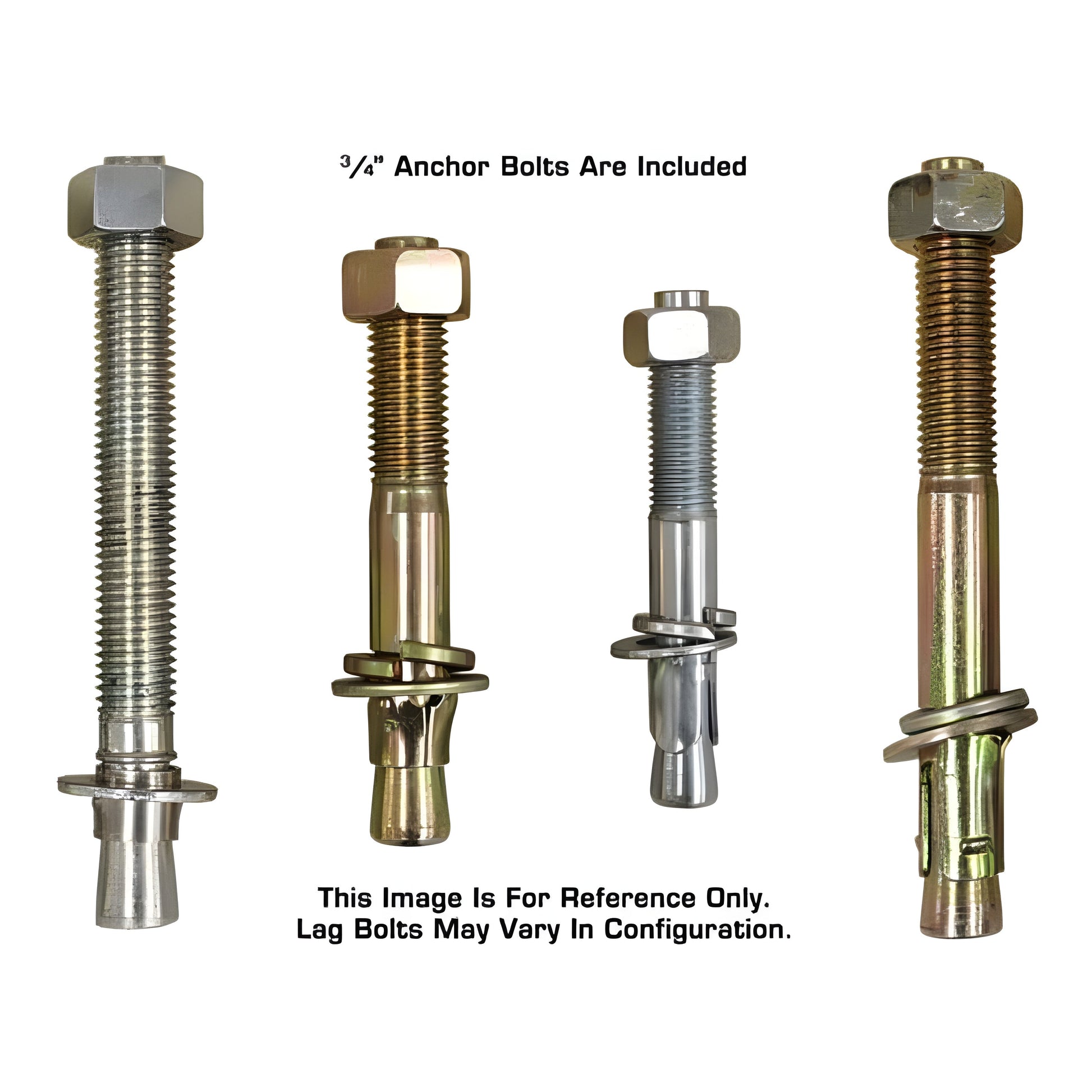

- Mounting Hardware Included
Specifications
| Atlas ATTD-PV12PX Specifications |
|
| Capacity |
12,000 LB. |
| Overall Height |
165" (13’ 9”) or 177” (14’ 9”) |
| Special Low Height |
150" (12’ 6”) (Requires Purchase of Extra Cables) |
| Overall Floor Width |
150 3/4" (12’ 6 3/4”) |
| Outside Column to Outside Column |
139 1/8" (11’ 7 1/8") |
| Maximum Lift Height (Without Adapters) |
72 1/4" |

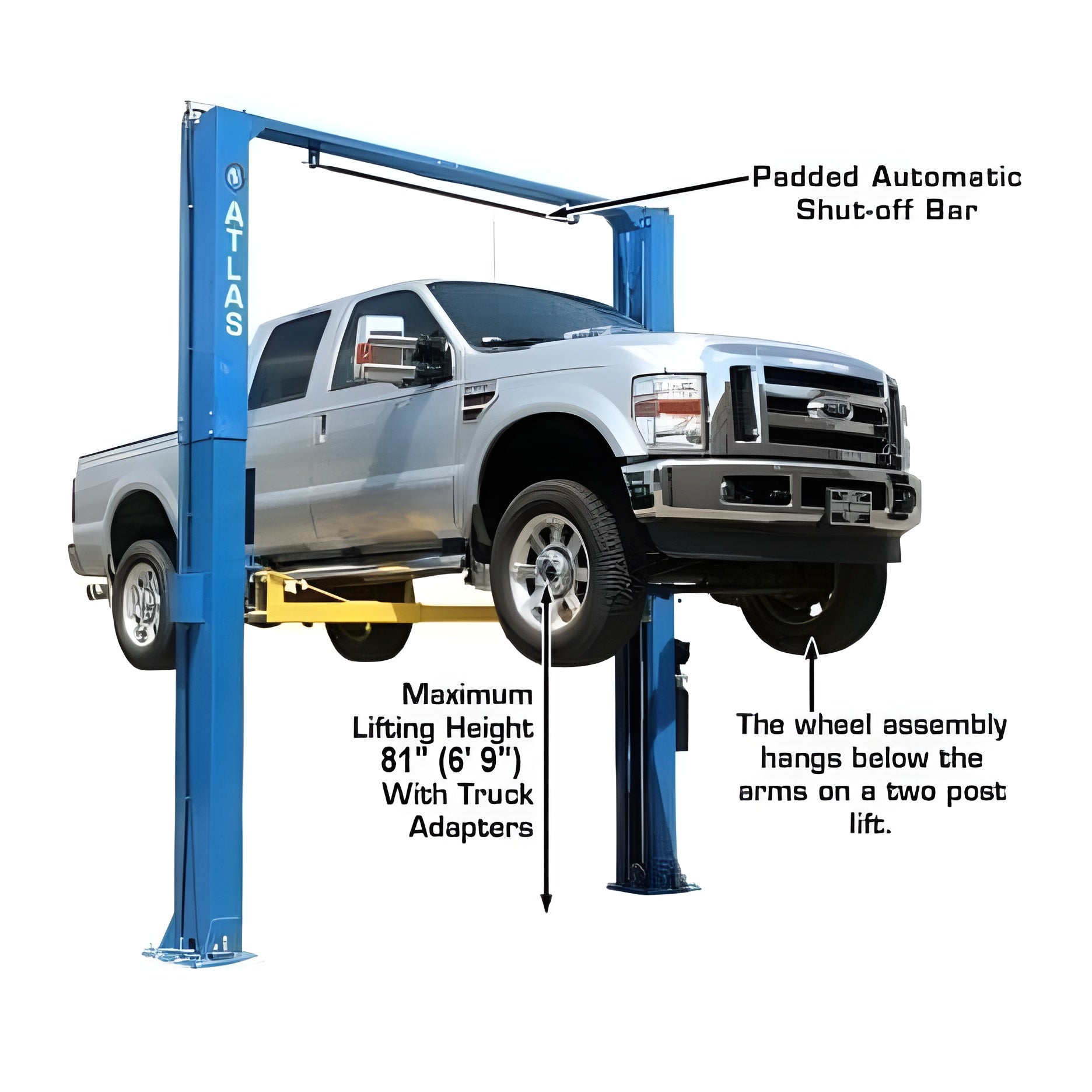

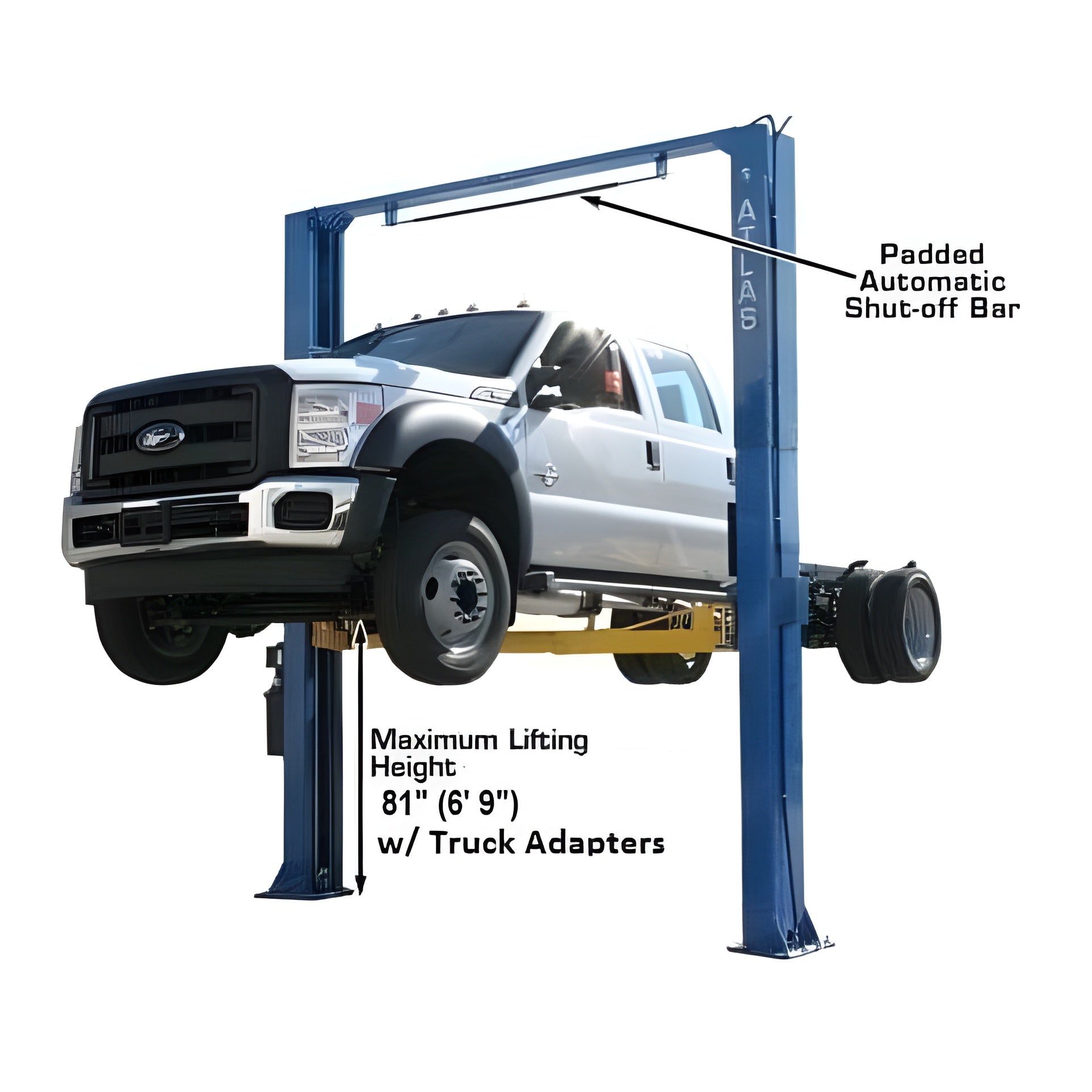

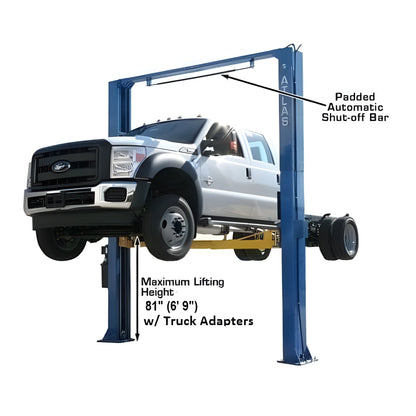

| Maximum Lift Height (With Adapters) |
81" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
123 1/2” (10’ 3 1/2”) |
| Drive Thru |
109 1/2" (9’ 1 1/2”) |

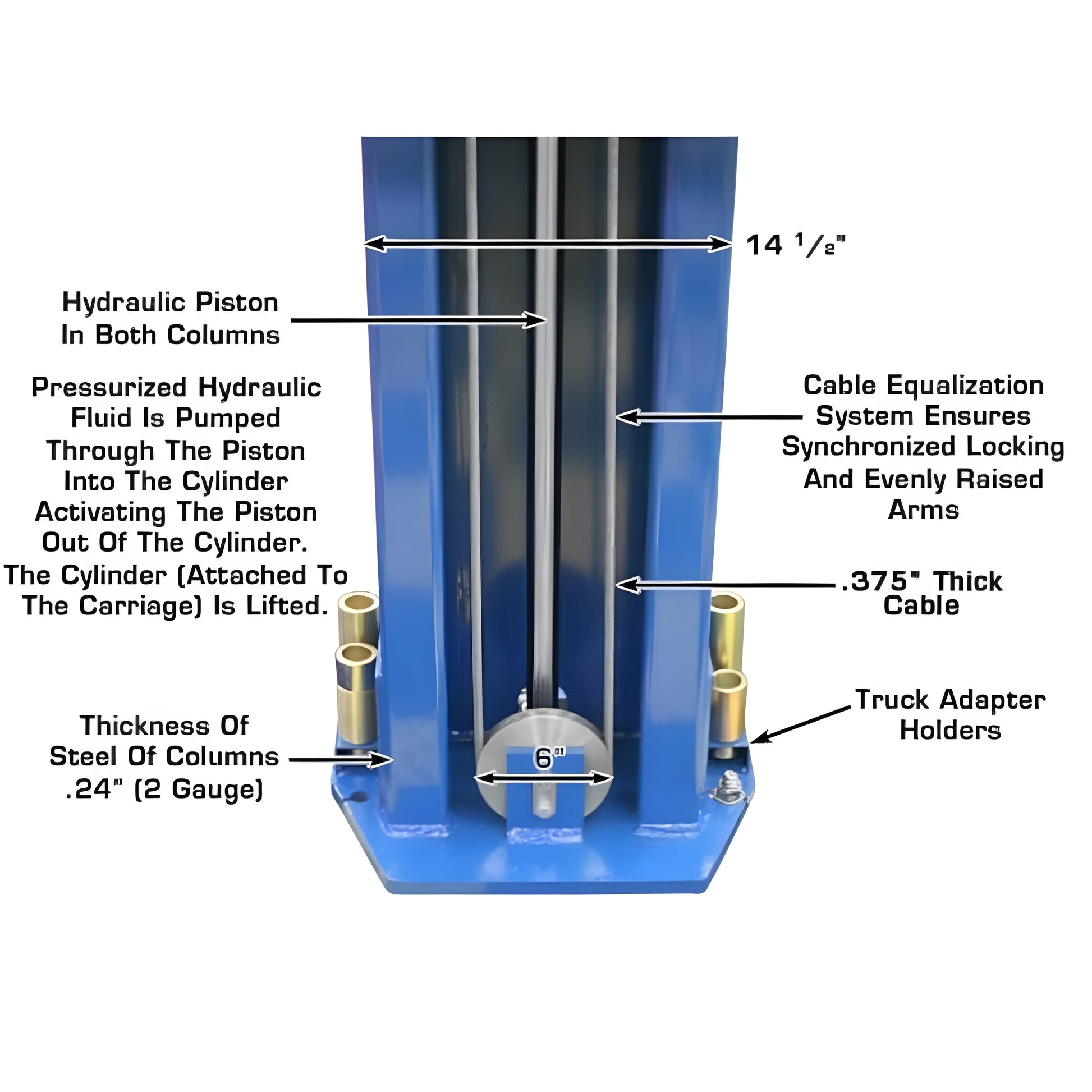

| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |

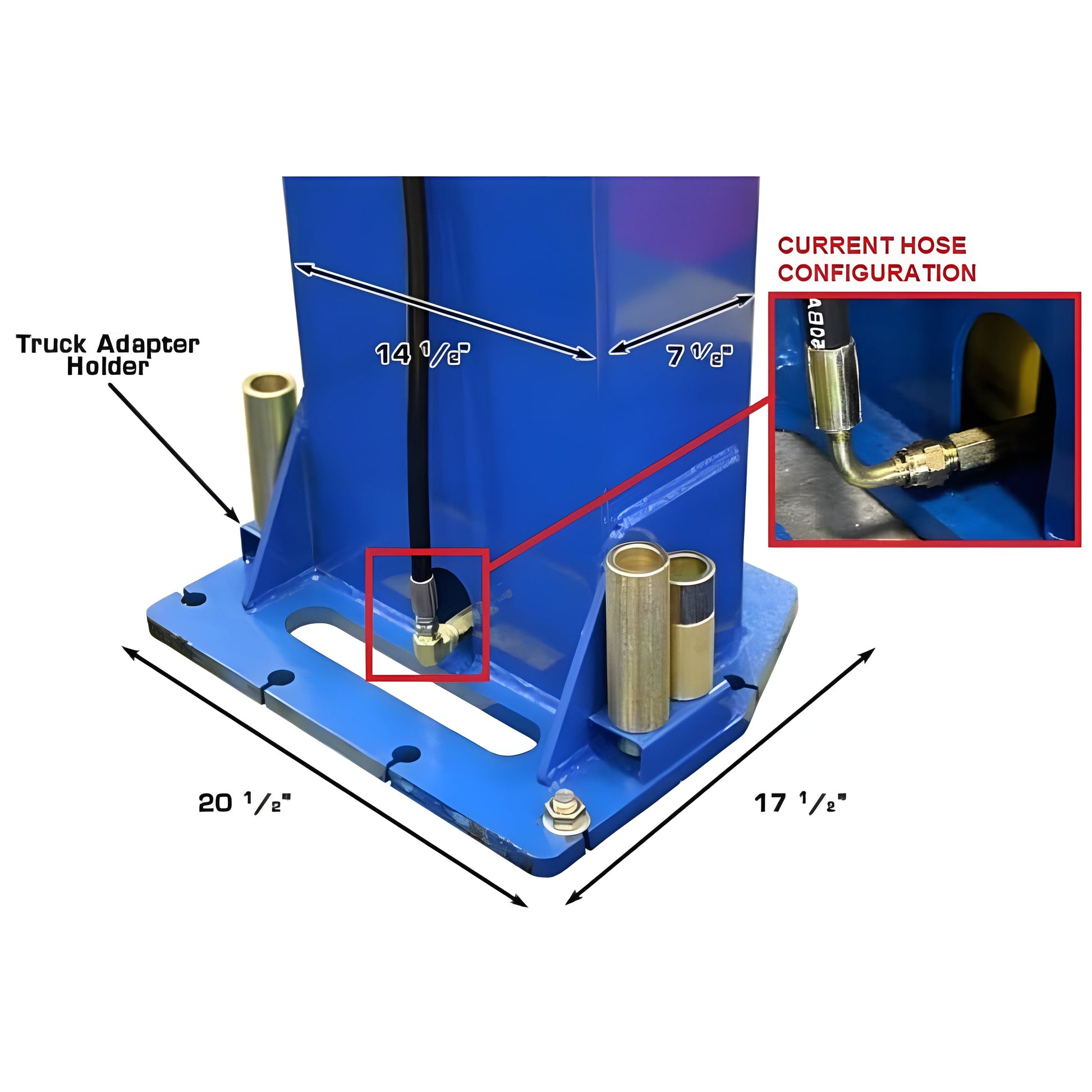

| Base Of Lift |
17 1/2" x 20 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

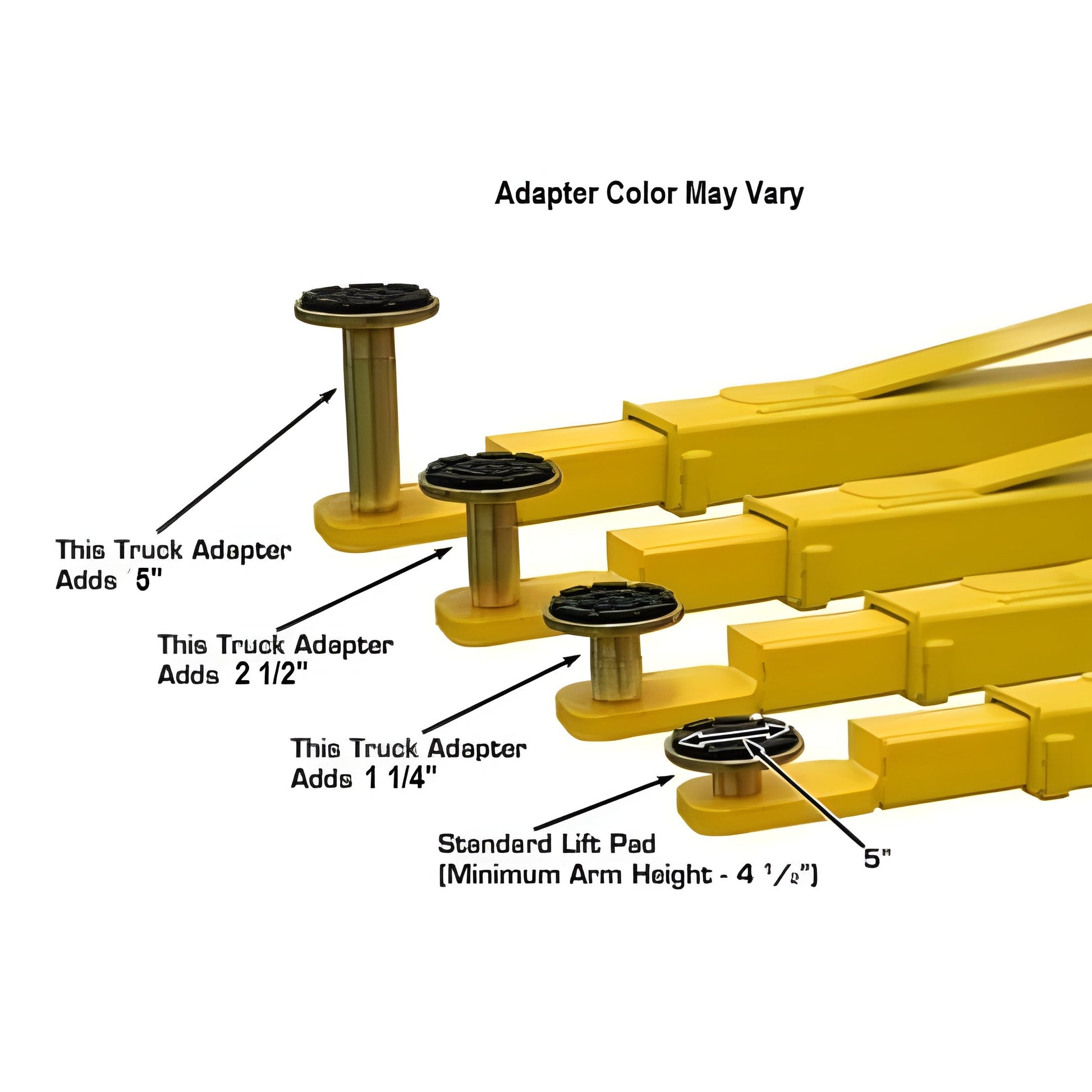

| Adapter Heights |
4 Each 1.25”, 2.5”, 5” |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
|
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
Manual
Atlas XH-PV12PX Manual
What our Expect Think
-
12,000 lb. Lifting Capacity – Built for heavy-duty applications, perfect for trucks, SUVs, and commercial vehicles.
-
Overhead 2-Post Design – Maximizes floor space and allows for easy access to the vehicle's undercarriage.
-
Heavy-Duty Construction – Reinforced steel frame ensures stability, durability, and long-term reliability.
-
Adjustable Arm Configurations – Provides versatility for different vehicle sizes and lifting points.
-
Advanced Hydraulic System – Offers smooth, powerful, and secure lifting for professional use
Q&A
Q: What is the Atlas PV12PX Overhead 2-Post Lift used for?
A: The Atlas PV12PX is a 12,000 lb. capacity overhead 2-post lift, designed for heavy-duty vehicle lifting in professional auto shops and garages.
Q: What is the weight capacity?
A: This lift can handle up to 12,000 lbs., making it ideal for large trucks, vans, and SUVs.
Q: What type of power does it require?
A: The lift operates on a 220V power supply for efficient and reliable performance.
Q: Is professional installation required?
A: Yes, professional installation is highly recommended for safety and proper operation.
Maintenance Tips
-
Inspect Cables & Chains – Check for wear, fraying, and proper tension.
-
Lubricate Moving Parts – Apply grease to pulleys, pivot points, and posts.
-
Check Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Test Safety Locks – Ensure locks engage fully before operating the lift.
-
Tighten Fasteners – Regularly inspect and secure all bolts and anchor points.
-
Inspect Lift Arms & Pads – Look for cracks, wear, and secure positioning.
-
Keep Work Area Clean – Remove debris for smooth operation and safety.
