Atlas PRO8000 4 Post Lift + RJ35 Sliding Jacks Combo - ATEXH-PRO8-COMBO-FPD
The Atlas Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars.The Atlas Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application, please contact a salesperson.This combo package also includes two of the popular Atlas RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PRO8000
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Diamond Plated Runways
- Single-Point Lock Release

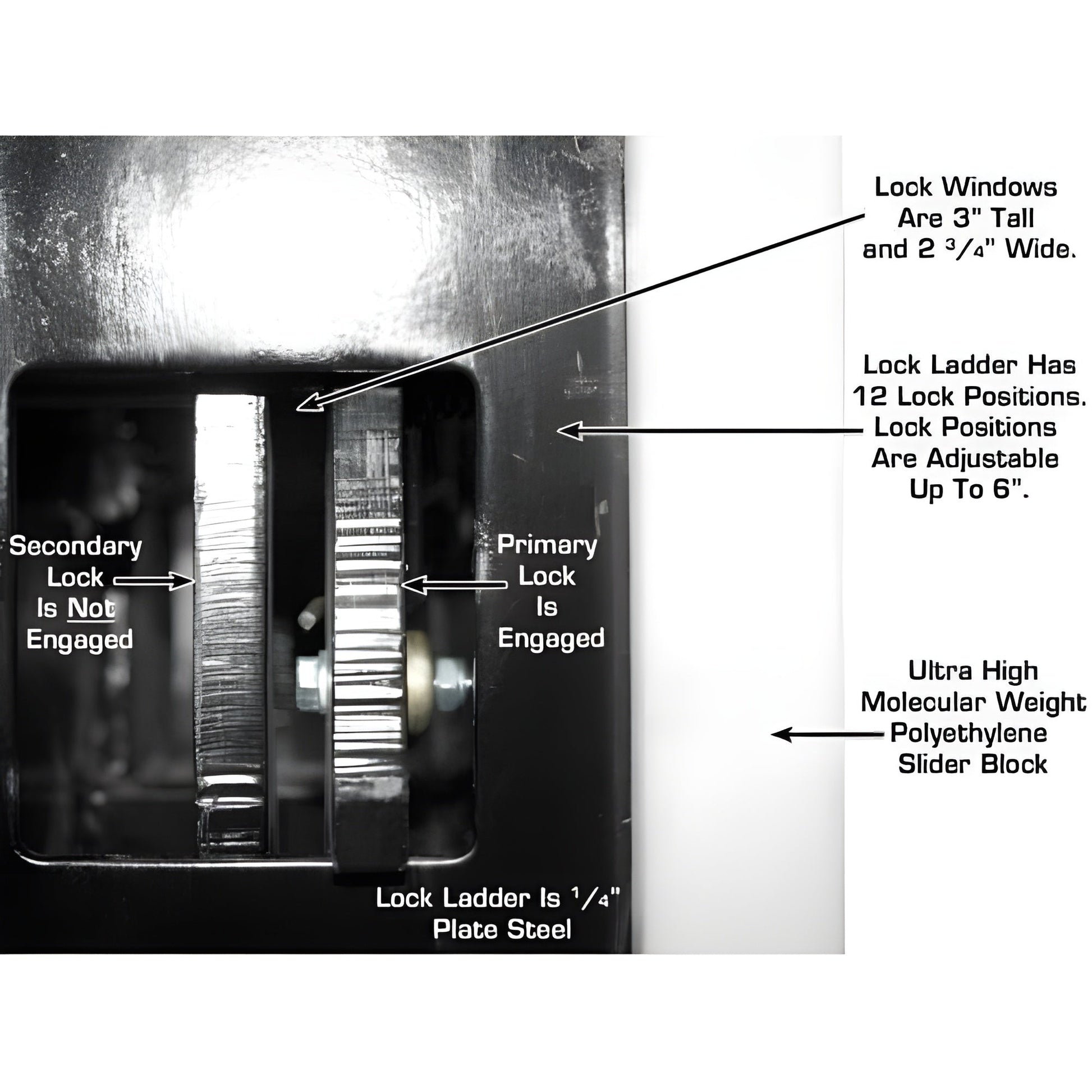

- Lock Ladder Design

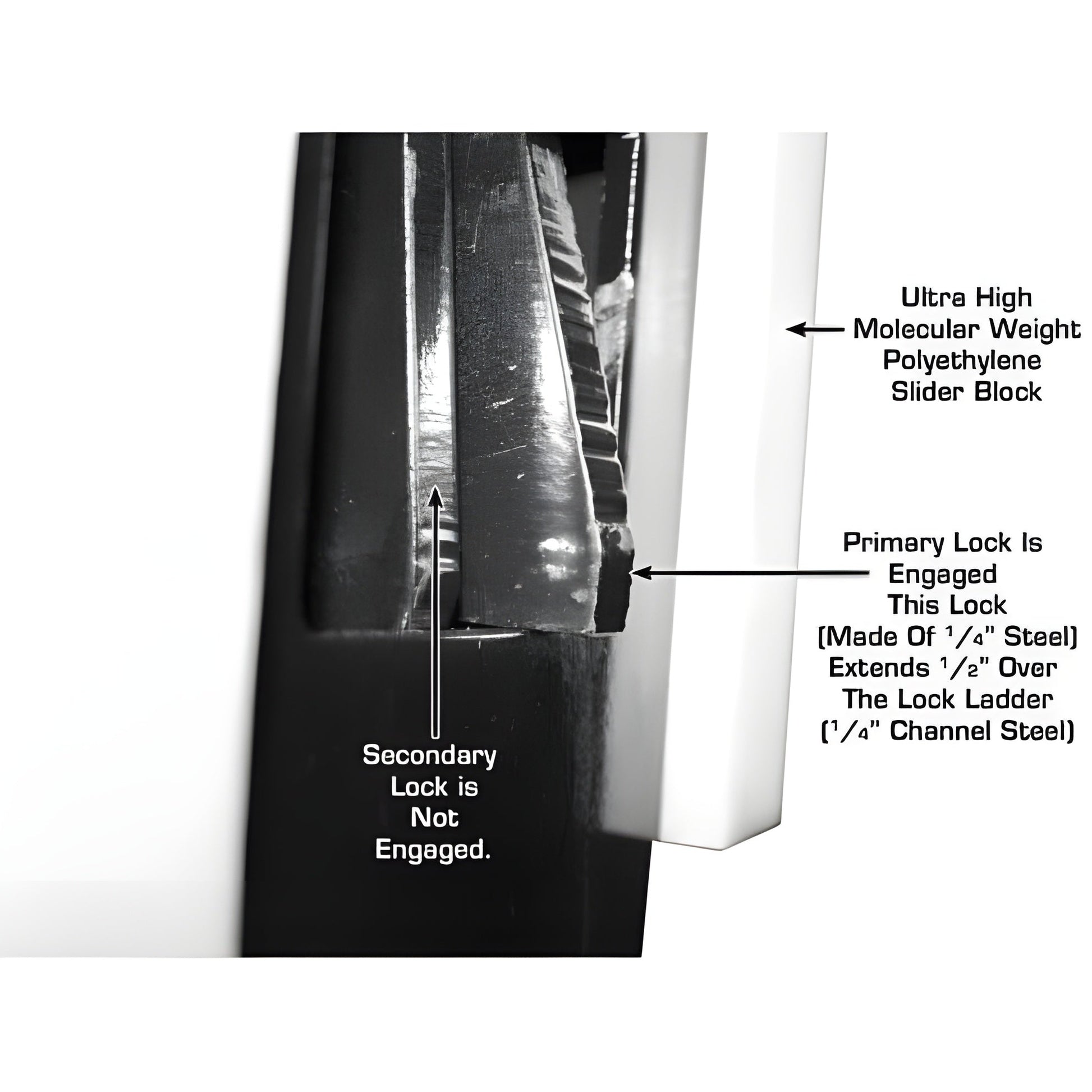

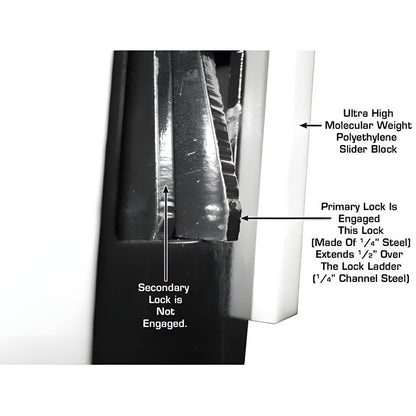

- Double Lock Safety System

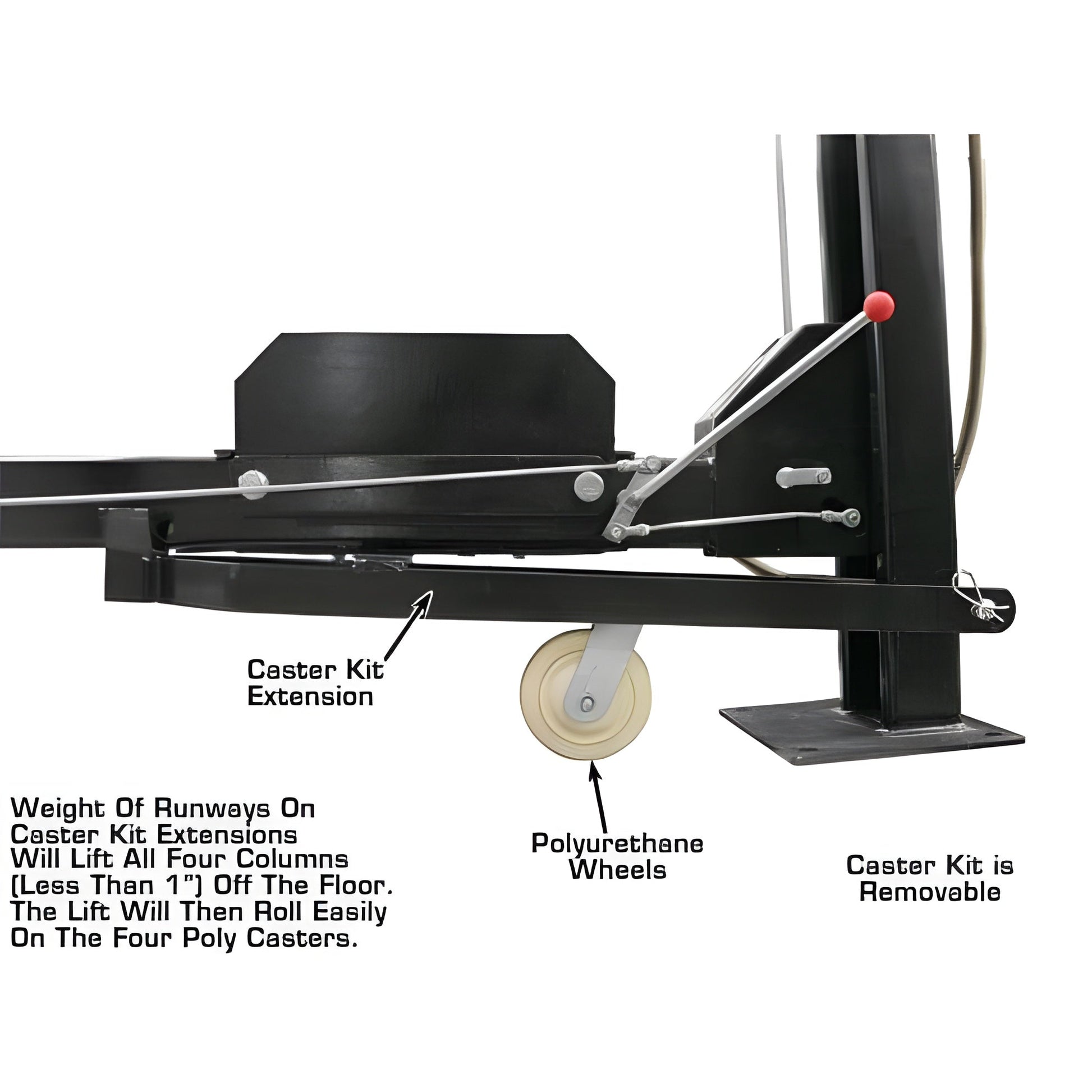

- Caster Kit With Polyurethane Wheels Included

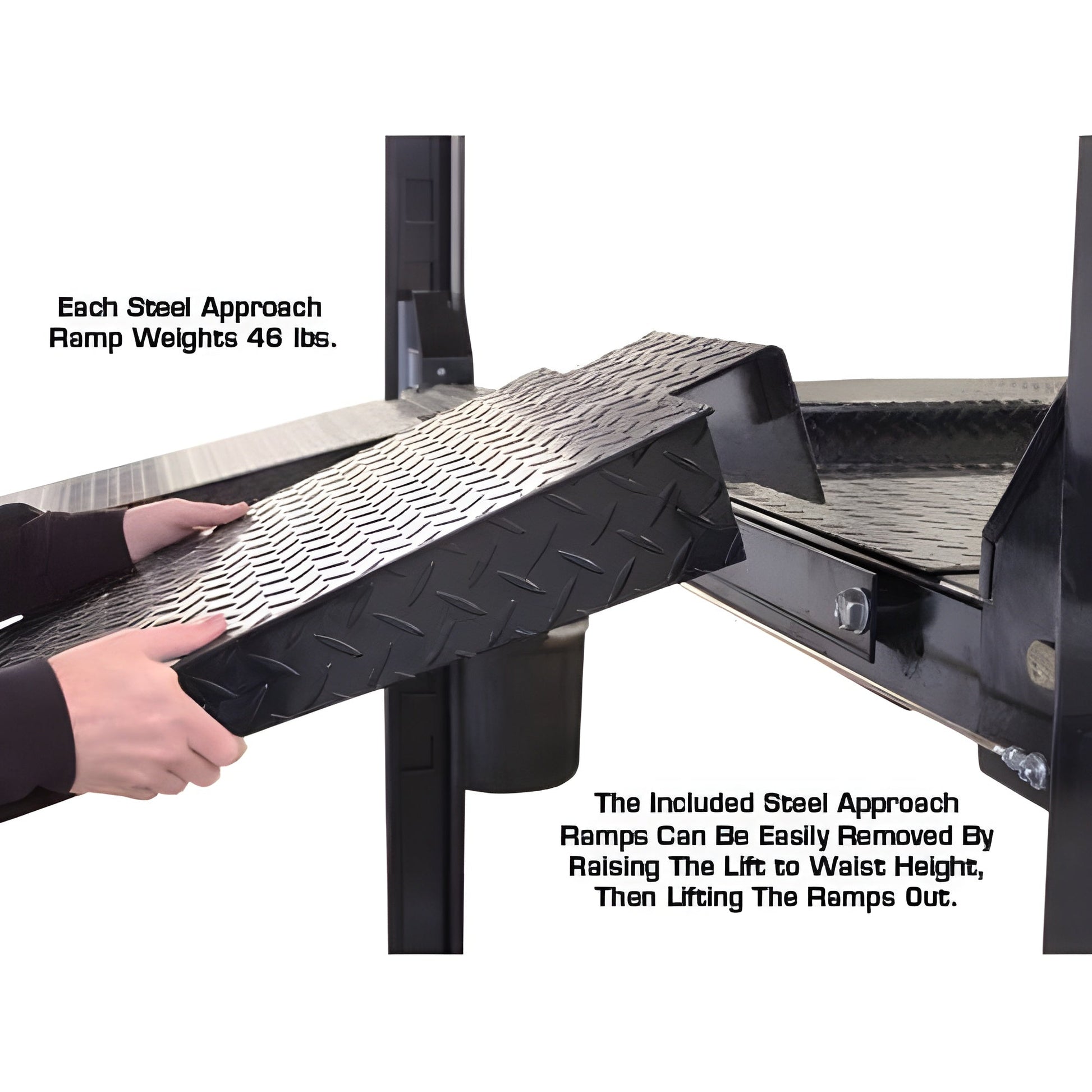

- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
PROJACK35
- Sliding Bridge Jack
- Capacity: 3,500 lbs.
- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions
- 4 Piece Truck Adapter Set Included
Specifications
| Atlas Garage Pro 8,000 Specifications |
|
| Capacity |
8,000 LB |

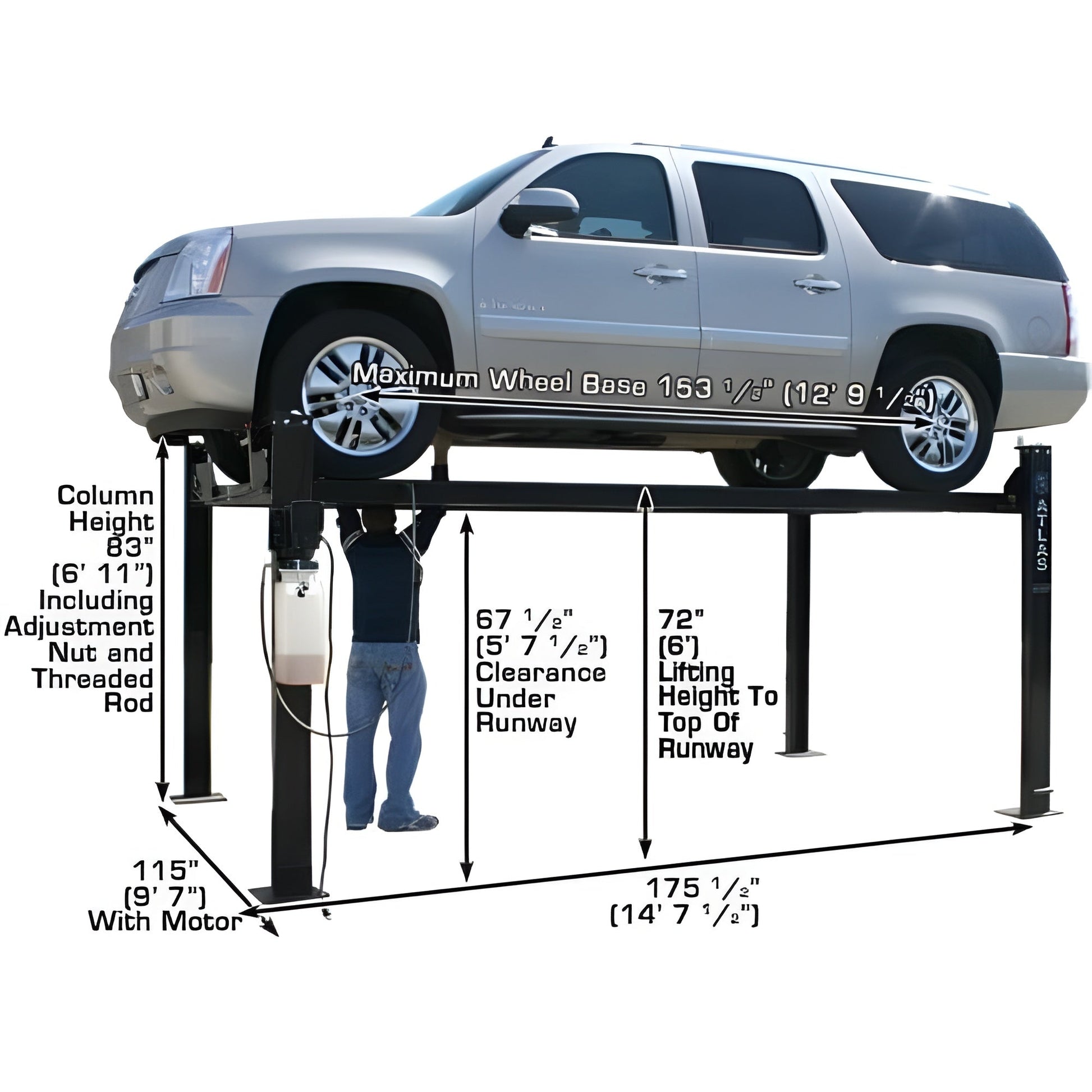

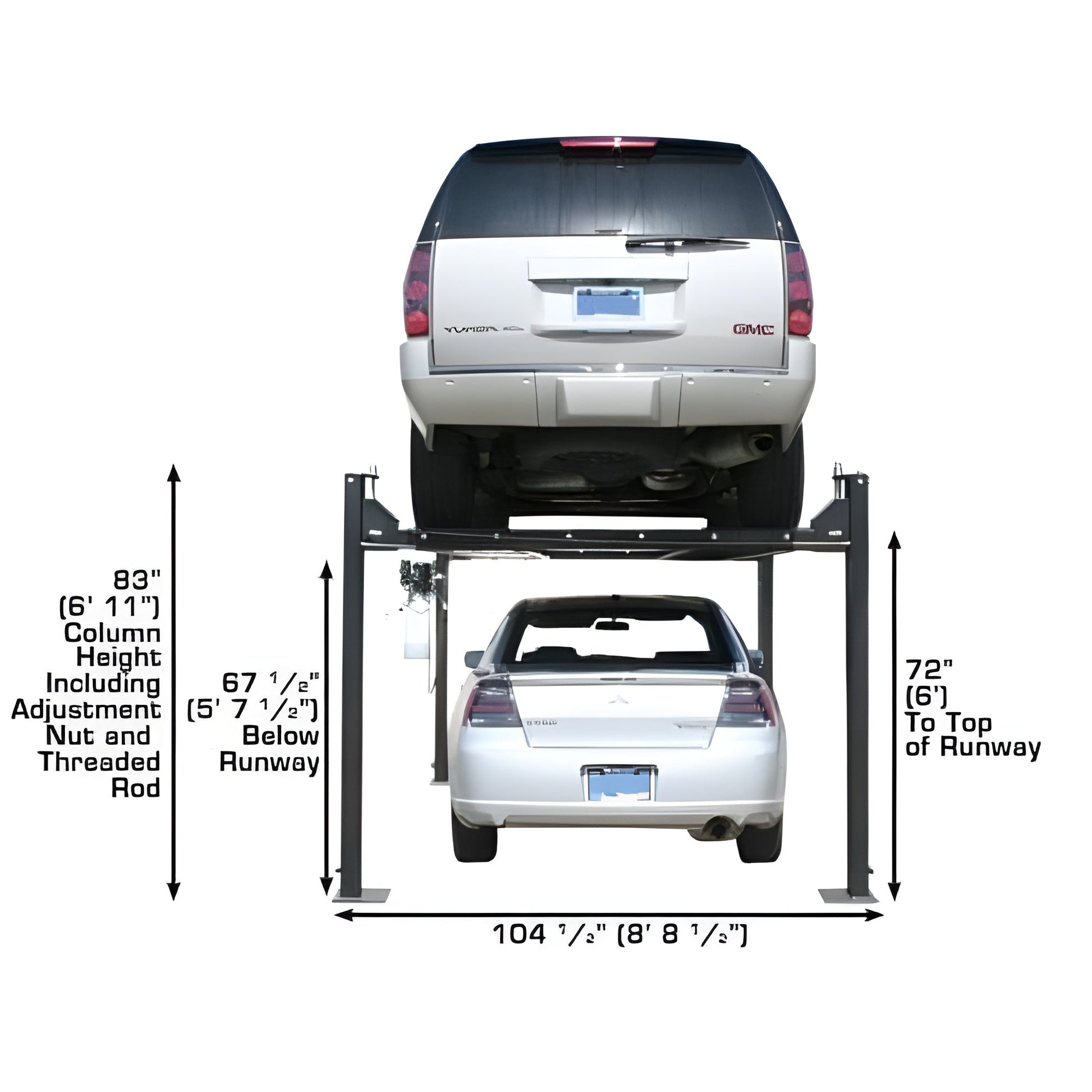

| Lifting Height To Top Of Runway |
72" (6') |
| Clearance Under Runways |
67 ½" (5' 7 ½") |

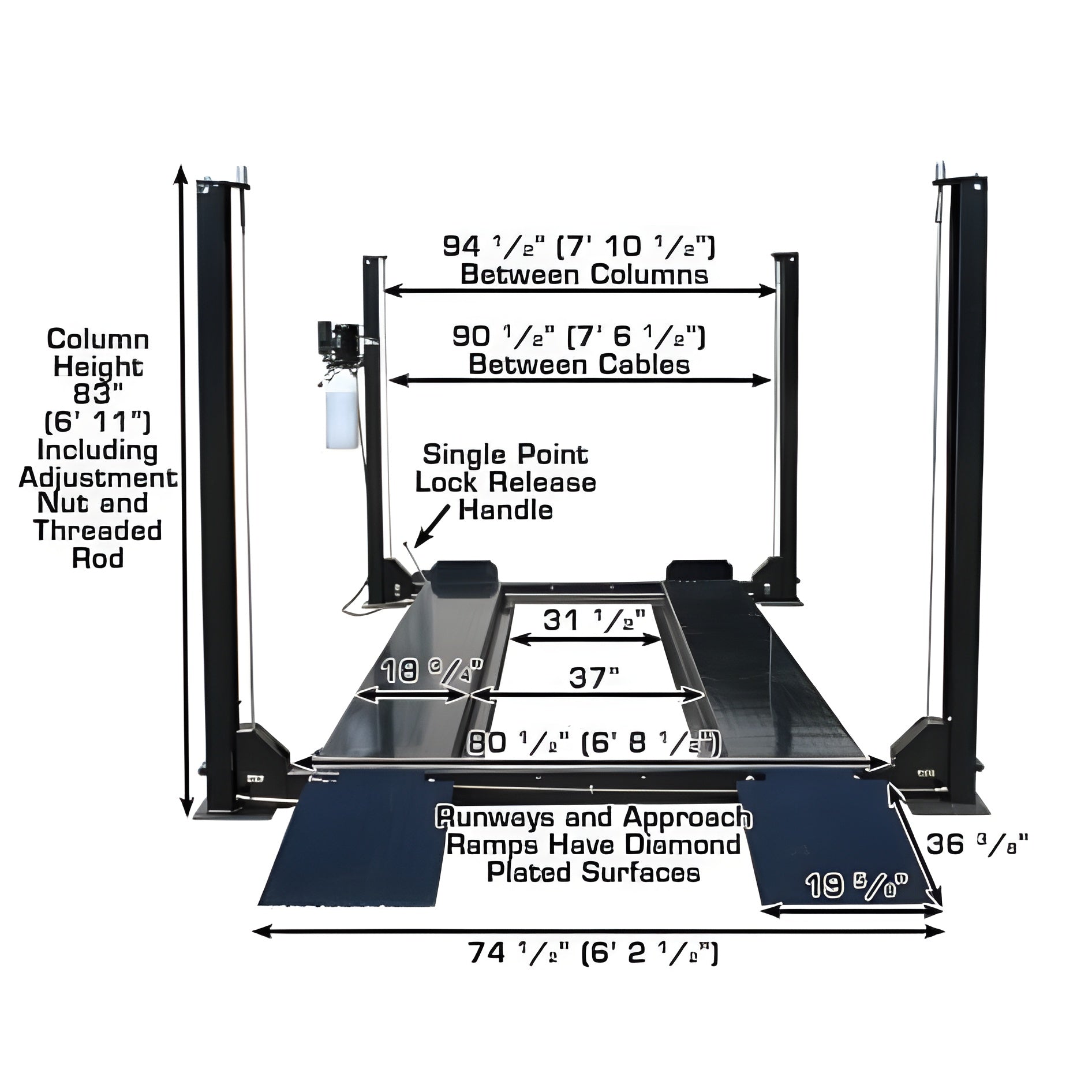

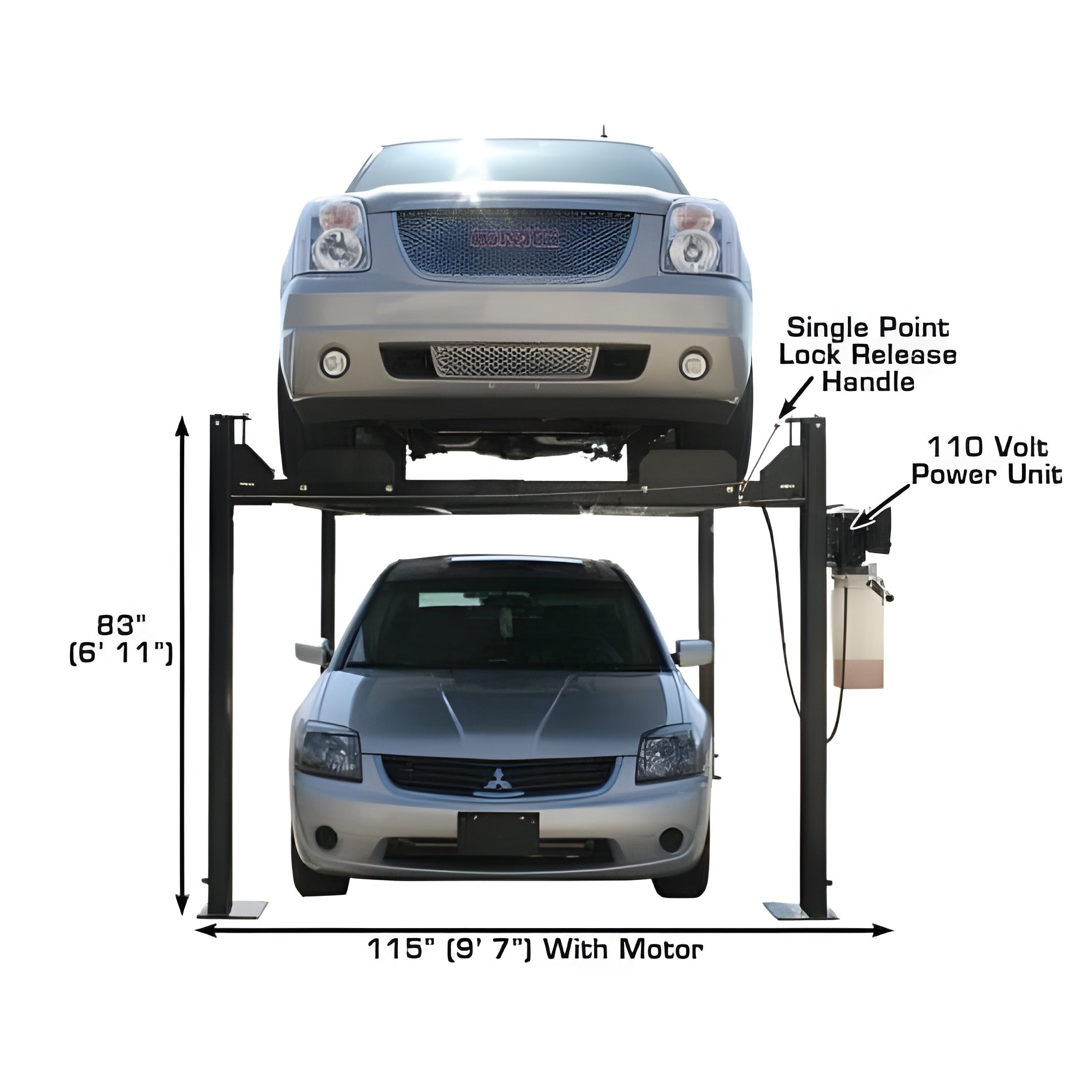

| Height of Columns |
83" (6' 11") |

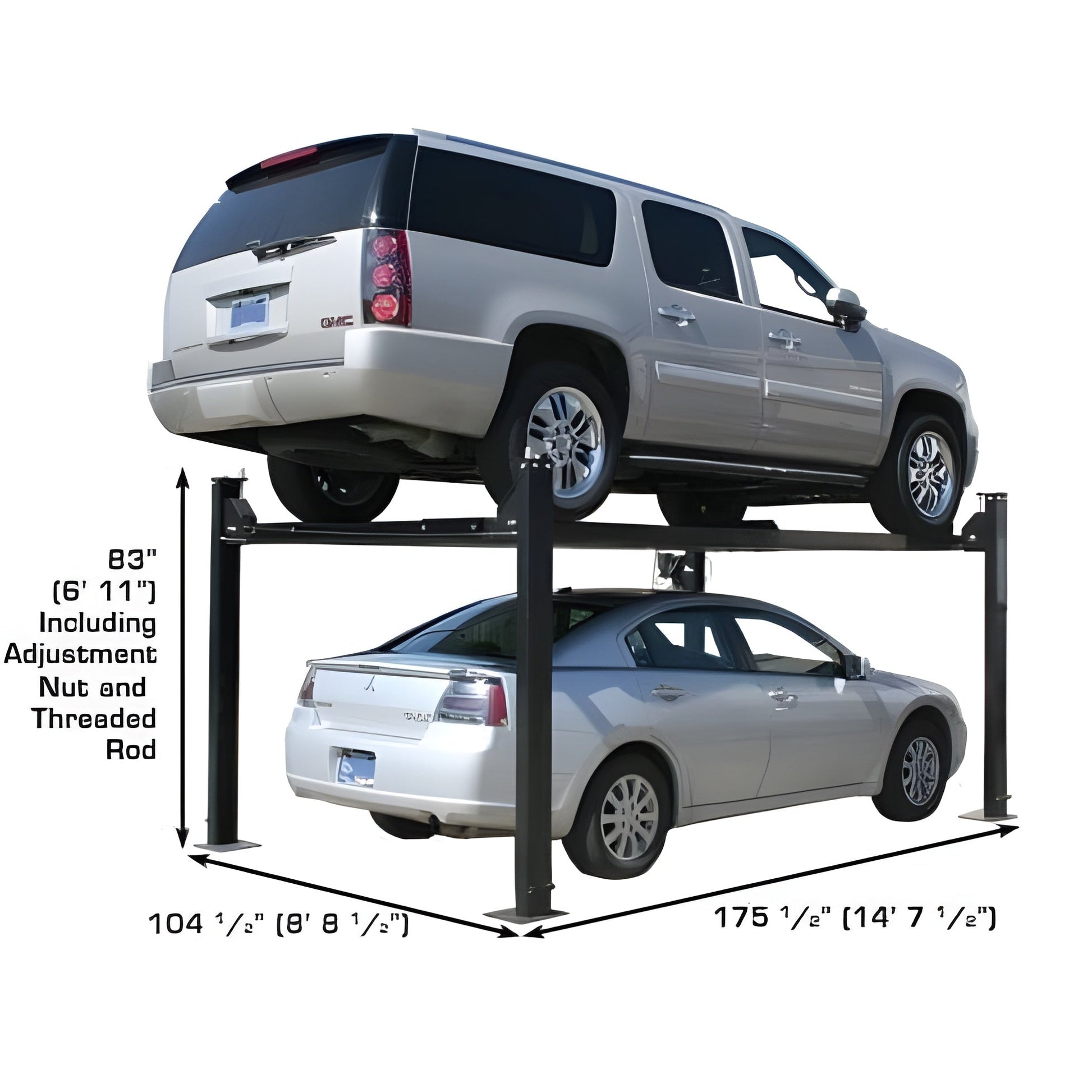

| Overall Width (Without Motor) |
104 ½" (8' 8 ½") |
| Overall Width (With Motor) |
115" (9' 7") |

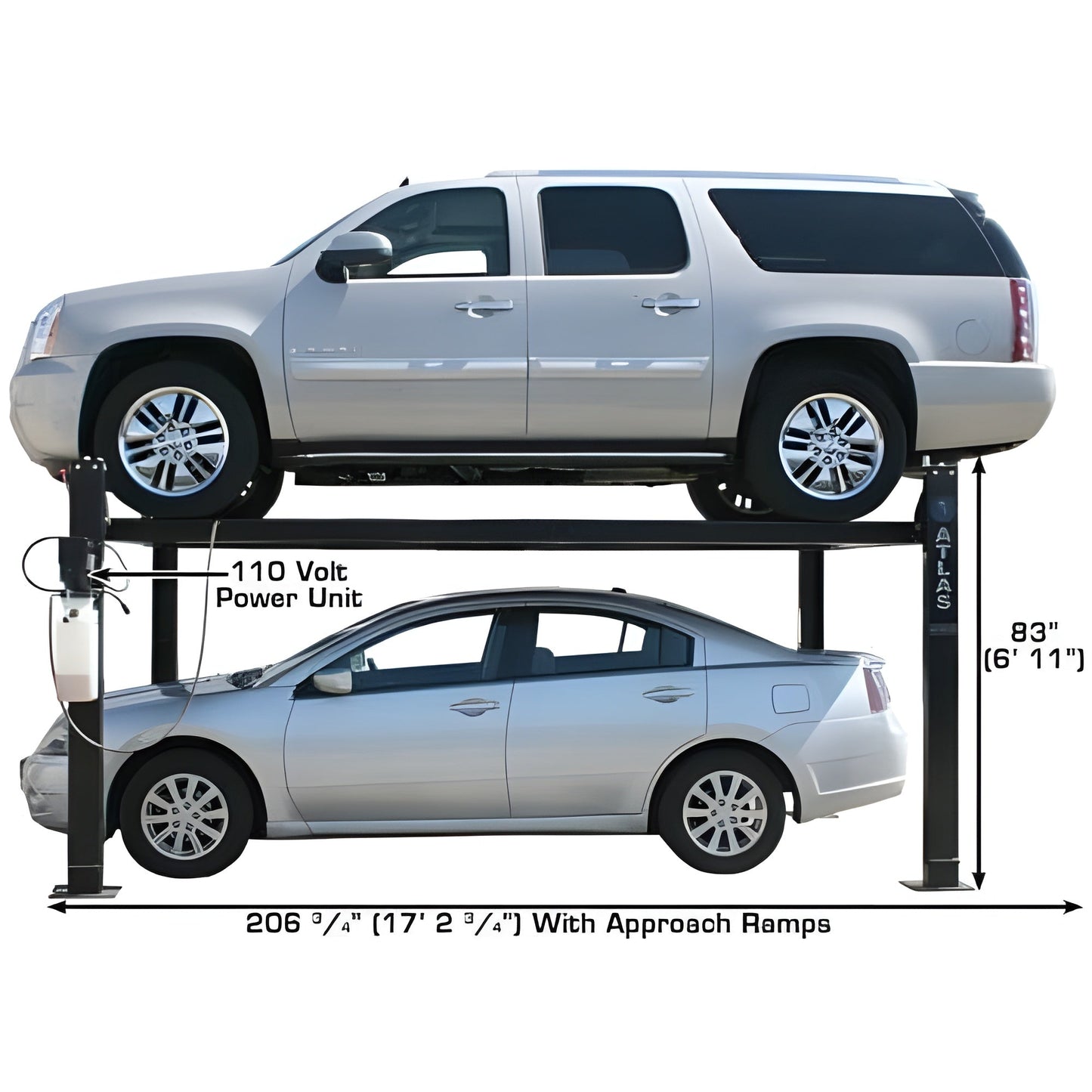

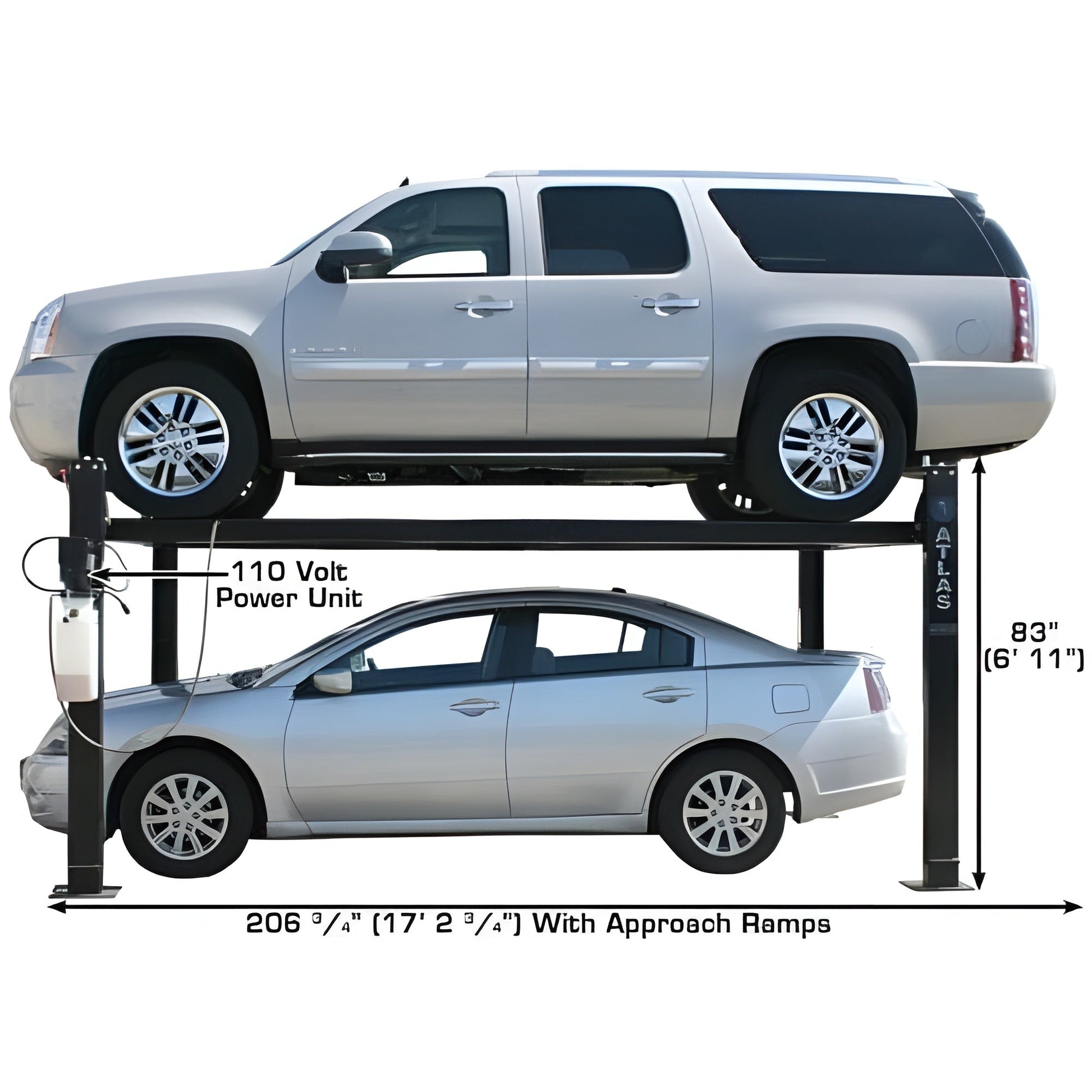

| Overall Length with Approach Ramps |
206 ¾" (17' 2 ¾") |

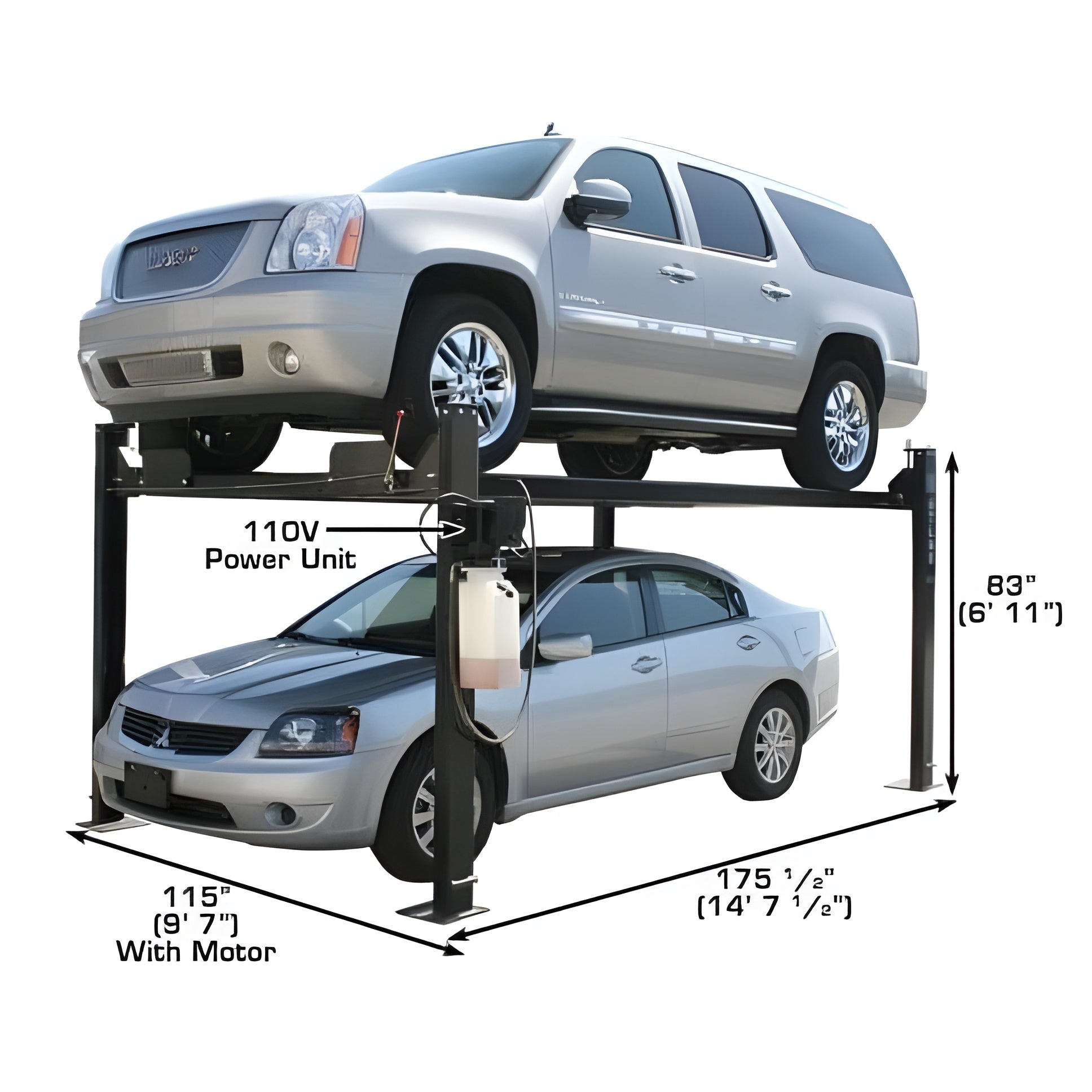

| Overall Length without Approach Ramps |
175 ½" (14' 7 ½") |
| Approach Ramps |
36 3/8" (3' 3/8") |
| Runway Width |
18 ½" (1' 6 ½") |
| Runway Length |
165 ¾" (13' 9 ¾") |
| Runway Thickness |
4 ½" |
| Width Between Runways |
37" (3' 1") |
| Width Between Runway Rails |
31 ½" (2' 7 ½") |
| Outside Runway to Outside Runway |
74 5/8" (6' 2 5/8") |

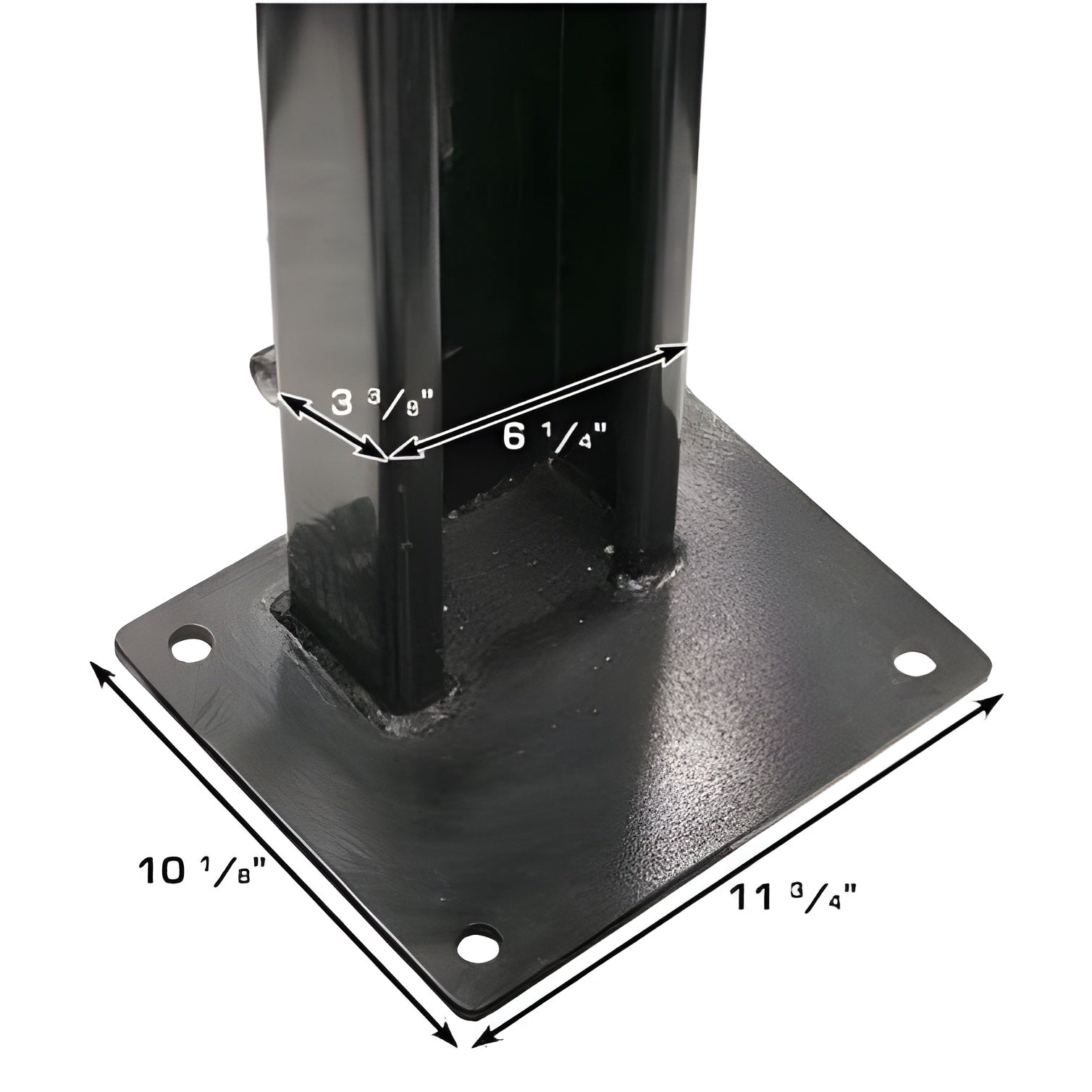

| Size of Column |
6 1/4" x 3 3/8" |
| Clearance Between Columns |
94 ½" (7' 10 ½") |

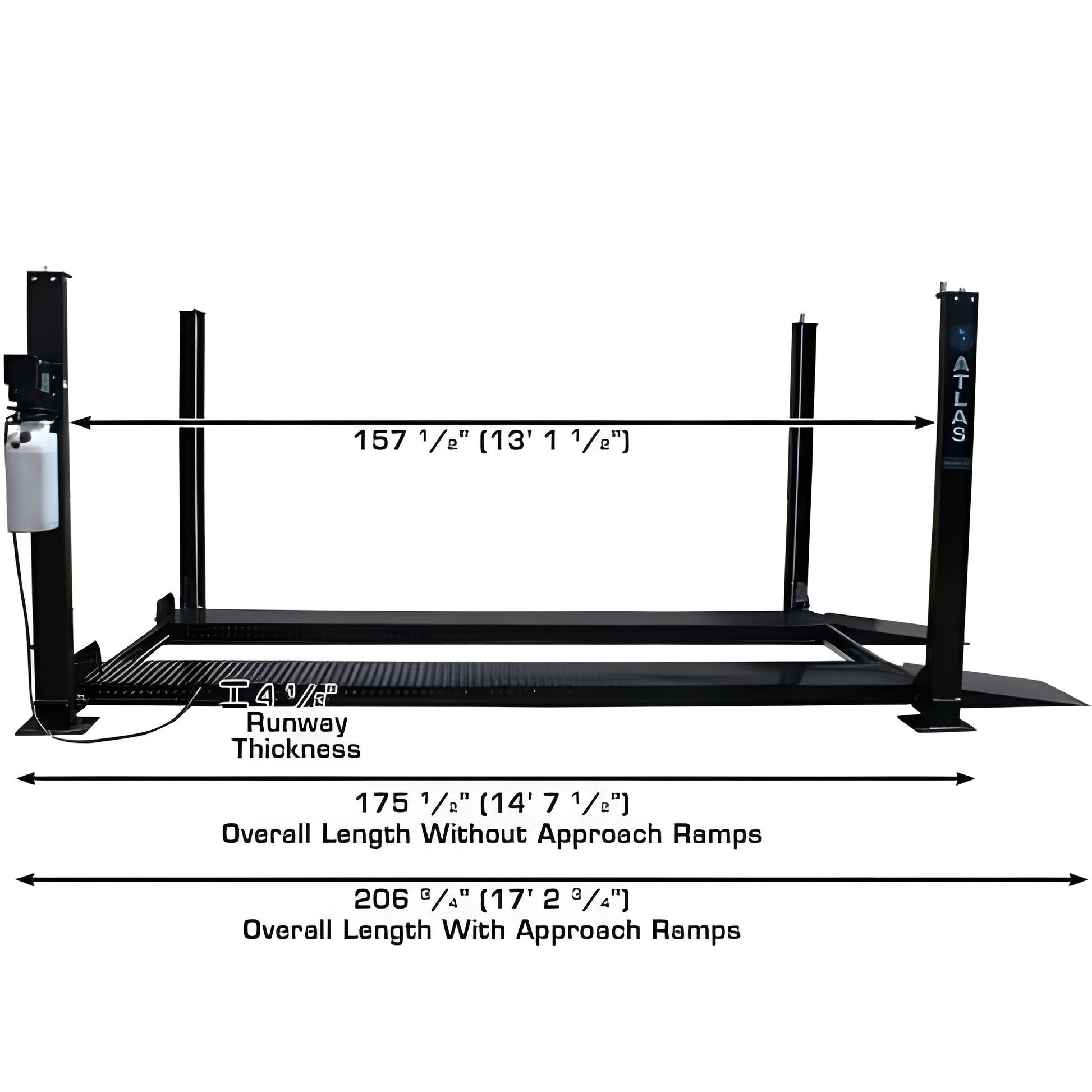

| Length Between Columns |
157 ½" (13' 1 ½") |
| Base of Column |
10 1/8" x 11 3/4" |
| Maximum Wheel Base |
153 ½" (12' 9 ½") |
| Drive Thru (Outside of tire to outside of tire) |
80 ½" (6' 8 ½") |

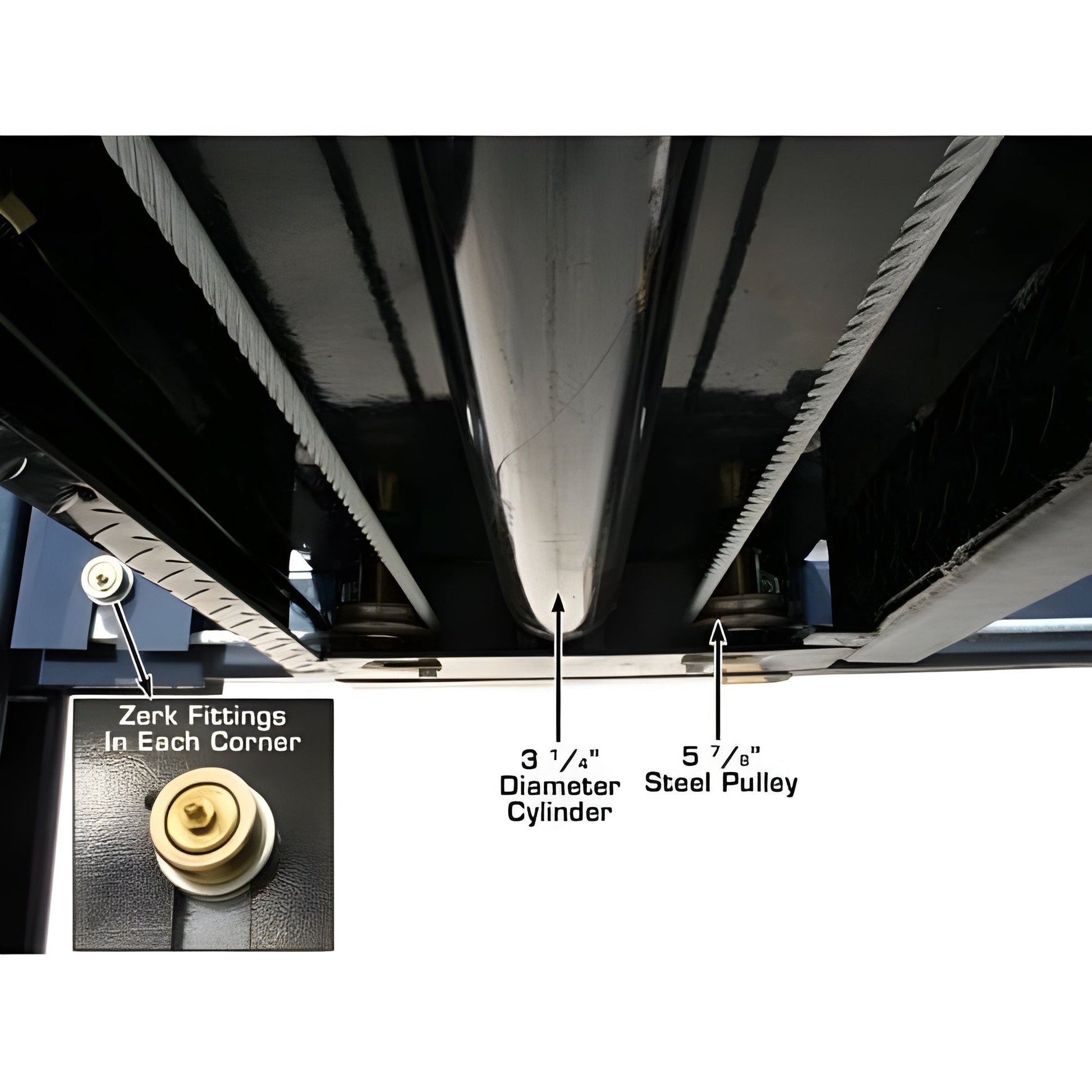

| Cable Diameter |
.350" |
| Gauge Of Steel |
6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor |
110 Volt. A 30 amp breaker is required. |
| Locking Positions Under Runway |
|
| (+/ - 2") |
Locking Positions Top Of Runway |
| (+/ - 2") |
|
| 19 ½" |
24" |
| 25 ½" |
30" |
| 31 ½" |
36" |
| 37 ½" |
42" |
| 43 ½" |
48" |
| 49 ½" |
54" |
| 55 ½" |
60" |
| 61 ½" |
66" |
| 67 ½" |
72" |
| Atlas RJ-35 Sliding Jack Specifications |
|
| Capacity |
3,500 LB. |
| Minimum Width |
29 1/2" |
| Minimum Width with Arms In |
39 1/2" |
| Maximum Width with Arms Out |
64 3/4" |
| Working Width |
31" - 47" |
| Minimum Height with Lift Pad |
3 1/2" |
| Lifting Pad |
1 3/8" |
| Short Adapter |
1 1/4" |
| Tall Adapter |
5" |
| Raised Height without Adapter |
11" |
| Raised Height with Small Adapter |
12 1/4" |
| Raised Height with Large Adapter |
16" |
| Raised Height with Small and Large Adapter |
17 1/4" |
| Documents |
|
Manual
Atlas Garage Pro 8,000 Manual
What our Expect Think
-
8,000 lb. Lifting Capacity – Handles cars, SUVs, and light trucks with ease.
-
Includes RJ35 Sliding Jacks – Enables wheel-free lifting for brake and suspension work.
-
Strong 4-Post Construction – Ensures stability and durability for long-term use.
-
Smooth Hydraulic System – Delivers effortless lifting and lowering.
-
Ideal for Shops & Home Garages – Perfect for vehicle storage, maintenance, and repairs.
Q&A
Q: What is the Atlas PRO8000 4-Post Lift + RJ35 Sliding Jacks Combo used for?
A: The Atlas PRO8000 is a heavy-duty 4-post lift designed for vehicle storage and light-duty service work, paired with RJ35 sliding jacks for wheel-free lifting during tire, brake, and suspension maintenance.
Q: What makes this lift combo stand out?
A: It features an 8,000 lb. lifting capacity, space-saving design, and built-in runways, making it ideal for home garages and professional shops.
Q: Is this lift easy to install?
A: Yes! The Atlas PRO8000 is designed for easy setup, requiring minimal assembly and a standard 110V power supply.
Maintenance Tips
4-Post Lift Maintenance:
-
Inspect Cables & Pulleys – Look for fraying, wear, or loose tension and adjust as needed.
-
Lubricate Moving Parts – Apply grease to rollers, locks, and lifting mechanisms.
-
Check Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Test Safety Locks – Ensure locks engage securely before lifting a vehicle.
-
Tighten Bolts & Fasteners – Regularly inspect and secure anchor bolts and structural components.
-
Keep Runways Clean – Remove debris to prevent slippage or alignment issues.
RJ35 Sliding Jacks Maintenance:
-
Inspect Hydraulic System – Check hoses, seals, and fluid levels for leaks or wear.
-
Lubricate Pivot Points – Apply grease to ensure smooth movement.
-
Verify Load Capacity – Do not exceed the jack’s weight rating.
-
Keep Sliding Tracks Clear – Ensure tracks are free from dirt or obstructions for smooth operation
