Atlas Platinum PVL14OF-EXT ALI Open Front Alignment 4 Post Lift - ATEAP-PVL14OF-EXT-FPD

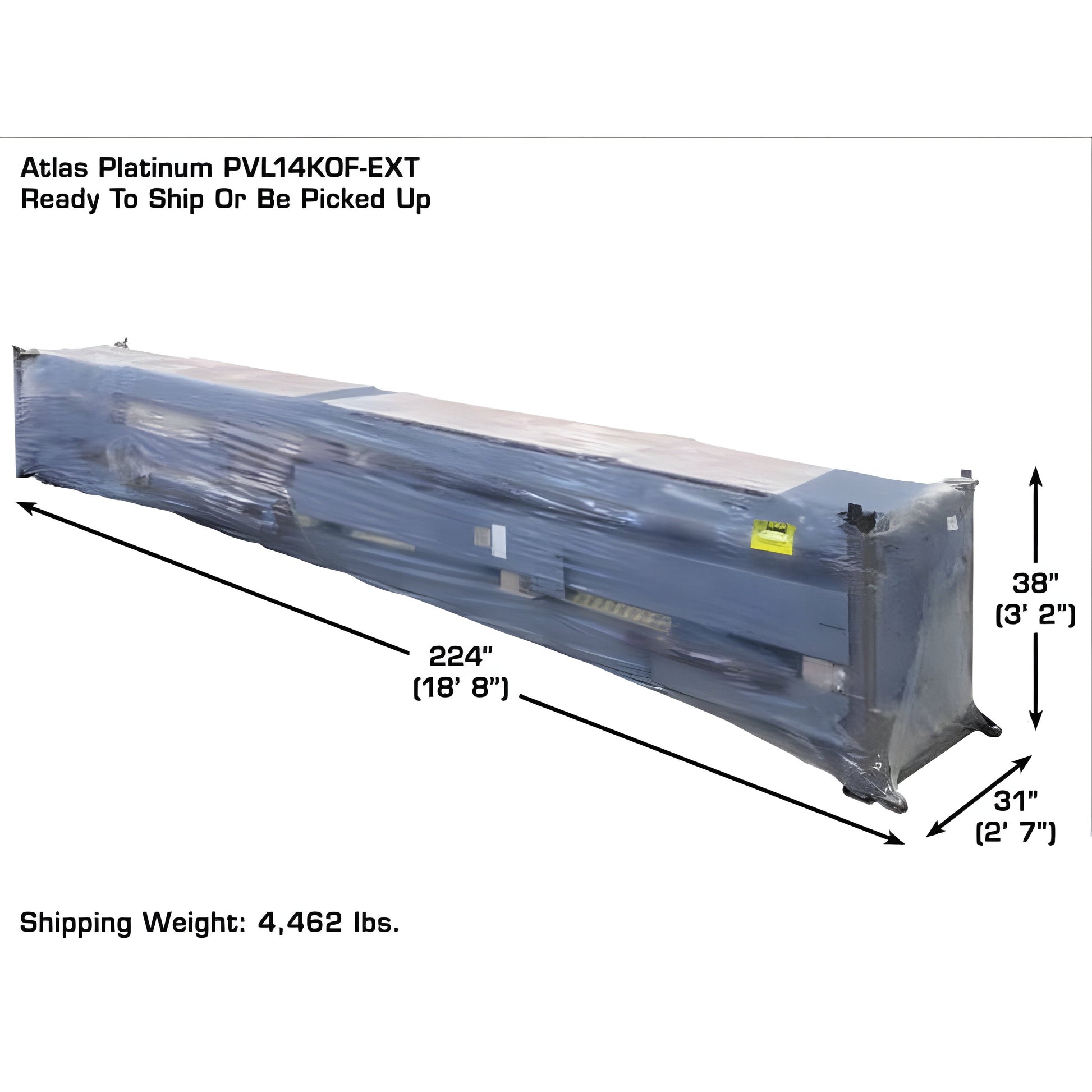

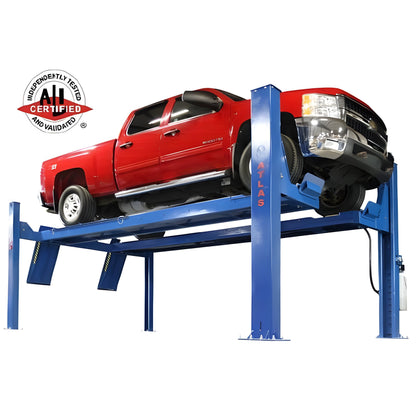

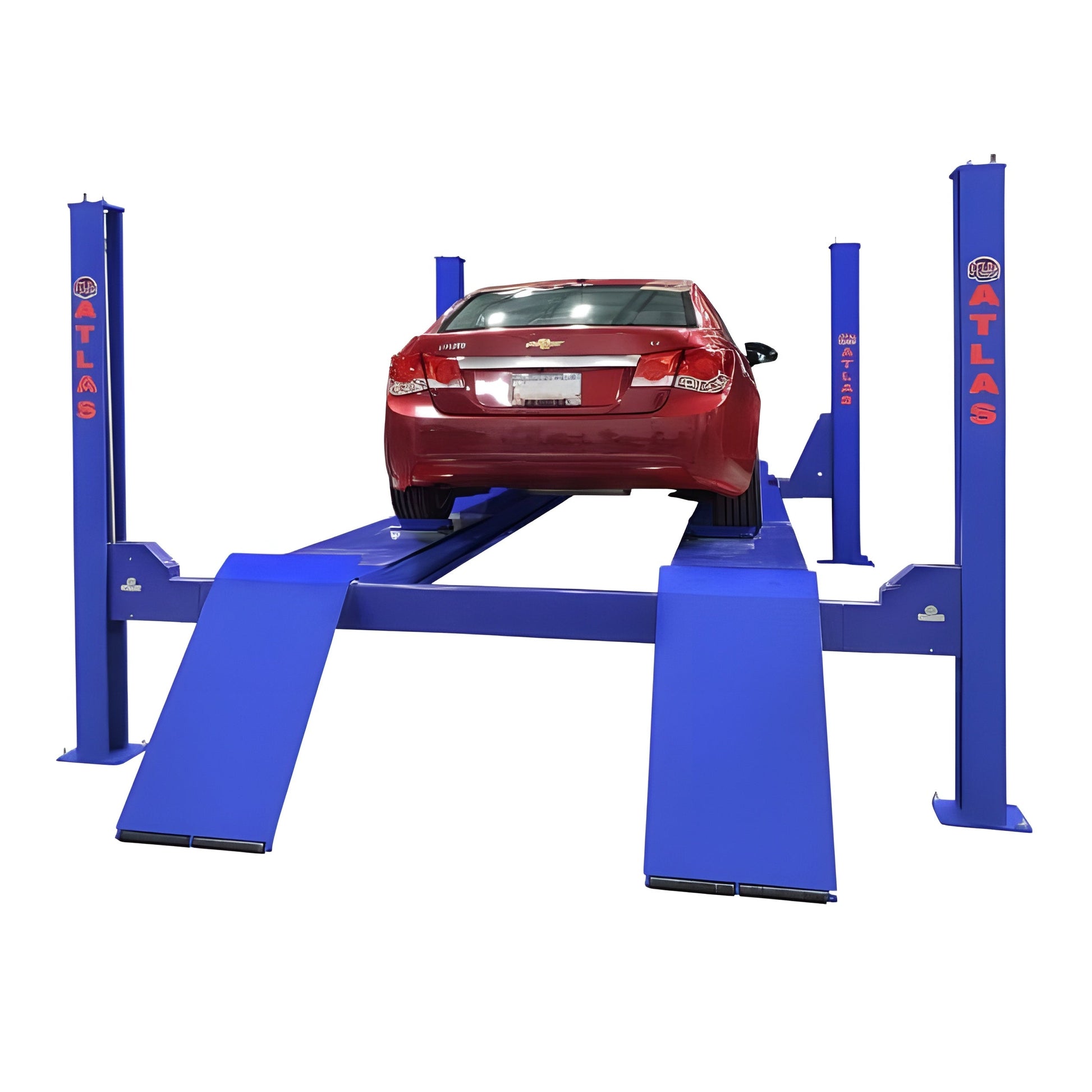

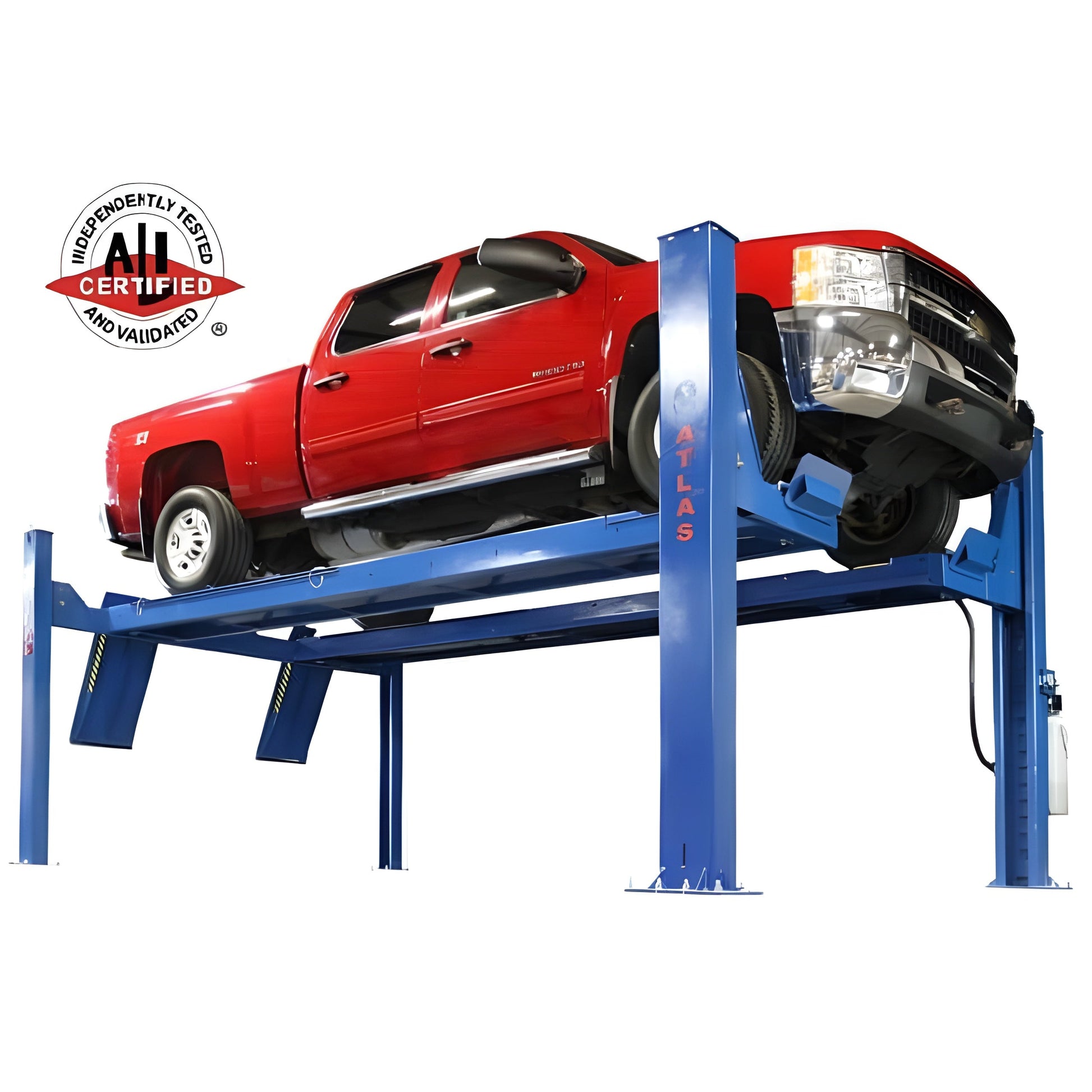

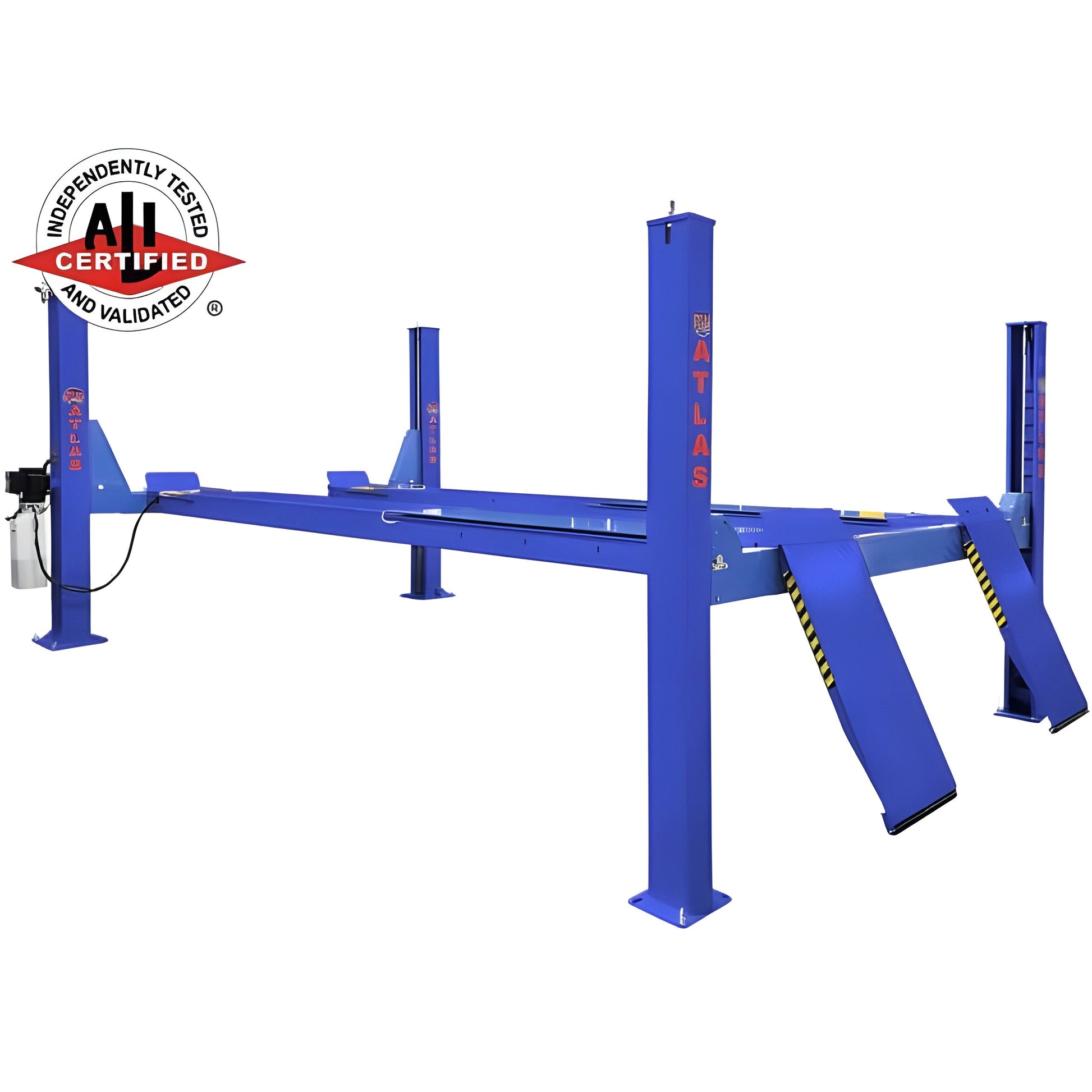

The Atlas Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.The Atlas Platinum PVL14OF-EXT features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas Platinum RJ7000) on the lift. Rolling jacks sold separately.The Atlas Platinum PVL14OF-EXT is also ALI and backed by one of the industry’s best warranties for an added peace of mind.This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading
Features
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade

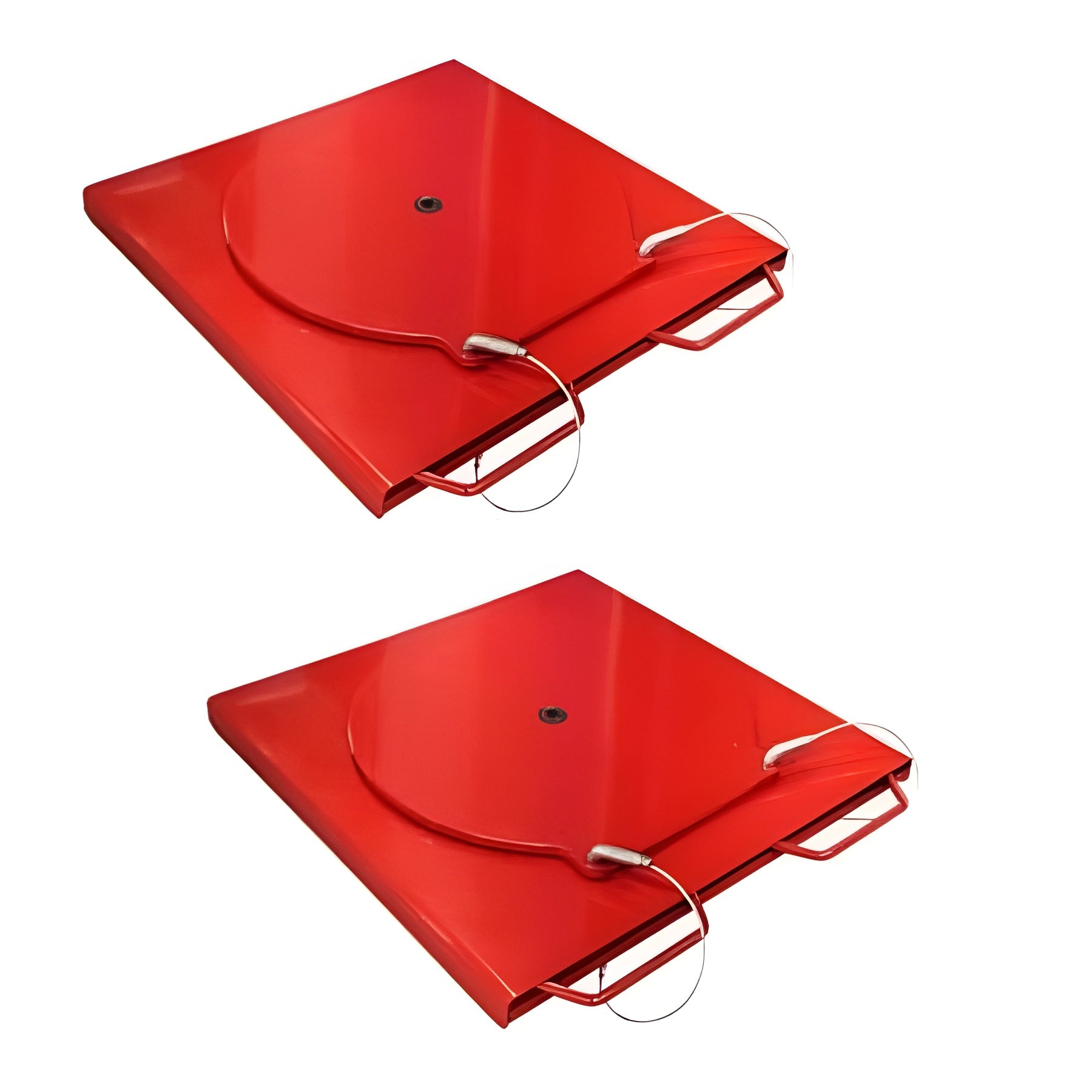

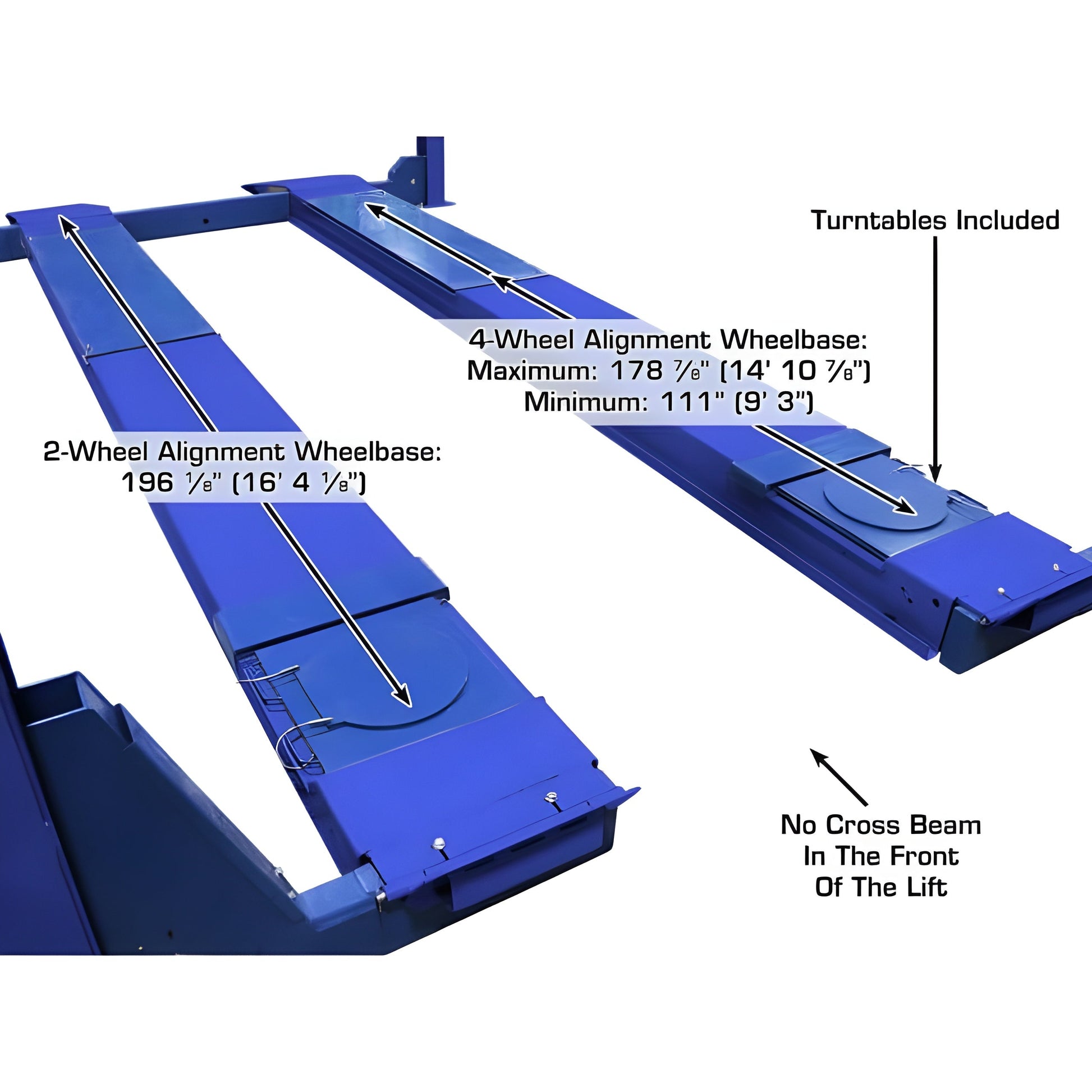

- Alignment Lift, Includes Built in Slip Plates & Turntables
- Open Front Design for Better Access
- Extra Long Runways

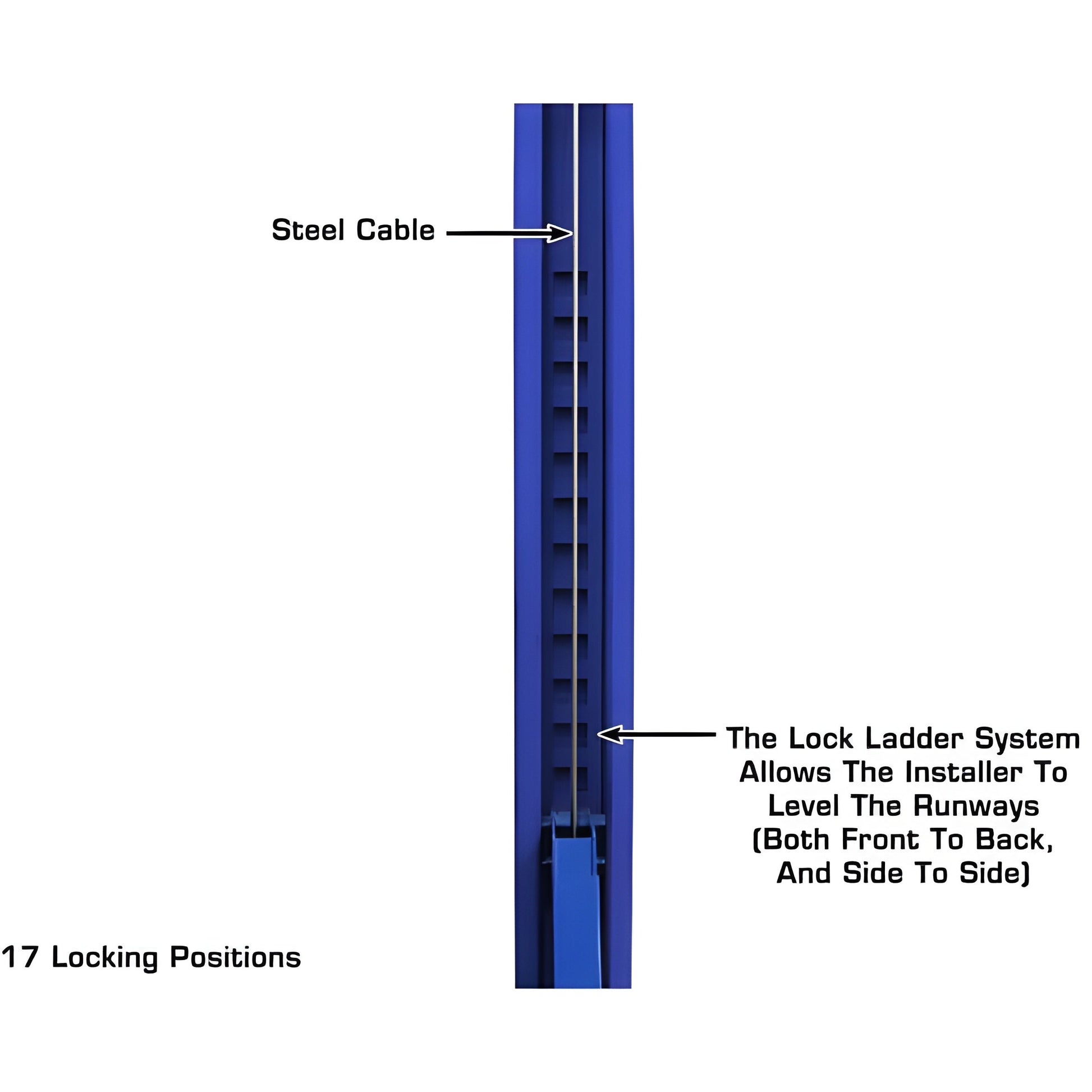

- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish

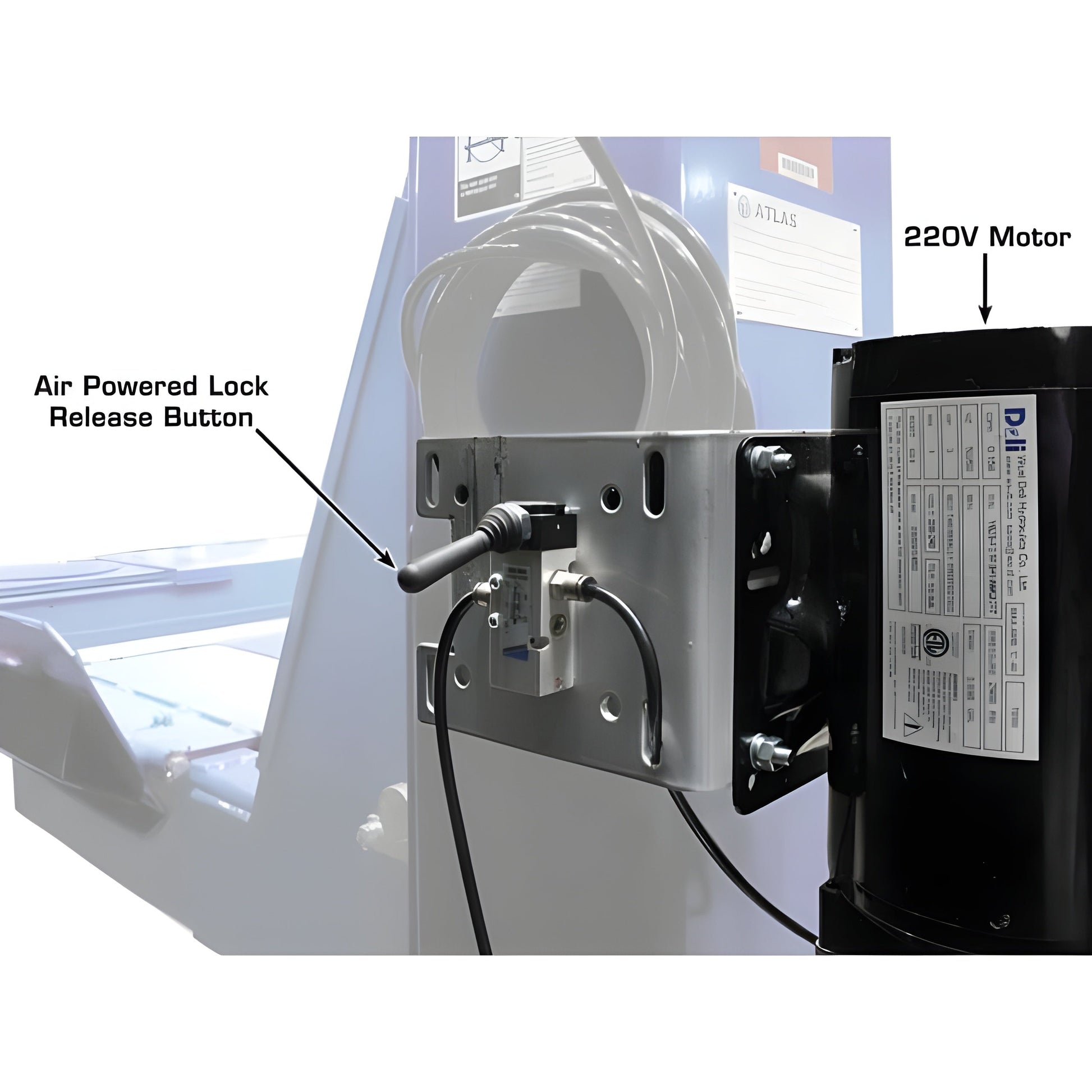

- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included

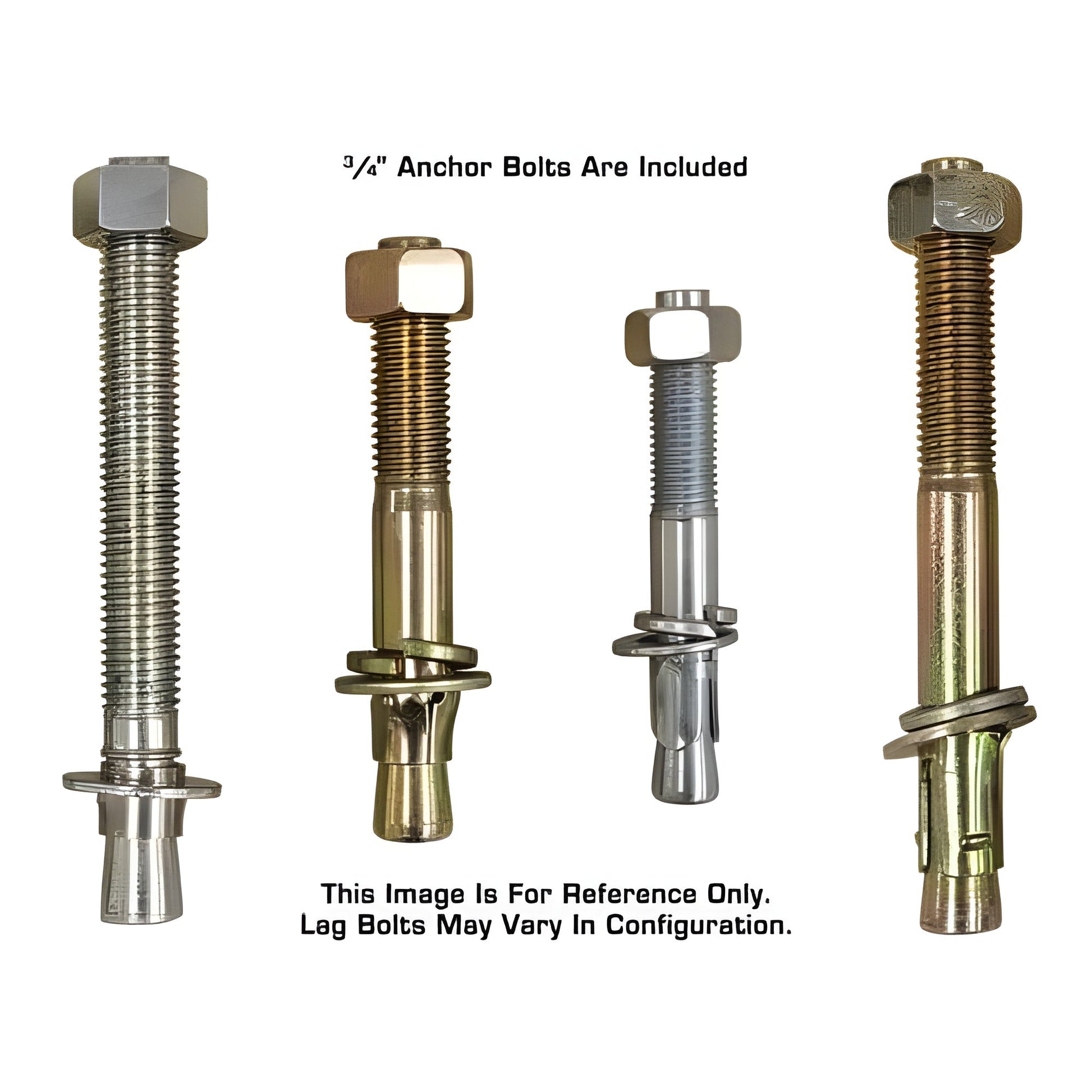

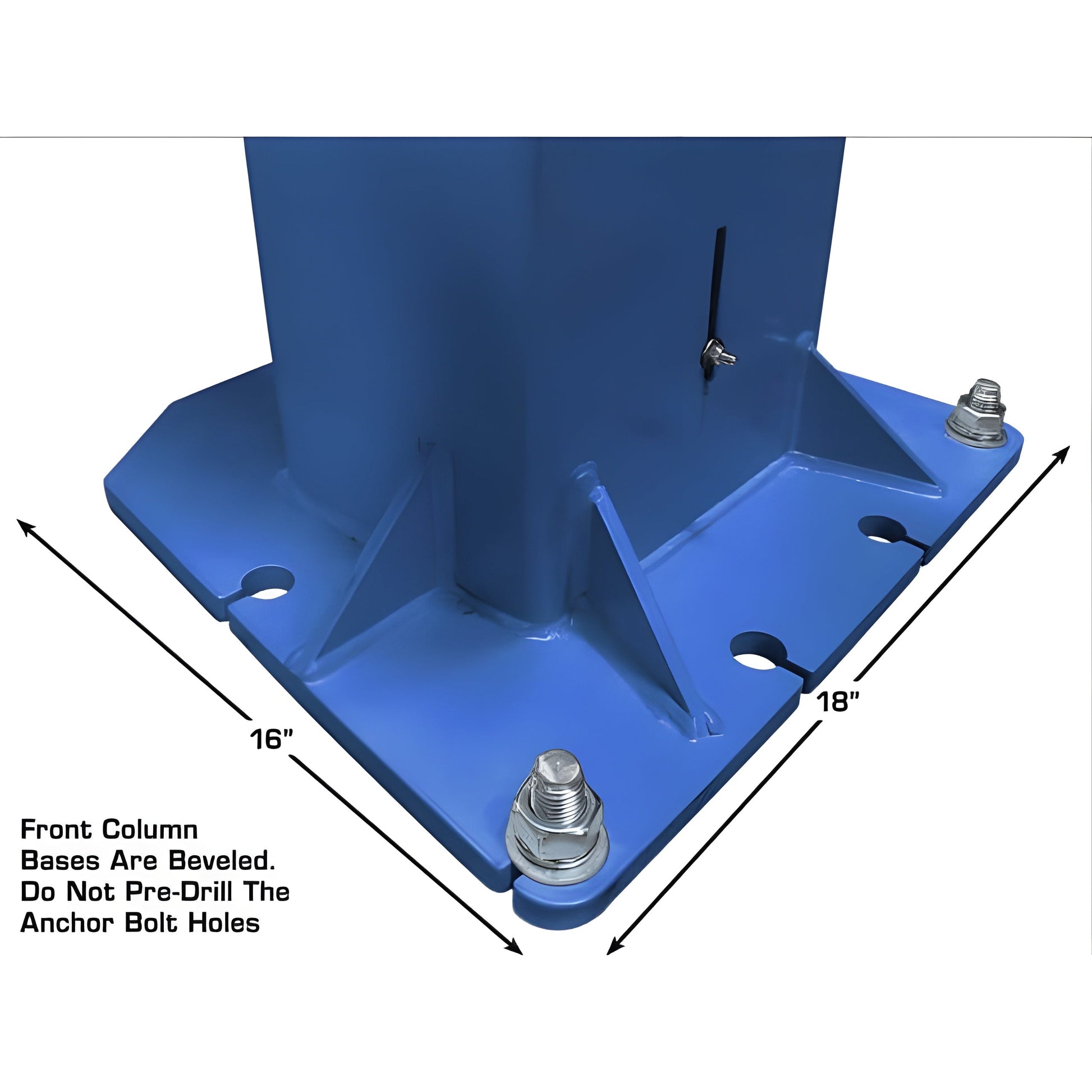

- Mounting Hardware Included

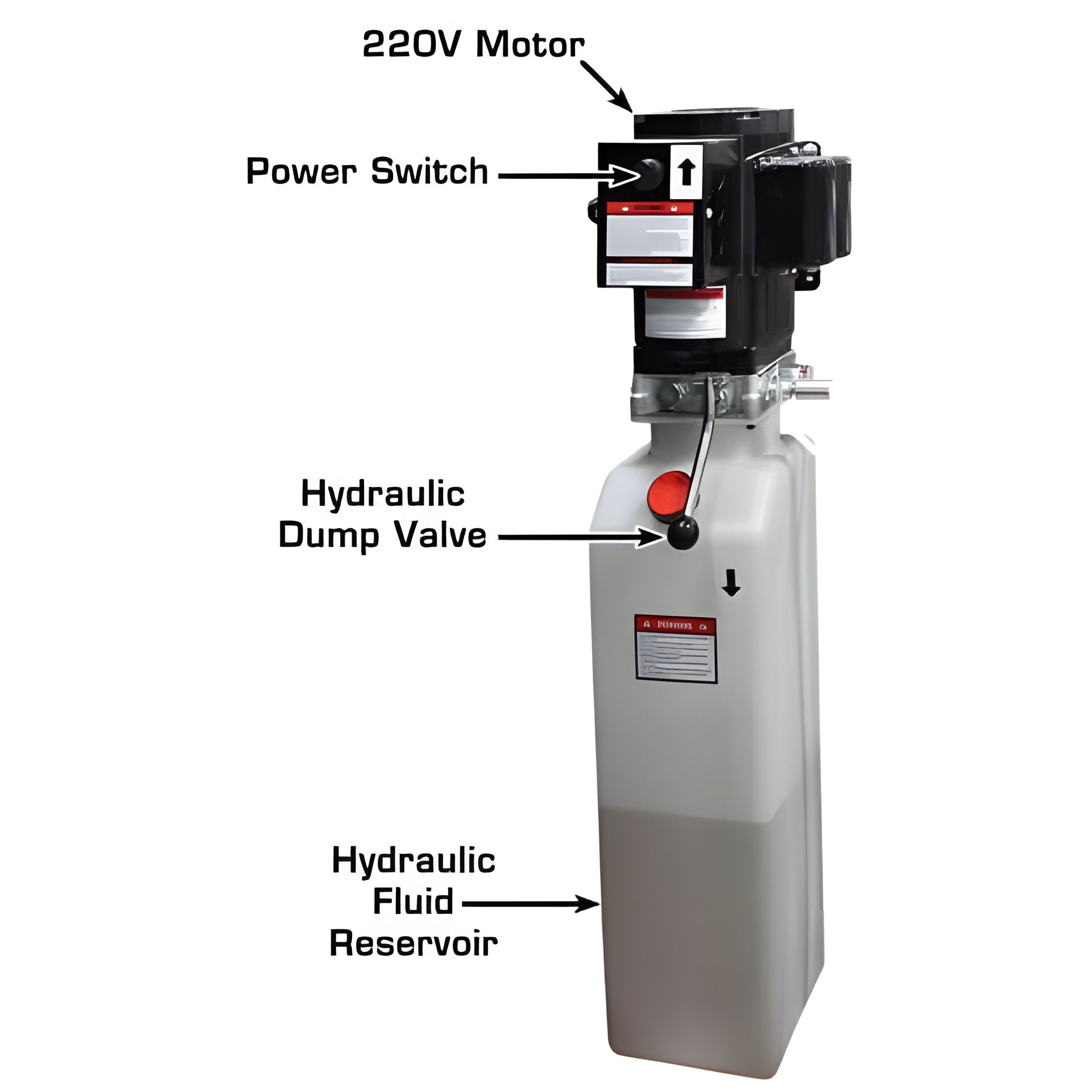

- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
Specifications

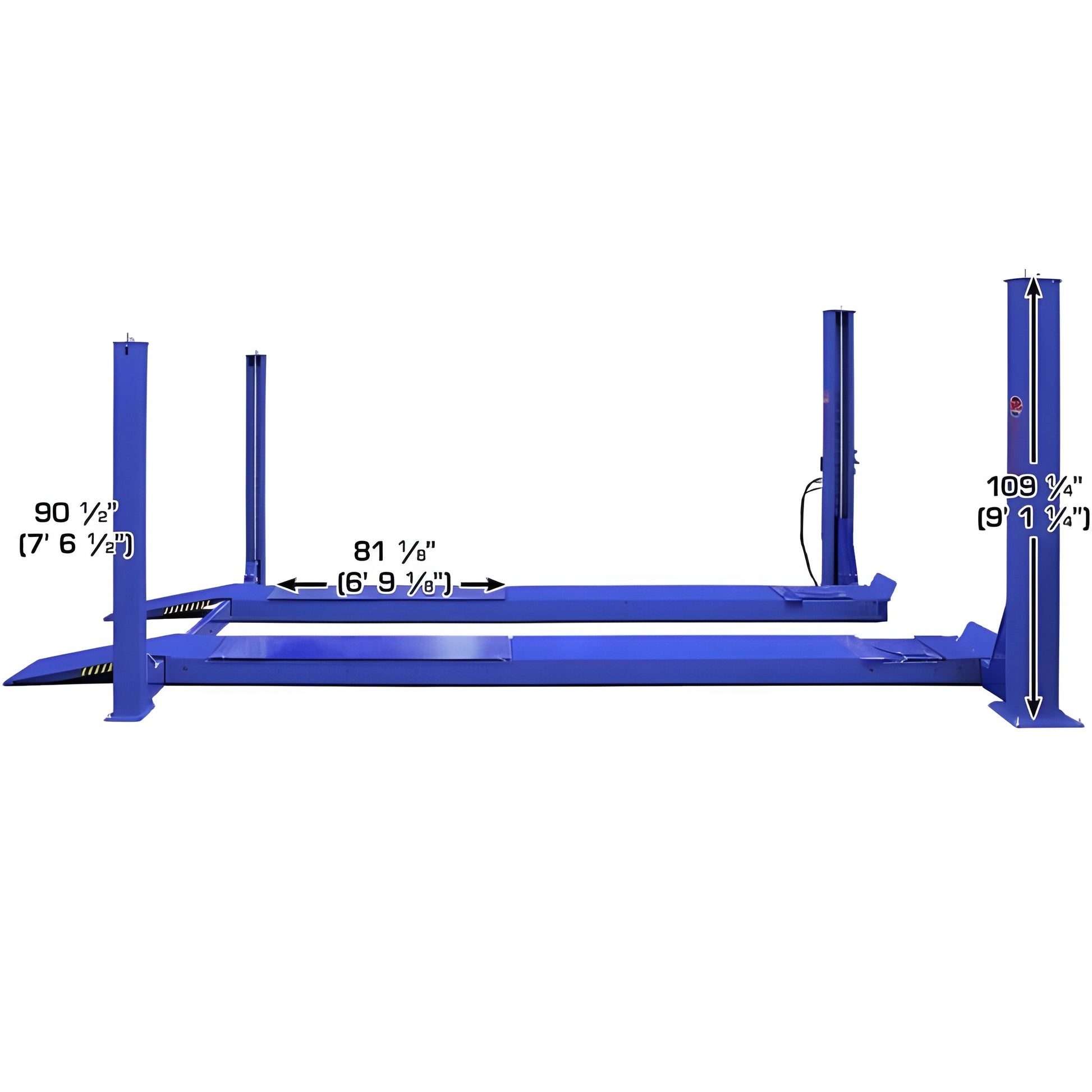

| Atlas Platinum PVL14OF-EXT Specifications |
|
| Capacity |
14,000 lb. |
| Lifting Height |
73 1/4" (6' 1 1/4") |

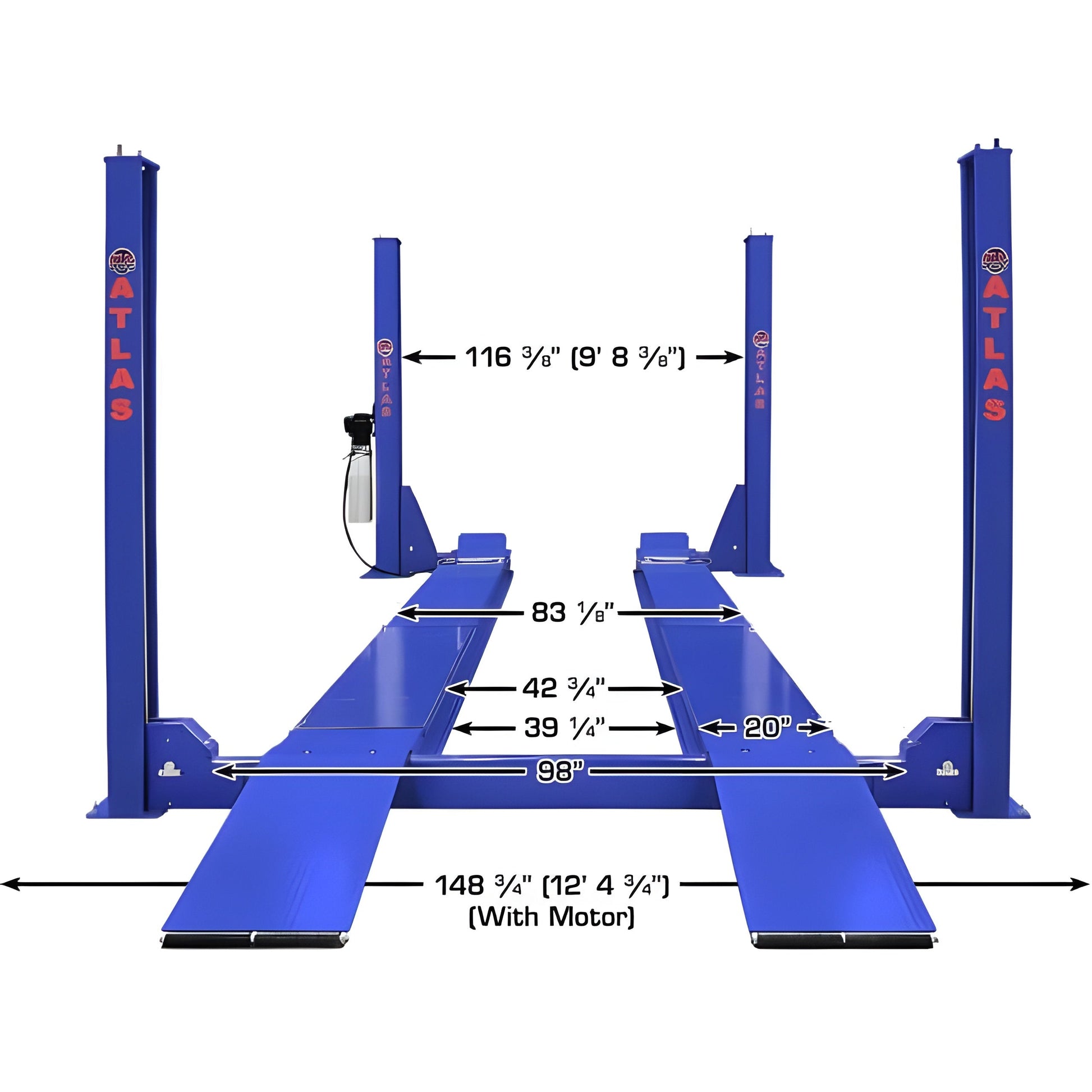

| Overall Width Of Columns (Without Motor) |
140 1/8" (11' 8 1/8") |
| Overall Width Of Columns (With Motor) |
148 3/4" (12' 4 3/4") |
| Overall Length With Approach Ramp |
272 1/8" (22' 8 1/8") |
| Length Between Columns |
207" (17' 3") |
| Runway Length |
223 1/2" (18' 7 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |

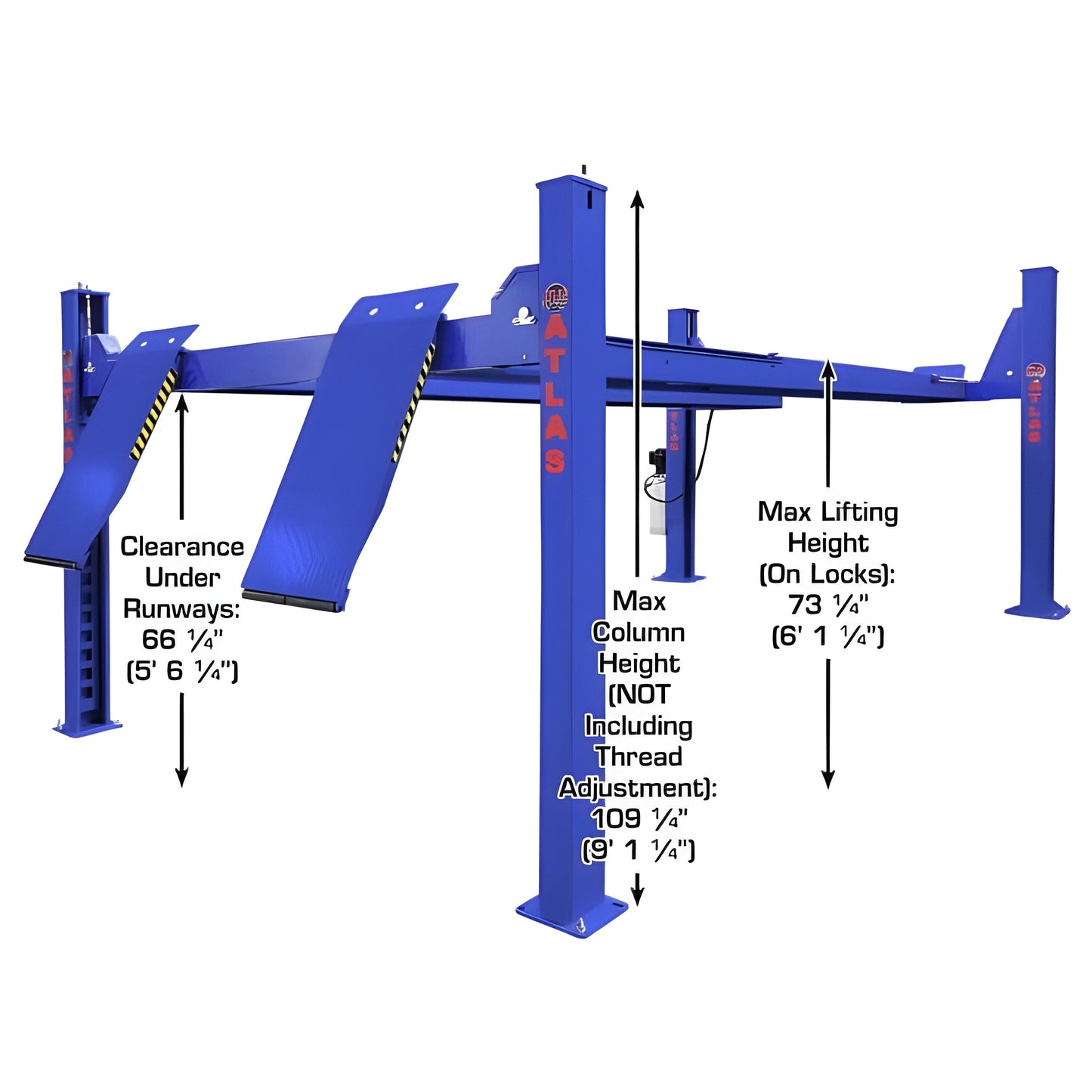

| Clearance Under Runways |
66 1/4" (5' 6 1/4") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |
| Height Of Columns |
92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front |
| Maximum Wheel Base |
203" (16' 11") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
Manual
What our Expect Think
-
14,000 lb Lifting Capacity – Built for handling heavy-duty vehicles like trucks and SUVs.
-
Open-Front Design – Provides unobstructed access to the vehicle's undercarriage for easier alignment and repairs.
-
Extended Runways – Accommodates longer wheelbase vehicles with stability and security.
-
Multi-Position Locking System – Allows for flexible height adjustments to suit different tasks.
-
Heavy-Duty Construction – Durable powder-coated finish for long-lasting performance in demanding shop environments.
Q&A
Q: What is the lifting capacity?
A: The Atlas PVL14OF-EXT has a 14,000 lb lifting capacity, accommodating trucks, SUVs, and commercial vehicles.
Q: What does "OF-EXT" mean?
A: OF stands for Open-Front, which eliminates the front crossbeam for unrestricted access to the vehicle’s front-end. EXT indicates an Extended runway design, suitable for larger wheelbase vehicles.
Q: Is this lift suitable for wheel alignments?
A: Yes! It features built-in alignment runways and recessed turnplate pockets, making it perfect for alignment work.
Q: What is the maximum lifting height?
A: The lift raises vehicles up to 75 inches, providing ample undercarriage access.
Maintenance Tips
-
Inspect Before Use – Check hydraulic hoses, cables, and bolts for wear or leaks.
-
Lubricate Moving Parts – Apply grease to lift cables, pulleys, and roller guides.
-
Monitor Hydraulic Fluid – Keep fluid at proper levels and replace if contaminated.
-
Check Safety Locks – Ensure locks engage properly before lifting any vehicle.
-
Inspect Cables & Tension – Adjust regularly for balanced lifting.
-
Clean Alignment Surfaces – Keep runways and alignment plates free of debris for accuracy.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth operation.
