Atlas Platinum PVL14OF-EXT 4 Post Lift + RJ7000 ALI Combo - ATEAP-PVL14OF-EXT-COMBO-FPD

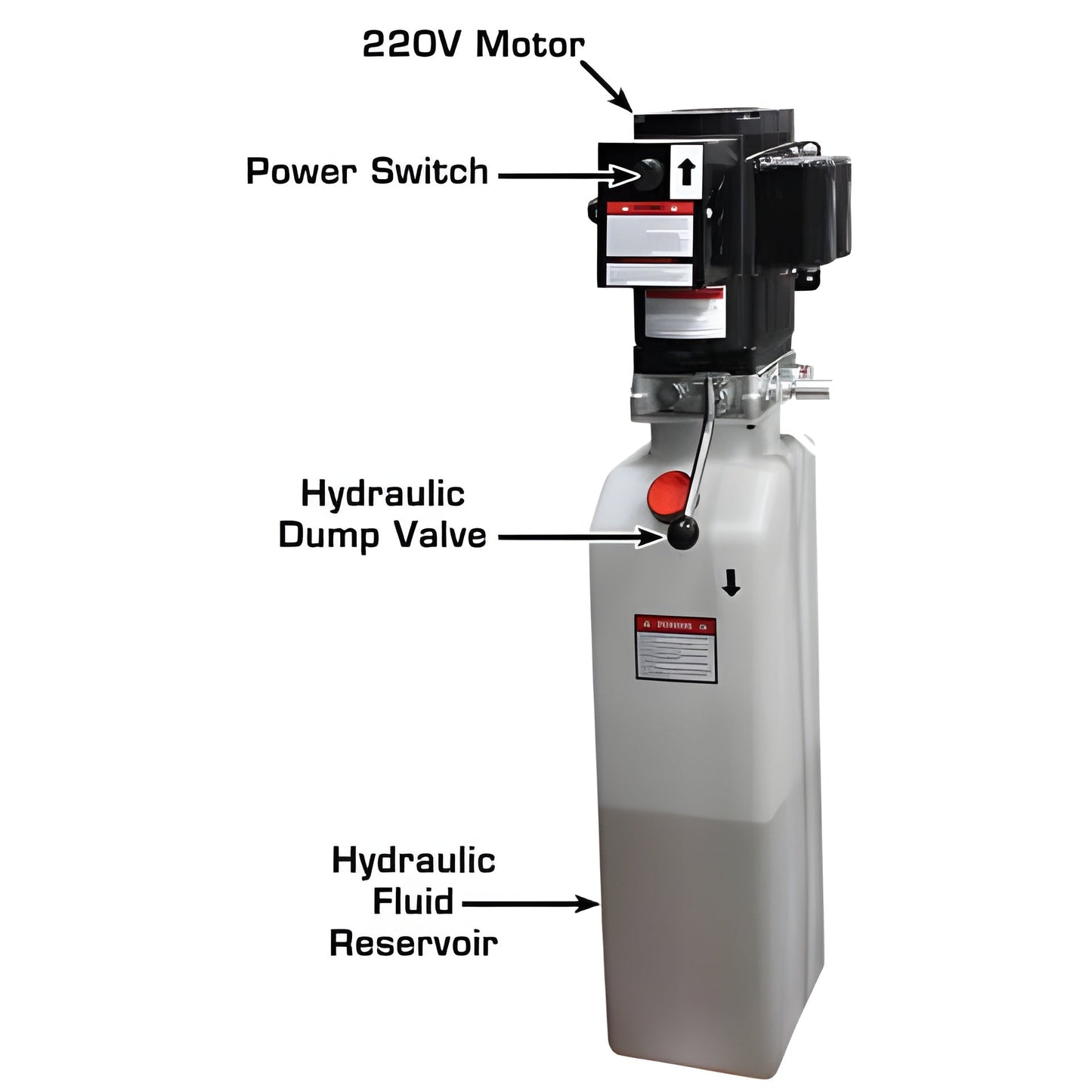

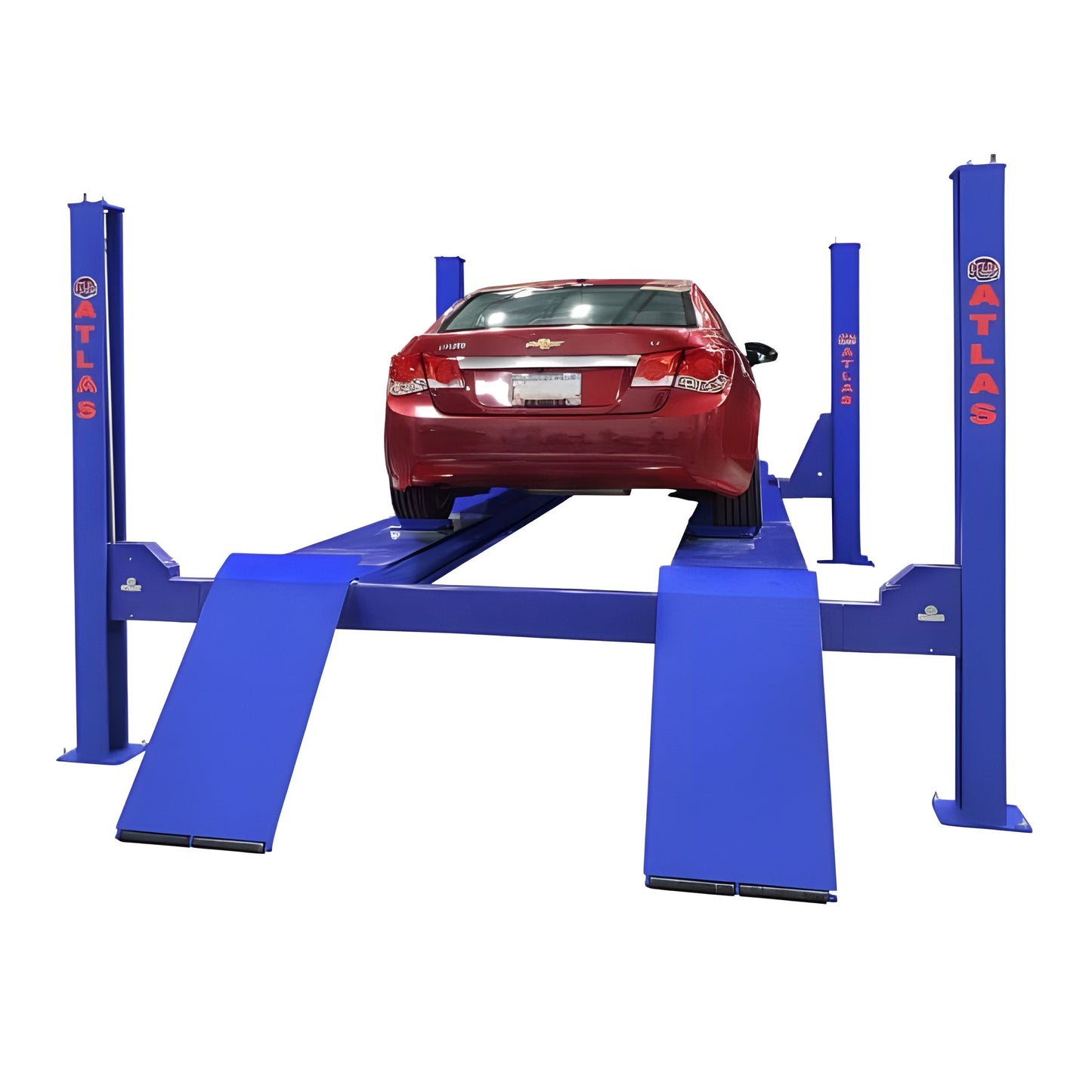

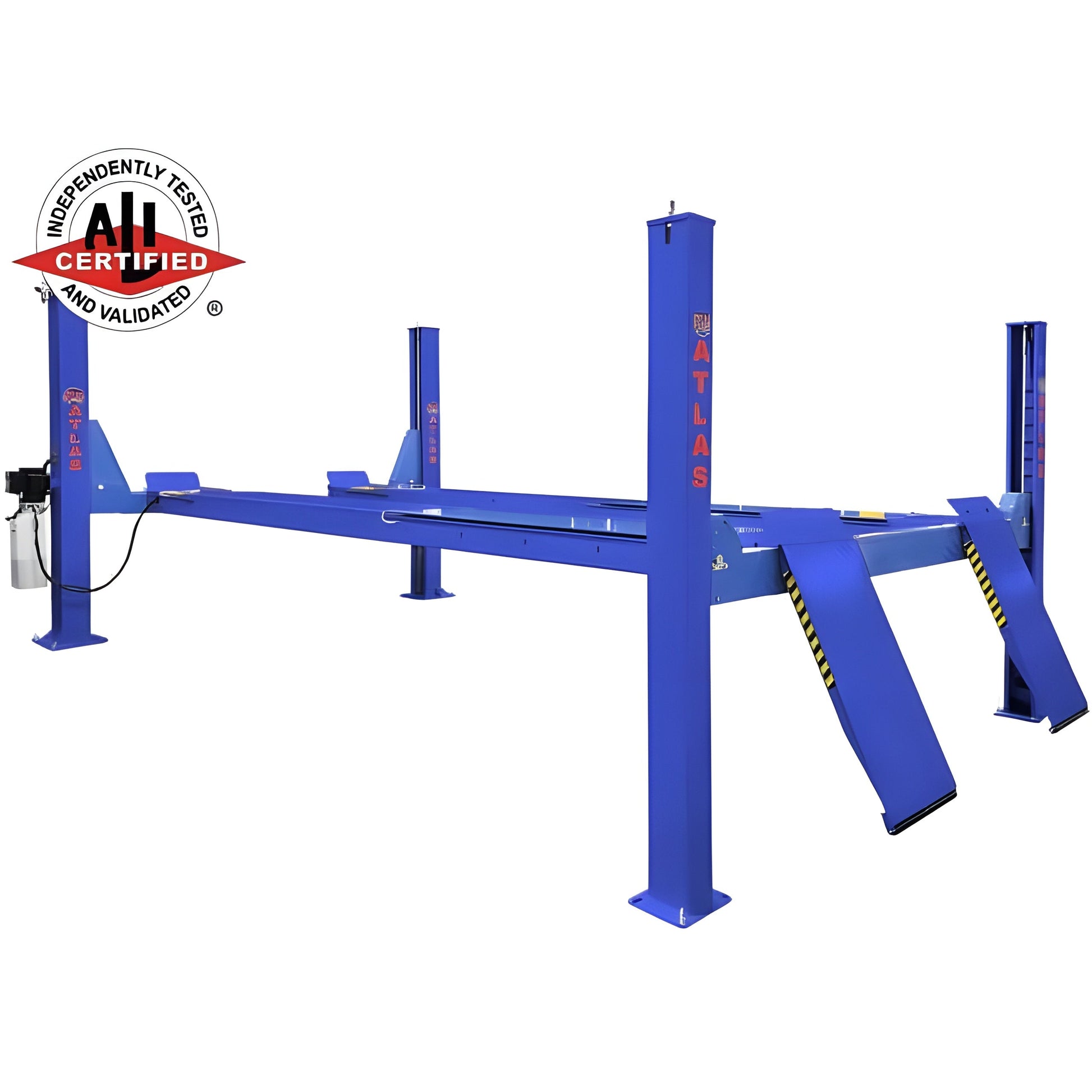

The Atlas Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.The Atlas Platinum PVL14OF-EXT is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.This combo package also includes two of the popular ALI Certified Atlas Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PLATINUM PVL14OF-EXT
- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade

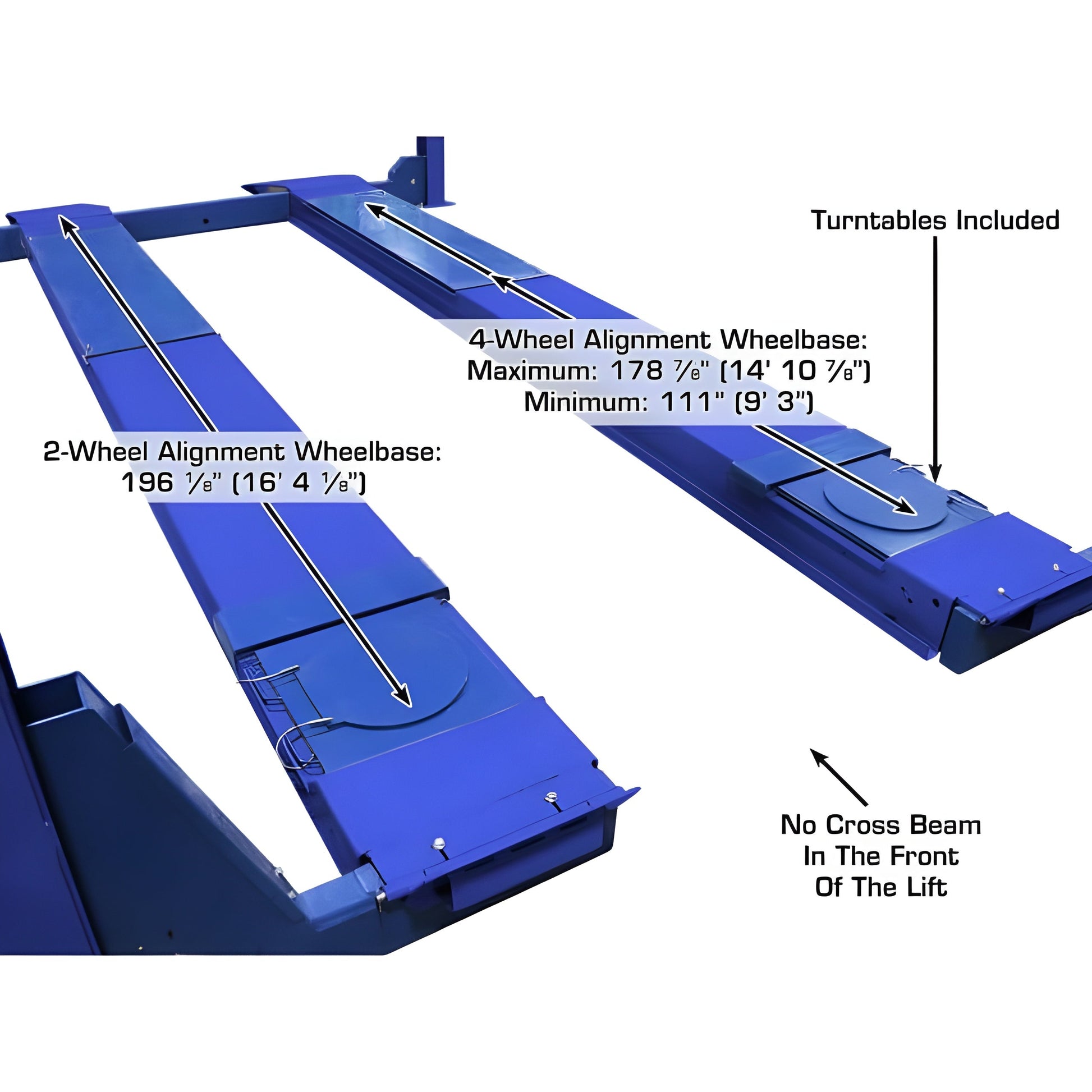

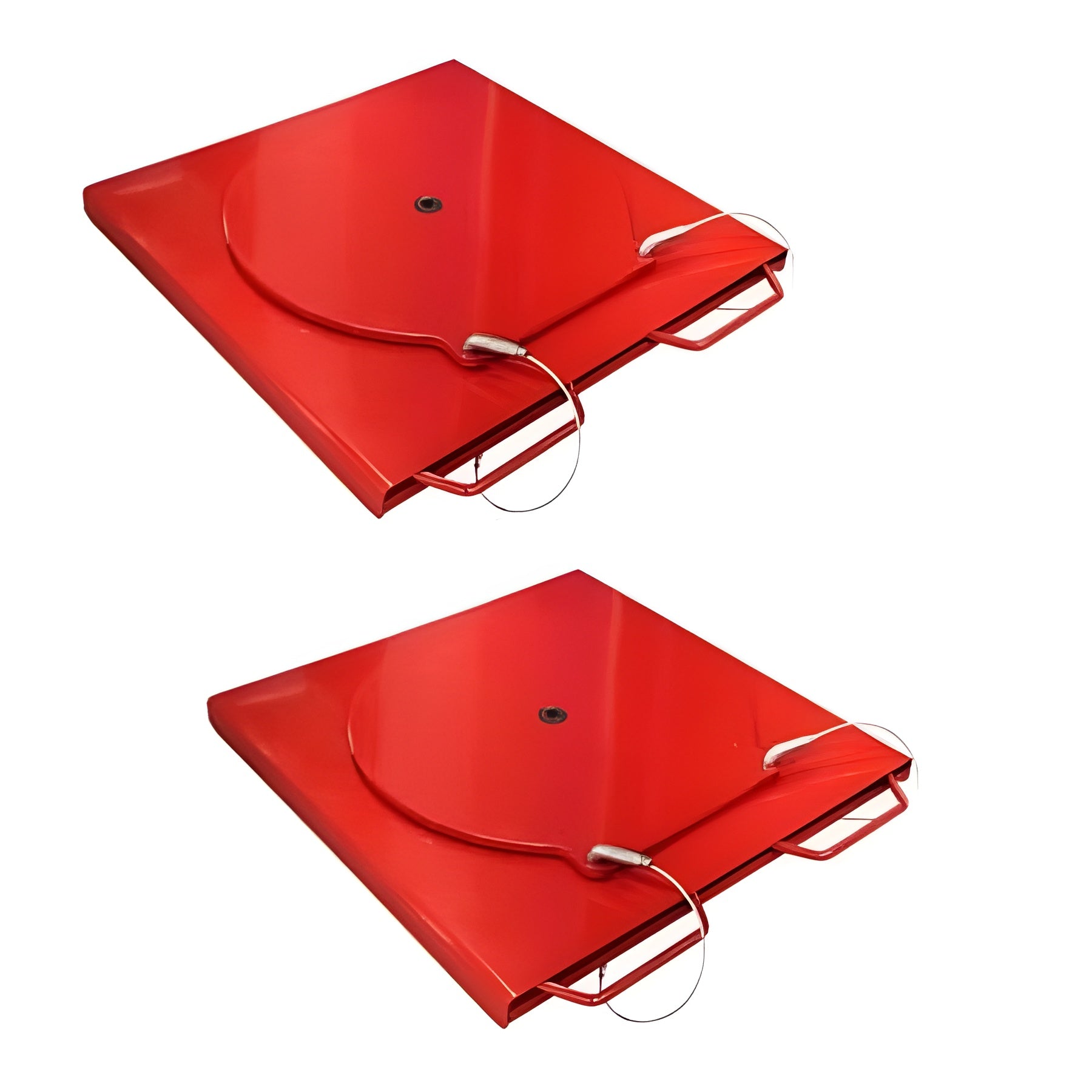

- Alignment Lift, Includes Built in Slip Plates & Turntables
- Open Front Design for Better Access
- Extra Long Runways

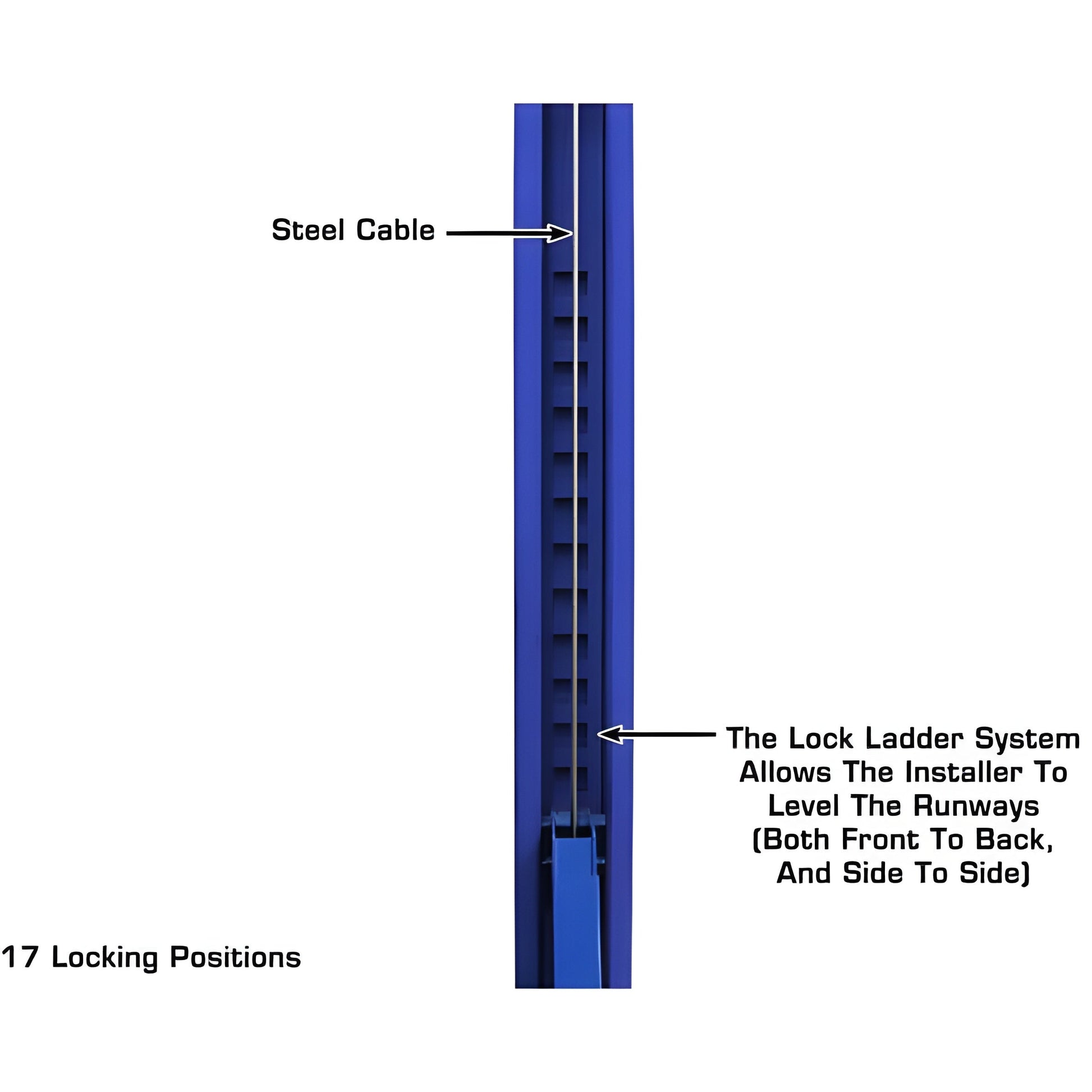

- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish

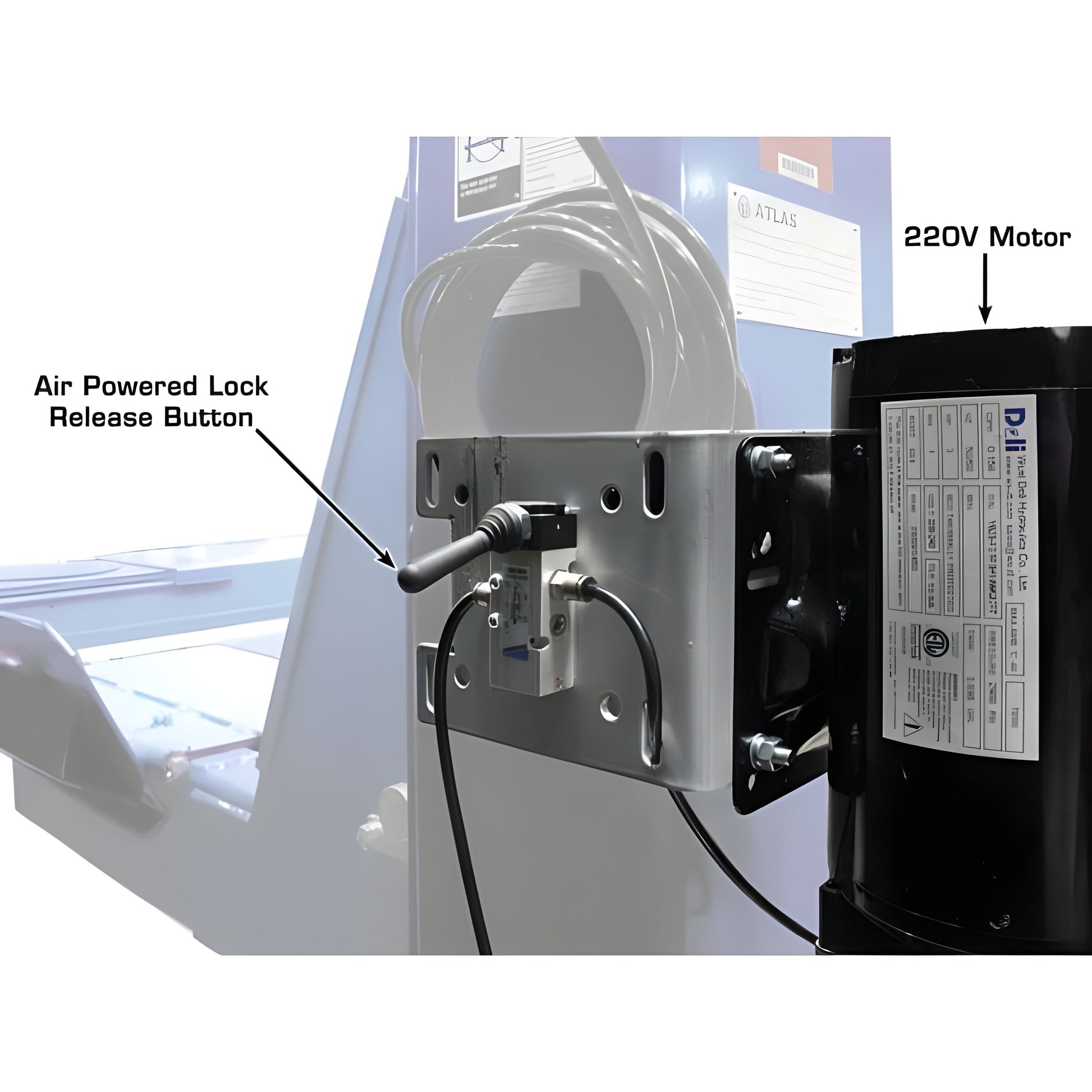

- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included

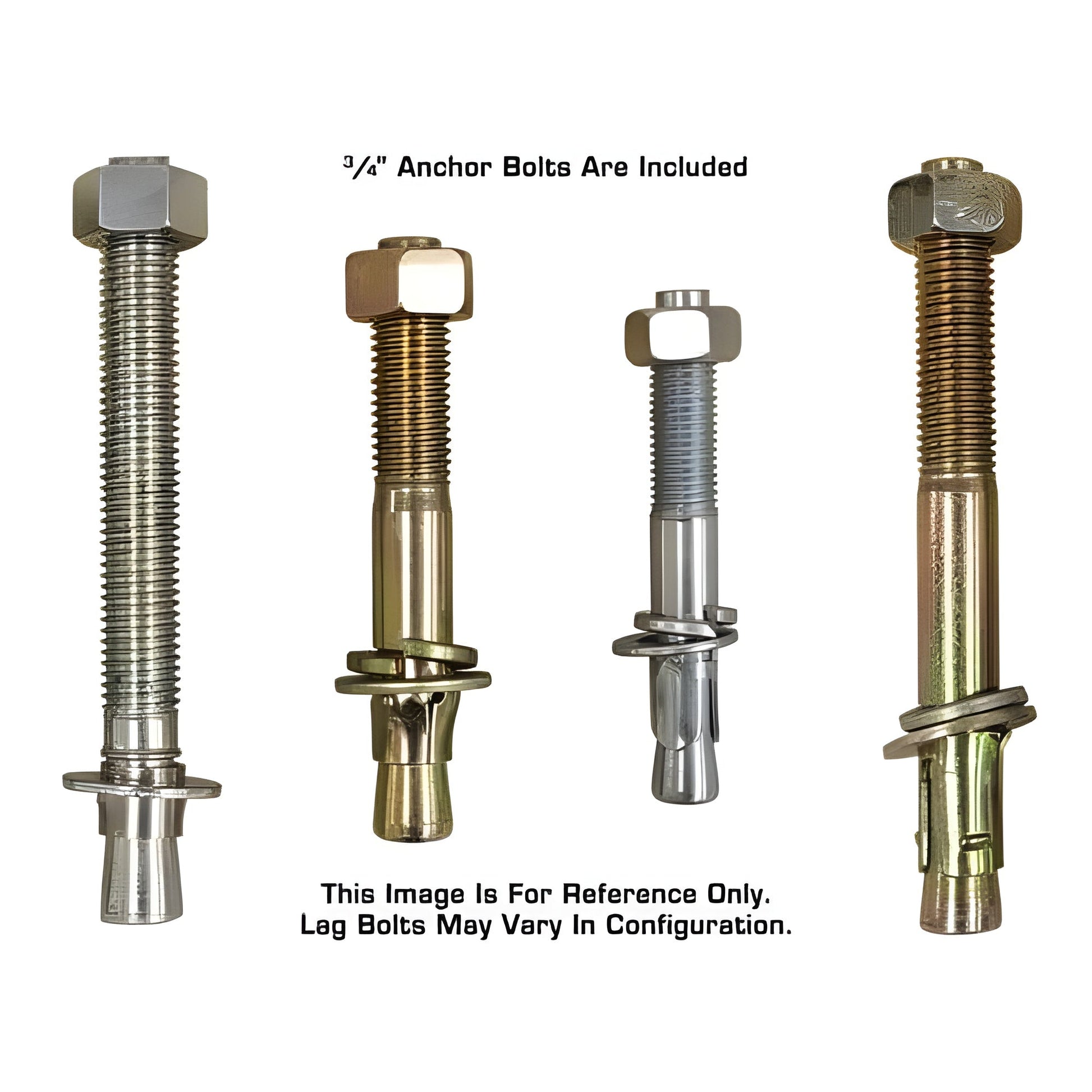

- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)

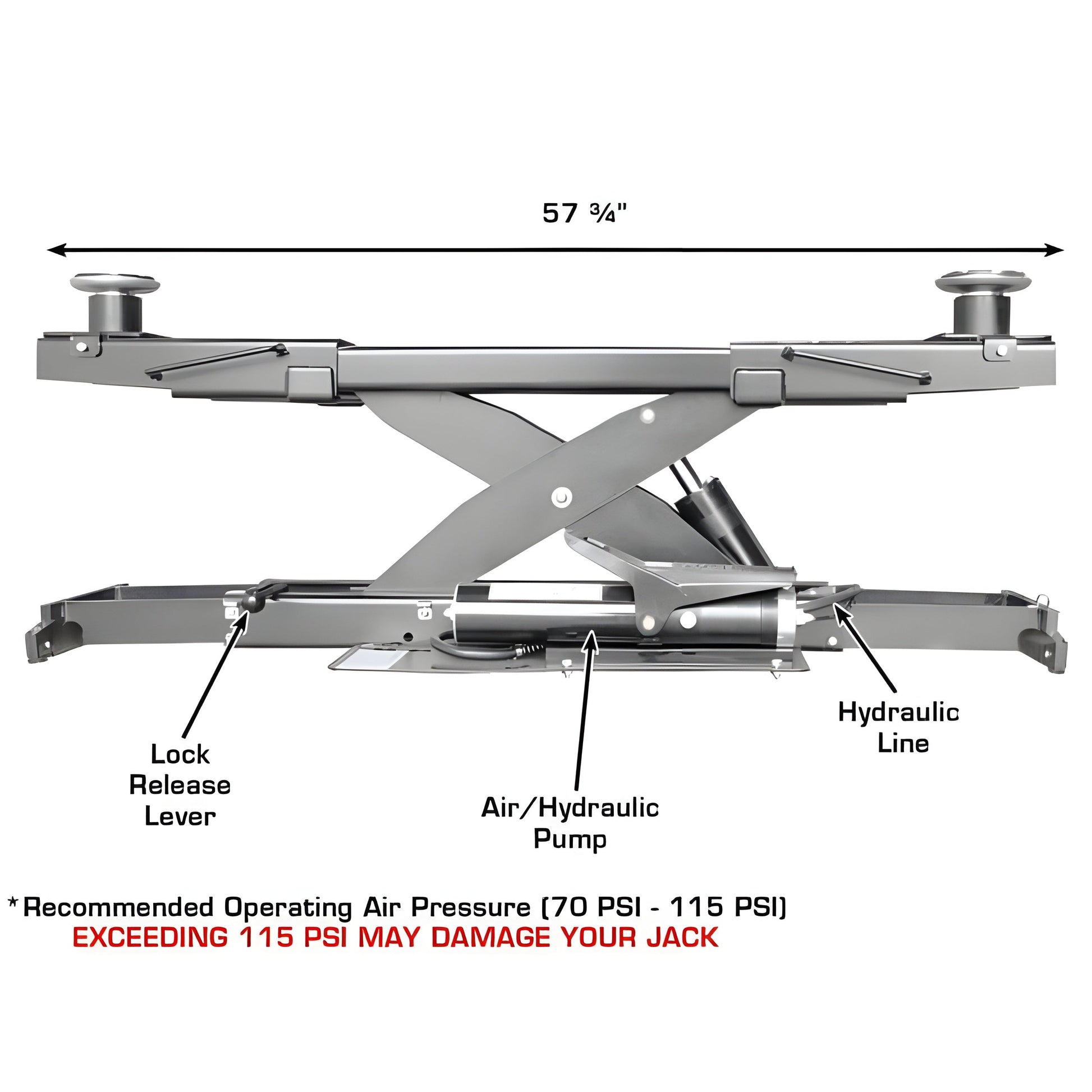

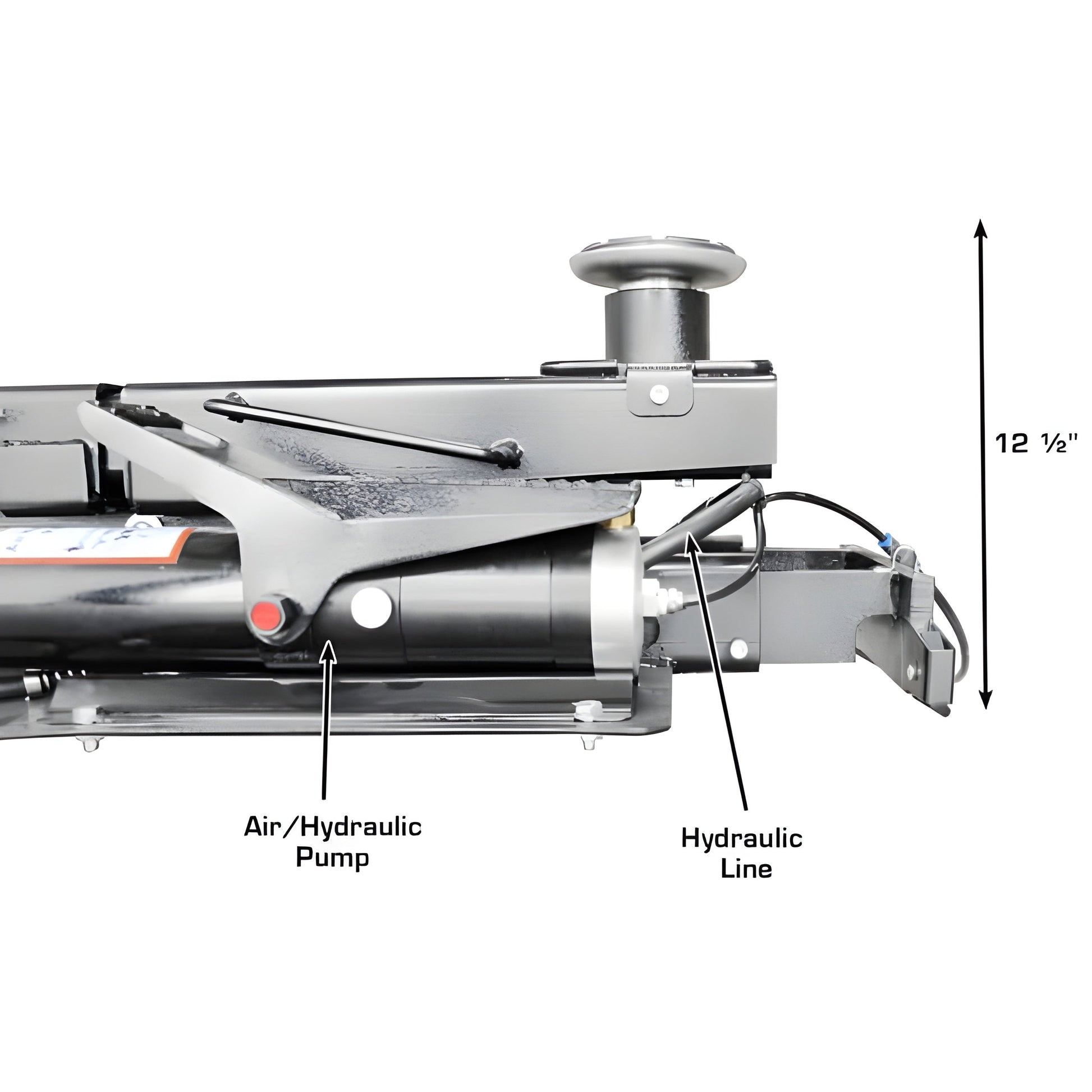

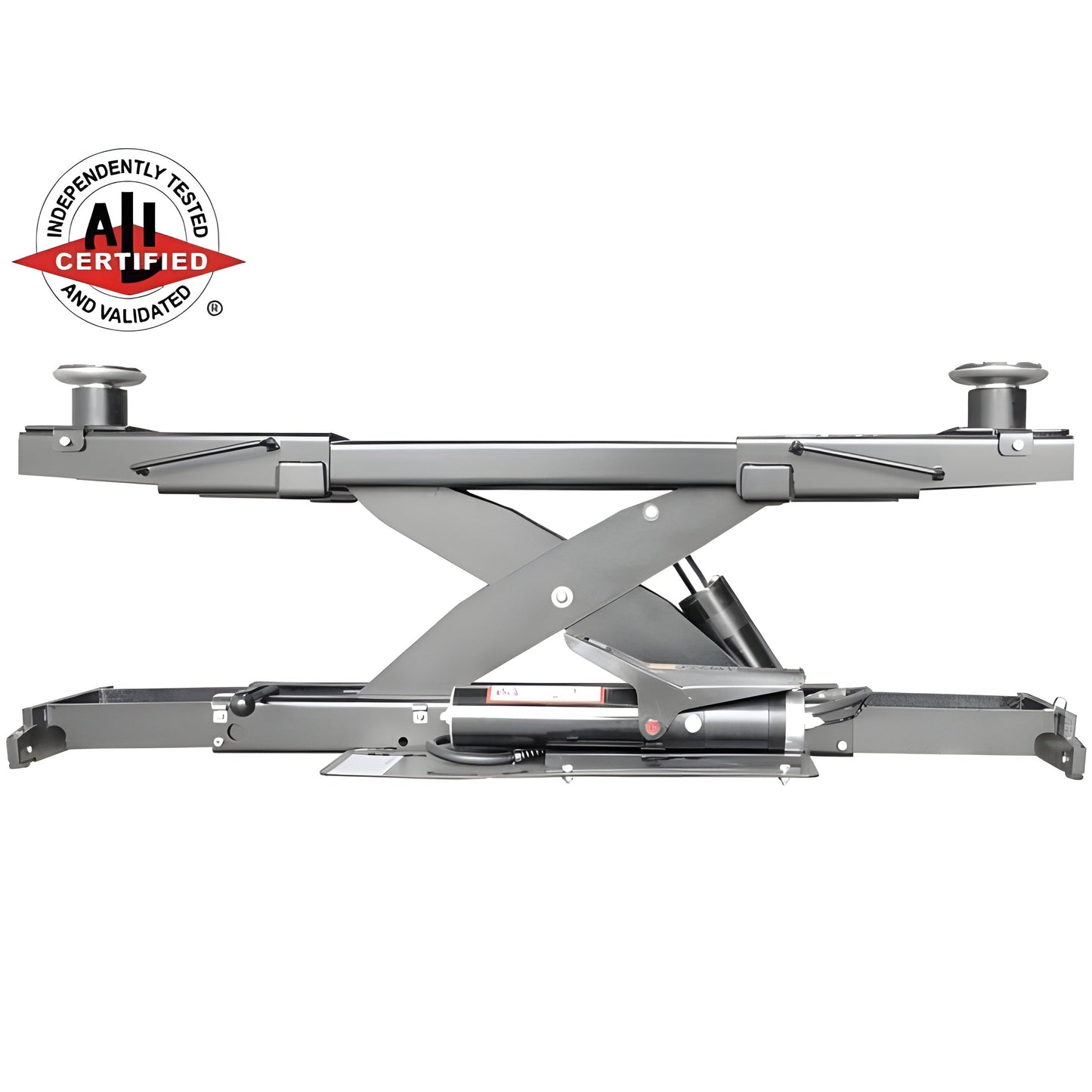

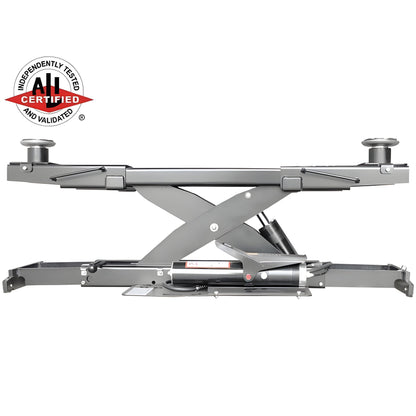

PLATINUM RJ7000
- 7,000 lb. Capacity
- Air/Hydraulic Operated

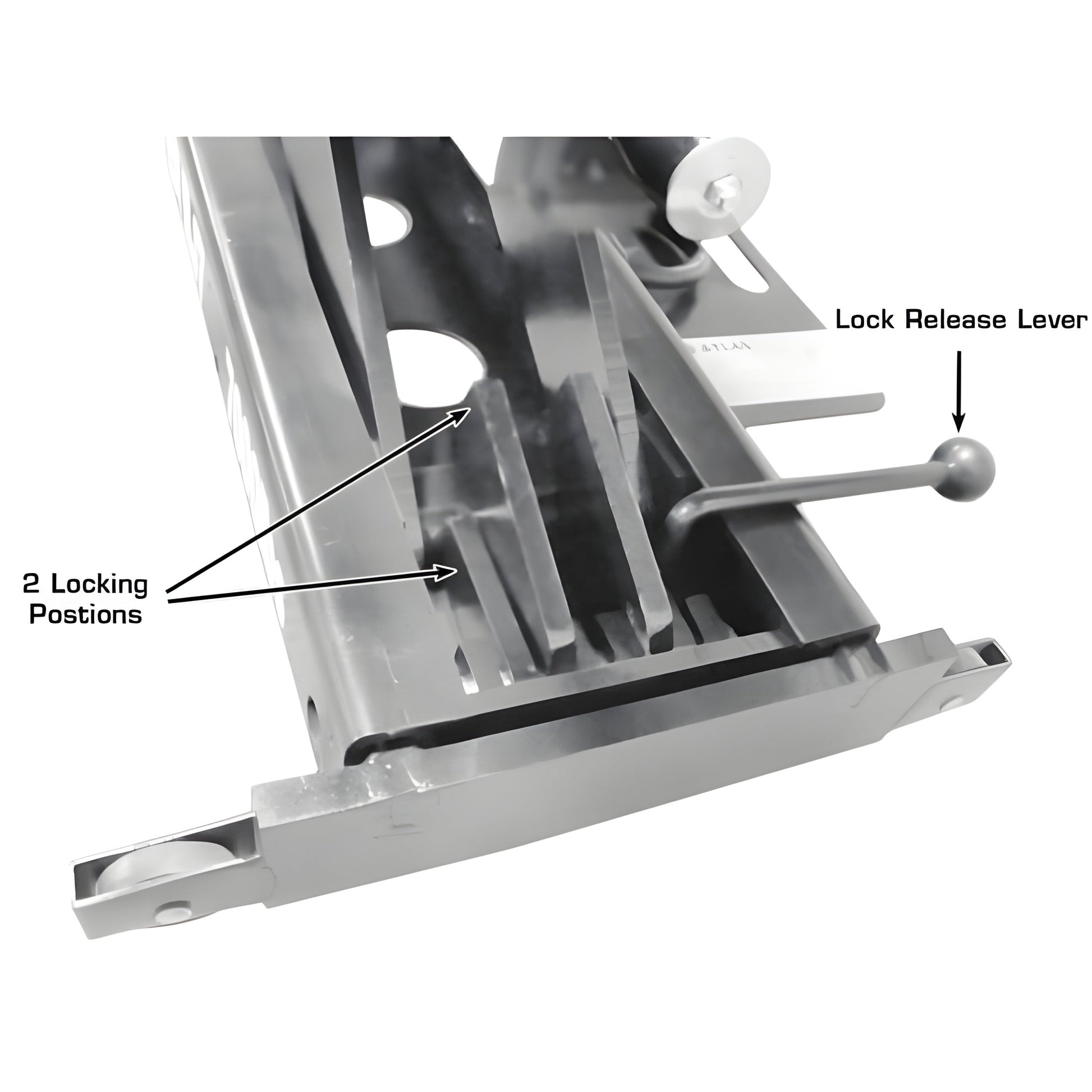

- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile

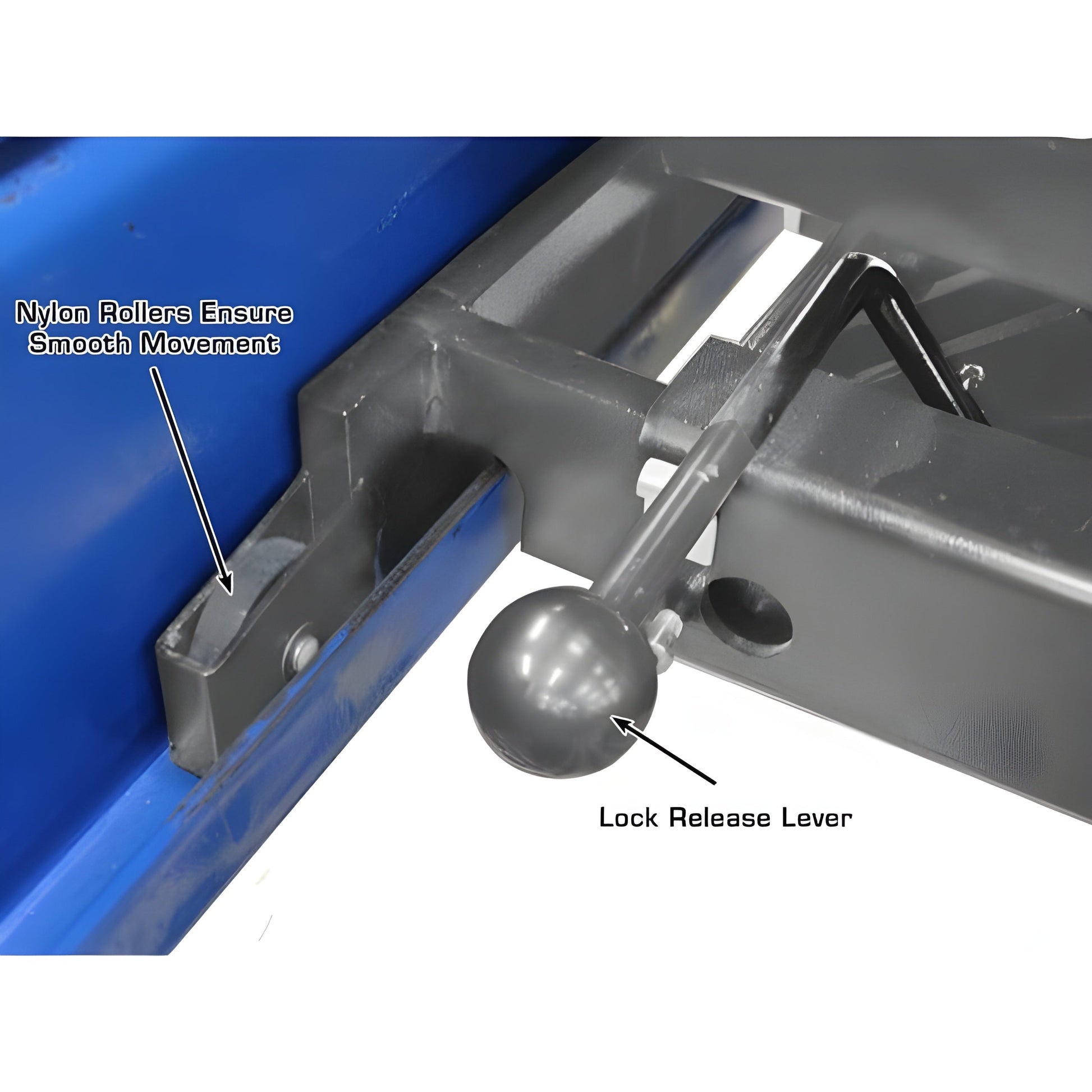

- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
Specifications

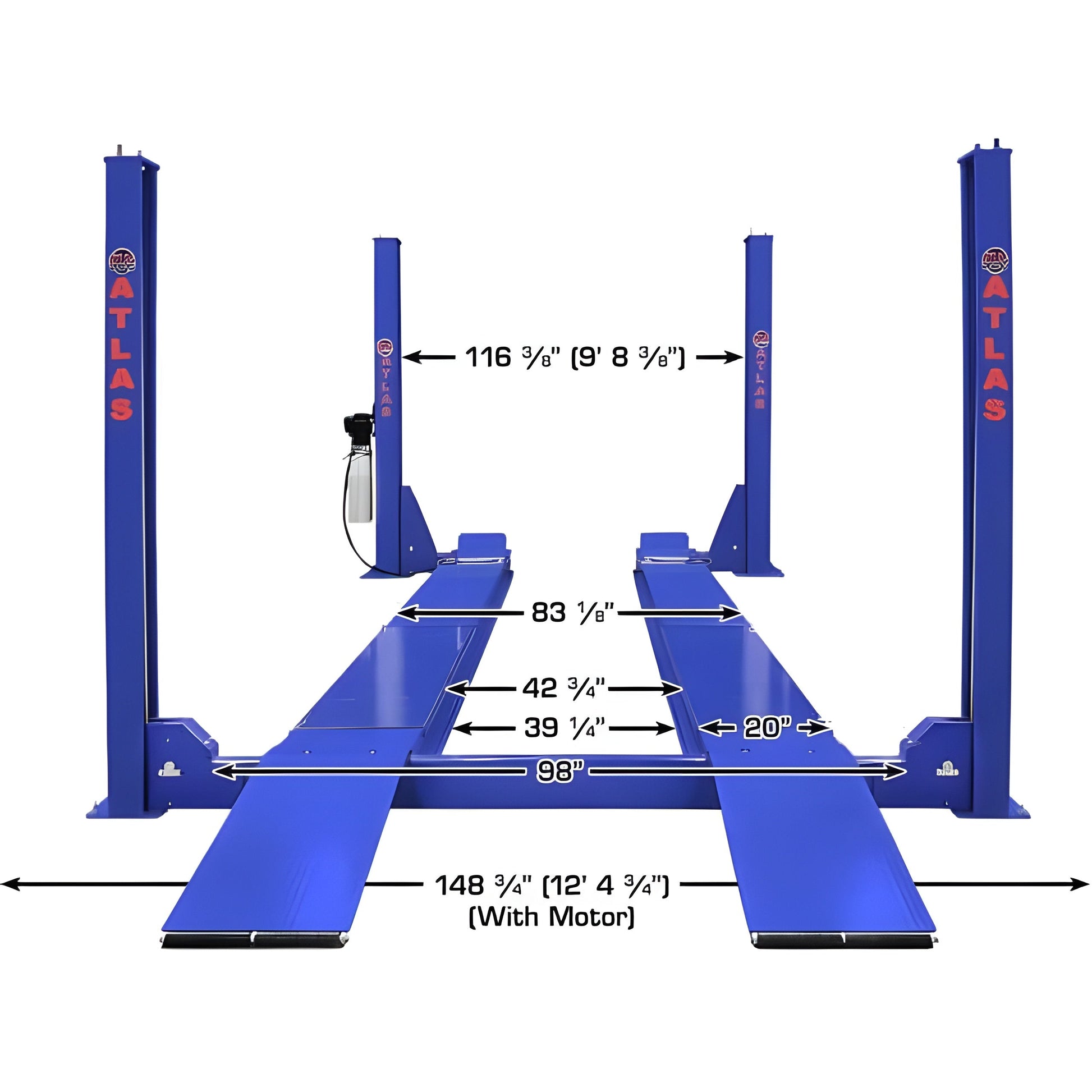

| Atlas Platinum PVL14OF-EXT Specifications |
|
| Capacity |
14,000 lb. |
| Lifting Height |
73 1/4" (6' 1 1/4") |
| Overall Width Of Columns (Without Motor) |
140 1/8" (11' 8 1/8") |
| Overall Width Of Columns (With Motor) |
148 3/4" (12' 4 3/4") |
| Overall Length With Approach Ramp |
272 1/8" (22' 8 1/8") |
| Length Between Columns |
207" (17' 3") |
| Runway Length |
223 1/2" (18' 7 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |

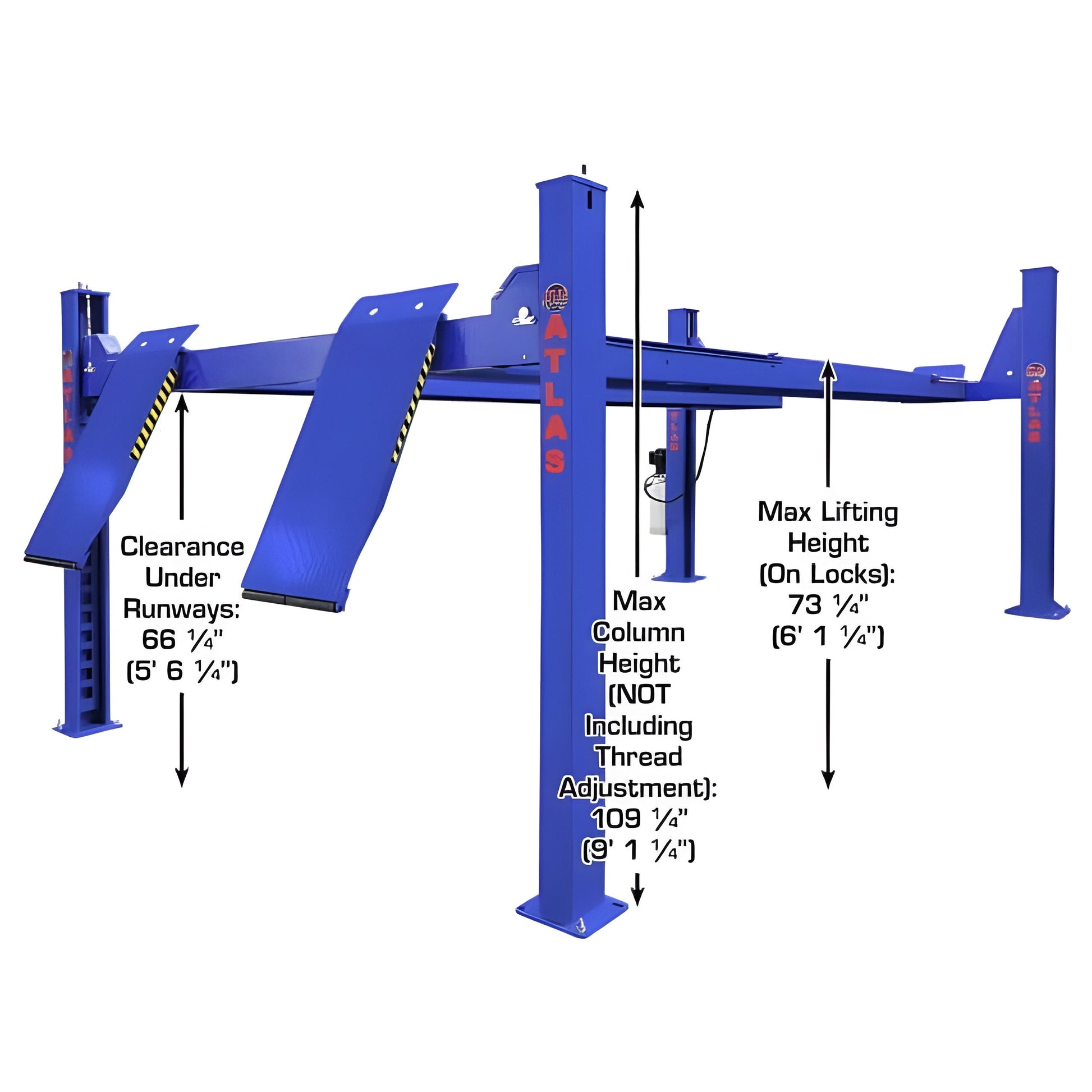

| Clearance Under Runways |
66 1/4" (5' 6 1/4") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |

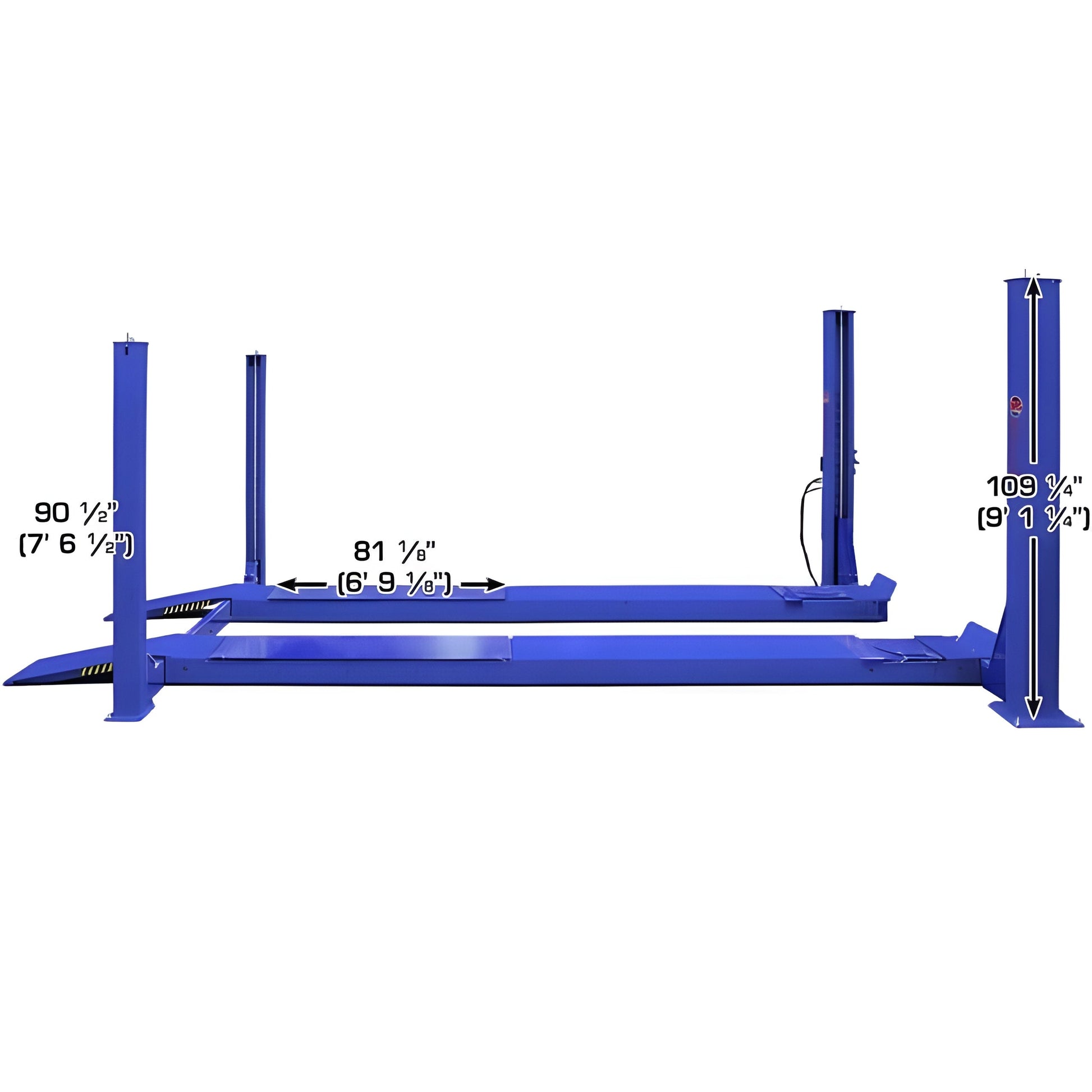

| Height Of Columns |
92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front |
| Maximum Wheel Base |
203" (16' 11") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

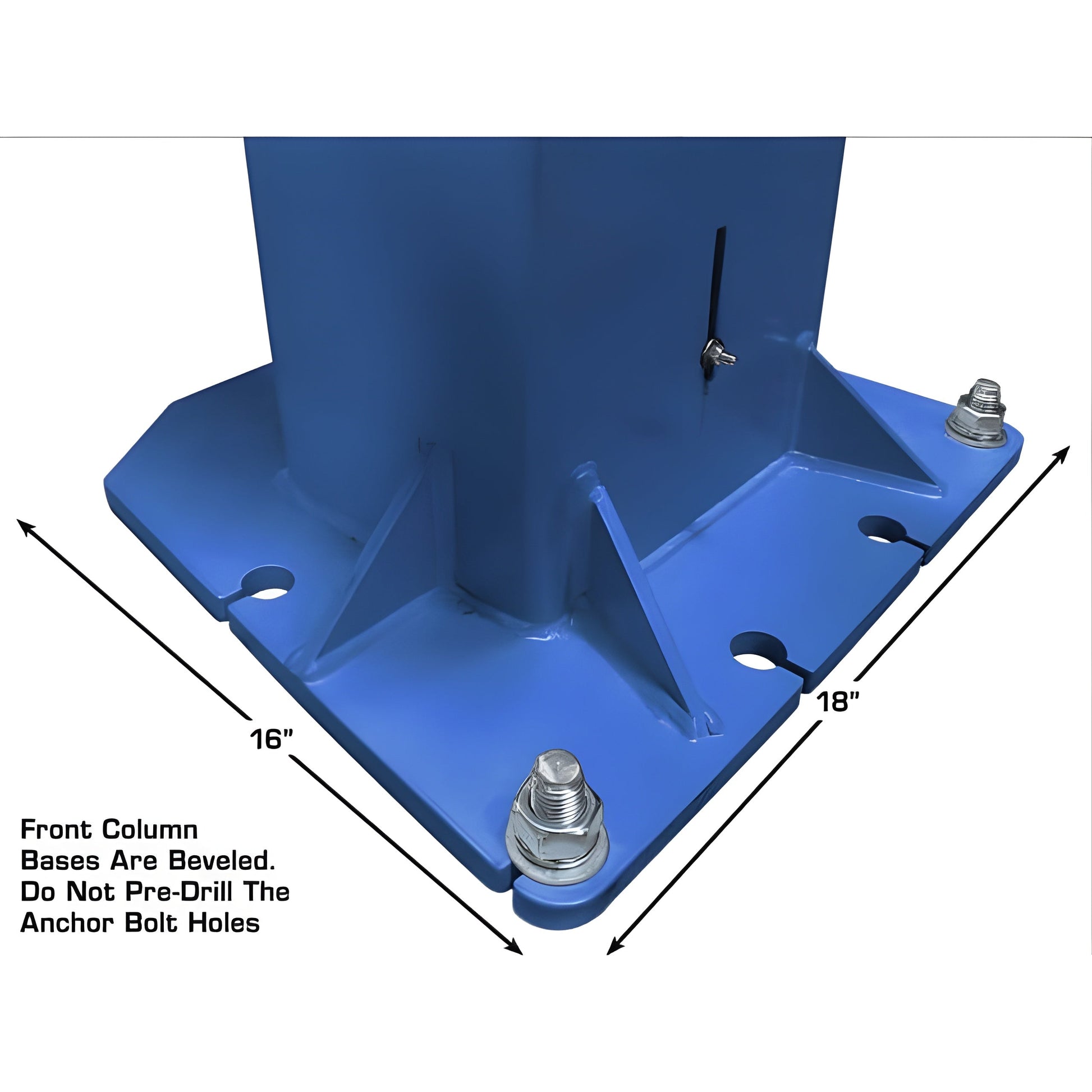

| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|

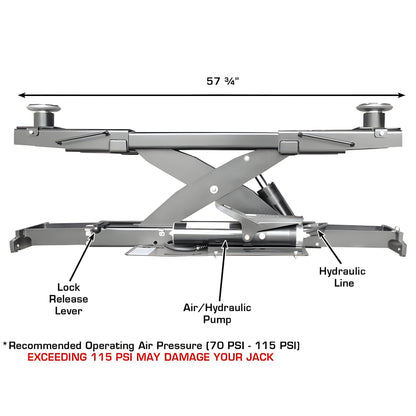

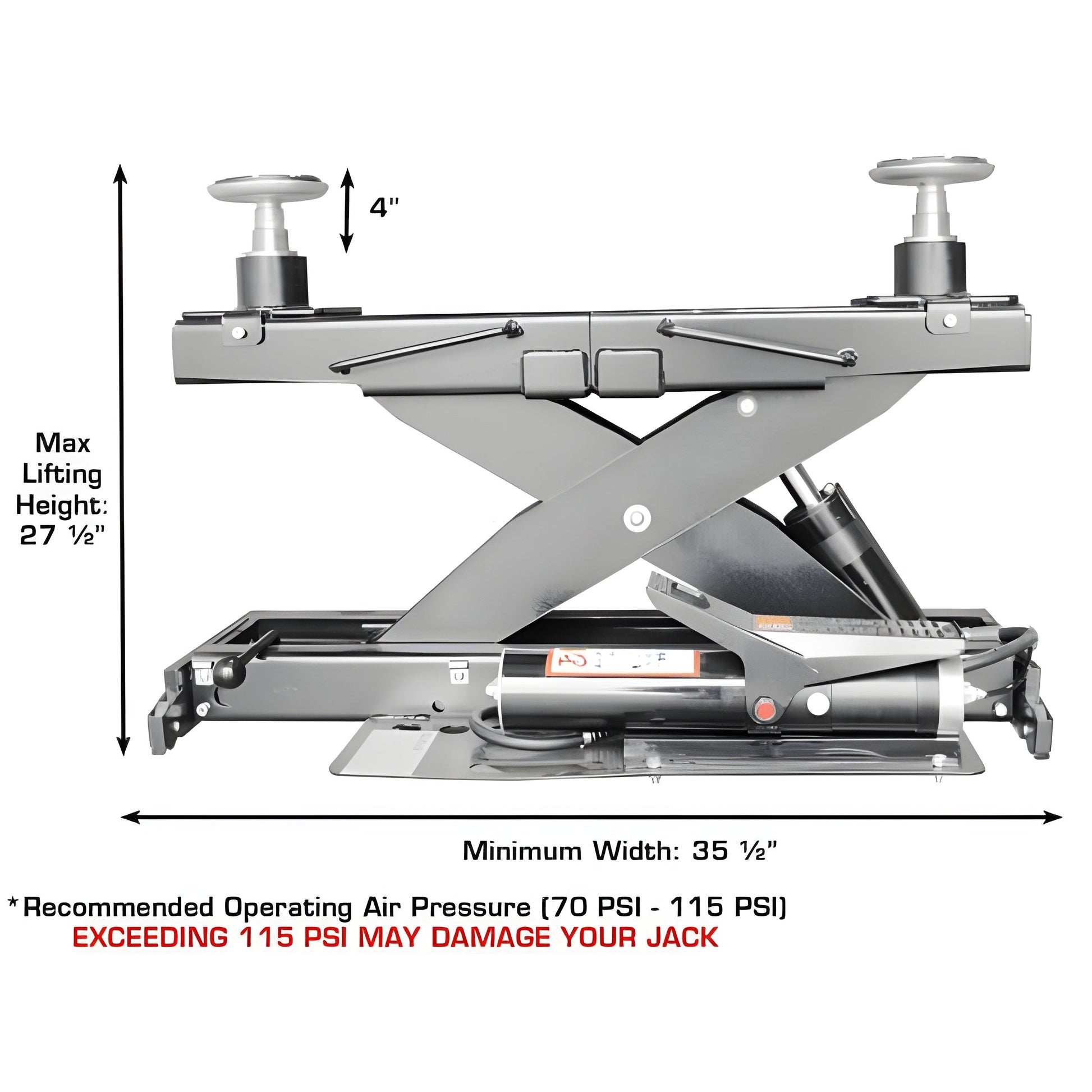

| Atlas Platinum RJ7000 Specifications |
|
| Maximum Capacity |
7,000 lb. |
| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |
| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
Manual
Atlas Platinum PVL14OF-EXT Manual
Atlas Platinum RJ7000 Manual
What Our Experts Think
-
Extended 4 Post Lift – Features an extended platform, offering extra space for larger vehicles or increased lifting height, perfect for shops or enthusiasts working with a variety of vehicle sizes.
-
ALI Certified – Meets rigorous safety standards, ensuring superior reliability and safety during operation.
-
RJ7000 Rolling Jacks – Included for seamless lifting of the vehicle’s wheels, enhancing your ability to perform maintenance tasks like tire rotations and brake inspections.
-
Heavy-Duty Construction – Built to last with robust materials, designed for continuous use in both professional and high-demand environments.
-
Space Efficiency – Offers a compact yet versatile lift system, ideal for maximizing garage or shop space while accommodating a wide range of vehicle types.
Q&A
Q: What is the Atlas Platinum PVL14OF-EXT 4 Post Lift + RJ7000 ALI Combo used for?
A: The Atlas Platinum PVL14OF-EXT 4 Post Lift + RJ7000 ALI Combo is designed to lift and service vehicles. It offers a 14,000 lb. capacity, extended length 4-post lift, and rolling jacks for precise undercarriage work and tire service.
Q: What makes the PVL14OF-EXT lift unique?
A: The PVL14OF-EXT features an extended length and open front design, making it ideal for alignment and servicing vehicles with a longer wheelbase or larger vehicles like trucks and vans. The open front provides clear access to the vehicle for better alignment and repair work.
Q: How do the rolling jacks enhance the lift's functionality?
A: The RJ7000 Rolling Jacks provide additional lifting capability, allowing for undercarriage service, tire changes, and brake work while keeping the vehicle safely elevated.
Q: What type of vehicles can this combo lift?
A: The PVL14OF-EXT 4 Post Lift is designed for larger vehicles, including trucks, SUVs, vans, and long-wheelbase cars, making it ideal for auto shops and garages working with a variety of vehicle types.
Maintenance Tips
-
Lubricate Moving Parts Regularly – Apply lubrication to the lift's rails, posts, and arms to ensure smooth operation and extend the life of the lift.
-
Inspect and Adjust Hydraulic Fluid – Check the hydraulic fluid levels periodically, topping up when necessary to maintain proper lifting performance.
-
Examine Lift Pads and Jacks – Inspect the lift pads and rolling jacks for any signs of wear or damage, replacing components when needed for safe operation.
-
Clean Lift and Rolling Jacks – Regularly clean the lift and rolling jacks to prevent dirt and debris buildup, ensuring efficient performance.
-
Check Bolts and Fasteners – Tighten any loose bolts or fasteners on the lift and jacks, ensuring that all connections are secure for safety and stability.
-
Monitor Cable and Pulley System – Inspect the cables and pulleys for any fraying or wear, and replace any damaged components to maintain proper lift function.
-
Perform Safety Inspections – Run routine safety checks on the locking mechanisms, weight capacity, and functionality of both the lift and rolling jacks to ensure reliability.
