Atlas Platinum PVL14 4 Post Lift + RJ7000 Rolling Jacks ALI Certified Combo - ATEAP-PVL14-COMBO-FPD

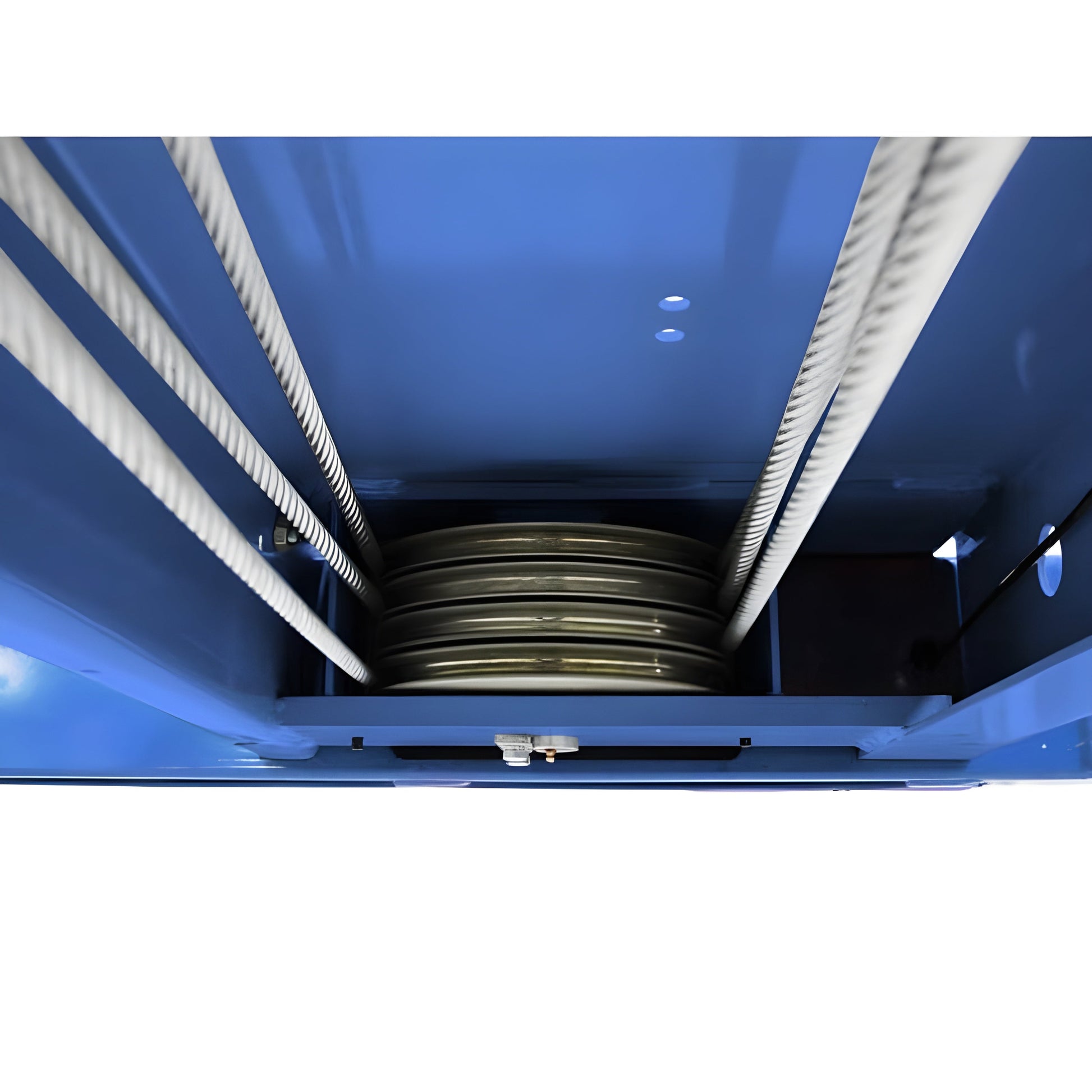

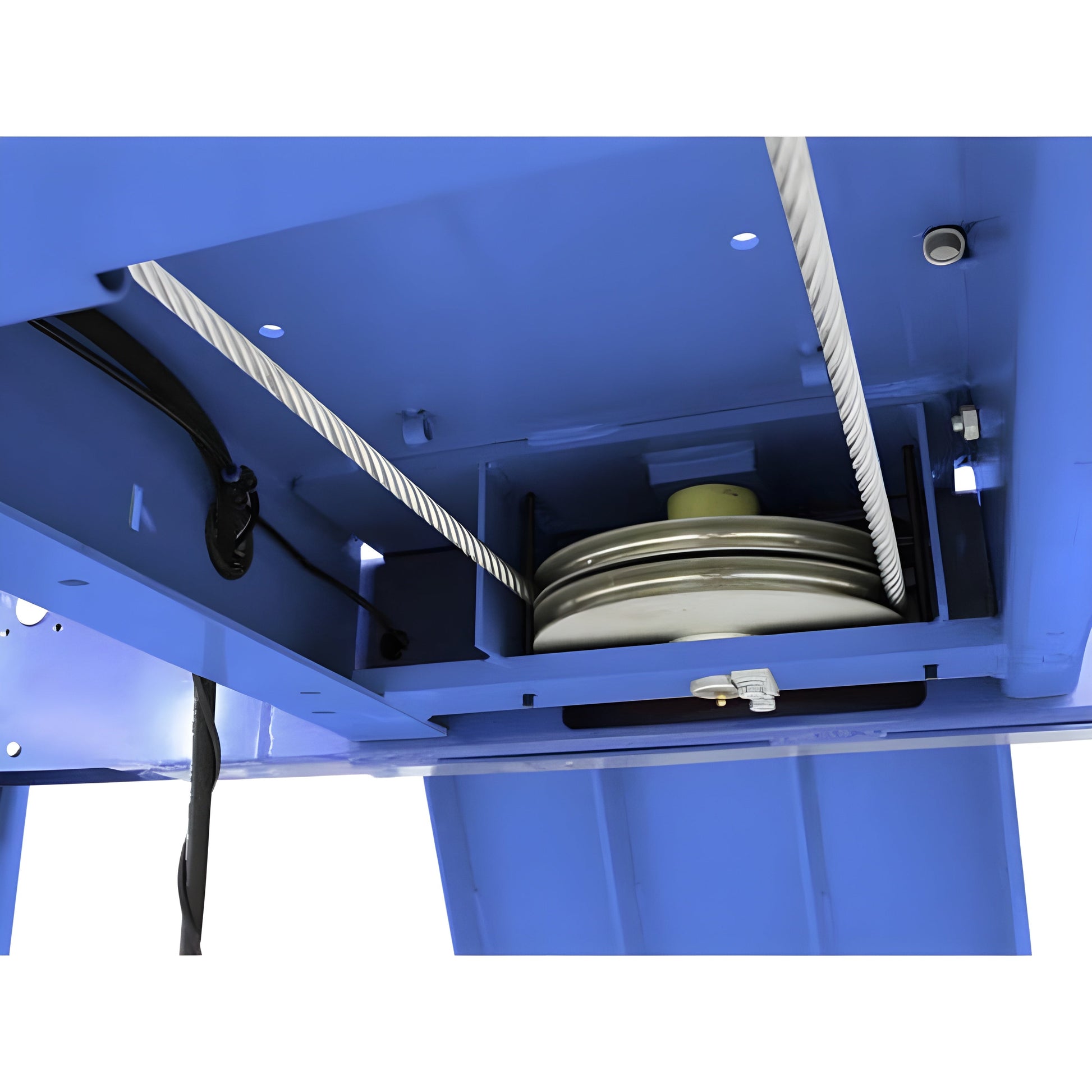

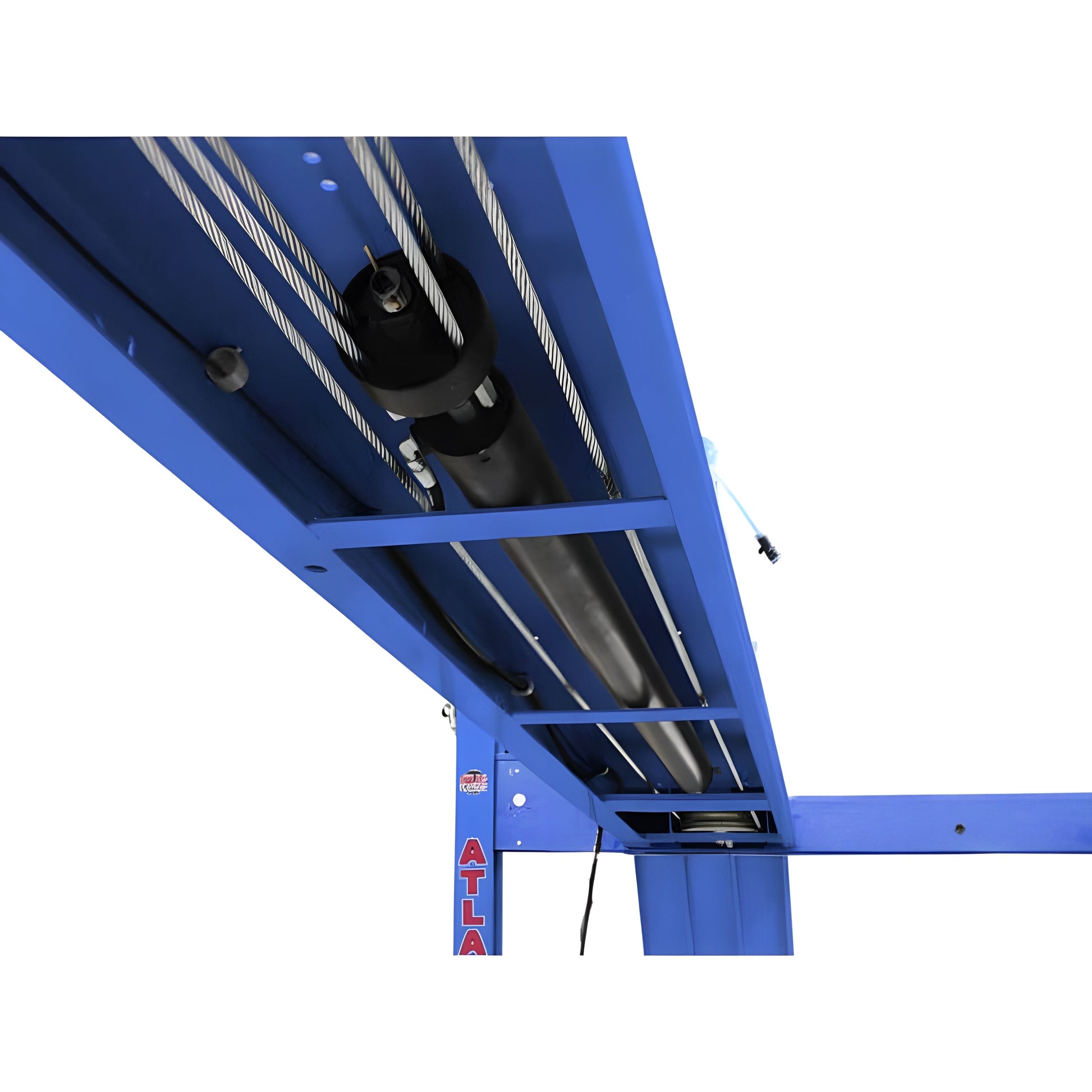

The Atlas Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.The Atlas Platinum PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leadingThis combo package also includes two of the popular ALI Atlas Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PLATINUM PVL14
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish
- Air Operated Single Point Lock Release (External Air Supply Required)

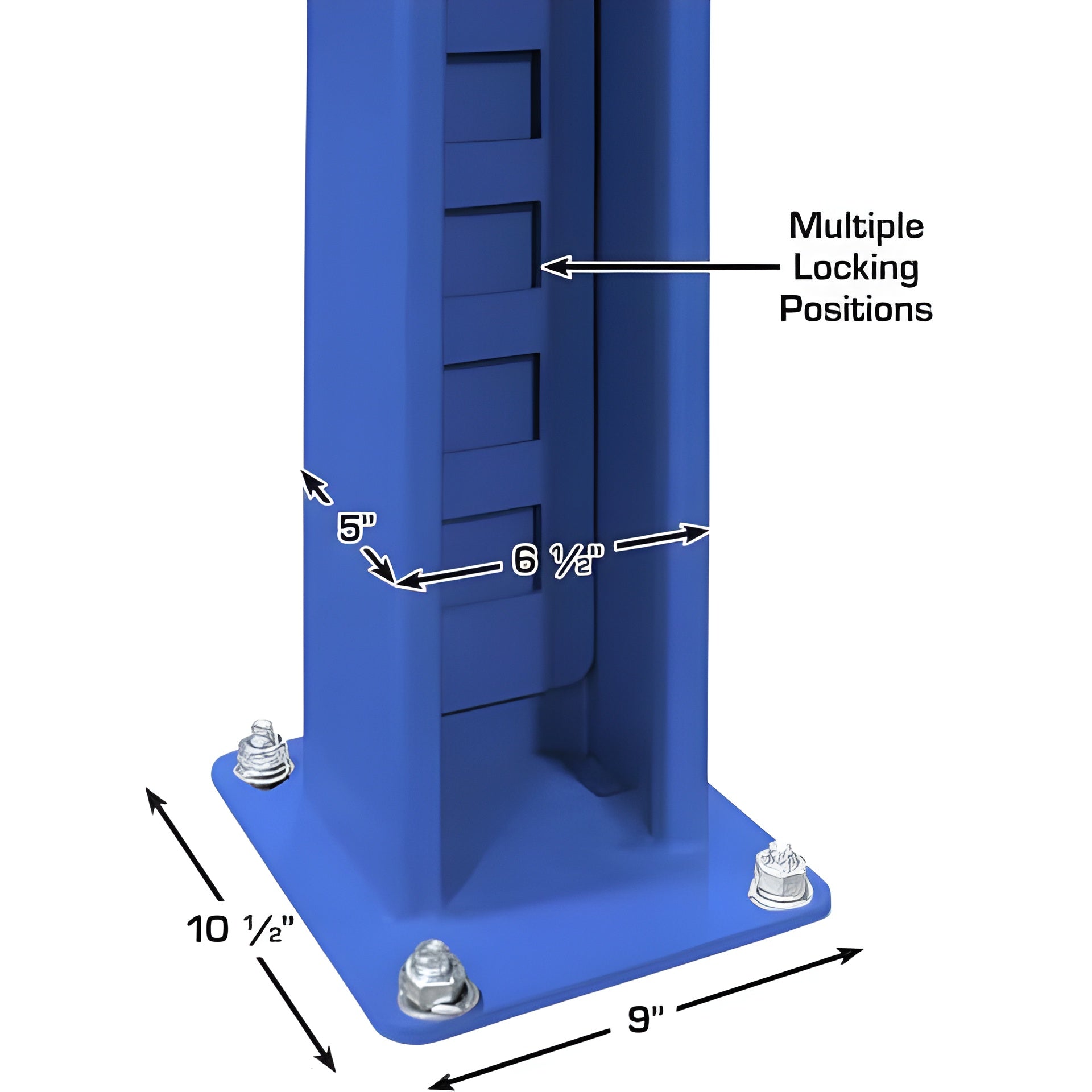

- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included

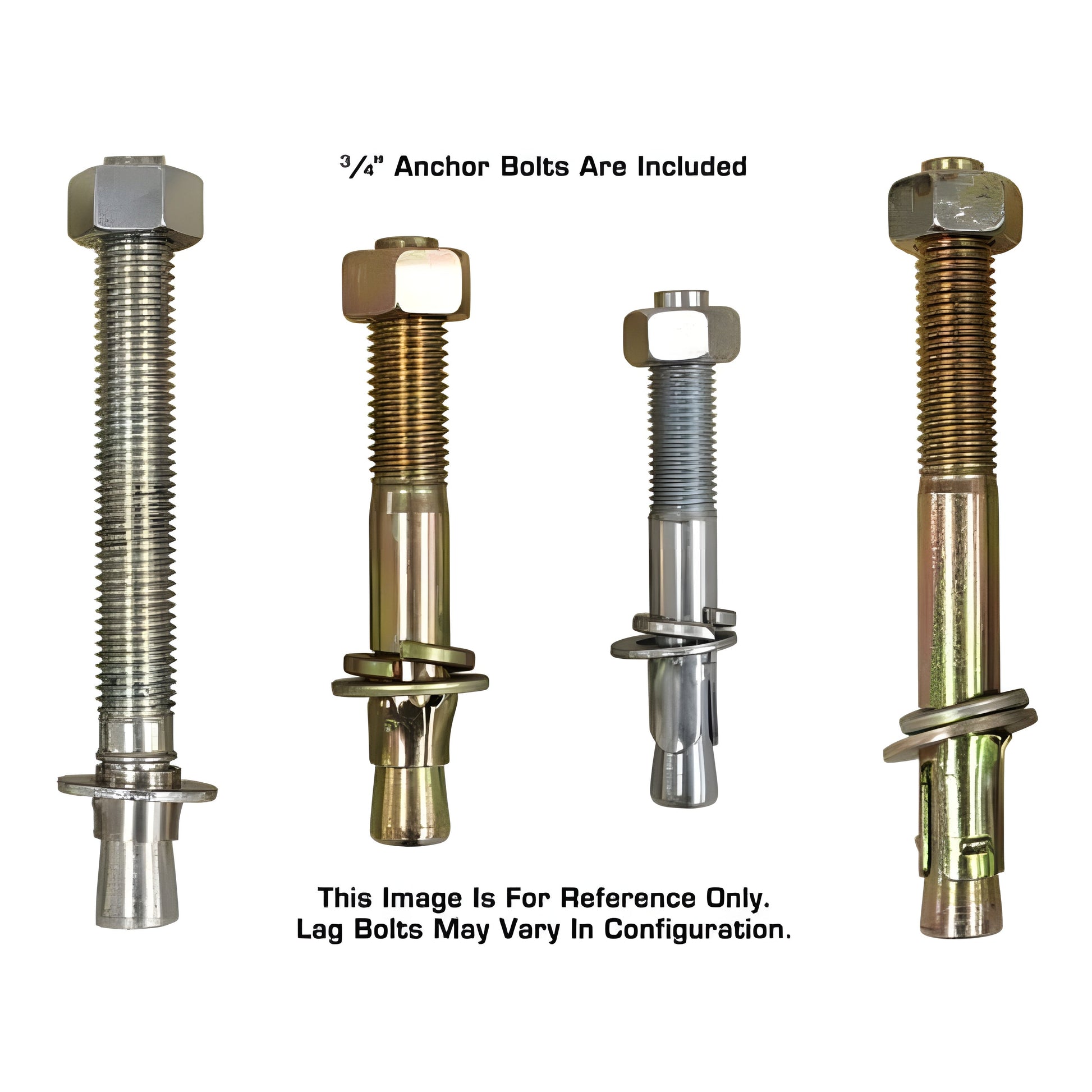

- Mounting Hardware Included

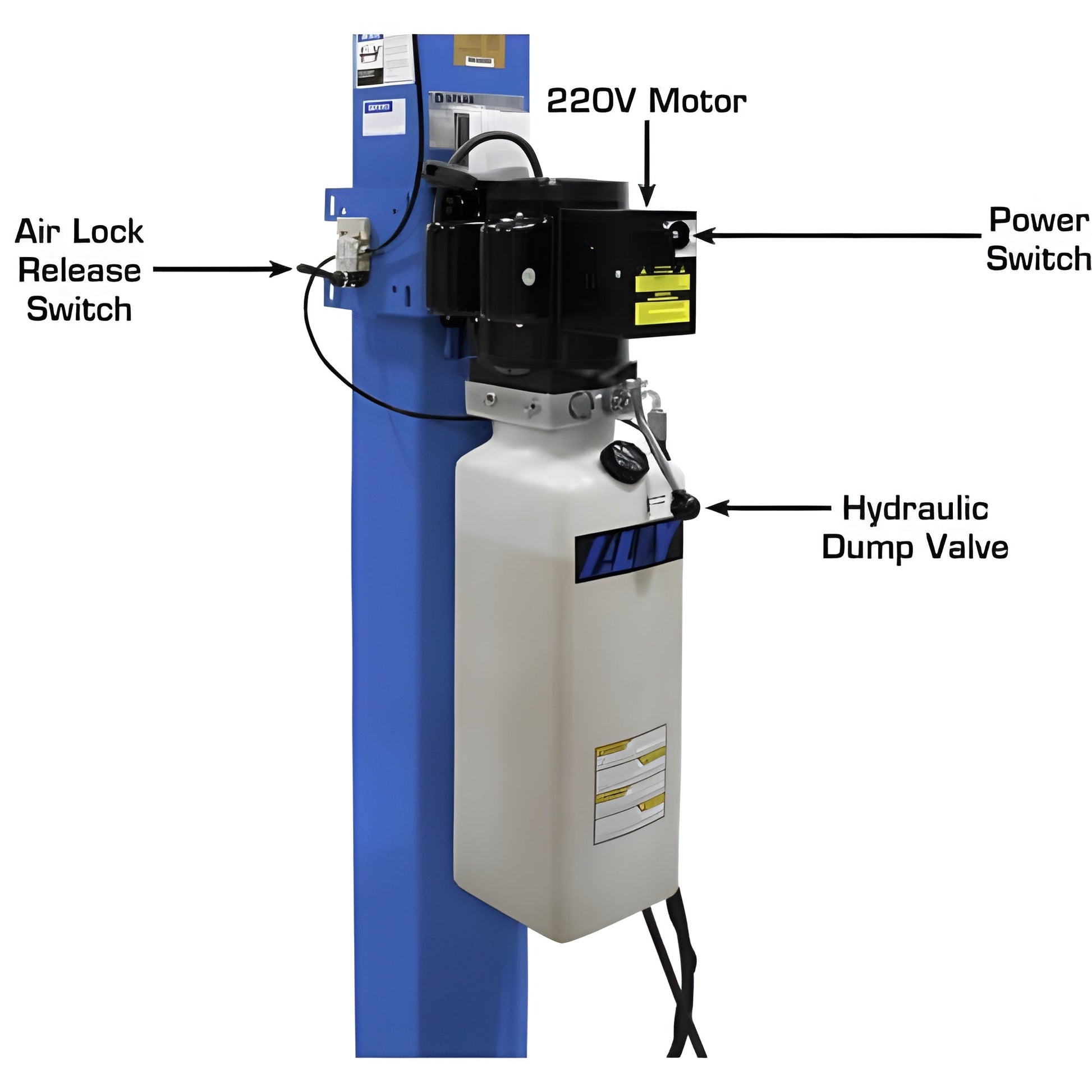

- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)

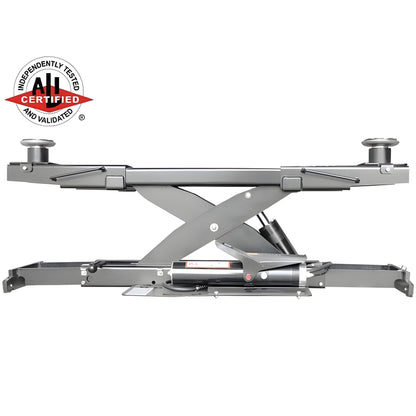

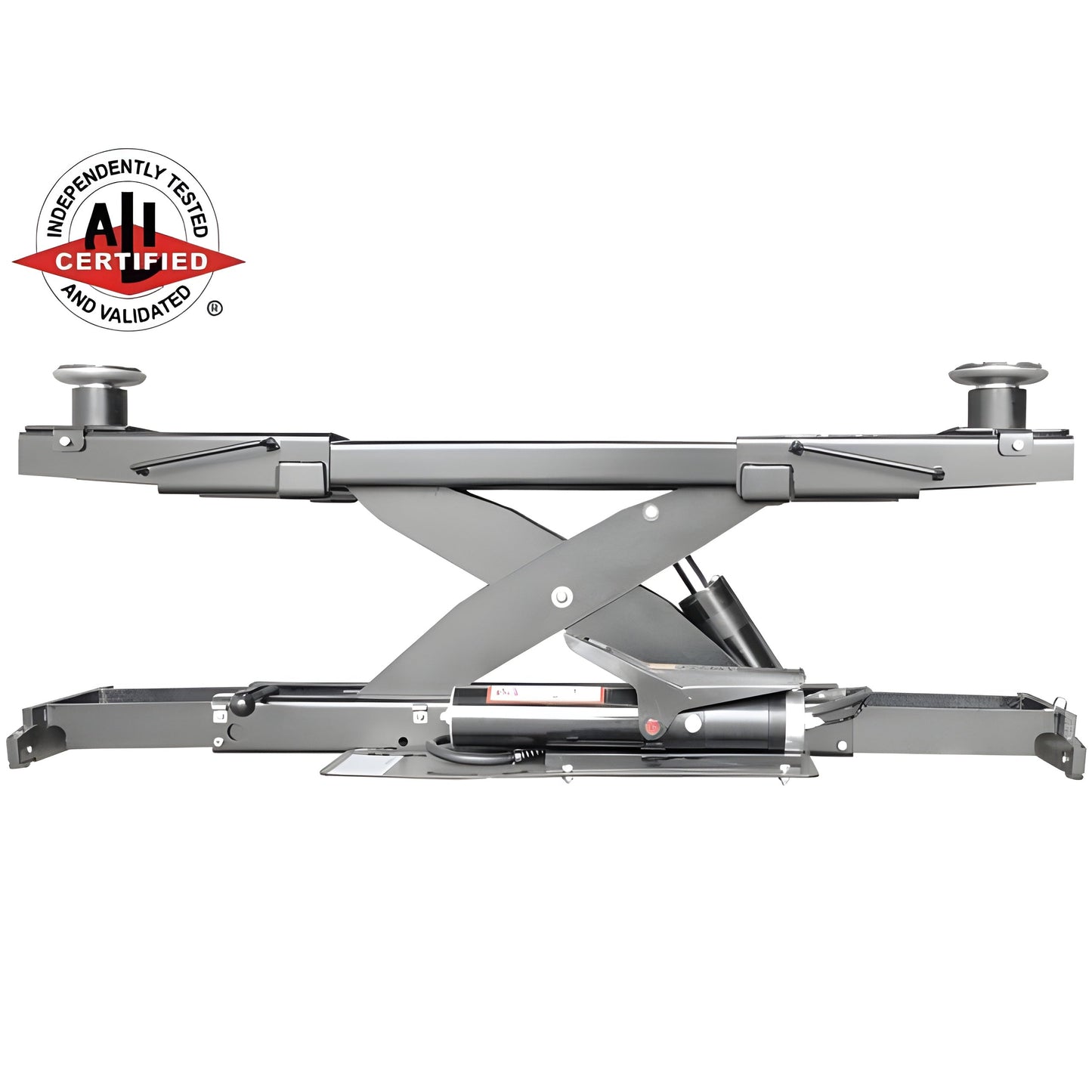

PLATINUM RJ7000
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
Specifications
| Atlas Platinum PVL14 Specifications |
|
| Capacity |
14,000 lb. |

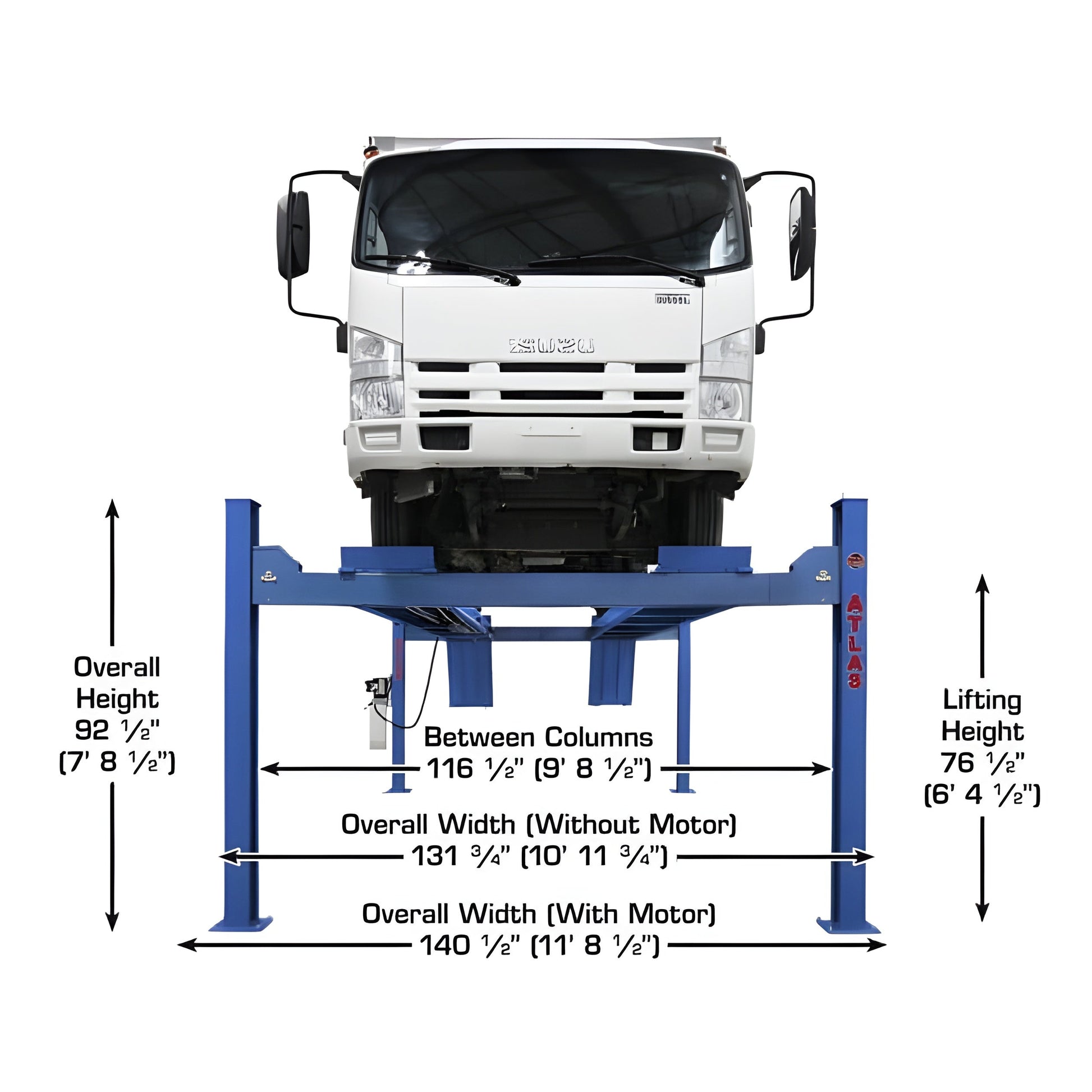

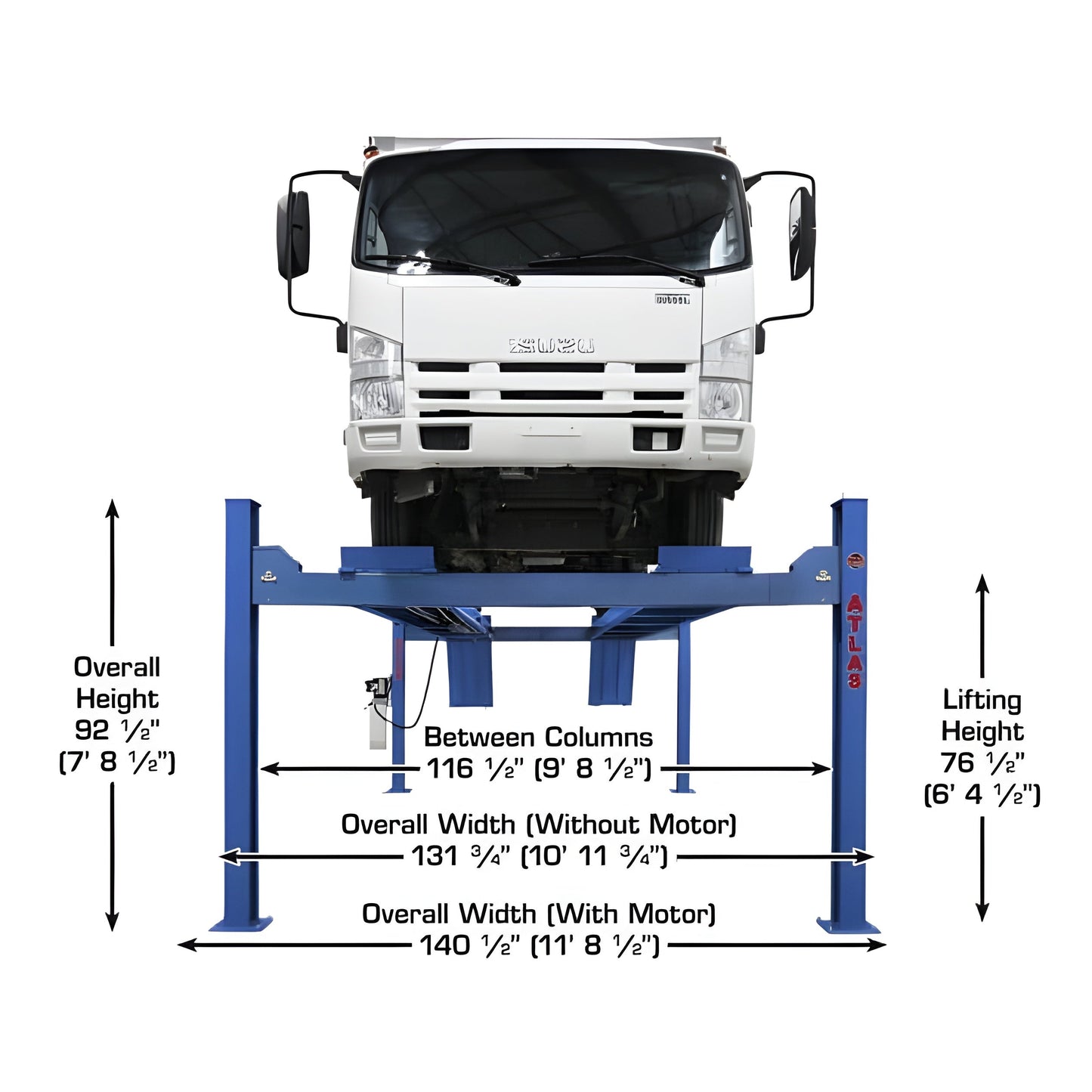

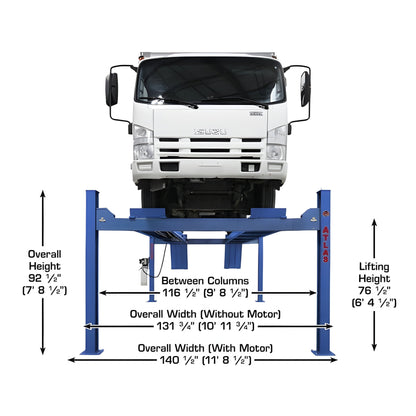

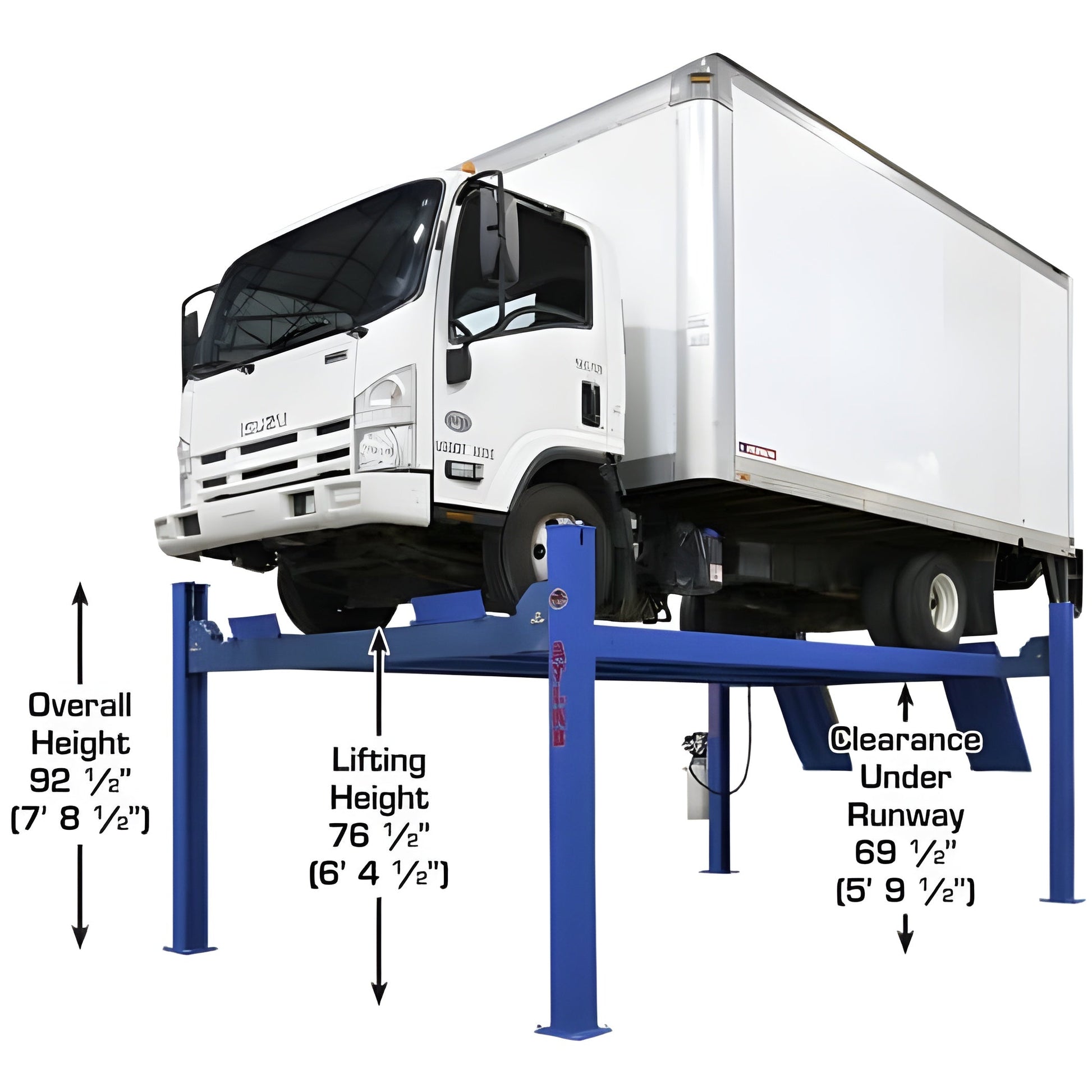

| Lifting Height |
76 1/2" (6' 4 1/2") |

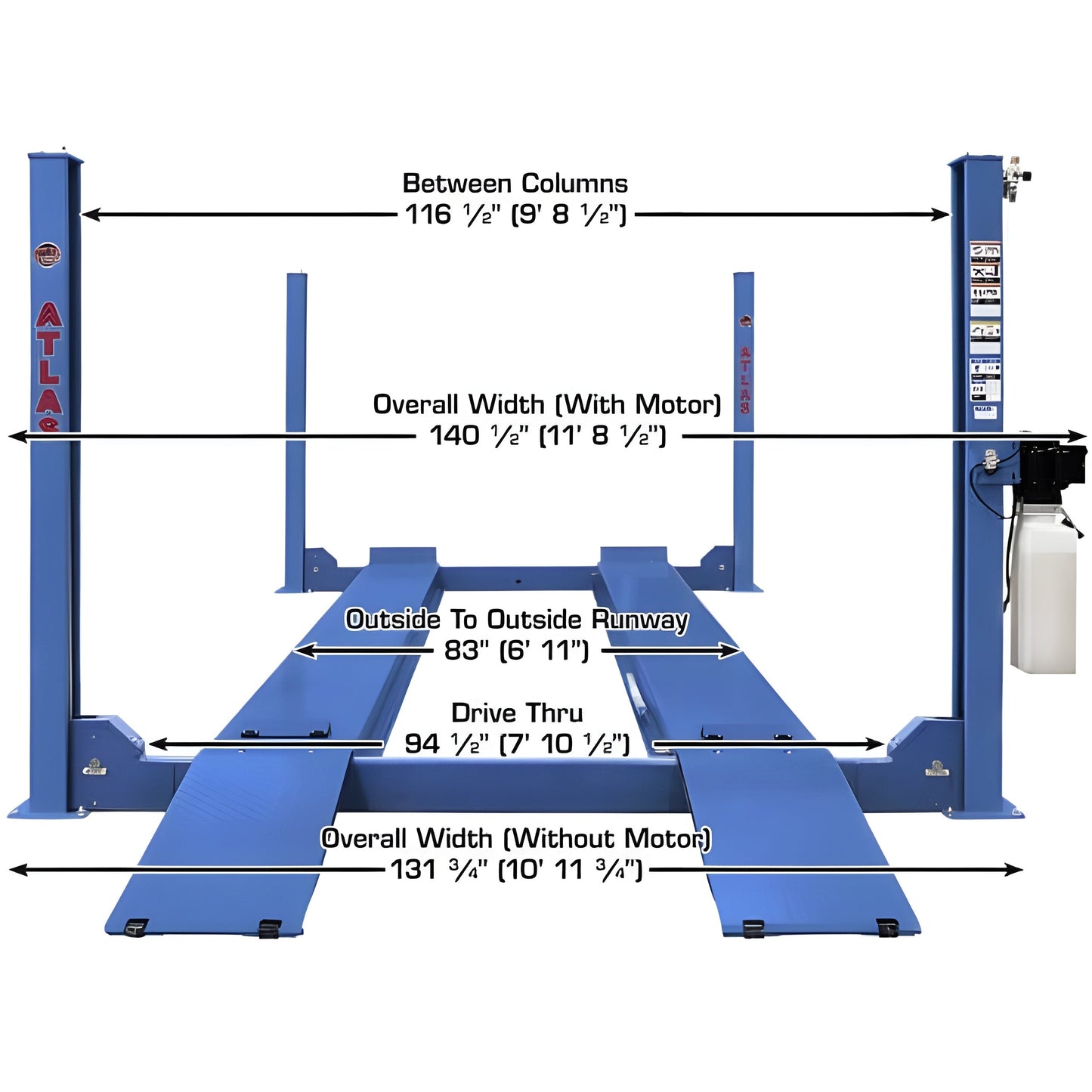

| Overall Width Of Columns (Without Motor) |
131 3/4" (10' 11 3/4") |
| Overall Width Of Columns (With Motor) |
140 1/2" (11' 8 1/2") |
| Overall Length With Approach Ramp |
251 1/2" (20' 11 1/2") |

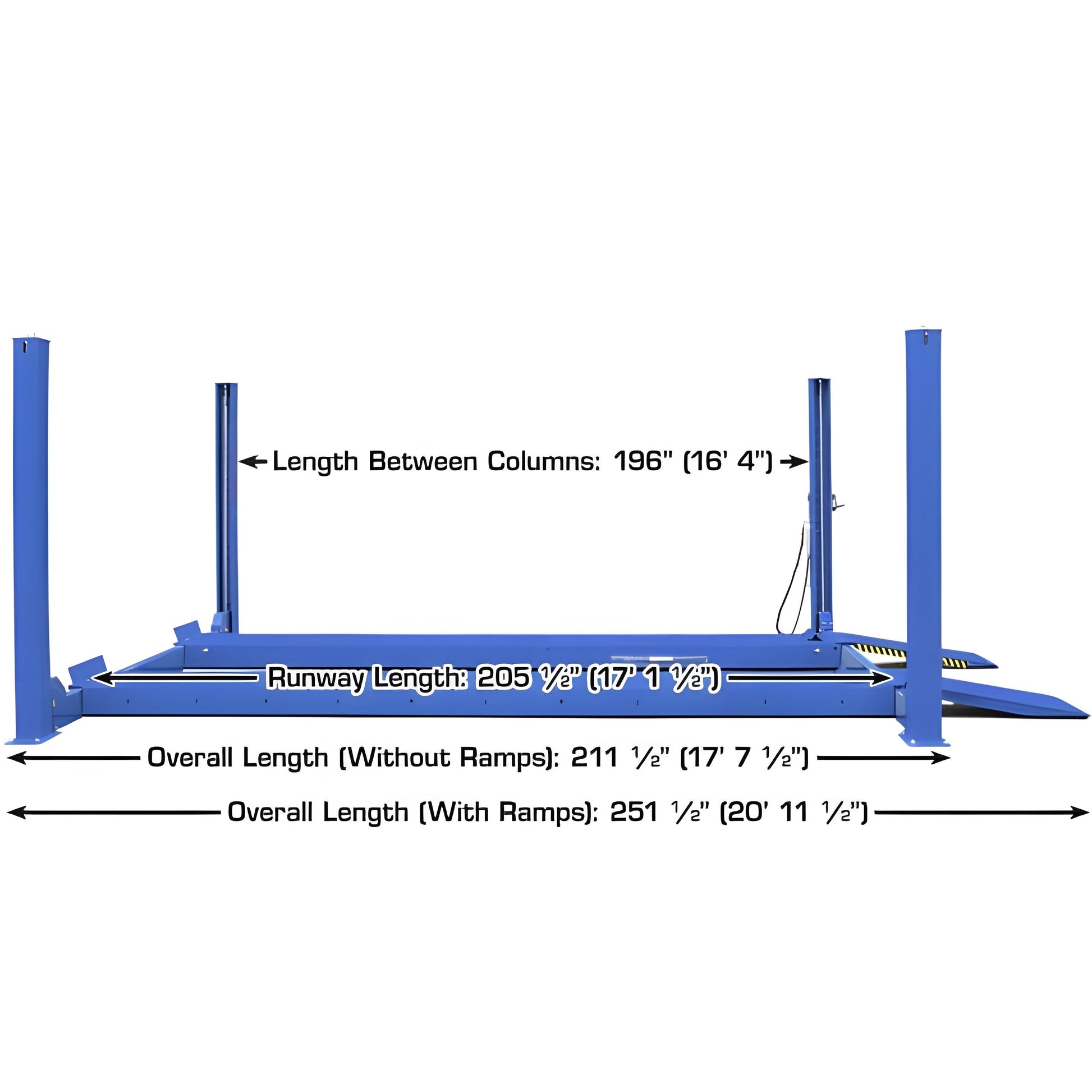

| Length Between Columns |
196" (16' 4") |
| Runway Length |
205 1/2" (17' 1 1/2") |

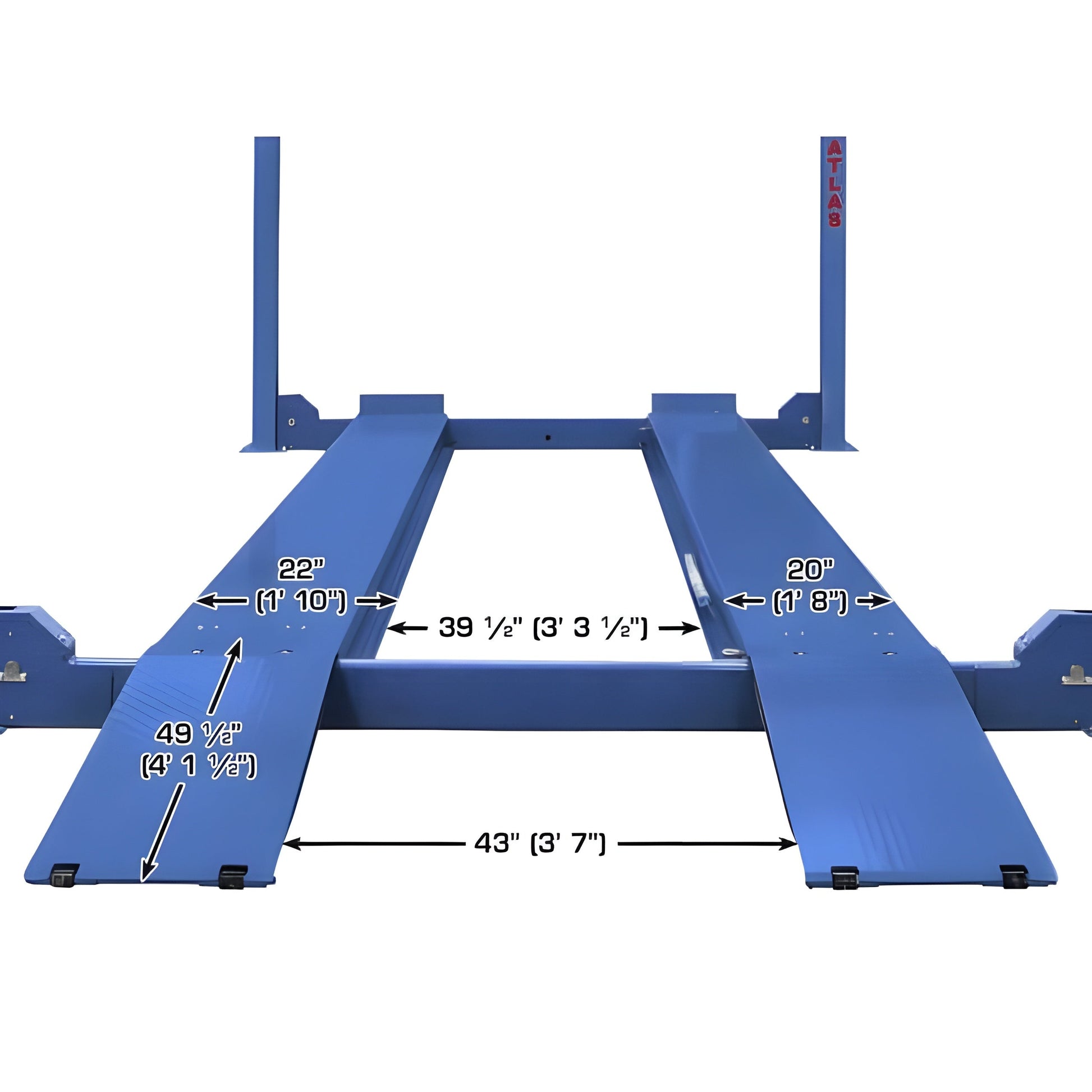

| Runway Width |
20" |
| Thickness Of Runway |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |

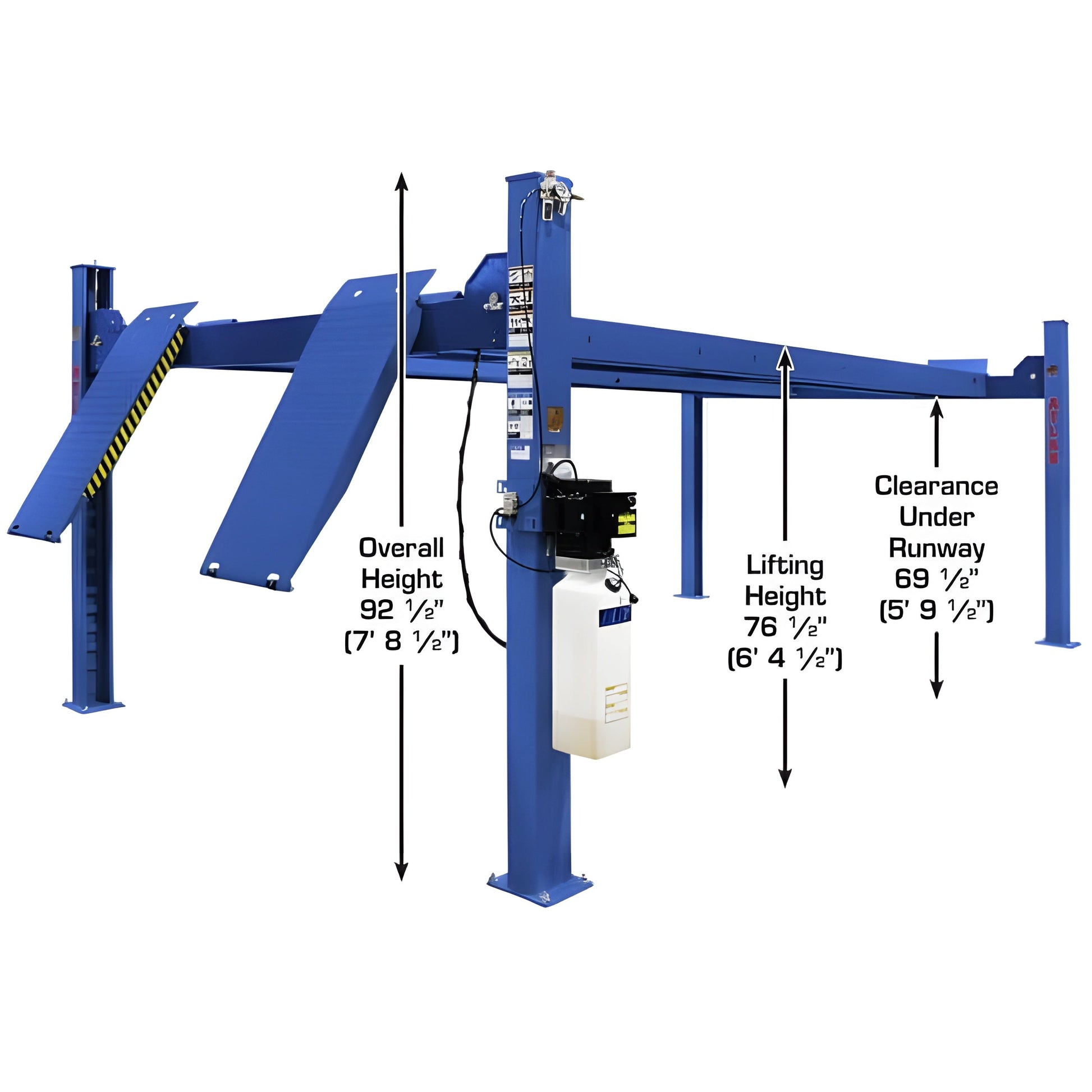

| Clearance Under Runways |
69 1/2" (5' 9 1/2") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |

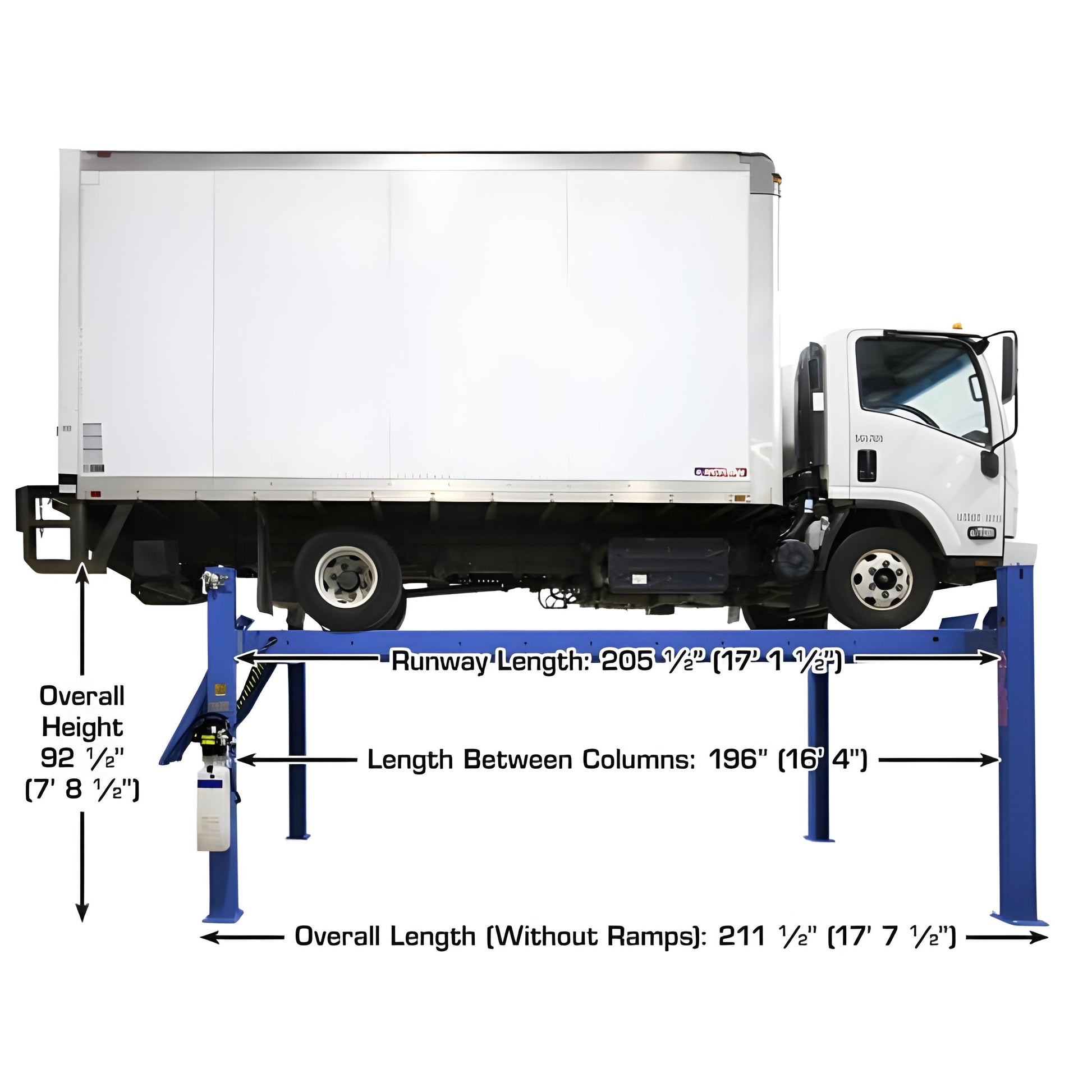

| Height Of Columns |
92 1/2" (7' 8 1/2") |
| Maximum Wheel Base |
195" (16' 3") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,800 LBS. |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
| Atlas Platinum RJ7000 Specifications |
|
| Maximum Capacity |
7,000 lb. |
| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |
| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
Manual
Atlas Platinum PVL14 Manual
Atlas Platinum RJ7000 Manual
What Our Experts Think
-
4 Post Lift Design – Provides stable and safe lifting for vehicles up to 14,000 lbs, offering reliable performance for personal and professional use.
-
ALI Certified – Meets the highest safety and performance standards, ensuring peace of mind with every lift.
-
RJ7000 Rolling Jacks Included – Facilitates lifting of the vehicle's wheels, making it easier to perform wheel alignments, tire rotations, and undercarriage maintenance.
-
Durable Construction – Built with high-quality materials for long-lasting strength and durability, designed to withstand heavy-duty use.
-
Versatile Combo – Ideal for car enthusiasts, shops, and garages that require a combination of robust lifting and rolling jack functionality in one compact system.
Q&A
Q: What is the Atlas Platinum PVL14 4 Post Lift + RJ7000 Rolling Jacks ALI Certified Combo used for?
A: The Atlas Platinum PVL14 4 Post Lift + RJ7000 Rolling Jacks Combo is designed for lifting and servicing vehicles, offering an ALI Certified 14,000 lb. capacity lift and rolling jacks for added lifting support when working on cars, trucks, and other vehicles.
Q: What is the benefit of having rolling jacks with this lift?
A: The RJ7000 Rolling Jacks allow you to lift the vehicle's wheels off the runways, providing the extra lift needed for undercarriage work, tire changes, and other repairs while the vehicle is on the lift.
Q: What type of vehicles can this lift accommodate?
A: This combo can handle a wide variety of vehicles, including passenger cars, trucks, SUVs, and vans, with its 14,000 lb. capacity and extended runways to accommodate larger or longer vehicles.
Maintenance Tips
-
Regular Lubrication – Apply lubricant to the lift's moving parts, including the posts, rails, and cables, to ensure smooth operation and prevent wear.
-
Check Hydraulic Fluid Levels – Inspect the hydraulic fluid levels regularly and top up if necessary to maintain proper lifting capacity and prevent malfunction.
-
Inspect Lift Pads and Rollers – Regularly check the lift pads and rollers for wear or damage, replacing them if needed to ensure safe lifting.
-
Clean the Lift Surface – Clean the lift's surface to prevent debris buildup, which could obstruct the smooth movement of the lift arms.
-
Tighten Bolts and Fasteners – Inspect all bolts, fasteners, and connections on the lift and rolling jacks, tightening them as needed to maintain stability and safety.
-
Inspect Rolling Jacks – Ensure the RJ7000 rolling jacks are properly aligned and functional, with no signs of damage to the jacks or hydraulic system.
-
Routine Safety Checks – Perform safety checks on the lift and jacks, including verifying the locking mechanisms and weight capacity, to ensure reliable performance.
