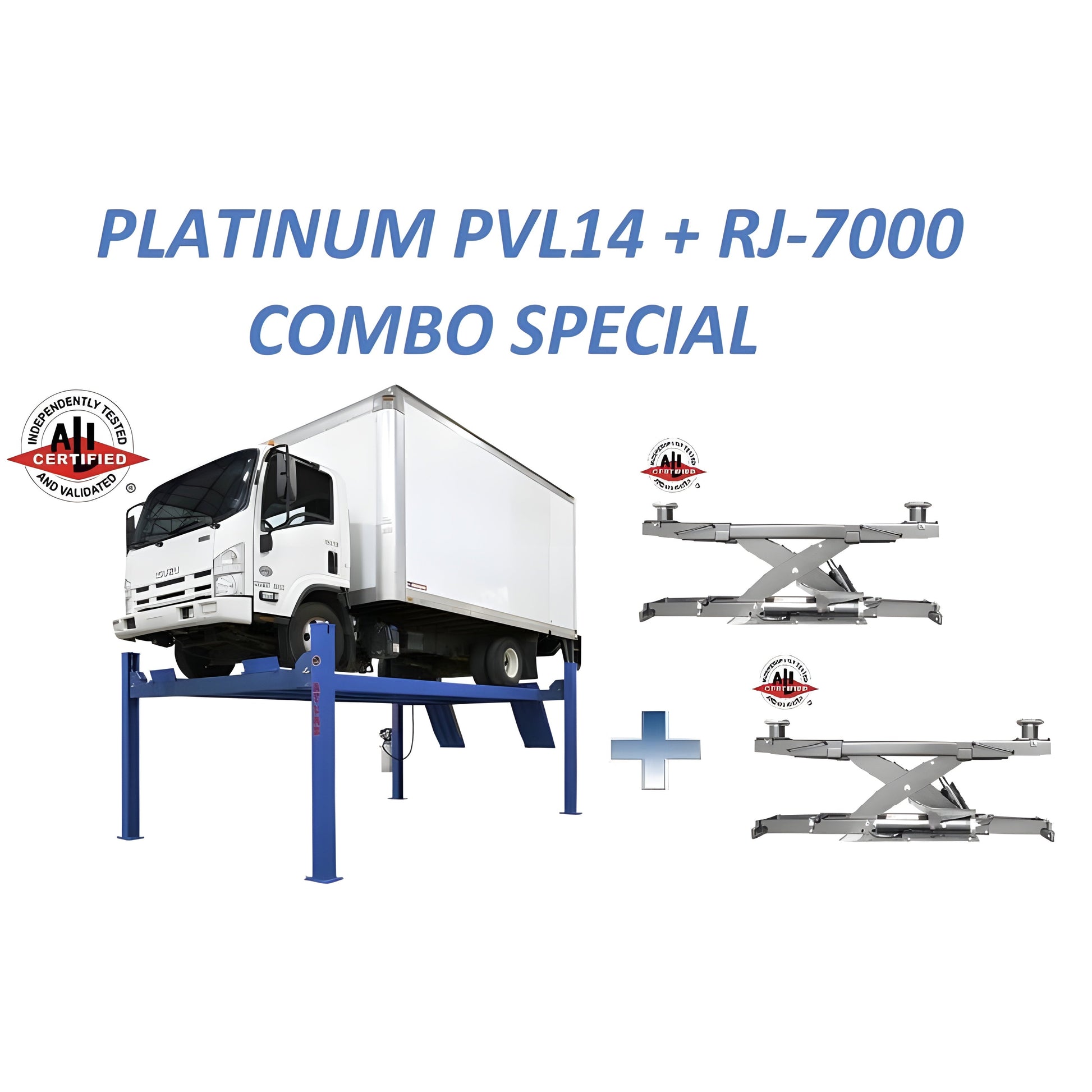

Atlas Platinum PVL14 4 Post Lift + RJ7000 Rolling Jacks Combo - ATEAP-PVL14-COMBO-FPD

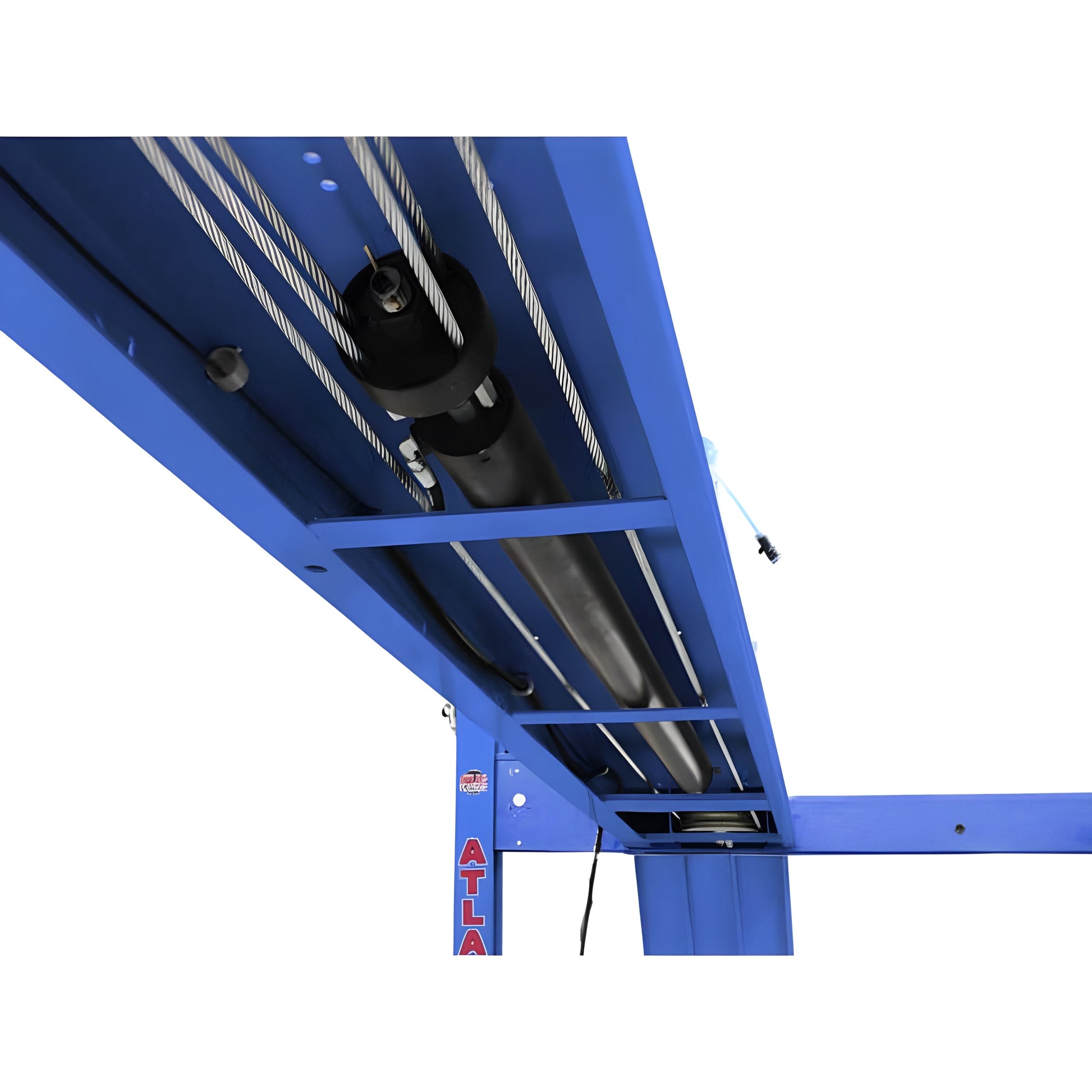

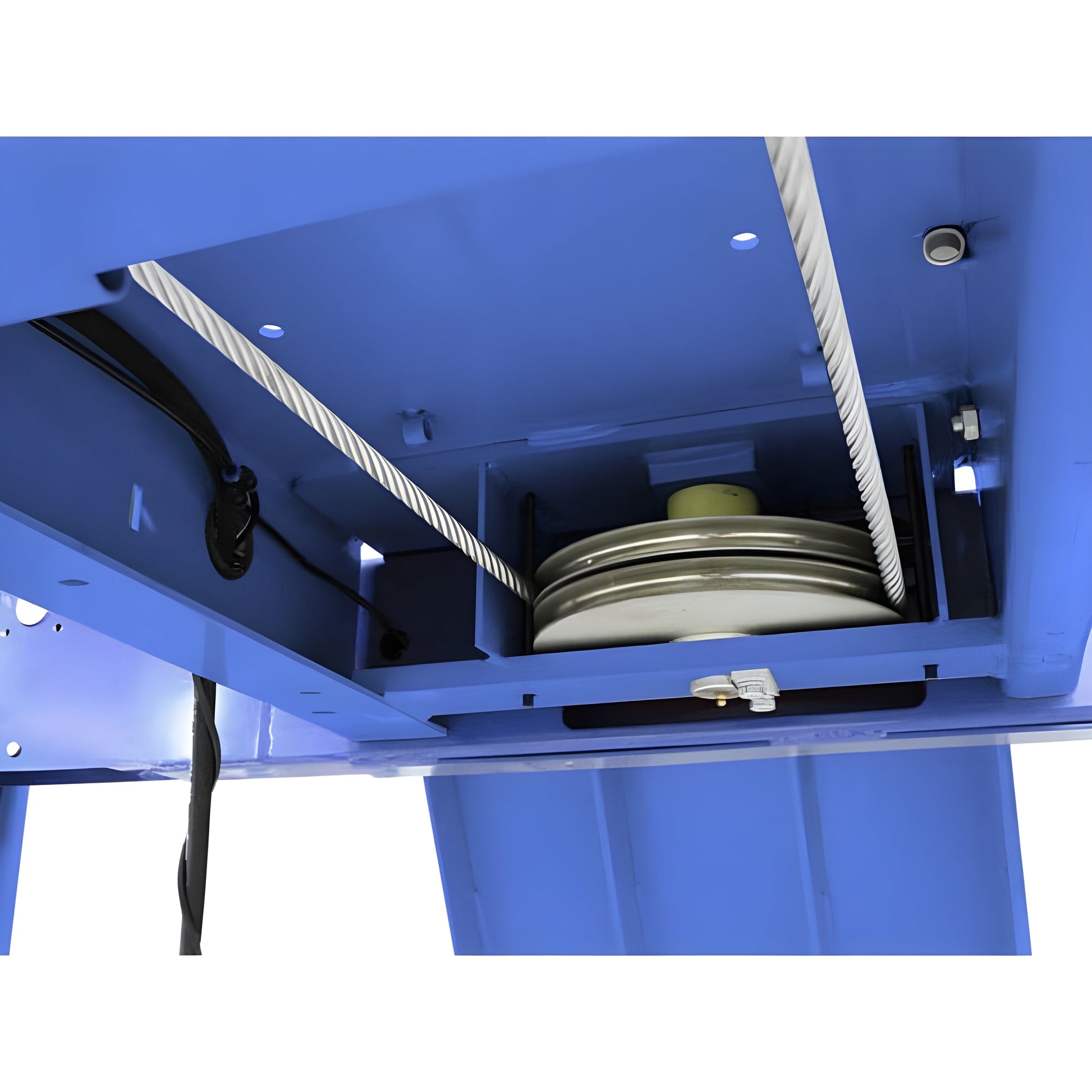

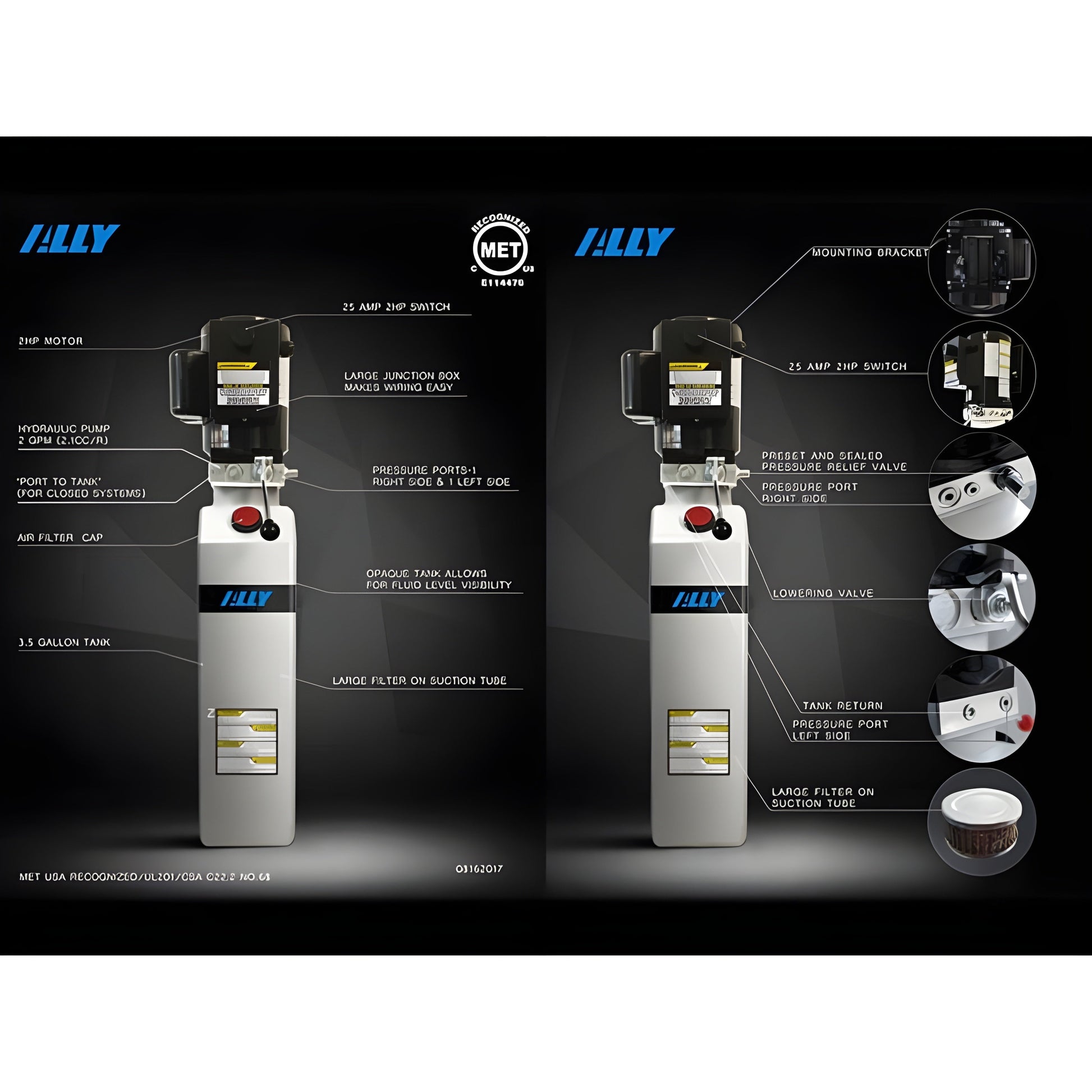

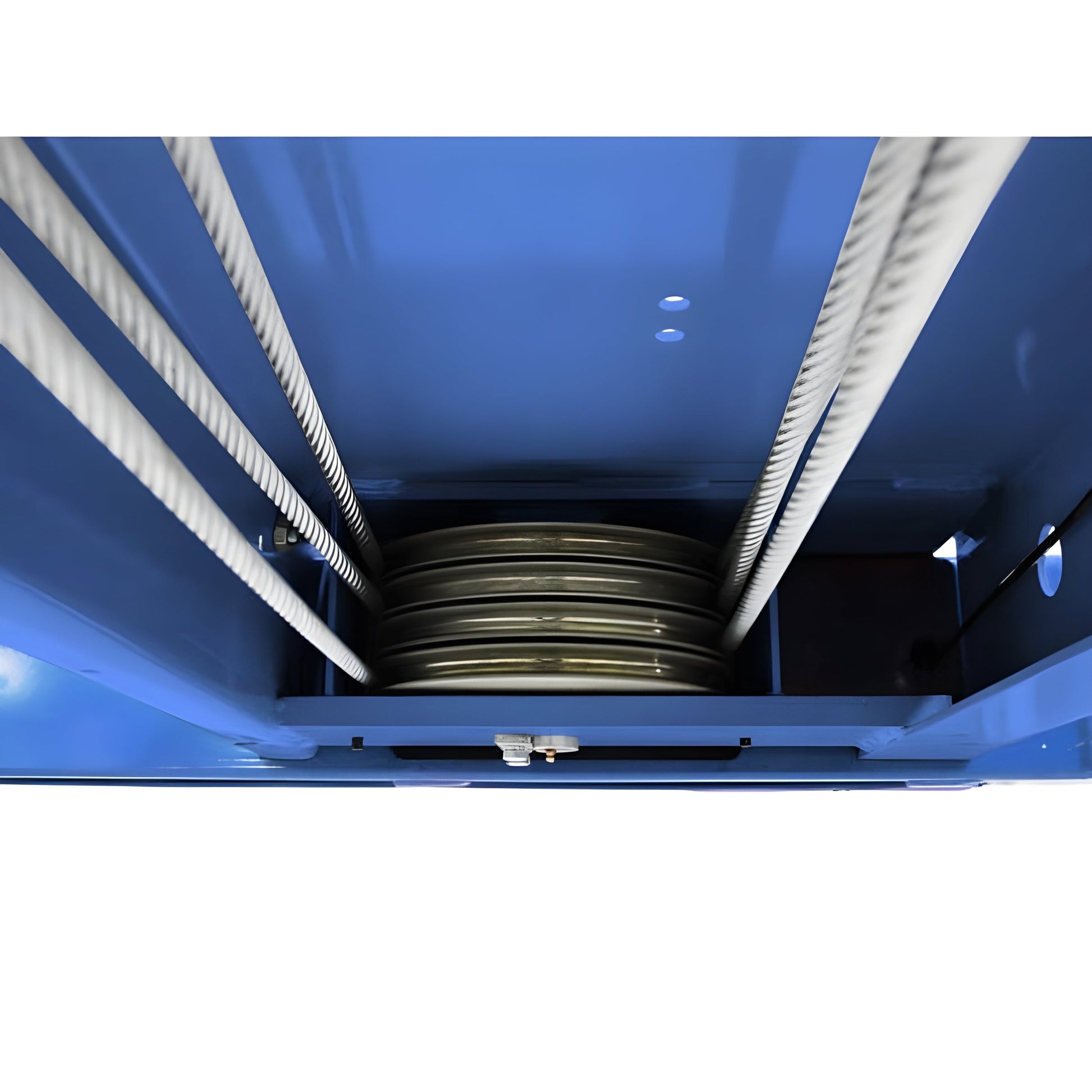

The Atlas Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.The Atlas Platinum PVL14 is also ALI and backed by one of the industry’s best warranties for an added peace of mind.This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.This combo package also includes two of the popular ALI Atlas® Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PLATINUM PVL14
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long

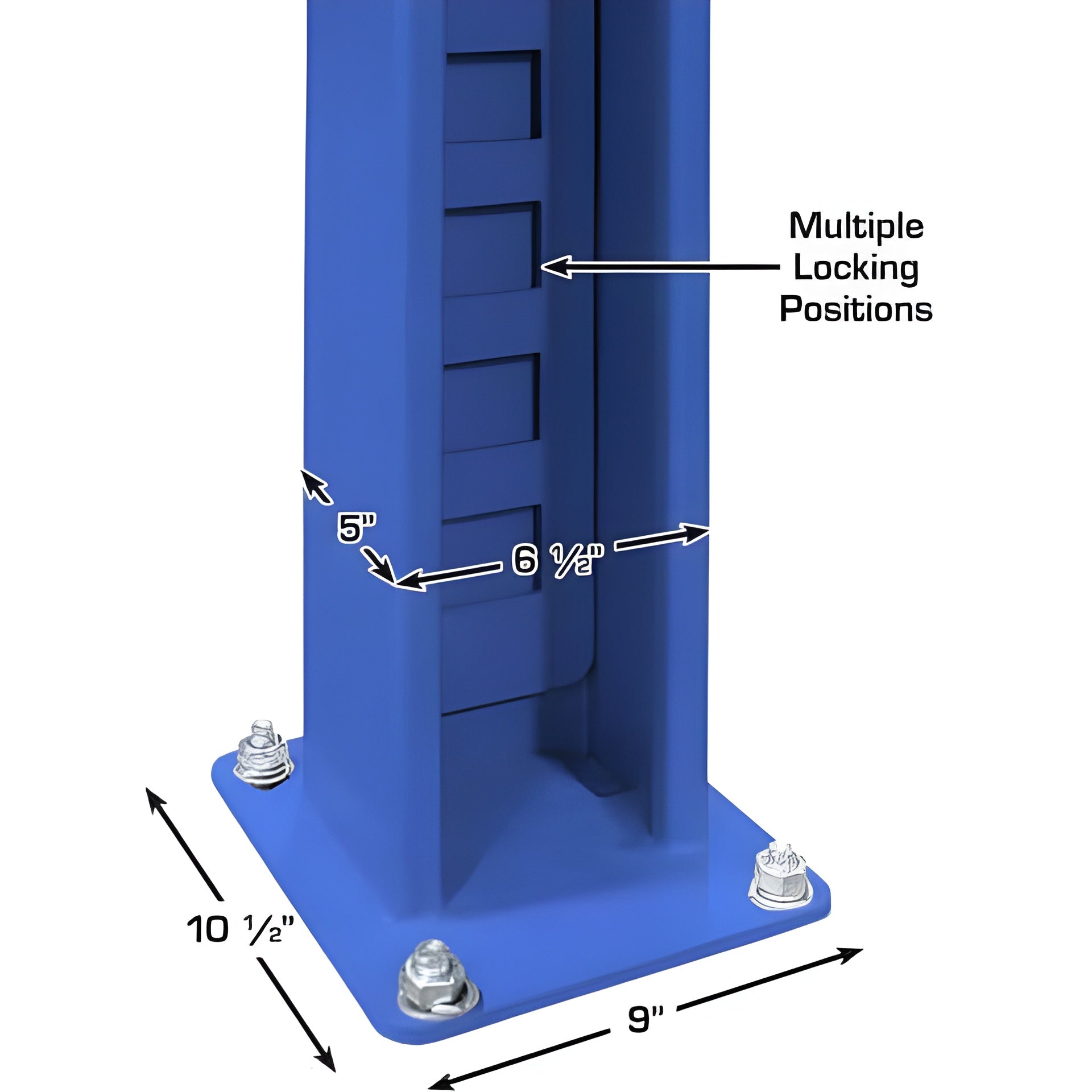

- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
PLATINUM RJ7000
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
Specifications

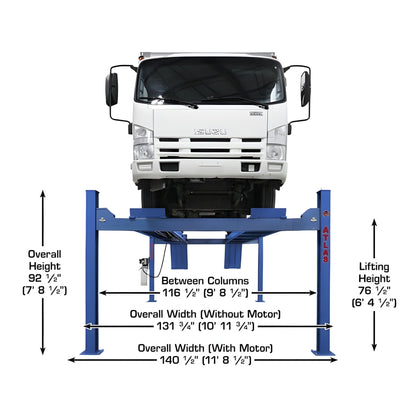

| Atlas Platinum PVL14 Specification |
|
| Capacity |
14,000 lb. |

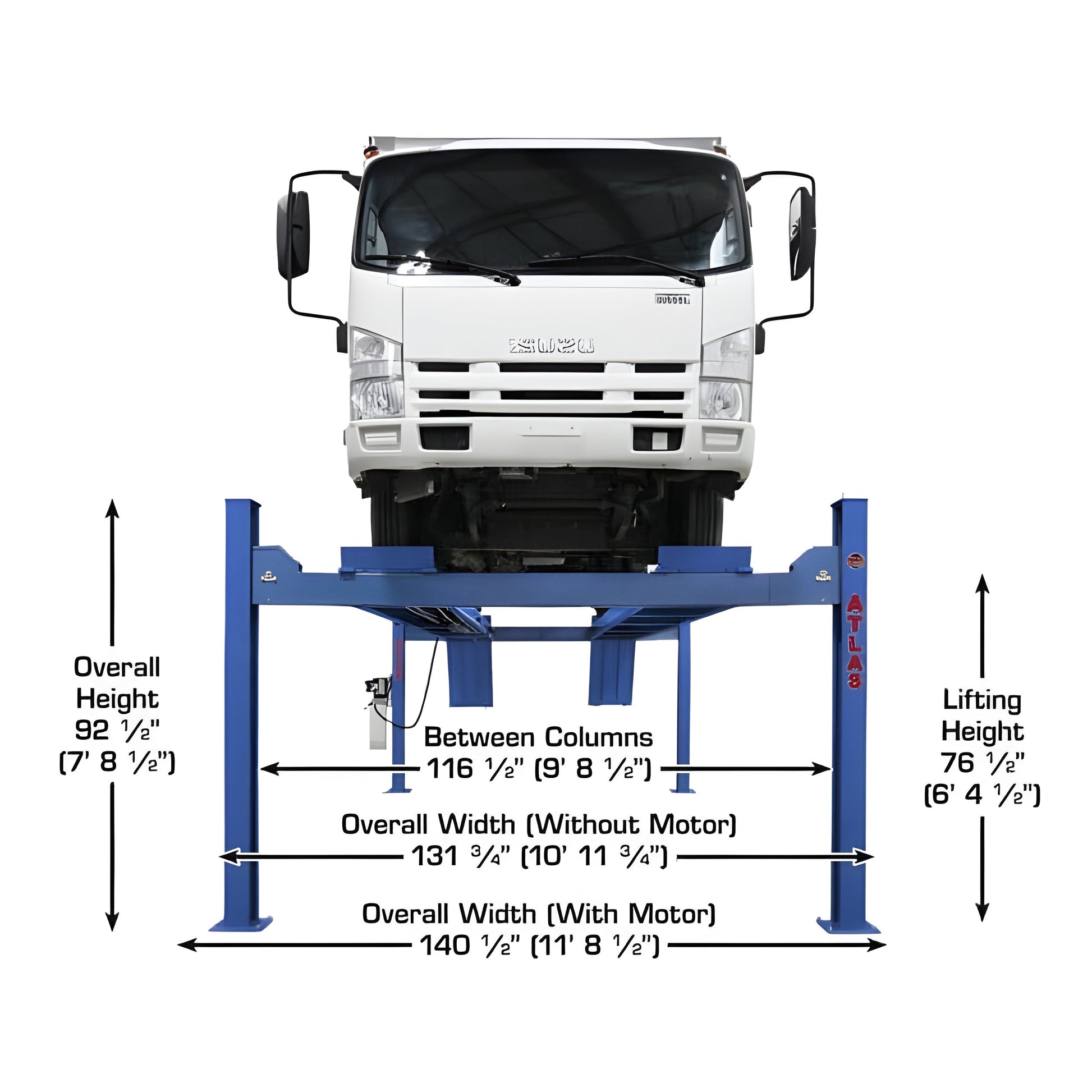

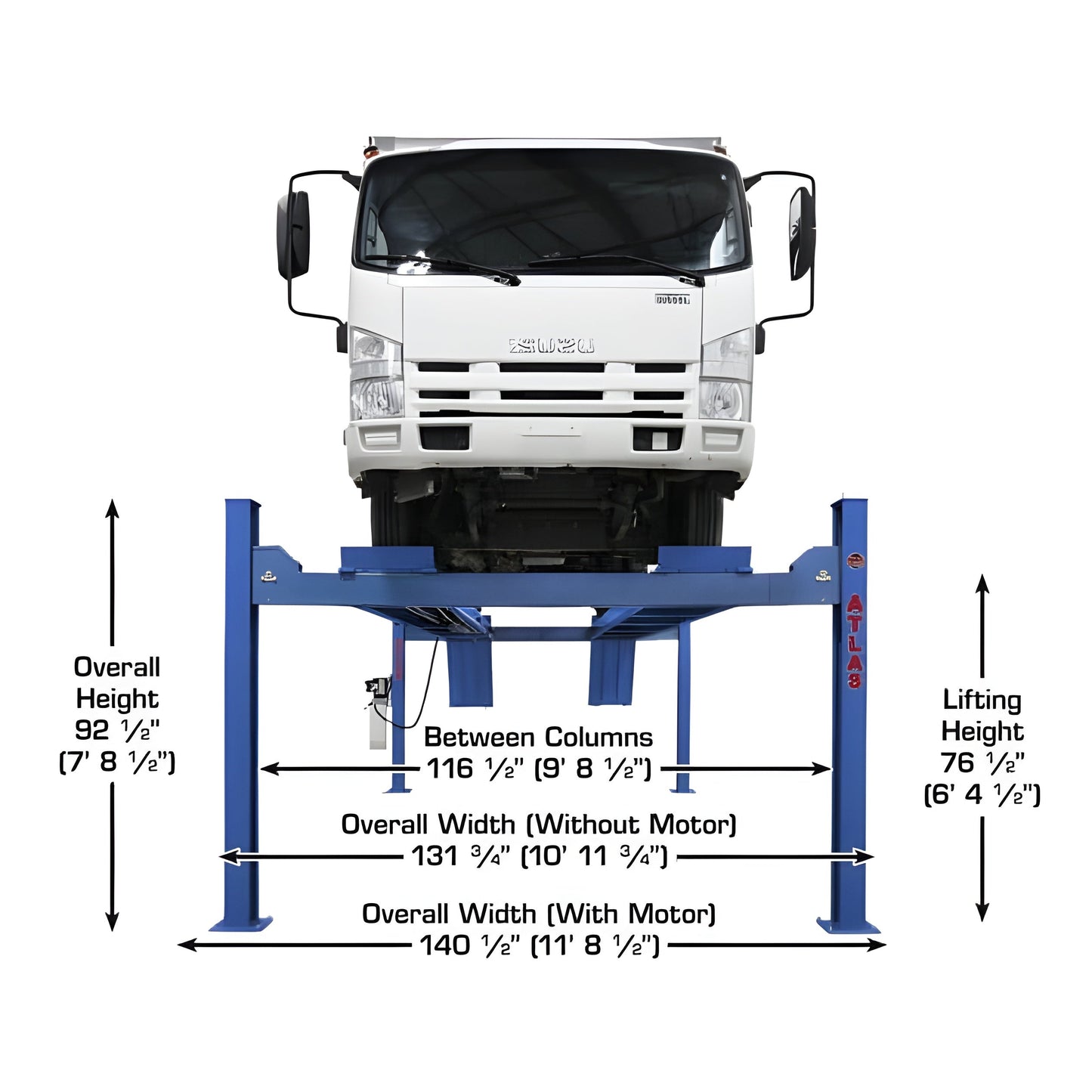

| Lifting Height |
76 1/2" (6' 4 1/2") |
| Overall Width Of Columns (Without Motor) |
131 3/4" (10' 11 3/4") |
| Overall Width Of Columns (With Motor) |
140 1/2" (11' 8 1/2") |

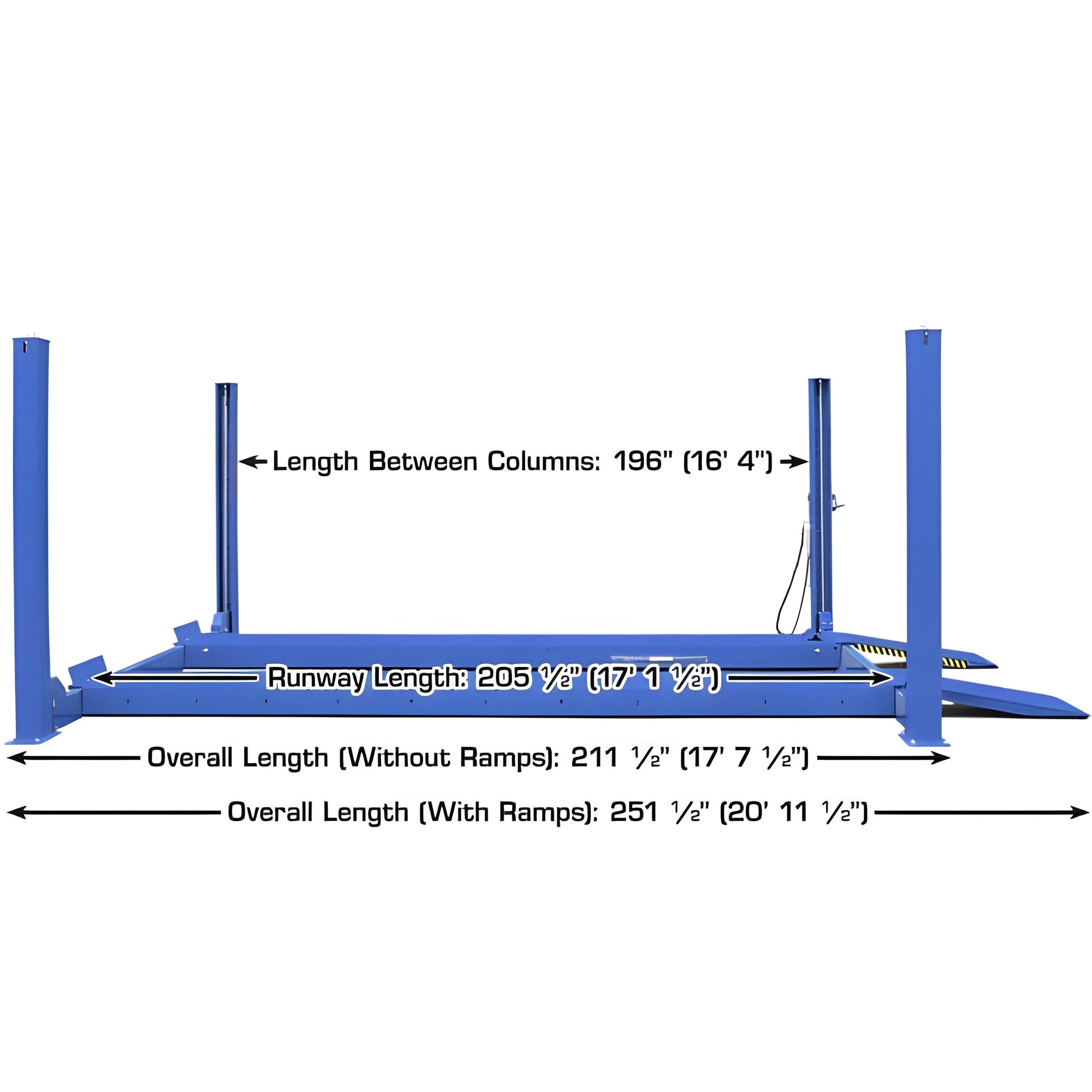

| Overall Length With Approach Ramp |
251 1/2" (20' 11 1/2") |
| Length Between Columns |
196" (16' 4") |

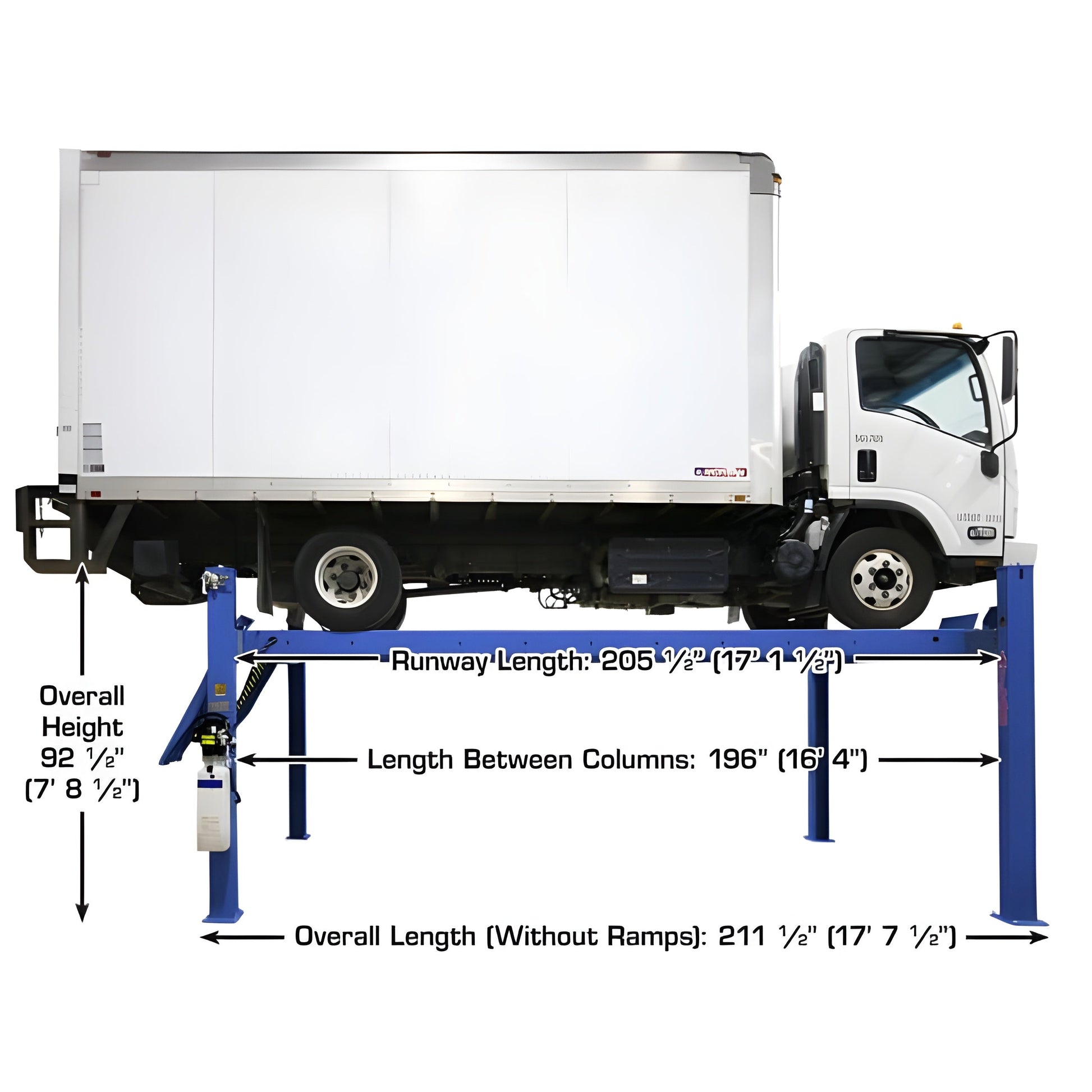

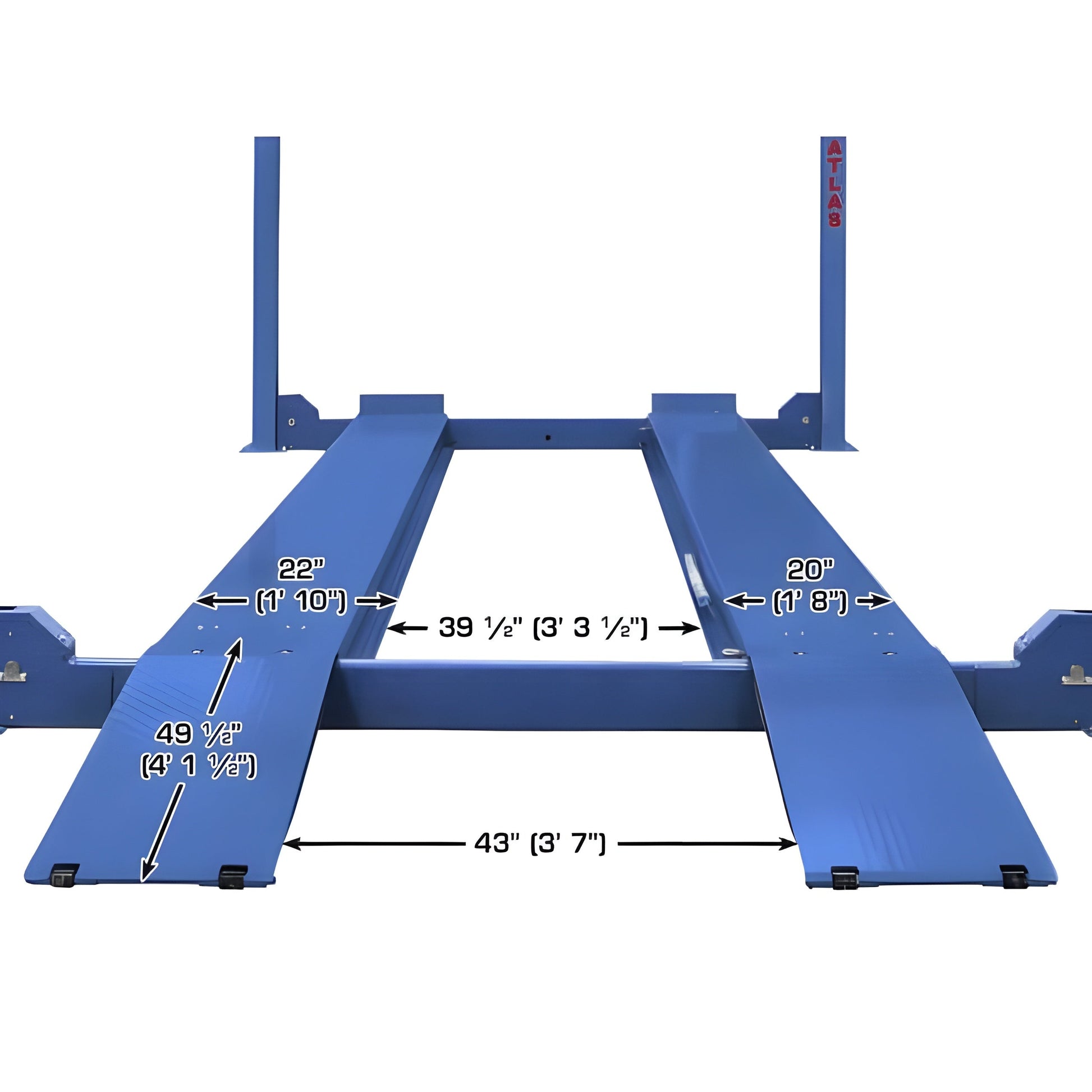

| Runway Length |
205 1/2" (17' 1 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7" |

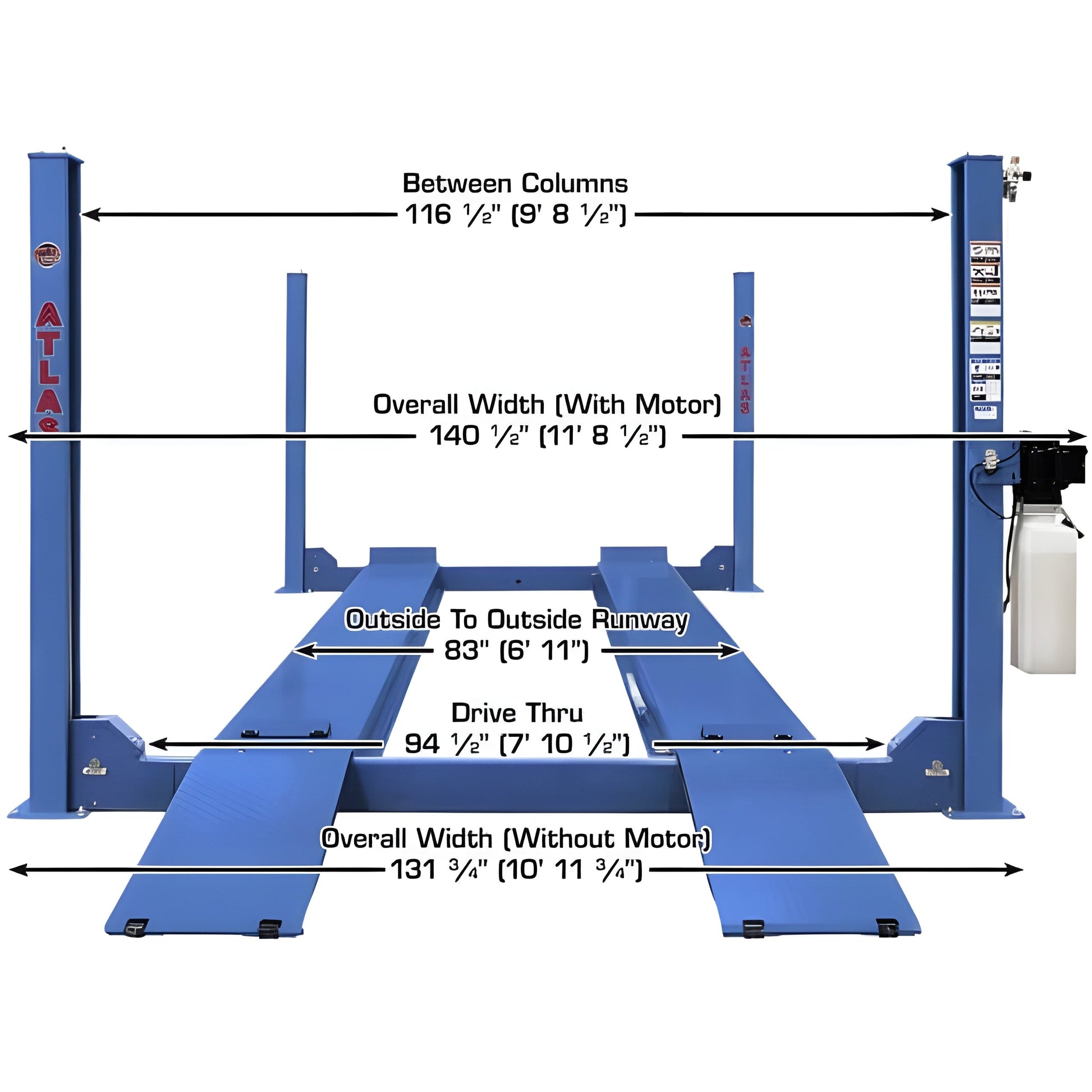

| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway |
83 1/8" (6' 11 1/8") |

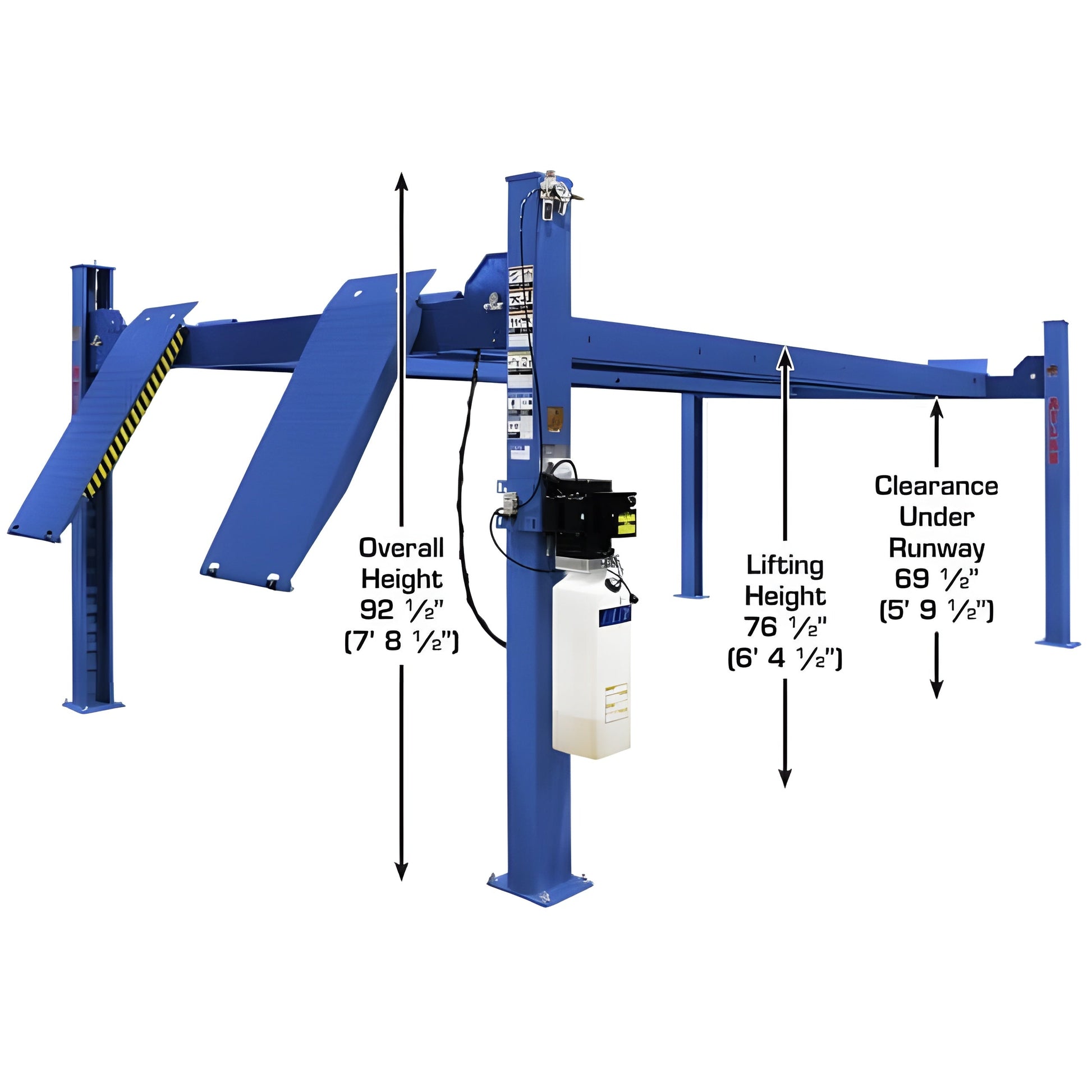

| Clearance Under Runways |
69 1/2" (5' 9 1/2") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |
| Height Of Columns |
92 1/2" (7' 8 1/2") |
| Maximum Wheel Base |
195" (16' 3") |
| Drive Thru |
94 1/2" (7' 10 1/2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
| Atlas Platinum RJ7000 Specifications |
|
| Maximum Capacity |
7,000 lb. |
| Maximum Width |
45 1/2" (3' 9 1/2") |
| Minimum Width |
36" (3') |
| Distance Between Runway Capability |
36"- 45" |
| Maximum Lifting Height (With Adapters) |
27 1/2" (2' 3 1/2") |
| Air Requirement |
70-115 PSI |
| Double Screw-Up Adapter Pad |
1 1/2" - 4" |
Manual
Atlas Platinum RJ7000 Manual
What our Expect Think
-
Heavy-Duty 14,000 lb Capacity – Designed for trucks, SUVs, and commercial vehicles, making it ideal for professional shops.
-
4-Post Stability – Provides enhanced safety and support, perfect for long-term vehicle storage or maintenance.
-
Includes RJ7000 Rolling Jacks – Offers easy wheel-free lifting, allowing brake, tire, and suspension work.
-
Extra-Wide & Extra-Long Design – Accommodates larger vehicles with ease.
-
Multiple Locking Positions – Ensures secure height adjustments for various service needs.
-
Durable Powder-Coated Finish – Resists corrosion and wear for long-lasting use.
Q&A
Q: What is the Atlas Platinum PVL14 4-Post Lift + RJ7000 Rolling Jacks Combo used for?
A: This heavy-duty lift combo is ideal for vehicle storage, maintenance, and repairs, making it perfect for auto shops, fleet services, and home garages.
Q: What is the lifting capacity?
A: The Atlas PVL14 has a 14,000 lb lifting capacity, accommodating large trucks, SUVs, and commercial vehicles. The RJ7000 rolling jacks add extra lifting flexibility for wheel service.
Q: Does this lift have a clear-floor design?
A: No, this is a 4-post design, but it provides drive-on convenience and stable lifting for larger vehicles.
Q: What is the maximum lifting height?
A: The lift reaches up to 75 inches, allowing ample space for undercarriage work.
Maintenance Tips
-
Inspect Before Use – Check hydraulic lines, cables, and bolts for leaks or wear.
-
Lubricate Moving Parts – Apply grease to lift cables, rollers, and pulleys.
-
Monitor Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Check Safety Locks – Ensure locks engage properly before lifting any vehicle.
-
Inspect Cables & Tension – Adjust as needed for even lifting.
-
Keep It Clean – Remove dirt and debris to prevent corrosion.
RJ7000 Rolling Jacks
-
Check Hydraulic Cylinder – Inspect for leaks and ensure smooth operation.
-
Lubricate Slide Rails – Keep rails greased for easy jack movement.
-
Monitor Load Capacity – Avoid exceeding the 7,000 lb limit.
-
Test Locking Mechanism – Ensure the safety locks engage correctly.
-
Inspect Air Lines (if applicable) – Check for leaks or damage.
