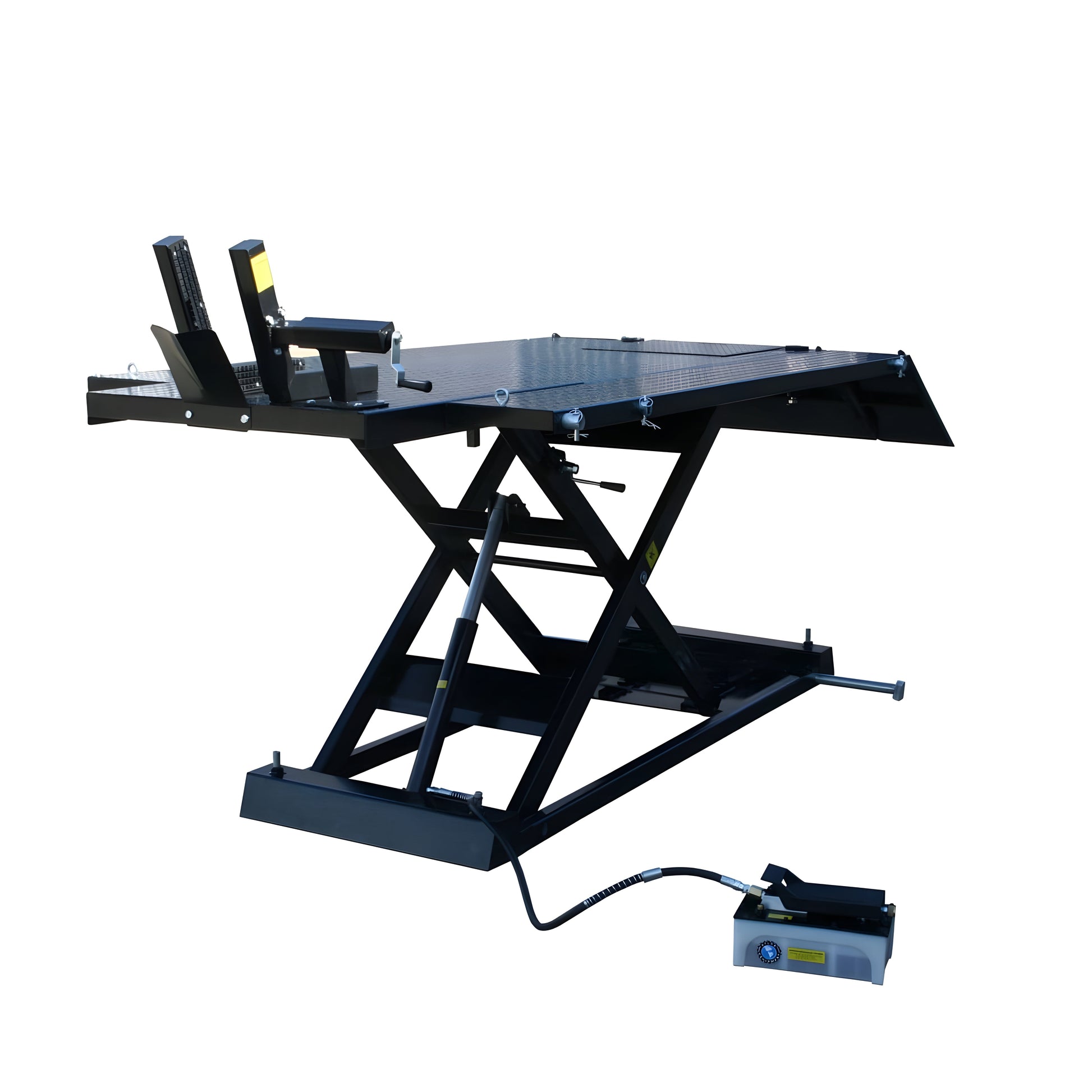

Atlas HI-RISE 1500 Motorcycle/ATV Lift - ATEHT1005-KIT-FPD

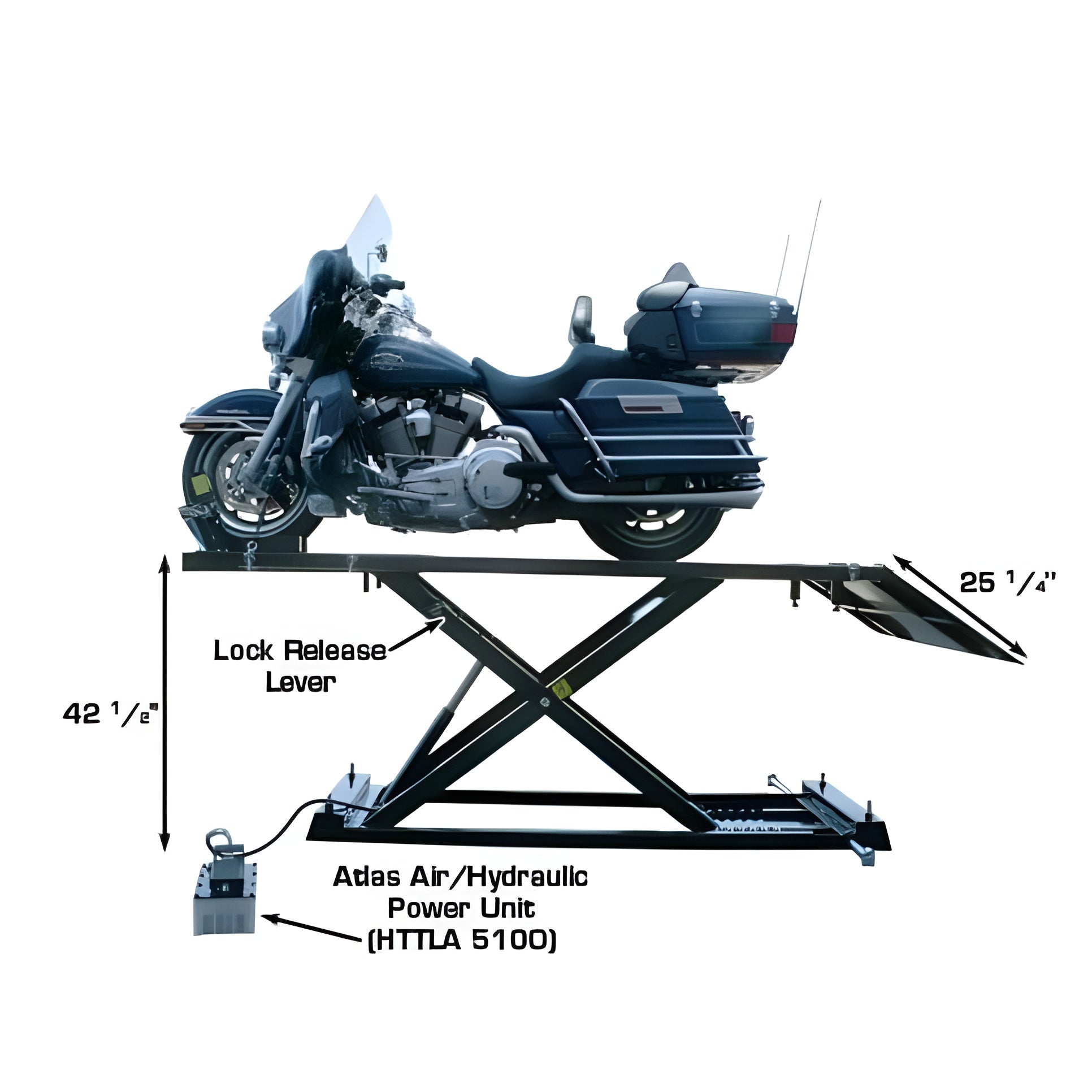

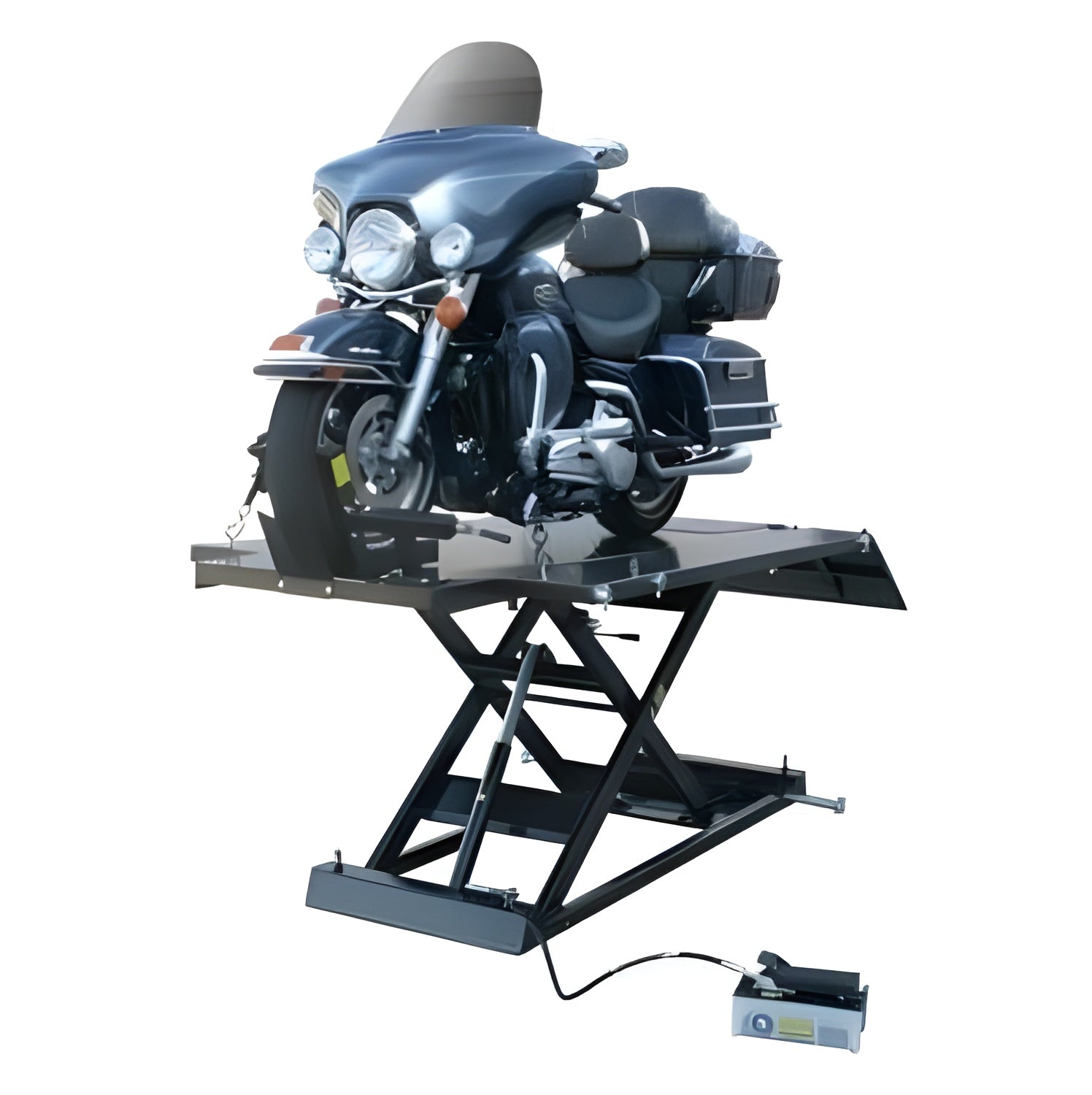

The Atlas HI-RISE 1500 is one of the industry’s most popular motorcycle and ATV lifts. This lift has a manufacturer rating of 1650 lbs. but we rate the lift at 1500 lbs., because we always under rate our weight capacities. The HI-RISE 1500 is powered by a high quality air/hydraulic pump which is included. This lift requires 100 PSI from an outside air source (not included).The Atlas HI-RISE 1500 has an extra tall lift height of 43 inches. This increased lifting height makes it easier to work on vehicles while the operator is standing. This lift comes standard with a chopper extension making the center table 100 3/4 inches long and able to accept some of the longest choppers. The lift also comes standard with a side extension kit, with an overall table width of 51 1/8 inches, and is able to easily lift ATV’s, UTV’s, Golf Carts, Lawnmowers and other four wheel vehicles. The HI-RISE 1500 is the perfect addition to any service department of professional motorcycle dealers or equipment service shop or even a homeowner who wants to work on bikes or ATV’s in their own garage.This is a complete motorcycle/ATV lift and besides the features above includes an adjustable front (padded) wheel vise and a removable rear drop out section. The Atlas® HI-RISE 1500 has a wide solid base for greater stability and which incorporates screw casters that can be lowered to move the lift and retracted when working.
Features
- 1,500 lb. Capacity

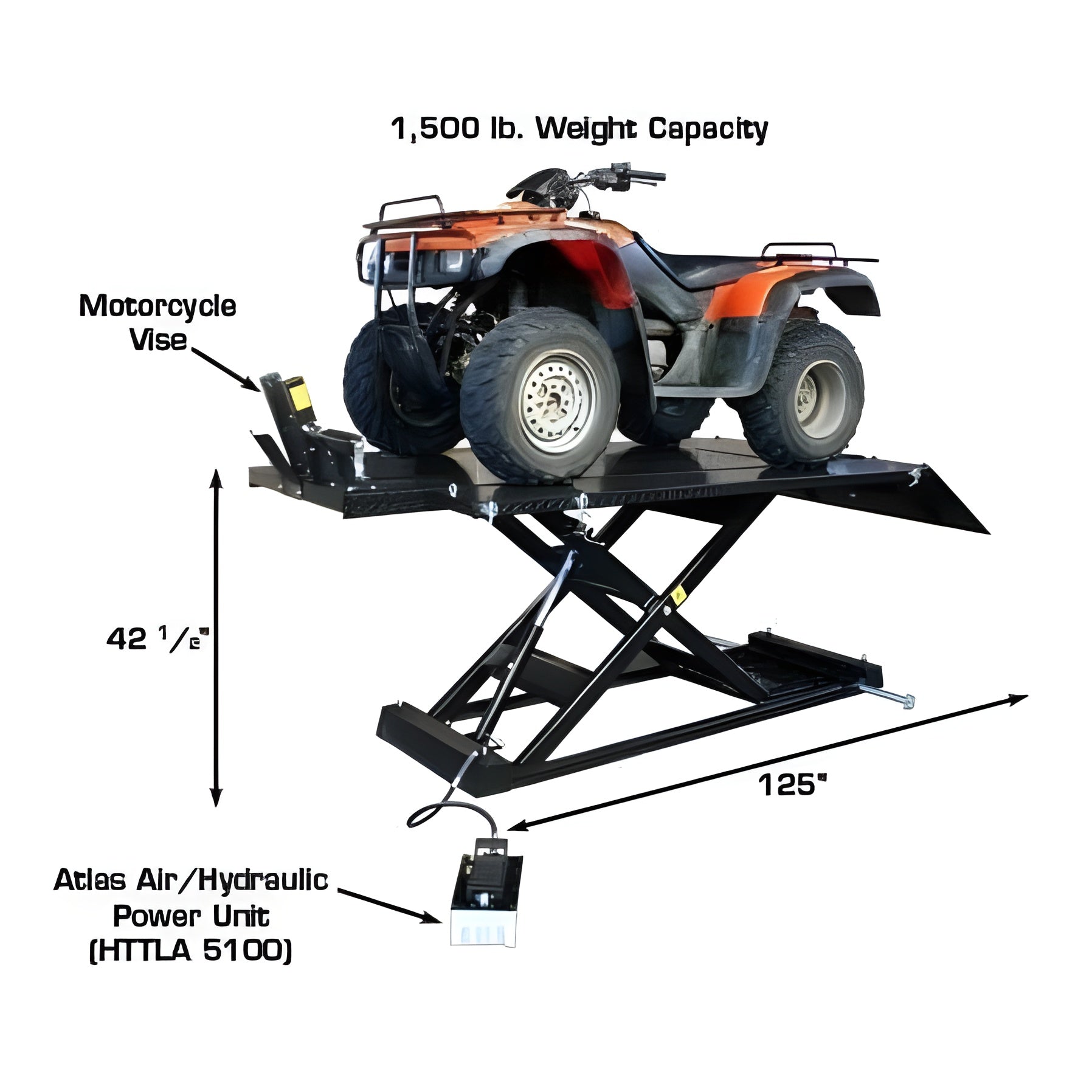

- Extra Tall 42 1/2″ Full Lift Height
- Diamond Plate Surface

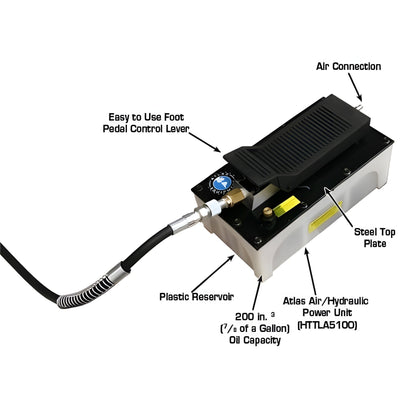

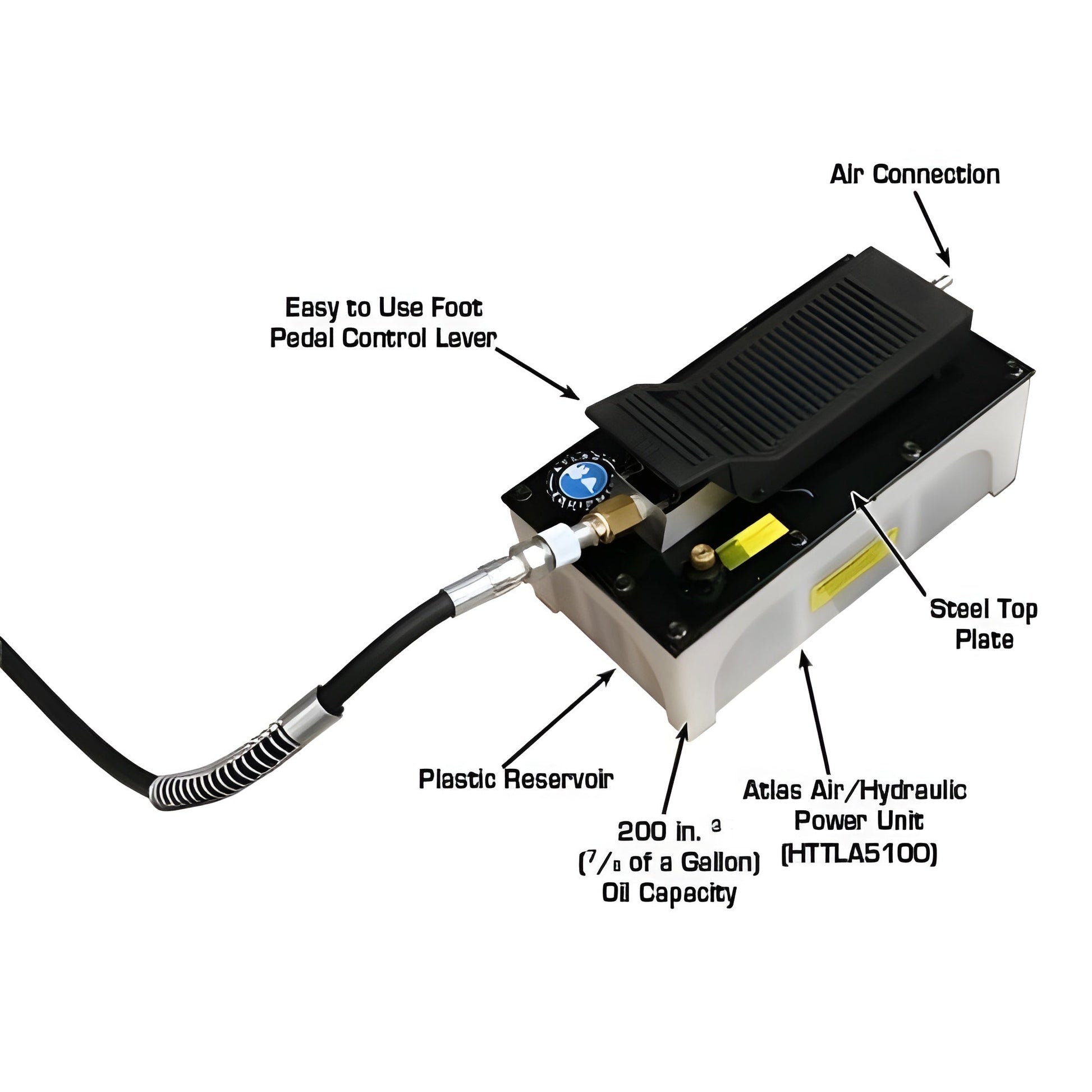

- Air/Hydraulic Operated (Pump Included, External Air Supply Required)

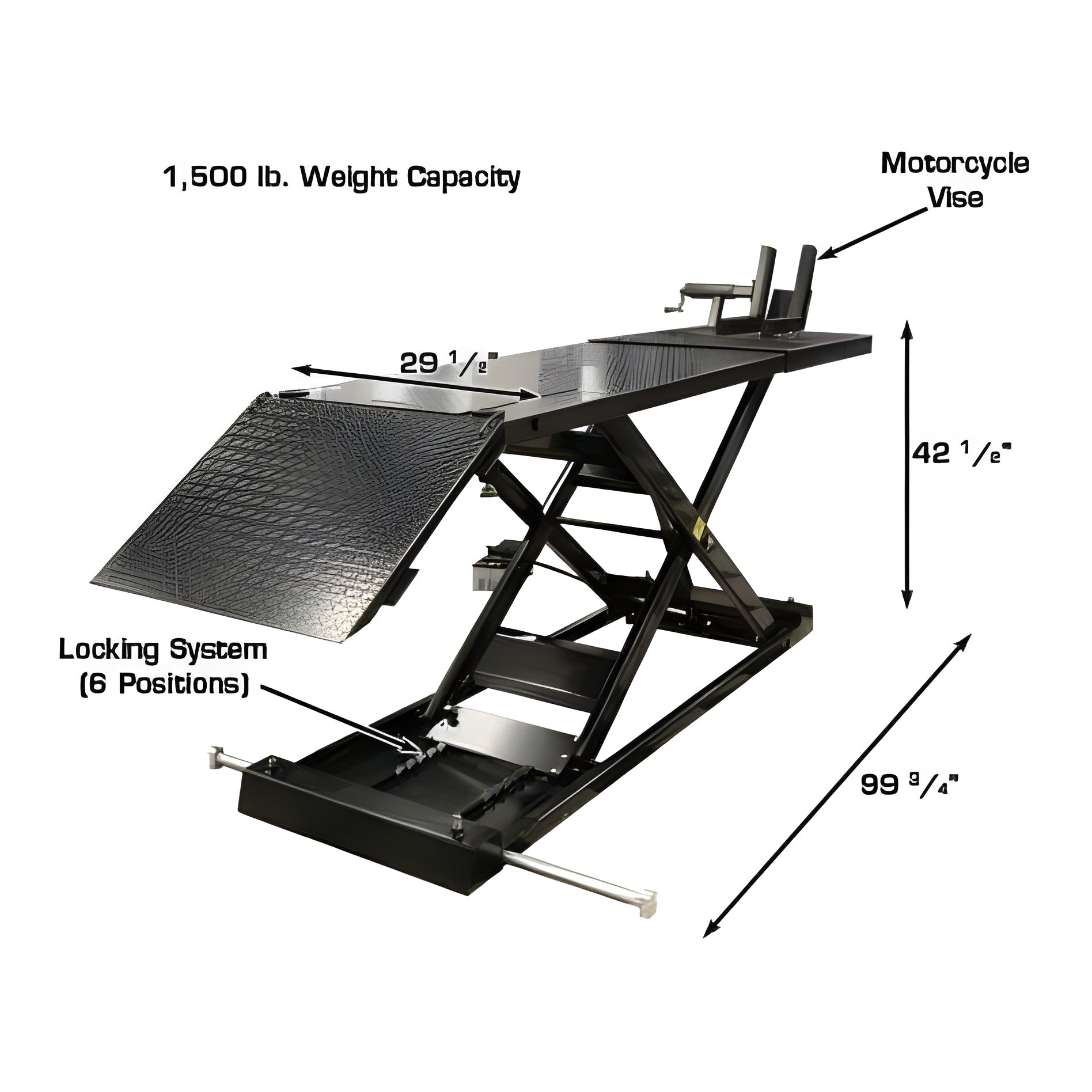

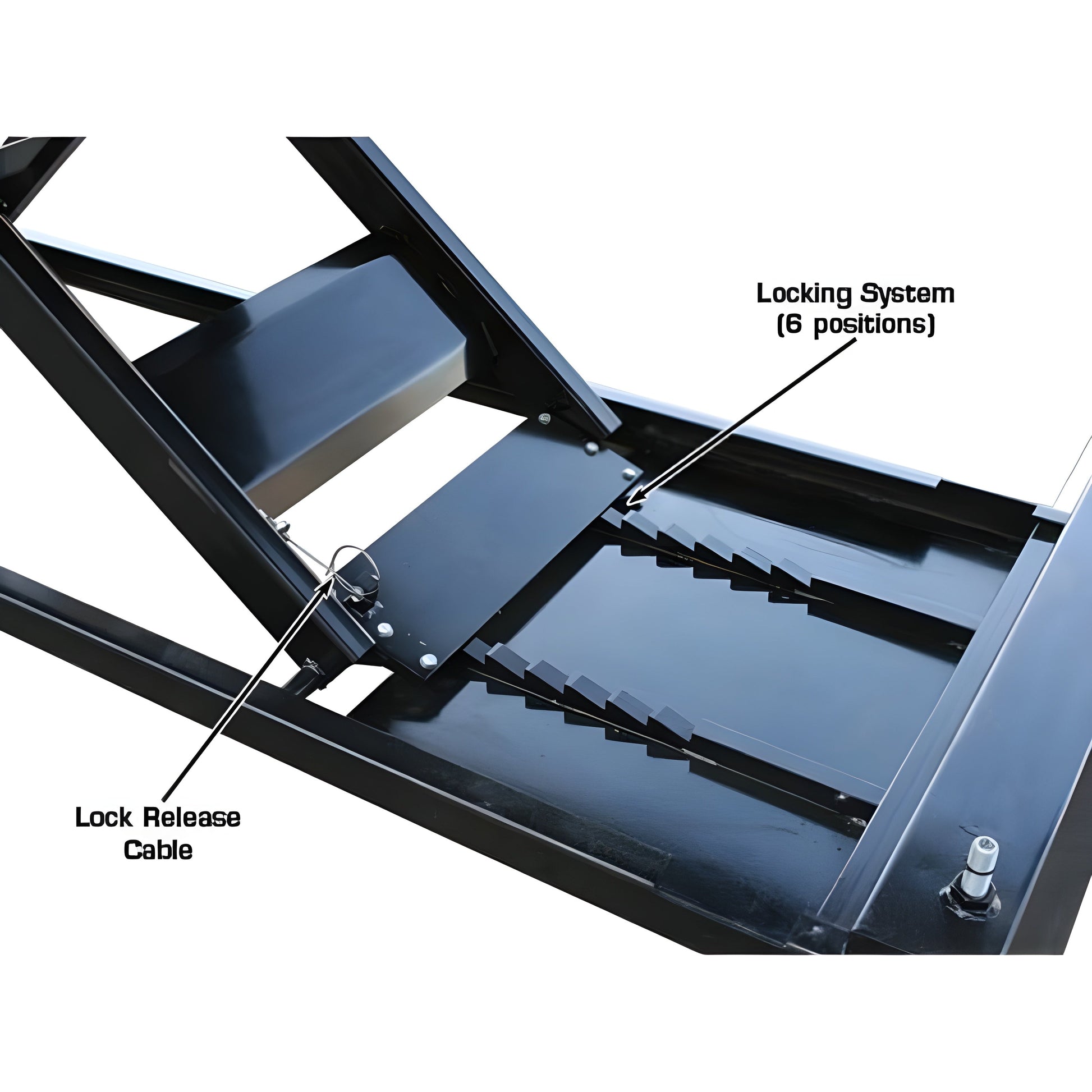

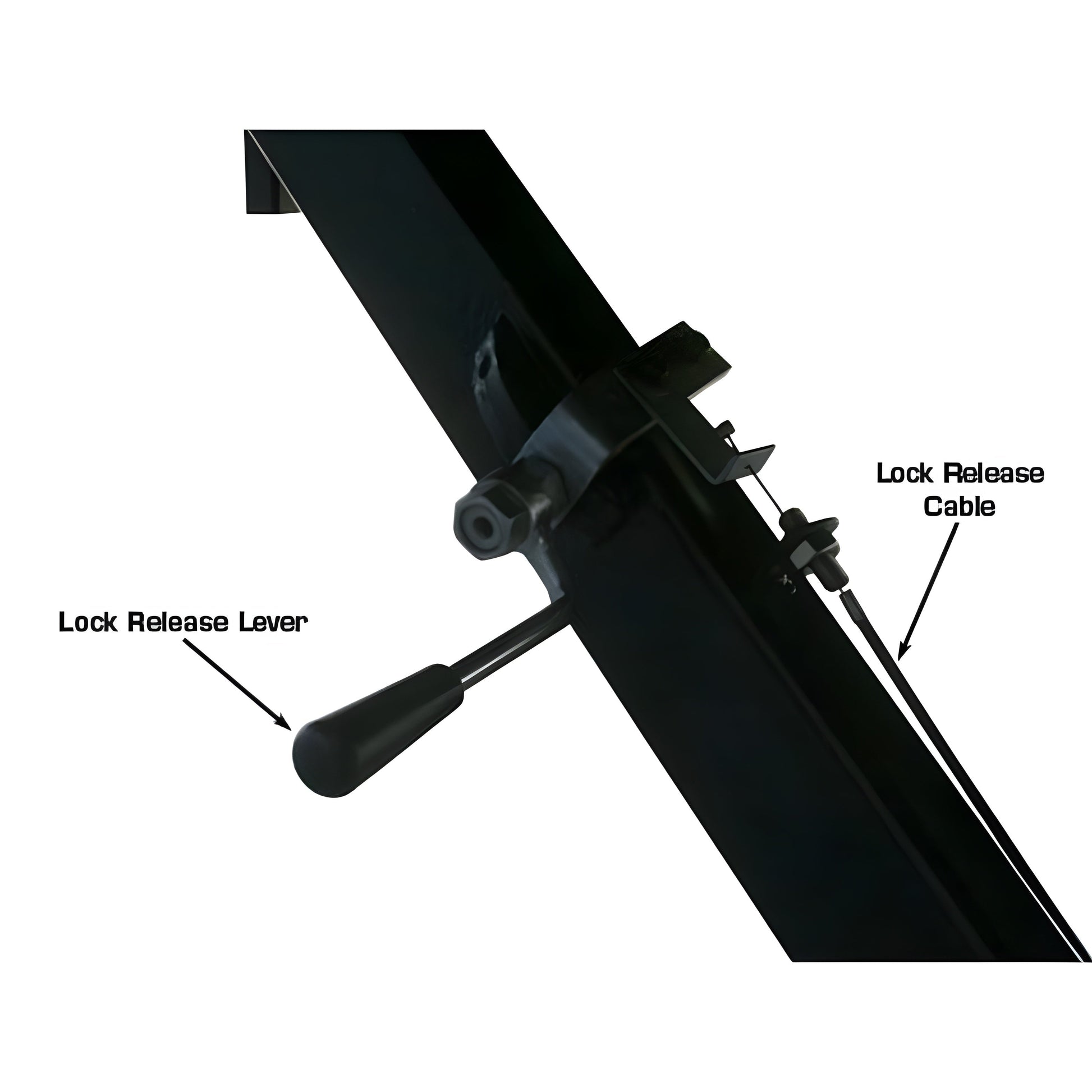

- 6 Locking Heights
- Chopper Extension Included

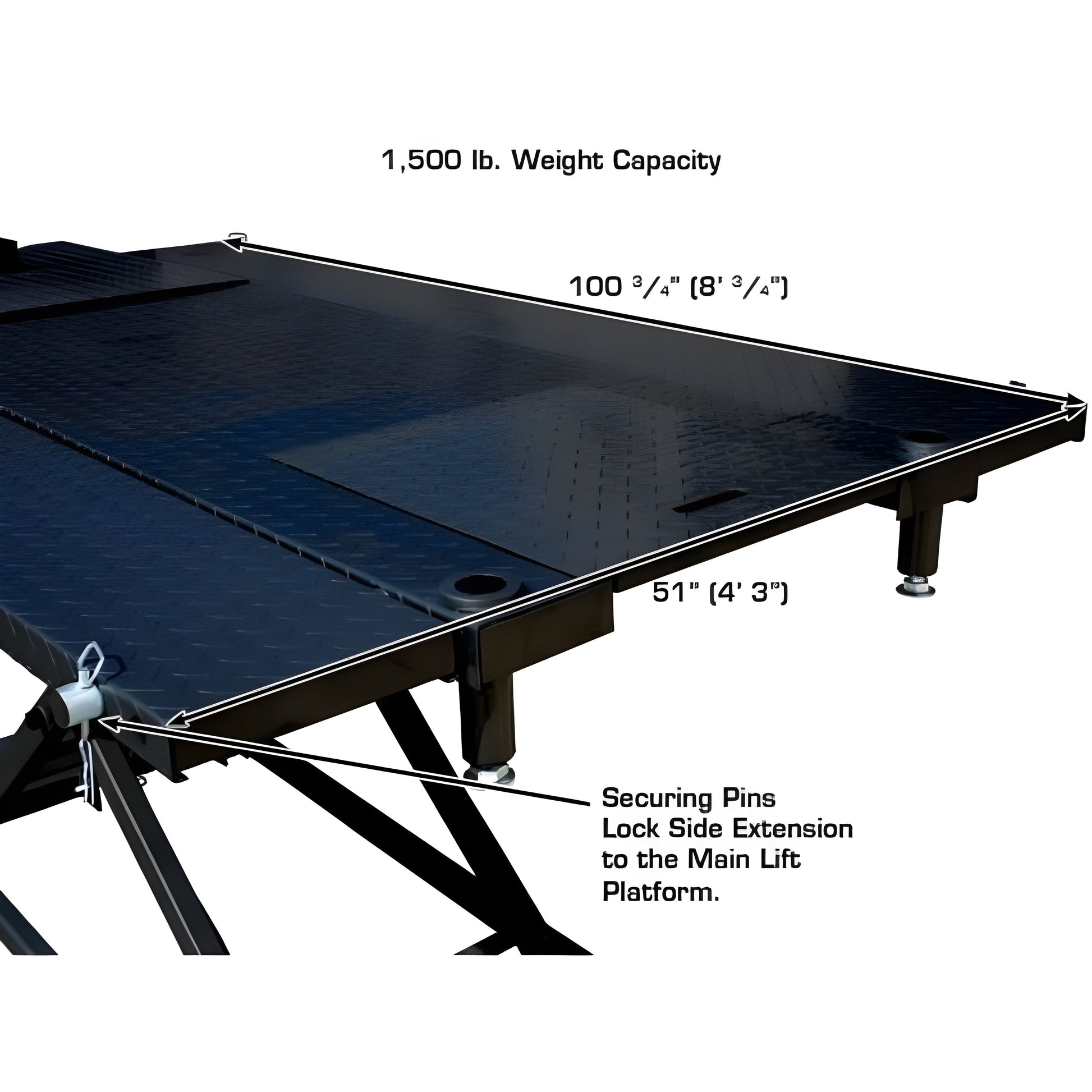

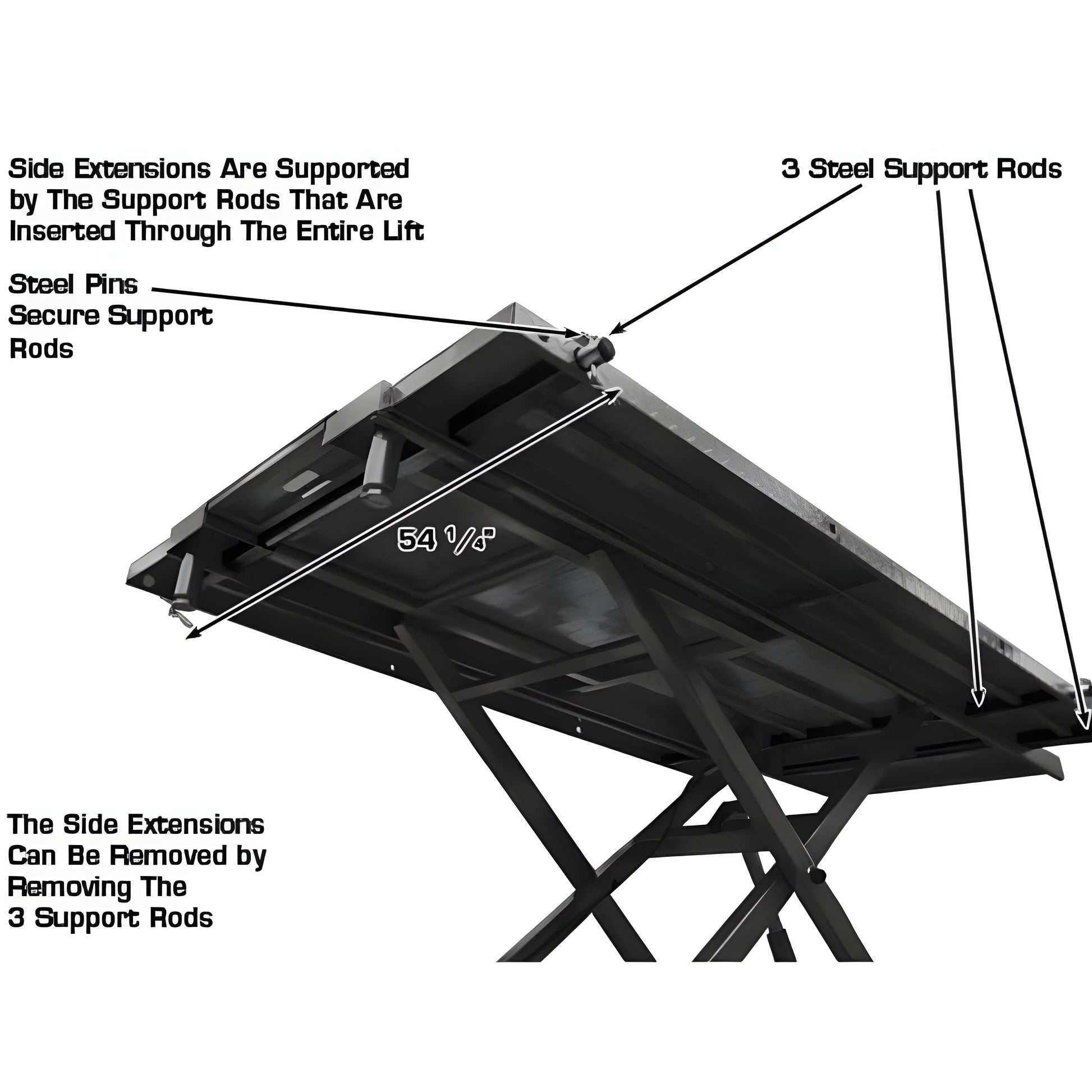

- Side Extension Kit Included
- Removeable Drop Out Section

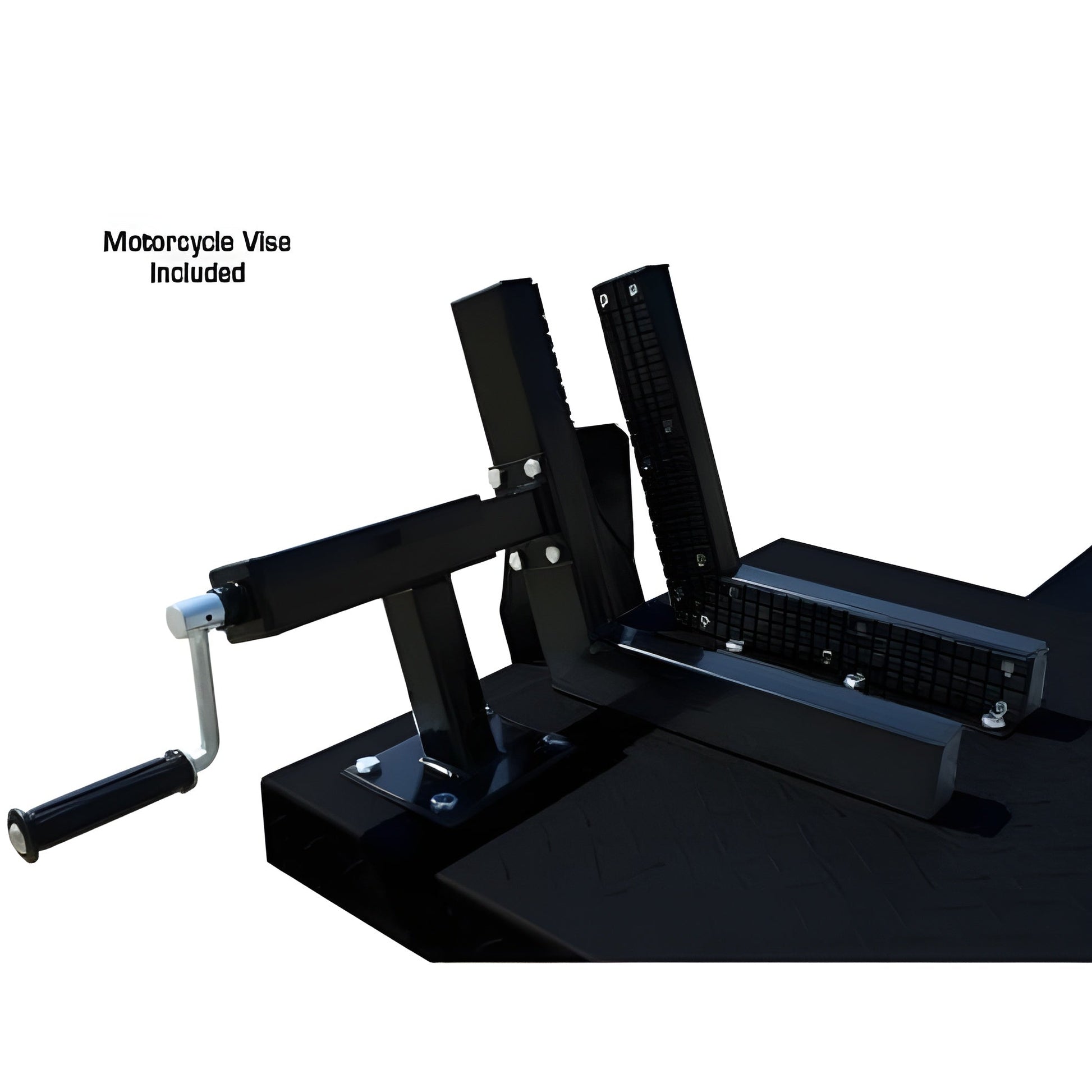

- Front Wheel Vise Included

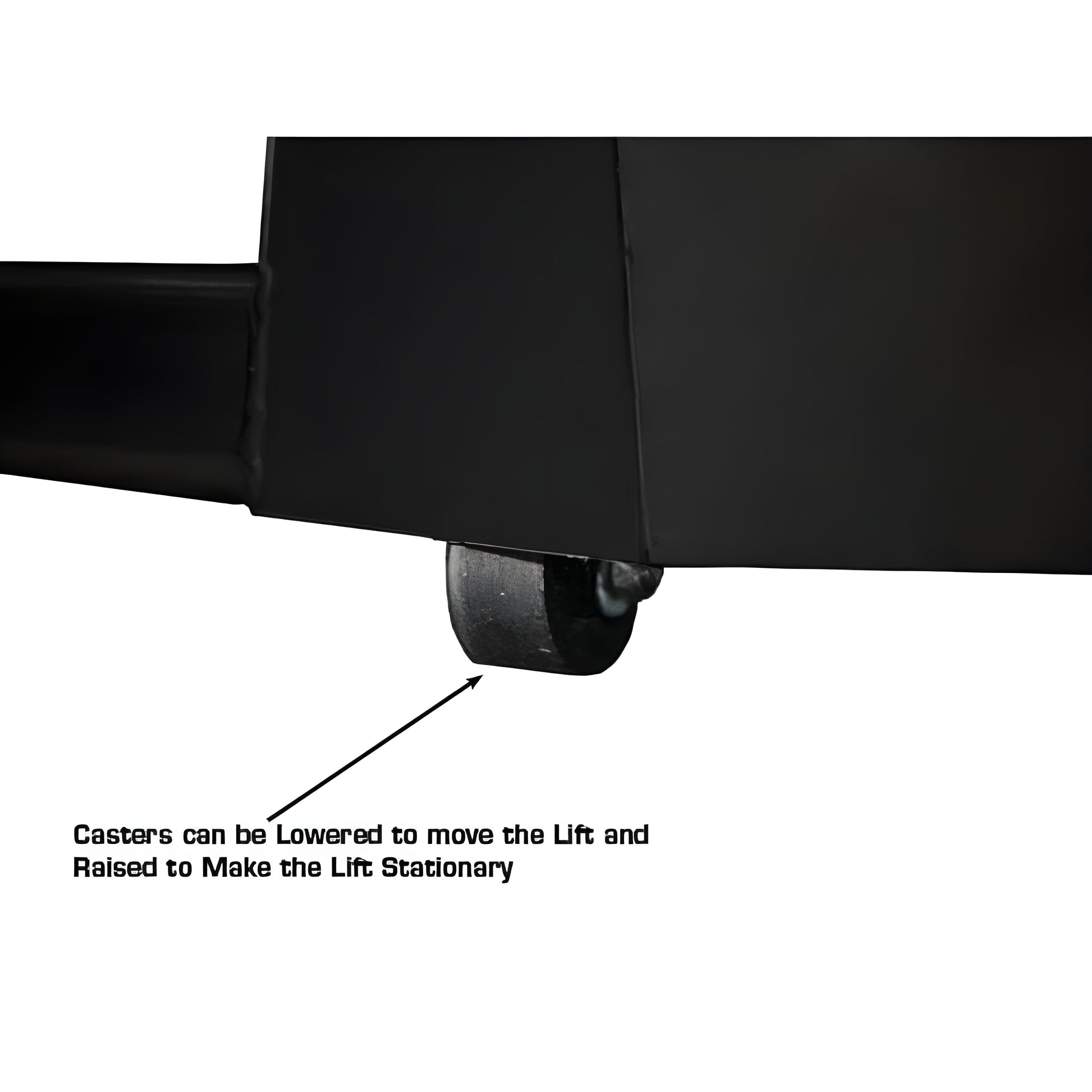

- Portable with 4 Retractable Casters
Specifications
| Atlas HI-RISE 1500 Specifications |
|
| Weight Capacity |
1,500 lb. |

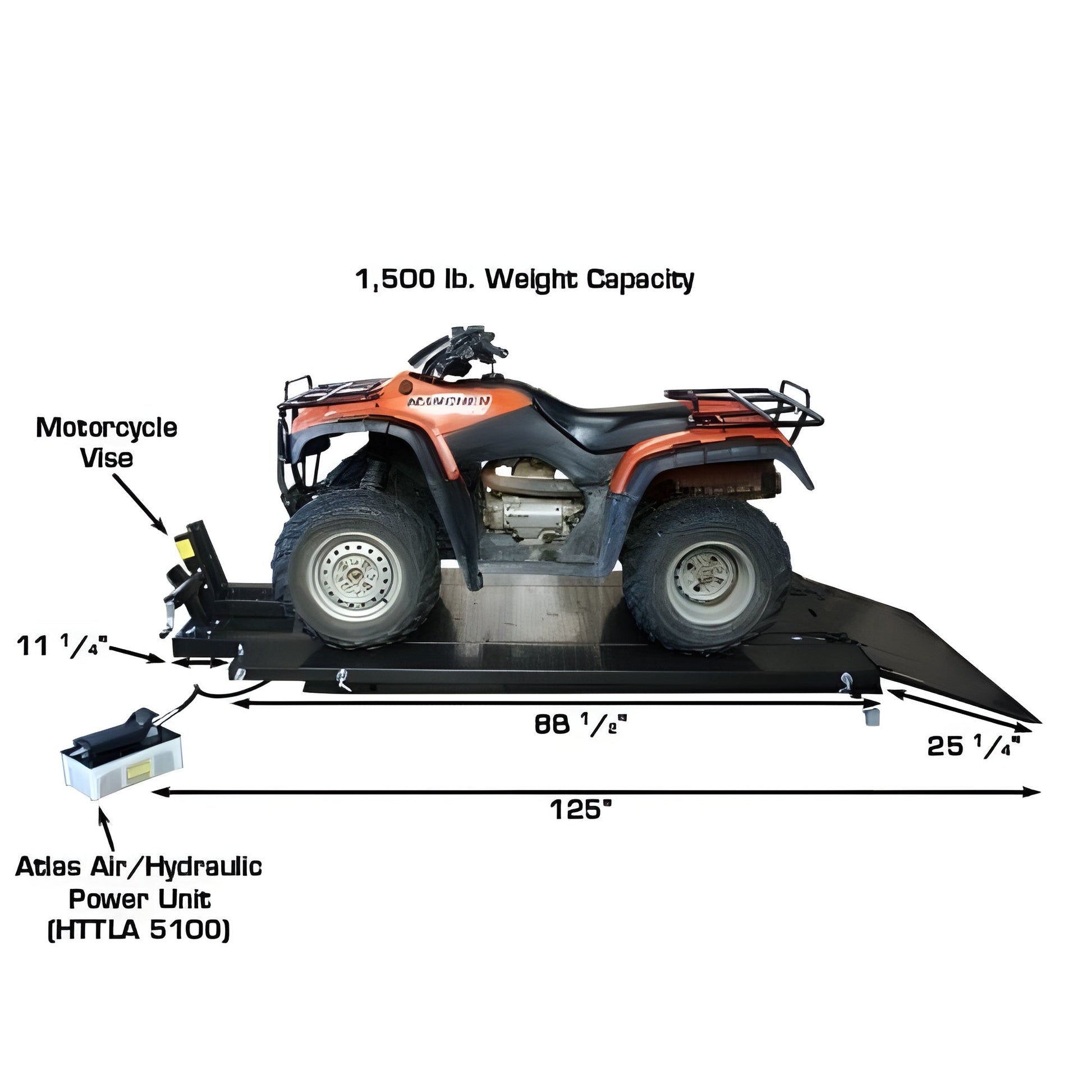

| Overall Length (W/ Ramp) |
125" (10' 5") |
| Center Table Length (W/O Ramp) |
99 3/4" (8' 3 3/4") |
| Side Extension Length (W/O Ramp) |
88 1/2" (7' 4 1/2") |

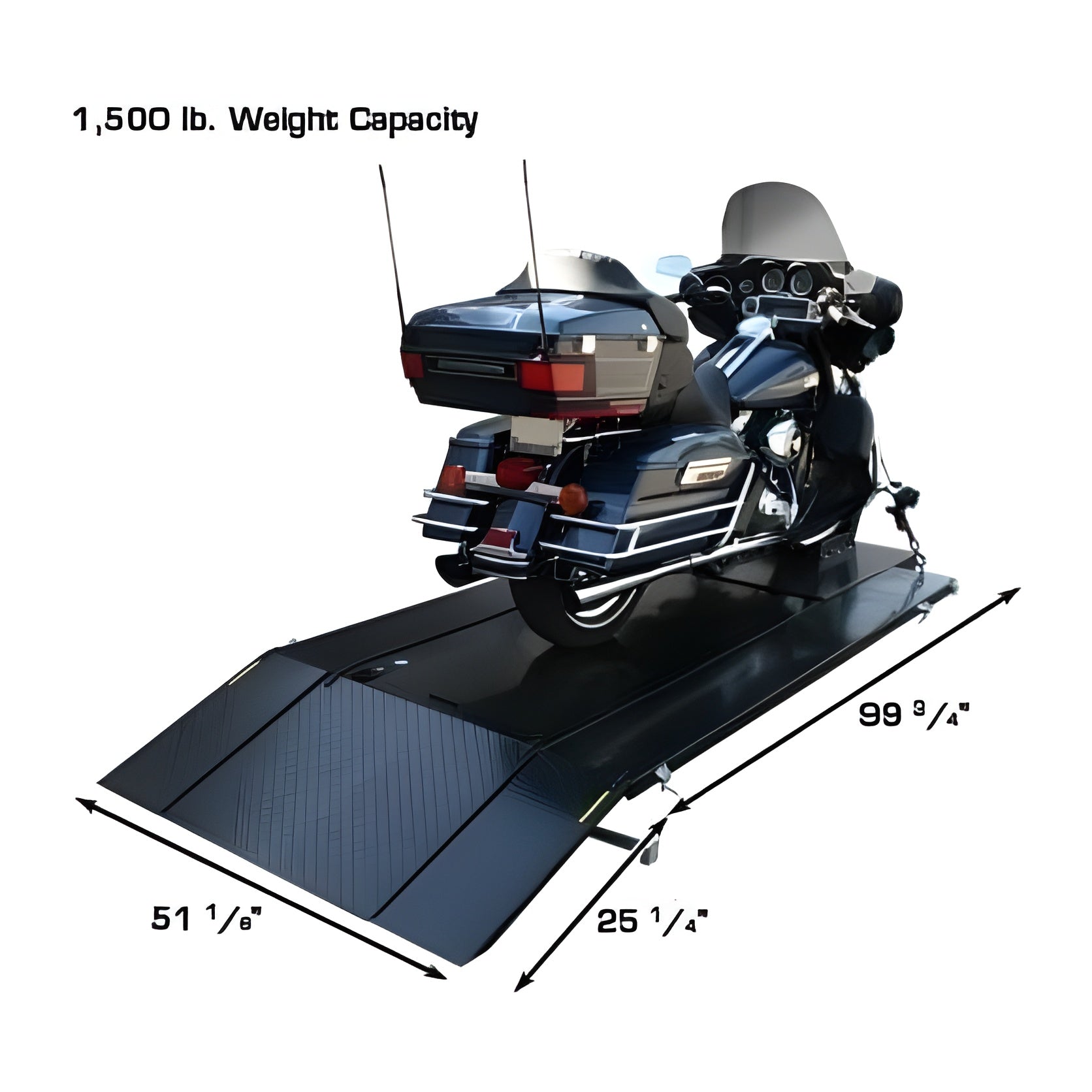

| Center Table Width (W/ Side Extensions) |
51 1/8" (4' 3 1/8") |
| Center Table Width (W/O Side Extensions) |
29 1/2" (2' 5 1/2") |

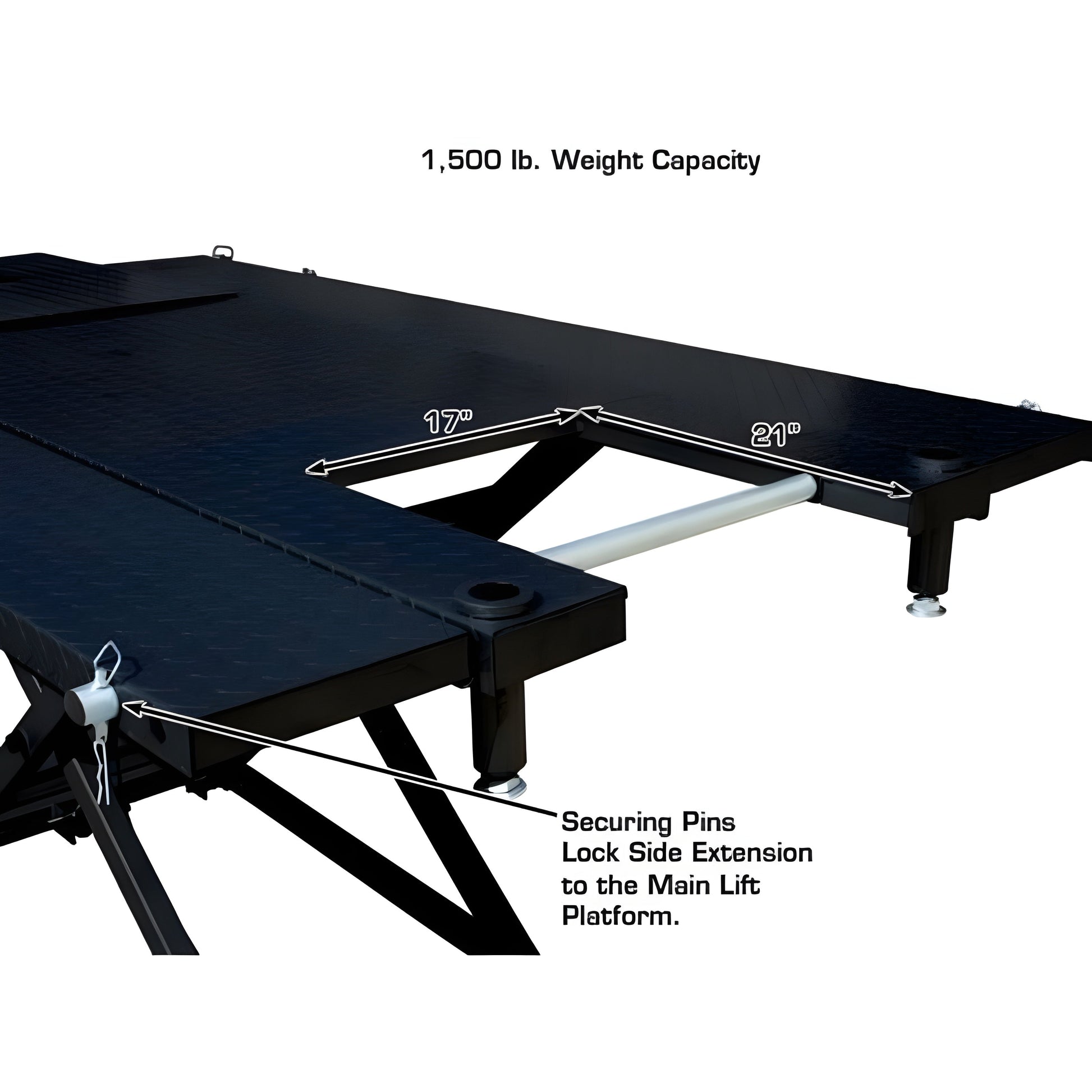

| Rear Drop Out |
17" X 20" |
| Height Fully Raised |
42 1/2" (3' 6 1/2") |
| Height Lowered |
8 1/8" |
| Air Requirement |
90-100 PSI |
What our Expect Think
-
Ideal for Motorcycles & ATVs: The Atlas HI-RISE 1500 lift is specifically designed to handle motorcycles, ATVs, and other small vehicles, offering a 1,500 lb lifting capacity for easy maintenance and repairs.
-
Heavy-Duty Build: Constructed from durable materials, this lift is built to withstand frequent use, providing long-lasting reliability and strength.
-
Smooth Lifting Mechanism: Features a hydraulic system that allows for smooth, precise lifting, making it easy to raise and lower vehicles with minimal effort.
-
Adjustable Height: The adjustable height provides optimal clearance for working on various types of motorcycles, ATVs, and similar vehicles, improving access to all parts.
-
Compact & Space-Saving: Its compact design is perfect for smaller garage spaces, offering excellent lifting power without taking up too much room.
-
Convenient & Efficient: Ideal for hobbyists and professionals alike, this lift makes motorcycle and ATV repairs or maintenance tasks easier and more efficient.
Q&A
Q: What is the Atlas HI-RISE 1500 Motorcycle/ATV Lift designed for?
A: The Atlas HI-RISE 1500 is designed to lift motorcycles and ATVs, providing a stable and secure platform for maintenance, repairs, and storage. It supports up to 1,500 lbs for versatile use.
Q: What weight capacity does the Atlas HI-RISE 1500 lift have?
A: The Atlas HI-RISE 1500 lift can handle a maximum weight of 1,500 lbs, making it suitable for most motorcycles, ATVs, and smaller vehicles.
Q: Is the Atlas HI-RISE 1500 suitable for use in a professional garage?
A: Yes, the Atlas HI-RISE 1500 is built for commercial and residential use, making it an excellent choice for mechanic shops, repair facilities, or home garages that need a reliable lift for motorcycles and ATVs.
Q: How high can the Atlas HI-RISE 1500 lift go?
A: The Atlas HI-RISE 1500 offers a lifting height of approximately 48 inches, providing ample clearance for repairs and maintenance.
Q: Is the Atlas HI-RISE 1500 easy to operate?
A: Yes, the lift features user-friendly controls, allowing for easy operation with minimal effort. It’s designed for efficient lifting and secure lowering for optimal convenience and safety.
Q: Does the Atlas HI-RISE 1500 require any special installation?
A: The lift is relatively simple to set up and can be used with basic assembly. However, for best results and safety, it is recommended to consult the user manual and ensure proper assembly and safety checks.
Q: Can the Atlas HI-RISE 1500 be used for other vehicles?
A: While designed for motorcycles and ATVs, the Atlas HI-RISE 1500 can also accommodate other smaller vehicles that meet the weight and size limits.
Maintenance Tips
-
Inspect Hydraulic System – Regularly check the hydraulic fluid level and inspect for leaks around the pump and cylinders. Refill or replace hydraulic fluid as necessary to ensure smooth lifting.
-
Lubricate Moving Parts – Apply lubricant to the lift’s moving parts, such as the pistons, hydraulic arms, and lift platform, to reduce friction and ensure smooth operation.
-
Check Safety Locks and Mechanisms – Test the safety lock and release mechanisms periodically to ensure they are functioning correctly for secure lifting and lowering.
-
Inspect Platform and Frame – Check the platform for any signs of wear, cracks, or damage. Tighten or replace any fasteners to ensure stability during operation.
-
Examine Cables and Ropes – Inspect the cables, ropes, or chains for wear, fraying, or damage. Replace any components showing signs of wear to maintain safety and functionality.
-
Clear Debris – Keep the lift free from dirt, grease, or any debris that may accumulate, particularly around moving parts, to ensure proper function.
-
Test Load Capacity – Regularly test the lift with a standard load to ensure it is lifting within its specified weight capacity and functioning at full performance.
-
Rust and Corrosion Prevention – Inspect the lift for any rust or corrosion and apply protective coatings to exposed metal parts to extend the lift's lifespan.
