Atlas Cyclelift Motorcycle Lift - ATEHT-CYCLELIFT-FPD
Atlas Air Operated Motorcycle Lift

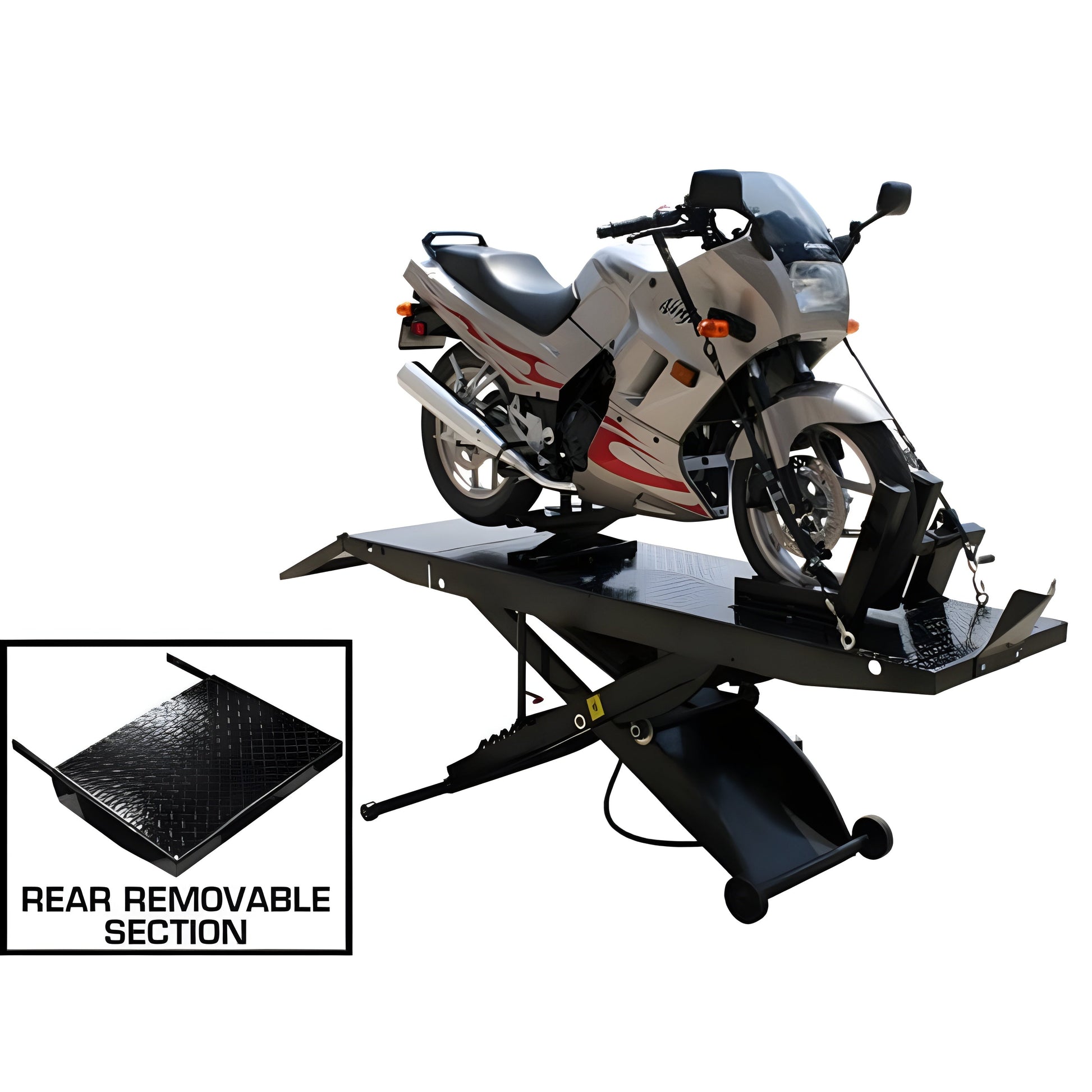

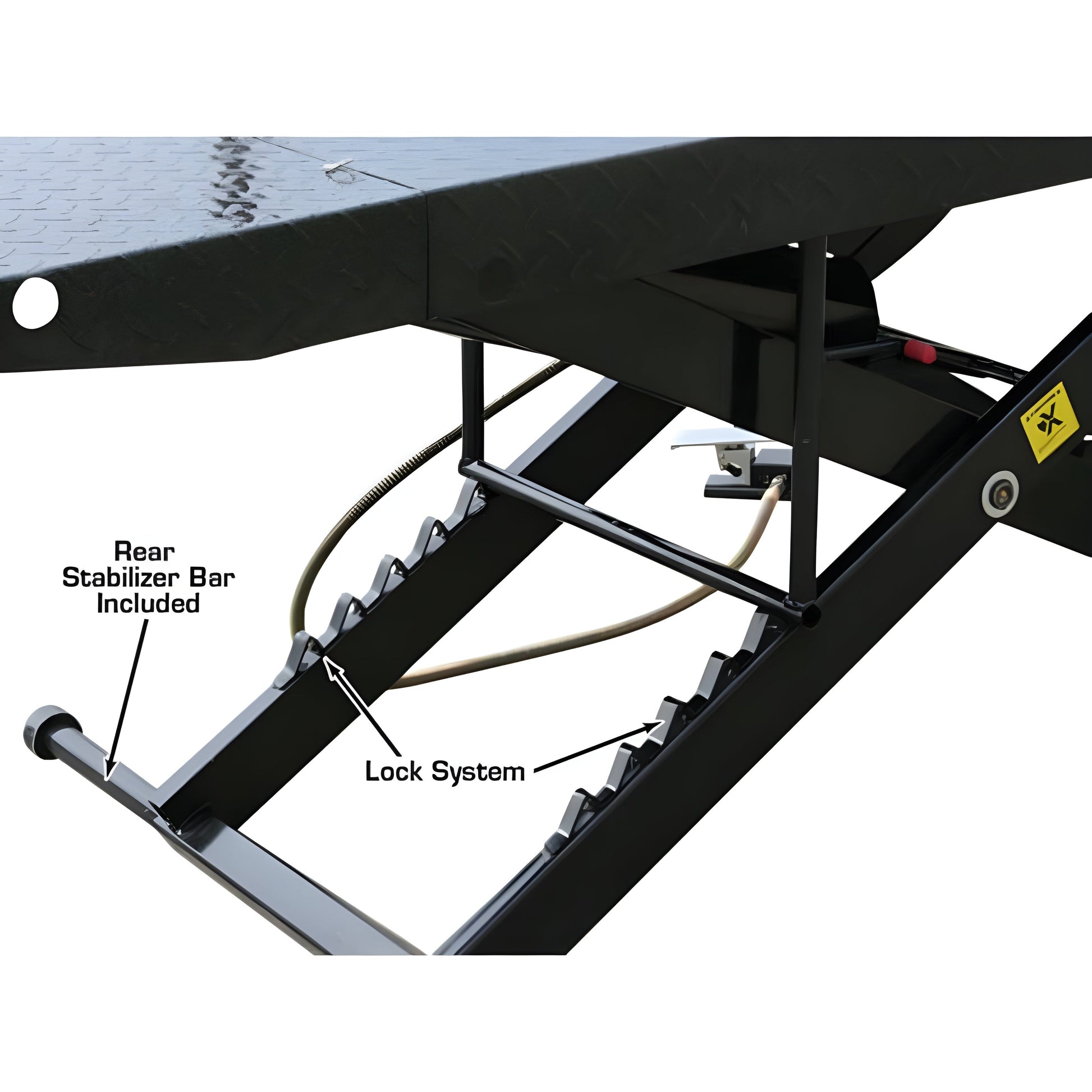

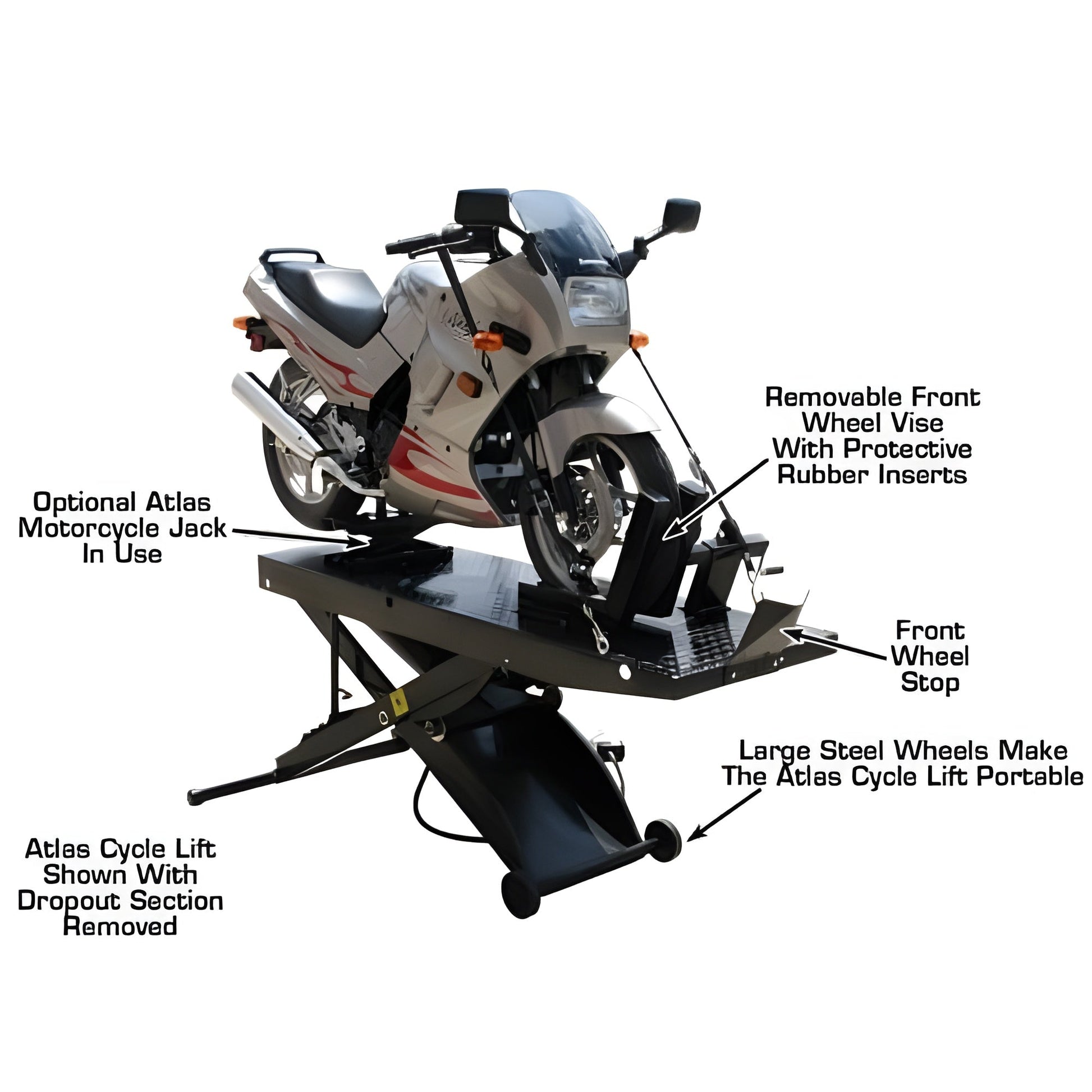

The Atlas Cyclelift has one of the industry’s longest (standard) platforms to accommodate extra long motorcycles. The motorcycle lift has a heavy gauge (diamond plated) platform length of 93 inches and an additional 20 inch removable approach ramp.The Atlas Cyclelift is air operated and requires between 90-100 PSI to operate. The Cyclelift is the perfect addition to any service department of professional motorcycle dealers or is a great motorcycle lift for the person who wants to work on his personal bike in their own garage.This is a complete motorcycle lift that includes an adjustable front (padded) wheel vise and a heavy duty air operated foot valve for easy raising and lowering. The stabilizing bar is included at no extra charge. This bar provides greater stability for the raised platform by increasing the “footprint” of the lift. Many companies do not include this very important stabilizing bar in their “lift package”.The Atlas Cyclelift motorcycle lift comes standard with a 19 1/2″ removable rear section. This 19 1/2″ section can be easily removed so that a rear tire can be “dropped straight down” from the rear axle. Since the entire platform width is removed, any sized rim can be lowered from the axle.For those customers looking for more width to pick up ATV’s, UTV’s, Golf Carts, and other wider vehicles the Atlas Cyclelift can be equipped with the Atlas® Cyclelift Side Extension Kit to increase the width up to 4 feet.
Video
Features
- Capacity: 1000 lbs.
- Air Operated (External Air Supply Required)

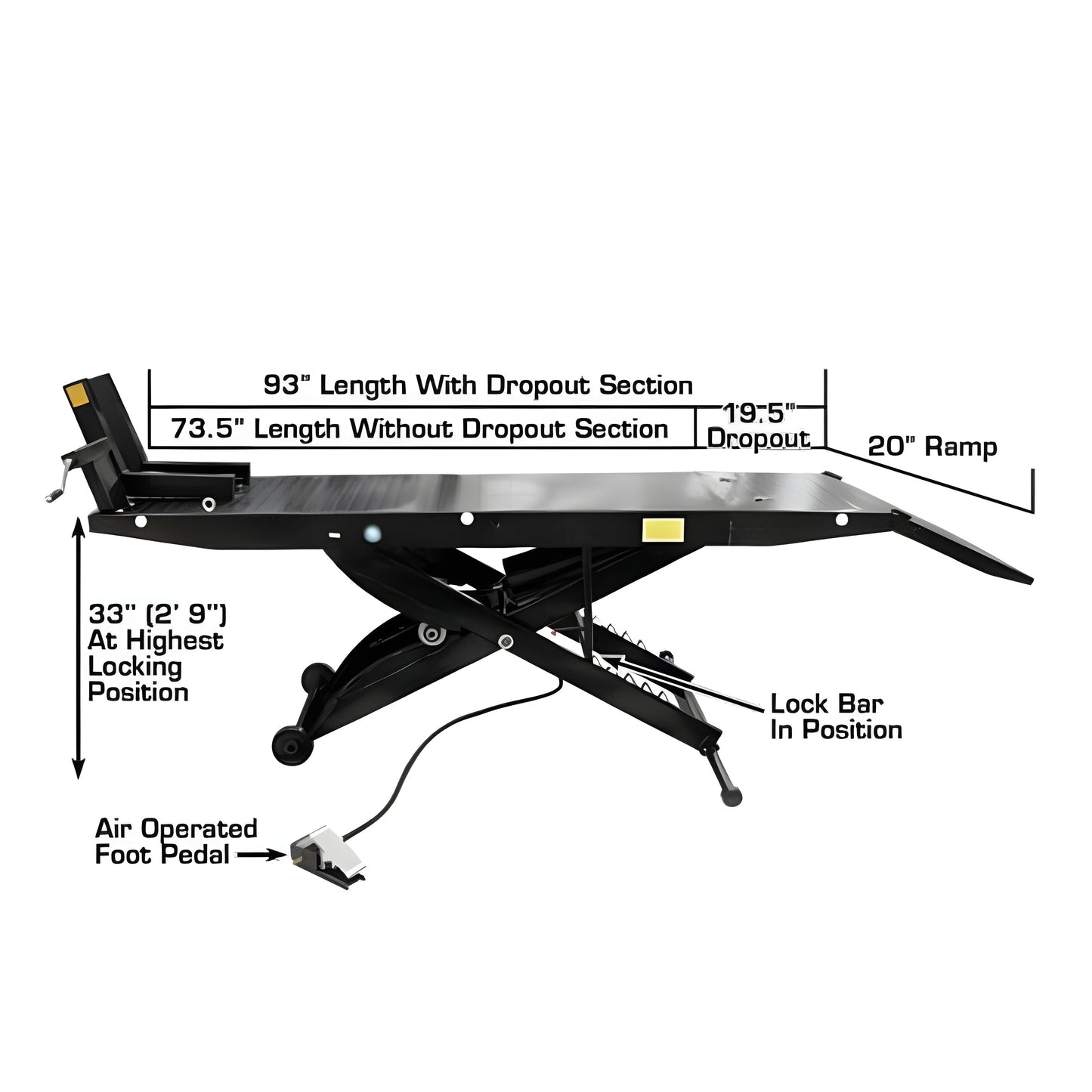

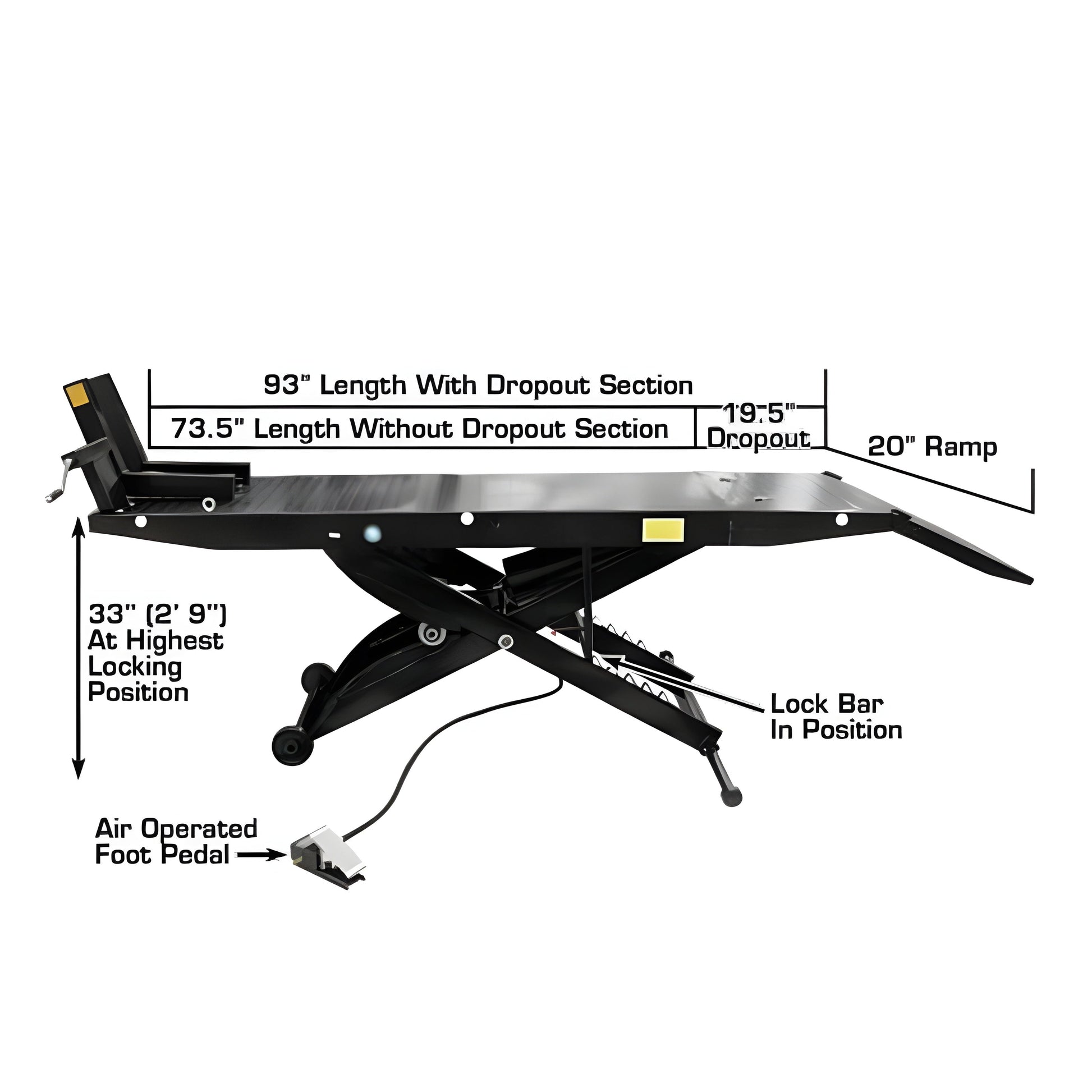

- 33″ Full Lift Height

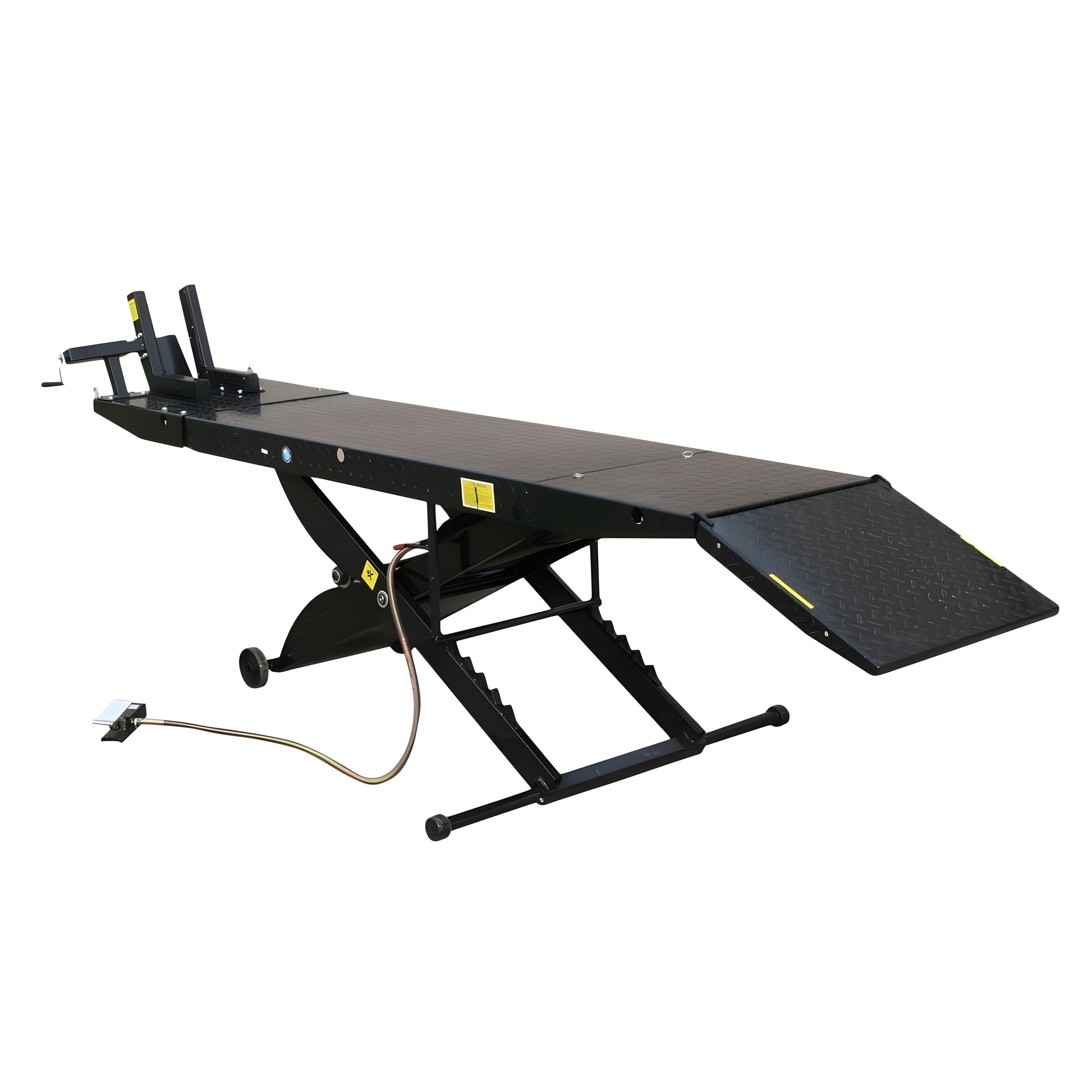

- 93″ Table Length
- Diamond Plate Surface

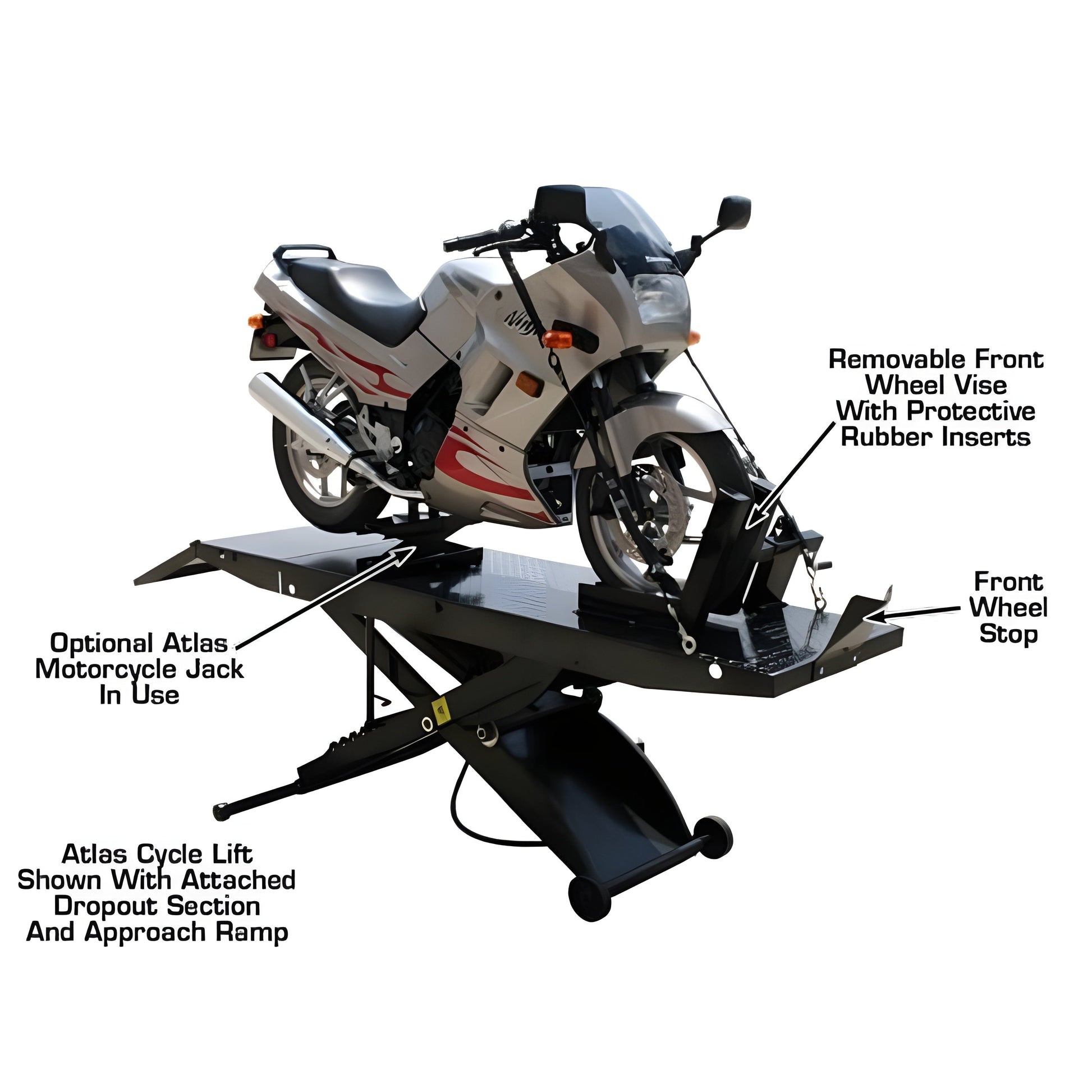

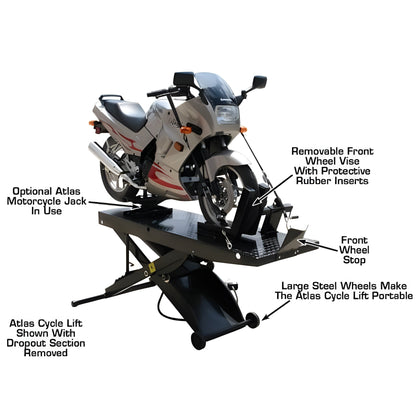

- Front Wheel Vise Included

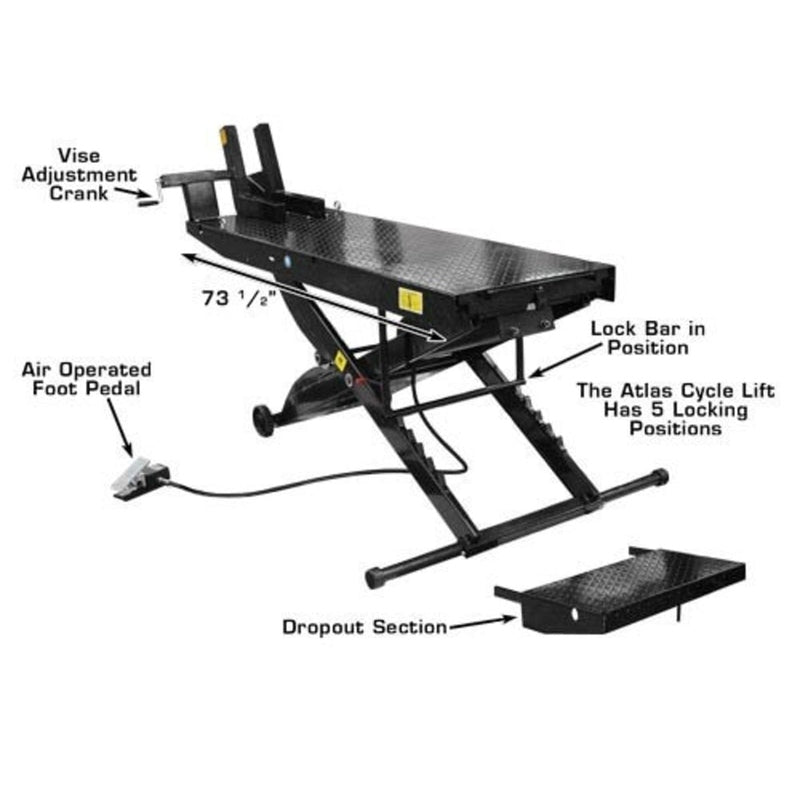

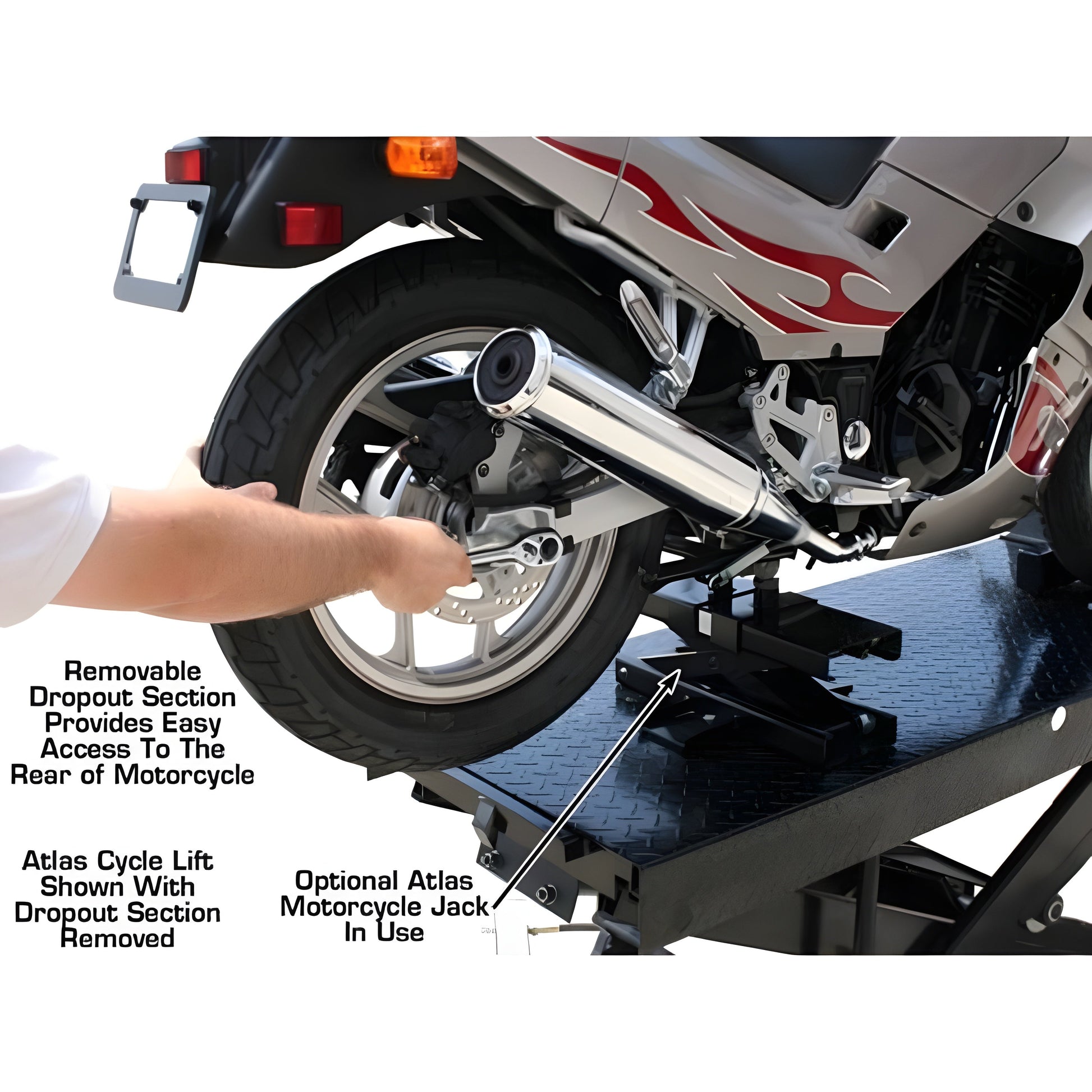

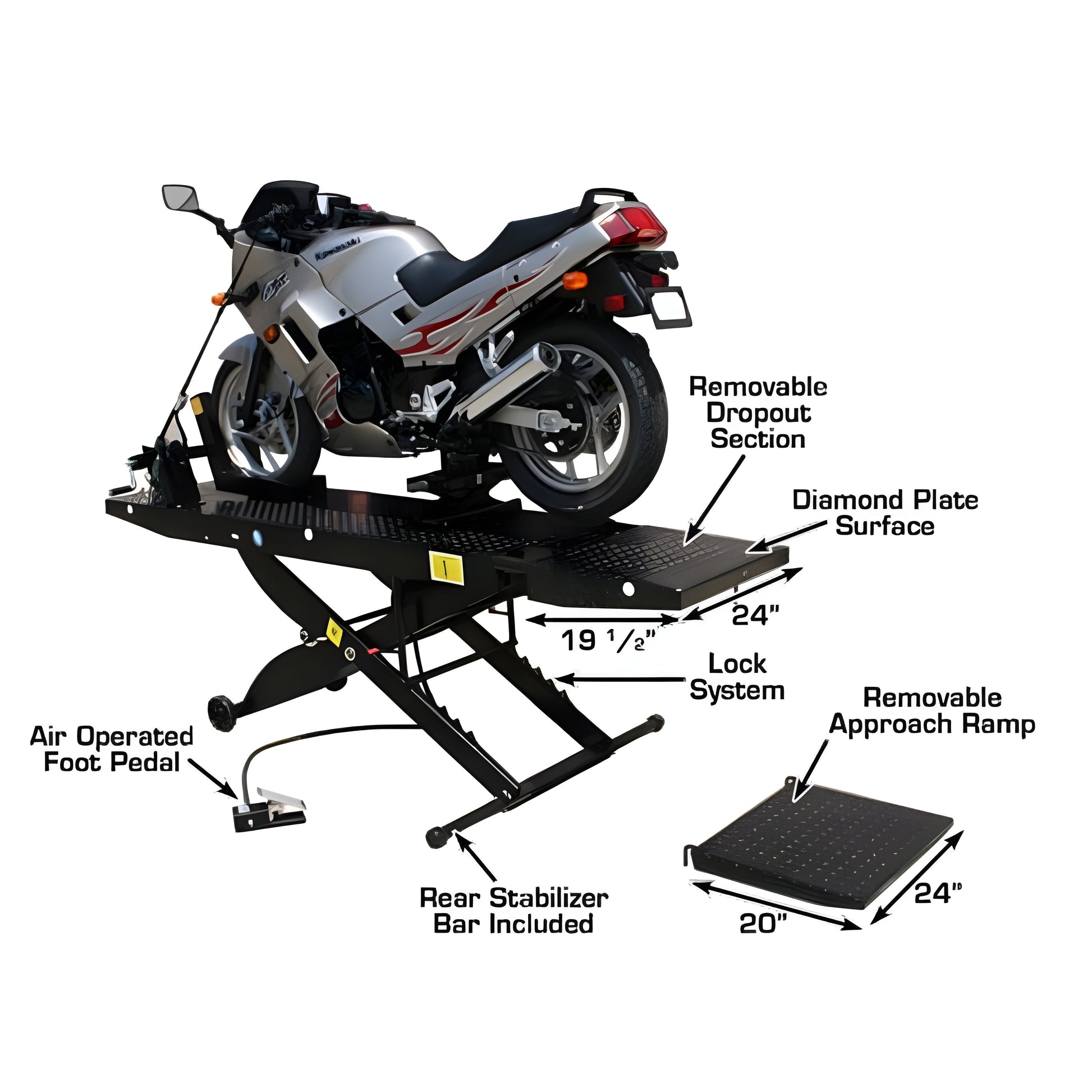

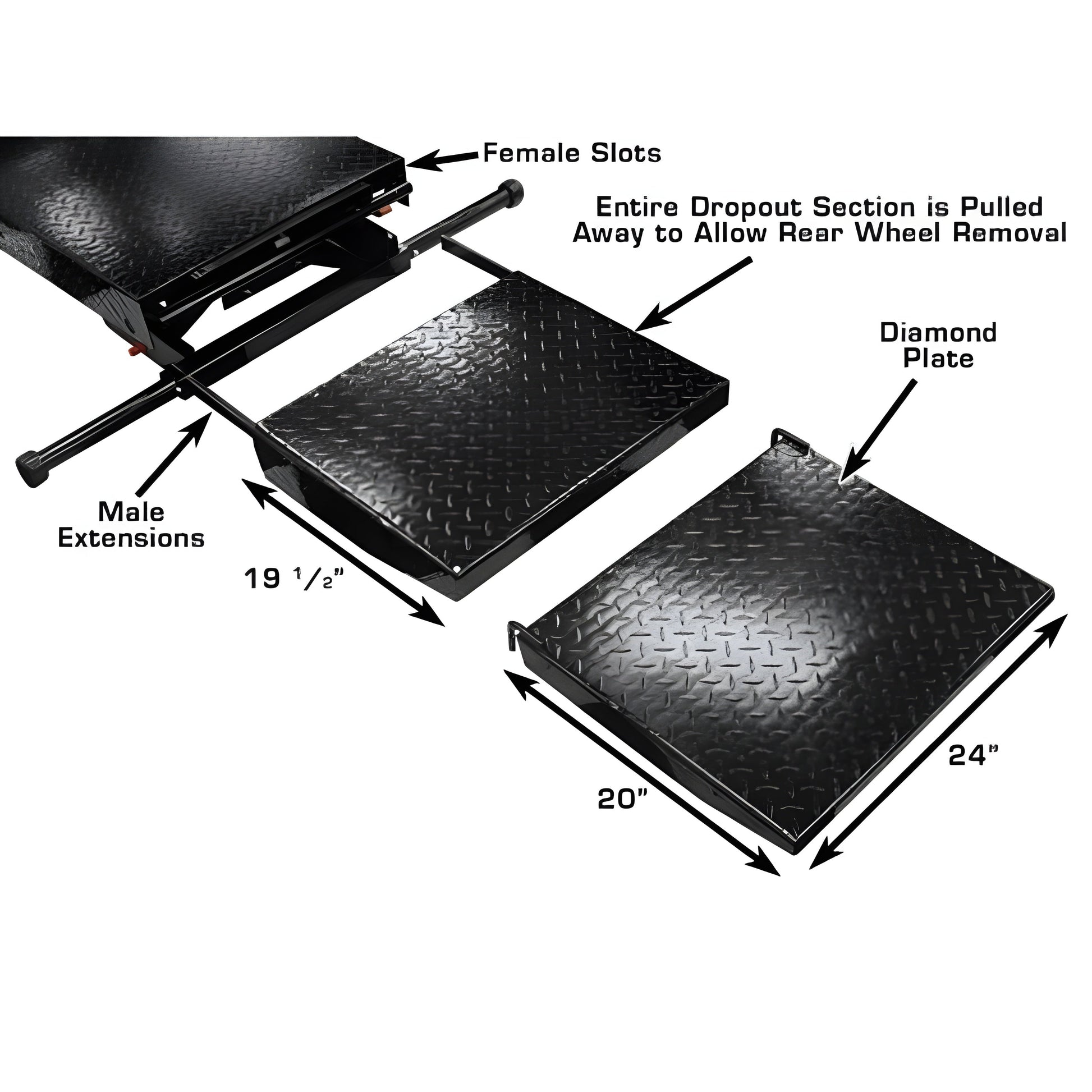

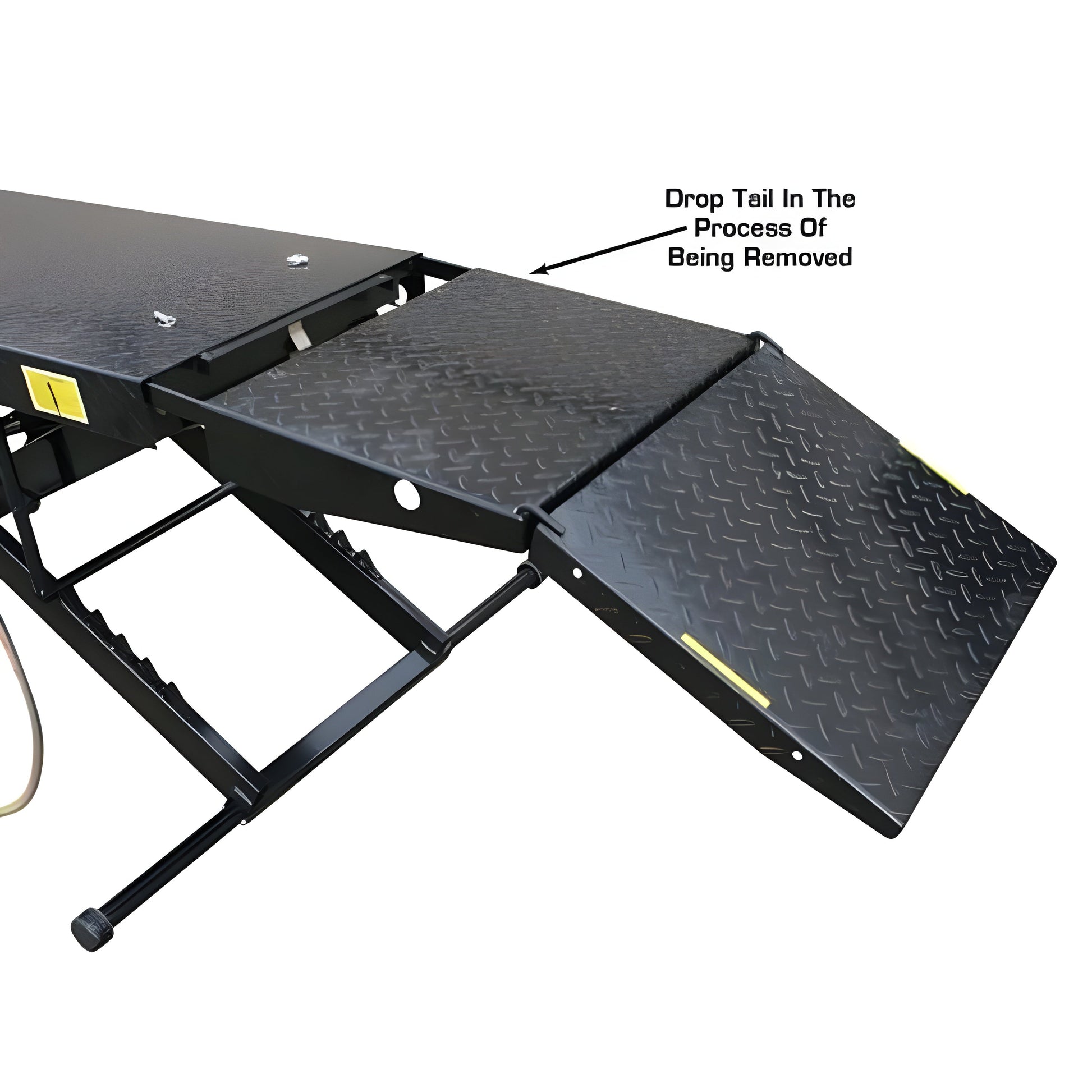

- Removeable Rear Section for Wheel Removal

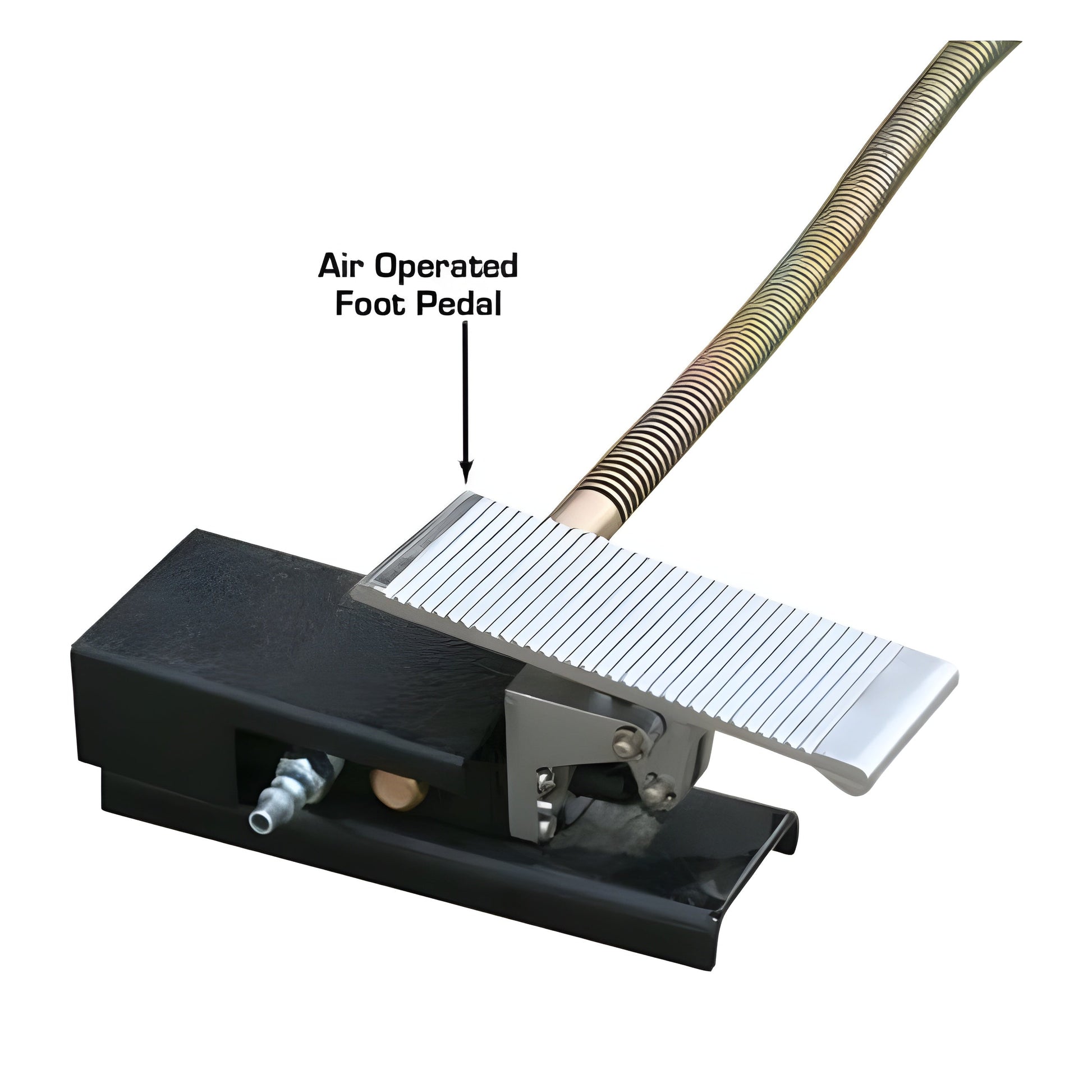

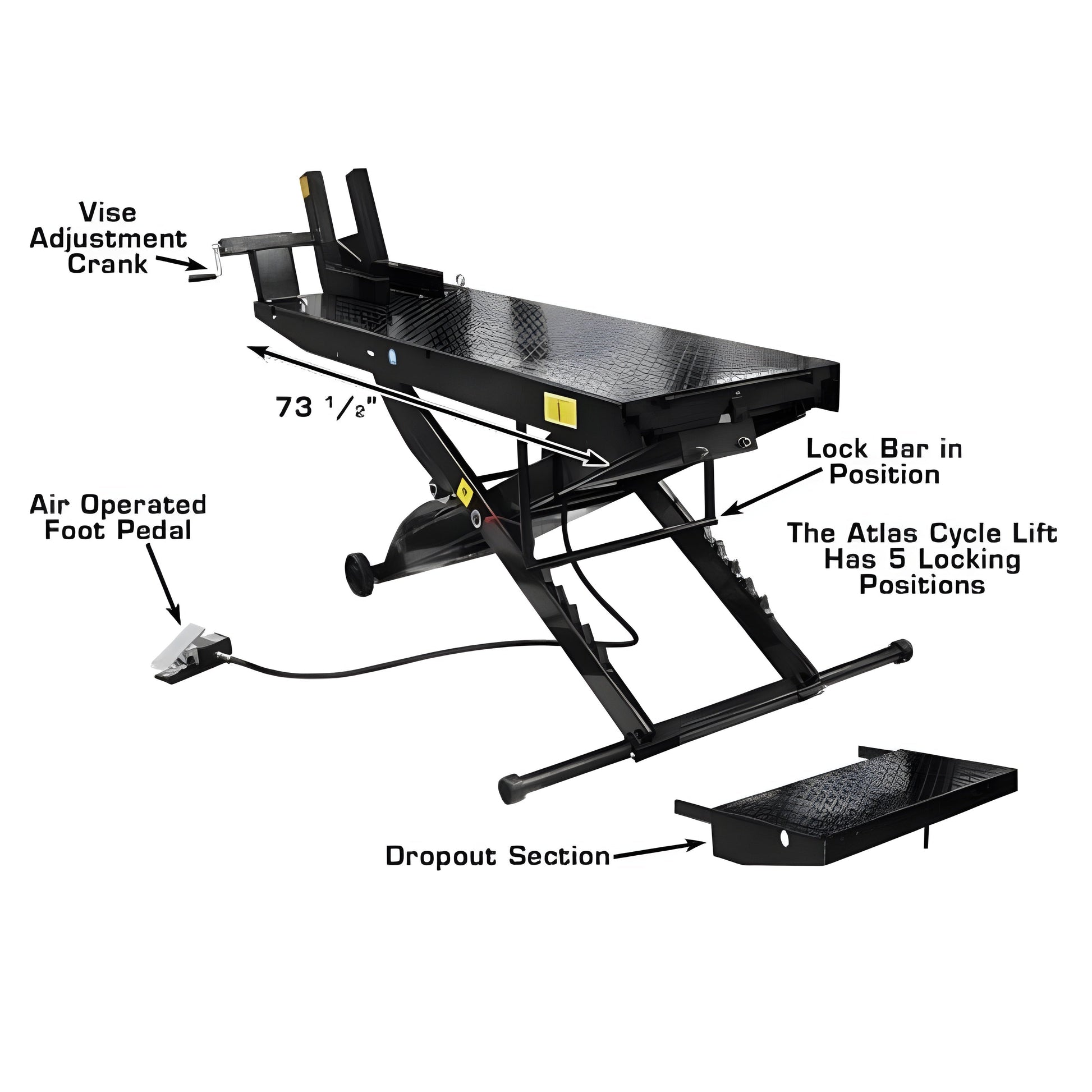

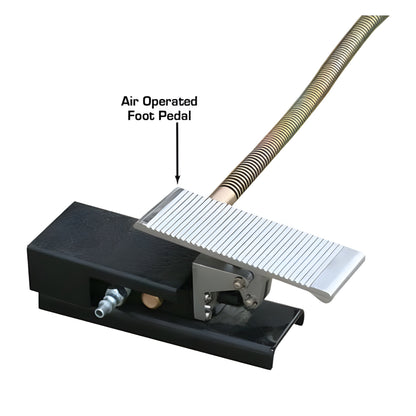

- Foot Pedal Control Included
Specifications
| Atlas Cyclelift Motorcycle Lift Specifications |
|
| Weight Capacity |
1,000 lb. |
| Length W/ Ramp |
113" (9' 5") |
| Table Length W/O Ramp |
93" (7' 9") |
| Width |
24" |
| Lift Height |
33" (2' 9") |
| Lowered Height |
7 1/4" |
| Removable Approach Ramp |
20" |

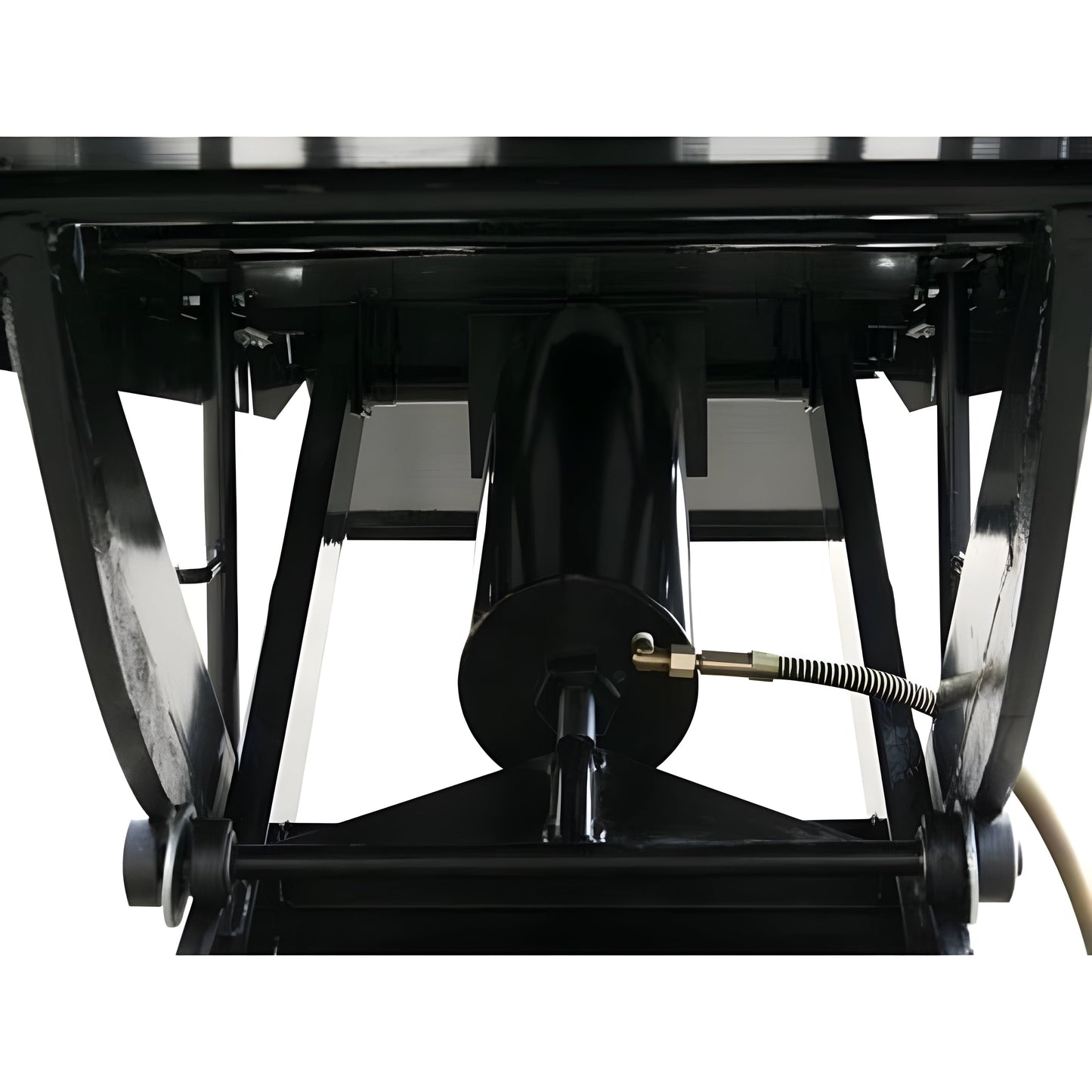

| Cylinder |
7" (Internal Size = 6") |
| Air Requirements |
90 - 100 psi |
Manual
Atlas Cyclelift Manual
What our Expect Think
-
Heavy-Duty Motorcycle Lift – Designed for easy maintenance and repairs.
-
Smooth Air-Operated System – Effortless lifting with a foot pedal control.
-
Durable Steel Construction – Ensures stability and long-lasting performance.
-
Non-Slip Platform – Provides a secure work surface for motorcycles.
-
Compact & Versatile – Ideal for professional shops and home garages.
Q&A
Q: What is the weight capacity of the Atlas Cyclelift?
A: It supports up to 1,000 lbs, perfect for motorcycles and small ATVs.
Q: What type of lift mechanism does it use?
A: It features a hydraulic foot pump for easy lifting and lowering.
Q: Does it include a wheel clamp?
A: Yes, it has a front-wheel clamp for secure positioning.
Q: Is the lift height adjustable?
A: Yes, it offers multiple height settings for convenient maintenance access.
Q: Does it have a removable ramp?
A: Yes, a removable rear ramp allows for easy loading and unloading.
Maintenance Tips
-
Heavy-Duty Construction – Built for durability and stability while lifting motorcycles.
-
Hydraulic Lifting Mechanism – Ensures smooth and controlled lifting.
-
Adjustable Platform – Accommodates different motorcycle sizes.
-
Compact and Space-Saving Design – Ideal for home garages and professional workshops.
-
Safety Locking System – Keeps the lift securely in place during maintenance.
-
Non-Slip Surface – Prevents motorcycles from shifting while on the lift.
