Atlas ALI APEX9 4 Post Lift + RJ6 Rolling Bridge Jacks Combo - ATEAPEX9-COMBO1-FPD
The Atlas APEX9 ALI 4 post lift is a heavy duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra long and allows the lift to handle some of the longest wheel base vehicles out there. The APEX9 is also extra wide allowing even Diesel Duallys to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars to a Dually can be parked both below and on the runways.The Atlas APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas Garage PRO9000 lift including free plastic drip trays, a free steel jack tray, and a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. The commercial grade features and ALI Certification of the Atlas® APEX9 make this lift the perfect choice for automotive service centers or the “Mr. Homeowner” that needs a PORTABLE professional four post lift.This combo package also includes two of the popular Atlas RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes. NOTE: The RJ6 rolling jacks are not ALI , only the APEX9 lift is.
Features
APEX9
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall, Extra Wide & Extra Long
- Powder Coat Finish
- Diamond Plated Runways

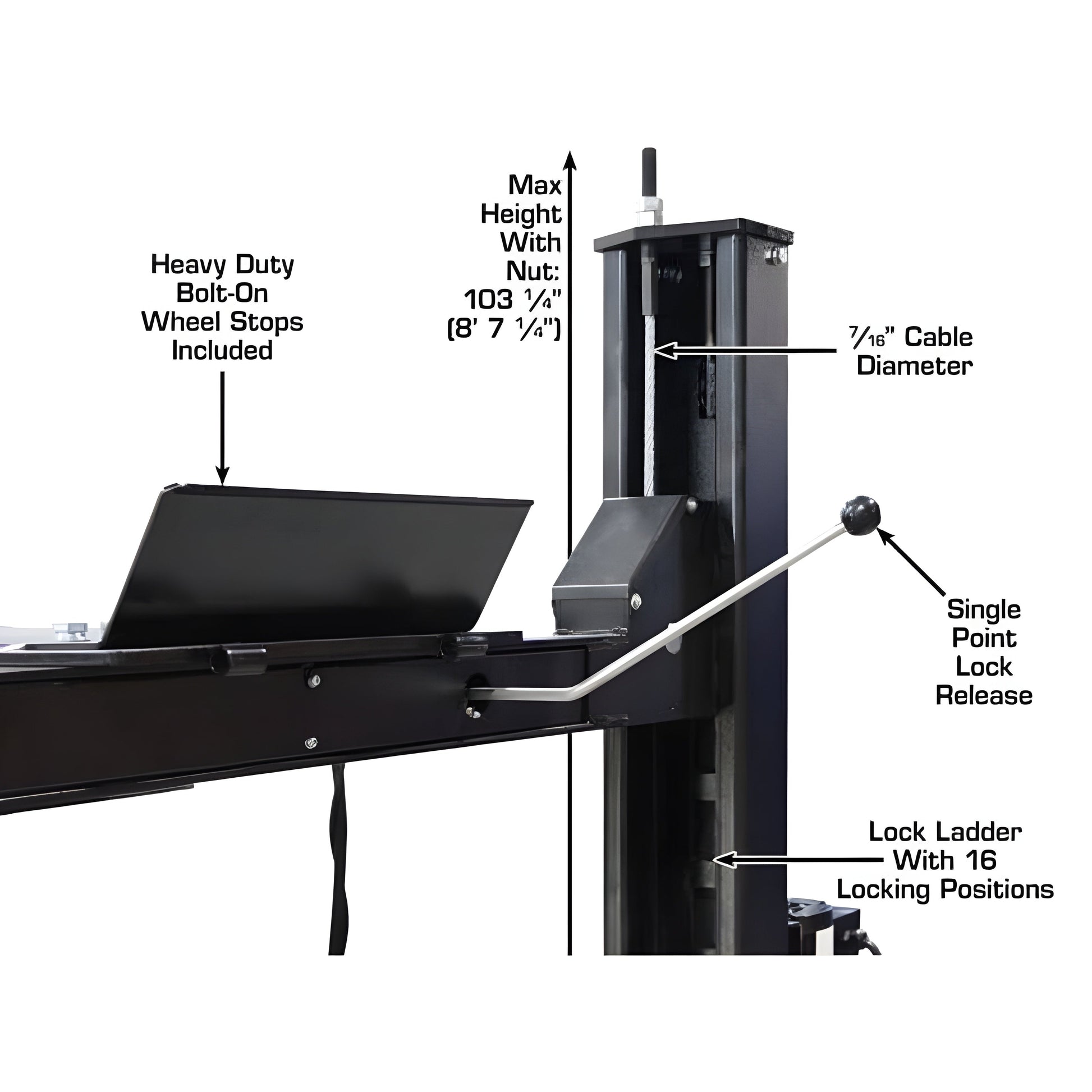

- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included

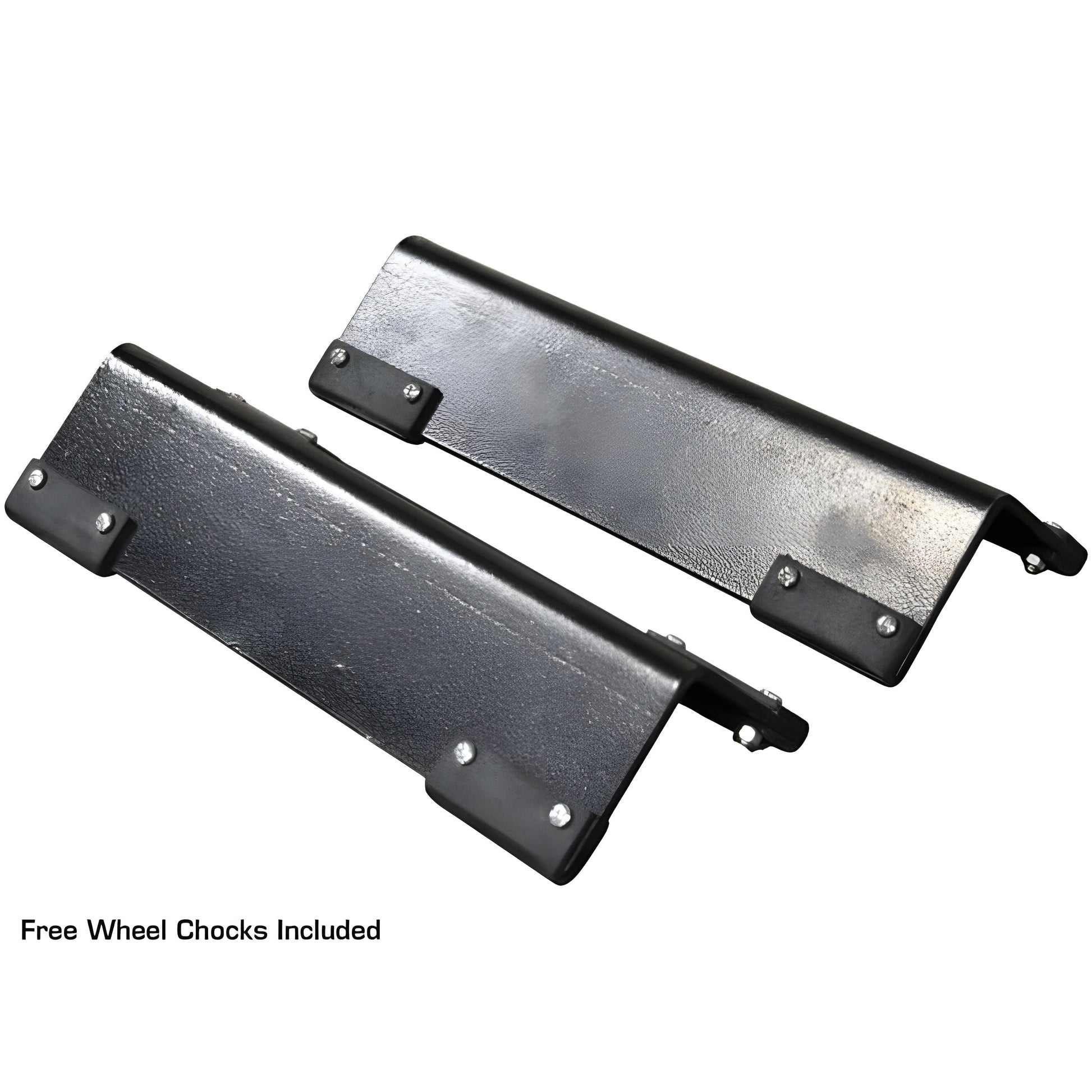

- Two Wheel Chocks Included

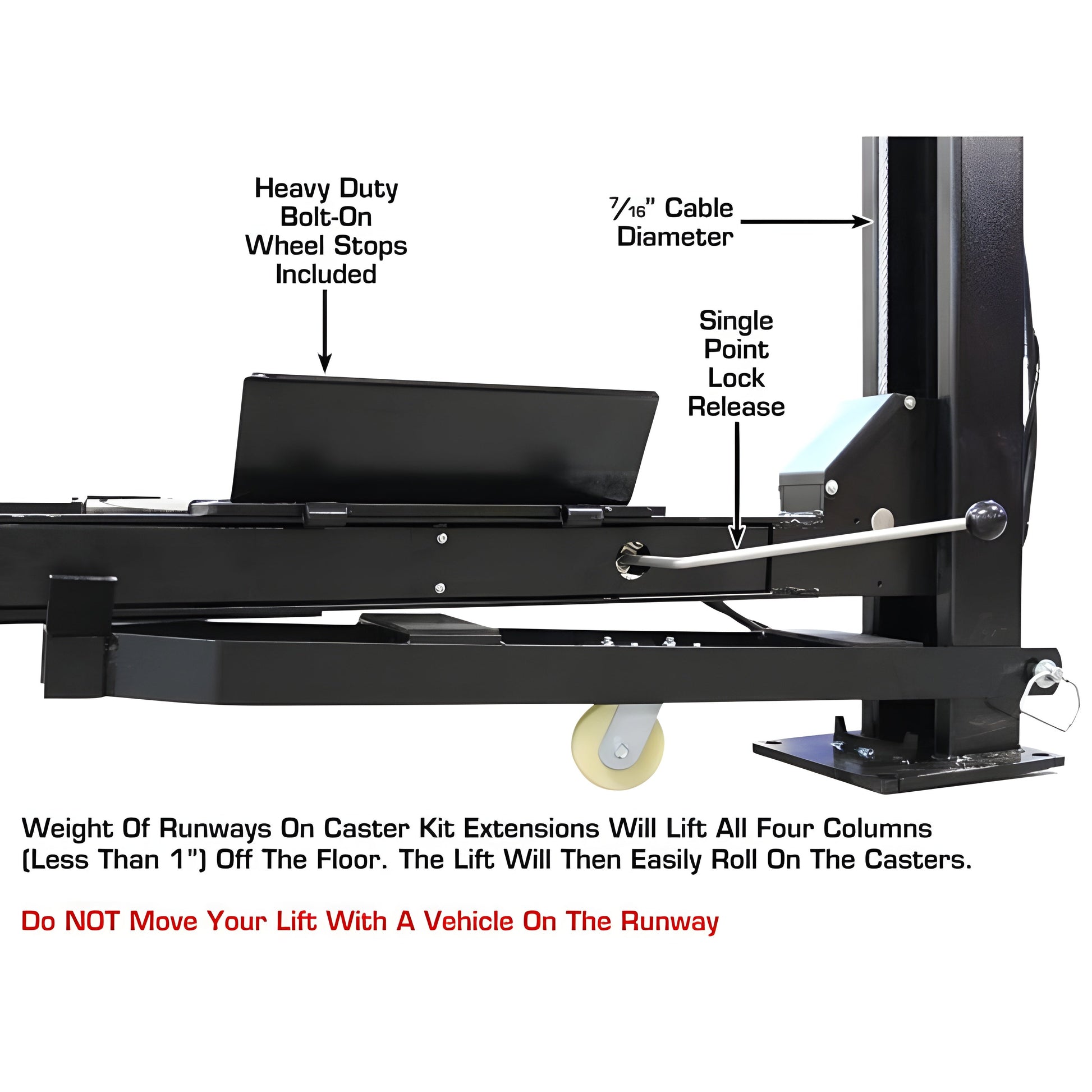

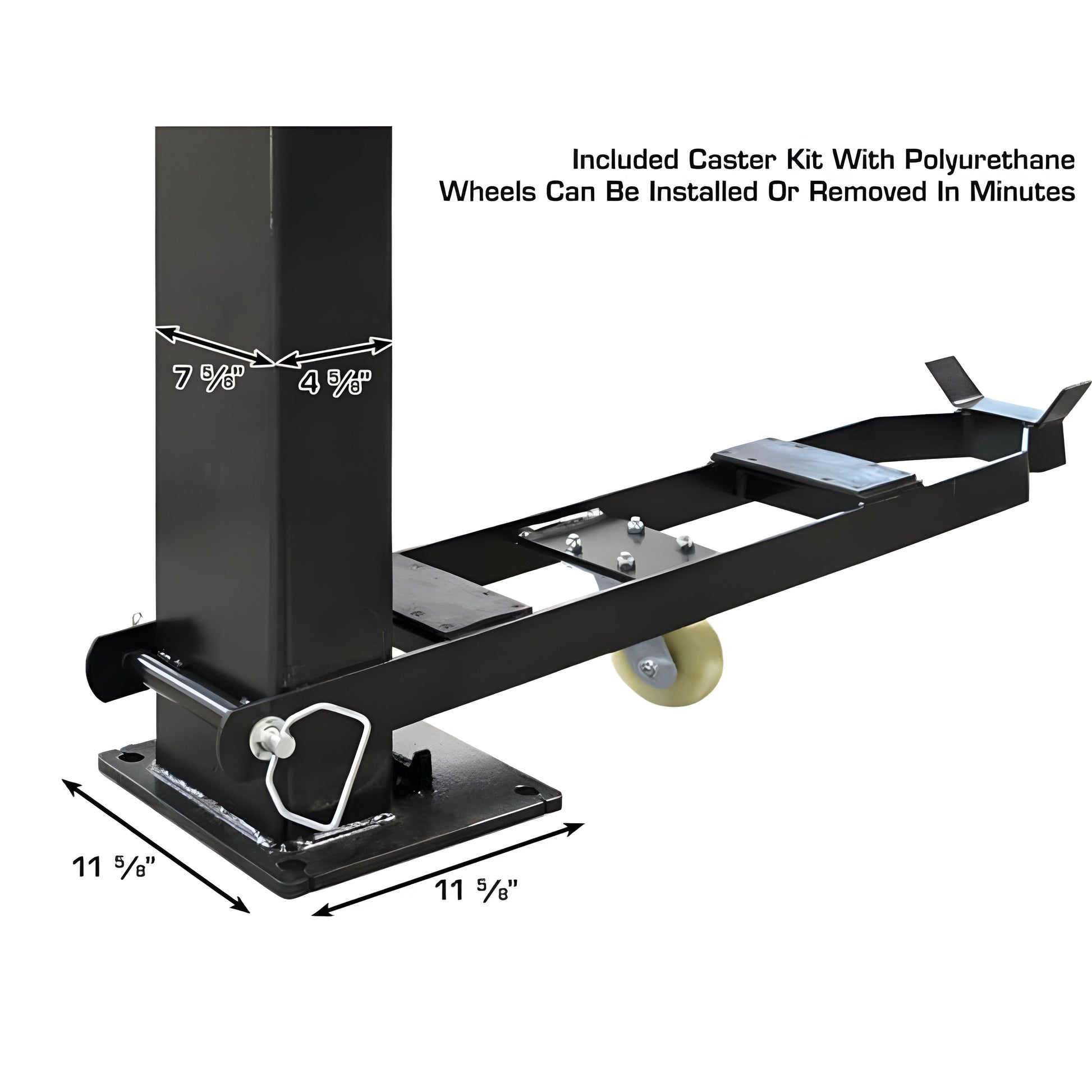

- Caster Kit with Polyurethane wheels Available
- Anchor Bolts Optional (Sold Separately)
- Perfect for Storage or Working on Vehicles

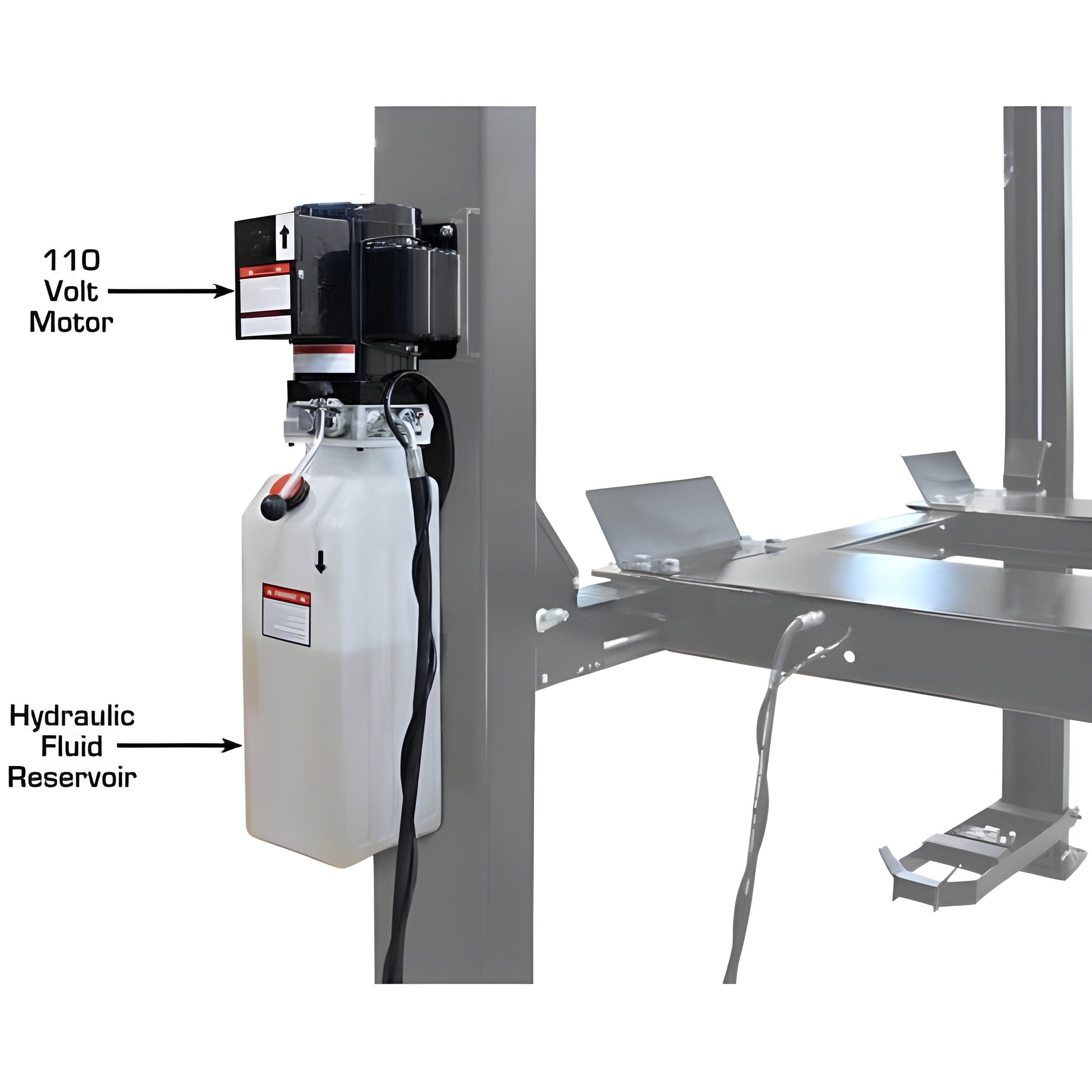

- 110volt Electric Operation (Requires 30amp Breaker)
- Shipping Weight: 2,975 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
RJ6
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
Specifications
| Capacity |
9,000 lb. |
| Lifting Height To Top of Runway |
86" (7' 2") |
| Clearance Under Runways |
81 1/4" (6' 9 1/4") |
| Height of Columns |
99" (8' 3") |
| Overall Width (Without Motor or Casters) |
121 7/8" (10' 1 7/8") |
| Overall Width (With Motor) |
133 7/8" (11' 1 7/8") |
| Overall Length without Approach Ramps (Including Lock Release Bar) |
204" (17") |
| Overall Length with Approach Ramps |
227 1/2" (18' 11 1/2") |
| Approach Ramps |
31 1/2" |

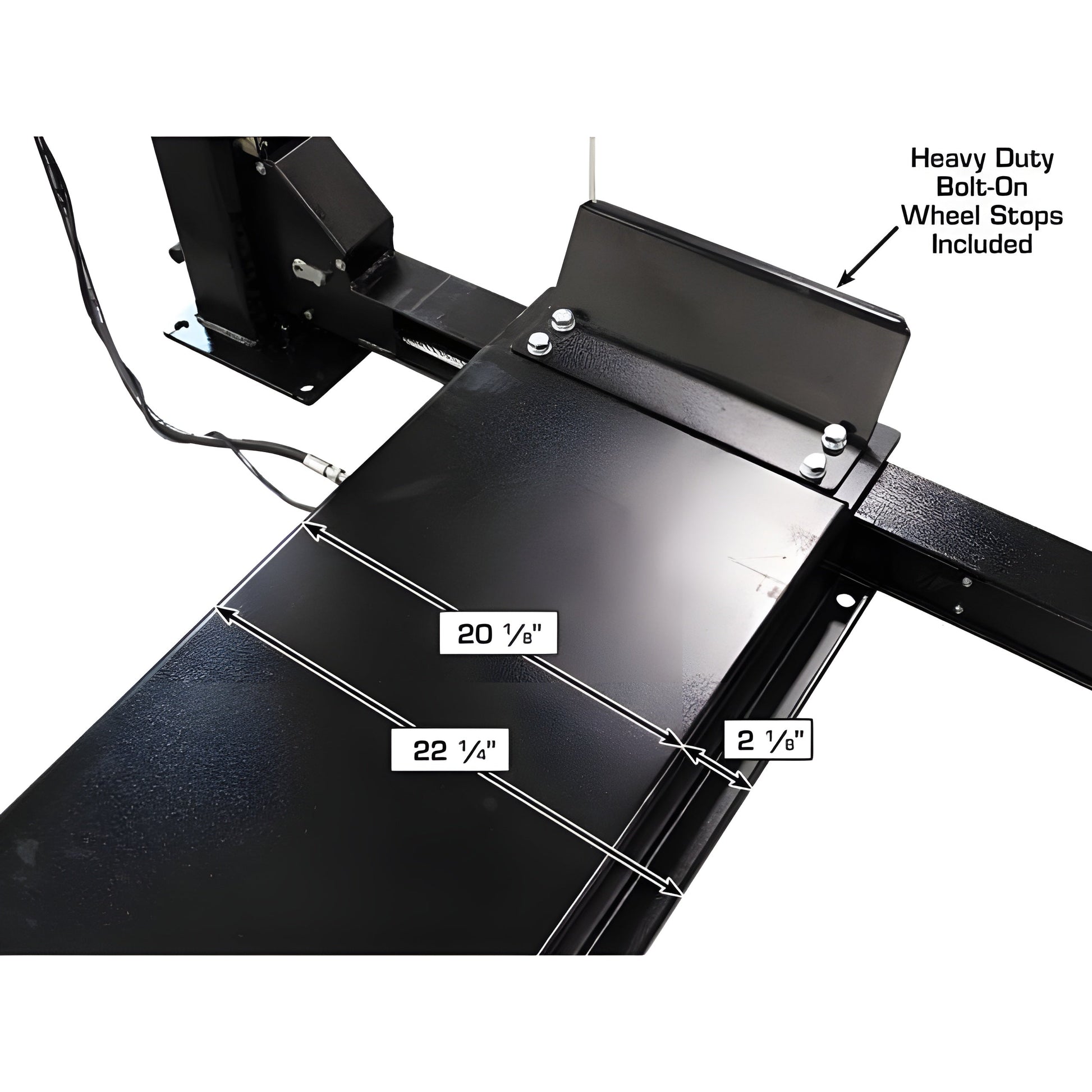

| Runway Width |
20 1/8" |
| Runway Rail Width |
2" |
| Runway Length |
196 1/2" (16' 4 1/2") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
38 7/8" (3' 2 7/8") |
| Width Between Runway Rails |
34 3/4" (2' 10 3/4") |
| Outside Runway to Outside Runway |
79" (6' 7") |
| Clearance Between Columns |
108 1/8" (9' 1/8") |
| Length Between Columns |
184 1/4" (15' 4 1/4") |
| Maximum Wheel Base |
184" (15' 4") |
| Drive Thru (Outside of tire to outside of tire) |
98 5/8" (8' 2 5/8") |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight |
2,975 lb. |
Documents
Atlas Apex 9 Manual
What Our Experts Think
-
9,000 lb Capacity: Ideal for cars, SUVs, and light-duty trucks.
-
4-Post Stability: Provides superior support for long-term vehicle storage and service.
-
RJ6 Rolling Bridge Jacks: Enables wheel-free lifting for brake, suspension, and tire work.
-
Heavy-Duty Steel Construction: Built for durability in professional shops and home garages.
-
Integrated Safety Locks: Ensures secure lifting at multiple height positions.
Q&A
Q: What is the weight capacity of the Atlas APEX9 lift?
A: The APEX9 has a 9,000 lb capacity, making it ideal for cars, trucks, and SUVs.
Q: What does the RJ6 Rolling Bridge Jacks Combo include?
A: The RJ6 rolling bridge jacks allow you to lift a vehicle’s front or rear off the runways for wheel and brake service.
Q: What is the maximum lifting height?
A: The lift raises vehicles up to 85 inches, providing ample clearance for maintenance.
Q: What power supply is required?
A: It operates on a 110V or 220V power supply, offering flexible installation options.
Maintenance Tipe
-
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables on both the lift and jacks.
-
Lubrication – Grease pulleys, cables, and jack components monthly for smooth operation.
-
Hydraulic System – Monitor fluid levels and inspect hoses for cracks, leaks, or wear.
-
Safety Locks – Ensure all lock mechanisms engage properly and remain free from debris.
-
Cable & Jack Maintenance – Regularly adjust lift cables and inspect RJ6 jacks for even wear.
-
Load Management – Ensure even weight distribution when using the rolling bridge jacks.
-
Annual Check-Up – Conduct a full system inspection and replace worn components on both lift and jacks.
