Atlas 414A Alignment Lift + RJ8 Rolling Jacks Combo - ATEATTD-414A-COMBO-FPD
The Atlas 414A 14,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitor’s lifts.
The Atlas 414A incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The 414A is tested to ensure that this lift system will perform flawlessly at its rated capacity.

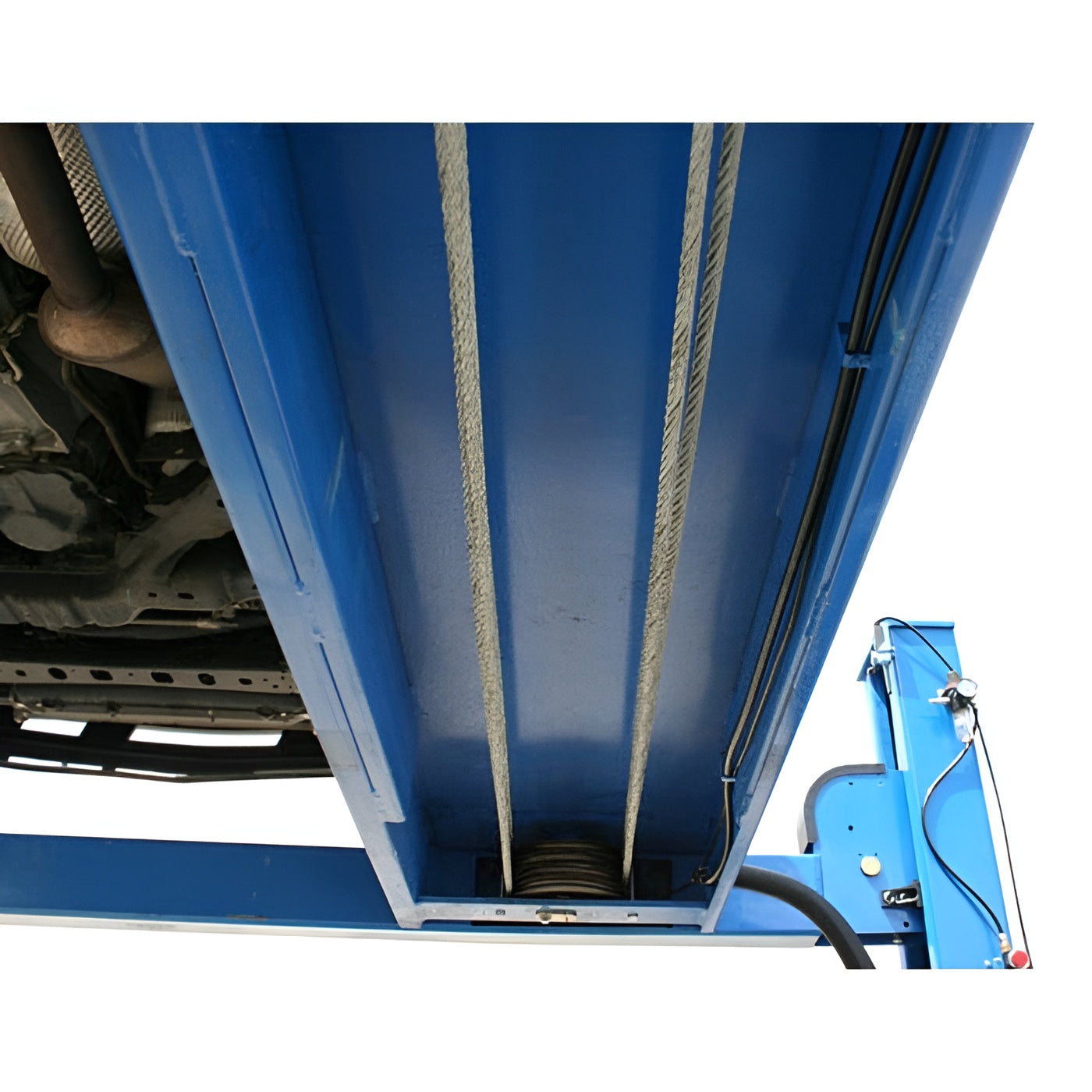

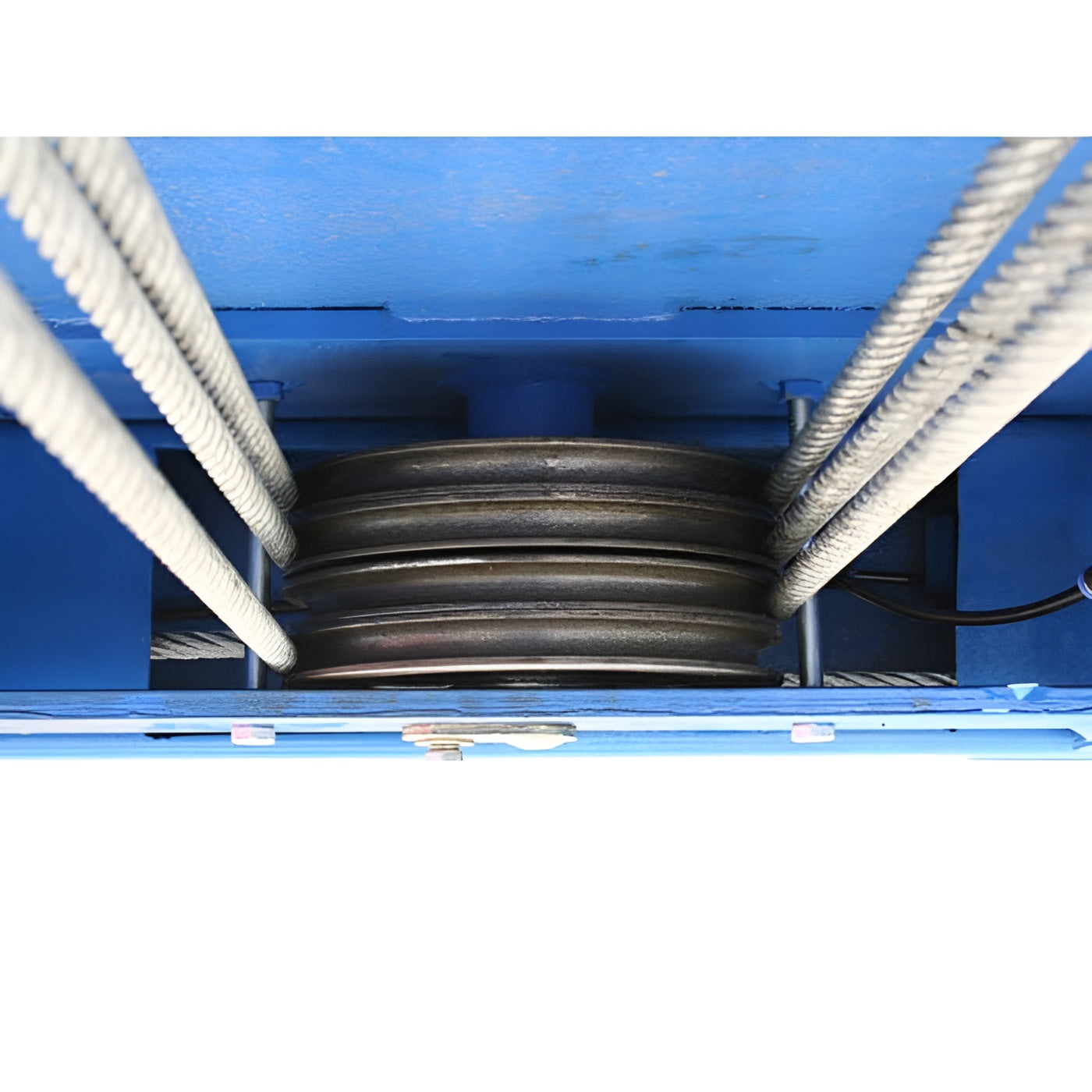

The Atlas 414A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
Besides having all the heavy duty features of the Atlas 414, the 414A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 414A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments.

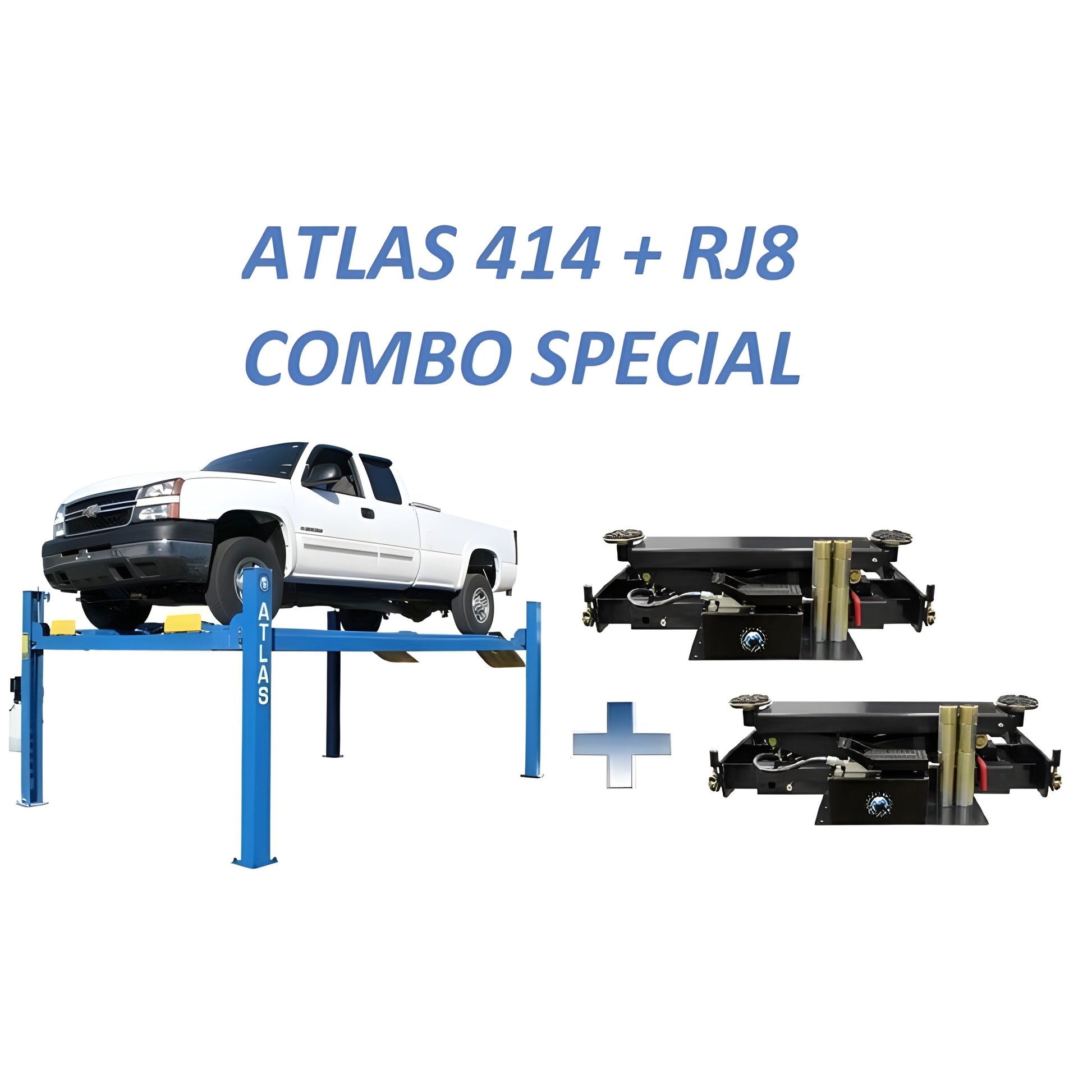

This combo package also includes two of the popular Atlas RJ8 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
414A
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Built-In Slip Plates & Alignment Turntables Included
- Multiple Positions for Turntable Placement
- Runway Covers Included (when Turntables are Removed)

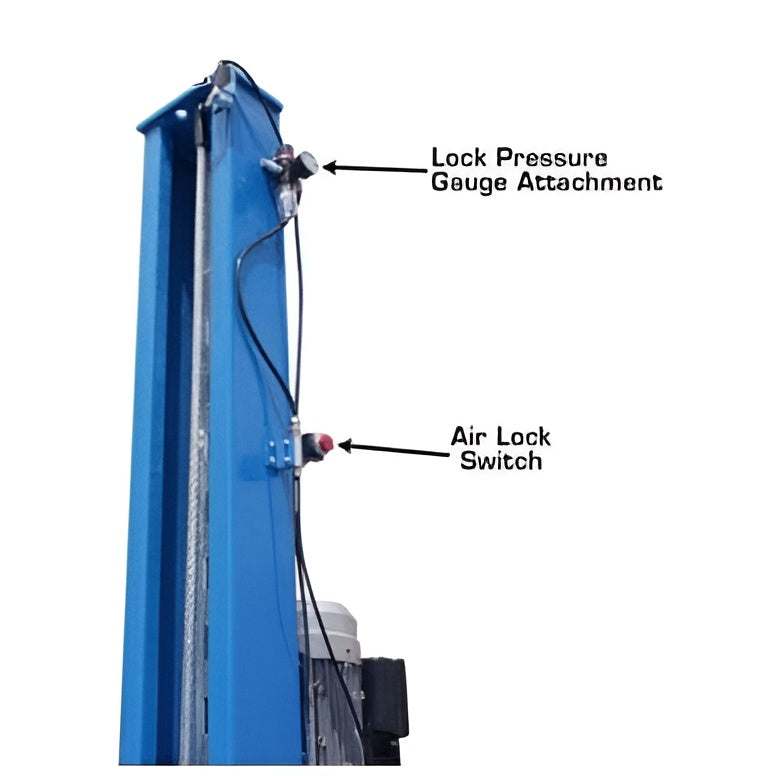

- Air Operated Single Point Lock Release (External Air Supply Required)

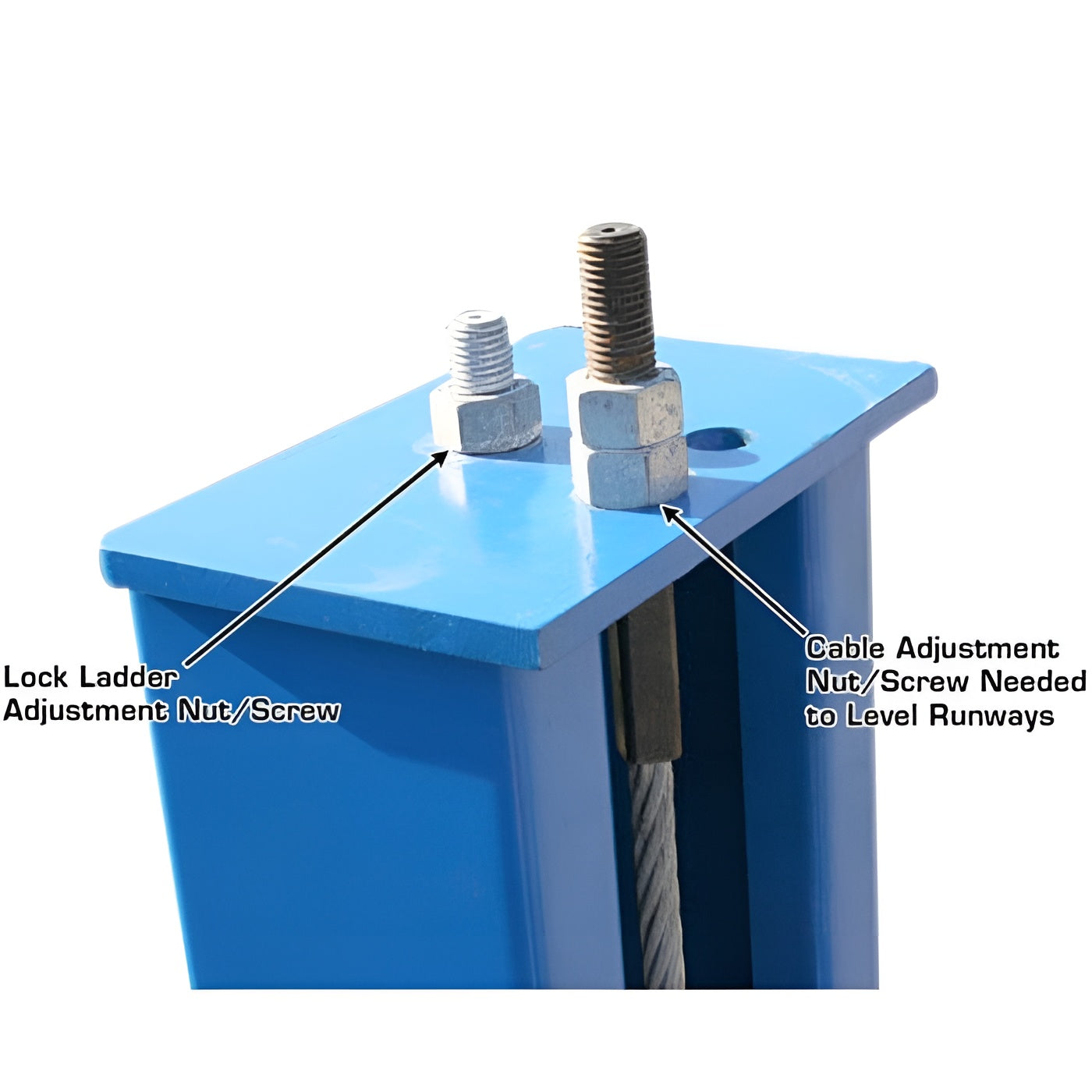

- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish

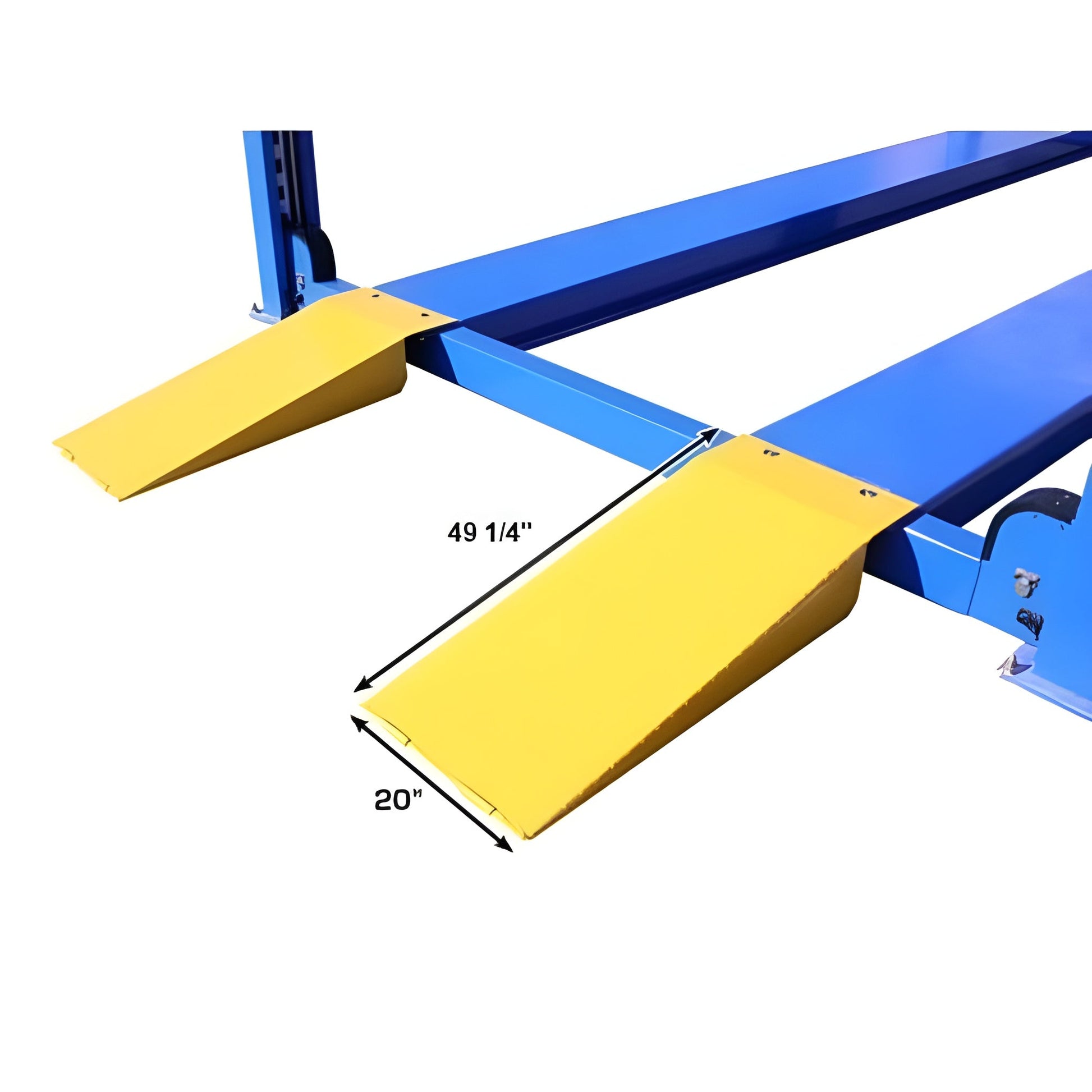

- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)

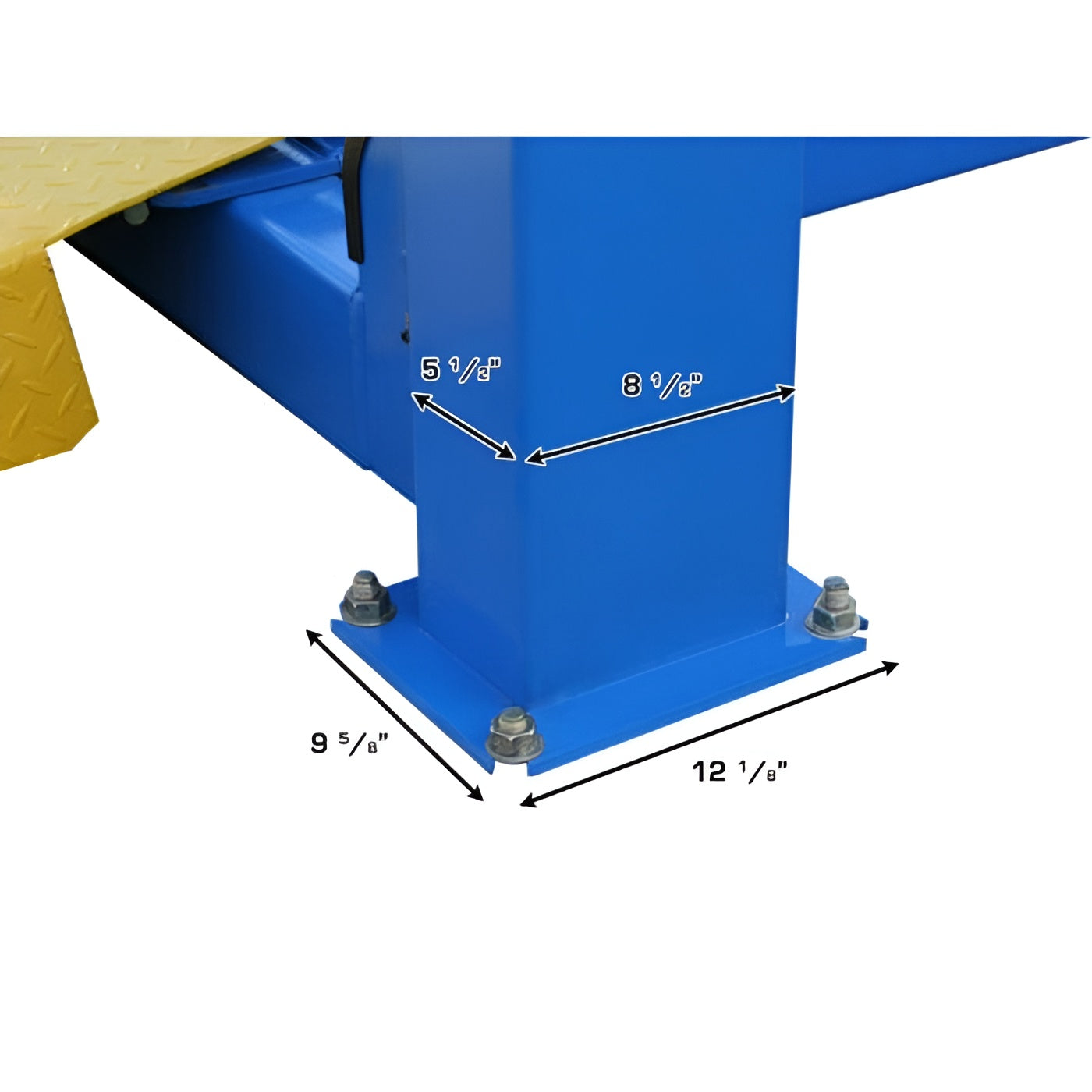

- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
RJ8
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
Specifications
| Capacity |
14,000 lb. |
| Lifting Height |
80" (6' 8") |
| Overall Width Of Columns (Without Motor) |
130 7/8" (10' 10 7/8") |
| Overall Width Of Columns (With Motor) |
138 7/8" (11' 6 7/8") |

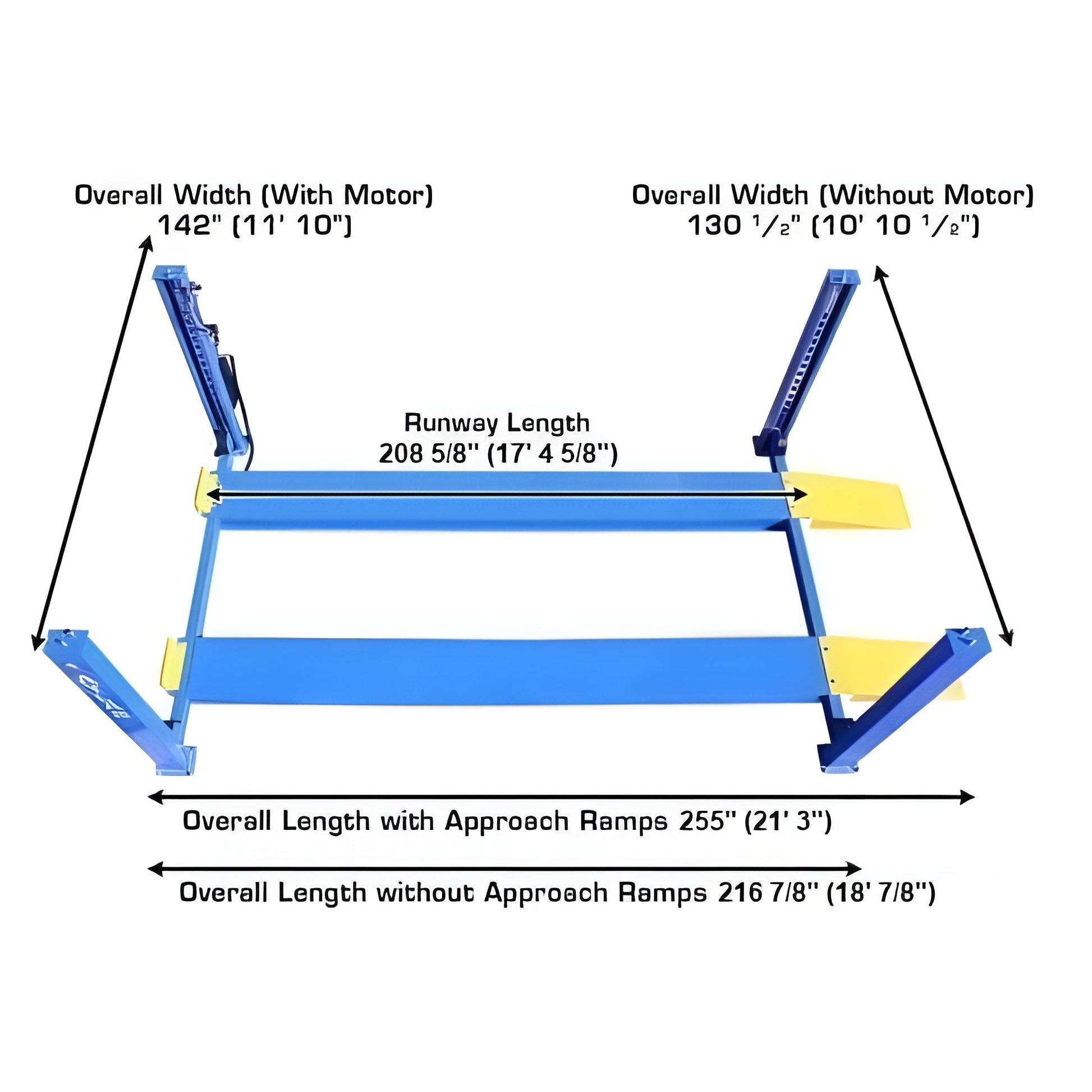

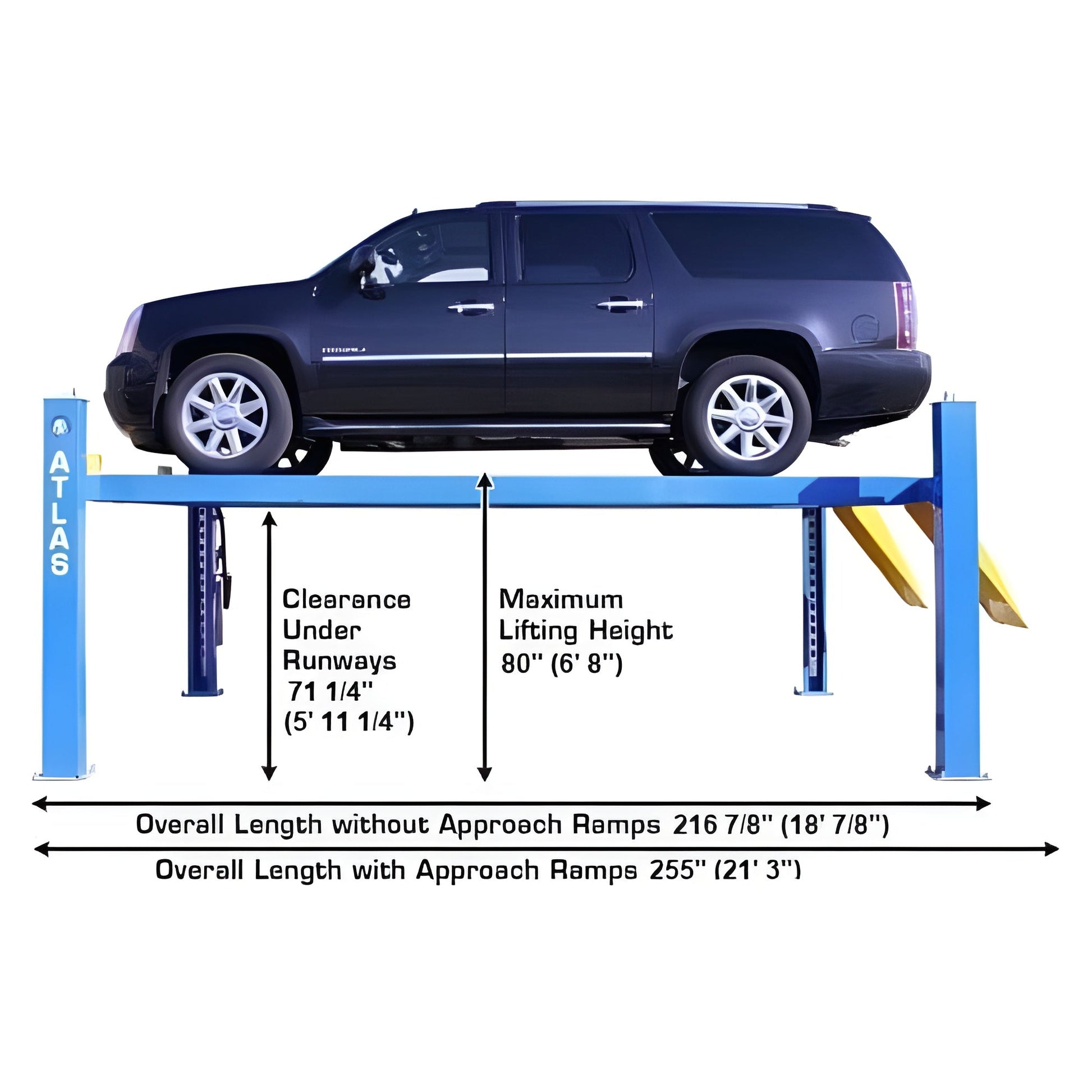

| Overall Length With Approach Ramp |
255" (21' 3") |
| Length Between Columns |
197 1/4" (16' 5 1/4") |
| Runway Length |
208 5/8" (17' 4 5/8") |
| Runway Width |
20" |
| Thickness Of Runway |
8 3/4" |

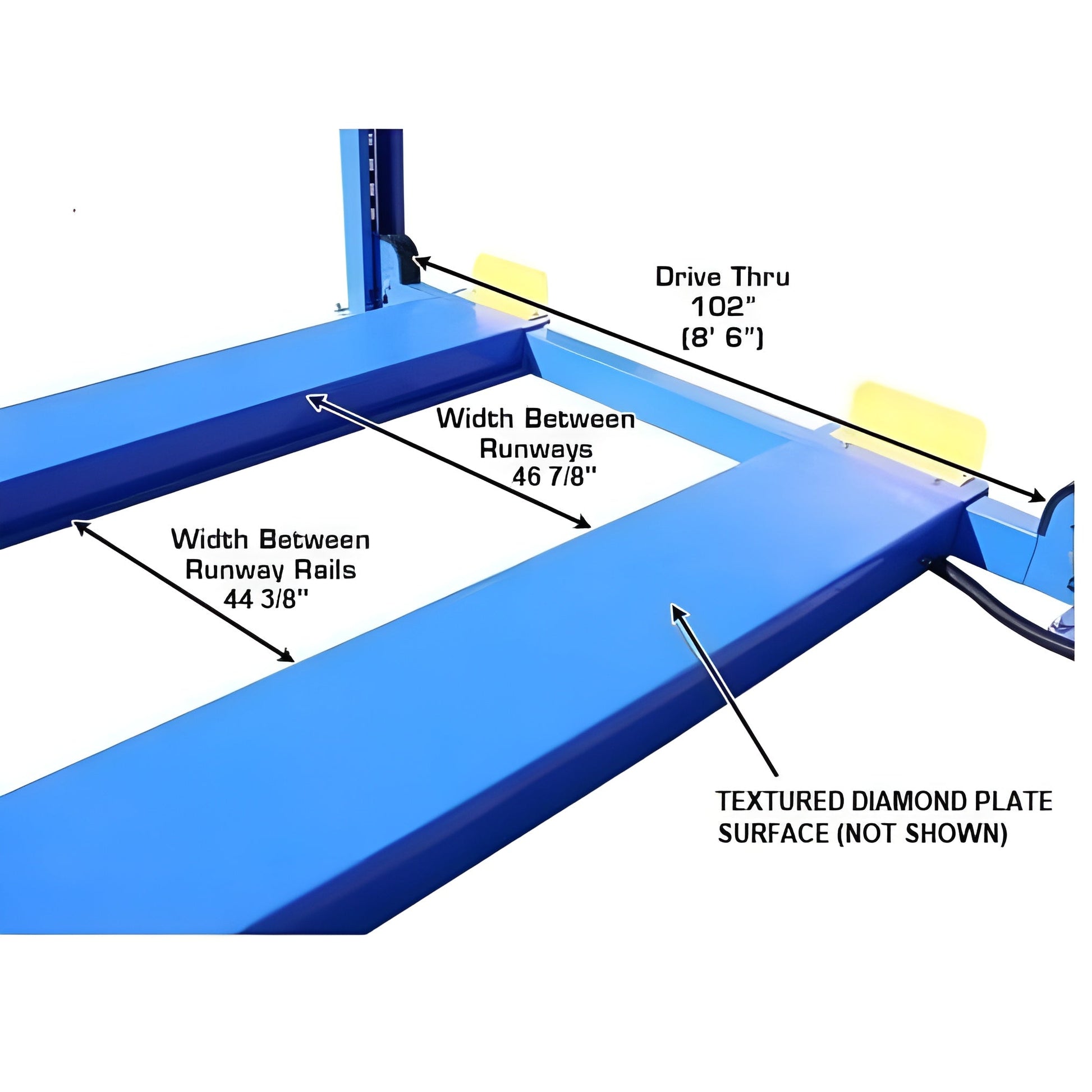

| Width Between Runways |
46 7/8" (w/ Rail 44 3/8") |
| Outside Runway To Outside Runway |
86 7/8" (7' 2 7/8") |
| Clearance Under Runways |
71 1/4" (5' 11 1/4") |
| Clearance Between Columns |
116" (9' 8") |

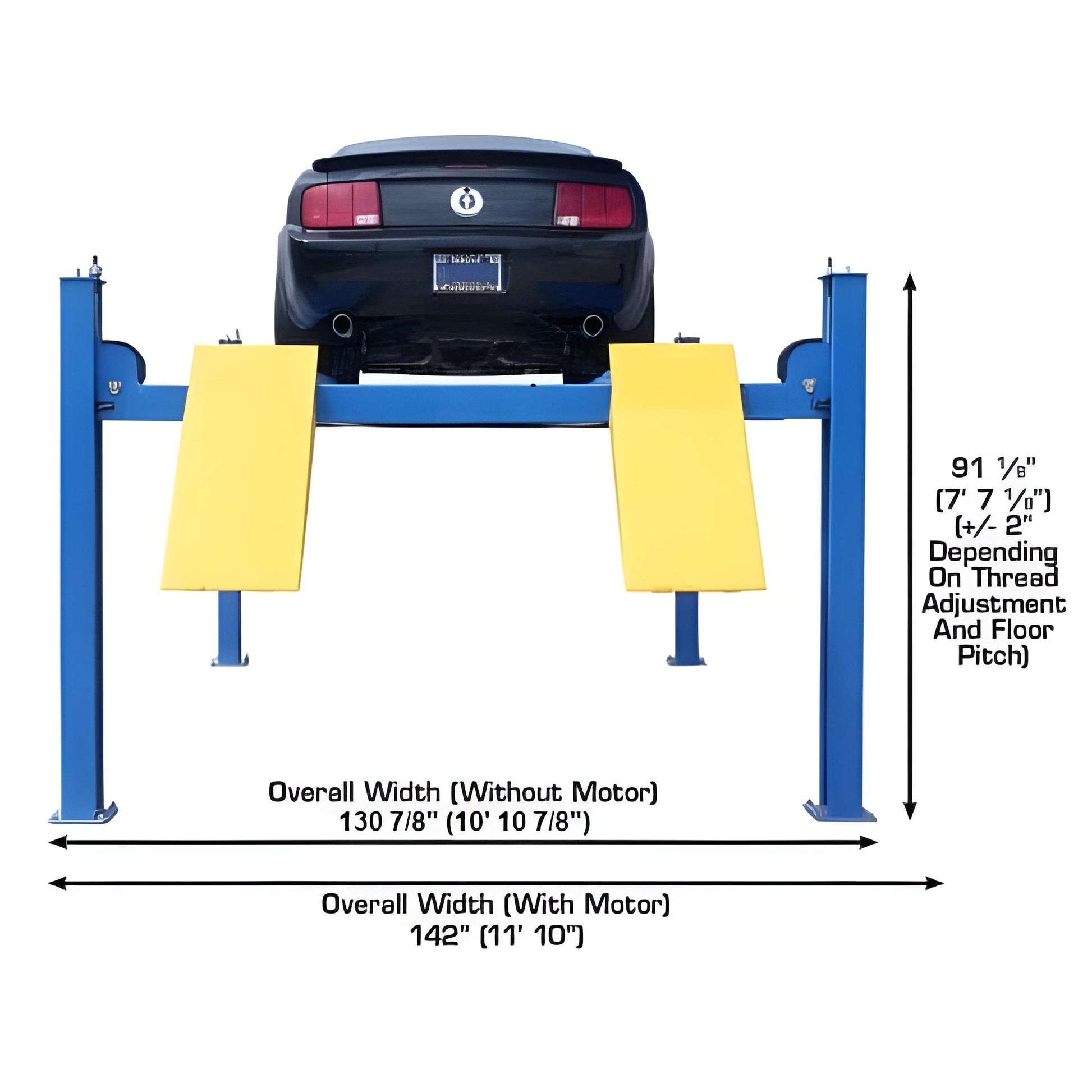

| Height Of Columns |
91 1/8" (7' 7 1/8") |
| Maximum Wheel Base |
197" (16' 5") |
| Drive Thru |
102 1/8" (8' 6 1/8") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
| Atlas RJ8000 Specifications |
|
| Maximum Capacity |
8,000 lb. |
| Maximum Width |
66 1/2" (5' 6 1/2") |
| Minimum Width |
40" (3' 4") |
| Distance Between Runway Capability |
34 1/2"-55" |
| Maximum Lifting Height (With Adapters) |
30" |
| Air Requirement |
70-115 PSI |
| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
Atlas ATTD-414A Specifications
Manual
Atlas ATTD-414A Manual
Atlas 414A Cylinder Bleeding Procedure (Do this immediately after installation)
What our Expect Think
-
14,000 lb Capacity: Supports large trucks, SUVs, and commercial vehicles.
-
Precision Alignment System: Equipped with turntables and slip plates for accurate alignments.
-
Includes RJ8 Rolling Jacks: Enables wheel-free lifting for brake, suspension, and tire work.
-
Heavy-Duty 4-Post Design: Ensures maximum stability and durability.
-
Smooth Drive-On Ramps: Allows for quick and efficient vehicle positioning.
-
Reliable Hydraulic System: Provides controlled, smooth lifting and lowering.
Q&A
Q: What is the weight capacity of the Atlas 414A lift?
A: It has a 14,000 lb capacity, making it ideal for heavy-duty trucks, vans, and commercial vehicles.
Q: Is this lift designed for wheel alignments?
A: Yes, it alignment-compatible runways, built-in slip plates, and turntable recesses for precision alignments.
Q: What does the RJ8 Rolling Jacks Combo include?
A: The package includes two RJ8 rolling bridge jacks, each with an 8,000 lb lifting capacity for wheel-free vehicle lifting.
Q: What is the maximum lifting height?
A: The lift raises vehicles up to approximately 75 inches..
Q: What power supply is required?
A: It operates on a 220V single-phase power supply.
Maintenance Tips
-
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables on both the lift and jacks.
-
Lubrication – Grease pulleys, cables, and jack components monthly for smooth operation.
-
Hydraulic System – Monitor fluid levels and inspect hoses for cracks, leaks, or wear.
-
Safety Locks – Ensure all lock mechanisms engage properly and remain free from debris.
-
Cable & Jack Maintenance – Regularly adjust lift cables and inspect RJ8 jacks for even wear.
-
Annual Check-Up – Conduct a full system inspection and replace worn components on both lift and jacks.
