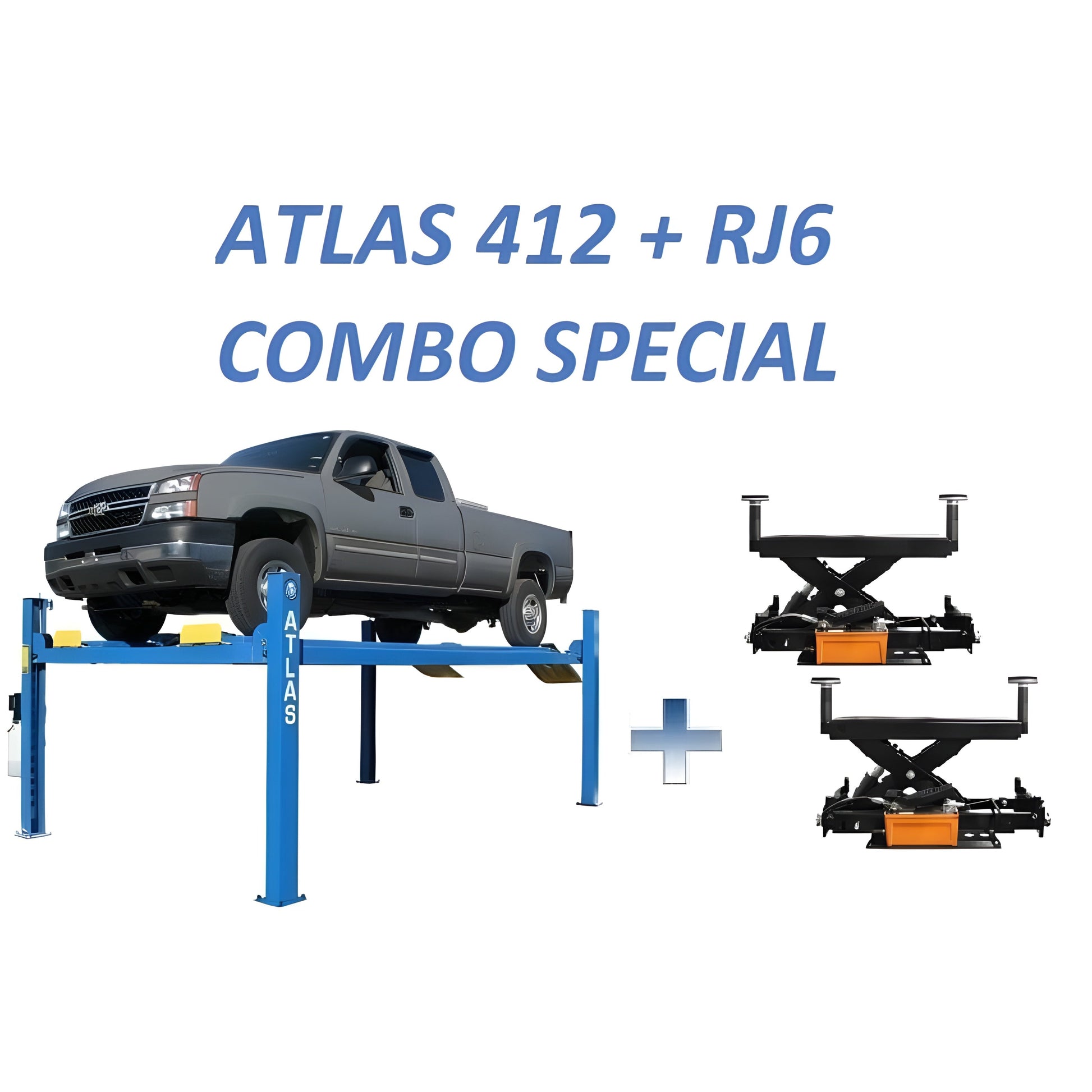

Atlas 412 12,000 lb 4-Post Lift + RJ6 Jacks Combo - ATEATTD-412-COMBO-FPD
The Atlas 412 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 412 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 412 has been manufactured to the same exacting specifications for many years.

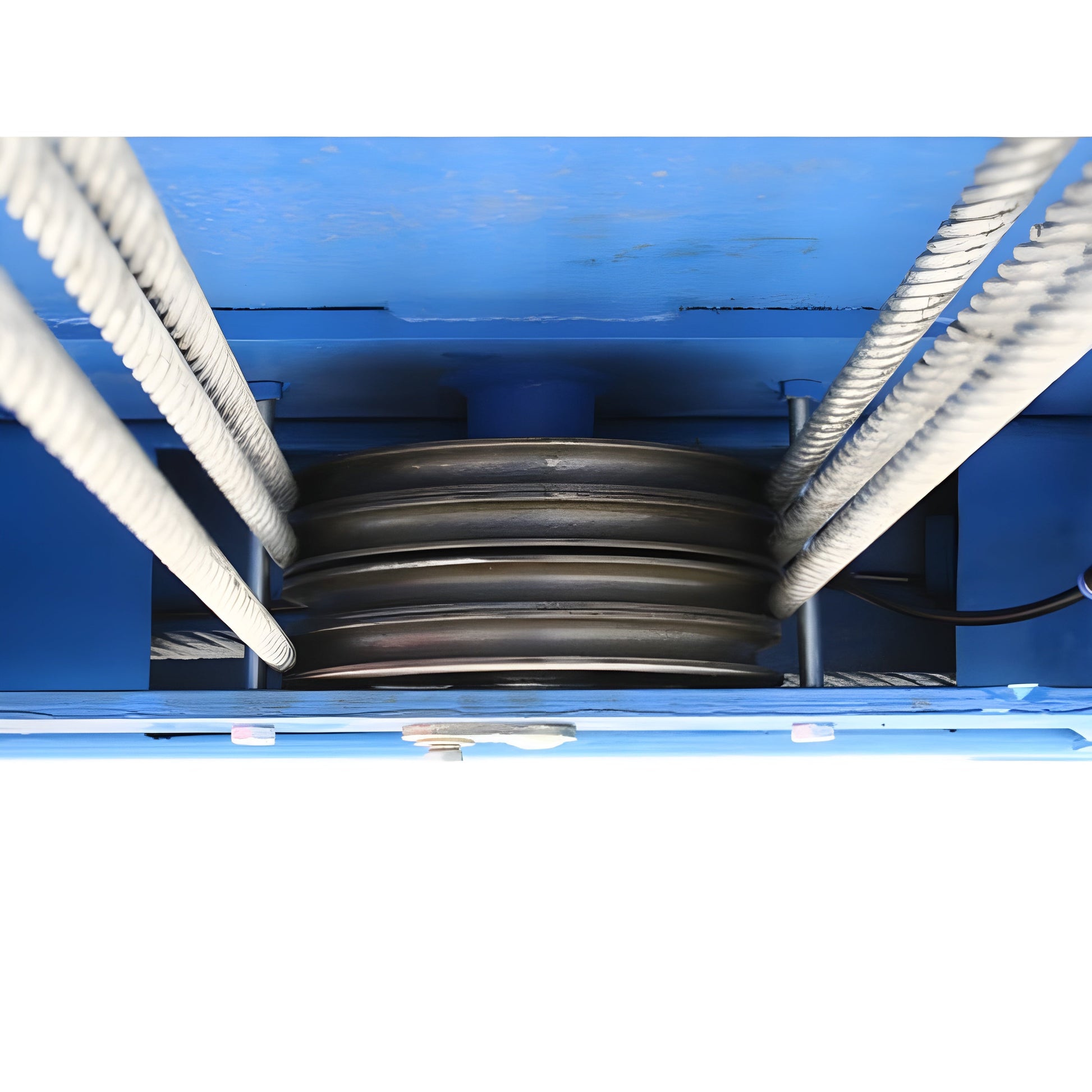

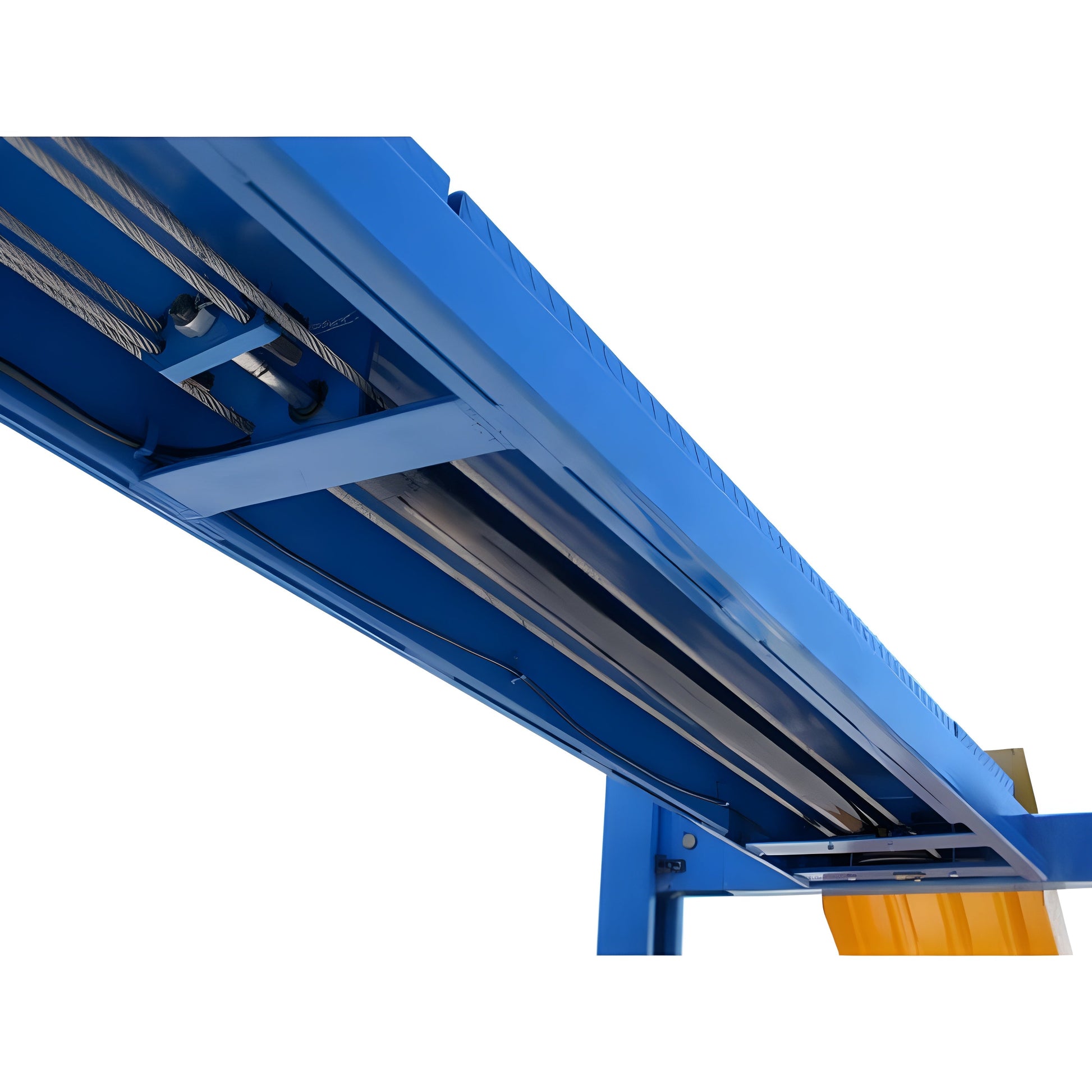

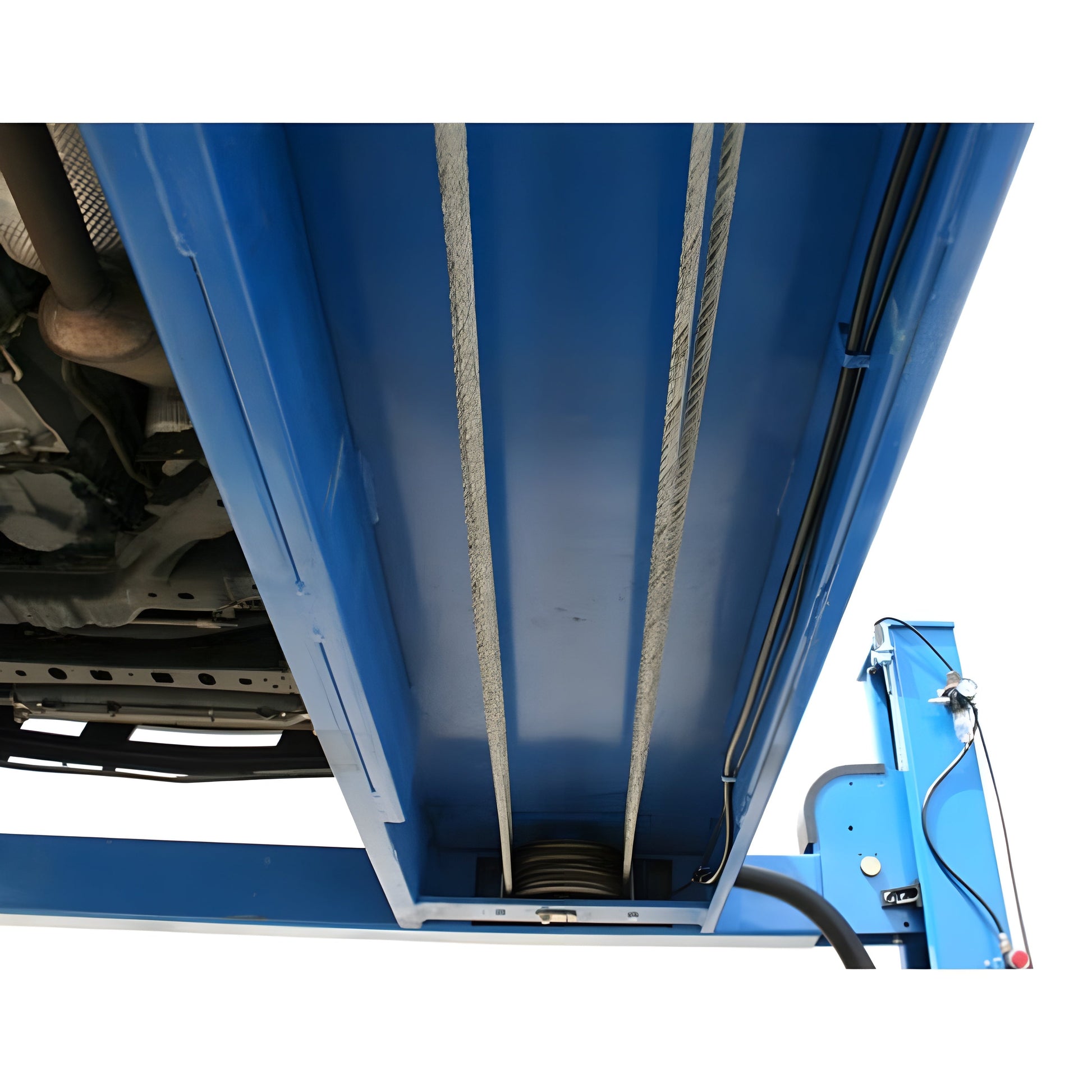

The Atlas 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
This combo package also includes two of the popular Atlas RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Video
Features
412
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways

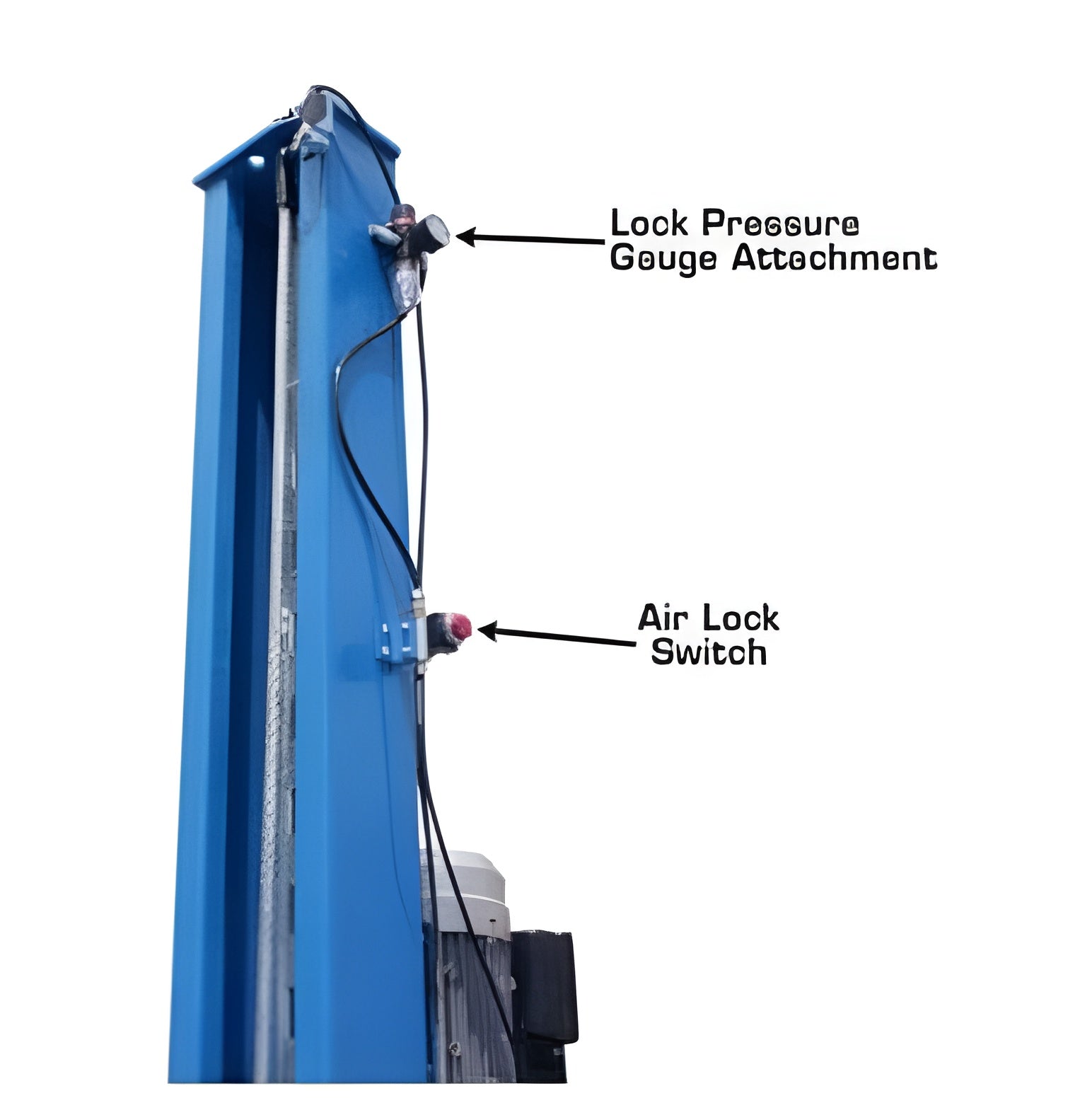

- Air Operated Single Point Lock Release (External Air Supply Required)

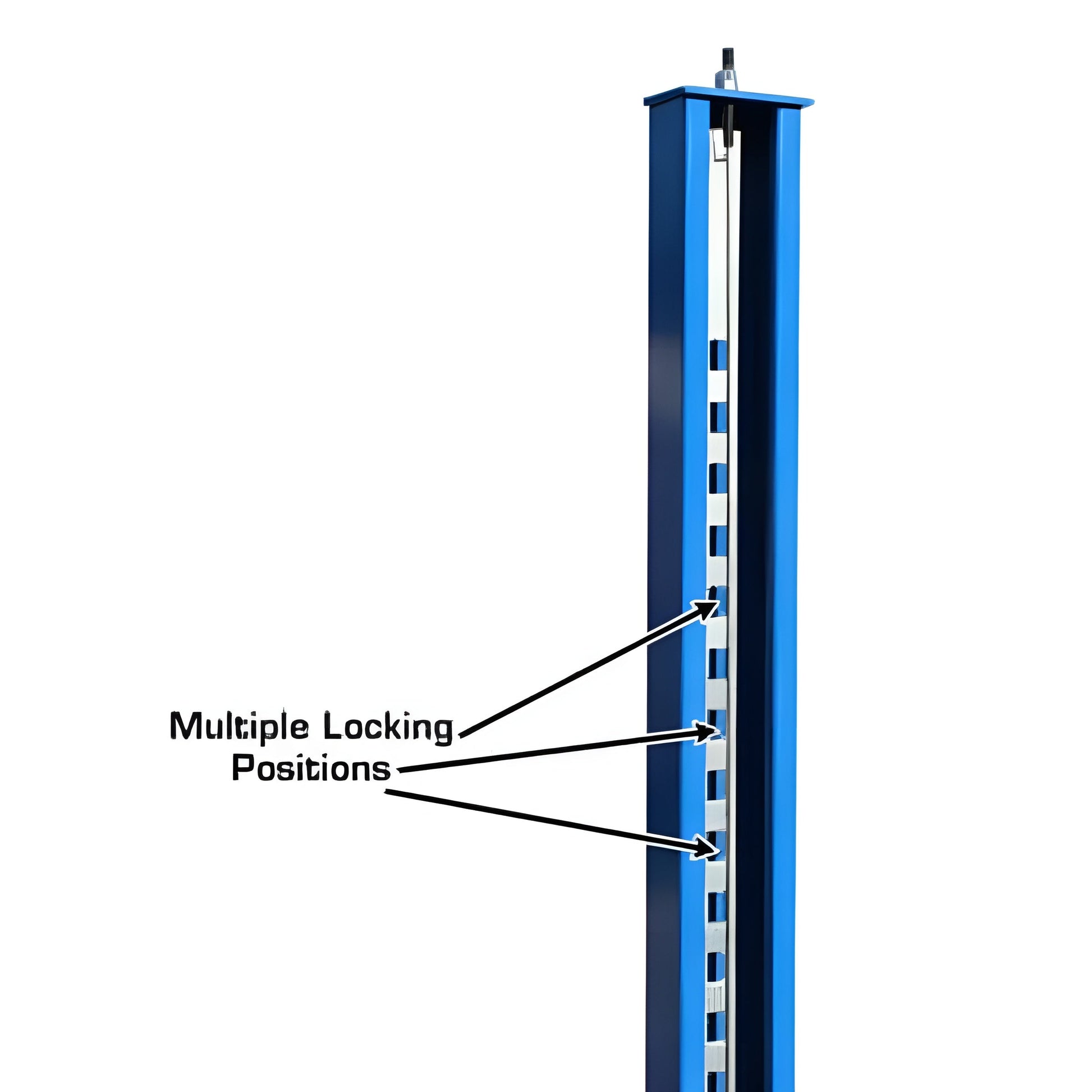

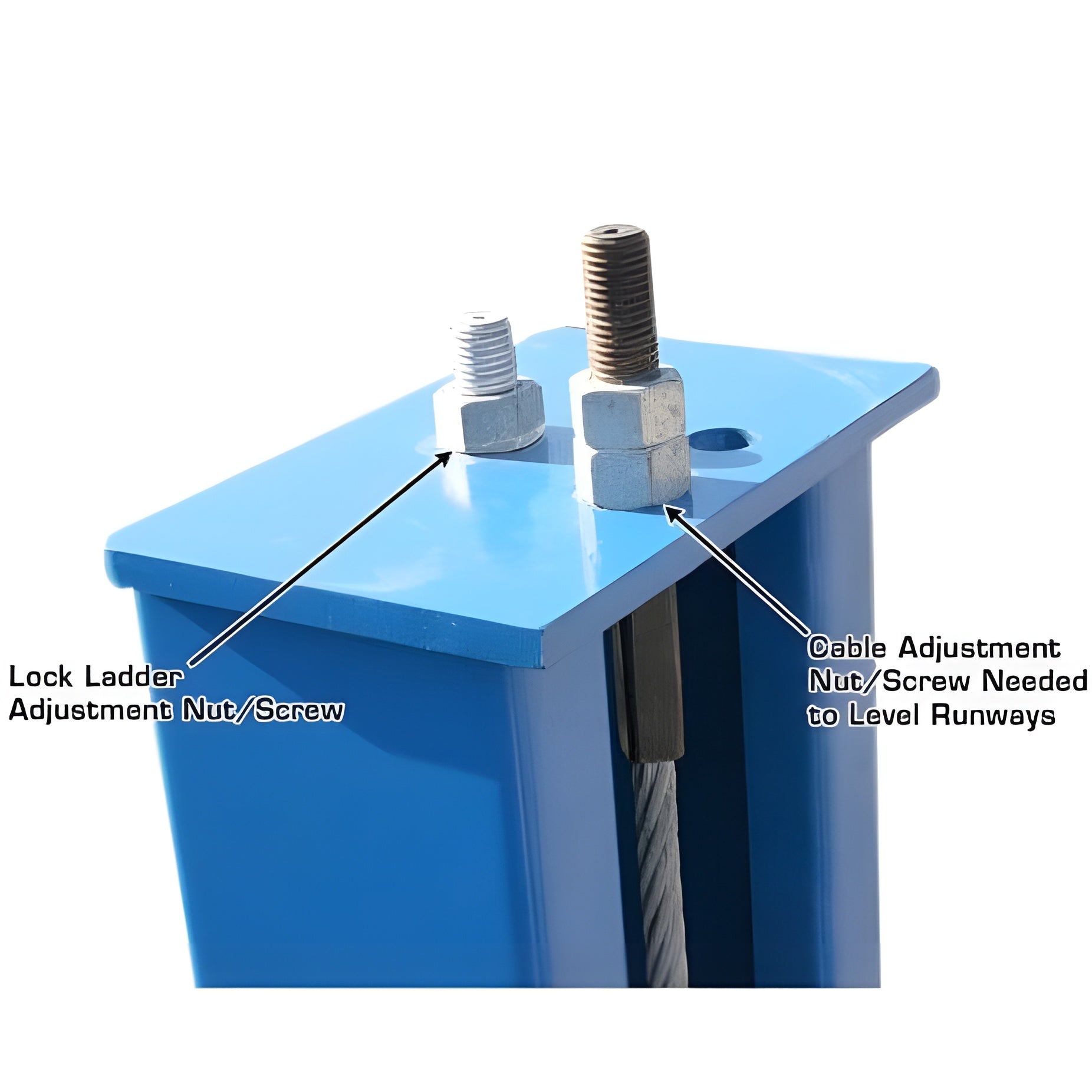

- Lock Ladder Design

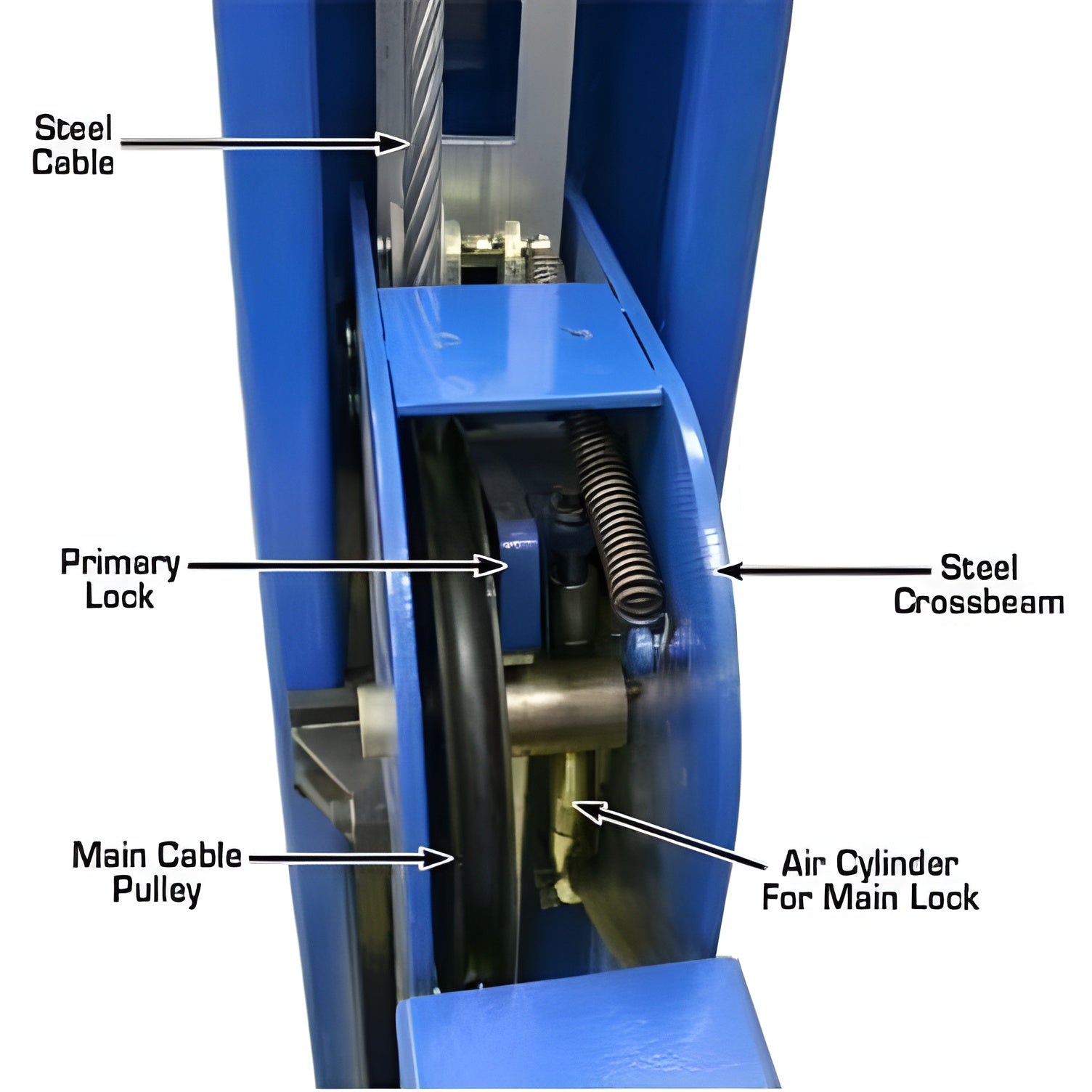

- Double Lock Safety System
- Powder Coat Finish

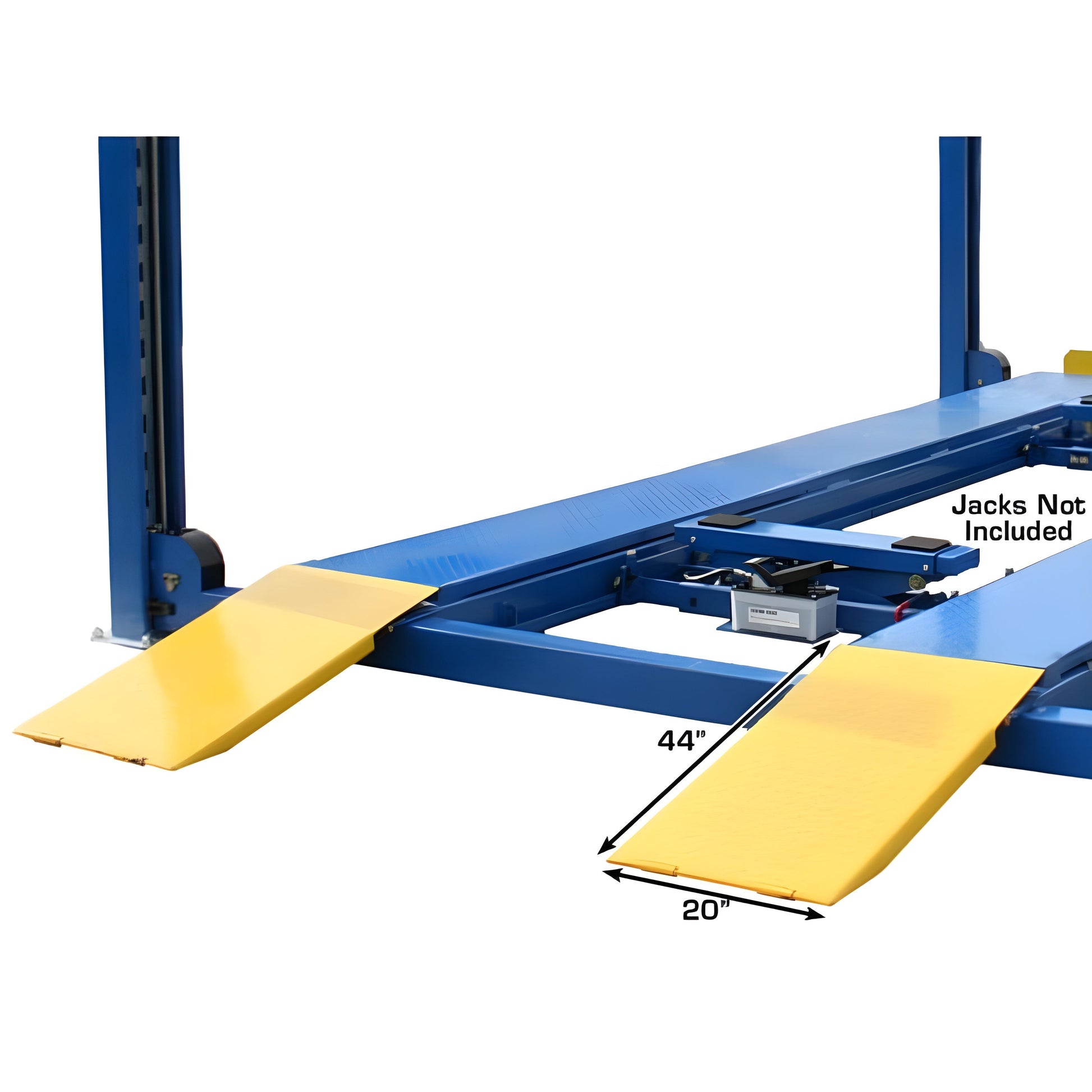

- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)

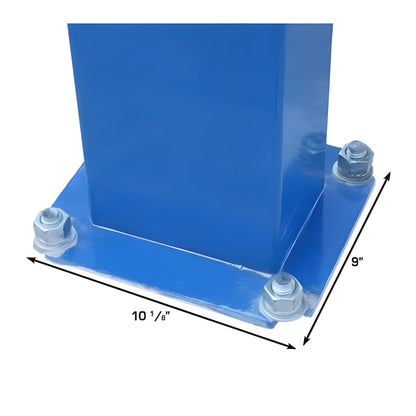

- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
RJ6
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
Specifications
| Capacity |
12,000 lb. |
| Lifting Height |
77 3/4" (6' 5 3/4") |

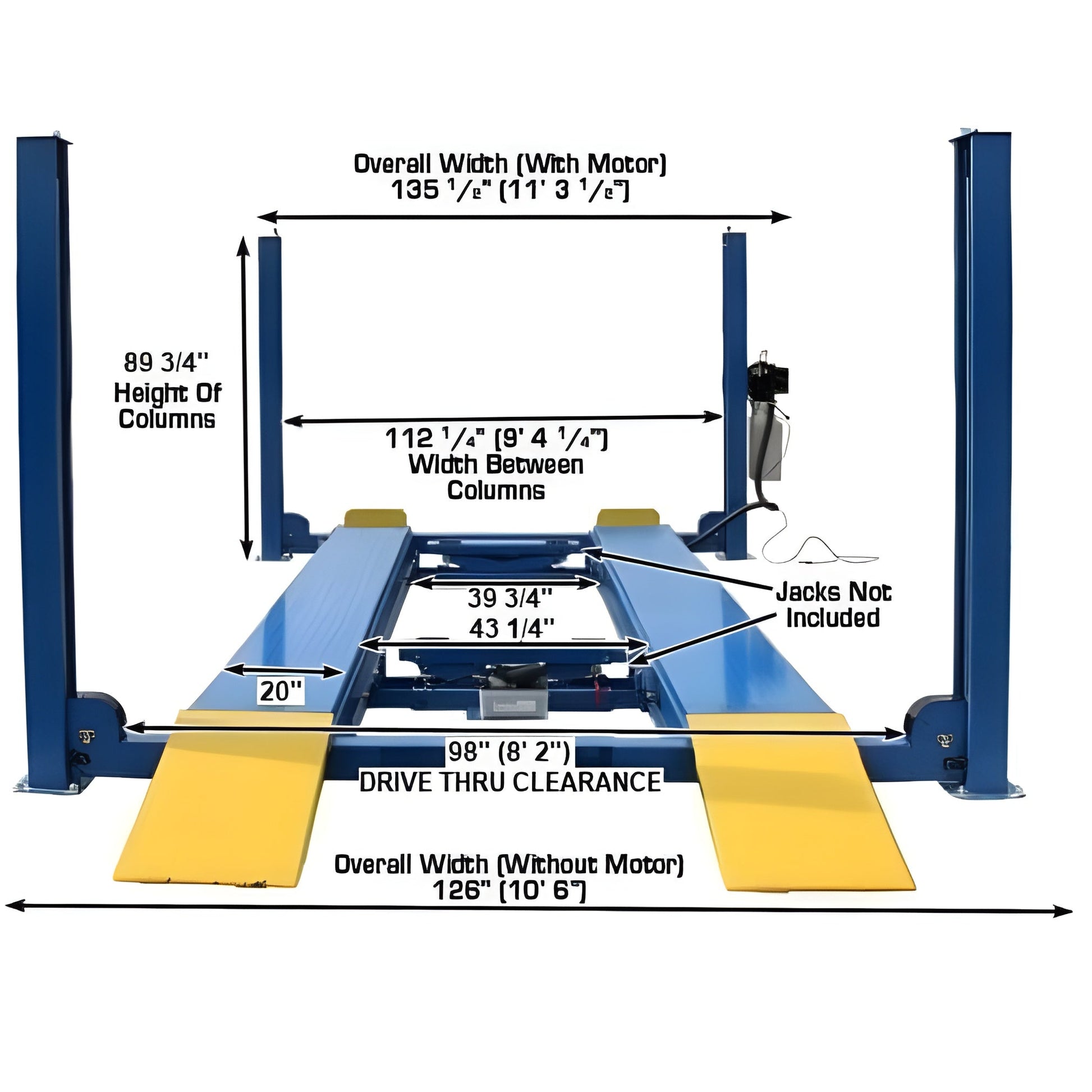

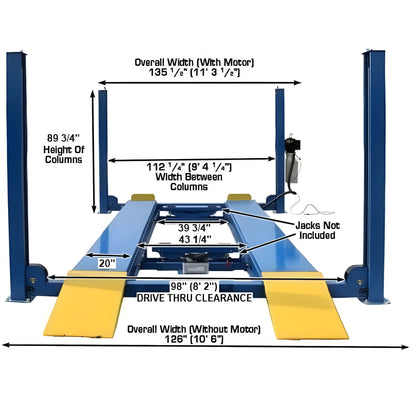

| Overall Width Of Columns (Without Motor) |
126 1/4" (10' 6 1/4") |
| Overall Width Of Columns (With Motor) |
135 1/4" (11' 3 1/4") |

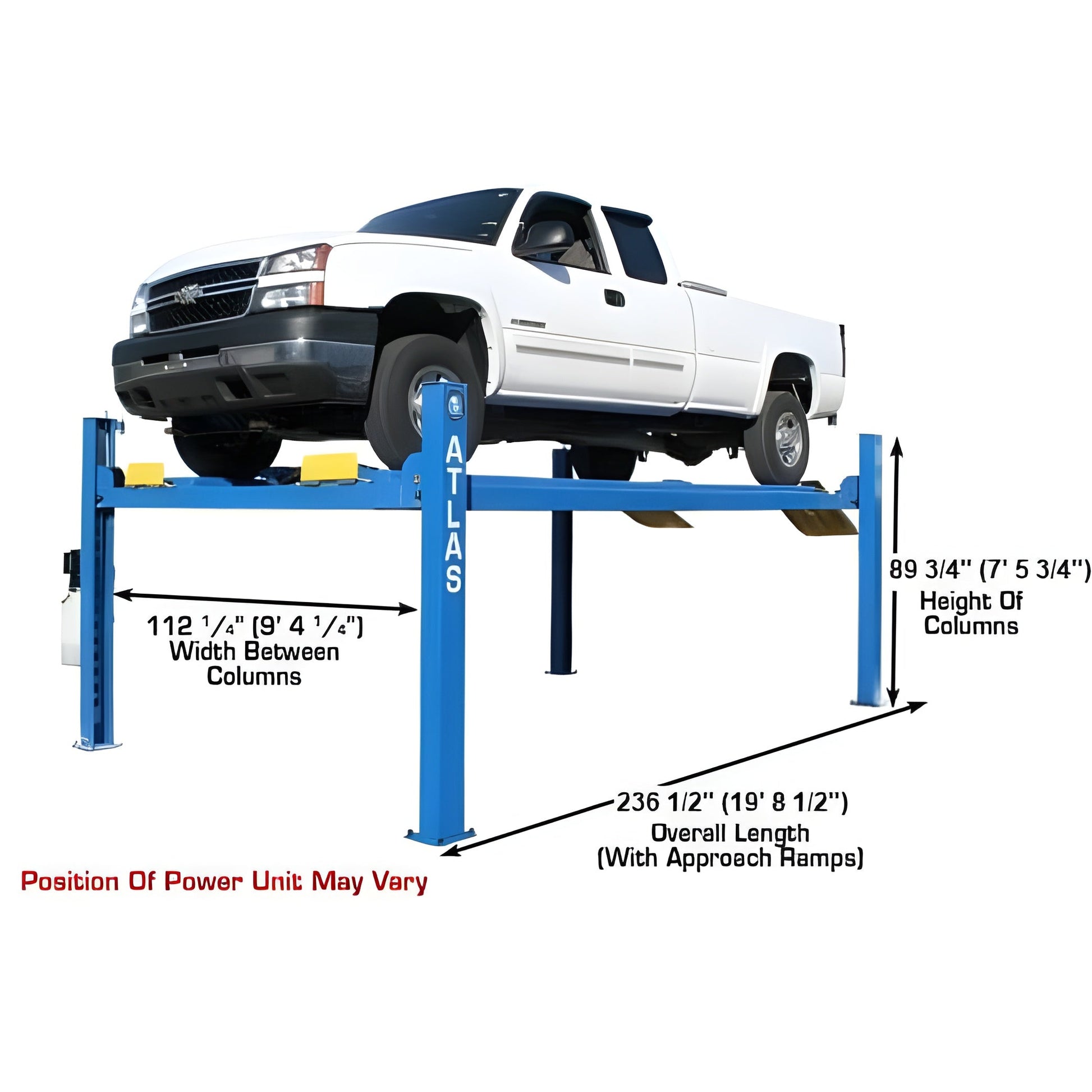

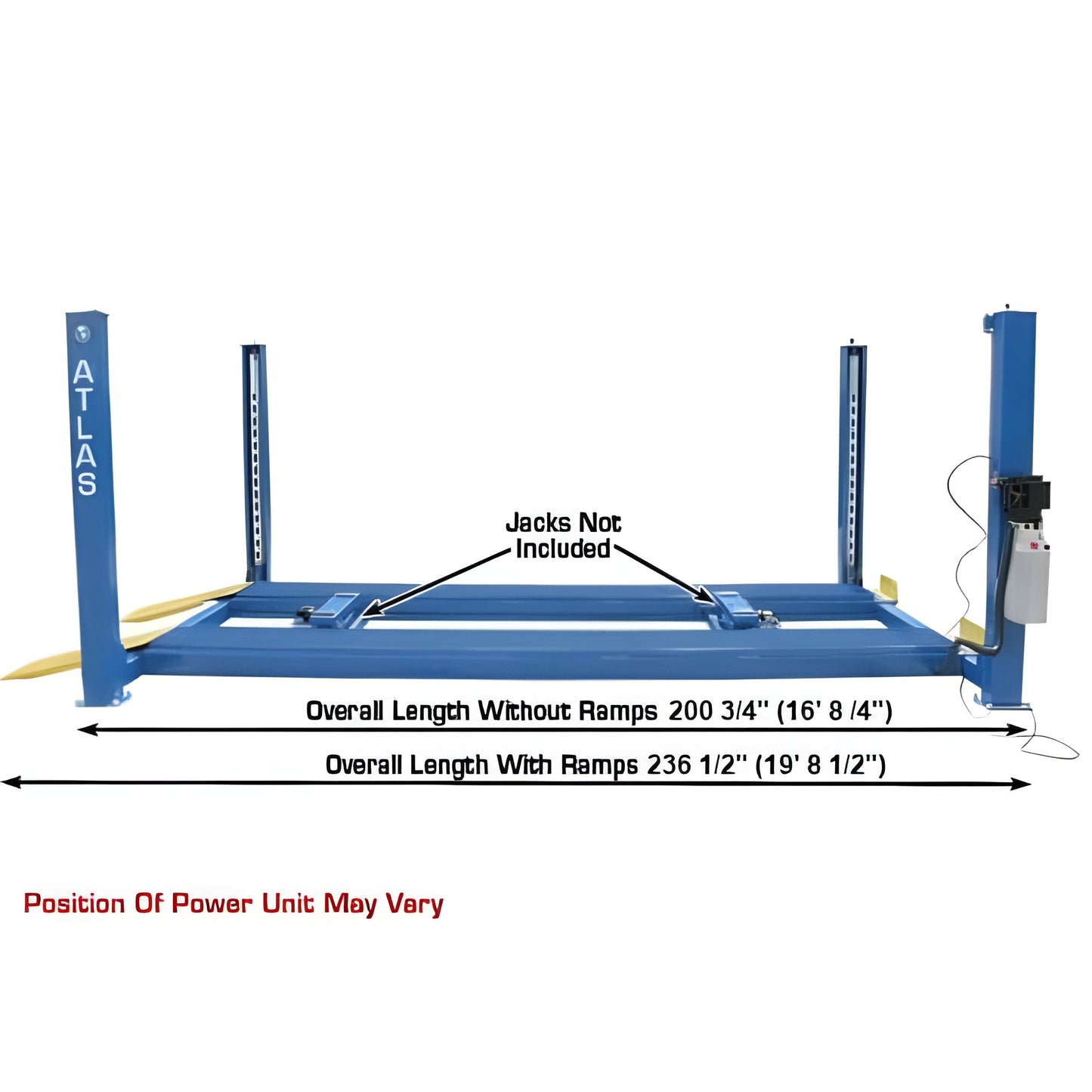

| Overall Length With Approach Ramp |
236 1/2" (19' 8 1/2") |
| Length Between Columns |
183 1/4" (15' 3 1/4") |
| Runway Length |
194 1/2" (16' 2 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7 1/2" |
| Width Between Runways |
43 1/4" (w/ Rail 39 3/4") |
| Outside Runway To Outside Runway |
83 1/4" (6' 11 1/4") |

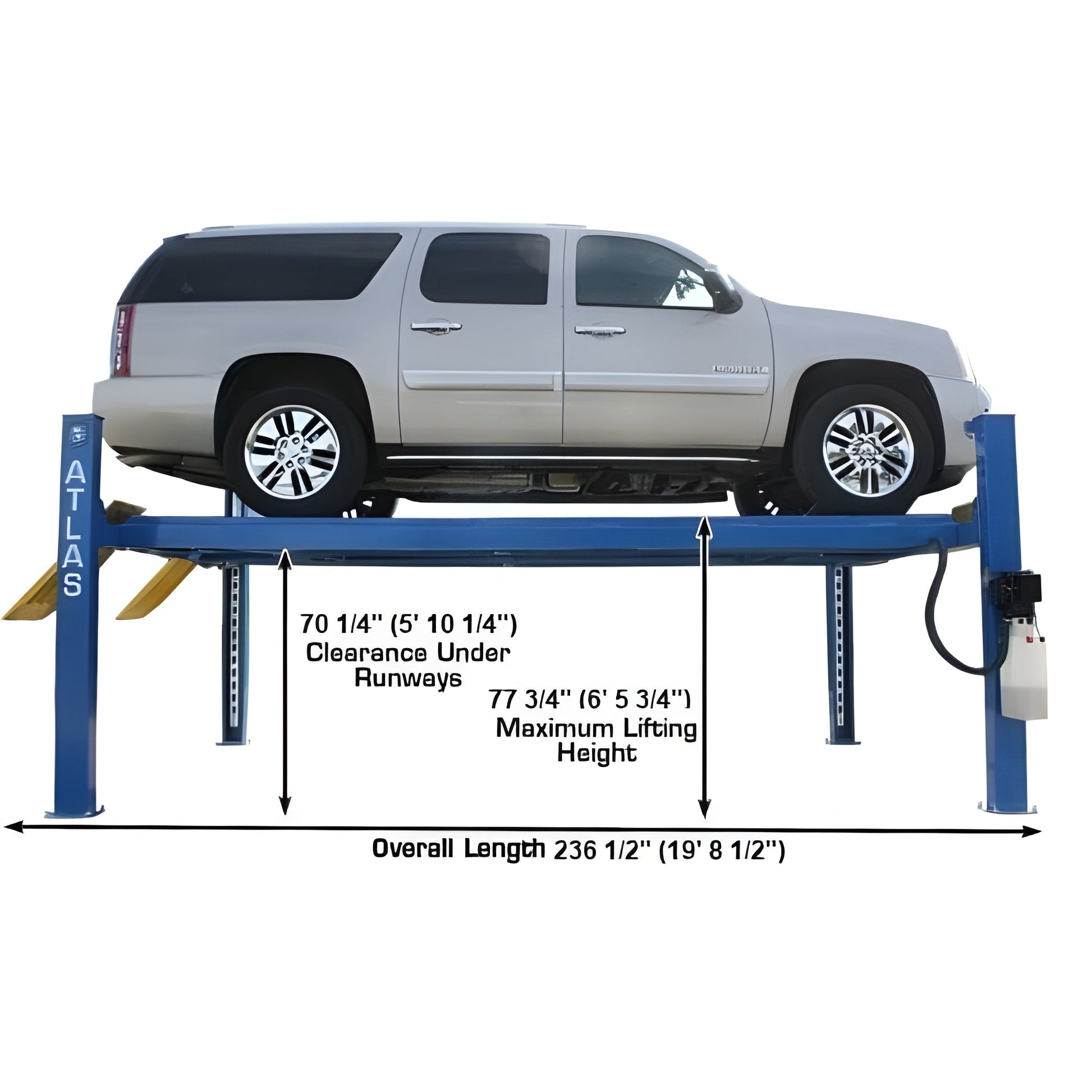

| Clearance Under Runways |
70 1/4" (5' 10 1/4") |

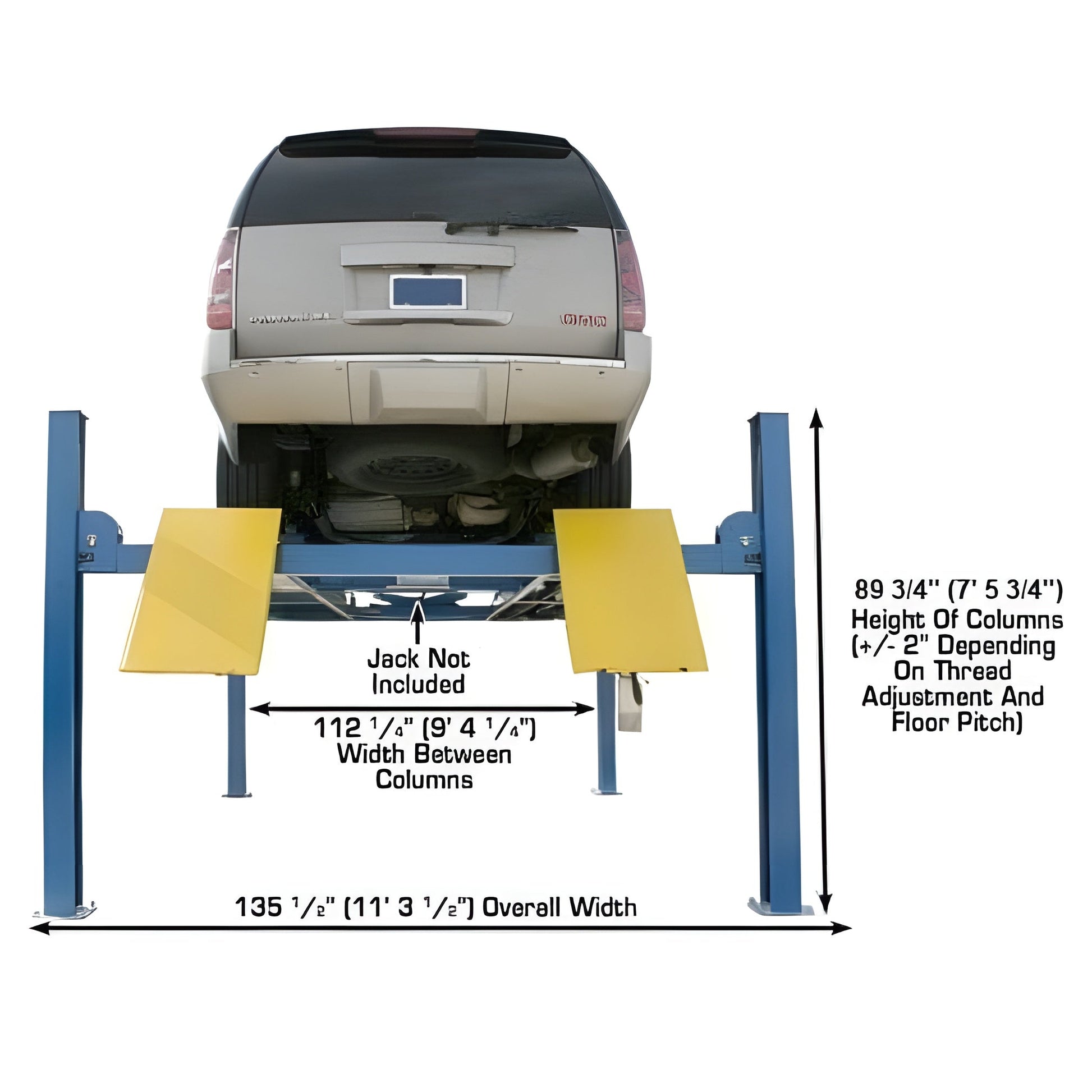

| Clearance Between Columns |
112 5/8" (9' 4 5/8") |

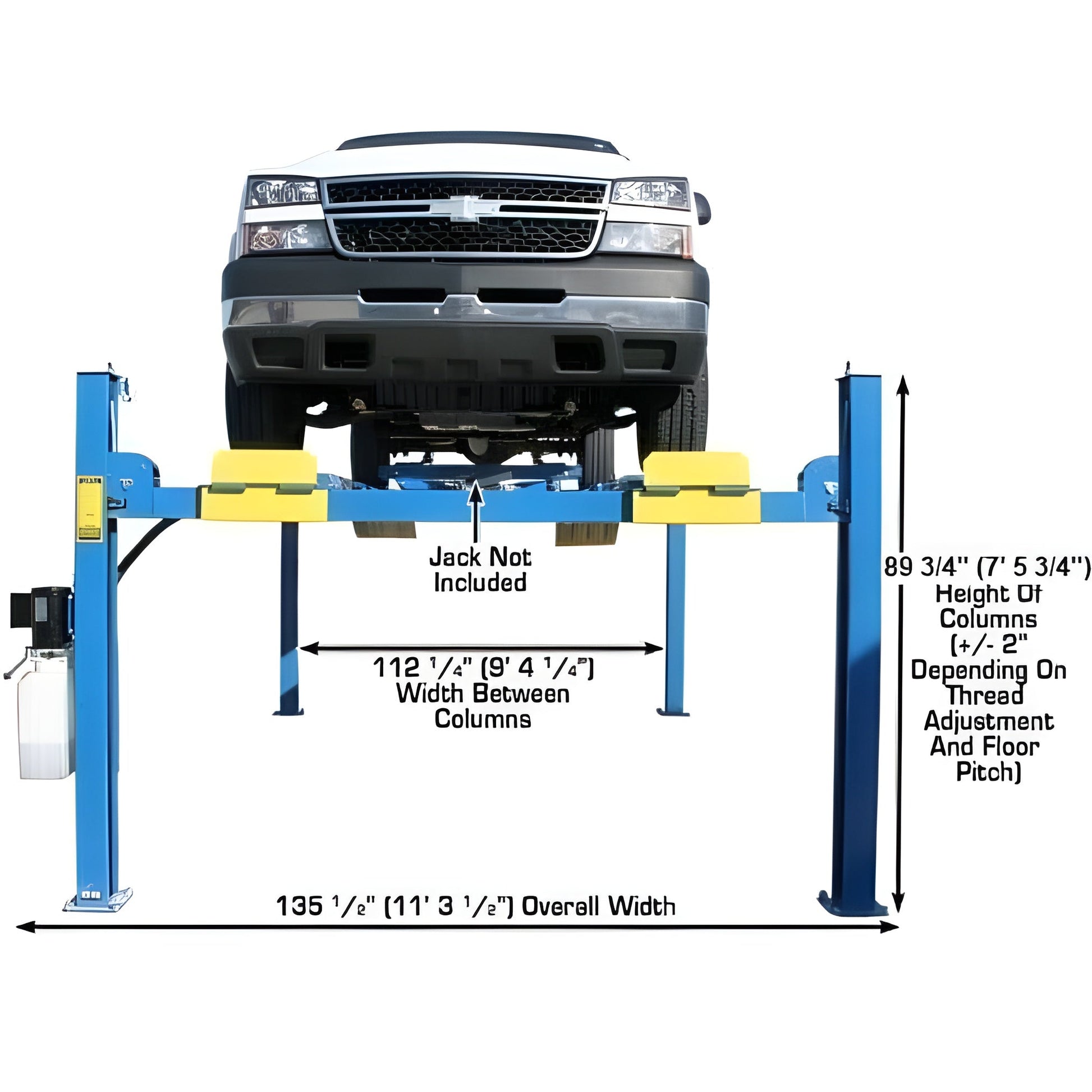

| Height Of Columns |
89 3/4" (7' 5 3/4") |
| Maximum Wheel Base |
185" (15' 5") |
| Drive Thru |
98" (8' 2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,800 LBS. |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
| Atlas RJ6 Specifications |
|
| Maximum Capacity |
6,000 lb. |
| Maximum Width |
55" (4' 7") |
| Minimum Width |
35" (2' 11") |
| Distance Between Runway Capability |
32"-52" |
| Maximum Lifting Height (With Adapters) |
21" (1' 9") |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
350 lbs. |
| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
Manual
Atlas ATTD-412 Manual
What our Expect Think
-
12,000 lb Capacity: Handles a wide range of vehicles, from sedans to heavy-duty trucks.
-
Includes RJ6 Rolling Jacks: Enhances versatility for wheel-free lifting and brake/suspension work.
-
Durable 4-Post Design: Provides superior stability and safety for commercial use.
-
Smooth Drive-On Ramps: Simplifies vehicle positioning for quick and easy lifts.
-
Heavy-Duty Hydraulic System: Ensures reliable, controlled lifting and lowering.
-
Ideal for Shops & Garages: Perfect for storage, repairs, and vehicle maintenance.
Q&A
Q: What is the weight capacity of the Atlas 412 lift?
A: It has a 12,000 lb capacity, making it ideal for commercial vehicles, trucks, and SUVs.
Q: What does the RJ6 Jacks Combo include?
A: The package includes two RJ6 rolling bridge jacks, each with a 6,000 lb lifting capacity for wheel-free lifting.
Q: Is this lift suitable for wheel alignments?
A: No, the Atlas 412 is a general-purpose 4-post lift and does not have alignment features.
Q: What is the maximum lifting height?
A: The lift raises vehicles up to approximately 75 inches..
Q: What power supply is required?
A: It operates on a 220V single-phase power supply.
Maintenance Tips
-
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables on both the lift and jacks.
-
Lubrication – Grease pulleys, cables, and jack components monthly for smooth operation.
-
Hydraulic System – Monitor fluid levels and inspect hoses for cracks, leaks, or wear.
-
Safety Locks – Ensure all lock mechanisms engage properly and remain free from debris.
-
Cable & Jack Maintenance – Regularly adjust lift cables and inspect RJ6 jacks for even wear.
-
Annual Check-Up – Conduct a full system inspection and replace worn components on both lift and jacks.
