Atlas 180 LB. Capacity Offset Pneumatic Portable Wheel Lift - ATEATTC-AEZWL-2-FPD

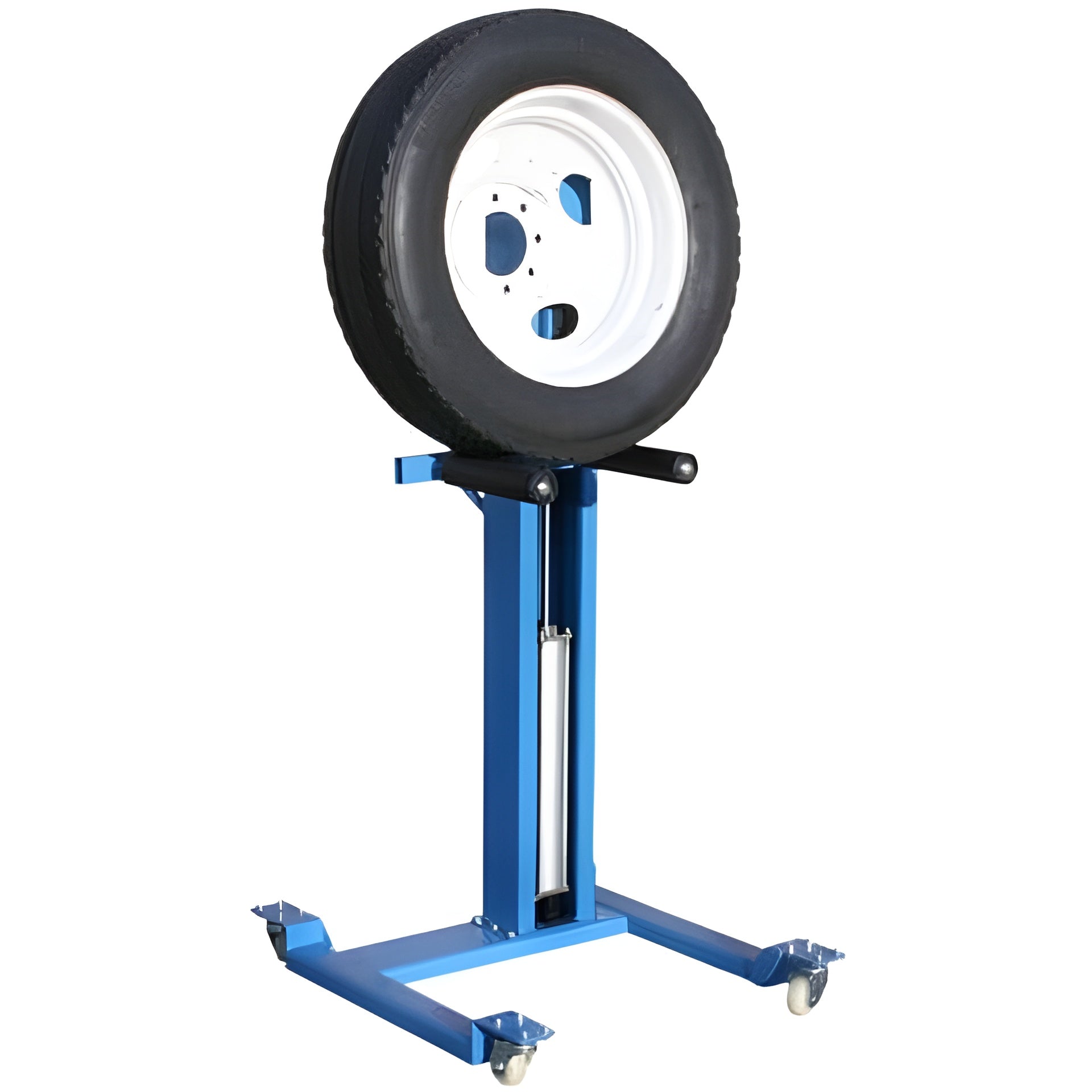

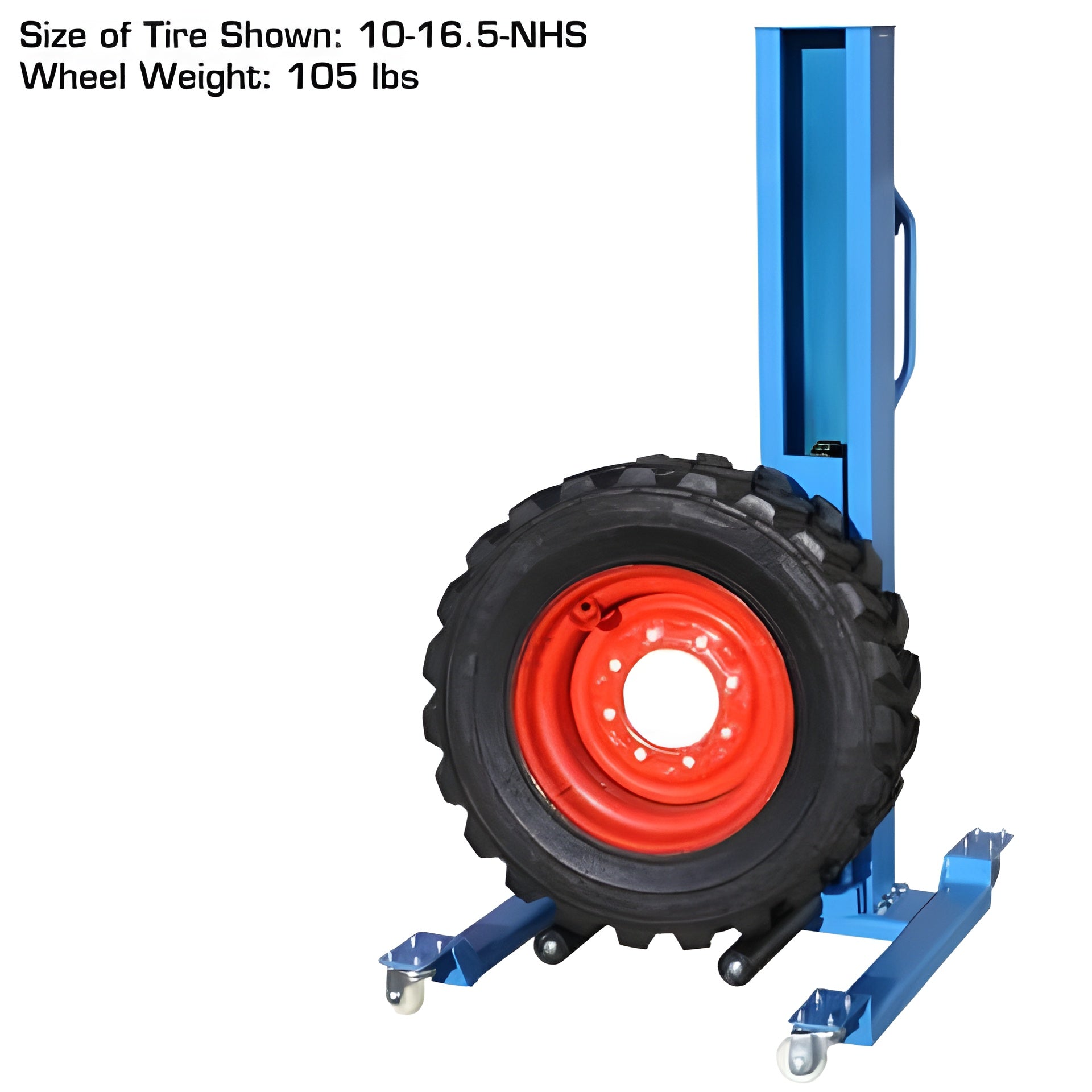

Atlas Portable Offset Pneumatic Wheel Lift
The Atlas Offset Pneumatic Portable Wheel Lift (AEZWL-2) is the perfect solution to prevent back injuries when lifting large wheel assemblies onto the shaft of a wheel balancer, onto a tire changer turntable, or even removing or installing tires on a car raised on a scissor or 2-Post lit.
Todays wheels and tires are getting bigger and heavier. Many wheels are expensive and can be easily scratched or damaged. The Atlas Offset air operated wheel lift will lift up to a 180 pound wheel easily and allow the operator to maneuver the wheel into the correct position without fear of wheel damage or back strain. The AEZWL-2s smooth air operation requires only 116-145 PSI air pressure and the 4 swivel casters make it easy to move and position where needed.
Features
- 180 lb. Capacity
- Offset Design with roller arms making it easy to position the wheel to line up with lug bolts

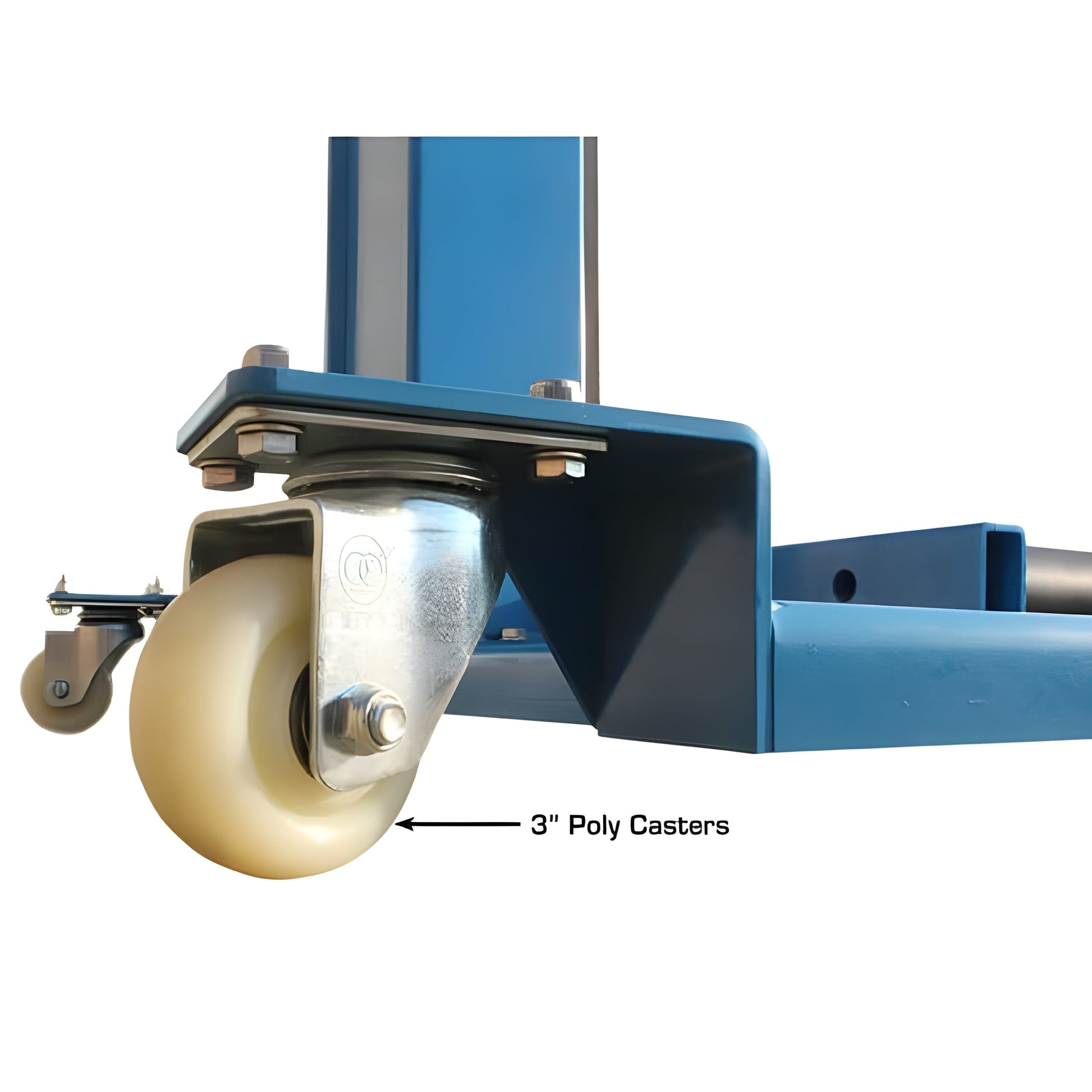

- 3" Poly Casters

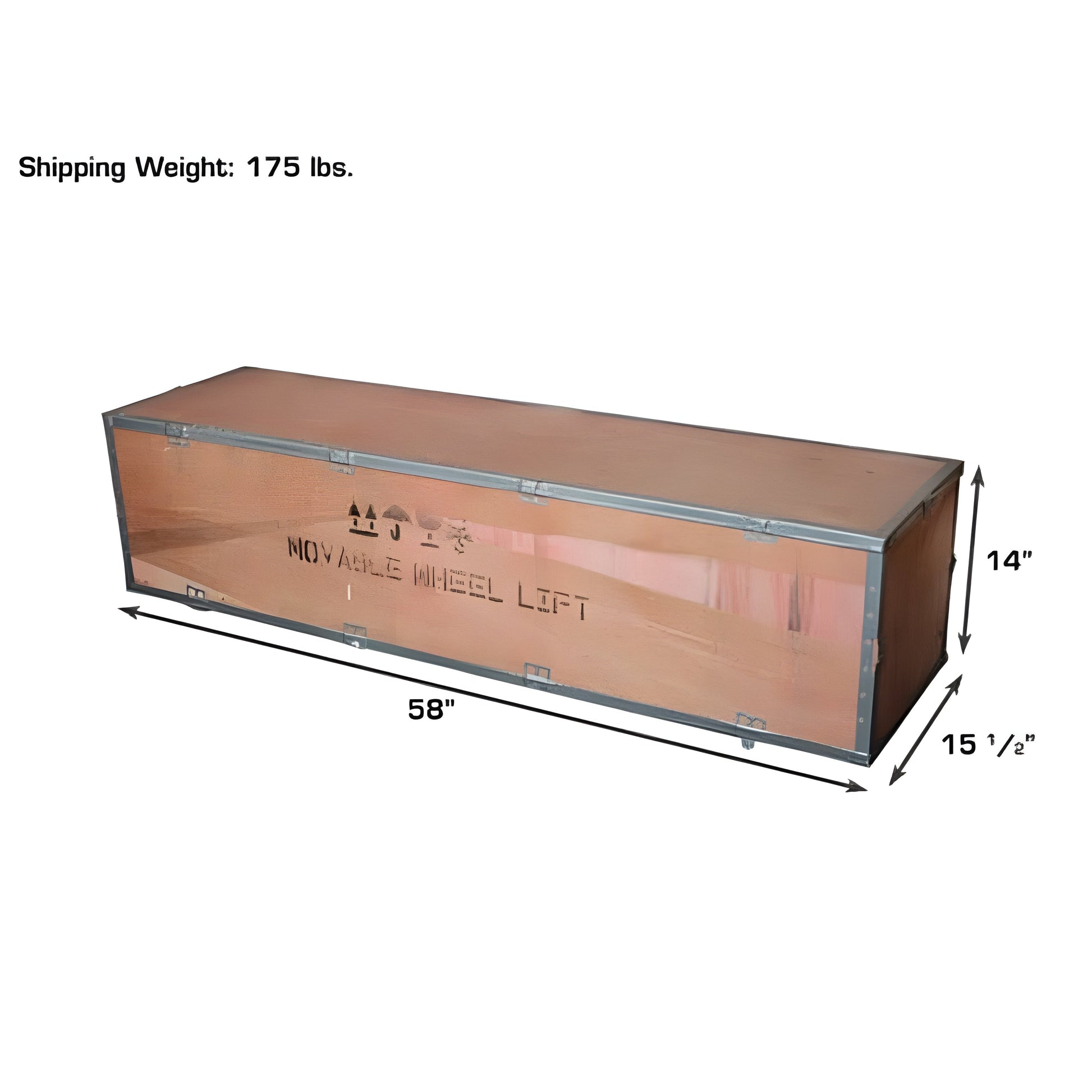

- Shipping Dimensions: 58" x 14" x 15 1/2"
Specifications
| Atlas Automotive Equipment |
|
| Atlas AEZWL-2 Pneumatic Portable Wheel Lift Specifications |
|
| Capacity |
|
| 180 LBS. |
|

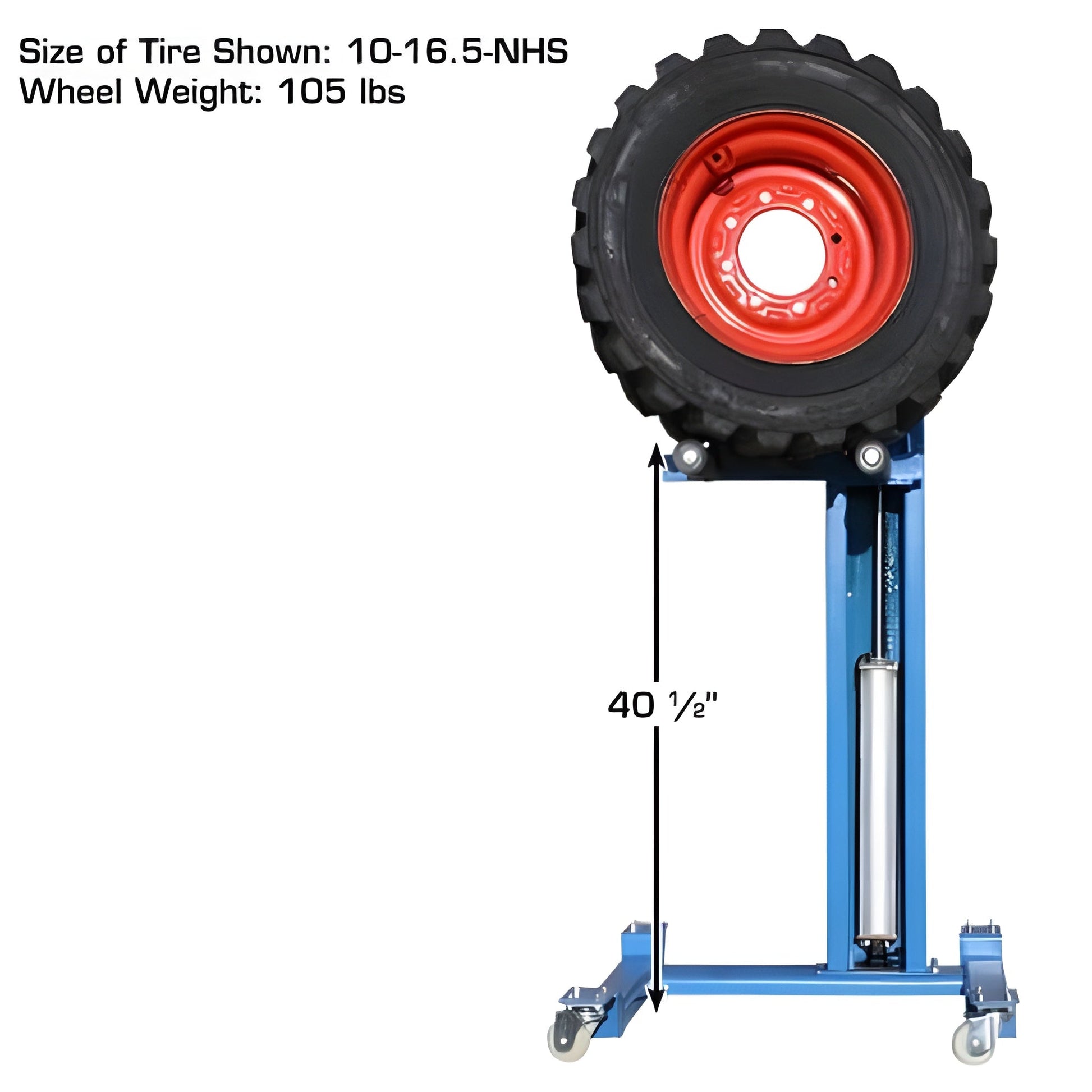

| Max. Lifting Height |
|
| 40 1/2" |
|
| Min. Lifting Height |
|
| 5 1/2" |
|
| Arm Length |
|
| 12" |
|
| Distance Between Arms |
10" |

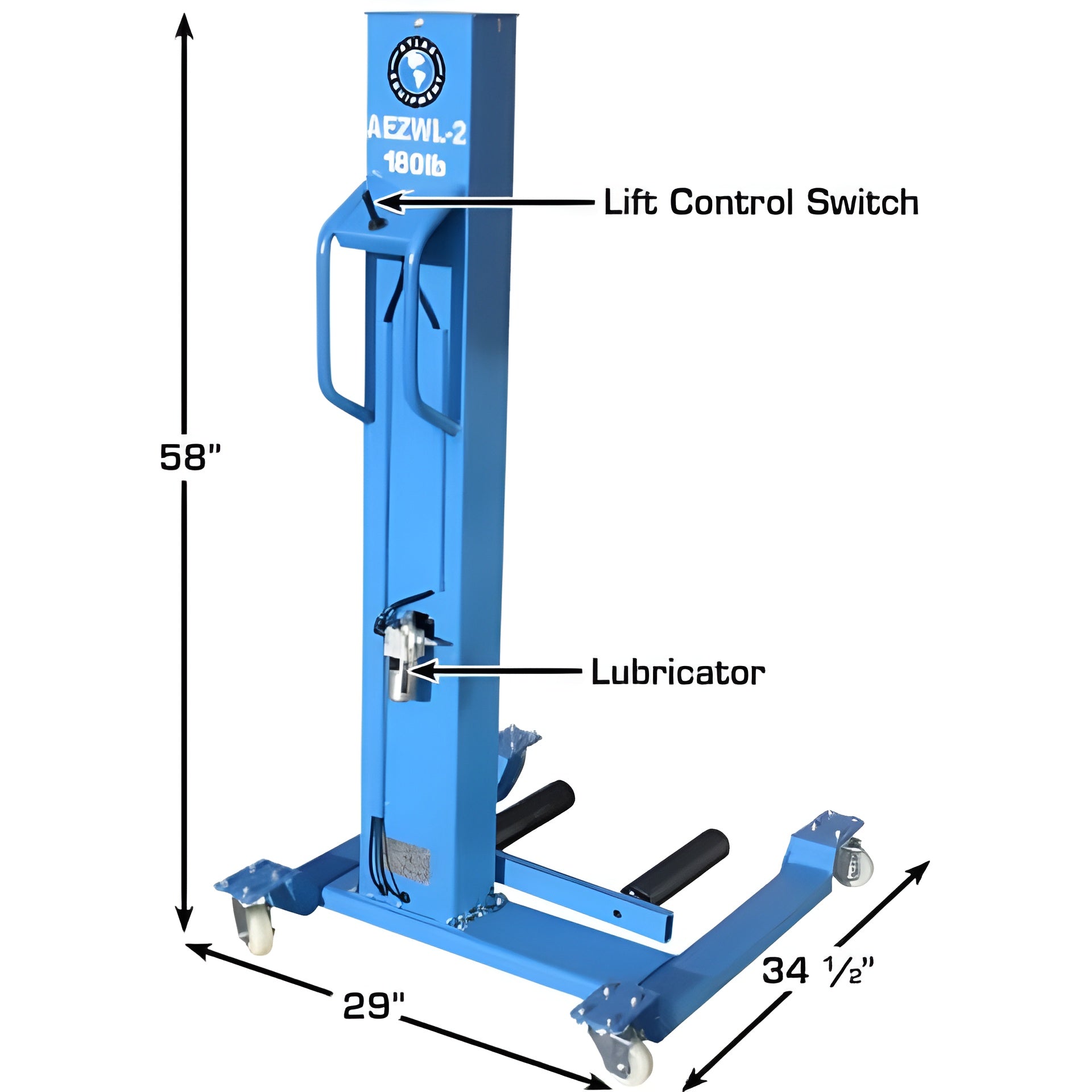

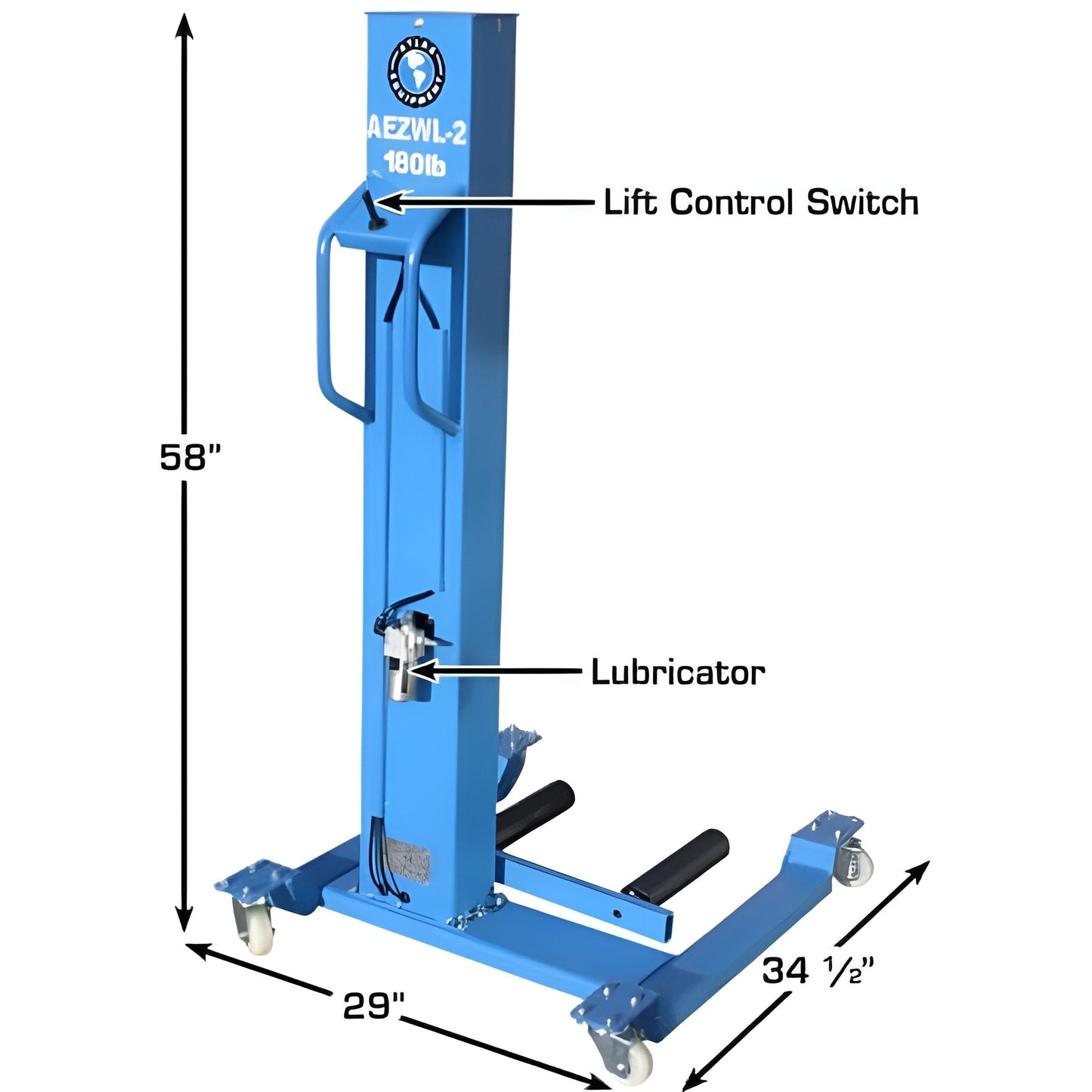

| Overall Height |
67 3/4" |
| Overall Width |
29" |
| Overall Depth |
34 1/2" |
| Required Air Pressure |
116-145 psi |
| Shipping Weight |
175 LBS. |
Manual
Atlas Offset Pneumatic Portable Wheel Lift Manual
What our Expect Think
-
180 LB Lifting Capacity: Easily lifts and positions wheels for tire changes and maintenance.
-
Offset Pneumatic Design: Provides precise control and reduces strain on technicians.
-
Portable & Lightweight: Easy to maneuver around the shop with smooth-rolling wheels.
-
Hands-Free Operation: Foot pedal controls allow for effortless lifting and positioning.
-
Durable Construction: Heavy-duty steel frame ensures long-lasting use.
-
Ergonomic Efficiency: Reduces manual lifting stress, improving safety and productivity.
Q&A
Q: What is the weight capacity of the Atlas AEZWL-2 Wheel Lift?
A: It supports up to 180 lbs, ideal for lifting and positioning wheels with ease.
Q: Is it pneumatic or manual?
A: It operates on a pneumatic system for effortless lifting.
Q: What type of wheels can it handle?
A: It accommodates various wheel sizes, making tire mounting and removal more efficient.
Q: Is it portable?
A: Yes, it has a compact design with wheels for easy maneuverability in the shop.
Q: What is the offset design for?
A: The offset arm helps position wheels precisely for safer and more ergonomic lifting.
Maintenance Tips
-
Daily Inspection – Check for air leaks, loose fittings, and worn components.
-
Lubrication – Keep moving parts lightly lubricated for smooth operation.
-

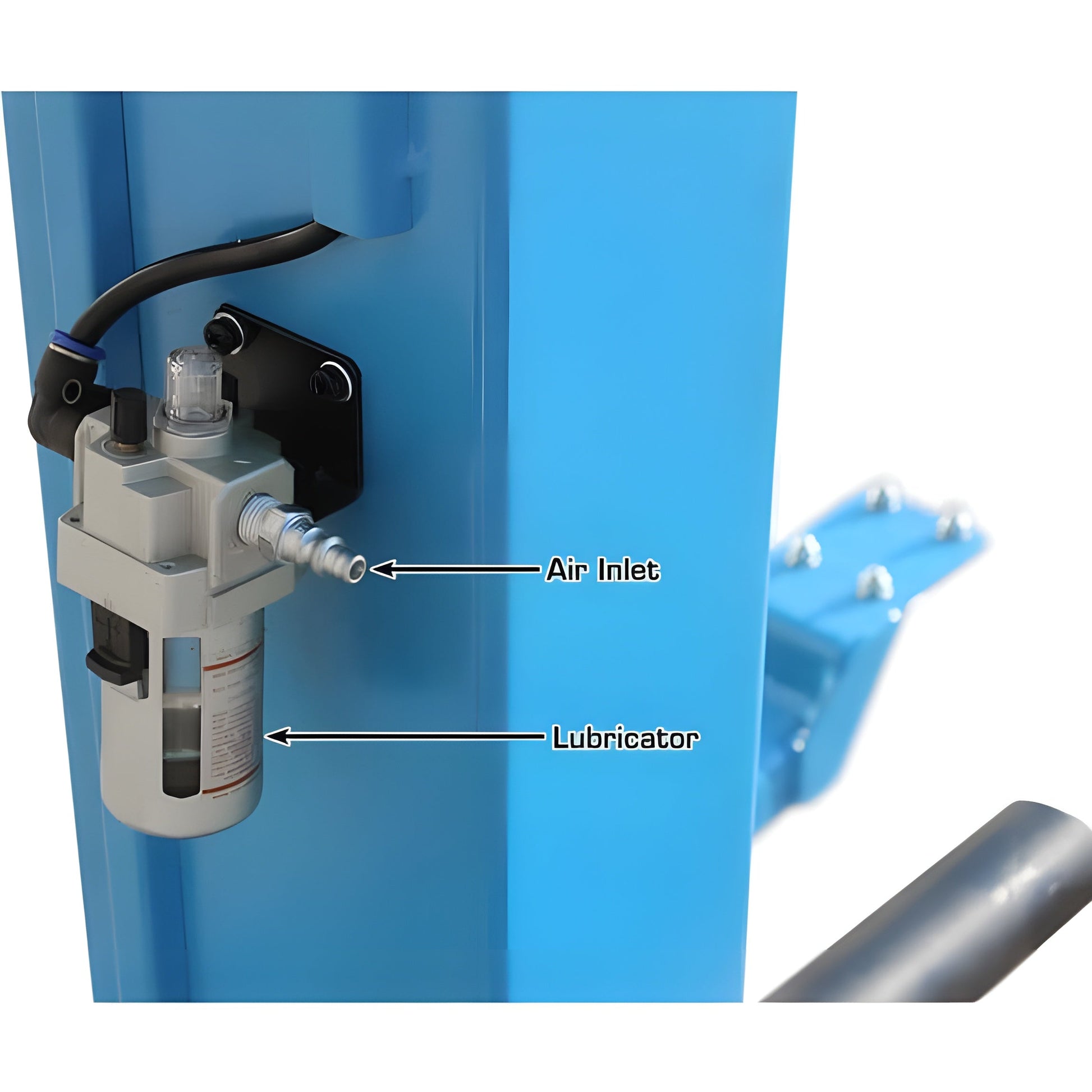

Air System – Ensure proper air pressure and check hoses for wear or leaks.
-
Fasteners – Tighten bolts and connections regularly to prevent loosening.
-
Storage – Store in a dry area to avoid moisture buildup and rust.
-
Annual Check-Up – Inspect for worn-out parts and replace as needed.
